USER MANUAL CEMO34CS2 CONTINENTAL EDISON

2. Warning: For safety reasons, any

maintenance or repairs requiring removal of a part providing protection against microwave energy must always be performed by a qualified person.

WARNING: Liquids and other

foods must not be heated in sealed containers since they are liable to explode.

3. This appliance can be used by

children aged from 8 years and above and persons with reduced physical; sensory or mental capabilities or lack of experience and knowledge if thy have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved. Children shall not play with the appliance. EN-24. Make sure the device and the power cable are out of reach of children under 8 years.

5. Do not use utensils other than those

adapted to the microwave oven.

6. The oven should be cleaned

regularly and any deposit of food should be eliminated.

7. Please read and follow these

instructions: "PRECAUTIONS TO

10. Do not overcook food.

Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

8. When heating food in plastic or paper

containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is emitted, switch off or

unplug the appliance and keep the door closed in order to stifle any flames. EN-3(such as bread, cookies, etc.) in the oven.

emove all fasteners and metal handles of the bags / containers of paper or plastic before placing them in the oven.

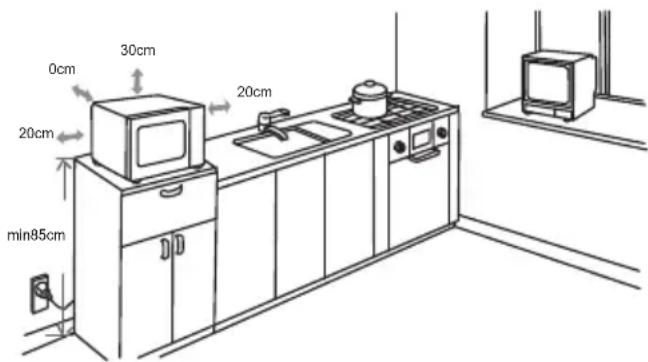

13. Install or position the oven respecting

mandatory installation instructions. Refer to the section "Installation" on page 11.

The boiled eggs and raw eggs should in no case be heated in a microwave oven with their shell since they may explode, even after heating in microwave oven is completed.

15. This device is intended solely for

16. If the power cable is damaged, it must

be replaced by an authorized service center or a similarly qualified person to avoid any accident.

17. Do not use and do not store the

11. Do not use the oven for storing food

or containers. Do not store food EN-419. Accessible surfaces can be subjected to high temperatures during operation. The surfaces may become hot during use.

20. Do not leave the cable hanging

from one edge of table or counter.

baby jars should absolutely be mixed or shaken after heating in a microwave oven, and the contents of the temperature should be checked before consumption.

23. Heated liquids in microwave waves

can boil suddenly after being baked. Handle containers with care.

24. The device is not designed for use

with an external timer or a separate remote-control system. The oven should be cleaned regularly and any food deposits removed. 18.Do not use this oven near a plac e where there is water , in a wet basement or near a swimming pool. EN-525. Accessible parts may be subjected to high temperatures during operation. The young children must be kept away.

27. The unit is heated to a high

temperature during operation. B

careful not to touch the resistors

ocated inside the oven.

28. WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching the heating elements. Children under 8 must

kept away sound if they are constantly m onitored. The back of the device must be29. placed against a wall.

30. The microwave oven should not be

installed in a closet. Do not use a steam cleaner for cleaning the microwave oven. EN-6clothes, heat, heaters, slippers, sponges, wet tissues and all related uses can cause a risk of injury, burning and fire.

32. Metal containers for food and

beverages should not be used in the microwave oven.

33. If the power cord is damaged, it

must be replaced by the manufacturer, its service agent or qualified persons to avoid a hazard.

34. This product is intended for

indoor use only and domestic.

35. WARNING: If the door or door

seals are damaged, the oven must not be operated until it has been repaired by a competent person.

36. WARNING: it is hazardous for

anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which give protection against expose to microwave energy

31. The microwave oven is designed to

heat food and drinks. Dry food, dry EN-7boiling; therefore, care must be taken when handling the container.

. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

37. Microwave heating of beverages

can result in delayed eruptive clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

40. This appliance is intended to be

used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.

39. Failure to maintain the oven in a

EN-8the treatment materials and equipment EDM. Class B includes the appropriate equipment for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies domestic premises.

READ CAREFULLY AND SAVE THESE

WARNING: The oven should not be used

if the door or door seals are damaged. Do it repaired by a qualified person. The unit must not be cleaned with a water jet. This product is a Group 2 ISM equipment class B. Group 2 includes all equipment ISM (Industrial, Scientific and Medical) in which radio frequency energy is intentionally generated and / or used in the form of electromagnetic radiation for EN-9A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

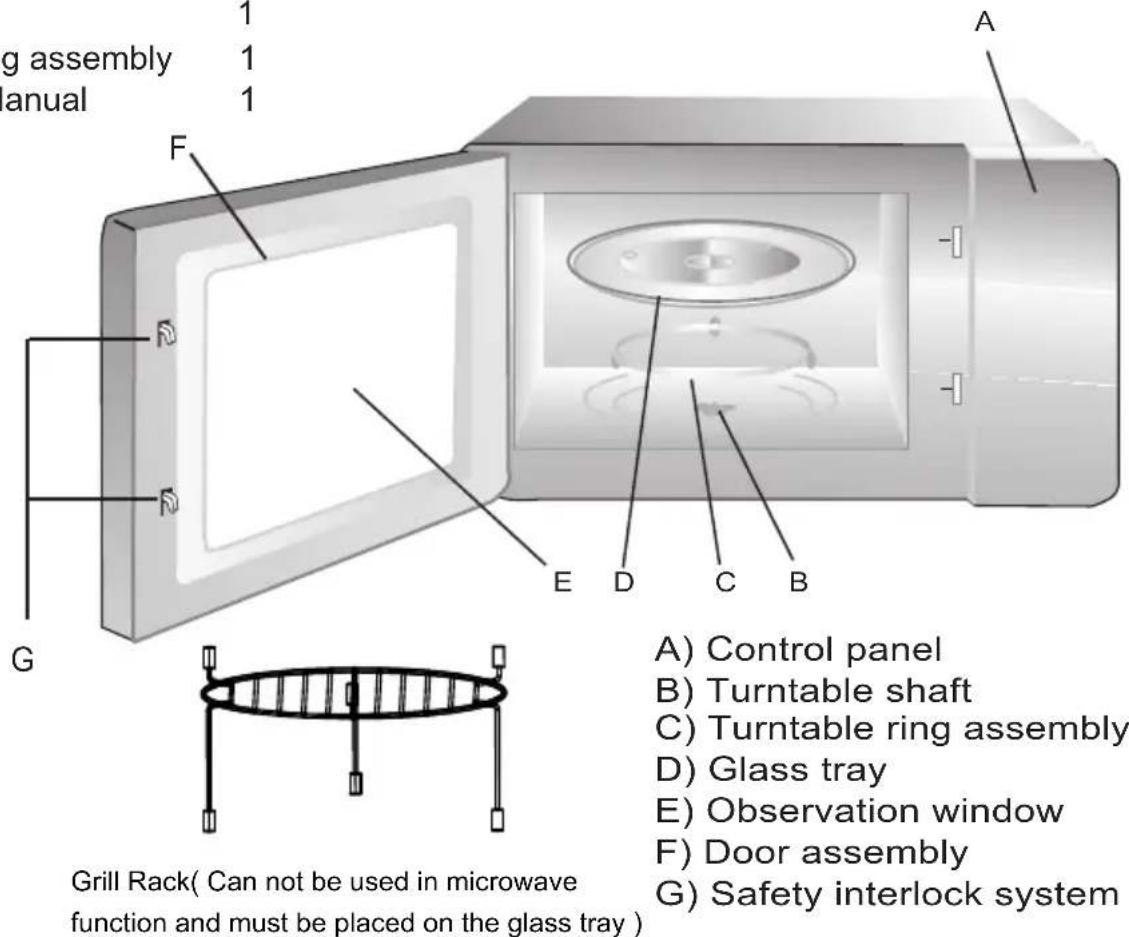

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1 Hub (underside) Glass tray Turntable ring assembly a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray

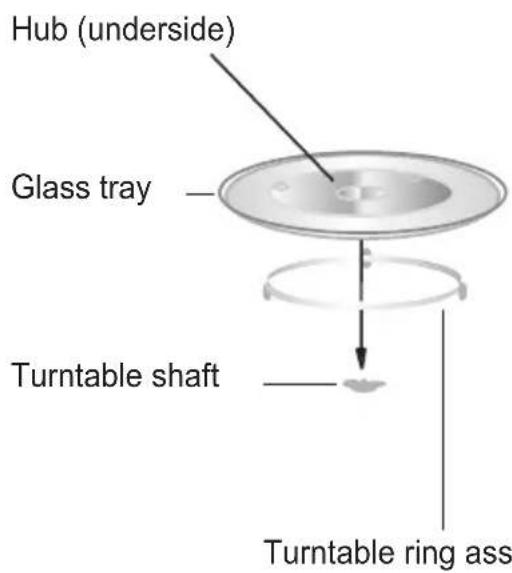

turntable ring assembly cracks or breaks, contact your nearest authorized service center. Turntable Installation Turntable shaft Grill Rack( Can not be used in microwavefunction and must be placed on the glass tray ) EN-10Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Countertop Installation Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. Installation 1.Select a level surface that provide enough open space for the intake and/or outlet vents. (1) The minimum installation height is 85cm. (2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls. (3) Do not remove the legs from the bottom of the oven. (4) Blocking the intake and/ or outlet openings can damage the oven. (5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a

standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install

oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void. 20cm 30cm 20cm min85cm 0cm The accessible surface may be hot during operation.

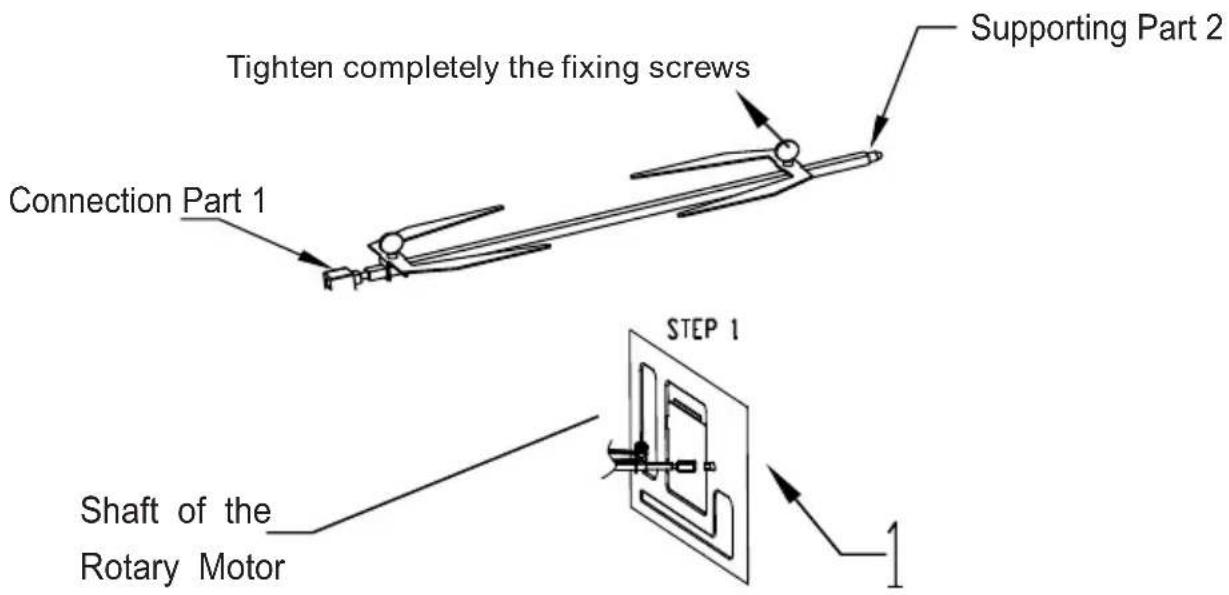

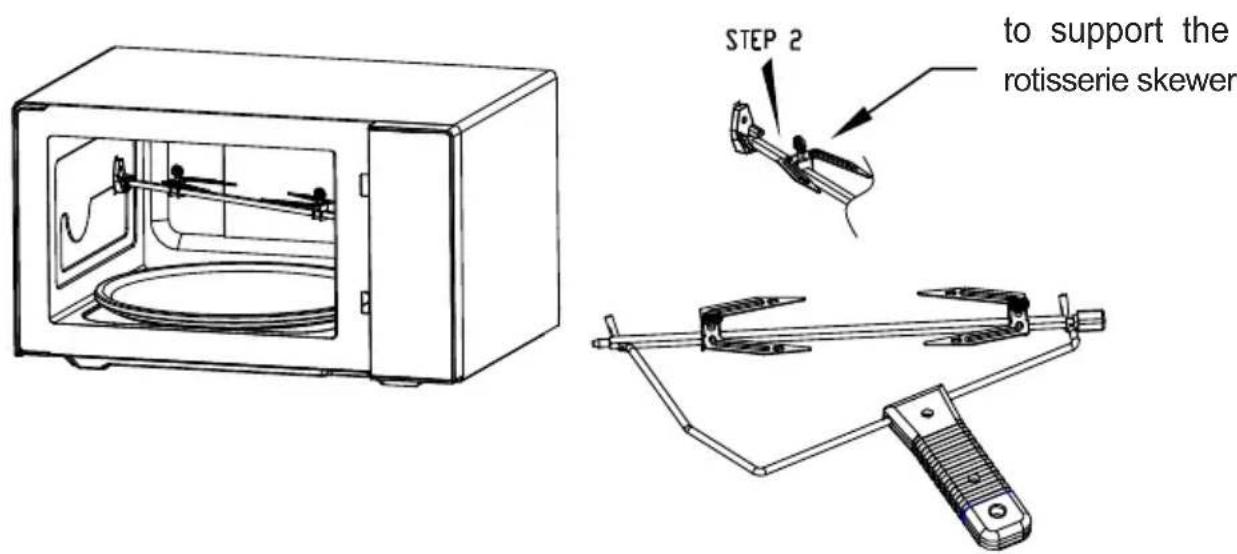

EN-11Rotisserie Skewer Installation After putting the food on the rotisserie skewer, firstly, connection part 1 of the rotisserie skewer should be aimed at the shaft of the rotary motor. Then the shaft is put into the hole of the connection part. Secondly, put the supporting part 2 of the rotisserie skewer to the upside of the rotisserie skewer which is on the profile of the cavity. There is a semicircular position in the middle of the supporting part where the food can be put on it.

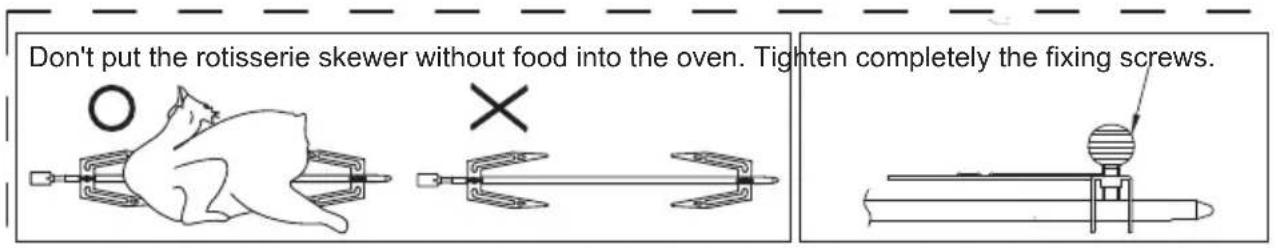

Tighten completely the fixing screws Don't put the rotisserie skewer without food into the oven. Tighten completely the fixing screws. Supporting Part 2 Connection Part 1

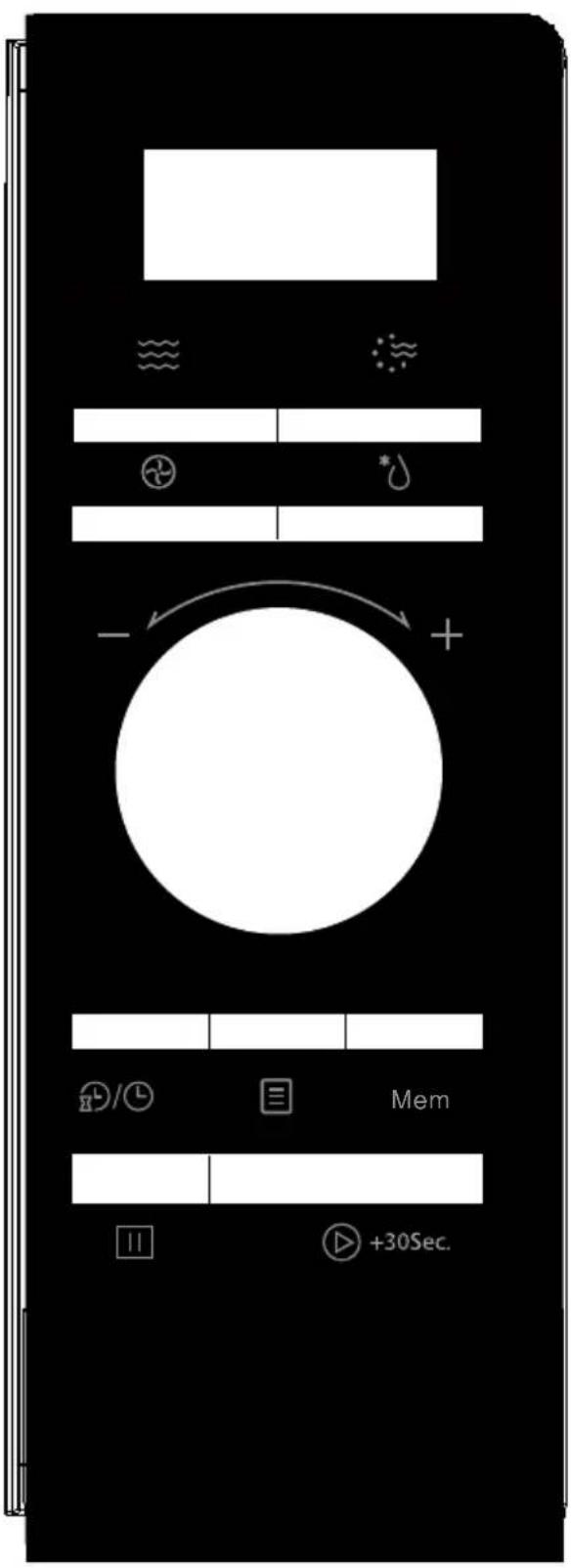

MEMORY AUTO MENU EN-13 Mem MemPress " " once , "P100" will flash. Press " " repeatedly confirm, and turn time from 0:05 to 95:00. Press " " again to start cooking.

3. Microwave Cooking

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once.

2) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour).

", the minute figures will flash.

5) Press " " to finish clock setting. ":" will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press " ", the oven

will go back to the previous status automatically.

4) Turn " " to adjust the minute figures, the input time should be within 0--59.

1) Press " " once, the screen will display 00:00.

2) Turn " " to enter the correct timer.(The maximum cooking time is 95 minutes.)

3) Press " " to confirm setting.

4) When the kitchen time is reached, the buzzer will ring 5 times.

If the clock be set(24-hour system), the screen will display the current time. Note: The kitchen Time is differ from 24-hour system,Kitchen Timer is a timer. 1.Clock Setting

twice or turn " " to choose the power you want, and "P100", "P80" "P50", "P30 " or "P10" will display for each added press. Then press " " to EN-14 " " to set cookingExample: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

4. Grill or Combi. Cooking

Press " " once, "G-1" will flash, and press " " repeatedly or turn the " " to choose the power you want, and "G ","C-1", "C-2","C-3" " to confirm, and turn " " to set cooking time from 0:05 to 95:00. Press

again to start cooking. Example: If you want to use grill power to cook for 10 minutes, you can operate the oven as the following steps. NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes Microwave Power Chart Press Microwave Power Once Twice Thrice 4 times 5 times 80% 50% 30% 10%100%

" once, "P100" will flash in the screen.

3) Press " " to confirm, and the screen displays "P 80".

4) Turn " " to adjust the cooking time until the oven displays "20:00".

5) Press " " to start cooking .

2) Press " " once again or turn" " to choose 80% microwave power .

1) Press " " once, the screen display "G-1".

2) Press " " to confirm.

3) Turn " " to adjust the cooking time until the oven displays

4) Press " " to start cooking .

Note:If half the grill time pass es, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press" " to continue cooking.

or "C-4" will display for each added press. Then press " Display P10P30P50P80P100 If no operation, the oven will continue working. EN-155. Convection Cooking(With preheating funtion)

6. Convection Cooking( Without pre-heating function)

1) Press the " " key once, "1

2) Keep pressing " " or turn " " to select the convection temperature.

3) Press the " " to confirm the temperature.

4) Press the " " to start preheating.When the

put the food into the oven. And the preheated temperature is displayed and flash.

5) Put the food into the oven and close the door.

Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)

6) Press the " " key to start cooking.

1) Press the " " key once, "1

2) Keep pressing " " or turn " " to select the convection .

3) Press the " " to confirm the temperature

4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)

5) Press the " " key to start cooking.

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven. Note:the temperature can be chosen from 150 degrees to 240 degrees. Note: a. Cooking time cannot be input until the preheating temperature arrives. If the temperature arrives, door must be opened to input the cooking time. b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states. Note:the temperature can be chosen from 1 Instructions Microwave Grill Display Convection

C-1 C-2 C-3 C-4 Note: Combination instructions temperature 50 " flash. 50 " flash. 50 degrees to 240 degrees. preheating temperature arrives, the buzzer will sound twice to remind you to EN-16

°C8. Speedy Cooking 7.Multi-Stage Cooking Two stages can be maximumly set. If one stages is defrosting, it should be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu and preheating cannot be set as one of the multi-stage.

1) In waiting state, press " " key to cook with 100% power

2) During microwave,grill,convection and combination states, press

30 seconds. Each press on the same key can increase 30 seconds.

3) In waiting state, turn "

" left to choose cooking time directly then press This program can be set as the first stage of multi-stage. Note: this function cannot work under weight defrost auto Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press " " twice, the screen will display "d -2";

2) Turn " " to adjust the defrost time of 5 minutes;

5) Press " " to confirm;

6) Turn " " to adjust the cooking time of 7 minutes;

7) Press " " to start cooking.

, kitchen timer or menu cooking. can increase

level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.

key to cook with 100% microwave power. EN-17The menu chart: Menu Weight Display

50g(with 450 cold water) 100g(with 800g cold water) 50 g 100 g 475 g

150g(with 00g cold water)

EN-1811. Defrost by Time

1) During cooking state, press " " to check the current time.

1) Press " " key twice, the oven will display "d -2"

2) Turn " " to select the cooking time. The maximum setting time is 95 minutes.

3) Press " " key to start defrosting.

1) Press " " pad once,the oven will display "d -1",.

3) Press " " key to start defrosting.

2) Turn " " to select the weight of food.At the same time, "g" will lights,

The weight should be 100-2000g.2) In cooking state, press ""," " or " ", the current

1) In waiting state, press " " or turn " " right to choose the function

and "A1","A2","A3"...."A10" will be displayed.2) Press " " to confirm the menu you need.

3) Turn " " to choose the weight of menu,and "g" indicator will light.

4) Press " " to start cooking.wanted,

Note: 1)Cake menu is under convection cooking with 1 -warm-up function, and you should preheat first following the auto menu operation, when the oven reaches the temperature, it will stop working and sound to remind opening the door to put cake in, then press " " to start cooking.

2) When roast chicken is selected and 2/3 of the time has passed, it will ring twice to tell you

over the food. You can just leave it continue. For better result, the door, and then press " " to continue cooking. to turn turn the food over, close power will be displayed for 2-3 seconds. EN-1913. Lock-out Function for Children Lock: In waiting state, press " " for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and the lock indicator will light. will display current time or 0:00. Lock quitting: In locked state, press " " for 3 seconds, there will be a long "beep" denoting that the lock is released, and the lock indicator will disapear. screen procedure. Only one or two stages can be set. " once to save the procedure.

1) If the procedure has been set, press "

2) After finishing the setting, press "

" to use it. If not, continue to set the Example: To set the following procedure as the memory procedure. To cook the food with 80% microwave power for 4minutes . The steps are as follow: " once; " to confirm; " to save the procedure.

Press " d. Turn " " to adjust the cooking time of 4 minutes; e. Press " Note: Convection cooking with preheating function cannot be set as the memory procedure. EN-20 Mem Mem MemMaterials you can use in Microwave Oven Utensils Remarks Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates and cups Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed

by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Materials to be avoided in Microwave Oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metal- trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack. EN-21Cooking Tips The following factors may influence the outcome of cooking: food arrangement Placing the thicker portions outward of the flat, the thinnest part towards the center and spread evenly. Do not overlap if possible.

Cooking Time Start cooking with a short time setting, evaluate it after the time and extend it according to real needs. Overcooking may cause smoke and burns.

Uniform cooking Foods like chicken, burger or steak should be turned once during cooking. Depending on the type of food, if necessary, move from outside to center of dish once or twice during cooking.

Expect a wait time After the end of cooking, let the food in the oven for an appropriate time, allowing them to finish cooking cycle and to cool gradually.

If the food is cooked The color and hardness of food help determine if done, including:

Steam escapes from all parts of the food, not only the edge.

Joints of poultry come off easily

Pork or poultry is no longer rare

The fish is opaque and can be cut easily with a fork.

Browning dish When using a dish browning or a self-heating container, always placing a heat resistant insulator, such as a porcelain plate, to prevent damage to the turntable and the rotating ring.

Plastic casing resistant to microwaves When cooking foods with high fat content, do not let plastic wrap contact with food because it could melt.

Resistant plastic cookware microwave Some plastic cookware from the microwave may not be suitable for cooking foods rich in fat and sugar. In addition, the preheating time specified in the instructions of the dish should not be exceeded. EN-22ATTENTION Maintenance and Cleaning

MAINTENANCE THE MICROWAVE OVEN

The oven should be cleaned regularly and any food residue should be removed systematically.

Unplug the unit before cleaning. Never immerse the device in water or other liquid to clean it.

If the oven is not regularly cleaned, the walls may deteriorate; this phenomenon is potentially dangerous and can shorten the furnace life.

No part of the oven should not be cleaned with strong detergents, gasoline, abrasive powder or with a wire brush.

The cover of the waveguide should not be removed.

When the microwave oven has been used for a long time, some odor can persist in the furnace; Here are 3 ways to eliminate them:

Place several lemon slices in a cup, then turn the oven on with ahigh heat for 2 to 3 mi nutes.

Place a cup of tea in oven, then turn the oven on with high heat.

Put some orange peel into the oven and turn the oven on with a high heat for 1 minute.

WARNING: Children must not be allowed to use the oven

without supervision if they have been explained in detail its operation an

they are fully aware of the risks of Improper use of the oven. CLEANING TIPS It provides instructions for cleaning door seals, cavity inner and adjacent parts. Exterior: Wipe the outside of the oven with a damp cloth. WARNING EN-23Door: Clean the door and the observation window by the rubbing with a soft damp cloth. Rub the door seals and adjacent parts to remove any splashes or other dirt. Wipe the control panel with a damp cloth. Interior walls: Wipe the interior walls with a damp cloth. Wipe the cover of the waveguide in order to remove all possible traces of splashing. Turntable / rotating ring / axis of rotation: Wash with water and mild soap. Rinse with clear water and dry completely. Repair Check the following before calling for service.

Place a cup of water (about 150 ml) in the oven and close the door completely. The oven light goes off when the door is closed. Allow the oven to run for 1 minute.

Does the cooling fan work? (Place your hand over the rear ventilation openings.)

The turntable is running? (The turntable is rotatable clockwise or counterclockwise. This is normal.)

The water in the oven is warm? If the answer to any of these questions is no, check your outlet and fuses the electrical panel. If the wall outlet and fuses function normally, CONTACT THE AUTHORIZED REPAIR CENTER NEAREST. Safety instructions for repair Warning:

The high voltage capacitor remains charged after disconnection. Short-circuit the negative terminal of the high voltage capacitor with the oven frame (using a screwdriver) to discharge the capacitor before reaching the furnace.

During repairs where the parts listed below can be removed, it can give access to potentials above 250V with respect to the earth.

High Voltage Transformer

The following situations can cause excessive exposure to microwave for repair. Incorrect assembly of the magnetron. Incorrect assembly of the door locks, door hinges or door. Incorrect assembly of the switch supports. The door, the door seal or enclosure has been damaged. We disclaim any liability for defects due to misuse of the apparatus and damage repair and maintenance operations by any third party due to or installation of unauthorized parts. Specifications Reference: CEMO34CS2 Model: AC034AR3-S10E Rated Voltage: 230V~ 50Hz Rated Input Power(Microwave)： 1550W Rated Input Power(Grill): 11 Oven Capacity: 34L Turntable Diameter: ø 315mm External Dimensions: 520x496x315mm Net Weight: Approx. 18.1 kg 00W Rated Input Power(Convection): 2500W EN-25Troubleshooting WARNING To prevent danger, it is imperative, in case of problems, to contact the customer service of the manufacturer or dealer, or a qualified electrician and approved for this type of repair. In all scenarios, the device must be returned to the electrician concerned. Normal Microwave oven interfering with the reception of your

The reception of TV and radio stations can be blurred when the microwave oven is operating. This interference is similar to that generated by small appliances such as mixers, vacuum cleaners and electric fans. This is normal. Low oven light During a cooking microwave at low power, the oven light can lower intensity. This is normal. Steam accumulation on the door of the hot air escapes from the ventilation openings During cooking, steam emerges foods. This is mainly discharged through the vent holes but a small amount collects on cold surfaces such as the oven door. This is normal. Four accidentally used without food inside. The use of the vacuum furnace will not damage if it is short. But this is not recommended. Problem Possible Cause Solution The oven does not work (1) The power cord is not properly connected. Unplug the unit, wait 10 seconds and then reconnect it. (2) Problem with the electrical outlet. Try the outlet by plugging in other electrical appliances. The oven is not heating (3) The door is not closed. Close the door. The glass turntable makes noise when the microwave oven is in operation (4) The bearing surface of the castors of the ring plate and the furnace bottom are dirty. Refer to paragraph Cleaning your microwave oven for cleaning dirty surfaces. This device complies with EC guidelines for radio interference suppression and low voltage safety and meets the current requirements for safety. Subject to technical modifications. EN-26The warranty does not cover product wear parts, no problems or damage resulting from: (1) Surface damage due to normal wear of the product; (2) Defects or damage due to contact of the product with liquid and due to corrosion caused by rust or the presence of insects; (3) Any incident, abuse, misuse, modification, unauthorized removal or repair; (4) Any improper maintenance operation, not in accordance with product instructions or connection to improper voltage. (5) Any use of accessories not supplied or approved by the manufacturer. The warranty is void if the elimination of plate and / or the product serial number. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. A.M.C. 123 quai Jules Guesde 94400 VITRY SUR SEINE France CONTINENTAL EDISON 120-126 Quai de Bacalan CS11584
