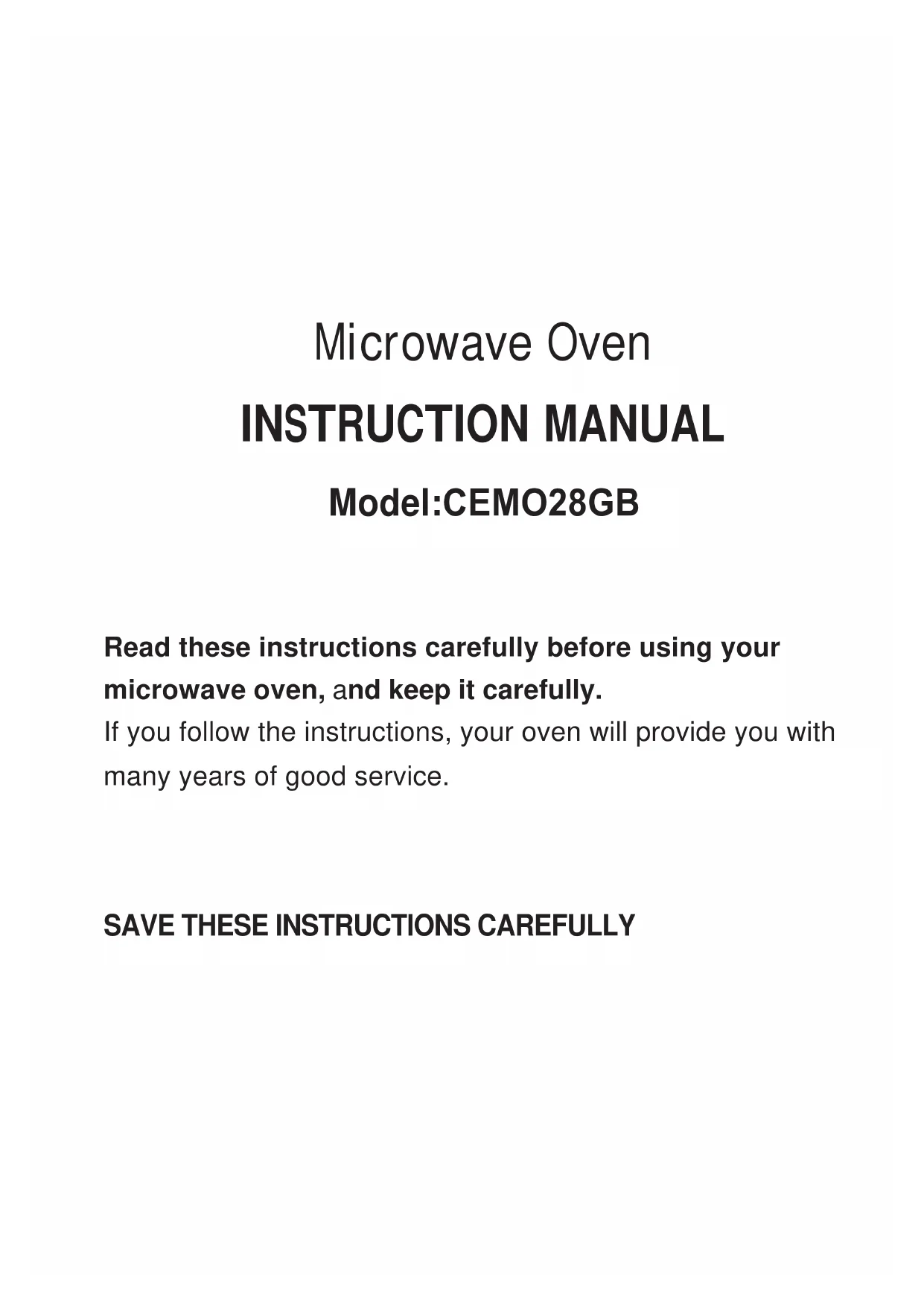

USER MANUAL CEMO28GB CONTINENTAL EDISON

FR-26SAVE THESE INSTRUCTIONS CAREFULLY

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. INSTRUCTION MANUAL Microwave Oven Model:CEMO28GBEN-2 Important Safety Instructions To reduce the risk of fire, electric shock, personal injury and excessive exposure to microwave energy when using the device, observe a number of basic precautions, including which:

2. Warning: For safety reasons, any

maintenance or repairs requiring removal of a part providing protection against microwav

energy must always be performed by a qualified person.

WARNING: Liquids and other

foods must not be heated in sealed containers since they are liable to explode.

3. This appliance can be used by

children aged from 8 years and above and persons with reduced physical; sensory or mental capabilities or lack of experience and knowledge if thy have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved. Children shall not play with the appliance.EN-3

4. Make sure the device and the power

cable are out of reach of children under 8 years.

5. Do not use utensils other than those

adapted to the microwave oven.

6. The oven should be cleaned

regularly and any deposit of food should be eliminated.

7. Please read and follow these

instructions: "PRECAUTIONS TO

10. Do not overcook food.

Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

8. When heating food in plastic or paper

containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is emitted, switch off or

unplug the appliance and keep the door closed in order to stifle any flames.EN-4 (such as bread, cookies, etc.) in the oven.

12. Remove all fasteners and metal

handles of the bags / containers of paper or plastic before placing them in the oven.

13. Install or position the oven respecting

mandatory installation instructions. Refer to the section "Installation" on page 10.

The boiled eggs and raw eggs should in no case be heated in a microwave oven with their shell since they may explode, even after heating i

microwave oven is completed.

15. This device is intended solely for

16. If the power cable is damaged, it must

be replaced by an authorized servic

center or a similarly qualified person to avoid any accident.

11. Do not use the oven for storing foo

or containers. Do not store foodEN-5

19. Accessible surfaces can be

subjected to high temperatures during operation. The surfaces may become hot during use. Be sure to keep it away power cable from hot surfaces. Do not cover any of the oven vents.

20. Do not leave the cable hanging

from one edge of table or counter.

and baby jars should absolutely be mixed or shaken after heating in a microwave oven, and the contents of the temperature should

checked before consumption.

23. Heated liquids in microwave waves

can boil suddenly after being baked. Handle containers with care.

24. The device is not designed for us

with an external timer or a separate remote-control system. The oven should be cleaned regularly and any food deposits removed. 18.Do not use this oven near a plac

where there is water, in a wet basement or near a swimming pool.EN-6

to high temperatures during operation. The young children must be kept away.

27. The unit is heated to a high

temperature during operation. Be careful not to touch the resistors located inside the oven.

28. WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching the heating elements. Children under 8 must be kept away sound if they are constantly monitored. The back of the device must be 29. placed against a wall.

30. The microwave oven should not be

installed in a closet. Do not use a steam cleaner for cleaning the microwave oven.EN-7 clothes, heat, heaters, slippers, sponges, wet tissues and all relat

uses can cause a risk of injury, burning and fire.

32. Metal containers for food and

beverages should not be used in the microwave oven.

33. If the power cord is damaged, it

must be replaced by the manufacturer, its service agent or qualified persons to avoid a hazard.

34. This product is intended for

indoor use only and domestic.

35. WARNING: If the door or door

seals are damaged, the oven must not be operated until it has been repaired by a competent person.

36. WARNING: it is hazardous for

anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which give protection against expose to microwave energy

31. The microwave oven is designed to

heat food and drinks. Dry food, dryEN-8

boiling; therefore, care must be taken when handling the container.

38. The contents of feeding bottles

and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

37. Microwave heating of beverages

can result in delayed eruptive clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

40. This appliance is intended to be

used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.

39. Failure to maintain the oven in aEN-9

the treatment materials and equipment EDM. Class B includes the appropriate equipment for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies domestic premises.

READ CAREFULLY AND SAVE THESE

WARNING: The oven should not be used

if the door or door seals are damaged. Do it repaired by a qualified person. The unit must not be cleaned with a water jet. This product is a Group 2 ISM equipment class B. Group 2 includes all equipment ISM (Industrial, Scientific and Medical) in which radio frequency energy is intentionally generated and / or used in the form of electromagnetic radiation forEN-10 Installation

1. Select a level surface with a

sufficient open space for the inlet openings and / or air outlet.

(1) To ensure adequate ventilation, the distance between the back of the microwave and the wall should be at least 10 cm, the side wall should be at least 5 cm and the clearance above the surface higher by at least 20 cm. the distance between the microwave and the soil should be at least 85 cm. (2) Do not remove the feet underneath the microwave oven. (3) Block the inlet openings and / or air outlet can damage the oven. (4) Make sure that the microwave oven is as far away as possible from TVs and radios. Using a microwave oven can cause interference disturbing the reception of your radio or television.

2. Plug your oven into a wall outlet. Make

sure that the voltage and frequency of the current itEN-12 provides are identical to those indicated on the nameplate of the unit.

WARNING: Do not install oven over a

cooktop or other heat producing device. If the oven is installed near or above a heat source, it may cause damage and void your warranty.EN-13 Description of your Product Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray x 1 Turntable ring assembly x 1 Instruction Manual x 1

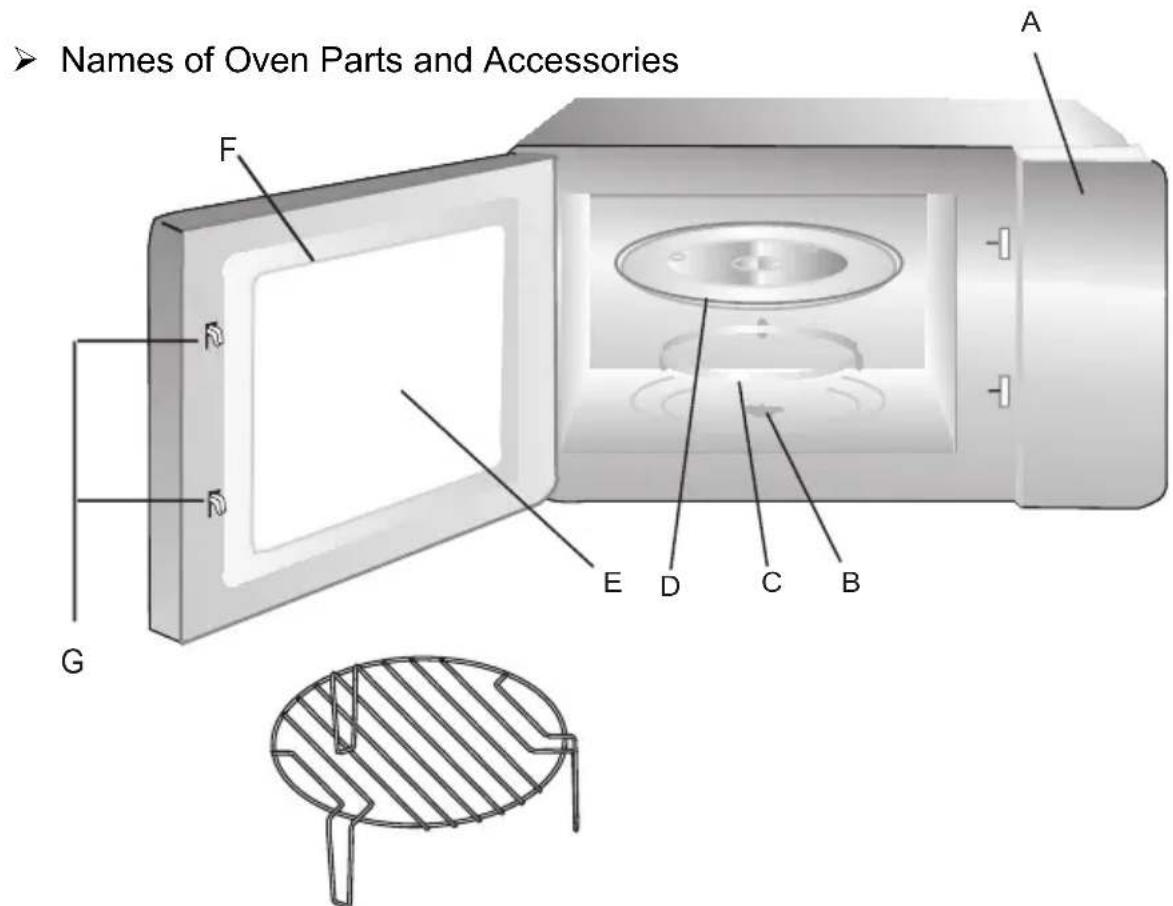

Names of Oven Parts and Accessories Grill Rack (Cannot be used in microwave function and must be placed on the glass tray)

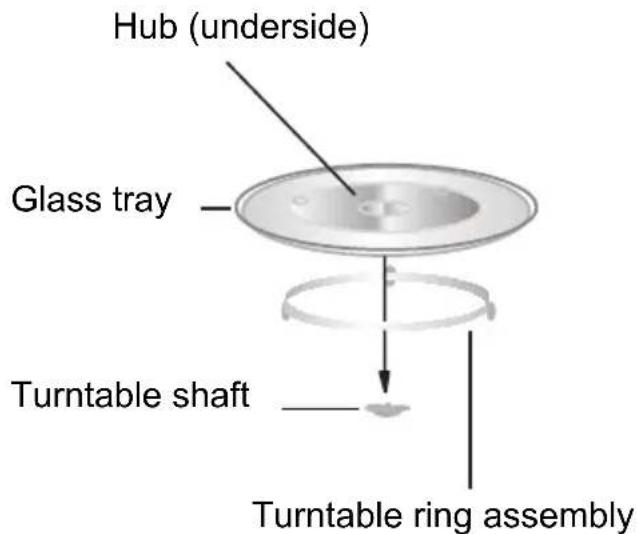

Turntable Installation Hub (underside) Glass tray Turntable shaft Turntable ring assembly

Never place the glass tray upside down. The glass tray should never be restricted.

Both glass tray and turntable ring assembly must always be used during cooking.

All food and containers of food are always placed on the glass tray for cooking.

If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. WARNING

First placing the rotating ring

Mounting the turntable about the axis of rotation and to ensure it is correctly positioned. Control panel See below detail (the control panel is subject to change without notice) Waveguide cover It is located inside the microwave oven, next to the control panel wall. WARNING Do not remove the waveguide coverMicrowave Grill/Combi. Weight Defrost Time Defrost Stop/Clear Kitchen Timer/Clock

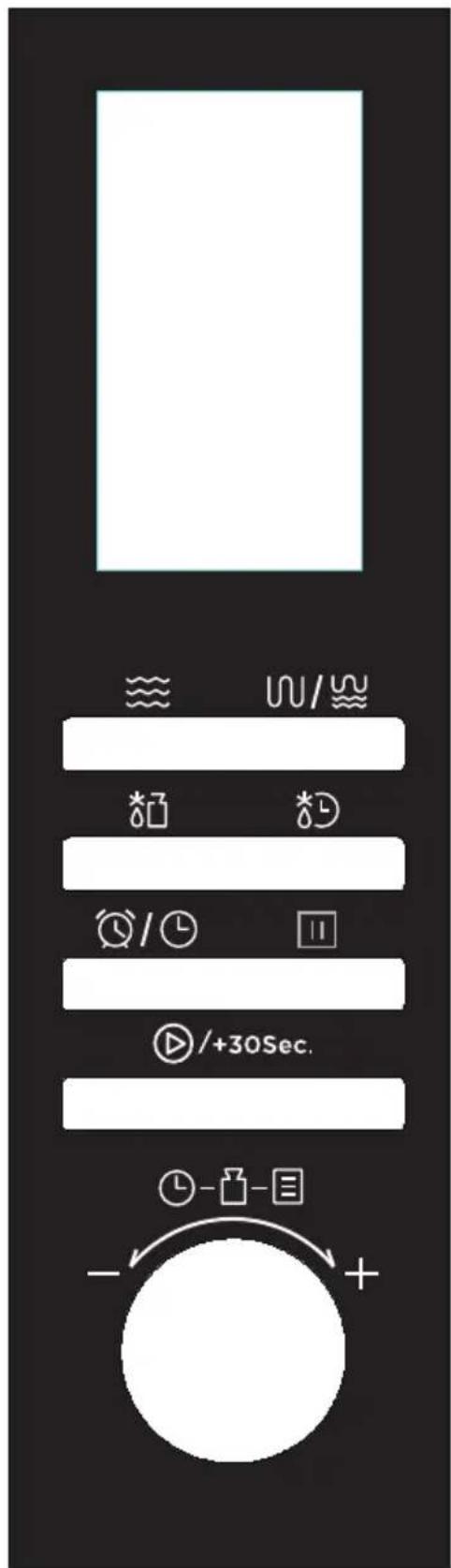

Control panel EN-15EN-16 Operation Instructions

Clock Setting When the microwave oven is electrified, the screen will display "0:00", buzzer

Press " " twice to select clock function, the hour figures will flash.

Press " ", the minute figures will flash.

Turn “ ” to adjust the minute figures, the input time should be within 0--59.

Press " " to finish clock setting. ":" will flash, and the time will light. Note: 1) The clock will not work if it is not set when powered.

2) During the process of clock setting, if you press " ", the

oven will go back to the previous status automatically.

Microwave Cooking Press " " the screen will display"P100", and press repeatedly or turn “ ” to choose the power you

“ to confirm, and turn “ ”to set cooking time from 0:05 to 95: 00. Pre ss " " again to start cooking. Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

" to choose 80% Press " " once again or turn" microwave power.

Press " " to confirm, and the screen displays "P-80". "P50","P30" "P10" will display for each added press. Then press +30Sec. +30Sec. +30Sec.EN-17

Turn “ ” to adjust the cooking time until the oven displays "20:00".

Press " " to start cooking.Note: the step quantities for the adjustment time of the coding switch are as follow: 0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes Microwave Power Chart Press Once Twice Thrice 4 times 5 times Microwave Power 100% 80% 50% 30% 10%

Grill or Combi. Cooking Press " " once, the screen will display"G", and press " " repeatedly or turn the “ ” to choose the power you want, and"G" ,"C-1" or "C-2" will display for each added press. Then press " " to confirm, and turn “ ” to set cooking time from cooking. 0:05 to 95:00. Press " " again to start Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps. Press " " once, the screen display "G".

Press " " repeatedly or turn" " to choose combi. 1 mode.

Press " " to confirm, and the screen displays "C-1".

Turn “ ” to adjust the the cooking time until the oven displays "10:00".

Press " " to start cooking. Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press " " to continue cooking.If no operation, the oven will continue working. +30Sec. +30Sec. +30Sec. +30Sec. +30Sec. +30Sec.EN-18

In waiting state, Press " " to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.

In microwave, grill cooking or time defrost state, each press of " can increase 30 seconds of cooking time.

In waiting state, turn " left to power, set cooking time with 100% microwave then press "

Press " " , and the oven will display "dEF1".

Turn “ ” to select the weight of food from 100 to 2000 g.

Press " " to start defrosting.

Press " " , and the oven will display "dEF2".

Turn “ ” to select the defrost time. The MAX time is 95 minutes.

Press " " to start defrosting. The defrost power is P30 , and it cannot be changed. GrillPower 100% 45% 64%

Press " " once, the screen will display 00:00.

Turn “ ” to enter the correct timer. (The maximum cooking time is 95 minutes.)

Press " " to confirm setting. +30Sec. +30Sec. " +30Sec. +30Sec. +30Sec. +30Sec.EN-19 Example: If you want to use "Auto Menu" to cook fish for 350g.

Turn “ ” clockwise till "A-6" display.

Press " " to confirm.

Turn “ ” right to choose the menu, and "A-1" to "A-8" will display.

Press " " to confirm.

Turn “ ” to choose the default weight as the menu chart.

Press " " to start cooking.

When the kitchen time is reached, the buzzer will ring 5 times. If the clock be set (24-hour system), the screen will display the currenttime.Note: The kitchen Time is different from 24-hour system, Kitchen Timer is a timer. +30Sec. +30Sec. +30Sec. +30Sec.EN-20

Multi-section cooking At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, it is applied automatically first. The alarm will ring once after each stage and before the start of the next stage. Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

Press " " , and the oven will display "dEF2".

Press " " once again or turn “ ” to choose 80% microwave power.

Press " " to confirm, and the screen displays "P-80".

Press " " to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times. A-5 Vegetable A-7 Pasta A-8 Popcorn 200 g 300 g 400 g 50g(with 450 100g(with 800 g cold water) 1 cup(120 ml) 2 cups(240 ml) 3 cups(360ml) 50 g 85 g A-6 Beverage

In states of microwave, grill cooking, press " ", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;

In cooking state, press " " to inquire the time and the time will display for 3 se conds.

Lock-out Function for Children

Lock: In waiting state, press " for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the screen will display

Lock quitting: In locked state, press " " for 3 seconds, there will be a long "beep" denoting that the lock is released.EN-22 Materials you can use in Microwave Oven Utensils Remarks Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates and cups Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed

by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Materials to be avoided in Microwave Oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metal- trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack.EN-23 Cooking Tips The following factors may influence the outcome of cooking: food arrangement Placing the thicker portions outward of the flat, the thinnest part towards the center and spread evenly. Do not overlap if possible.

Cooking Time Start cooking with a short time setting, evaluate it after the time and extend it according to real needs. Overcooking may cause smoke and burns.

Uniform cooking Foods like chicken, burger or steak should be turned once during cooking. Depending on the type of food, if necessary, move from outside to center of dish once or twice during cooking.

Expect a wait time After the end of cooking, let the food in the oven for an appropriate time, allowing them to finish cooking cycle and to cool gradually.

If the food is cooked The color and hardness of food help determine if done, including:

Steam escapes from all parts of the food, not only the edge.

Joints of poultry come off easily

Pork or poultry is no longer rare

The fish is opaque and can be cut easily with a fork.

Browning dish When using a dish browning or a self-heating container, always placing a heat resistant insulator, such as a porcelain plate, to prevent damage to the turntabl

and the rotating ring.

Plastic casing resistant to microwaves When cooking foods with high fat content, do not let plastic wrap contact wit

food because it could melt.

Resistant plastic cookware microwave Some plastic cookware from the microwave may not be suitable for cooking foods rich in fat and sugar. In addition, the preheating time specified in the instructions of the dish should not be exceeded.EN-24 ATTENTION Maintenance and Cleaning

MAINTENANCE THE MICROWAVE OVEN

The oven should be cleaned regularly and any food residue should be removed systematically.

Unplug the unit before cleaning. Never immerse the device in water or other liquid to clean it.

If the oven is not regularly cleaned, the walls may deteriorate; this phenomenon is potentially dangerous and can shorten the furnace life.

No part of the oven should not be cleaned with strong detergents, gasoline, abrasive powder or with a wire brush.

The cover of the waveguide should not be removed.

When the microwave oven has been used for a long time, some odor can persist in the furnace; Here are 3 ways to eliminate them:

Place several lemon slices in a cup, then turn the oven on with ahigh heat for 2 to 3 minutes.

Place a cup of tea in oven, then turn the oven on with high heat.

Put some orange peel into the oven and turn the oven on with a high heat for 1 minute.

WARNING: Children must not be allowed to use the oven

without supervision if they have been explained in detail its operation and they are fully aware of the risks of Improper use of the oven. CLEANING TIPS It provides instructions for cleaning door seals, cavity inner and adjacent parts. Exterior: Wipe the outside of the oven with a damp cloth. WARNINGEN-25 Door: Clean the door and the observation window by the rubbing with a soft damp cloth. Rub the door seals and adjacent parts to remove any splashes or other dirt. Wipe the control panel with a damp cloth. Interior walls: Wipe the interior walls with a damp cloth. Wipe the cover of the waveguide in order to remove all possible traces of splashing. Turntable / rotating ring / axis of rotation: Wash with water and mild soap. Rinse with clear water and dry completely. Repair Check the following before calling for service.

Place a cup of water (about 150 ml) in the oven and close the door completely. The oven light goes off when the door is closed. Allow the oven to run for 1 minute.

Does the cooling fan work? (Place your hand over the rear ventilation openings.)

The turntable is running? (The turntable is rotatable clockwise or counterclockwise. This is normal.)

The water in the oven is warm? If the answer to any of these questions is no, check your outlet and fuses the electrical panel. If the wall outlet and fuses function normally, CONTACT THE AUTHORIZED REPAIR CENTER NEAREST. Safety instructions for repair Warning:EN-26 MICROWAVE RADIATION

The high voltage capacitor remains charged after disconnection. Short-circuit the negative terminal of the high voltage capacitor with the oven frame (using a screwdriver) to discharge the capacitor before reaching the furnace.

During repairs where the parts listed below can be removed, it can give access to potentials above 250V with respect to the earth.

High Voltage Transformer

The following situations can cause excessive exposure to microwave for repair. Incorrect assembly of the magnetron. Incorrect assembly of the door locks, door hinges or door. Incorrect assembly of the switch supports. The door, the door seal or enclosure has been damaged. We disclaim any liability for defects due to misuse of the apparatus and damage repair and maintenance operations by any third party due to or installation of unauthorized parts. Specifications Reference: CEMO28GB Model: AG928E2SA Rated Voltage: 230V~ 50Hz Rated Input Power(Microwave)： 1450W Rated Input Power(Grill): 1100W Oven Capacity: 28L Turntable Diameter: ø 315mm External Dimensions: 513X423X307mm Net Weight: Approx. 15.2 kgEN-27 Troubleshooting WARNING To prevent danger, it is imperative, in case of problems, to contact the customer service of the manufacturer or dealer, or a qualified electrician and approved for this type of repair. In all scenarios, the device must be returned to the electrician concerned. Normal Microwave oven interfering with the reception of your

The reception of TV and radio stations can be blurred when the microwave oven is operating. This interference is similar to that generated by small appliances such as mixers, vacuum cleaners and electric fans. This is normal. Low oven light During a cooking microwave at low power, the oven light can lower intensity. This is normal. Steam accumulation on the door of the hot air escapes from the ventilation openings During cooking, steam emerges foods. This is mainly discharged through the vent holes but a small amount collects on cold surfaces such as the oven door. This is normal. Four accidentally used without food inside. The use of the vacuum furnace will not damage if it is short. But this is not recommended. Problem Possible Cause Solution The oven does not work (1) The power cord is not properly connected. Unplug the unit, wait 10 seconds and then reconnect it. (2) Problem with the electrical outlet. Try the outlet by plugging in other electrical appliances. The oven is not heating (3) The door is not closed. Close the door. The glass turntable makes noise when the microwave oven is in operation (4) The bearing surface of the castors of the ring plate and the furnace bottom are dirty. Refer to paragraph Cleaning your microwave oven for cleaning dirty surfaces. This device complies with EC guidelines for radio interference suppression and low voltage safety and meets the current requirements for safety. Subject to technical modifications.EN-28

The warranty does not cover product wear parts, no problems or damage resulting from: (1) Surface damage due to normal wear of the product; (2) Defects or damage due to contact of the product with liquid and due to corrosion caused by rust or the presence of insects; (3) Any incident, abuse, misuse, modification, unauthorized removal or repair; (4) Any improper maintenance operation, not in accordance with product instructions or connection to improper voltage. (5) Any use of accessories not supplied or approved by the manufacturer. The warranty is void if the elimination of plate and / or the product serial number. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. IMPORTE PAR A.M.C. 123 quai Jules Guesde 94400 VITRY SUR SEINE France LOT# : CONTINENTAL EDISON 120-126 Quai de Bacalan CS11584
