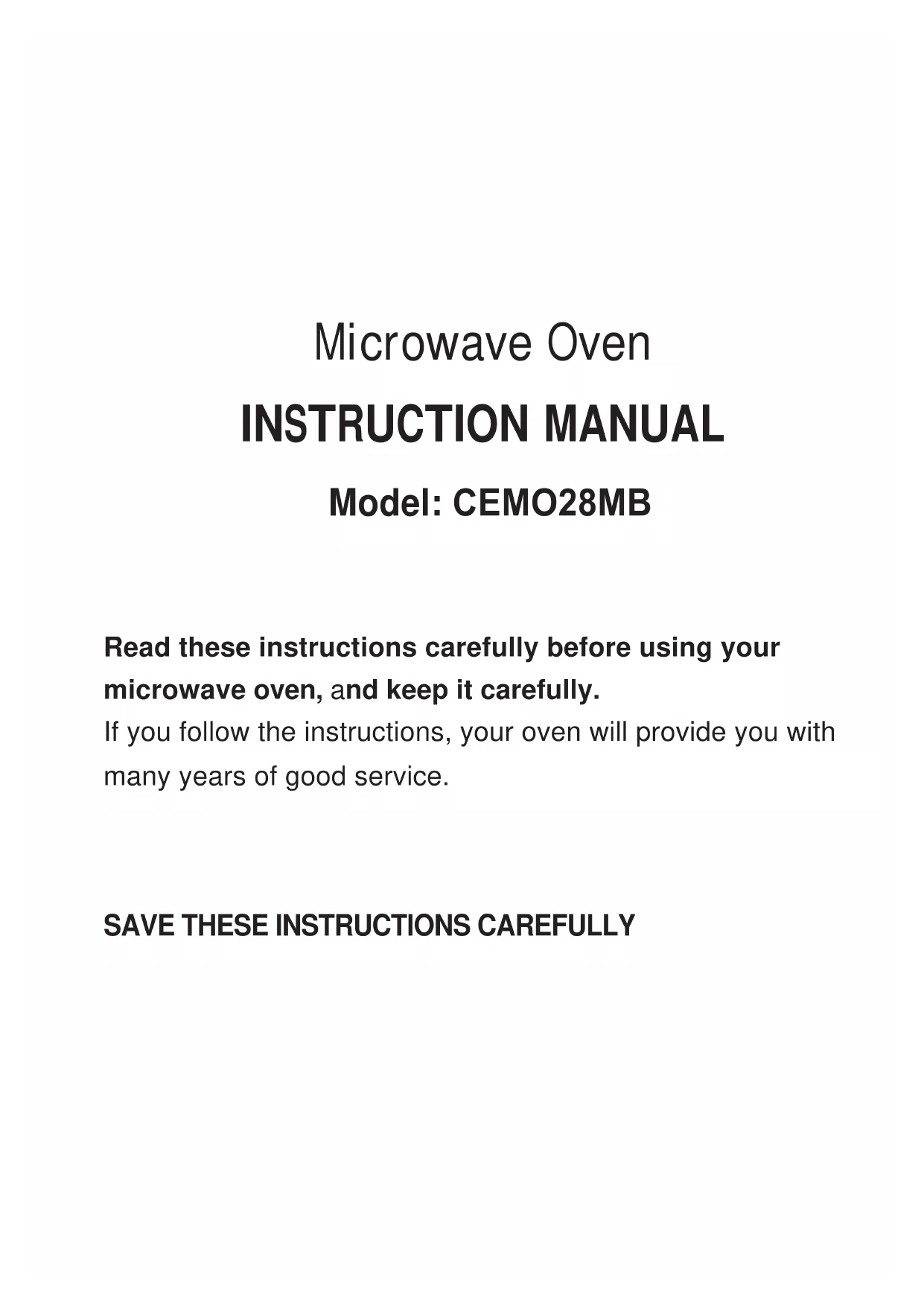

USER MANUAL CEMO28MB CONTINENTAL EDISON

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

Important Safety Instructions

To reduce the risk of fire, electric shock, personal injury and excessive exposure to microwave energy when using the device, observe a number of basic precautions, including which:

1. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: For safety reasons, any maintenance or repairs requiring removal of a part providing protection against microwave energy must always be performed by a qualified person.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical; sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are aged from 8 year and above and supervised.

1. Make sure the device and the power cable are out of reach of children under 8 years.
2. Do not use utensils other than those adapted to the microwave oven.
3. The oven should be cleaned regularly and any deposit of food should be eliminated.
4. Please read and follow these instructions: "PRECAUTIONS TO AVOID EXCESSIVE EXPOSURE TO MICROWAVE ENERGY".
5. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
6. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

7. Do not overcook food.

8. Do not use the oven for storing food or containers. Do not store food (such as bread, cookies, etc.) in the oven.

9. Remove all fasteners and metal handles of the bags / containers of paper or plastic before placing them in the oven.
10. Install or position the oven respecting mandatory installation instructions. Refer to the section "Installation" on page 10.
11. The boiled eggs and raw eggs should in no case be heated in a microwave oven with their shell since they may explode, even after heating in microwave oven is completed.
12. This device is intended solely for home use.
13. If the power cable is damaged, it must be replaced by an authorized service center or a similarly qualified person to avoid any accident.

14. Do not use and do not store the device outdoors.

15. Do not use this oven near a place where there is water, in a wet basement or near a swimming pool.

16. Accessible surfaces can be subjected to high temperatures during operation. The surfaces may become hot during use. Be sure to keep it away power cable from hot surfaces. Do not cover any of the oven vents.
17. Do not leave the cable hanging from one edge of table or counter.
18. The oven should be cleaned regularly and any food deposits removed.
19. To avoid burns, baby bottles and baby jars should absolutely be mixed or shaken after heating in a microwave oven, and the contents of the temperature should be checked before consumption.
20. Heated liquids in microwave waves can boil suddenly after being baked. Handle containers with care.

21. The device is not designed for use with an external timer or a separate remote-control system.

22. Accessible parts may be subjected to high temperatures during operation. The young children must be kept away.

23. Do not use a steam cleaner for cleaning the microwave oven.
24. The unit is heated to a high temperature during operation. Be careful not to touch the resistors located inside the oven.
25. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching the heating elements. Children under 8 must be kept away sound if they are constantly monitored.
26. The back of the device must be placed against a wall.

27. The microwave oven should not be installed in a closet.

28. The microwave oven is designed to heat food and drinks. Dry food, dry clothes, heat, heaters, slippers, sponges, wet tissues and all related uses can cause a risk of injury, burning and fire.

29. Metal containers for food and beverages should not be used in the microwave oven.
30. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or qualified persons to avoid a hazard.
31. This product is intended for indoor use only and domestic.
32. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

33. WARNING: it is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which give protection against expose to microwave energy

34. Microwave heating of beverages can result in delayed eruptive boiling; therefore, care must be taken when handling the container.

35. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
36. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

37. This appliance is intended to be used in household and similar applications such as:

38. staff kitchen areas in shops, offices and other working environments;
    -by clients in hotels, motels and other residential type environments;
    -farm houses;
    -bed and breakfast type environments.

READ CAREFULLY AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

WARNING: The oven should not be used if the door or door seals are damaged.

Do it repaired by a qualified person. The unit must not be cleaned with a water jet. This product is a Group 2 ISM equipment class B. Group 2 includes all equipment ISM (Industrial, Scientific and Medical) in which radio frequency energy is intentionally generated and / or used in the form of electromagnetic radiation for the treatment materials and equipment EDM. Class B includes the appropriate equipment for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies domestic premises.

Installation

1. Select a level surface with a sufficient open space for the inlet openings and / or air outlet.

(1) To ensure adequate ventilation, the distance between the back of the microwave and the wall should be at least 10~cm , the side wall should be at least 5~cm and the clearance above the surface higher by at least 20~cm . The distance between the microwave and the soil should be at least 85~cm .
(2) Do not remove the feet underneath the microwave oven.
(3) Block the inlet openings and / or air outlet can damage the oven.
(4) Make sure that the microwave oven is as far away as possible from TVs and radios. Using a microwave oven can cause interference disturbing the reception of your radio or television.

1. Plug your oven into a wall outlet. Make sure that the voltage and frequency of the current it

provides are identical to those indicated on the nameplate of the unit.

WARNING: Do not install oven over a cooktop or other heat producing device. If the oven is installed near or above a heat source, it may cause damage and void your warranty.

Description of your Product

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray x 1

Turntable ring assembly x 1

Instruction Manual x 1

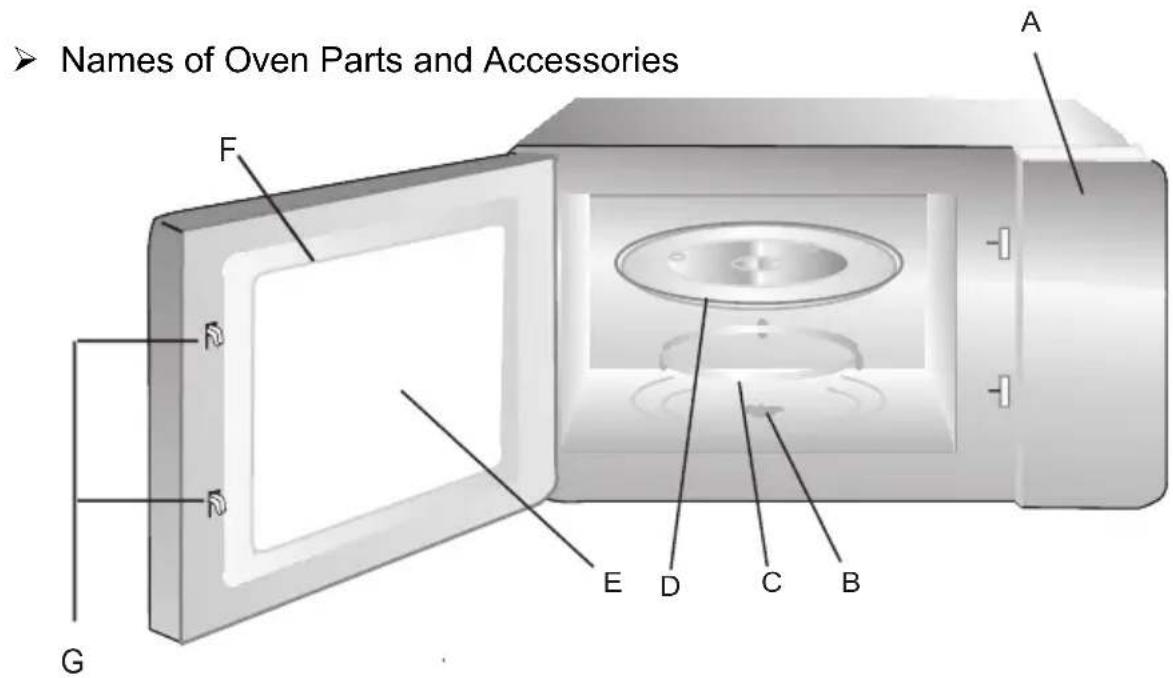

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

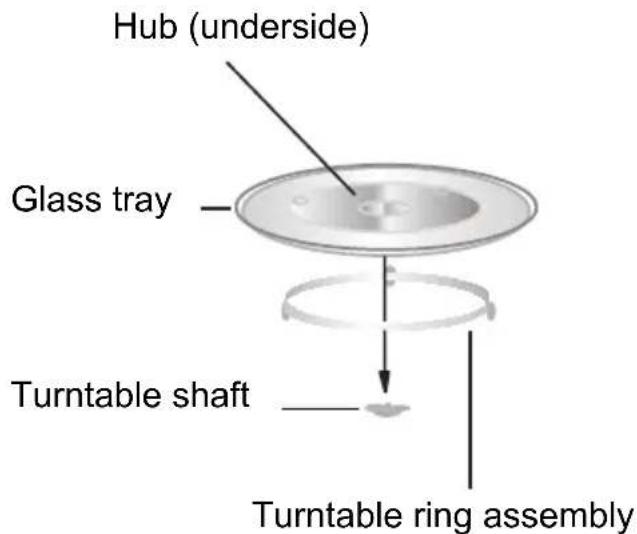

Turntable Installation

H) Never place the glass tray upside down. The glass tray should never be restricted.
I) Both glass tray and turntable ring assembly must always be used during cooking.
J) All food and containers of food are always placed on the glass tray for cooking.
K) If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

WARNING

• First placing the rotating ring
• Mounting the turntable about the axis of rotation and to ensure it is correctly positioned.

Control panel

See below detail (the control panel is subject to change without notice)

Waveguide cover

It is located inside the microwave oven, next to the control panel wall.

WARNING

Do not remove the waveguide cover

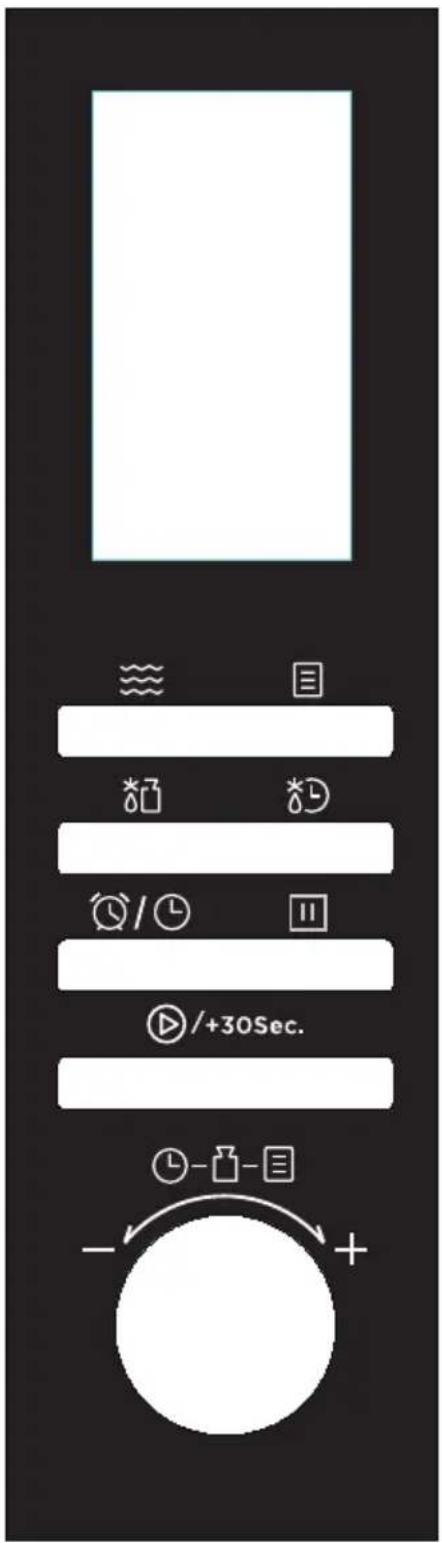

> Control panel

Microwave
Auto menu
Weight Defrost
*L Time Defrost
Kitchen Timer/Clock
Stop/Clear

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) Press " / " twice to select clock function, the hourfigures will flash.
2) Turn " " to adjust the hour figures, the input time should be within 0--23. (24 hrs format)
3) Press " / ", the minute figures will flash.
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
5) Press " / " to finish clock setting.":" will flash, and the time will light.

Note: 1) The clock will not work if it is not set when powered.
2) During the process of clock setting, if you press "II", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press "the screen will display"P100", and press "

repeatedly or turn " " to choose the power you want, and "P100", "P80",

"P50", "P30" "P10" will display for each added press. Then press

口 / + 30 Sec . "to confirm, and turn " ^ 念 "to set cooking time

from 0:05 to 95:00. Press " l /+30Sec. " again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " ≈ " once, the screen display "P100".
2) Press " once again or turn" to choose 80% microwave power.
3) Press " l /+30Sec. " to confirm, and the screen displays "P-80".

4) Turn " " to adjust the cooking time until the oven displays "20:00".
5) Press " to start seeing.

Note: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Press	Once	Twice	Thrice	4 times	5 times
Microwave Power	100%	80%	50%	30%	10%

3. Quick Start

1) In waiting state, press " /+30Sec." to start cooking with 100% power for 30 seconds, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave cooking or time defrost state, each press of " l /+30Sec. " can increase 30 seconds of cooking time.
3) In waiting state, turn " 气 " left or right to set cooking with 100% microwave power. After choosing the cooking time, press " / + 30Sec. " to start cooking.

4. Defrost by Weight

1) Press "OK", and the oven will display "dEF1".
2) Turn " ” to select the weight of food from 100 to 2000g
3) Press "to/sta:Stefrosting.

5. Defrost by Time

1) Press "X", and the oven will display "dEF2".
2) Turn " " to select the defrost time. The MAX time is 95 minutes.
3) Press " l / + 30Sec . " to start defrosting. The defrost power is P30, and it cannot be changed.

6. Kitchen Timer

1) Press " / " once, the screen will display 00:00.
2) Turn " " to enter the correct timer. (The maximum cooking time is 95 minutes.)
3) Press "ocobowsetting.
4) When the kitchen time is reached, the buzzer will ring 5 times. If the clock be set (24-hour system), the screen will display the current time.

Note: The kitchen Time is different from 24-hour system, Kitchen Timer is a timer.

7. Auto Menu

1) Turn " right to choose the menu, and "A-1" to "A-8" will display.
2) Press "to/cobertec.
3) Turn " " to choose the default weight as the menu chart.
4) Press "to start Seeking.

Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn " ” clockwise till "A-6" display.
2) Press " to /to/
3) Turn "..." to select the weight of fish till "350" display.
4) Press "stopSeoking.

The Menu Chart:

Menu	Weight	Display
A-1 Pizza	200 g	200
	400 g	400
A-2 Potato	200 g	200
	400 g	400
	600 g	600
A-3 Meat	250 g	250
	350 g	350
	450 g	450
A-4 Fish	250 g	250
	350 g	350
	450 g	450
A-5 Vegetable	200 g	200
	300 g	300
	400 g	400
A-6 Beverage	1 cup(120 ml)	1
	2 cups(240 ml)	2
	3 cups(360ml)	3
A-7 Pasta	50g(with 450 g cold water)	50
	100g(with 800 g cold water)	100
A-8 Popcorn	50 g	50
	100 g	100

8. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, it is applied automatically first. The alarm will ring once after each stage and before the start of the next stage.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press " *^ , and the oven will display "dEF2".
2) Turn " to select the defrost time till "5:00" display.
3) Press " " once, the screen display "P100".
4) Press " once again or turn " to choose 80% microwave power.
5) Press "to /o:88. and the screen displays "P-80".
6) Turn "..." to adjust the cooking time till the oven displays "7:00".
7) Press " to $80 Cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

9.Inquiring Function

1) In states of microwave, grill cooking, press " ", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;
2) In cooking state, press " / " to inquire the time and the time will display for 3 seconds.

10. Lock-out Function for Children

• Lock: In waiting state, press " [ ] " for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the screen will display "[ ]".
• Lock quitting: In locked state, press "I" for 3 seconds, there will be a long "beep" denoting that the lock is released.

Materials you can use in Microwave Oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in Microwave Oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

Cooking Tips

The following factors may influence the outcome of cooking: food arrangement

Placing the thicker portions outward of the flat, the thinnest part towards the center and spread evenly. Do not overlap if possible.

Cooking Time

Start cooking with a short time setting, evaluate it after the time and extend it according to real needs. Overcooking may cause smoke and burns.

Uniform cooking

Foods like chicken, burger or steak should be turned once during cooking. Depending on the type of food, if necessary, move from outside to center of dish once or twice during cooking.

Expect a wait time

After the end of cooking, let the food in the oven for an appropriate time, allowing them to finish cooking cycle and to cool gradually.

√ If the food is cooked

The color and hardness of food help determine if done, including:

• Steam escapes from all parts of the food, not only the edge.

• Joints of poultry come off easily

• Pork or poultry is no longer rare
• The fish is opaque and can be cut easily with a fork.

Browning dish

When using a dish browning or a self-heating container, always placing a heat resistant insulator, such as a porcelain plate, to prevent damage to the turntable and the rotating ring.

Plastic casing resistant to microwaves

When cooking foods with high fat content, do not let plastic wrap contact with food because it could melt.

Resistant plastic cookware microwave

Some plastic cookware from the microwave may not be suitable for cooking foods rich in fat and sugar. In addition, the preheating time specified in the instructions of the dish should not be exceeded.

The oven should be cleaned regularly and any food residue should be removed systematically.

WARNING

1. WARNING:

2. Unplug the unit before cleaning. Never immerse the device in water or other liquid to clean it.

3. If the oven is not regularly cleaned, the walls may deteriorate; this phenomenon is potentially dangerous and can shorten the furnace life.
4. No part of the oven should not be cleaned with strong detergents, gasoline, abrasive powder or with a wire brush.
5. The cover of the waveguide should not be removed.
6. When the microwave oven has been used for a long time, some odor can persist in the furnace; Here are 3 ways to eliminate them:
   a. Place several lemon slices in a cup, then turn the oven on with ahigh heat for 2 to 3 minutes.
   b. Place a cup of tea in oven, then turn the oven on with high heat.
   c. Put some orange peel into the oven and turn the oven on with a high heat for 1 minute.

without supervision if they have been explained in detail its operation and they are fully aware of the risks of Improper use of the oven.

CLEANING TIPS

It provides instructions for cleaning door seals, cavity inner and adjacent parts.

Exterior:

Wipe the outside of the oven with a damp cloth.

Door:

Clean the door and the observation window by the rubbing with a soft damp cloth.

Rub the door seals and adjacent parts to remove any splashes or other dirt.

Wipe the control panel with a damp cloth.

Interior walls:

Wipe the interior walls with a damp cloth.

Wipe the cover of the waveguide in order to remove all possible traces of splashing.

Turntable / rotating ring / axis of rotation:

Wash with water and mild soap.

Rinse with clear water and dry completely.

Repair

Check the following before calling for service.

1. Place a cup of water (about 150ml ) in the oven and close the door completely. The oven light goes off when the door is closed. Allow the oven to run for 1 minute.
2. Is the oven on?
3. Does the cooling fan work?

(Place your hand over the rear ventilation openings.)

1. The turntable is running?

(The turntable is rotatable clockwise or counterclockwise. This is normal.)

1. The water in the oven is warm?

If the answer to any of these questions is no, check your outlet and fuses the electrical panel.

If the wall outlet and fuses function normally, CONTACT THE AUTHORIZED REPAIR CENTER NEAREST.

Safety instructions for repair Warning:

MICROWAVE RADIATION

1. The high voltage capacitor remains charged after disconnection. Short-circuit the negative terminal of the high voltage capacitor with the oven frame (using a screwdriver) to discharge the capacitor before reaching the furnace.

2. During repairs where the parts listed below can be removed, it can give access to potentials above 250V with respect to the earth.

3. Magnetron
   High Voltage Transformer
   high voltage capacitor
   high voltage diode
   high voltage fuse

4. The following situations can cause excessive exposure to microwave for repair.

Incorrect assembly of the magnetron.

Incorrect assembly of the door locks, door hinges or door. Incorrect assembly of the switch supports.

The door, the door seal or enclosure has been damaged.

Specifications

Reference:	CEMO28MB
Model:	AM928E2SA-P
Rated Voltage: 230V~ 50Hz
Rated Input Power(Microwave):	1450W
Oven Capacity: 28L
Turntable Diameter: ø 315mm
External Dimensions: 513X423X307mm
Net Weight:	Approx. 15.2 kg

We disclaim any liability for defects due to misuse of the apparatus and damage repair and maintenance operations by any third party due to or installation of unauthorized parts.

WARNING

To prevent danger, it is imperative, in case of problems, to contact the customer service of the manufacturer or dealer, or a qualified electrician and approved for this type of repair. In all scenarios, the device must be returned to the electrician concerned.

Normal
Microwave oven interfering with the reception of your TV	The reception of TV and radio stations can be blurred when the microwave oven is operating. This interference is similar to that generated by small appliances such as mixers, vacuum cleaners and electric fans. This is normal.
Low oven light	During a cooking microwave at low power, the oven light can lower intensity. This is normal.
Steam accumulation on the door of the hot air escapes from the ventilation openings	During cooking, steam emerges foods. This is mainly discharged through the vent holes but a small amount collects on cold surfaces such as the oven door. This is normal.
Four accidentally used without food inside.	The use of the vacuum furnace will not damage if it is short. But this is not recommended.

Problem	Possible Cause	Solution
The oven does not work	(1) The power cord is not properly connected.	Unplug the unit, wait 10 seconds and then reconnect it.
	(2) Problem with the electrical outlet.	Try the outlet by plugging in other electrical appliances.
The oven is not heating	(3) The door is not closed.	Close the door.
The glass turntable makes noise when the microwave oven is in operation	(4) The bearing surface of the castors of the ring plate and the furnace bottom are dirty.	Refer to paragraph Cleaning your microwave oven for cleaning dirty surfaces.

This device complies with EC guidelines for radio interference suppression and low voltage safety and meets the current requirements for safety.

Subject to technical modifications.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

The warranty does not cover product wear parts, no problems or damage resulting from:

(1) Surface damage due to normal wear of the product;
(2) Defects or damage due to contact of the product with liquid and due to corrosion caused by rust or the presence of insects;
(3) Any incident, abuse, misuse, modification, unauthorized removal or repair;
(4) Any improper maintenance operation, not in accordance with product instructions or connection to improper voltage.
(5) Any use of accessories not supplied or approved by the manufacturer.

The warranty is void if the elimination of plate and / or the product serial number.

IMPORTE PAR

A.M.C.

123 quai Jules

Guesde

94400 VITRY SUR

SEINE

France

LOT#:

CONTINENTAL

EDISON

120-126 Quai de

Bacalan CS11584

33000

BORDEAUX

Continental Edison
