CERP800R - Food Processor CONTINENTAL EDISON - Free user manual and instructions

Product type	Stand mixer
Brand	Continental Edison
Model	CERP800R
Product reference	CERP800B / CERP800R / CERP800W
Power	800 W
Voltage / Frequency	220-240 V ~ 50 Hz
Protection class	II
Number of speeds	10 speeds + pulse function (P)
Included accessories	Mixing bowl, whisk, flat beater, dough hook
Bowl capacity	Approximately 3.5 L (1/3 of the bowl for medium-thick mixtures)
Maximum flour capacity (hook)	500 g flour + 325 g water
Maximum cream capacity (whisk)	250 ml liquid cream
Maximum egg whites capacity (whisk)	4 egg whites
Maximum operating time	Hook: 2-3 min, Beater: 3-4 min, Whisk: 3-4 min, Pulse: 1 min
Materials	Stainless steel bowl, plastic body, metal accessories
Weight	Approximately 5 kg
Dimensions (L x W x H)	Approximately 35 x 25 x 30 cm
Cleaning	Hand-washable accessories; do not immerse the body
Safety	Never use unsupervised; always unplug before cleaning
Use	Household use only

Frequently Asked Questions - CERP800R CONTINENTAL EDISON

How to install an accessory on the CERP800R stand mixer?

Press the locking button (B) to lift the arm, then insert the accessory (whisk, beater, or hook) into the outlet (E) until you hear a click. Lock the bowl (D) by turning it into the housing.

What speed to use for the dough hook?

For the hook, use speeds 1 to 4 max. Do not exceed 500 g flour with 325 g water, and do not knead for more than 2-3 minutes.

What speed to use for the flat beater?

For the beater, use speeds 1 to 8 max. Suitable for medium-thick mixtures (pancake batter, cakes). Do not fill the bowl beyond 1/3 of its capacity and do not beat for more than 3-4 minutes.

What speed to use for the whisk?

For the whisk, use speeds 8 to 10. Ideal for liquid creams (250 ml max) and egg whites (4 eggs max). Whisk for a maximum of 3-4 minutes.

What is the pulse function (P) used for?

The pulse function (P) runs the stand mixer at maximum speed as long as you hold the button down. Release it to stop. Use it for short mixtures (1 min max).

How to clean the stand mixer and its accessories?

Always unplug the appliance before cleaning. Wash the bowl, whisk, beater, and hook by hand with soapy water. Do not immerse the stand mixer body in water; clean it with a damp cloth. Do not use abrasive products.

Can I use the stand mixer for hot preparations?

Be careful if you pour hot liquids into the bowl, as sudden steam may project the contents. The stand mixer is designed for cold or lukewarm preparations.

Is the stand mixer suitable for persons with reduced capabilities?

Yes, provided they are supervised or have received instructions on the safe use of the appliance and understand the risks.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its after-sales service, or a qualified electrician to avoid any danger.

What are the power and voltage of the stand mixer?

The CERP800R stand mixer has a power of 800 W and operates on a voltage of 220-240 V ~ 50 Hz. Check that your electrical network matches before use.

USER MANUAL CERP800R CONTINENTAL EDISON

Abstract geometric shapes in dark blue, no text or symbols present

Continental Edison

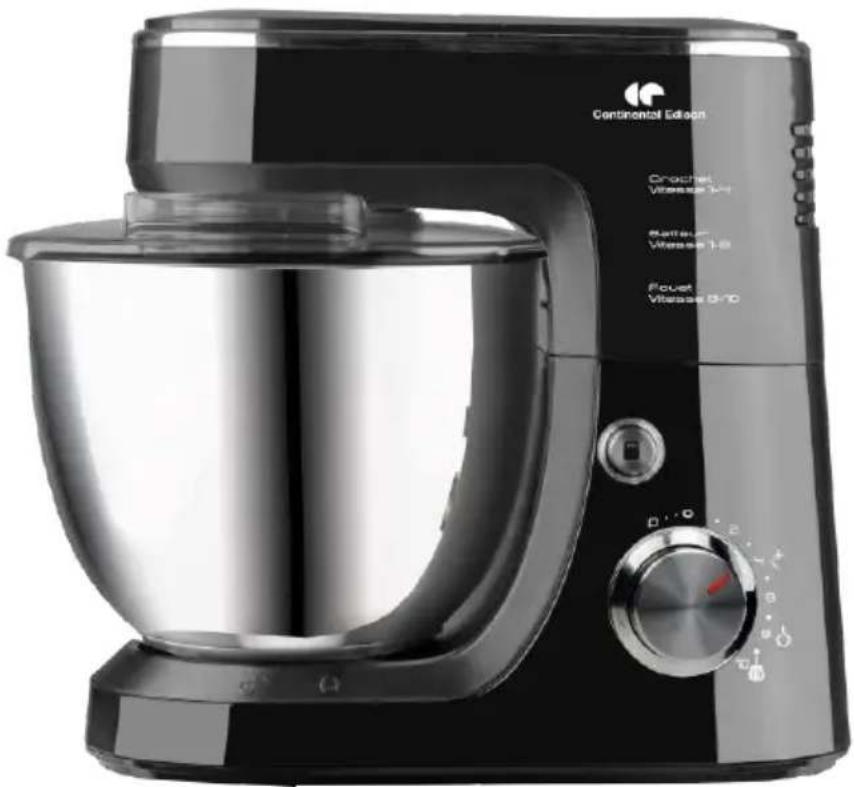

Black Continental Edition kitchen mixer with visible control panel and side-mounted dish (no text or symbols on main body)

Technical line drawings of three mechanical components labeled F, G, H, I (no text or symbols on diagrams)

E D A B C J

Smoothies aux carottes

MISE AU REBUT APPROPRIÉE

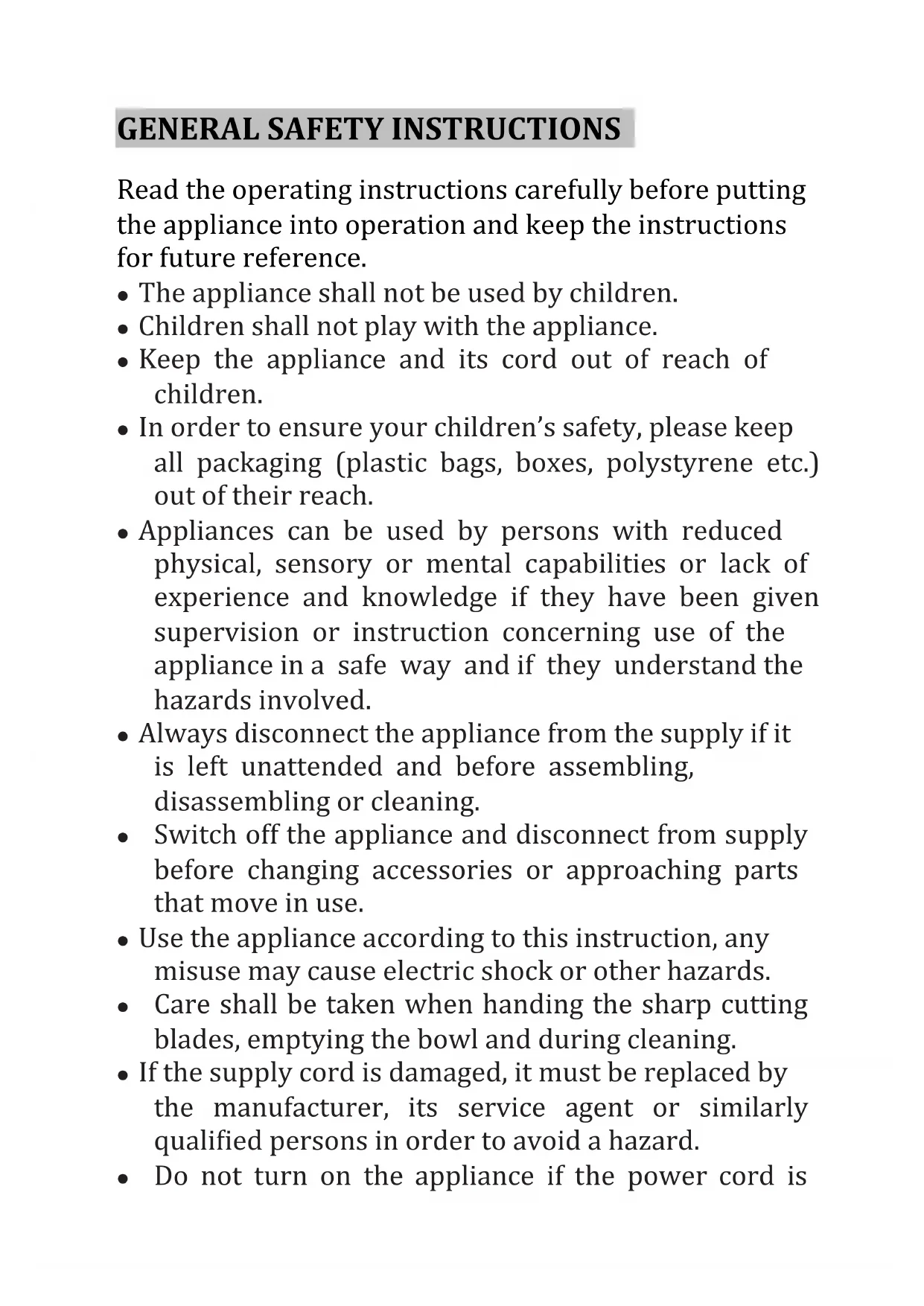

GENERAL SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference.

• The appliance shall not be used by children.
  • Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Use the appliance according to this instruction, any misuse may cause electric shock or other hazards.
• Care shall be taken when handing the sharp cutting blades, emptying the bowl and during cleaning.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not turn on the appliance if the power cord is

damaged.

- The appliance is for household use only. Do not use outdoors.

- Never immerse the machine into any liquid.

- Do not use the appliance with wet hands.

- If the appliance is humid or wet, unplug it immediately.

- Keep your finger away from moving parts and fitted tools.

- Never put your fingers in hinge mechanism.

- Use only original spare parts.

- Do not insert anything into the rotating hooks while the machine is working.

- Place the machine on a smooth, flat and stable working surface.

- Make sure the appliance is completely stopped before raising its arm. Take care when rise up the arm of this appliance in case any strikes.

- Be careful if hot liquid is poured into machine as it can be ejected out of the appliance due to a sudden steaming.

- About how to clean surfaces in contact with food, please refer to the section “CLEANING”.

- Instructions for operating times and speed setting for each accessory are described in the following pages.

BEFORE CONNECTING TO POWER

• Before connecting to the power, please check whether the type of supply and the mains voltage match with the details given on the rating label on the appliance.
• Using for the first time, rip off all wrapping paper and plastic bags, then clean the accessories.

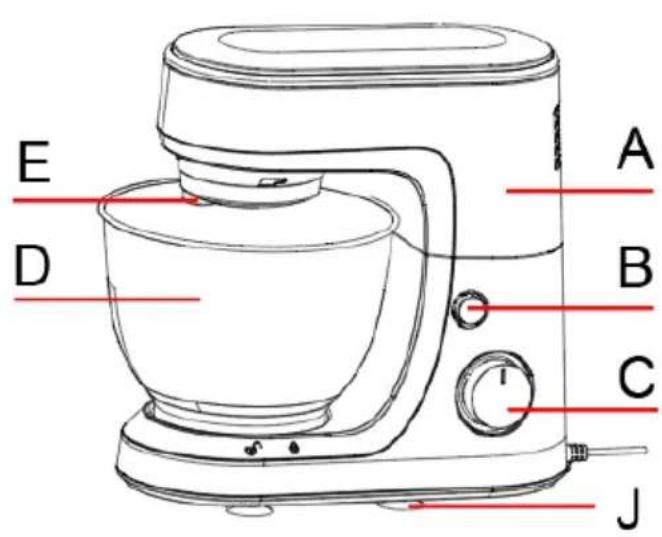

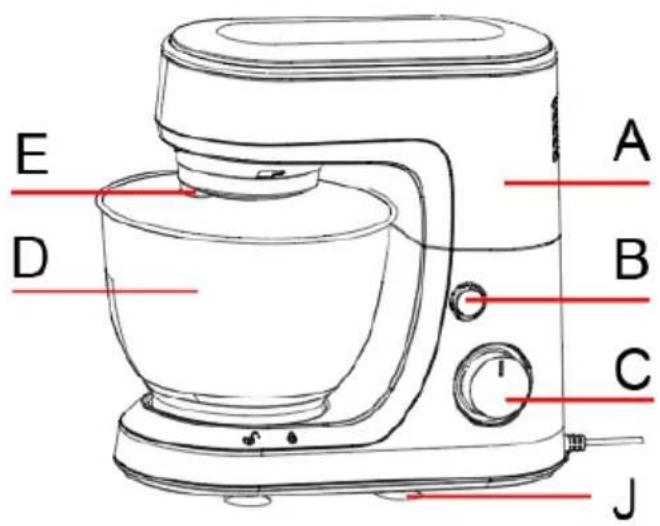

DESCRIPTION OF THE PRODUCT

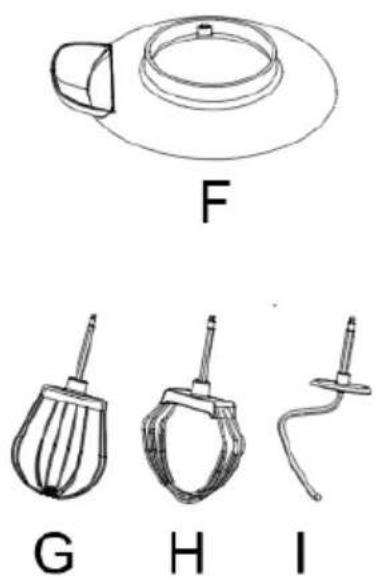

Technical line drawings of three labeled mechanical components (F, G, H, I), no text or symbols present.

E D A B C J

A.	Arm / Housing	F.	Bowl Lid
B.	Locking knob	G.	Whisk
C.	Speeds Selector	H.	Beater
D.	Mixing bowl	I.	Hook
E.	Outlet for accessories	J	Sucker

USING THE MACHINE

1. Press Locking knob (B) down to lift the arm.

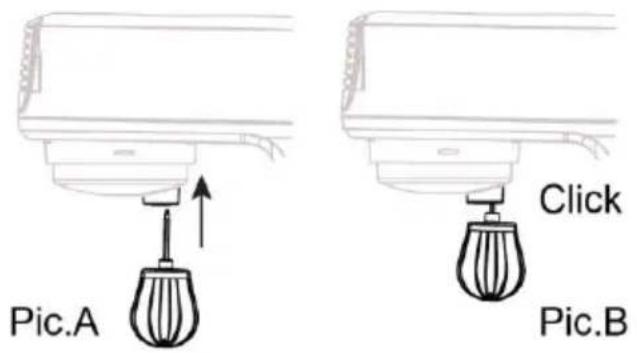

2. Lock Bowl Lid(F) into the arm, then insert the whisk (G) or Beater (H) or Hook (I) into outlet(E) (as pic A) till "click" sound (as pic B) to ensure the accessory is inserted well.

Pic.A Click Pic.B

1. Insert mixing bowl (D) into the housing and turn the bowl until it locks into place.

2. Fill your ingredients into mixing bowl (D). Must follow the max. weight / time for each accessory. Cannot over ill ingredients and over time use, or the machine will be destroyed or its performance is not good.

3. Press Locking knob (B) down again and in the same time press down the arm for lock.

4. Plug in then turn Speeds Selector(C) to start the machine and set the right speed.

Follow speeds of each accessory as manual suggested.

1. After usage, turn the Speeds Selector(C) back to the "0" to stop machine. Then remove the plug. Press Locking knob (B) again for taking off the accessory.

CHOOSING THE RIGHT ACCESSORY

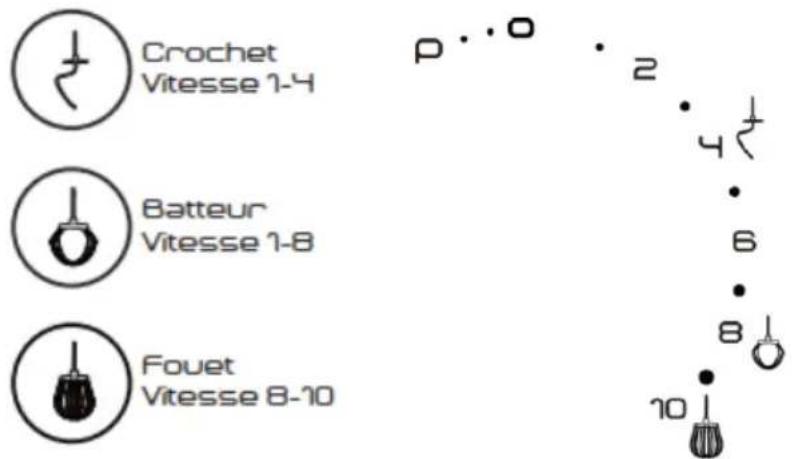

SPEED CONTROLS

This machine has "0-10 speed", "0", "P" controls.

(0-10 variable speed controls): from Min speed to Max speed

("0" level): OFF, stop the machine

("P" mode level): Pulse function

After install the accessory you need, before plug in, make sure the knob is switched to "0" level. Then turn the knob to the speed you need.

"0-10 speed" function:

Slow speed: turn the knob to the beginning.

Fast speed: turn the knob till the end.

WARNING:

If using Hook (I), the selected speed cannot more than speed 4. If using Beater (H), the selected speed cannot more than speed 8.

If using Whisk (G), recommend using the speed 8-10.

"Pulse" function:

Turn the knob anticlockwise to "P", the machine will start to work under max speed. Once loosen your hand, the knob will turn back to "0" position automatically and stop the machine.

Speed	Accessory	Max.Time	Types of processing
Hook Max Speeds	Hook;	2-3min	Thick mixture (e.g. bread, pasta)
			Do not put more than 500g of flour with 325g of water.
Beater Max Speeds	Beater	3-4min	Medium thick mixture (e.g. with pancakes or cakes)
			Ingredients cannot more than 1/3 bowl.
Whisk Max Speeds	Whisk	3-4min	Creams (250ml max); whites in snow (4 eggs max)
Pulse	All	1 min	Short time mixing

BASIC RECIPES TIPS:

Whipped Cream

• 220ml cold heavy whipping cream
  •40g (2 tbsp) sugar, honey, or maple syrup
• 2.5 ~g ( 12 tsp ) vanilla or other flavorings
  Cool mixer bowl and whisks in the freezer for at least 20 minutes.
  Place all Ingredients into the bowl.
  Keep whisking until stiff peaks form with max speeds

Basic Sponge Cake

• 4 eggs (room temperature)
- 225 g caster sugar
• 225 g self-raising flour
• 10 g (2 tsp) baking powder
• 225 g baking spread, margarine or soft butter at room temperature.

Mix eggs, caster sugar, baking powder and baking spread together with slow speed.

Add the flour into the mixture and beat it until the flour is fully incorporated

with slow speed till to Hook Max Speeds.

Basic Pizza Dough

• 200 ml lukewarm water
• 14 g yeast
• 5 g (1 tsp) salt
• 300 g flour
- Splash of extra virgin olive oil
Place all Ingredients into the bowl and knead them at low speed together.

Keep kneading until the flour is fully incorporated with slow speed till to Hook Max Speeds.

CLEANING

WARNING: Risk of injury:

Unplug the power cable before touching the mixer or other accessories. Otherwise, it could result in injury.

Always unplug the power cable from the wall socket before cleaning the robot.

Do not immerse the robot in water. The outer surface of the appliance should only be cleaned with a soft, moist cloth.

NOTE: Do not use abrasive cleaning products or scour pads when cleaning your robot. Never immerse the robot is case in water or any other liquid.

Remove the mixing bowl, the lat mixer, the whisk, the kneading hook before washing them.

Wash all accessories by hand with clear water with washing-up liquid. Rinse and dry thoroughly before reassembling.

Accessories and bowl should be washed immediately after use to prevent food from drying on.

Before irst use, clean the bowl and all accessories with clear water with dishwashing liquid. Rinse and let dry.

SPECIFICATIONS

Item reference: CERP800B/CERP800R/CERP800W

Model: CY-613A

Rated voltage: 220-240V\~, 50Hz

Power consumption: 800W

Protection class: II

Manual version: V1

PROPER DISPOSAL

This product contains recyclable materials.

Do not dispose this product as unsorted municipal waste.

Please contact your local municipality for the nearest

collection point.

Continental Edison

120-126 Quai de Bacalan

CS 11584

33000 Bordeaux

IMPORT BY:

A.M.C.

123, QUAI JULES GUESDE

94400 VITRY SUR SEINE

France
