ARM8U001 - Humidifier ARDES - Free user manual and instructions

Product type	Steam humidifier
Brand	ARDES
Model	ARM8U001
Tank capacity	2 liters
Technology	Boiler with electrodes
Power supply	Mains (220-240 V)
Steam intensity adjustment	Yes, by adjustment knob
Bowl for balsamic essences	Yes, separate from tank
Automatic shut-off	Yes, when water level is low
Recommended water type	Tap water only
Maintenance	Descaling with vinegar or descaler
Cleaning	Do not immerse, wipe carefully
Storage	Empty and clean before storage
Safety	Hot steam, do not leave unattended
Warranty	2 years from purchase date
Weight	Approximately 1.5 kg (approx)
Dimensions (L x W x H)	Approximately 25 x 20 x 30 cm (approx)

Frequently Asked Questions - ARM8U001 ARDES

How to use the ARDES ARM8U001 humidifier?

Unplug the device, remove the boiler by turning counterclockwise, fill the tank with tap water up to the level indicated by the float (max 2 liters). Put the boiler back in place, connect the power cable, then plug the device into a mains socket. Vaporization starts after 5 to 10 minutes. Use the adjustment knob to adjust the steam intensity.

Can I add perfumes or essences to the water?

No, essences must be poured only into the special bowl located under the steam outlet. Never pour perfume into the steam outlet hole or into the water tank.

What to do if steam emission decreases?

This is due to water impurities. Unplug the device, remove the boiler and immerse its lower part (up to 8 cm) in a solution of water and vinegar or descaler for about 8 hours. Then rinse the electrodes with clean water and wipe dry.

Does the humidifier shut off automatically?

Yes, vaporization stops automatically when the water level drops below the electrodes. This causes no damage and consumes no electricity.

What type of water should I use?

Use only tap water. Never add salt or other substances to the tank. If the water is poorly conductive, you can add a maximum of 0.5 g of table salt per full tank, but not in excess.

How to clean the humidifier?

Unplug the device and let it cool down. Never immerse the device in water. Wipe the outside with a damp cloth. For descaling, follow the procedure described in the question about steam decrease.

Is the device safe for children?

The device can be used by children over 8 years of age under supervision. Children must not play with the device. The steam is hot and can cause burns, so keep children and disabled persons at a distance.

What to do if the power cord is damaged?

The cord must be replaced only by a service center approved by the manufacturer to avoid any risk. Do not use the device with a damaged cord.

Can I leave water in the tank after use?

No, do not leave water in the tank when the device is not in use. Empty and clean the humidifier before storing, and clean it before next use.

Where to find spare parts?

Spare parts are not mentioned in the manual. Contact ARDES after-sales service or your retailer for any assistance.

USER MANUAL ARM8U001 ARDES

Labeled diagram of a medical device with numbered parts for identification

Illustration of a mechanical component being inserted into a housing, with an inset showing a hand holding a tool (no text or symbols present)

Fig. 4Fig. 3 N1x N2

Line drawing of a teapot writing on a surface inside a rectangular container (no text or symbols)

Isometric line drawing of a spherical object inside a rectangular container with a small inset showing a smaller structure (no text or symbols)

Condizioni

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

SMALTIMENTO

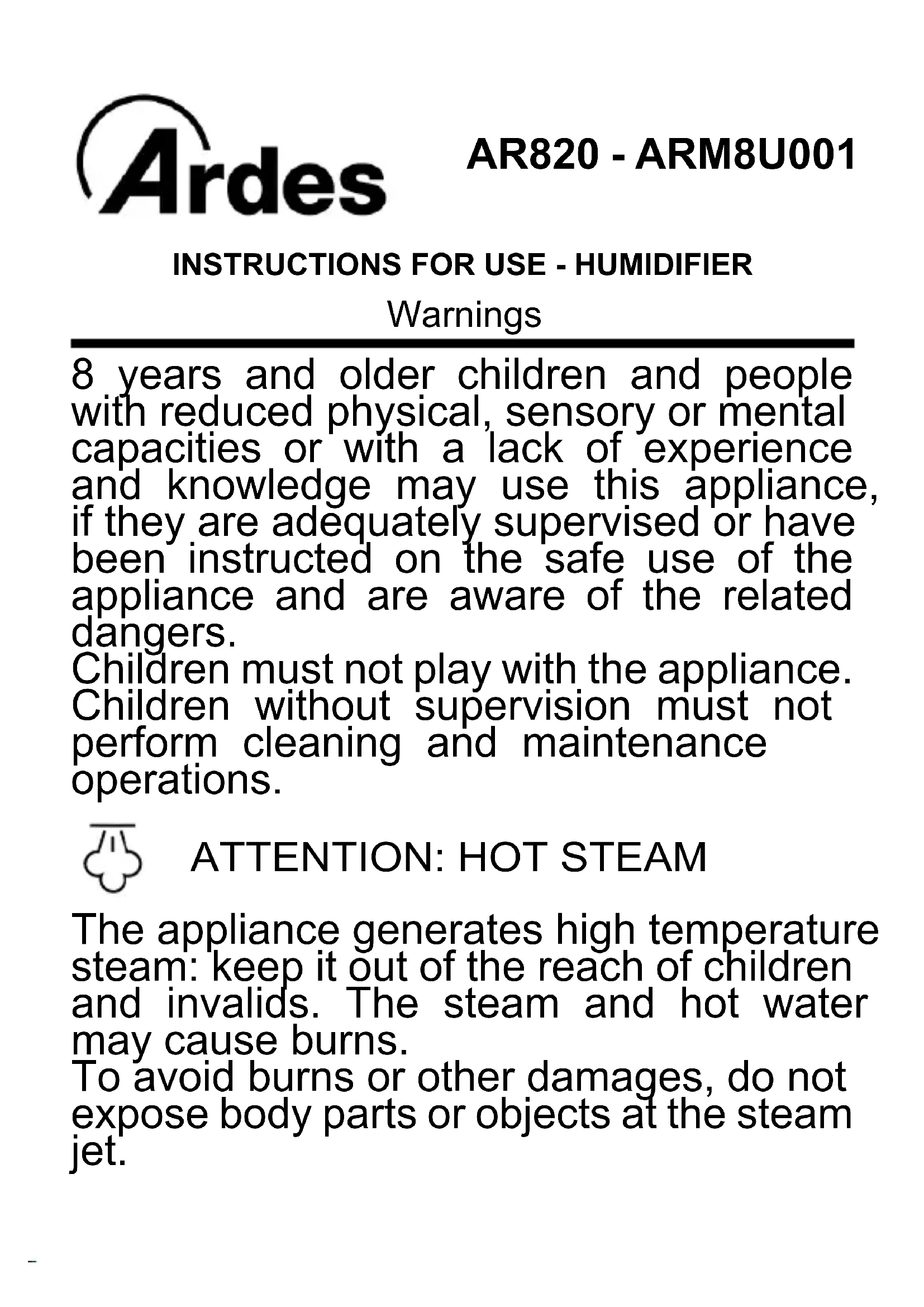

8 years and older children and people with reduced physical, sensory or mental capacities or with a lack of experience and knowledge may use this appliance, if they are adequately supervised or have been instructed on the safe use of the appliance and are aware of the related dangers. Children must not play with the appliance. Children without supervision must not perform cleaning and maintenance operations.

ATTENTION: HOT STEAM

The appliance generates high temperature steam: keep it out of the reach of children and invalids. The steam and hot water may cause burns.

To avoid burns or other damages, do not expose body parts or objects at the steam jet.

Read the detailed information in the INSTRUCTION FOR USE and MAINTENANCE paragraph to carry out the operations of filling, cleaning and limescale removal in a proper way.

Use tap water only. Do not add salt or any other substance in the reservoir: this may cause security problems and may damage the appliance.

- Note: just in case of low conductive water, of such a kind that do not allow any vaporization, it is possible to add no more than 0.5 g of kitchen salt for every full. DO NOT ADD AN EXCESSIVE AMOUNT OF SALT.

The appliance is not to be operated from a DC supply.

- Be aware that high humidity levels may encourage the growth of biological organisms in the environment.

- Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloth, to become damp.

- Unplug the appliance during filling and cleaning. Pay attention, the residual water and some part of the appliance (the part immersed in the boiler and the one around the steam outlet hole) may be hot. - Do not leave water in the reservoir when the appliance is not in use.

- Empty and clean the humidifier before storage. Clean the humidifier before next use.

If the power supply cable is damaged, it must be replaced in support centers authorized by the manufacturer, in order to prevent any risk.

Attention: read this booklet carefully. It contains important instructions for a safe installation, use and maintenance. important instructions to be kept for future reference.

After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging within the reach of children.

This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.

Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

If the plug and socket are not compatible, have the socket replaced with a suitable type by skilled persons. Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

Disconnect the appliance from the power supply socket whenever it is not in use.

Do not tug on the power cable or on the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

- Never touch the appliance with wet or humid hands.

- Do not use the appliance when barefoot.

• Do not use the appliance when barefoot.
• Do not leave the appliance exposed to weathering (raie, sunlight).
• Do not subject it to rough handling.

The power cable should be extended to its full length to avoid overheating. If you decide you do not want to use this appliance any longer, disable it by cutting the power cable of course, after disconnecting it from the socket.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once.

Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

Do not use the appliance out of doors.

Do not direct the steam jet against people, objects or the walls.

Take care never to turn the appliance upside down while it is in use.

Place the appliance on a fiat surface during use.

Never rest the appliance directly on furniture, carpeting or parquet floors.

Even if the appliance runs dry, this does not damage it nor does it consume power.

In order to avoid irreparable damage to the appliance and malfunctioning, never pour any other substance than water (e.g. salt) into the reservoir. If this should be done by mistake, rinse it out at once with tap water.

If you want to use scented oils, they should be poured into the recess provided for this purpose.

For safety reasons, the boiler section of the appliance should never be opened.

Technical informations

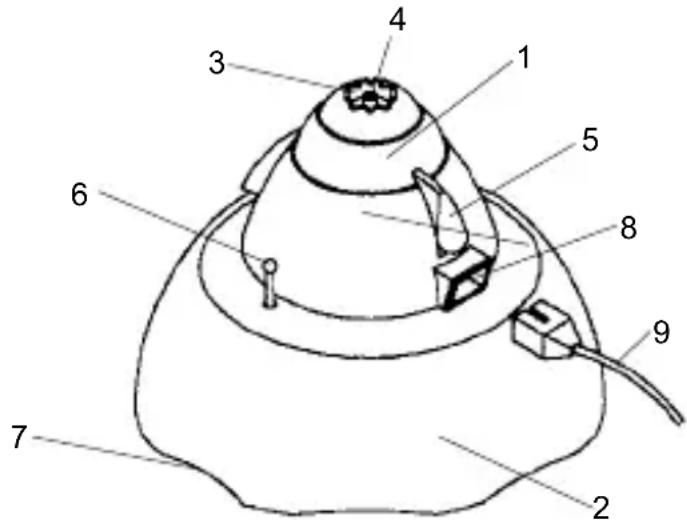

AR820 - ARM8U001

1 - boiler
2 - reservoir
3 - essential oil recess
4 - steam outlet hole

5 - steam adjusting knob
6 - float
7 - handy appliance grip
8 - connector socket
9 - power supply cable

Labeled diagram of a medical device with numbered parts for identification

Technical data indicated on the appliance.

The humidifier is provided with a special safety system which prevents the boiler from being separated from the water reservoir when the power supply cable is plugged into the appliance.

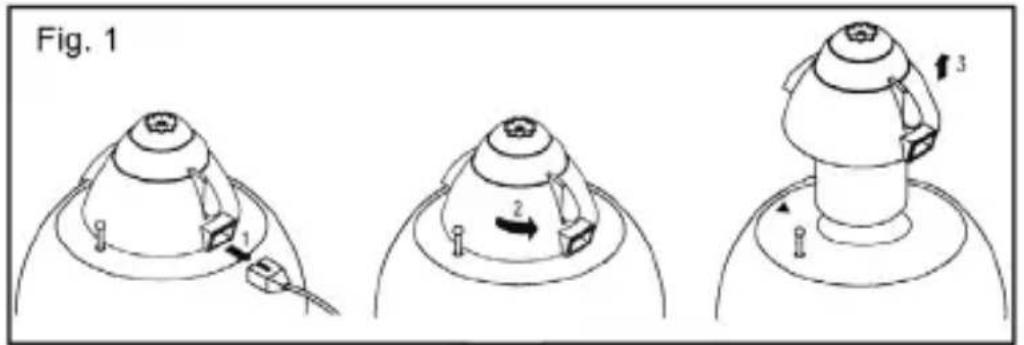

Fig. 1 - In order to separate the boiler from the reservoir, first disconnect the power supply cable (1) and then twist the boiler counter-clockwise (2) and lift it off (3).

For tap water into the reservoir until the coloured mark on the float appears.

Do not exceed the maximum limit of 2 liters (AR820, ARM8U001).

Do not add salt or any other substances into the reservoir to avoid damaging the appliance and causing safety problems.

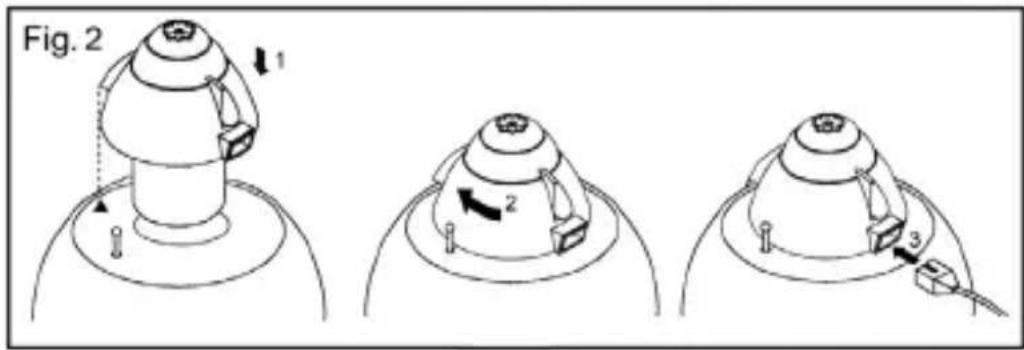

FIG.2

820 - Fit the boiler onto the reservoir with the “fin” opposite the arrow on the reservoir’s band (1).

Twist it clockwise as far as it will go (2).

Now plug the power cable into the humidifier (3).

It is necessary to await 5/10 minutes before the appliance gets the maximum intensity of vaporization.

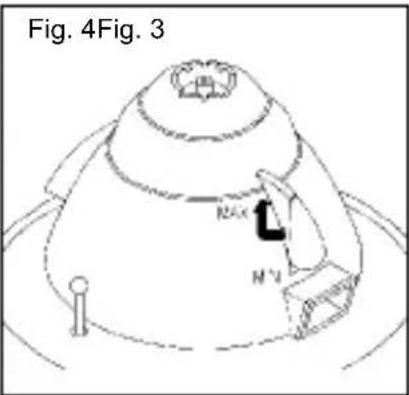

FIG.3 - Before plugging the power cable into the humidifier, make sure that the appliance has not become wet during filling. Otherwise, dry it carefully.

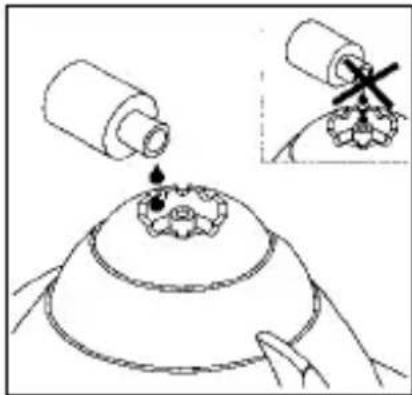

If you want to use scented oil, you must pour it into the small recess around the steam outlet hole (fig. 3) before plugging the power supply cable into the appliance.

DO NOT POUR ESSENCES IN THE STEAM OUTLET HOLE OR IN THE TANK.

In order to start up the appliance, plug the power supply cable into the wall socket. It will take a few minutes before it starts emitting steam.

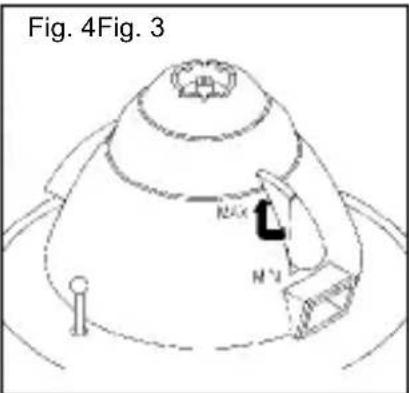

FIG.4 - The steam jet can be adjusted by means of the adjusting knob (fig. 4).

If the water level drops below the level of the electrodes, steaming stops.

This does not damage the appliance and does not consume power.

A residual amount of water with all the impurities will remain at the bottom of the reservoir. It will serve to make cleaning easier.

When using again the humidifier after a pause, first empty it and rinse it out well before pouring in fresh tap water. If you don't, the water's conductivity is increased and this makes the appliance becomes noisy and the electrodes wear out more rapidly.

AR820 - ARM8U001

Fig. 1 1 2 3

Fig. 2 1 2 3

Diagram showing a mechanical assembly with a gear and cylindrical components, no text or symbols present

Fig. 4Fig. 3 N×1 N'2

Maintenance

This appliance does not require any other maintenance than regular cleaning.

Disconnect the appliance and wait for it to cool down before cleaning it.

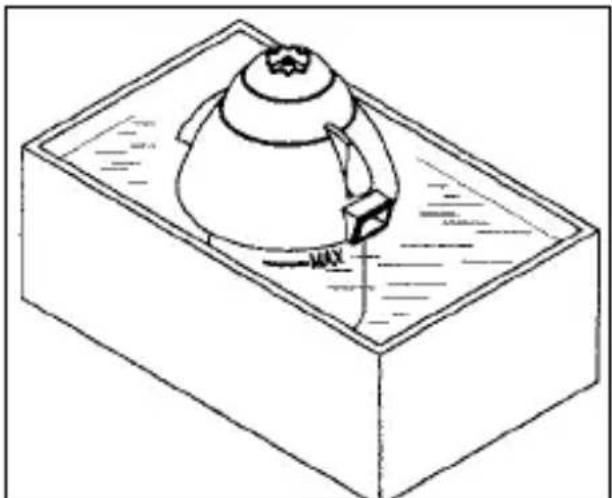

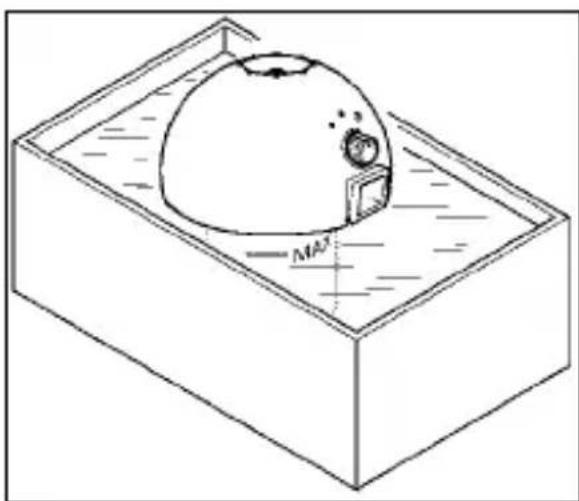

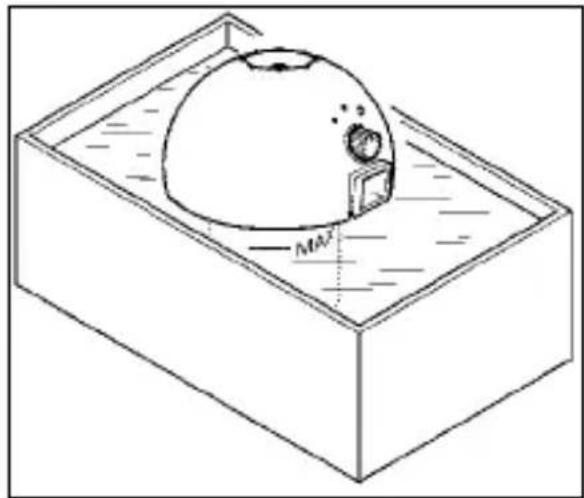

NEVER IMMERSE THE APPLIANCE IN WATER.

Owing to the impurities contained in the water, the amount of steam which the appliance releases may diminish after using it for a long time. In this case, disconnect the appliance, remove the boiler and leave it for about eight hours with its lower part in 8 cm of a solution made up of water and vinegar or a scale remover.

The scales on the electrodes will come off and the humidifier will start to run again regularly.

Rinse the electrodes with tap water and dry off any water in the boiler or in the connector.

Dry the appliance carefully before storing it away.

Line drawing of a teapot writing on a surface inside a rectangular container (no text or symbols)

Isometric line drawing of a dome-shaped object partially submerged in a rectangular container (no text or symbols)

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

PACKAGING

To respect the environment, the packaging material must be disposed of correctly, respecting separate collection.

Check the provisions of your municipality.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

DISPOSAL

USER INFORMATION

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal.

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.

For more details, please contact the appropriate local authority.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
