USER MANUAL Croccante G10097 G3 Ferrari

Symbols. p. 2
G10097 p.6
Safety instructions p. 8
General information. p. 1
Description of parts. p. 1
First use p. 1
17. Operating the unit. p. 123
Cooking time and temperature p. 12
Cleaning. p. 1
Technical features. p. 1
Waste of electric and electronic equipment (WEEE
Directive) p. 3

PORTUGUESE p. 13
FRANCAIS p. 19
DEUTSCH p.25

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

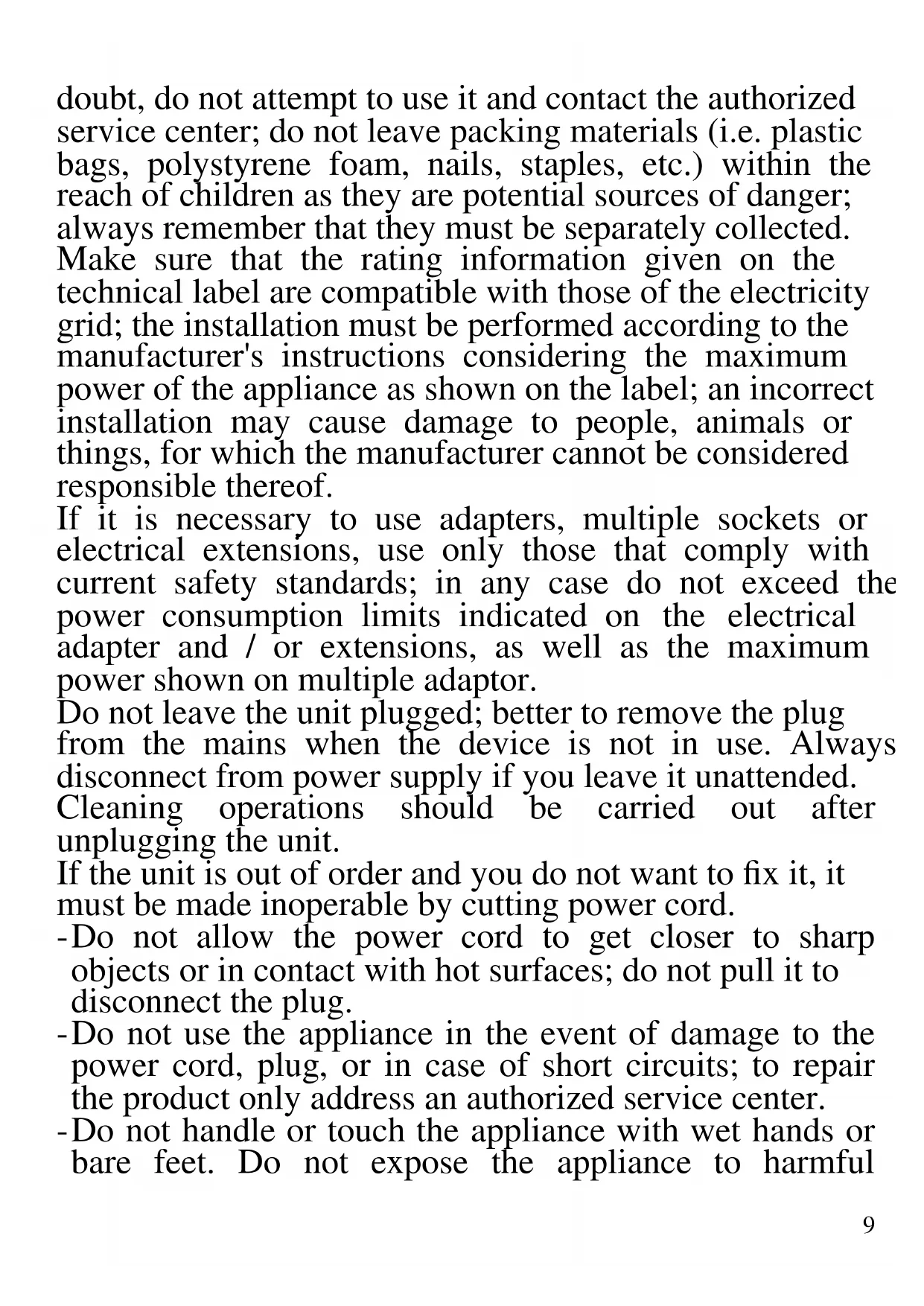

Before use, ensure the equipment is undamaged; if in

doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful

weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

• Children must not play with the appliance.

• Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.

• Use original spare parts and accessories only.

• Do not subject the product to strong impacts, serious damages may result.

• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

CAUTION: install the appliance correctly before starting operations. Unplug the unit before

touching any attachments.

Before using for the first time, carefully wash all the parts that will come in touch with food.

Never leave the appliance unattended while it is running. Unplug the appliance from the electrical outlet after each use. Allow the product to cool down before disassembling or cleaning.

Place the unit on a flat and stable surface.

Do not install near electric or gas cooktops and away from the oven; place the appliance close to the power outlet to avoid the use of extension cords.

CAUTION: Use with caution during use, because the product contains potentially dangerous hot oil.

We recommend not moving the appliance when it contains hot oil and let it cool before emptying the reservoir or cleaning it.

Check that the product is OFF before connecting the appliance to the electrical outlet. To turn off, switch the power OFF and then unplug it from the electrical outlet socket.

Do not use for any purpose other than those expressly stated in this manual.

Do not use without oil.

Make sure the basket is properly assembled before turning on the product.

When finished using the unit, you may want to wrap the power cord so as to ensure a better cleaning.

Always follow the instructions in section "Cleaning". Do not immerse the electrical cord or plug in water or other liquids; Use a damp cloth to clean.

DESCRIPTION OF PARTS G10097

1 Filter cover

2 View window

3 Lid

4 Lid release button

5 Handle lock button

6 Indicator light

7 Power switch

11 Base

8 Temperature control

9 Basket

FIRSTUSE

CAUTION: Remove the protective plastic and every element of the packaging, before proceeding.

Thoroughly clean the parts that will be in contact with food, such as the basket and the interior of the appliance. Use a damp cloth and dry thoroughly before use. Do not immerse power cord or plug in water or other liquids.

OPERATING THE UNIT

CAUTION: Do not turn on the fryer without oil in the reservoir.

1. Place the unit on a flat, stable and heat-resistant surface.
2. Open the lid (3) by pressing the release button (4).
3. To remove the basket (9), pull up the handle (5) and simply remove it.
4. Fill the reservoir with cooking oil (2.5 liters) up to the MAX level mark.

NOTE: We recommend that you do not fill the tank below the MIN level indicated.

1. Spread a little of oil on view window (2) to prevent condensation during use. Close the lid (3).
2. After making sure that the power switch (7) is set to O (OFF), connect the power cable to compatible electric outlet. The red light turns on and, if container is properly mounted, also the green light turns on.
3. Set the desired temperature using the regulator (8) and turn on the unit by pressing the power button (7). At the switch on, the green light turns off. Once you have reached the desired temperature, the green light will turn on.
4. Open the lid (3) by pressing the release button (4).
5. Place the basket (9) on the side of oil container and insert food in the basket.
6. Slowly lower the basket in the oil, close the lid (3) and lower the handle (5).

CAUTION: Do not immerse the frozen food with crystal ice on it.

1. Once finished, lift the handle (5) and then open the lid (3); place the basket (9) on the side of oil container. Allow to drain the oil in excess for a few seconds, then roll out the foods and let them dry on paper towels before serving.

COOKING TIME AND TEMPERATURE

FOOD	TEMPERATURE	COOKING TIME
CHICKEN WINGS	150°C	12/14 mins
FRENCH FRIES	190°C	8/10 mins
CHICKEN (slices)	190°C	5/8 mins
SHRIMPS	170°C	2/4 mins
ONION RINGS	190°C	3 mins
FISH	170°C	5 mins
EGGPLANT, ZUCCHINI	190°C	2 mins

NOTE: The table is for guidance only. It is therefore recommended to adjust temperature and cooking times by referring to the weight, thickness and type of storage of food to be cooked, constantly checking the state of cooking and always referring to your own experience and taste.

CLEANING

WARNING: Turn the power switch to O (OFF) and unplug the appliance from the electrical outlet before cleaning.

• Do not immerse housing in water, but wash it with a damp cloth and non-abrasive cleaners. Also avoid any infiltration of water into the motor.
• Remove the basket (9) and wash it in warm water with neutral detergent. Dry thoroughly before reinstalling. Lid is dismountable for easier cleaning.

ASSEMBLING AND CLEANING

CAUTION: Remove the oil reservoir only when the oil and the unit itself are completely cooled.

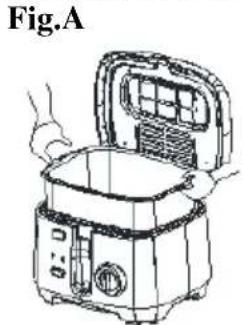

1. Oil container is removable: open the lid (3) and lift it gently (see Fig A).
2. Drain the cooking oil and dispose of in accordance with local guidelines. Thoroughly clean the inside of the tank with a paper towel to wipe off the remaining oil.
3. Wash it with warm water and dish soap or in the dishwasher. Dry thoroughly before assembling again.

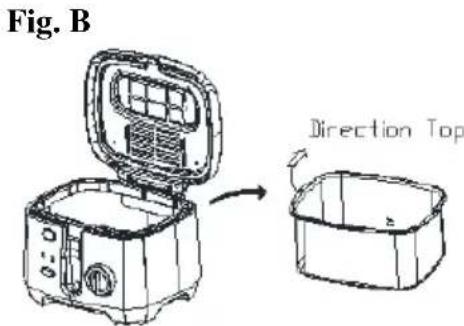

4. Reassemble the container, making sure that the head of the basket is properly aligned with the front of the main body (see Fig. B). Push the reservoir towards the bottom anchoring it firmly to the main body, then reassemble the rack and close the lid.

CLEANING THE FILTERS

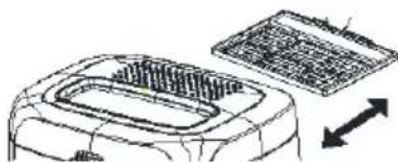

1. Extract the filter from the rear of lid (Fig. C).
2. Wash the filter with soap and water. Allow to dry to air.
3. Replace the filter.

Fig. C

TECHNICAL FEATURES

Power supply: AC 230V~50/60Hz. Power 1800W
- Capacity 2,5 lt
- Stainless steel basket
- Temperature control switch (from 130^ up to 190^ )
- Detouchable oil tank

PORTUGUES: ADVERTÉNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RESIDUOS DE APARELHIOS ELECTRICOS E ELECTRONICOS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European

regulation and is therefore marked with the CE mark.
