Product type	Electric deep fryer
Brand	G3 Ferrari
Model	Pastella G10124
Power supply	AC 230V, 50/60Hz, 2000W
Oil tank capacity	3 liters
Basket material	Stainless steel
Adjustable thermostat	From 90°C to 190°C
Viewing window	Yes, with anti-condensation indicator
Power-on indicator	Yes (green)
Temperature indicator	Yes, turns off when temperature is reached
Lid	Yes, with transparent window
Basket handle	Removable and lockable
Oil tank	Detachable
Non-slip feet	Yes
Safety device	Stops heating if the unit is not properly attached
Overheat protection	Do not use without oil
Cleaning of removable parts	Hand wash or dishwasher
Cleaning of the unit	Damp cloth, do not immerse
Recommended temperature for fries	190°C, 8 to 10 minutes
Recommended temperature for chicken	190°C, 5 to 8 minutes
Recommended temperature for shrimp	170°C, 2 to 4 minutes
Recommended temperature for fish	170°C, 5 minutes

Frequently Asked Questions - Pastella G10124 G3 Ferrari

How to use the Pastella G10124 deep fryer?

Make sure the unit is properly attached to the base, fill the oil tank between the MIN and MAX levels (about 3 L), set the thermostat to OFF, plug in, then turn the knob to the desired temperature. Place the food in the basket, lower it into the oil and close the lid. After cooking, open the lid, let the basket drain over the tank, then serve.

How much oil should I use?

The oil tank has a capacity of 3 liters. Fill between the MIN and MAX marks indicated inside the container. Do not exceed the MAX level and do not operate without oil.

How to clean the deep fryer?

Unplug the appliance and let it cool completely. Remove the oil tank, basket and handle: these parts can be washed by hand or in the dishwasher. Clean the unit with a damp cloth and a non-abrasive detergent. Never immerse the unit, cord or plug in water.

Why doesn't the green light turn on?

Check that the appliance is plugged in and that the outlet works. If the light remains off, the unit may not be properly engaged on the base: make sure the hooks are fully inserted into the slots. If the problem persists, contact after-sales service.

Can I use olive oil?

Yes, you can use olive oil, but its smoke point is lower (around 180°C). Adjust the temperature accordingly to avoid burning the oil. For fries at 190°C, prefer regular frying oil.

How to adjust the temperature?

Turn the temperature control knob (8) to the desired value between 90°C and 190°C. The TEMP indicator turns off when the temperature is reached. The cooking table in the manual gives approximate times for different foods.

What to do if the fryer does not heat?

First check that the unit is properly attached to the base: a safety device prevents the heating element from working if the unit is not correctly connected. Also make sure the thermostat is not set to OFF and that the appliance is plugged in. If the problem persists, consult technical support.

Can children use this appliance?

No, this appliance must not be used by children under 8 years old. It can be used by persons with reduced capacities if they are supervised or have received instructions. Keep the appliance and cord out of reach of children.

How to change the oil?

Let the oil cool completely. Unplug the appliance, remove the unit from the base, then carefully remove the oil tank (12). Pour the used oil into a suitable container. Clean the tank before refilling with new oil.

Where to find spare parts?

Use only original parts. Contact G3 Ferrari customer service or an authorized support center for parts like the basket, handle or oil tank. Contact details are on the manufacturer's website.

USER MANUAL Pastella G10124 G3 Ferrari

Technical model: WJ-800

Electric French food grater with a side grater filled with cheese, no visible text or symbols on the main subject.

Friggitrice - Deep fryer

PASTELLA

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 8

General information.... p. 10

Description of parts.... p. 11

First use p. 11

Mounting the unit p. 11

Operating the unit.... p. 12

Cooking time and temperature p. 12

Cleaning.... p. 12

Technical features.... p. 12

Waste of electric and electronic equipment (WEEE

Directive).... p. 29

PORTUGUES:....p. 13

FRANCAIS: p. 18

DEUTSCH: p. 23

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

AL PRIMO UTILIZZO

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

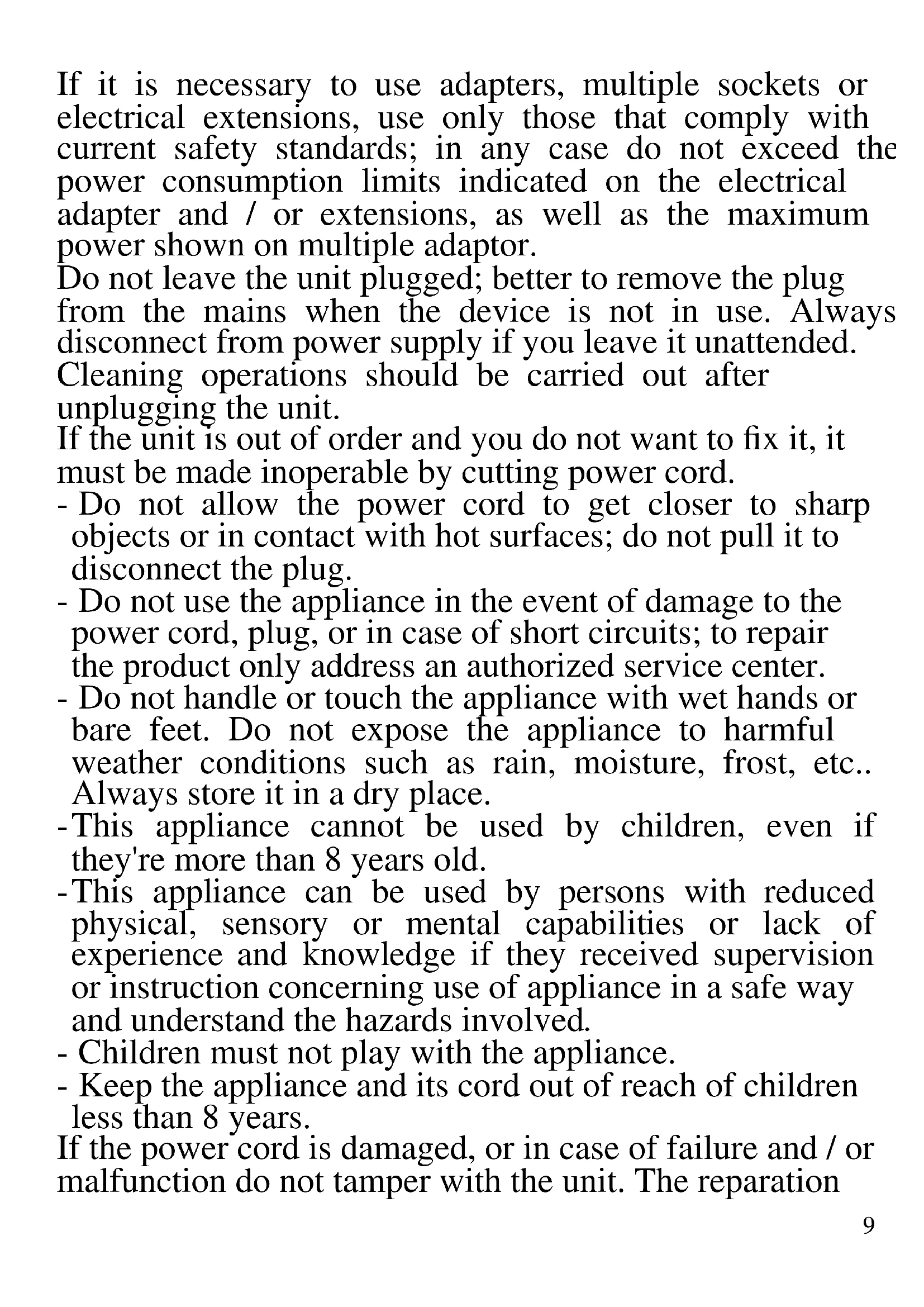

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance cannot be used by children, even if they're more than 8 years old.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation

must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

Before using for the first time, carefully wash all the parts that will come in touch with food.

CAUTION: install the appliance correctly before starting operations. Unplug the unit before touching any attachments.

Never leave the appliance unattended while it is running. Unplug the appliance from the electrical outlet after each use. Allow the product to cool down before disassembling or cleaning.

Place the unit on a flat and stable surface and where there is sufficient ventilation.

Do not unstall near electric or gas cooktops and away from the oven; place the appliance close to the power outlet to avoid the use of extension cords.

CAUTION: Use with caution during use, because the product contains potentially dangerous hot oil.

We recommend not moving the appliance when it contains hot oil and let it cool before emptying the reservoir or cleaning it.

Check that the product is OFF before connecting the appliance to the electrical outlet. To turn off, switch the knob to OFF and then unplug it from the electrical outlet socket.

Do not use without oil.

Make sure the basket is properly assembled before turning on the product.

When finished using the unit, wrap the power cord so as to ensure a better cleaning.

Always follow the instructions in section "Cleaning".

Do not immerse the electrical cord or plug in water or other liquids; Use a damp cloth to clean.

DESCRIPTION OF PARTS G10124

1) Ventilation holes 2) View window

3) Lid

4) Temperature light 5) Handle of basket

6) Power light

7) Handle 8) Temperature control

9) Basket

CAUTION: Remove protective plastic and every element of the packaging, before proceeding.

Thoroughly clean the parts that will be in contact with food, such as the basket and the interior of the appliance. Use a damp cloth and dry thoroughly before use. Mount and dismount the appliance for some times, in order to take confidence with the parts. Do not immerse power cord or plug in water or other liquids.

MOUNTING

1. Insert oil container (12) in the base (11).

2. Take the housing (10) with the handle (7) and connect it to the base (11). To do this, insert the links present on housing (10) in the holes present on base (11).

Do correctly this operation: if housing is not well connected to the base, a safety switch will inhibit the functioning of the heating element.

1. Mount the handle (5) to the basket (9). In the internal part of basket there are 2 holes: insert the 2 pins present in the handle (5) inside the holes, then pull strongly the handle until it blocks.
2. Insert the basket in the oil container, and close the lid (3).

OPERATING THE UNIT

CAUTION: Do not turn on the fryer without oil in the reservoir.

1. Place the unit on a flat, stable and heat-resistant surface.
2. Open the lid (3) and remove the basket (9), using the handle (5).
3. Fill the reservoir with cooking oil (3 liters) between MIN and MAX level mark.
4. Spread a little of oil on the view window (2) to prevent condensation during use.
5. After making sure that the power knob (7) is set to OFF, connect the power cable to compatible electric outlet. The Power light (6) will switch ON.
6. Set the desired temperature using the regulator (8). At the switch on also the temperature light (4) turns on. Once you have reached the desired temperature, the green light will turn off (TEMP).
7. Put food in the basket, immerse the basket in oil and close the lid (3).

CAUTION: Do not immerse the frozen food with crystal ice on it.

1. Once finished, open the lid (3) and lift the basket (9) using the handle (5); place the basket over the container (12) using the support on the basket. Allow to drain the oil in excess directly into the basket for a few seconds, then roll out the foods and let them dry on paper towels before serving.

COOKING TIME AND TEMPERATURE

FOOD	TEMPERATURE	COOKING TIME
CHICKEN WINGS	150°C	12/14 mins
FRENCH FRIES	190°C	8/10 mins
CHICKEN (slices)	190°C	5/8 mins
SHRIMPS	170°C	2/4 mins
ONION RINGS	190°C	3 mins
FISH	170°C	5 mins
EGGPLANT, ZUCCHINI	190°C	2 mins

NOTE: The table is for guidance only. It is therefore recommended to adjust temperature and cooking times by referring to the weight, thickness and type of storage of food to be cooked, constantly checking the state of cooking and always referring to your own experience and taste.

CLEANING

WARNING: Turn the power knob to OFF and unplug the appliance from the electrical outlet before cleaning.

• Do not immerse the housing (10) in water, but wash it with a damp cloth and non-abrasive detergent. Also avoid any infiltration of water inside the motor unit.
• All parts except heating element and housing (10) can be washed like every day crockery with non-abrasive sponge and dish detergent. Dry them completely before you assembling the motor unit again.

TECHNICAL FEATURES

• Power supply: AC 230V\~50Hz - Power 2000W
- Capacity 3 lt
- Stainless steel basket
• Temperature control switch (from 90° up to 190°C)
• Stainless steel oil tank

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
