IAN 114234 - Light Decoration MELINERA - Free user manual and instructions

Product type	Holographic effect light decoration
Brand	Melinera
Model	IAN 114234
Available colors	Red (114234-15-01), Silver (114234-15-02), Gold (114234-15-03)
Use	Indoor use only, domestic use
Rated voltage (garland)	30 V
Rated voltage (adapter)	Primary: 230-240 V ~ 50 Hz, Secondary: 30 V =
Power consumption (with adapter)	Approximately 0.5 W
Number of LEDs	10
LED type	Non-replaceable, 3 V each
Protection class (garland)	III (TÜV/GS certified)
Protection class (adapter)	II (ITS/GS certified, model THDQ-D-300006)
Package contents	1 LED light garland, 1 LED holder, 1 lampshade, 1 suction cup, 1 power adapter, 1 instruction manual
Dimensions (lampshade deployed)	Not specified in the manual (estimated: diameter approx. 30 cm)
Weight	Not specified (estimated: light, < 500 g)
Assembly	Deploy the lampshade, insert the holder with the garland, connect the adapter, attach with the suction cup
Cleaning and maintenance	Unplug before cleaning. Use a dry, lint-free cloth. Do not immerse in water.
Disposal	Packaging recyclable. Device: do not dispose of in household waste, take to a recycling center.
Warranty	3 years from date of purchase, covers material and manufacturing defects (excluding normal wear and glass)
Electrical safety	Only connect with the supplied adapter. Check mains voltage. Do not use if damaged. Unplug before assembly/disassembly.

Frequently Asked Questions - IAN 114234 MELINERA

How to install the holographic effect light star?

Deploy the lampshade, insert the LED holder with the LED light garland into the lampshade, then pull the cord to close. Connect the low-voltage plug to the power adapter, plug the adapter into a mains socket. The LEDs light up. Use the suction cup to attach the lampshade to a suitable surface.

What to do if the LEDs do not light up?

Check that the power adapter is properly plugged into the socket and that the low-voltage plug is well connected. If the problem persists, check the condition of the adapter and cable. The LEDs are connected in series: one defective LED can turn off up to 10. In this case, the product must be replaced (the LEDs are not replaceable).

Can I use this product outdoors?

No, this light decoration is designed exclusively for indoor use, in closed and dry rooms. Using it outdoors poses risks of electric shock and damage.

How to clean the light star?

Always unplug the power adapter before cleaning. Use only a dry, lint-free cloth. Do not use water, solvents, or similar products to avoid risk of electric shock and damage.

Which power adapter to use?

Use exclusively the supplied power adapter (model THDQ-D-300006). Using another adapter voids the warranty and may damage the product or pose a safety risk.

Can the LEDs be replaced?

No, the LEDs are not replaceable. If an LED is defective, the entire garland must be replaced. Contact customer service for a possible replacement under warranty.

What is the power consumption of this product?

Total power consumption with the adapter is approximately 0.5 W. The LED garland operates at 30 V and consumes about 0.2 W.

How to dispose of this product at end of life?

Do not dispose of the device in household waste. Take it to a recycling center or collection point for electrical and electronic equipment. The packaging (cardboard, plastic) is recyclable.

Does the warranty cover accidental damage?

The 3-year warranty covers material and manufacturing defects. It does not cover damage resulting from improper use, faulty maintenance, nor wear parts (such as LEDs under normal wear) or fragile glass components.

Can I leave the adapter plugged in permanently?

The adapter consumes a small amount of electricity even when the LEDs are off. For a complete shutdown and to save energy, unplug the adapter from the mains when the product is not in use.

USER MANUAL IAN 114234 MELINERA

Operation and Safety Notes

SE

HOLOGRAMSTJÄRNA MEDBELYSNING

GB/IEOperation and Safety NotesPage 5

Proper use.. 6
Description of parts.. Page 6
Technical data.. 7
Included items . Page 7

Safety advice Page 8

Use 9
Cleaning and care.. Page 10
Disposal
Warranty

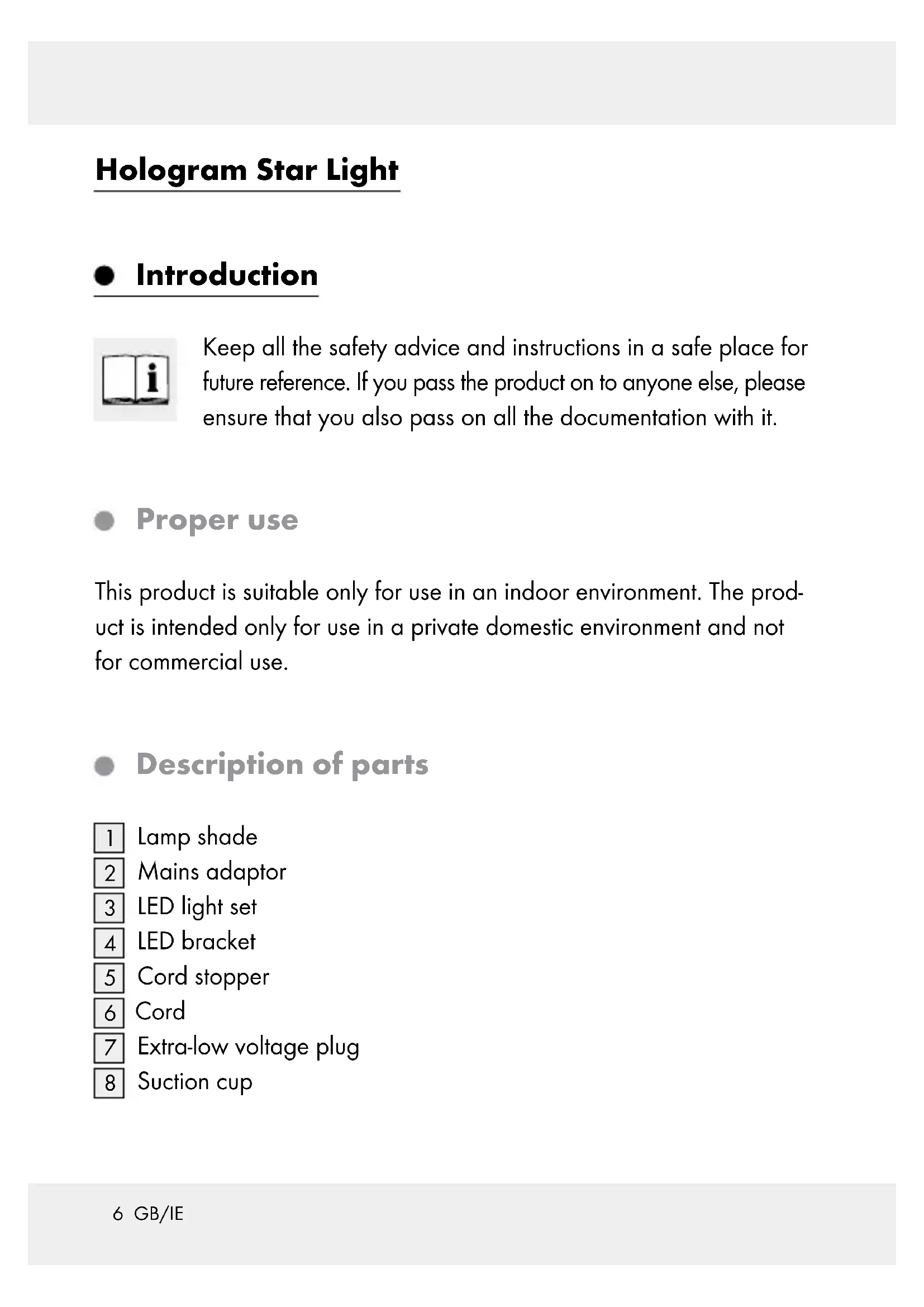

Hologram Star Light

Introduction

Keep all the safety advice and instructions in a safe place for future reference. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

This product is suitable only for use in an indoor environment. The product is intended only for use in a private domestic environment and not for commercial use.

Description of parts

1 Lamp shade
2 Mains adaptor
3 LED light set
4 LED bracket
5 Cord stopper
6 Cord
7 Extra-low voltage plug
8 Suction cup

Technical data

LED light set (light chain):

Rated power and voltage: 30V

Bulbs: 10 × LED, 3 V

$$ - \mathrm {,} 0. 2 \mathrm {W} $$

$$ = 0. 0 6 \mathrm {W} $$

(LEDs not replaceable)

Protection class:

Light set (Model No. 114234-15-01/114234-15-02/114234-15-03)

TÜV/GS approved.

Main adaptor:

Rated voltage, primary: 230 - 240V 50Hz

Rated voltage, secondary: 30V

$$ = 0. 6 \mathrm {W} $$

Protection class:

Mains adapter (Model No. THDQ-D-300006) ITS / GS tested

Total power consumption (including adapter): approx. 0.5 W

Model No.:

114234-15-01: red

114234-15-02: silver

114234-15-03: gold

- Included items

1 LED light set (light chain)
1 LED bracket
1 Lamp shade
1 Suction cup

1 Main adaptor
1 Operating instructions

Safety advice

WARNING! RISK OF LOSS OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN! Never leave children unsupervised with the packaging materials.

Packaging materials present a suffocation hazard. Children often underestimate danger. Always keep children away from the product.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION! RISK OF OVERHEATING! Do not operate the

product whilst it is still in the packaging.

After use store the product in the original packaging to avoid causing unintentional damage.

Do not pull on the product's lead.

Do not attach any other objects to the product.

This product is designed only for use indoors in dry and enclosed rooms.

Avoid risk to life from electric shock!

Before use ensure that the available mains voltage agrees with the operating voltage specified for the product (230-240 V~).
Before connecting the mains adaptor 2 to the mains, always check it for any damage.
Do not use the product if you discover it is damaged in any way.
- Protect the mains lead from sharp edges, mechanical loads and hot surfaces.
Never fix the product in place with clips or nails.
Before installing, uninstalling or cleaning, always pull the mains plug out of the mains socket.
This product must not be electrically connected to another product.
Use the light set only with a mains adapter type THDQ-D-300006. Failure to observe this advice will invalidate any claims under the warranty.
The product is only suited for use with the included mains adapter (THDQ-D-300006).
Please note that the power adapter continues to draw a small amount of power even if the lamp is turned off as long as the power adapter is plugged into a power outlet. To switch the device off completely, unplug the power adapter from the socket.

Use

Note: The bulbs are connected in series. If one bulb is defective, up to 10 bulbs may not light up.

Unfold the lamp shade 1 (Fig. A and B).
Insert the LED bracket 4 with the LED light set 3 into the lamp shade 1 (Fig. C and D).
Pull the cord 6 through the cord stopper 5 to close the lamp shade 1 (Fig. D).
Connect the extra-low voltage plug 7 with mains adaptor 2
Insert the mains adaptor 2 into the mains socket. The LEDs are switched on.
Pull the mains adaptor 2 out of the mains socket to switch off the LEDs.
Use the supplied suction cup 8 to hang up the lamp shade 1 in a suitable place.

Note: The cable of the light chain must be secured without force and must not be fastened with nails or similar.

- Cleaning and care

CAUTION! RISK OF ELECTRIC SHOCK! First of all pull the mains plug out of the mains socket.
CAUTION! RISK OF ELECTRIC SHOCK! For electrical safety reasons never clean the product with water or other fluids nor immerse it in water.
- Do not use solvents, such as petrol and the like, as they could damage the product.
Use only a dry, fluff-free cloth for cleaning.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your discarded product.

In the interest of the environment, do not throw out your product with your household refuse. Take it to a suitable centre where it can be disposed of properly. Your local council will be able to tell you where the collection centres are located and their opening times.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
