IAN 313564 - Outdoor lamp MELINERA - Free user manual and instructions

Product type	LED outdoor lamp (decorative lantern)
Brand	Melinera
Model / IAN	313564
Dimensions (L × H × D)	13,5 × 30,5 × 13,5 cm (FL-6165) 13,5 × 31,5 × 13,5 cm (FL-6166, FL-6167)
Power supply	3 x 1.5V type LR03 (AAA) batteries (non-rechargeable)
Lighting type	Fixed LED (non-replaceable)
Main functions	On/Off, Integrated timer (6h on / 18h off)
Use	Indoor and outdoor, can be placed or hung
Chromatic characteristics	Special LED (x/y coordinates outside white point) – not suitable for conventional household lighting
Cleaning and maintenance	Wipe with a damp cloth, no harsh detergents
Protection rating	Splash-proof (suitable for outdoor)
Safety	Not suitable for children (choking hazard from small parts). Keep batteries out of reach of children
Spare parts and repairability	LED non-replaceable; standard batteries available commercially
Warranty	3 years (from date of purchase, subject to proper use)
After-sales service (Belgium)	Phone: [phone] (€0.15/min) – Email: [e-mail]
Package contents	1 LED lantern, 1 instruction manual

Frequently Asked Questions - IAN 313564 MELINERA

What type of batteries should I use?

Use 3 LR03 (AAA) 1.5V batteries. Rechargeable batteries are not suitable.

How do I replace the batteries?

Remove the rubber cap (1a) and the cover (1b) of the battery compartment. Insert the batteries observing polarity (+/-), then close.

How does the timer work?

Set the switch to TIMER. The light turns on for 6 hours, then automatically turns off for 18 hours, and repeats this cycle.

Can the lamp be used outdoors?

Yes, it is designed for indoor and outdoor use thanks to its splash-proof rating.

Is the lamp suitable for main lighting?

No, it is a decorative lamp with non-standard chromatic coordinates. It is not suitable for conventional household lighting.

How do I clean the lamp?

Clean it with a damp cloth and wipe dry. Do not use harsh or abrasive detergents.

Can I replace the LED?

No, the LED is built-in and not replaceable.

What safety precautions are there for batteries?

Keep batteries out of reach of children. Do not mix new and old batteries or different types. If swallowed, consult a doctor immediately.

What is the warranty period?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects. Keep the receipt.

Where can I find after-sales service in Belgium?

Contact the Belgium service: phone [phone] (€0.15/min) or email [e-mail].

USER MANUAL IAN 313564 MELINERA

PDF online www.lidl-service.com

LED LANTERN

GB IE NI

LED LANTERN

Instruction for use

FR BE

LANTERNE LED

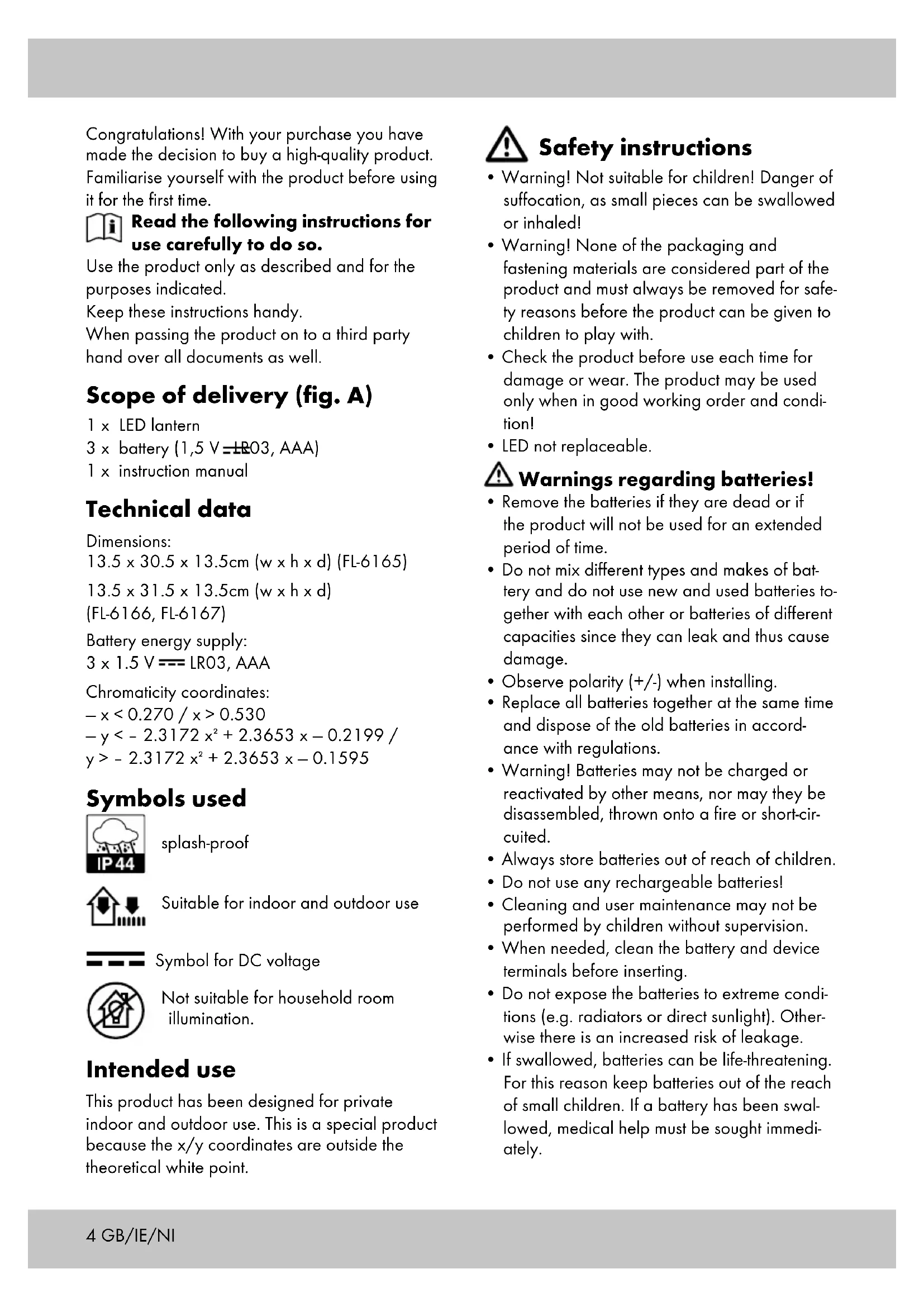

Congratulations! With your purchase you have made the decision to buy a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully to do so.

Use the product only as described and for the purposes indicated.

Keep these instructions handy.

When passing the product on to a third party hand over all documents as well.

Scope of delivery (fig. A)

1 x LED lantern

3 x battery (1,5 V=±R03, AAA)

1 x instruction manual

Technical data

Dimensions:

13.5 × 30.5 × 13.5cm (w × h × d) (FL-6165)

13.5 × 31.5 × 13.5cm (w × h × d)

(FL-6166, FL-6167)

Battery energy supply:

3 × 1.5 V === LRO3, AAA

Chromaticity coordinates:

-x < 0.270 / x > 0.530

-y<-2.3172x²+2.3653x-0.2199/

y > -2.3172 x^2 + 2.3653 x - 0.1595

Symbols used

splash-proof

Suitable for indoor and outdoor use

Symbol for DC voltage

Not suitable for household room illumination.

Intended use

This product has been designed for private indoor and outdoor use. This is a special product because the x/y coordinates are outside the theoretical white point.

Safety instructions

• Warning! Not suitable for children! Danger of suffocation, as small pieces can be swallowed or inhaled!
• Warning! None of the packaging and fastening materials are considered part of the product and must always be removed for safety reasons before the product can be given to children to play with.
• Check the product before use each time for damage or wear. The product may be used only when in good working order and condition!
• LED not replaceable.

Warnings regarding batteries!

• Remove the batteries if they are dead or if the product will not be used for an extended period of time.
• Do not mix different types and makes of battery and do not use new and used batteries together with each other or batteries of different capacities since they can leak and thus cause damage.
• Observe polarity (+/-) when installing.
• Replace all batteries together at the same time and dispose of the old batteries in accordance with regulations.
• Warning! Batteries may not be charged or reactivated by other means, nor may they be disassembled, thrown onto a fire or short-circuited.
  • Always store batteries out of reach of children.
• Do not use any rechargeable batteries!
• Cleaning and user maintenance may not be performed by children without supervision.
• When needed, clean the battery and device terminals before inserting.
• Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight). Otherwise there is an increased risk of leakage.
• If swallowed, batteries can be life-threatening. For this reason keep batteries out of the reach of small children. If a battery has been swallowed, medical help must be sought immediately.

Danger!

• Handle a damaged or leaking battery with extreme care and dispose of it immediately as per regulations. Wear gloves for this.
• If you come into contact with battery acid, wash the affected area with soap and water. If battery acid gets into your eye, rinse it out with water and seek medical treatment immediately!
• The terminals must not be short-circuited.

Inserting the batteries (fig. A)

WARNING! Follow these instructions to avoid mechanical and electrical damage.

Three batteries are included with the product; these must be removed from the packaging before insertion.

1. Remove the rubber cap (1a) on the underside of the product.
2. Remove the battery compartment lid (1b) from the battery compartment (1c).
3. Insert the batteries (2) into the battery holder.

Note: Pay attention to correct plus/minus polarity of the batteries and their installation.

The batteries must fit fully into the battery holder.

1. Close the battery compartment lid (1b) again.

2. Close the rubber cap (1a).

Replacing the batteries

If the batteries no longer work you can replace them.

Proceed as described in the section "Inserting the batteries". Remove the old batteries from the battery compartment before inserting the new ones.

Switching the light on and off (fig. A)

Slide the switch (1d) to ON in order to switch on the product. Slide the switch (1d) to OFF to turn it off. Slide the switch (1d) to TIMER to activate the product's timer function.

Note: The timer function keeps the light switched on for six hours and switched off for 18 hours.

Use

The product can be placed flat or suspended.

Note: Do not place the product on sensitive surfaces. This may cause scratches.

Please take the product weight into account when suspending.

Storage and cleaning

When not in use, keep the product clean and dry, and remove the batteries during storage. Simply clean with a damp cloth and then wipe dry.

IMPORTANT! Never use harsh detergents to clean the product.

Disposal information

Dispose of the product and packaging materials in accordance with current local regulations.

Packaging materials such as plastic bags should not be accessible to children. Keep the packaging material out of the reach of children.

Please dispose of the product and its packaging in an environmentally-friendly way.

The recycling code is used to identify different materials for the purpose of pressing for reuse (recycling). The codes of the recycling symbol, which is used to match the recycling process, and a r, which identifies the material.

Devices marked with this symbol must not be disposed of with general household waste. You are obliged to dispose of such electrical and electronic equipment separately. Please contact your local authority for information about proper disposal. Before disposal remove the batteries from the product.

Disposal measures Batteries

Please note: Batteries are considered hazardous waste, which may not be disposed of along with the household

waste. You can hand in used batteries free of charge at your local community's collection points or at your retailer. Special collection containers are available there.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 313564

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

NI Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

3 × pile (1,5 V = LRO3, AAA)
