USER MANUAL Girandolo 40 G5V006 G3 Ferrari

ENGLISH: SAFETY INSTRUCTIONS

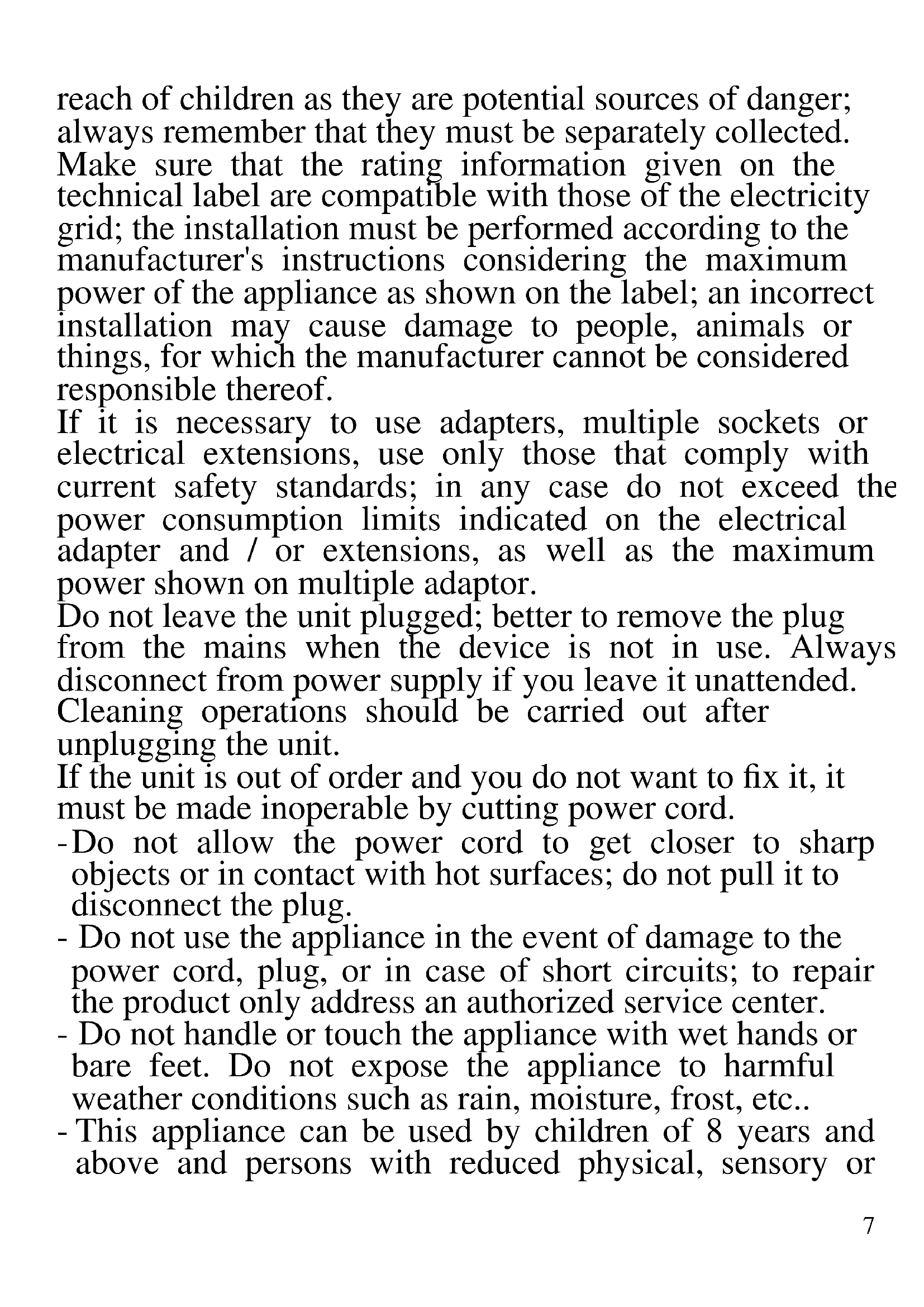

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use. Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the7 reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof. If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor. Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit. If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord. - Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug. - Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center. - Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. - This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or8 mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision. - Always store it in a dry place. - Children must not play with the appliance. - Keep the appliance and its cord out of reach of children less than 8 years. If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty. - This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments. - The appliance is not intended to be operated by means of an external timer or separate remote-control system. - Before every use, unroll the power cord. - Use original spare parts and accessories only. - Do not subject the product to strong impacts, serious damages may result. GENERAL INFORMATION - Do not connect the electric plug since the installation is not complete. - Do not leave the appliance unattended while it is running. Unplug after each use. - Unplug the unit by pulling the plug and not the power cord. - Do not immerse product in water or other liquids and avoid splashing liquids reach the unit. - Before carrying out any cleaning, disconnect the unit from the electrical outlet. - Before each use, unroll the power cord. Do not insert anything through the protection grids. - Do not obstruct in any way the protection grids. - Place on solid and stable surfaces and away from windows or drafts.9

1 Front protection grid 2 Fan 3 Three speeds control knob 4 Handle 5 180° inclination joint 6 Rear protection grid 7 Base 8 Wall mounting holes ASSEMBLY Before placing the fan on the ground, assemble the stand on the base of the unit. For wall mounting, follow the steps below: - Place the fan choosing the right height so as children cannot reach the unit. - The fan must be placed at a minimum distance of 20 cm from the ceiling or sidewalls. Do not mount on a surface subjected to vibration. - The base (8) must be mounted perpendicular to the wall, the inclination can be set by moving the inclination joint (5). Buy 2 screws # 8 and 2 plugs according to the size of the screws and the wall material (brick , concrete, wood , etc ...). - Take the base (8) and place it on the wall, where you want to place the product. - Mark the position of the holes on the wall. - Drill the wall on the signs and insert the plugs into the holes. Tighten the screws. Do not tighten completely, but leave the heads of the screws 1.6cm out from the wall. Align the holes in the base (8) with the screws and attach the fan to the wall by inserting the screw heads in the holes.

At the end of the assembly operations, install the unit as following the Safety Information paragraph and connect the plug to the power outlet. By using the control knob (3), adjust the rotation speed of the fan and the strength of the ventilation as follow: - 0: The fan is switched off - 1: fan is running at low speed - 2: fan is running at medium speed - 3: fan is running at the highest speed - The fan can be adjusted 180° vertically. CLEANING Unplug the unit from the power outlet before starting any cleaning operation. - Do not immerse the unit in water. In any case, avoid splashing water or other liquids from reaching the motor housing. - Do not clean with sponges or abrasive cleaners, use a neutral detergent and a soft cloth dampened with water to clean all the parts. - Dry the appliance before operating. - To clean the fan and the inside unit, you can unscrew the front grid (1) as shown in the Figure aside. TECHNICAL FEATURES

• Power supply: AC 230V~50Hz. Maximum power 55W

• 100% copper winding motor, without aluminum

• 180 ° vertically adjustable. 3 operating speeds

• Suitable for wall mounting. Handle10
