Stelolungo G20088 - Hand blender G3 Ferrari - Free user manual and instructions

Product type	Immersion blender
Brand	G3 Ferrari
Model	Stelolungo G20088
Power supply	AC 220-240 V ~ 50-60 Hz
Power	700 W
Speeds	2 (low and high)
Shaft material	Stainless steel
Detachable shaft	Yes
Included accessories	Motor unit, shaft, blades, glass
Recommended use	Pastes, milkshakes, sauces, juices, cocktails, soups, vegetables
Not recommended for	Hard foods and ice
Maximum continuous use duration	30 seconds, then 5 minutes rest
Cleaning the motor unit	Damp cloth, non-abrasive detergents
Cleaning the shaft and blades	Warm water and non-abrasive detergent
Safety	Disconnect before cleaning or handling blades; sharp blades
Repairs	Contact the manufacturer or authorized technical service
Disposal	Follow the WEEE directive (2002/96/EC)

Frequently Asked Questions - Stelolungo G20088 G3 Ferrari

How to assemble the shaft onto the motor unit?

Insert the shaft into the motor body and turn counterclockwise until it locks. To remove, turn clockwise.

What are the available speeds?

The appliance has two speeds: a button for low speed and another for high speed. It is recommended to start with the first speed then switch to the second.

Can you blend hot foods?

Yes, but it is recommended to add water in small amounts to homogenize. Watch out for splashes: immerse the blade well before starting.

How to clean the blender?

Always unplug the appliance. The motor unit is cleaned with a damp cloth and non-abrasive detergents. The shaft, blades and accessories can be washed in warm water with a sponge and mild detergent.

Are the shaft and blades dishwasher safe?

The manual does not specify if dishwasher is allowed. It is recommended to hand wash to preserve the sharp blades.

What to do if the appliance does not start?

Check that the plug is properly connected and that the parts are correctly assembled. If the problem persists, contact an authorized service center.

Can you blend ice with this blender?

No, the appliance is not designed to cut hard foods or ice. It is intended for preparations like soups, sauces, milkshakes and vegetables.

What is the maximum continuous use time?

Do not use the appliance continuously for more than 30 seconds. Let it rest for at least 5 minutes before using again to avoid motor overheating.

How to avoid splashes during blending?

Make sure the blade is completely immersed in the food before starting the appliance. Use a sufficiently deep container.

Where to find spare parts?

Use only original accessories and parts. Contact the manufacturer or an authorized technical service to obtain spare parts.

USER MANUAL Stelolungo G20088 G3 Ferrari

Technical model: HB10-7

Mixer ad immersione - Hand blenderLicuadora manual - Liquidificador manualMixeur à main - Handmixer

STELOLUNGO

ITA: INDICE

Simbologia. p. 2

Safety instructions. p. 7

General information. p. 9

G20088 p. 10

Operating. p. 10

Setting working speed. p. 10

Cleaning. p. 10

Technical features. p. 10

Waste of electric and electronic equipment (WEEE

Directive) p. 28

PORTUGUES: p. 11

ESPAÑOL p. 15

DEUTSCH p. 19

FRANCAIS p. 23

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DISICUREZZA

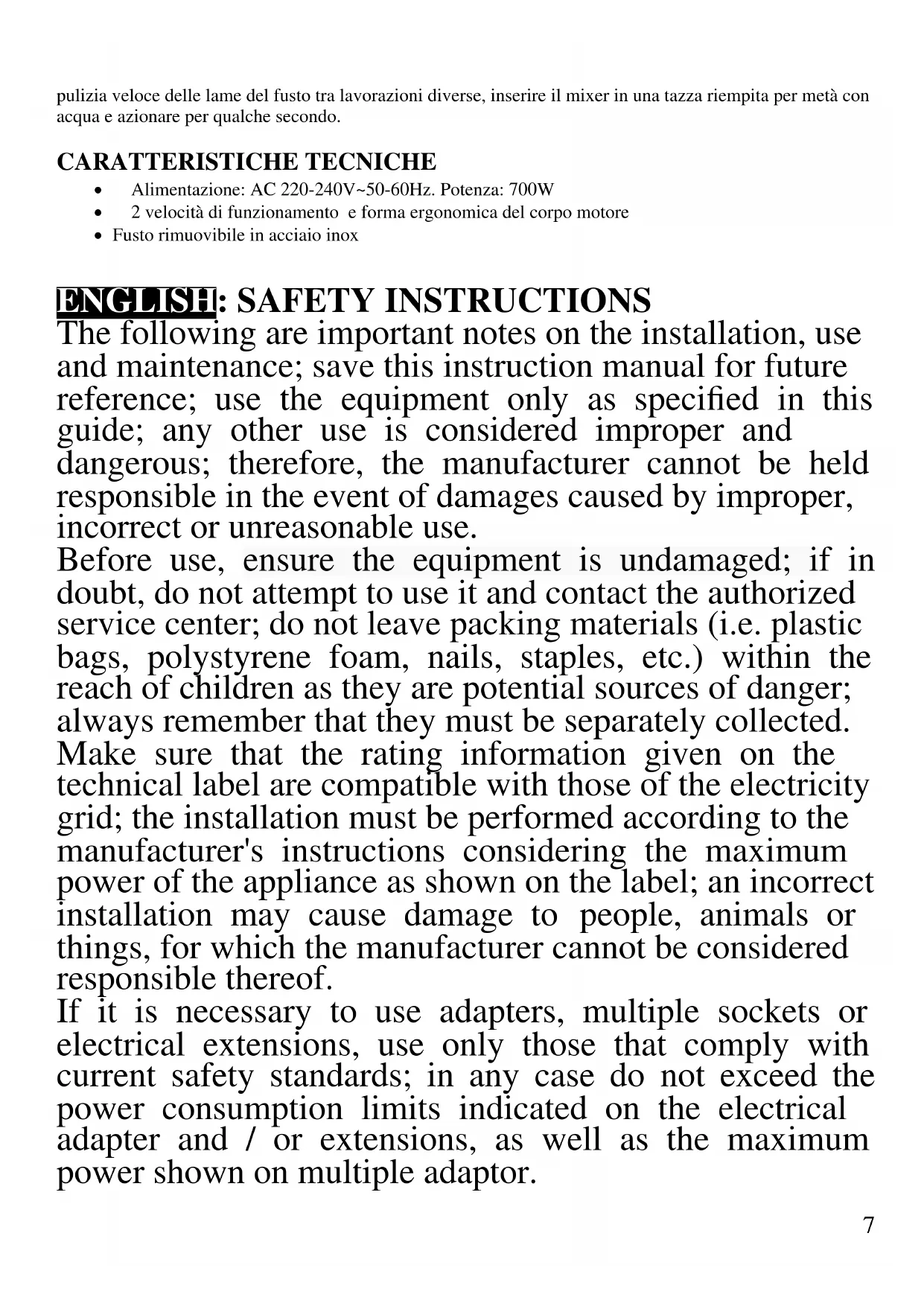

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

• This appliance cannot be used by children, even if they're more than 8 years old.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.

• Children must not play with the appliance.

• Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

• This appliance is intended to be used in household and

similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.

Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

The blades of the hand blender are very sharp to chop: Be careful not to cut yourself during cleaning operations and/or when removing the attachments.

To avoid the overheating of the motor, do not use the appliance running continuously for more than 30 seconds, then make at least 5 minutes rest. Do not use the product without food.

Do not insert your fingers inside the bowl while the mixer is running.

Before using for the first time, carefully wash the parts that will be in touch with food: immersion cone, accessories and blades.

Before operating the appliance, check that all the parts are correctly installed.

Never leave the appliance unattended while it is running.

CAUTION! Unplug the unit from the socket before touching the blades for any reason, such as cleaning or foods removing.

CAUTION! Always unplug the unit from the electrical outlet each after use and/or before touching the blades /

installing or removing any accessory or attachment.

To clean the immersion cone and the accessories, it is recommended using warm tap water and containing the use of detergents. When cleaning with detergents, rinse thoroughly.

Do not immerse the top of the mixer in water or other liquids, clean it with a damp cloth.

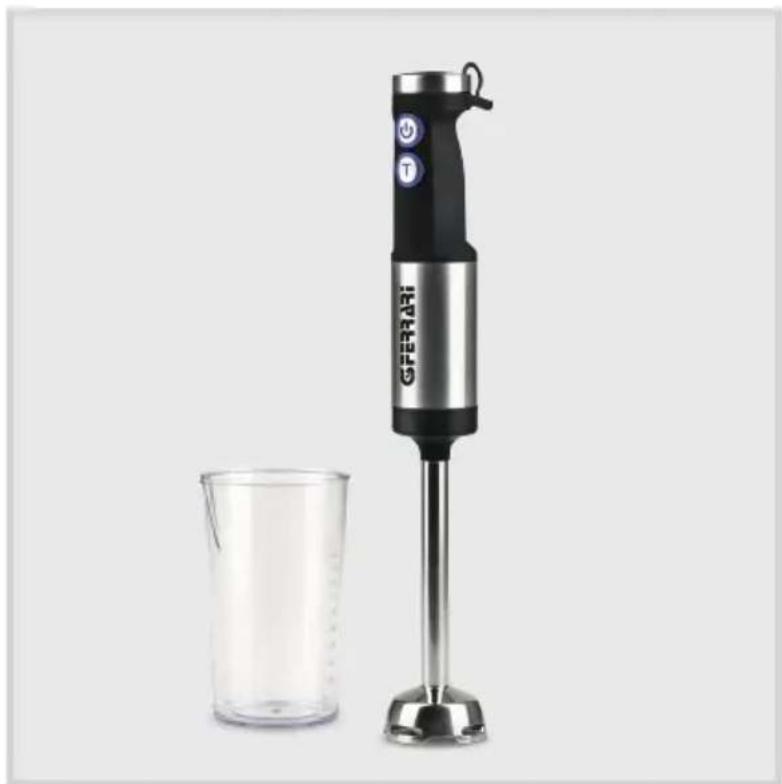

PARTS G20088

1. Switch low speed 3. Switch high speed 4. Motor body
2. Plastic beaker 6. Stainless steel immersion shaft 7. Blades

OPERATING

STAINLESS STEEL IMMERSION SHAFT

• Assemble motor housing to the immersion stainless-steel shaft as described in the "Assembling the shaft" section. Plug the unit to the electrical outlet.
• Insert mixer in the bowl with the food to blend (ensure to immerse the entire blade to avoid splashing).
• Press the button (speed I or II) to start operating. For best results, follow the instructions in "Setting processing speed" section.

CAUTION! Do not insert your fingers inside the bowl containing food

• Unplug the hand blender from the electrical outlet, once finished working,

This appliance is not suitable for chopping hard foods or ice. It is suitable for making baby food, milk shakes, sauces, juices, cocktails, soups, vegetable soup, etc. ... When processing fruits or vegetables, add also a small quantity of water to allow the device to operate in a homogeneous way.

Assembling the shaft

Insert motor body (4) in the shaft (6). Rotate anticlockwise until it blocks. For unblocking, rotate clockwise.

SETTING THE WORKING SPEED

The unit features two working speeds (2 and 3 button).

For best results and to avoid overheating, it is recommended to use the unit for short and regular intervals, then for a long time, always making circular movements inside the container of food. It is also recommended to start processing food from the first speed, ending up using the faster speed.

CLEANING

Unplug the unit from the electrical outlet.

Do not immerse the motor body in water or other liquids, but wash it with a damp cloth and non-abrasive detergent. Avoid any infiltration of water inside the motor housing.

Shaft, blades and accessories can be washed like normal dishes, with a non-abrasive sponge and mild detergent. Dry them thoroughly before assembling them to the main body.

For a quick cleaning of the blades of the shaft during different processes, insert the hand blender into a cup filled with water and operate for a few seconds.

TECHNICAL FEATURES

Power supply: AC 220-240V~50-60Hz. 700W
2 working speeds, Ergonomic motor housing
- Detachable stainless-steel shaft

PORTUGUES: ADVERTÉNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RESIDUOS DE APARELHIOS ELECTRICS E ELECTRONICOS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.
