RHT36B60R - Hedge Trimmers RYOBI - Free user manual and instructions

Product type	Cordless hedge trimmer
Brand	RYOBI
Model	RHT36B60R
Rated voltage	36 V (lithium-ion battery)
Blade length	60 cm

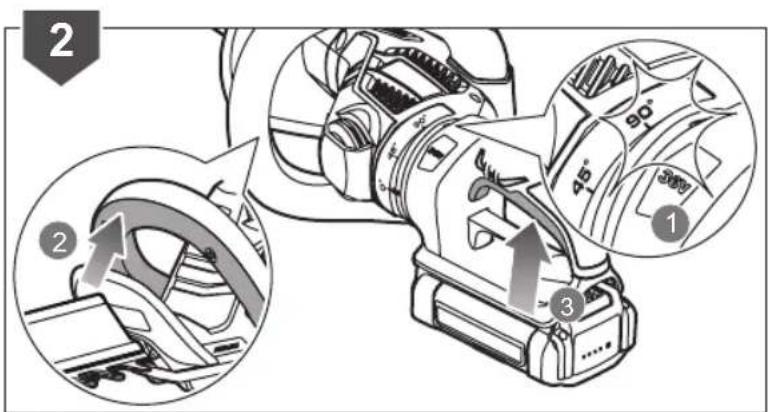

Max. cutting capacity	26 mm diameter
Cutting speeds	2 modes: max speed and max torque
Weight (approx.)	3.5 kg (with battery)
Guaranteed sound power level	96 dB(A)
Measured sound power level	93.6 dB(A)
Battery type	Lithium-ion 36 V (ONE+ compatible)
Charger included	Yes
Rotating handle	Yes, with lock-off trigger
Safety	User presence switch, lock-off trigger, blade guard
Maintenance	Clean and lubricate blades after each use
Warranty	24 months (extendable online)
Intended use	Domestic use, trimming hedges and shrubs
Included accessories	36 V battery, charger, blade guard

Frequently Asked Questions - RHT36B60R RYOBI

What is the battery life of the RYOBI RHT36B60R?

Battery life depends on the battery condition and branch thickness. With a 36 V 4 Ah battery, expect about 30 to 60 minutes of continuous use. Use max speed mode to save battery on thin hedges.

How to sharpen the hedge trimmer blades?

The blades are very sharp and do not require frequent sharpening. If necessary, use a fine file following the original angle. It is recommended to contact an authorized after-sales service for professional sharpening.

What to do if the blade gets stuck during cutting?

Immediately stop the tool and remove the battery. Use protective gloves to clear debris stuck between the blades. Then lubricate the blades before restarting. Avoid forcing on branches that are too thick (max. 26 mm).

Can I use the hedge trimmer in the rain?

No, the tool is not designed for use in rain or wet conditions. There is a risk of electric shock and damage. Use it only in dry weather and in a well-lit environment.

What is the best cutting mode for thick hedges?

Use max torque mode (speed 2) for dense or thick branches. This mode provides more power. For routine maintenance, prefer max speed mode (speed 1) for fast and precise cuts.

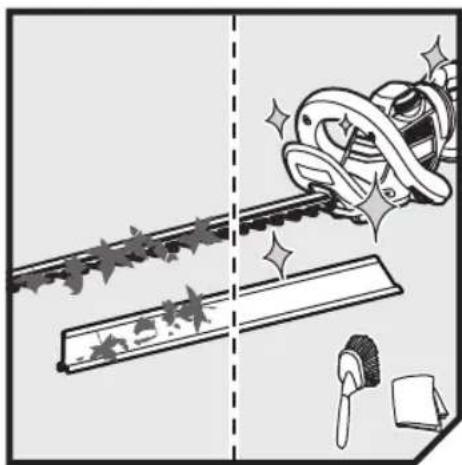

How to maintain the hedge trimmer after use?

After each use, remove the battery, clean the blades with a stiff brush, then apply an anti-rust lubricant. Replace the blade guard before storing the tool in a dry place out of reach of children.

Is the RHT36B60R compatible with all Ryobi ONE+ batteries?

Yes, it is compatible with batteries from the Ryobi ONE+ 18 V range (in series to achieve 36 V) and specific 36 V batteries. Use a 36 V battery or two 18 V batteries (not included) depending on the model.

What is the warranty of the RYOBI RHT36B60R hedge trimmer?

The warranty is 24 months from the purchase date for domestic use. You can extend it up to 3 years by registering your product on www.ryobitools.eu within 30 days of purchase.

Can I cut branches over 26 mm in diameter?

No, the maximum cutting capacity is 26 mm. For larger branches, use a hand saw or pruner. Forcing could damage the blades and motor.

How to store the hedge trimmer safely?

Always remove the battery and place the blade guard before storing. Store the tool in a cool, dry, ventilated place out of reach of children. Avoid storing near corrosive chemicals.

USER MANUAL RHT36B60R RYOBI

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E' importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımını yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.

Subject to technical modification.

Safety, performance, and dependability have been given top priority in the design of your cordless hedge trimmer.

INTENDED USE

The product is only intended for use outdoors. For safety reasons the product must be adequately controlled by using two handed operation.

The product is designed for home or domestic use. It is intended to cut and trim hedges, shrubs, and similar vegetation.

It should be used in dry, well illuminated conditions.

It is not intended to cut grass, trees, or branches. It should not be used for any other purpose than hedge trimming.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Save all warnings and instruction for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injury. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired

before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

BATTERY TOOL CARE AND USE

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

SERVICE

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that safety of the power tool is maintained.

HEDGE TRIMMER SAFETY WARNINGS

• Keep all parts of the body away from the cutter blade. Do not remove the cut material or hold the material to be cut when blades are moving. Make sure the switch is off when clearing jammed materials. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer reduces possible personal injury from the cutter blades.
• Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ADDITIONAL SAFETY RULES

- Clear the work area before each use. Remove all objects, such as cords, lights, wires, or strings which can be thrown or become entangled in the cutting means.

can be thrown or become entangled in the cutting means.

• Check the hedge for foreign objects, such as wire fences. ■ Never use the product near posts, fences, buildings, or other immovable objects. ■ Beware of thrown objects; keep all bystanders, children, and pets at least 15 m away from work area.
• Do not operate in poor lighting. The operator requires a clear view of the work area to identify potential hazards.
• Inspect the product before each use. Check for loose fasteners, etc. Make sure all guards and handles are properly and securely attached. Replace any damaged parts before use. Check for battery pack leaks.

Do not allow children or untrained individuals to use the product.

■ Do not allow children or untrained individuals to use the product.

■ Wear full eye and hearing protection while operating the product. If working in an area where there is a risk of falling objects, wear appropriate head protection.

- Secure long hair so it is above shoulder level to prevent entanglement in moving parts.

■ Do not use the product when you are tired, ill, or under the influence of alcohol, drugs, or medication.

- Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces.

■ Before starting the product, make sure the cutting blades will not come in contact with anything.

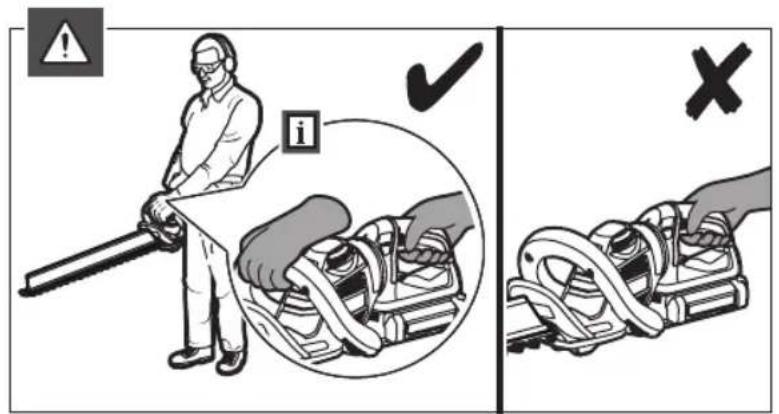

While operating the hedge trimmer, always hold it firmly with both hands by the two handles. Ensure that the operating position is safe and secure. The manufacturer does not recommend the use of steps or ladders. If higher trimming is required, use an extended-reach tool.

■ Blades are sharp. When handling the blade assembly, wear non-slip, heavy duty protective gloves. Do not place your hand or fingers between blades or in any position where they could get pinched or cut. Never touch the blade nor service the product unless the battery pack is removed.

■ Switch off and remove the battery pack off before:

• adjusting the working position of the cutting means • cleaning or clearing a blockage • leaving the product unattended

- checking, conducting maintenance, or working on the product

- Do not force the product through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace.

- Do not attempt to cut stems or twigs that are larger than 26 mm, or those obviously too large to feed into the cutting blade. Use a non-powered hand saw or pruning saw to trim large stems.

■ Use of hearing protection reduces the ability to hear warnings (shouts or alarms). The operator must pay extra attention to what is going on in the working area.

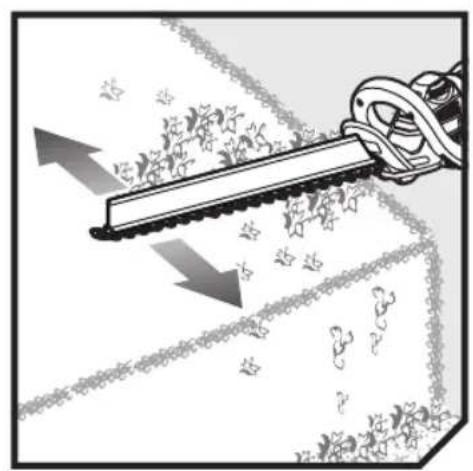

- Your hedge trimmer is equipped with two cutting speeds:

• Setting 1 (hi-speed) - Use this setting as the primary mode of your hedge trimmer. At hi-speed setting, the blade cuts at top speed, which allows quick and precise trimming. This speed is best for the regular maintenance of your hedges.
• Setting 2 (hi-torque) - Use this setting to cut thick or dense hedges. The hi-torque setting provides more cutting power to trim larger branches. This setting is not intended for everyday trimming.

Use the speed switch to change the cutting speed to your desired setting. You should not change the cutting speed while the product is running.

WARNING

If the product is dropped, suffers heavy impact, or begins to vibrate abnormally, immediately stop the product and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre.

ADDITIONAL BATTERY SAFETY WARNINGS

WARNING

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, can cause a short circuit.

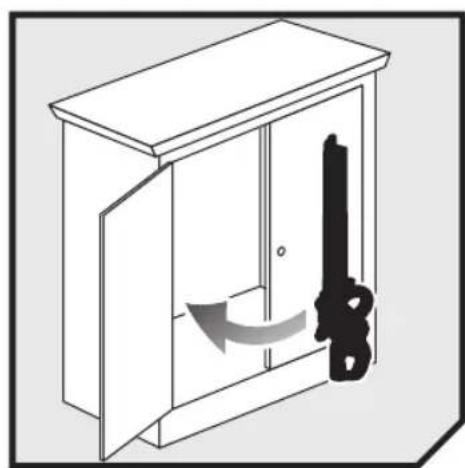

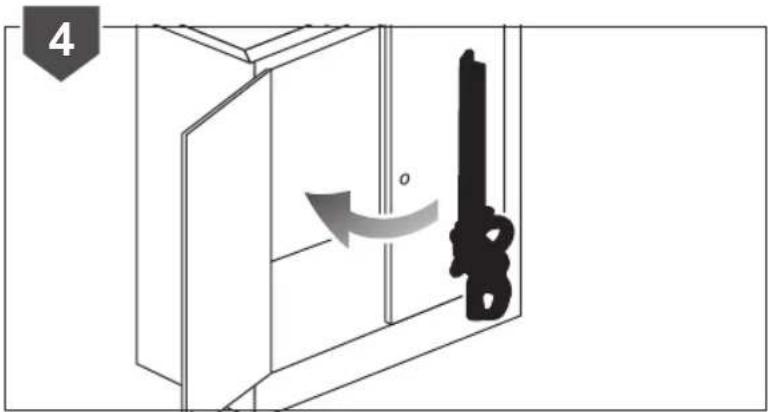

TRANSPORTATION AND STORAGE

■ Stop the product, remove the battery, and allow both to cool before storing or transporting. ■ Clean all foreign material from the product. Store it in a cool, dry, and well-ventilated place that is inaccessible to children. For extra safety, store the battery separately from the hedge trimmer. Keep away from corrosive agents such as garden chemicals and de-icing salts. Do not store outdoors. ■ Cover the blade with the blade protector before storing the product or during transportation. ■ For transportation, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

WARNING

Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, poor performance, and may void your warranty.

WARNING

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service, we suggest you return the product to your nearest authorised service centre for repair. When servicing, use only identical replacement parts.

WARNING

The blades are extremely sharp. To prevent personal injury, exercise extreme caution when cleaning, lubricating, and fitting or removing the blade protector.

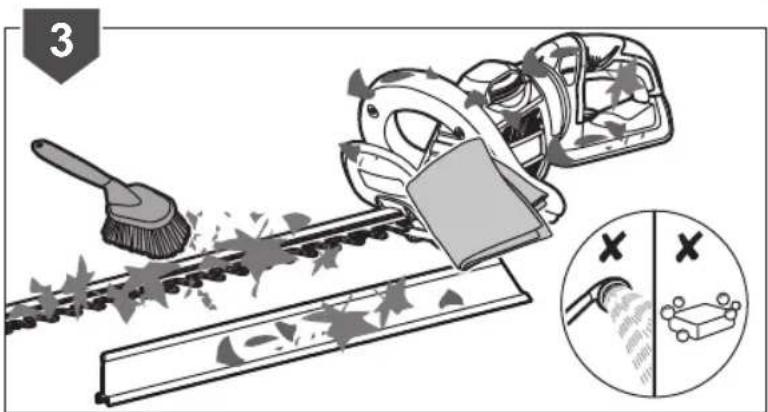

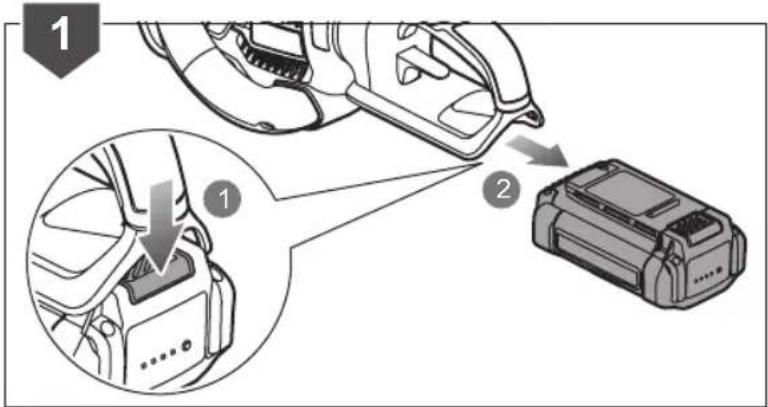

■ Remove the battery before adjusting, maintaining, or cleaning the product. - You may make adjustments and repairs described in the manual. For other repairs, contact the authorised service agent. ■ After each use, clean the body and handles of the product with a soft, dry cloth. ■ After each use, clean the debris from the blades with a stiff brush, and then carefully apply a rust preventative lubricant before refitting the blade protector. The manufacturer recommends you to use a rust preventative and lubricant spray to apply an even distribution and reduce the risk of personal injury from contact with the blades. For information about suitable spray product check with your local authorised service centre. - You may wish to lubricate the blades lightly before use if necessary using the above method. - Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

RESIDUAL RISK

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following:

■ The blades cannot be guarded whilst cutting. Contact with the blades can cause serious injury. Keep the blade away from yourself and others. Cover it with the blade protector whenever you are not cutting.

■ Injury caused by vibration. Always use the right tool for the job, use designated handles and restrict working time and exposure. ■ Exposure to noise can cause hearing injury. Wear ear protection and limit exposure

RISK REDUCTION

It has been reported that vibrations from hand-held tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of the these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the product, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome. ■ After each period of operation, exercise to increase blood circulation. ■ Take frequent work breaks. Limit the amount of exposure per day. ■ If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor.

WARNING

Injuries may be caused or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

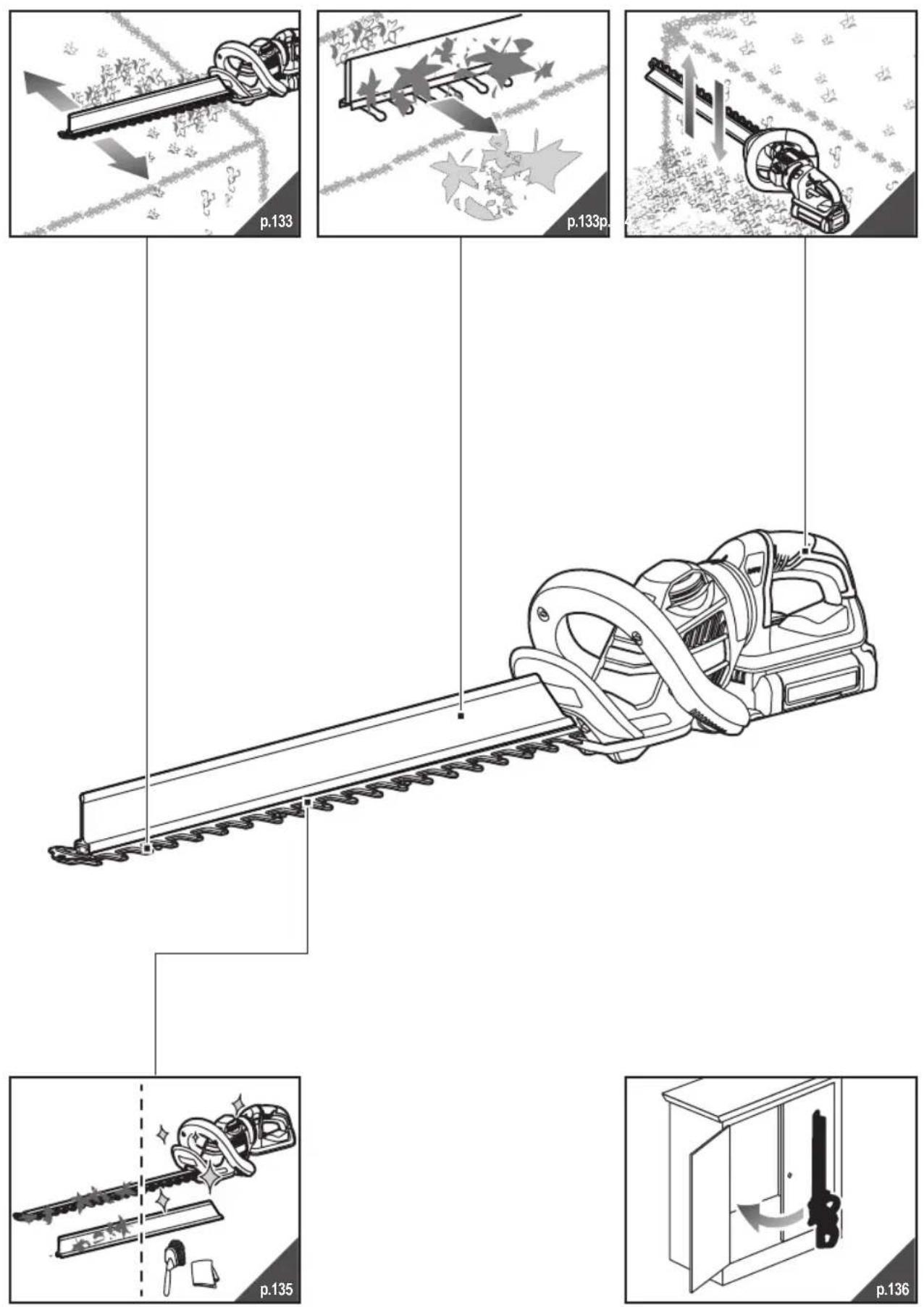

DESCRIPTION

See page 130.

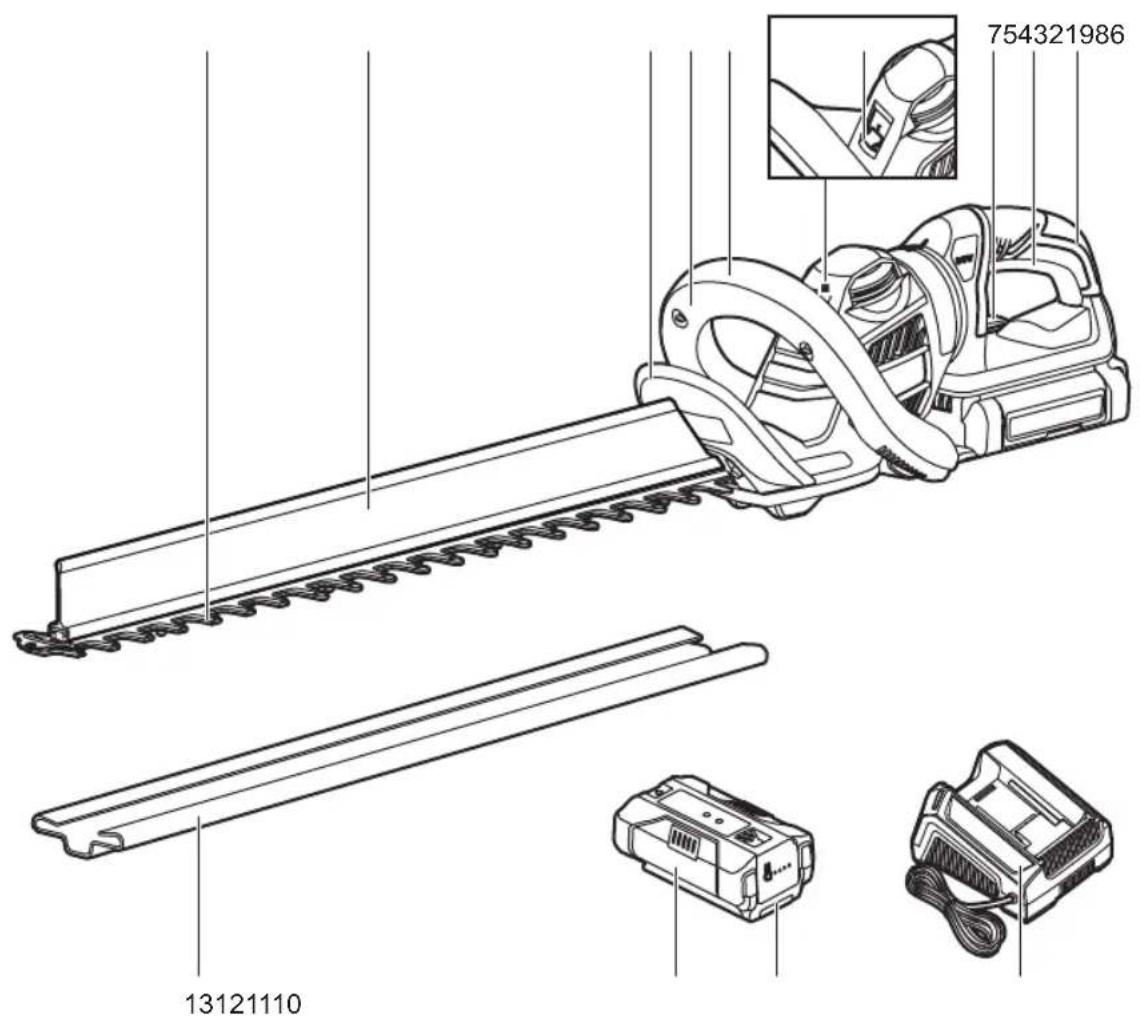

PARTS

1. Blade

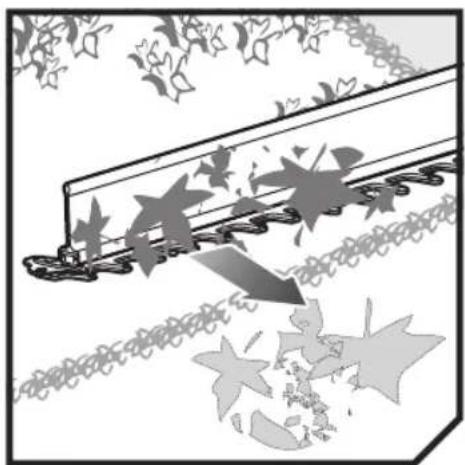

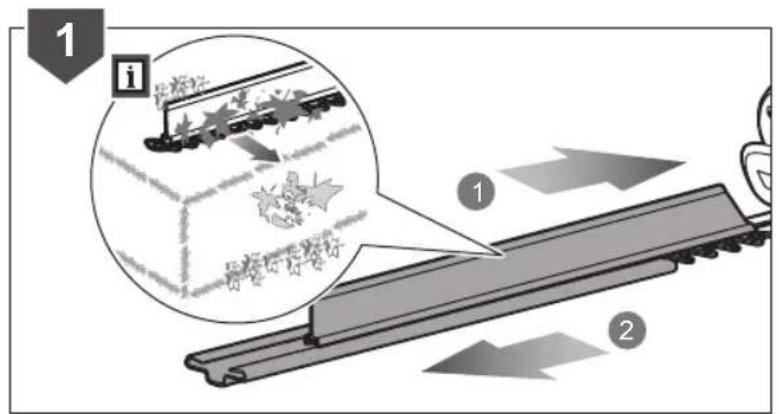

2. HEDGESWEEP debris sweeper
3. Guard
4. Operator presence switch
5. Front handle
6. Speed switch

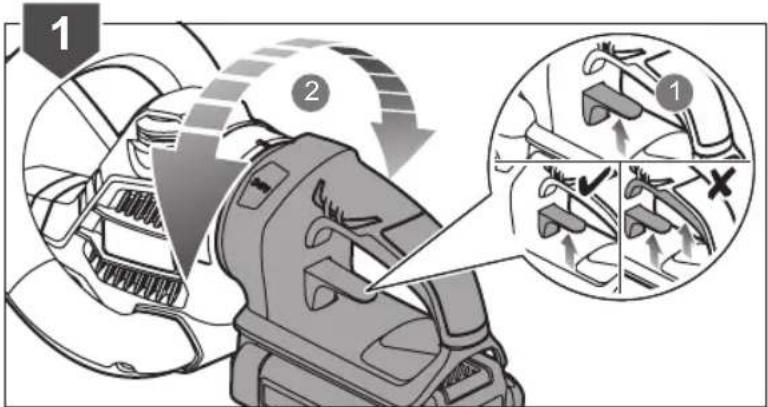

7. Lock trigger for rotating handle
8. Trigger
9. Rear handle

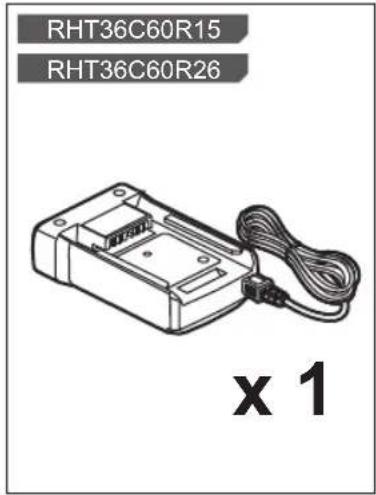

10. Charger
11. Battery latch button

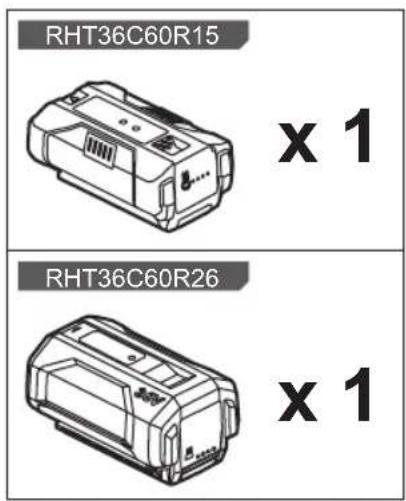

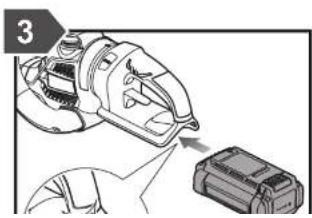

12. Battery pack

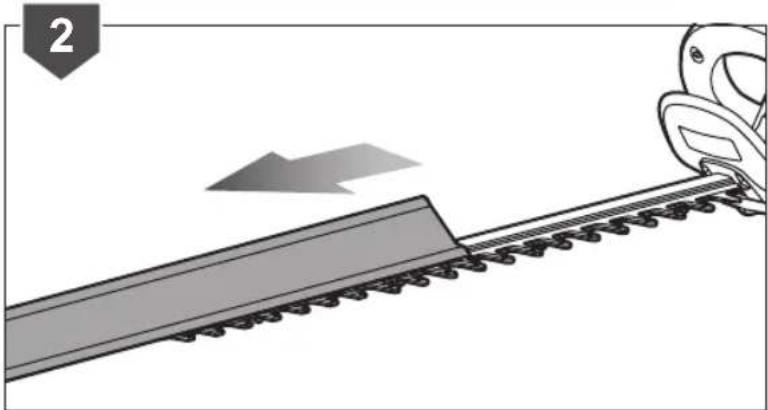

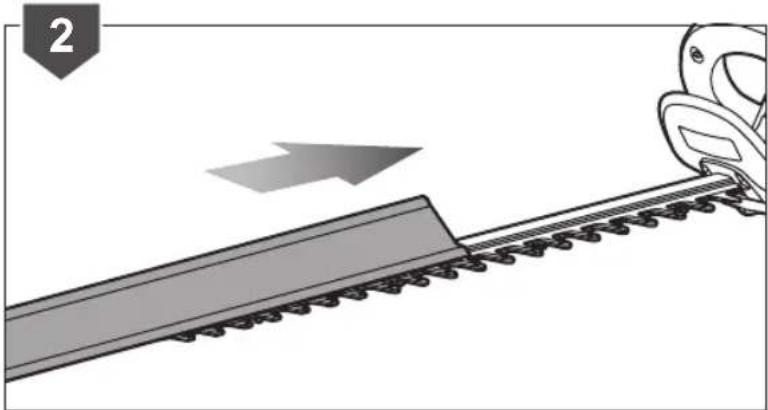

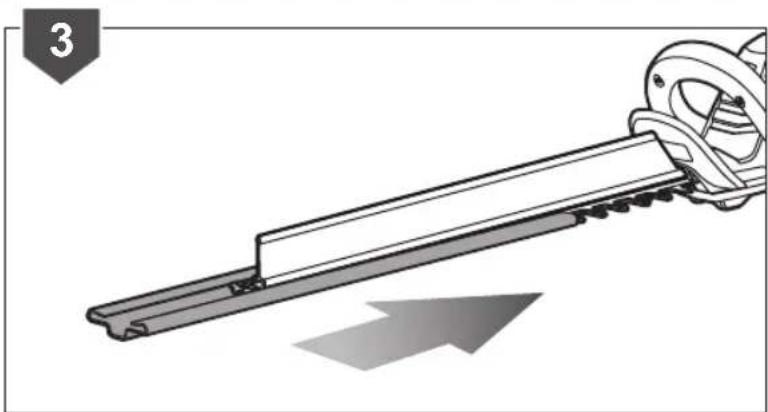

13. Blade cover

SYMBOLS ON THE PRODUCT

Safety alert

Please read the instructions carefully before starting the product.

Wear ear protection.

Wear eye protection.

Always hold the hedge trimmer with both hands when operating.

Wear non-slip, heavy duty gloves.

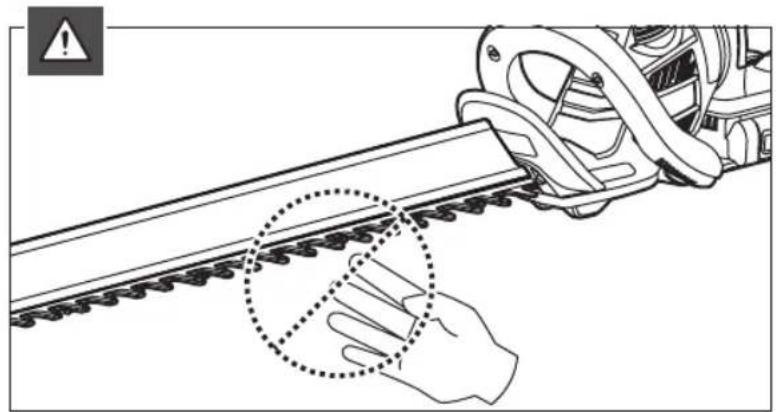

To prevent serious injury, do not touch cutting blades.

Do not expose to rain or damp condition.

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Conforms to all regulatory standards in the country in the EU where the product is purchased.

EurAsian Conformity Mark

Ukrainian mark of conformity

The guaranteed sound power level shown on this label is 96 dB.

SYMBOLS IN THIS MANUAL

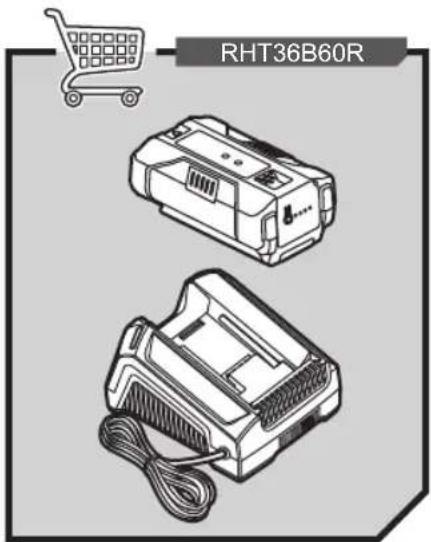

Parts or accessories sold separately

Note

Warning

The following signal words and meanings are intended to explain the levels of risk associated with this product.

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

Without safety alert symbol

Indicates a situation that may result in property damage.

SYMBOLS APPLIED ON THE PRODUCT

Warning

SYMBOL ON THE PRODUCT

Safety warning

SYMBOLS ON THE PRODUCT

Safety Warning

TRANSPORT AND STORAGE

SYMBOLS ON THE PRODUCT

Safety Warning

SYMBOLS ON THE PRODUCT

Safety Alarm

SYMBOLS IN THIS MANUAL

No. TC RU C-DE.AE11.B.04148

ADDITIONAL SAFETY RULES

English Français Deutsch Español Italiano
Product specifications Caractéristiques produit Produkt-Spezifikationen			Especificaciones del producto	Caratteristiche del prodotto
Cordless Hedge Trimmer	Taille-haies Sans-fil	Akku Heckenschere	Cortasetos inalámbrico	Decespugliatore senza cavo
Model	Modèle	Modell	Modelo	Modello
Rated voltage (DC)	Tension nominale (CC)	Nennspannung (DC)	Tensión nominal (CC)	Voltaggio nominale (DC)
No-load speed	Vitesse de rotation	Leerlaufdrehzahl	Velocidad sin carga	Velocità senza carico
High speed	Haute vitesse	hohe Geschwindigkeit	Alta velocidad	Alta velocità
Low speed	Basse vitesse	langsame Geschwindigkeit	Baja velocidad	Bassa velocità
Blade Length	Longueur de la Lame	Schneidmesserlänge	Longitud de la cuchilla	Lunghezza lama
Cutting capacity	Capacité de coupe	Schnittbreite Durchmesser	Capacidad de corte	Capacità di taglio
Vibration level (in accordance with EN 60745-1 and EN 60745-2-15)	Niveau de vibrations (selon l' EN 60745-1 et EN 60745-2-15)	Vibrationsgrad (entspricht EN 60745-1 und EN 60745-2-15)	Nivel de vibración (según el EN 60745-1 y EN 60745-2-15)	Livello di vibrazioni (Secondo quanto indicato dall'EN 60745-1 e EN 60745-2-15)
Vibration total value	Valeur totale des vibrations	Gesamtwert der Vibration	Valor total de vibración	Valore totale vibrazioni
Front handle	Poignée avant	Vorderer Haltegriff	Mango delantero	Manico anteriore
Rear handle	Poignée arrière	Hinterer Haltegriff	Mango trasero	Manico posteriore
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza della misurazione
Noise emission level (in accordance with EN 60745-1 and EN 60745-2-15)	Niveau d'émission sonore (selon l' EN 60745-1 et EN 60745-2-15)	Geräuschemission (entspricht EN 60745-1 und EN 60745-2-15)	Nivel de emisión de ruido (según el EN 60745-1 y EN 60745-2-15)	Livello di emissione rumori (Secondo quanto indicato dall'EN 60745-1 e EN 60745-2-15)
A-weighted sound pressure level	Niveau de pression sonore pondéré-A	A-bewerteter Schalldruckpegel	Nivel de presión acústica ponderada en A	Livello di pressione sonora pesato A
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza della misurazione
A-weighted sound power level	Niveau de puissance sonore pondéré-A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza della misurazione
Weight (without battery pack)	Poids (Sans batterie)	Gewicht (Ohne Akku)	Peso (Sin batería)	Peso (Senza batteria)

English Français Deutsch Español Italiano
Battery and charger	Batterie et chargeur	Akku und Ladegerät	Bateria y cargador	Batteria e caricatore
Model	Modèle	Modell	Modelo	Modello
Battery pack	Batterie	Akku	Bateria	Batteria
Weight	Poids	Gewicht	Peso	Peso
Charger	Chargeur	Ladegerät	Cargador	Caricatore
Weight	Poids	Gewicht	Peso	Peso
Compatible battery packs	Packs Batterie Compatibles	Kompatible Akkus	Paquetes de batería compatibles	Gruppo batterie compatibili
Compatible charger	Chargeur compatible	Kompatibles ladegerät	Cargador compatible	Caricatore compatibile

Nederlands Português Dansk Svenska
Productgegevens Características do aparelho		Produktspecifikationer Produktspecifikationer
Snoerloze heggeschaar	Aparador de Pontas Sem Fios	Akku-hækkeklipper Kabelfri håcksax
Model	Modelo	Model	Modell	RHT36B60R
Toegekende spanning (Gelijkstroom)	Tensão nominal (DC)	Mærkespænding (DC)	Spänning (Likström)	36 V
Snelheid zonder lading	Velocidade sem carga	Tomgangshastighed	Hastighet utan belastning
Hoge snelheid	Alta velocidade	Højhastigheds	Hög hastighet	1350/min ± 10%
Lage snelheids	Baixa velocidade	Lav hastighed	Låg hastighet	380/min ± 10%
Snijbladlengte	Comprimento da lâmina	Knivlængde Bladets längd		60 cm
Snijcapaciteit	Capacidade de corte	Skærekapacitet	Trimningskapacitet	26 mm
Trillingsniveau (in overeenstemming met EN 60745-1 en EN 60745-2-15)	Nível de vibração (segundo o EN 60745-1 e EN 60745-2-15)	Vibrationsniveau (i henhold til EN 60745-1 og EN 60745-2-15)	Vibrationsnivå (enligt EN 60745-1 och EN 60745-2-15)
Totale waarde trilling	Valor total da vibração	Total vibrationsværdi	Totalvärde för vibration
Voorste handvat	Pega frontal Forhåndtag Främre handtag			2,57 m/s 2
Achterste handvat	Pega traseira	Baghåndtag Bakre handtag		2,35 m/s 2
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet i mätningar	1,5 m/s 2
Niveau geluidsemissie (in overeenstemming met EN 60745-1 en EN 60745-2-15)	Nível de emissão de ruído (segundo o EN 60745-1 e EN 60745-2-15)	Støjemissionsniveau (i henhold til EN 60745-1 og EN 60745-2-15)	Bullernivå (enligt EN 60745-1 och EN 60745-2-15)
A-gewogen geluidsdrukniveau	Nível de pressão sonora ponderada A	A-vægtet lydtryksniveau	A-vägd ljudtrycksnivå	82,7 db(A)
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet i mätningar	2,5 dB
A-gewogen geluidsniveau	Nível de potência sonora ponderada A	A-vægtet lydeffektniveau	A-vägd ljudeffektsniva	93,6 dB(A)
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet i mätningar	1,81 dB
Gewicht (Zonder accupak)	Peso (Sem bateria)	Vægt (Ingen batteri)	Vikt (Utan batteri)	3,25 kg

Nederlands	Português Dansk	Svenska
Accu en oplader	Bateria e carregador	Batteri og oplade	Batteri och batteriladdare
Model	Modelo	Model	Modell	RHT36C60R15	RHT36C60R26	RHT36B60R
Accu	Bateria	Batteri	Batteri	BPL3615	BPL3626D2	-
Peso Gewicht	Vikt	Vægt		0,93 kg	1,38 kg	-
Lader	Carregador	Oplader	Batteriladdare	BCL3620S	RY36C17A	-
Peso Gewicht	Vikt	Vægt		0,83 kg	0,83 kg	-
Compatibele accupacks	Baterias Compatíveis	Kompatible batterier	Kompatibla batteripaket	BPL3615, BPL3626, BPL3626D, BPL3640,BPL3640D, BPL3650, BPL3650D, BP3626D2, BPL3650D2
Kompatibel oplader	Carregador compatível	Compatibele oplader	Passande laddare	BCL3620, BCL3620S, BCL3650F, RY36C17A

Suomi Norsk	Русский Polski Čeština
Tuotteen tekniset tiedot	Produktspesifikasjoner	Характеристики изделия	Parametry techniczne Technické údaje produktu
Langaton pensastrimmeri Hekksaks uten ledning		Беспроводные шпалерные ножницы	Bezprzewodowe nożyce do żywopłotów	Akumulátorové núžky pro živý plot
Malli Modell Модель	Model	Model
Nimellisjännite (DC)	Nominell spenning (DC)	Номинальное напряжение (пост. Тока)	Napięcie znamionowe (DC)	Jmenovité napětí (DC)
Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	Prędkość obrotowa bez obciążenia	Rychlost naprázdno
Nopea	Høyhastighet	Высокоскоростное	Szybkoobrotowa	Vysokorychlostní
Matalan nopeuden	Lav hastighet	Низкоскоростная	Niskiej prędkości	Nízké rychlosti
Terän pituus	Bladlengde	Длина режущего полотна	Długość ostrza	Délka žací lišty
Leikkauskapasiteetti	Klippekapasitet	Сокращение вместимости	Szerokość cięcia	Řezací kapacita
Tärinātaso (i enlighet med EN 60745-1, EN 60745-2-15)	Vibrasjonsnivá (i samsvar med EN 60745-1 og EN 60745-2-15)	Уровень вибрации (в соответствии с EN 60745-1 и EN 60745-2-15)	Poziom drgań (zgodnie z EN 60745-1 i EN 60745-2-15)	Úroveň vibrací (v souladu s EN 60745-1 a 60745-2-15)
Tärinän kokonaisarvo	Vibrasjon totalverdi	Суммарное значение вибрации	Łączna wartość wibracji	Hodnota celkových vibrací
Etukädensija	Fremre håndtak	Передняя ручка	Uchwyt przedni	Přední rukojeť
Takakädensija	Bakre håndtak	Задняя ручка	Uchwyt tylny	Zadní rukojeť
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
Melutaso (i enlighet med EN 60745-1, EN 60745-2-15)	Støyemisjonsnivá (i samsvar med EN 60745-1 og EN 60745-2-15)	Уровень шума (в соответствии с EN 60745-1 и EN 60745-2-15)	Poziom emisji hałasu (zgodnie z EN 60745-1 i EN 60745-2-15)	Hladina emise hluku (v souladu s EN 60745-1 a 60745-2-15)
A-painotettu äänenpainetaso	A-vektet lydtrykknivá	Уровень А-взвешенного звукового давления	A-ważony poziom ciśnienia hałasu	Hladina akustického tlaku vážená funkcí A
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
A-painotettu äänenteho	A-vektet lydeffektnivá	Уровень А-взвешенной звуковой мощности	A-ważony poziom natężenia hałasu	Hladina akustického výkonu vážená funkcí A
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
Paino (llman akkua)	Vekt (Uten batteri)	вес (Без аккумулятора)	Ciężar (Bez akumulatora)	Hmotnost (Není vložen akumulátor)

Suomi Norsk Русский Polski Čeština
Akku ja laturi	Batteri og lader	Аккумуляторная батарея и зарядное устройство	Akumulator i ładowarka	Akumulator i ładowarka
Malli	Modell	Модель	Model	Model
Akku	Batteri	Аккумулятор	Akumulator	Baterie
Vekt	Paino	Hmotnost	Greutate	Waga
Laturi	Lader	Зарядное устройство	Ładowarka	Nabiječka
Vekt	Paino	Hmotnost	Greutate	Waga
Yhteensopivat akut	Kompatible batteripakker	Совместимая аккумуляторная батарея	Pasujące akumulatory	Kompatibilní akumulátory
Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	Odpowiednia ładowarka	Kompatibilní nabiječka

Magyar Română Latviski Lietuviškai
Termék műszaki adatai Specificațiile produsului Produkta specifikacijas Gaminio techninės savybės
Akkumulátoros sövényvágó Foarfece de grădină fără fir Bežvadu dzīvžogu trimmeris			Bevielė elektrinė gyvatvorės apkarpymo mašinėlé
Tipus	Model	Modelis	Modelis	RHT36B60R
Névleges feszültség (Egyenáram)	Tensiunea nominală (DC)	Nominālais spriegums (DC)	Nominali įtampa (Nuolatinė srovė)	36 V
Üresjárati fordulatszám	Viteză fără sarcină	Greitis be apkrovimo	Greitis be apkrovimo
Nagy fordulatú	Viteză mare	Liela ātruma	Didelio greičio	1350/min ±10%
Alacsony fordulatszám	Vitezei scăzute	Maza ātruma	Mažo greičio	380/min ±10%
Kės hossza	Lungimea lamei	Asmeņu garums	Geležtės ilgis	60 cm
Vágási teljesítmény	Lungimea de tăiere	Griešanas dziljums	Pjovimo talpa	26 mm
Vibrácioszint (az EN 60745-1 és EN 60745-2-15 szerint)	Nivelul vibrațiilor (în conformitate cu EN 60745-1 și EN 60745-2-15)	Vibrácijas līmenis (saskaņa ar EN 60745-1 un EN 60745-2-15)	Vibracijos lygis (pagal standartą EN 60745-1 ir EN 60745-2-15)
Vibráció teljes értéke	Valoare totală vibrație	Vibrácijas kopējais apjoms	Bendra vibracijos vertė
Elülső fogantyú	Mâner anterior	Priekšējais rokturis	Priekinė rankena	2,57 m/s2
Hátsó fogantyú	Mâner posterior	Aizmugurējais rokturis	Galinė rankena	2,35 m/s2
Mérės bizonytalansága	Incertitudine a măsurării.	Mērījuma mainīgums	Matmenų paklaïda	1,5 m/s2
Zajkibocsátási szint (az EN 60745-1 és EN 60745-2-15 szerint)	Nivel emisie zgomot (în conformitate cu EN 60745-1 și EN 60745-2-15)	Trokšņa emisijas līmenis (saskaņa ar EN 60745-1 un EN 60745-2-15)	Triukšmo emisiju norma (pagal standartą EN 60745-1 ir EN 60745-2-15)
A-súlyozott hangnyomásszint	Nivel de presiune acustică ponderată A	A-līmeņa skaņas spiediena līmenis	A svertinis garso slėgio lygis	82,7 db(A)
Mérės bizonytalansága	Incertitudine a măsurării.	Mērījuma mainīgums	Matmenų paklaïda	2,5 dB
A-súlyozott hangteljesítményszint	Nivel de putere acustică ponderată A	A-līmeņa skaņas jaudas līmenis	A svertinis garso galios lygis	93,6 dB(A)
Mérės bizonytalansága	Incertitudine a măsurării.	Mērījuma mainīgums	Matmenų paklaïda	1,81 dB
Gépsúly (Akkumulátor nélkül)	Greutate (Fără baterie)	Svars (Bez akumulatora)	Svoris (Be akumuliatorinės baterijos)	3,25 kg

Magyar	Română	Latviski	Lietuviškai
Akkumulátor és töltő Bateria și încărcător		Akumulators un lădëtãjs	Akumuliatorius ir jkroviklis
Típus	Model	Modelis	Modelis	RHT36C60R15	RHT36C60R26	RHT36B60R
Akkumulátor	Accumulator	Akumulators	Baterija	BPL3615	BPL3626D2	-
Bec	Tömeg	Teža	Težina	0,93 kg	1,38 kg	-
Töltő	Încărcător	Lădëtãjs	Įkroviklis	BCL3620S	RY36C17A	-
Bec	Tömeg	Teža	Težina	0,83 kg	0,83 kg	-
Kompatibilis akkumulátorok	Accumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	BPL3615, BPL3626, BPL3626D, BPL3640,BPL3640D, BPL3650, BPL3650D, BP3626D2, BPL3650D2
Kompatibilis töltő	Încărcător compatibil	Saderīgs lădëtãjs	Tinkamas įkroviklis	BCL3620, BCL3620S, BCL3650F, RY36C17A

The declared vibration value has been measured with a standard test method and may be used to compare one tool with another.

The declared vibration value may be used in a preliminary assessment of exposure.

The vibration emission during actual use of power tool can differ from the declared total value depending on the ways in which the tool is used.

Identify safety measures to protect yourself based on an estimation of exposure in the actual conditions of use, taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance

– any product that has been altered or modified

– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed

– any damage caused by non-observance of the instruction manual

– any product not displaying the CE approval mark on the rating plate

– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries

– any product connected to improper power supply (amps, voltage, frequency)

– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/fuel mixture)

– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

– normal wear and tear spare parts

– inappropriate use, overloading of the tool

– use of non-approved accessories or parts

– accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.

– any periodic adjustments to or maintenance cleaning of carburettors

- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://uk.ryobitools.eu/header/service-and-support/service-agents.

RYOBI® WARRANTY TERMS AND CONDITIONS

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

Cordless Hedge Trimmer

Brand: RYOBI

Model number: RHT36B60R

Serial number range:

RHT36B60R: 44468203000001 - 44468203999999

is in conformity with the following European Directives and harmonised standards

2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU,

EN 60745-1:2009+A11:2010, EN 60745-2-15:2009+A1:2010,

EN 55014-1:2017, EN 55014-2:2015, EN 50581:2012

Measured sound power level: 93.6 dB (A)

Guaranteed sound power level: 96 dB (A)

Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC.

Todd Chipner

Sr. Director, CPT Supplier Quality and Asia Regulatory & Safety

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We hereby declare that the product

Cordless hedge trimmer

Brand: RYOBI

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

COMPLIANCE WITH REGULATIONS

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Sr. Director, CPT Supplier Quality and Asia Regulatory & Safety (CPT deliveries

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Alexander Krug, Director General

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Model number: RHT36B60R

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare that this product

Cordless hedge trimmer

Brand: RYOBI

Model number: RHT36B60R

Serial number range:

RHT36B60R: 44468203000001 - 44468203999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RYOBI is a trademark of Ryobi Limited, and is used under license. HEDGESWEEP is a trademark of Techtronic Outdoor Products Technology Limited.

RYOBI®

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany
