Product type	Electric grill plate on foldable trolley
Brand	Suntec Wellness
Model	BBQ9295
Power supply	220-240 V ~, 50-60 Hz, 2000-2400 W
Cooking plate dimensions	46 x 35 cm
Grease collection tray capacity	0.3 liter
Thermostat	Adjustable, removable with cable, heating indicator light
Maximum temperature	Approximately 250 °C (position 5)
Plate coating	Non-stick
Lid	With integrated thermometer and insulated handle
Side table	Removable and foldable
Wheels	2 wheels with locking
Safety	Self-locking safety hook, lid lock for transport
Care and cleaning	Non-stick plate cleans with hot water and damp cloth; grease tray is dishwasher safe; do not immerse thermostat
Spare parts available	Replacement grill plate (ref. 28700)
Warranty	24 months
Usage	Household use only, do not use charcoal

Frequently Asked Questions - BBQ9295 SUNTEC

How to assemble the barbecue trolley?

Follow the steps in the manual: insert the wheel axle into the frame, attach the legs and wheels, then the upright tube and base. After assembly, immediately engage the self-locking safety hook.

How to use the grill plate for the first time?

First clean the plate, tray and lid. Plug into 220-240 V, set the thermostat to maximum (position 5) and heat with the lid closed for 10 minutes without food. A slight smoke may appear, this is normal.

What types of food can I cook with this grill?

You can cook steaks, lamb, chicken, chops, fish, skewers, sausages, etc. Refer to the cooking time table in the manual. It is recommended to marinate meat the day before for more tenderness.

How to clean the grill plate after use?

Let it cool completely, remove the thermostat, then clean the plate with hot water and a damp cloth. Do not use abrasive products or steel wool to avoid damaging the non-stick coating. The grease tray is dishwasher safe.

What to do if the grill plate sticks?

Before cooking, rub the plate with an oil-soaked paper towel to lubricate it. Avoid using a fork to turn food; use wooden or silicone tongs.

The lid is very hot during use, is this normal?

Yes, the metal lid becomes very hot during grilling. Always use the handle provided to open or close it. Keep children away.

Can I use an extension cord?

Yes, provided it is in perfect condition, grounded and with a minimum capacity of 10 A. Do not let the extension cord come into contact with hot parts of the barbecue.

How to store or move the barbecue?

Let it cool, remove the thermostat, empty the grease tray, then fold the side table and lock the lid with the latch. Ensure the strap hook properly blocks the tube before moving the appliance.

What to do if the barbecue no longer heats up?

Check that the thermostat is fully inserted into the socket and that the cord is not damaged. If the problem persists, contact your dealer. Do not attempt to repair the device yourself.

What is the capacity of the grease collection tray?

The tray has a capacity of 0.3 liter. It must be emptied regularly during cooking to avoid overflow. Caution, the tray surface is hot, do not touch it during use.

USER MANUAL BBQ9295 SUNTEC

Black outdoor grill with a dome-shaped top and two wheels, mounted on a metal stand (no text or symbols visible)

BBQ-9295

Technical diagram of a portable air conditioner with numbered parts for identification

12 L K D M

13 j N3 h

14 R S T

15 W U V

16 T 2 N

Sicherheitshinweise

VORSICHT!

Black outdoor café grill with a dome-shaped top and two wheels, no visible text or symbols

Safety Precautions

CAUTION!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Please make sure that the device is connected to a properly earthed socket.
• The installation of a protective device by means of a rated breaking current, offers you additional security that 30mA are not exceeded in the household installation.
• Please contact your installer for advice. There is a risk of electric shock even if the appliance is already switched off, therefore please remove the plug from the socket immediately after use.
• Please do not operate the unit near a bath, shower

or swimming pool.

- Do not expose the unit to rain or other moisture.

- Please check regularly if the cable is defective. In case of defect, refrain from using the device and disconnect the plug immediately.

- Do not operate the device (please unplug the power cord immediately) if:

• the device, housing or cable is damaged
• the device shows visible signs of damage
  ○ if you suspect a fault after a fall or similar

- Please disconnect the power plug:

• in case of malfunctions during use
• before cleaning or transporting the device
  ○ after use

- Never pull the plug when it is bent or when your hands are wet.

- Never pull or carry the unit on the electrical cable, as this could damage the cable.

- The cable must not be laid or clamped over sharp edges.

- Never immerse the power cord or thermostat in water or other liquids.

- Please use an extension cable only if it is in perfect condition. Please use a grounded cable with a minimum capacity of 10A.

- Never bring the extension cable into contact with the hot grill plate.

- Always turn off the unit before disconnecting the power cord.

- Always allow the grill to cool down before cleaning the grill or accessories.

- Please be careful! The grill plate can become very hot and cools down very slowly after the appliance

has been switched off. Risk of burns! Please do not touch any hot surfaces and be careful when handling the device after use.

- Please do not place the grill over the edge or corner of the table and avoid any contact with hot surfaces.

- Please do not place the unit near ovens.

- Please do not use the device unless it is placed on a stable and dry surface.

- Please do not leave the device unattended.

- Please switch off the device whenever it is not in use.

- This device is not intended for commercial use, only for private use.

- Please do not use the unit without a grease collecting bowl or the base of the unit.

- Never cover the grill plate with aluminium foil or plates (this could damage the non-stick coating).

- Please make sure that the unit has been correctly assembled before you put it into operation (especially if it is used for the first time in a stationary position).

- Please take care of grease splashes during grilling.

- Please place the device on a surface that is heat resistant. Please keep the electric grill at least 10 cm away from walls when you put it into operation.

- Please use this device only as described in this manual. Any other use not recommended by the manufacturer may result in fire, electric shock or personal injury.

- For safety reasons, please do not use any accessories not supplied or recommended by the manufacturer.

- Only trained personnel should repair electrical appliances. Improper repairs can result in

considerable dangers for the user.

• If the connection cable is damaged, it must be replaced by a qualified person. Please contact your point of sale.
• No liability is assumed for possible damage if the device has been used for improper purposes, has been operated incorrectly or has not been repaired properly. In such a case, you have no warranty claim.
• When used as a table grill, please remove the hood to avoid any tipping over.
• Children should be supervised to ensure that they do not play with the appliance.
• Charcoal or similar combustible fuels must not be used with this appliance.

Attention: Please be careful. Do not trip over the power cord when the unit is in use. Please remember to remove the plug after use.

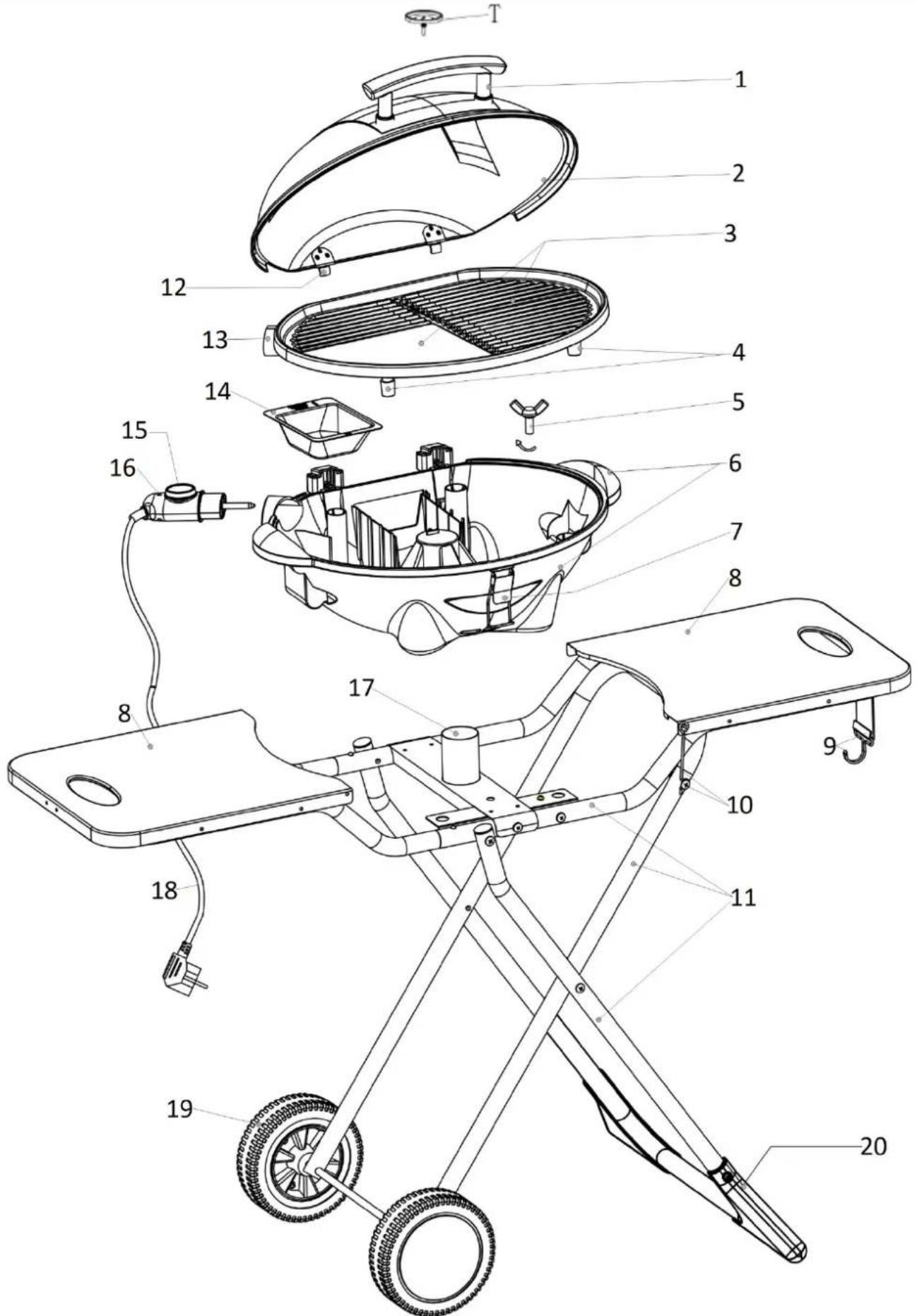

Components of BBQ-9295

T. Thermometer

1. handle 11. support tubes

2. hood 12. hood clamps

3. grill plate 13. connection socket

4. feet 14. grease drip tray

5. butterfly screw 15. control knob

6. plastic housing 16. removable temperature controller with cable

7. hood lock 17. standpipe

8. side table 18. mains cable

9. belt hook 19. wheel

10. safety lock 20. stand

(The corresponding pictures can be found in the front of this manual.)

Installation of BBQ-9295

1. Please remove the trolley frame and accessories from the box. Make sure that the trolley frame is placed on a dry, even and stable surface. Insert the wheel axis (a) through the holes provided at the bottom of the trolley frame. Please attach tge feet (Z1) to the frame as shown in figure 1.

2. Mount the wheels (b) on the two sides of the axis (a) as shown in figure 2.

3. There are two holes on each end side of the axis (a). Insert the pin "R" (c) through the hole to lock the wheels (see figure 3).

4. Press the wheel covers (d) on the wheels (b) as shown in figure 4.

5. Place the trolley upright: first step with your right foot on the centre of the carrying tube (I), lift the side table (II) with your right hand and the wheel tube (III) with your left hand. Then connect the tube (III) to the tube located under the side table. The trolley frame is now in place (see figure 5).

6. After the trolley frame has been set up, you MUST immediately engage the safety lock (f). This safety lock is self-locking. Press the spring (s) and hook the curved hook (f) into the extended part (s). Then stop pressing so that the safety hook automatically engages (see figure 6).

Attention: Please make sure that the safety hook is LOCKED while grilling or moving. DO NOT attempt to twist or pull the safety hook while using this unit.

1. Remove the screw from the trolley tube (III) first. Then mount the standpipe (G1) on the trolley tube (II)

and mount the standpipe (G2) on the trolley tube (II). There is a positioning hole (IV) on the standpipe (G2), which secures G1 and G2 to each other with screws. Please fasten the standpipe (G and G2) firmly to the trolley using screws and nuts (see figure 7).

1. Place the key-shaped bottom of the unit (h) on the standpipe (g). Attach the underside of the base to the positioning hole (IV). When removing the base from the standpipe (g), slightly step onto the support tube (l), hold the base handles and remove them (see figure 8).

2. Please mount the upper cover. To do this, hold the cover handle (p) and place the metal hinges (O) into the mounting holes (Q) of the base. When removing the upper cover, please open the cover and tilt it up to 45^ between the cover and the grill plate and detach the metal hinges (o) from the mounting holes (Q) (see figure 9).

3. Please Please insert the removable thermostat with its cord (n) into the power socket (L). When removing the thermostat, hold the handle of the base to prevent it from tipping over inadvertently (see figure 10).

Attention: Please be careful. Do not trip over the power cord when the unit is in use. Always unplug the power cord after use.

1. Please Since the upper cover is removable, it is more convenient for use and cleaning (see figure 11). Attention: To close or open the cover, always use the lid handle. Note that the hood becomes hot during the grilling process.

2. Place the grill plate (K) on the bottom of the appliance (H). First, insert the socket (L) of the grill plate into the hole (M) of the base. Please place the grill plate horizontally on the base of the appliance. To remove the grill plate, hold the right side of the plate up and remove the connecting socket (L) from the hole (M). Before removing the grill plate, make sure that it is completely cooled and not in use (see figure 12).

Attention: Please use the lid handle to close or open the cover. Please note that the cover is hot during grilling.

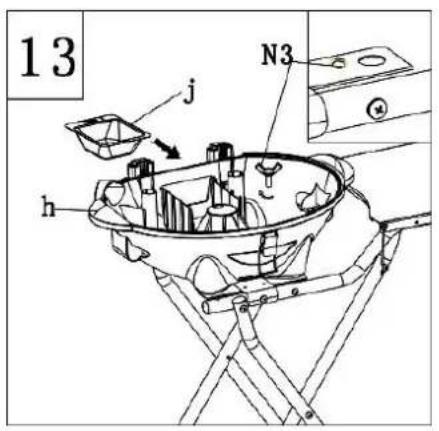

1. Place the grease collecting bowl (j) in the slot of the bowl-shaped base (h). To secure it properly, make sure that the hole on the grease collecting bowl matches the hole in the middle of the bowl-shaped base (tip: The bowl can be filled with water to make it easier to clean). To remove the grease collecting bowl, gently press lightly on the bottom (see figure 13).

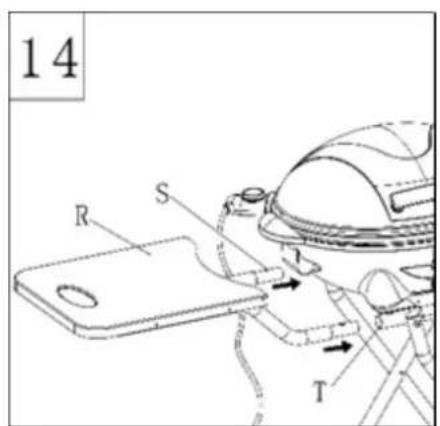

2. Please mount the additional side table (R) according to the actual use. Hold the side table (R) and press the two pins with your thumb. Then insert into the tube (T). When folding the trolley, remove the side table (R) first. Press the pins (S) and then gently pull the side table out of the tube (T) (see Figure 14).

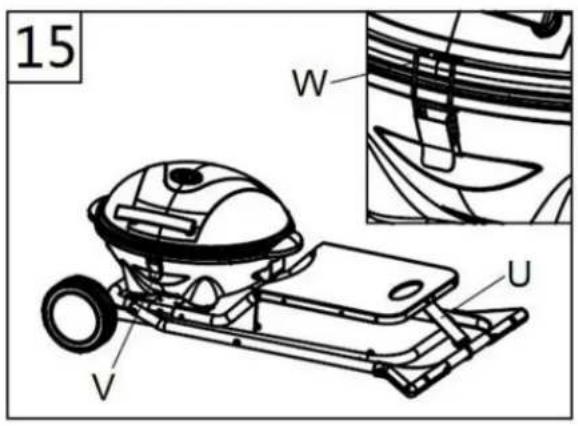

3. When moving the folded trolley or when not in use, please lock the cover with the buckle (V/W) and make sure that the belt hook (U) locks the tube (see figure 15).

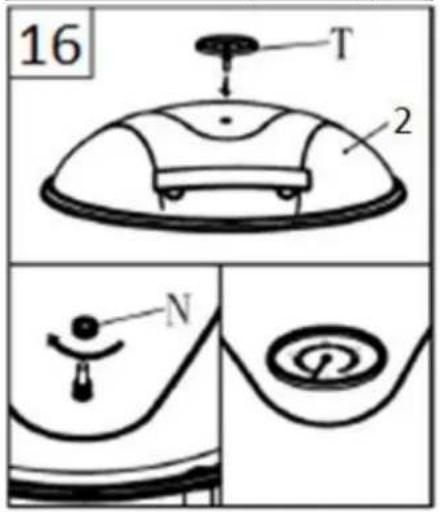

4. Insert the thermometer (T) into the hole on the hood and fix it from the inside of the hood with the nut (N) (see figure 16).

Prior to first use

• Please remove all packaging materials and clean the grill plate, grease collecting bowl and upper cover thoroughly. The grease collecting bowl is dishwasher-safe.
  Important: Please allow all parts to dry thoroughly, especially the connecting socket. Never immerse the thermostat or its cord in water or other liquids.
• Please heat the grill with the lid closed for about 10 minutes at maximum setting, without any food on it. Residues from the manufacturing process could cause odour and smoke when the device is used for the first time. This is normal and will disappear after a short time.

Operating the appliance

• Please connect the appliance to the main power supply (220-240V\~, 50-60Hz, 2000-2400W).
• Please set the thermostat to the desired temperature (it usually takes 10 minutes to heat up).
  • The indicating light goes out as soon as the set temperature is reached.
• Please place the food on the grill plate for grilling.

Grilling times

The following are recommended cooking times. Different times will be required for different weights and sizes of foods to be grilled and depending on whether you are grilling with or without the metal cover.

Food	Temperature setting	Grilling time
Steak/beef	5	22-30 min.
Lamb	5	18-27 min.
Chicken drumsticks	5	37-45 min.
Chops	5	30-38 min.
Chicken wings	5	22-30 min.
Fillet of pork	4-5	13-15 min.
Whole fish	5	18-23 min.
Kebabs	3-4	15-18 min.
Various sausages	3-4	18-23 min.

Tips for grilling

• Meat becomes tender when being marinated overnight. Marinades usually consist of oil (for moisture), vinegar (for tenderness) and a mixture of spices.
• Always use grill tongs or other barbecue utensils to turn over the grilled meat (a fork would dry out the meat and damage the non-stick coating).
• Please turn the meat or fish only once during grilling. If turned over more often, the food will dry out.
• Never grill meat for too long.
  • If the food remains stuck on the grill plate, rub the plate with kitchen paper soaked in oil.
• Please disconnect the appliance from the power supply after each use.

Cleaning and care of the appliance

• Please allow the grill to cool completely before cleaning.
• Please remove the thermostat from the unit.
• Clean the grill plate and the grease collecting bowl with warm water and a damp cloth. Do not use steel wool, brush or scouring agents to prevent damage to the grill's coating.
• Please wipe the bottom of the appliance with a damp cloth. Grease splashes can be removed with a mild detergent.
  • Note: The grill plate has a non-stick coating. Please do not damage it during grilling or cleaning.
• Tip: Please protect the device from dust and dirt if it is not used for a long period of time by wrapping it in a plastic bag. Store it in a dry place.
  • You can purchase the following Suntec accessories from your seller:

Item number	Item description
28700	Replacement grill plate 46x35
28922	Cover for BBQ-9295

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
- A free replacement or repair will be excluded from prior improper product handling.
- Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
- If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
- In the event, that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
- The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
- The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2020/01 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

BBQ-9295

Black outdoor café grill with open legs and two wheels, no visible text or symbols

Black outdoor grill with a dome-shaped top and two wheels, mounted on a metal stand (no text or symbols visible)

Mode d'emploi

Black outdoor grill with a dome-shaped top and two wheels, mounted on a metal stand (no text or symbols visible)

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, neglection of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:
