USER MANUAL TGR7017 Bamboo SUNTEC

Wooden tray with black tiled surface and ribbed side panel, labeled 'suntec Wellness' (no other text or symbols visible)

Tischgrill

TGR-7017 bamboo

Bedienungsanleitung

Sicherheitshinweise

VORSICHT!

Labeled diagram of a device interior with numbered components for identification

Interior view of a modern office or library space with bookshelves and a large window (no visible text or symbols)

Exterior view of a rectangular metal enclosure with ventilation grilles (no text or symbols visible)

Close-up of a computer monitor with a cable and a small dial indicator (no visible text or symbols)

Grillen

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• The appliance may only be used in the household and for the purpose for which it was produced.
• Please make sure that the main voltage and current rating correspond with the power supply of the appliance.
• Please don't touch hot surfaces. Please use handles or knobs.
• Please use the device only on flat surfaces to prevent tip-over.
• Do not use the appliance outdoor or close to heat

sources.

- The device may not be kept outdoors, at places with extreme temperatures or high humidity.

- Please avoid that the power cord passes over sharp corners or edges, touches hot surfaces or comes into contact with hot parts. Please keep the unit away from curtains.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Do not use multiple sockets or extension cords.

- The use of additional, non-recommended accessories may cause injury or deletion of all warranty claims.

- Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.

- Please remove the plug from the wall socket:

○ in case of any malfunction,
- in case that the appliance won’t be used for longer time,
○ before cleaning.

- Please never pull on the power cord when you remove it from the socket.

- To protect against electrical shock, do not immerse cord, plug, or any non-removable parts of this appliance in water or other liquids.

- Please make sure that the unit is at a distance from flammable materials, including curtains, textiles, walls, etc.

- Let the appliance cool down before you add or remove parts.

• After use, clean the unit according to the guidelines.

• Make sure that your hands are dry before using the device or touch the power cord.
• Do not leave the appliance unattended while it is used.
• Do not touch the unit in case it falls into the water, but unplug the power cord from the outlet.
• Let the appliance cool down before moving, transportation, maintenance and care or storage.

Specific safety instructions

Please do not cut or scratch the grill plate with sharp objects (knife, fork). This will damage the non-stick coating.

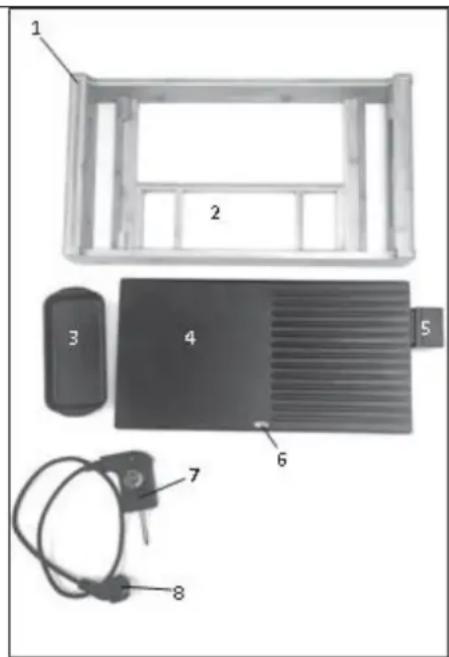

Assembly

1. bamboo frame
2. holder for the drip tray
3. drip tray
4. grill plate
5. socket
6. drain hole
7. thermostat
8. mains plug

Labeled diagram of an air conditioner unit showing internal components and wiring connections

Before first use

1. Please remove all packaging materials.
2. Please clean the unit with a damp, soft cloth before the first use.
3. Please clean the items (see Maintenance and Care)
4. Please place the appliance on a flat and stable surface.
5. Please make sure that the grill rests securely in the cradle.
6. The first heating of the device creates a "new" smell. Leave the device without grilling about 10 minutes on.
7. It could cause smoke. Make sure the appliance has sufficient ventilation.

Operation

Assembly

- Insert the drip tray (3) into the holder (2).

Interior view of a rectangular frame with a central dark object, no visible text or symbols

- Insert the grill plate (4) into the bamboo frame (1). It can only be mounted in one direction.

Exterior view of a gray industrial ventilation duct with slatted top and side panels (no text or symbols)

• Insert the thermostat (7) into the socket on the grill.
  • Make sure it is fully inserted.

Close-up of a black electronic device with a circular button and cable (no visible text or symbols)

Grill

• Brush the grill plate with a little butter, margarine or oil.
• Place the appliance on a flat, heat-resistant surface and plug in the connector.
• Turn the thermostat knob to the desired setting. The indicator light comes on and the appliance starts to heat. When the appliance has reached the correct temperature, the thermostat light goes out. The thermostat light comes on and
• goes out when the heating element switches on and off.
• Place the food on the griddle and fry it. Liquid fat and meat juices run off through the drain opening (6) into the drip tray (3).
• Carefully loosen and turn the food using a heat-resistant spatula or similar. Do not use any metal or sharpedged utensils on the griddle, as it has a
• has a special non-stick coating. Use plastic, melamine or wooden utensils instead.
• You can interrupt the cooking process at any time by pulling the plug out of the socket.
• Caution. The metal parts get very hot during use. Always hold on to the bamboo frame. Make sure that no oil, fat or other liquids splash out.
• Turn down the thermostat and unplug the appliance when the food is ready.
• Make sure the appliance has cooled down completely before cleaning and storing it.

Maintenance and care

• Please pull the plug before cleaning and wait until the device has cooled completely.
• Make sure the appliance is unplugged before you start the cleaning.
• Clean the base with a damp cloth, if necessary moistened with a couple of drops of washing-up liquid.
• The grill plate can be cleaned in hot water with washing-up liquid; use a soft cloth or a plastic washing-up brush.
• Dry the base, stone, grill plate and the trays thoroughly.
• Clean the appliance after each use.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Do not immerse the appliance in water or other liquids.

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
- Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
- If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
- In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.

• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
• The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2021/03 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

Labeled diagram of a smart air conditioner unit with numbered components

Exterior view of a rectangular metal enclosure with slatted ventilation slots (no text or symbols visible)

Exterior view of a modern office building (no signage)

Close-up of a mechanical component with a circular knob and cable (no visible text or symbols)

Griglia

Labeled diagram of a refrigerator interior components including front panel, door, and electrical plug

Top-down view of a rectangular electronic device casing with ventilation slots (no text or symbols visible)

Exterior view of a modern office building (no signage)

Close-up of a black electronic device with a circular connector and cable (no visible text or symbols)

Grill

Labeled diagram of a refrigerator interior components including front panel, door, and electrical plug

Exterior view of a gray ventilation duct with horizontal slats (no text or symbols visible)

Interior view of a modern office building (no signage)

Close-up of a mechanical component with a circular dial indicator and cable (no visible text or symbols)

Parrilla

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, neglection of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Düsseldorf

Germany
