Brand	Suntec
Model	RAC8625 Turbo
Product type	Electric cooking appliance (raclette, grill, pizza)
Power supply	220-240 V~, 50/60 Hz
Power	1450 W
Heating elements	2 independent elements (upper and lower)
Upper element control	Continuously adjustable thermostat
Lower element control	On/Off switch
Grill plate	Reversible (smooth side and grooved side), non-stick
Double trays	4 double trays (8 servings)
Single pans	8 single pans (8 servings)
Included accessory	Plastic spatula
Functions	Raclette, grill, mini-pizzas
Cleaning of plates and pans	Dishwasher safe
Cleaning of the appliance	Do not immerse, use a damp cloth
Safety	Hot surfaces, minimum distance 10-15 cm, do not leave unattended
Warranty	24 months
Number of pages in the manual	35 pages

Frequently Asked Questions - RAC8625 Turbo SUNTEC

How to clean the plates and pans?

The plates and pans are dishwasher safe. You can also clean them by hand with warm water, mild detergent and a soft sponge. Do not use abrasive products or steel wool.

Can I use metal utensils on the plates?

No, to avoid damaging the non-stick coating, use only wooden or heat-resistant plastic utensils. The included plastic spatula is ideal.

What is the power of the appliance?

The appliance has a power of 1450 W at a voltage of 220-240 V~ and a frequency of 50/60 Hz.

Are the plates and pans dishwasher safe?

Yes, the single pans, double trays and grill plate are dishwasher safe. Never put the housing or electrical parts in the dishwasher.

How to prepare mini-pizzas with this appliance?

Prepare pizza dough, roll it out to 2-3 mm, cut it to the size of the pans. Place the dough in the pans, add tomato sauce, toppings and cheese. Turn on both heating elements and cook until the dough is golden. Use the spatula to check the cooking.

What to do if the appliance emits smoke during first use?

This is normal. Production residues may cause smoke or odors. Heat the appliance empty for 10 to 15 minutes with both elements at maximum, in a well-ventilated area, then clean it.

Can I use the upper heating element alone?

Yes, the two elements can operate independently. The upper element heats the pans from above, the lower element heats the grill plate.

How to adjust the temperature?

The temperature of the upper heating element is adjusted via a continuously adjustable thermostat. The lower element is turned on/off via an on/off switch.

What is the warranty of the appliance?

The appliance has a 24-month warranty from the date of purchase, against any manufacturing or material defects. Keep the receipt.

Can I use the appliance outdoors?

No, the appliance is designed for indoor household use only. Do not use outdoors or in a humid environment.

USER MANUAL RAC8625 Turbo SUNTEC

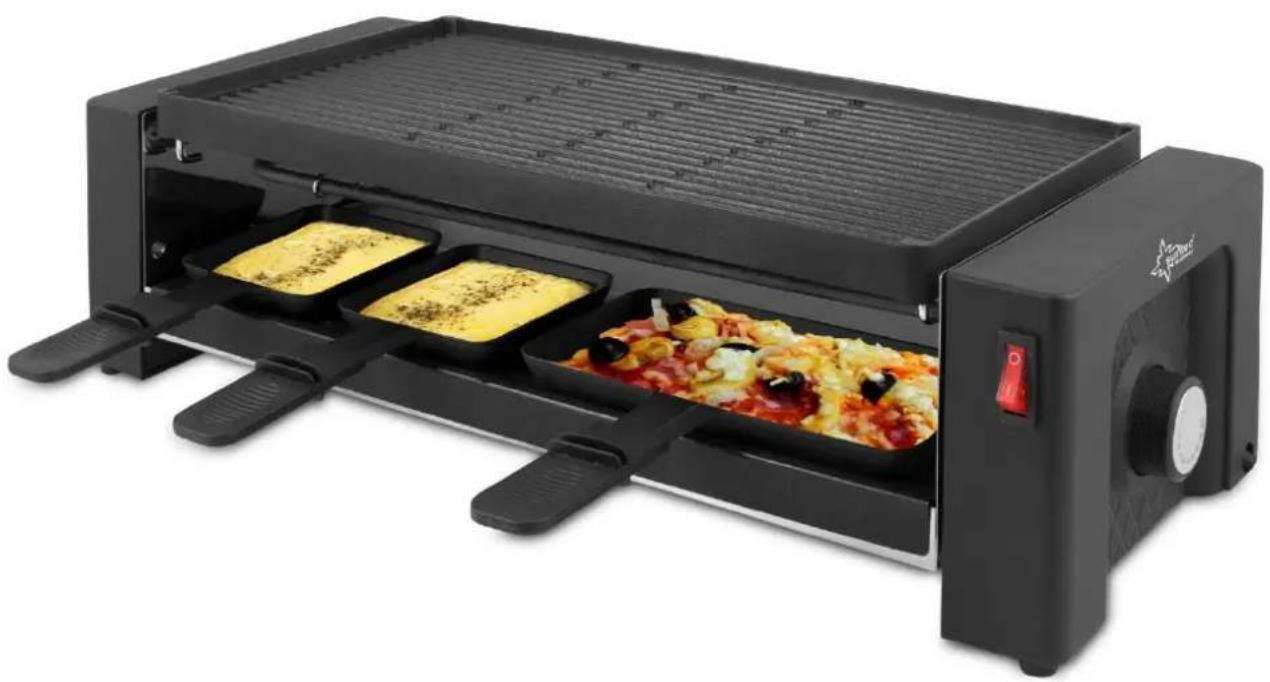

3 in 1: Pizza + Raclette + Grill

RAC-8625 turbo raclette

Bedienungsanleitung

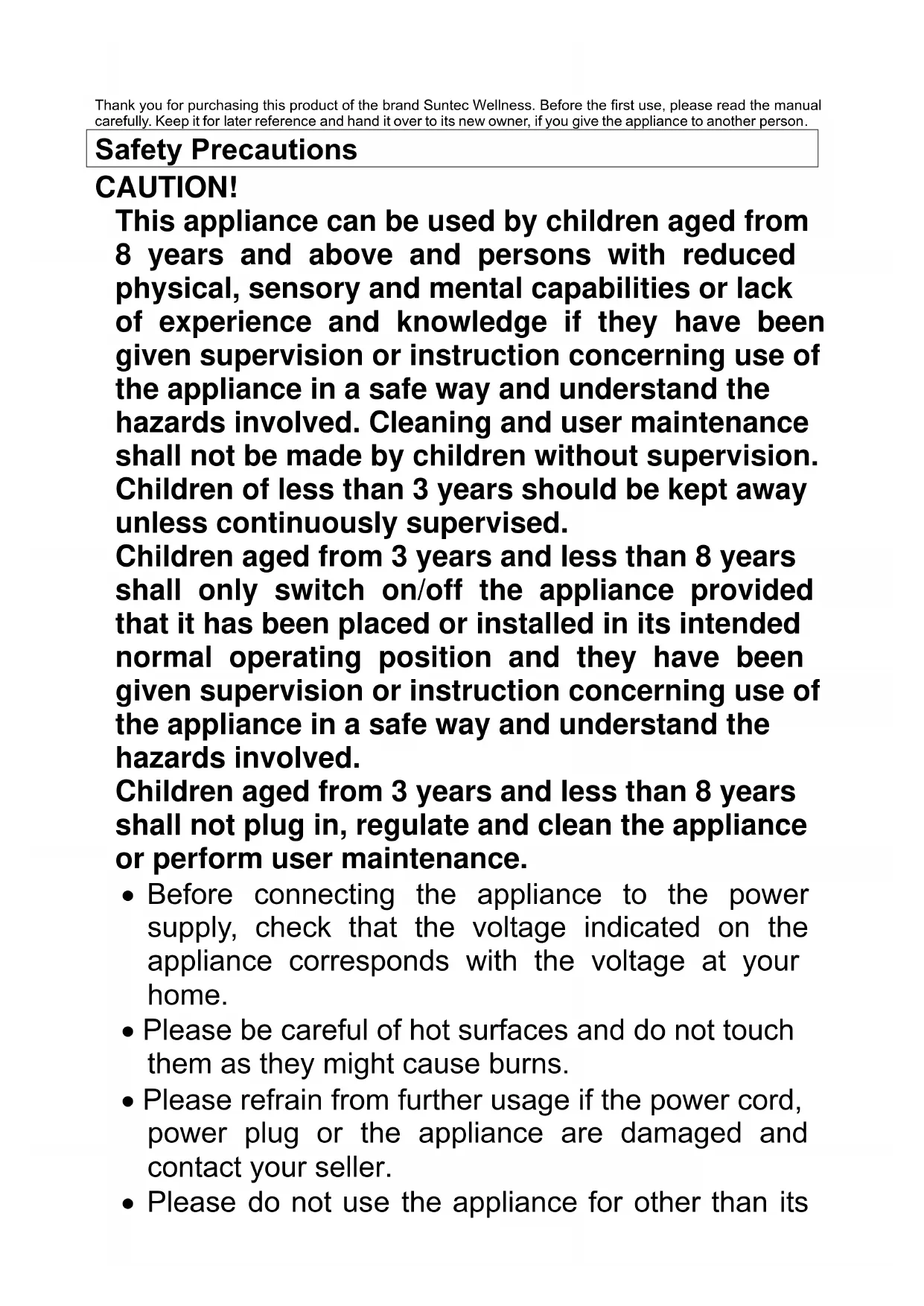

Sicherheitshinweise

VORSICHT!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
• Please be careful of hot surfaces and do not touch them as they might cause burns.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Please do not use the appliance for other than its

intended use. Other uses may cause fire. The appliance is not suitable for commercial use. For domestic indoor use only.

• Only operate the appliance on a flat, stable and heat-resistant surface. Keep a distance of at least 10-15cm to other objects.
• Please remove the appliance from the wall socket when it is not in use, before cleaning, when moving it and in case of malfunctions. Do not pull on the cord but on the power plug. Make sure that your hands are dry.
• Please do not insert any foreign objects into the appliance as this may cause electric shocks, fire or damages to the appliance.
• Do not place the appliance near curtains, drapes or other flammable materials. Keep it away from heating sources, e.g. ovens or gas stoves.
• Please do not leave the appliance unattended.
• Do not attempt to repair, disassemble or change the appliance by yourself.
• The usage of accessories not provided by SUNTEC may cause harm.
• Please keep the power cord from table edges, working surfaces or any hot surfaces.
• Never immerse the appliance, its power cord and plug in water or other liquids to prevent electric shocks.
• Do not use extension cords and multiple plugs.
• The appliance must not be used in a humid environment. Keep it away from rain and water.
• Do not place glass on the unit to avoid injury.
• Do not use tableware made of metal to protect the surfaces of the grill plates and raclette pans.

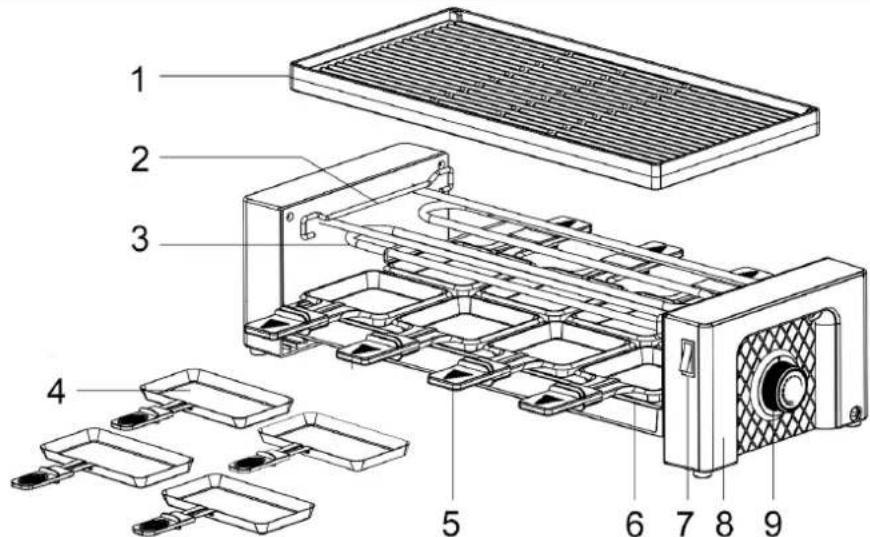

Components

1. Reversible grill plate (smooth/grooved)
2. Grill plate holder
3. Upper heating element
4. 4 double pans

5. 8 single pans

6. Cover for the lower heating element

7. On/Off switch for the lower heating element
8. Housing
9. Thermostat for the upper heating element

Operation

• Operating voltage: 220-240V~, 50/60Hz, 1450W
• Please remove all packaging materials and clean the grill plates, pans and plastic spatula before first use. Please follow the instructions in the "Cleaning" section and allow all parts to dry completely.
• Please place the reversible grill plate over the heating element and connect the device to the power supply. The device should be turned on for 10 to 15 minutes without food prior to first use. Please turn on the switch for the lower heating element and turn the thermostat for the upper heating element all the way to the stop. Possible smoke or odour development due to production-related residues are normal during this time. Please ensure adequate ventilation. Switch off the thermostat and the switch after 10-15 minutes and remove the device from the power supply. Allow the unit to cool down before cleaning.
• The reversible grill plate can be turned to the smooth or grooved side before operation. The smooth side is suitable for e.g. fried eggs while the grooved side is suitable for meat. Please do not touch the grill plate during operation. The raclette pans can be positioned either as single or double pans below the upper heating element. Thanks to the on/off switch and the adjustable thermostat, both heating elements can be operated independently of each other. Please note that the upper heating element warms the raclette pans from above during operation.
• Please turn your food around to achieve an even grilling result. In order not to damage the non-stick coatings, please do not use metal cutlery, but heat-resistant utensils made of wood or plastic. With the enclosed plastic spatula you can push your grilled food from the raclette pans onto a plate. Please always touch the heat-insulated handles, not the pan surfaces.
  After use, switch the unit off at the on/off switch and thermostat and then remove it from the power supply.

200g wheat flour
115ml water
1 teaspoon salt
1 teaspoon of fresh yeast
1 ½ teaspoon of olive oil

• Preparation:

Mix all ingredients together and knead extensively until the dough no longer sticks. Add flour if necessary. Cover the dough for at least 30 minutes in a warm place. Roll out the dough to 2-3mm thickness and cut to the size of the raclette pans. Put the dough on the pans and cover with any ingredients, e.g. tomato sauce, salami slices and grated cheese. Bake the mini pizzas in the raclette pans. The baking time can vary depending on dough thickness, topping and desired tan. For the preparation of pizzas, both heating elements should be switched on on the appliance. Tip: Please lift the mini pizzas with the plastic spatulas to check if the dough is cooked.

Cleaning

• Please remove the device from the power supply before each cleaning and let it cool down. To avoid electric shock, never immerse the device and its electrical components under water.
• Please use a damp, soft cloth to clean the outer surfaces and a dry cloth to dry them off.
• The single and double pans as well as the upper grill plate are dishwasher-safe. Alternatively, you can clean them after each use with warm water, neutral detergent and a soft sponge. Please also clean the plastic spatula with warm water, neutral detergent and a soft sponge.
• Please do not use any aggressive or chemical cleaning agents or abrasive cleaning agents such as steel wool.

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
• If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
  The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIKATRONIC and the Sun-Logo are registered trademarks. © 2021 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

3 in 1: Pizza + Raclette + Griglia RAC-8625 turbo raclette

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Dusseldorf

Germany

Garanzia
