USER MANUAL UltraSonicClean Disc CASO
Raiffeisenstraße 9
D-59757 Arnsberg
Service-Hotline International:
Tel.: +49 (0) 29 32 / 80 55 4 - 99
Fax: +49 (0) 29 32 / 80 55 4 - 77
eMail: kundenservice@caso-design.de
10.3 Warning notices....27
10.4 Limitation of liability....28
10.5 Copyright protection 28
11 Safety 28
11.1 Intended use....28
11.2 General Safety information....29
11.3 Sources of danger 30
11.3.1 Dangers due to electrical power 30
12 Commissioning....30
12.1 Safety information 30
12.2 Delivery scope and transport inspection ....30
12.3 Unpacking 31
12.4 Disposal of the packaging 31
12.5 Setup....31
12.5.1 Setup location requirements:....31
12.6 Assembling the accessories....32
12.6.1 CD-rack 32
12.6.2 Plastic Basket....32
12.6.3 Watch Stand....32
12.7 Electrical connection....32
13 Design and Function 33
13.1 Complete overview....33
13.2 Rating plate 34
14 Operation and Handing ....34
14.1 How does the Ultrasonic Cleaner work? Dirt elimination process through Ultrasonic technology: 34
14.2 Applications....34
14.3 Operating Instructions 36
14.4 Operation guidance for disk cleaning....36
14.5 Four different ways of Cleaning 37
14.5.1 General Cleaning 37
14.5.2 Enhanced Cleaning....37
14.5.3 Cleaning by Parts 37
14.5.4 Extensive Cleaning....37
15 Cleaning and Maintenance....38
15.1 Safety information....38
15.2 Cleaning 38
16 Disposal of the Old Device....38
17 Guarantee....39
18 Technical Data 39
19 Mode d'emploi 41
Labeled diagram of a smart air fryer with numbered parts for identification and assembly reference.natural_image
Three line drawings of accessories: a ring, a pair of sunglasses, and a wristwatch (no text or symbols)natural_image
Simple line drawing of a container with an open lid, no text or symbols presentnatural_image
Simple line drawing of a closed container with lid open, no text or symbols presentnatural_image
Simple line drawing of a medical device with an arrow pointing to a plug inserted into a bulb (no text or symbols)natural_image
Illustration of a white electric cooker with a black tag showing number 4 (no text or symbols on the device itself)text_image
Diagram showing a device being placed on top of a container with an open lid, labeled with number 5.natural_image
Illustration of a cooking pot with an open lid and a plug inserted into it, no text or symbols present.natural_image
Line drawing of a digital kitchen appliance with open lid and internal components (no text or symbols)HINWEIS
Illustration of a hand pouring liquid into a container with an open lid (no text or symbols)natural_image
Simple line drawing of a closed container with an open lid and a spoon inside, labeled with number 3 (no text or symbols on the diagram itself)natural_image
Illustration of a hand pouring liquid into a bottle and a container with an open lid (no text or symbols)natural_image
Illustration of a hand holding a ring and wrist, with no visible text or symbolsnatural_image
Illustration of a hand washing a cup with another bowl containing food and a small jar nearby (no text or symbols)Original Operating Manual
Ultrasonic Cleaner
Item No. 1510
10 Operating Manual
10.1 General
Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.
Your device will serve you for many years if you handle it and care for it properly.
We wish you a lot of pleasure in using it!
10.2 Information on this manual
These Operating Instructions are a component of the Device and provide you with important information for the initial commissioning, safety, intended use and care of the device.
The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:
- Commissioning
- Operation
- Troubleshooting and/or
- Cleaning
Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.
10.3 Warning notices
The following warning notices are used in the Operating Manual concerned here.
AGEFAHR DANGER
A warning notice of this level of danger indicates a potentially dangerous situation.
If the dangerous situation is not avoided, this can lead to death or serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.
▲WARNUNG WARNING
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
▲VORSICHT ATTENTION
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
HINWEIS PLEASE NOTE
A notice of this kind indicates additional information, which will simplify the handling of the machine.
10.4 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.
No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:
- Non-observance of the manual
- Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts
Modifications of the device are not recommended and are not covered by the guarantee.
All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
10.5 Copyright protection
This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.
11 Safety
This chapter provides you with important safety notices when handling the device.
The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
11.1 Intended use
This device is only intended for use in households in enclosed spaces for cleaning
- Jewellery
- glasses and watches
- commodities
- CD-Roms
- metal articles
- metal dishware
Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
⚠️WARNUNG
Warning
Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.
▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.
▶ Never use the appliance to clean living animals.
▶ Never clean electronic devices such as mobile phones, quartz watches, or non-waterproof mechanical watches, calculators, etc. in the ultrasonic cleaner.
Claims of all kinds due to damages resulting from unintended uses are excluded.
The User bears the sole risk.
11.2 General Safety information
HINWEIS
Please note
Please observe the following general safety notices with regard to the safe handling of the device.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children without supervision.
▶ Do not leave the device unsupervised when it is in operation.
11.3 Sources of danger
11.3.1 Dangers due to electrical power
⚠️GEFAHR
Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:
▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
12 Commissioning
This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:
12.1 Safety information
⚠️WARNUNG
Warning
▶ Packaging materials may not be used for playing. There is a danger of suffocation.
12.2 Delivery scope and transport inspection
As a rule, the Ultrasonic Cleaner is delivered with the following components:
- Ultrasonic Cleaner 1510
- Plastic basket
- Plastic watch stand
- CD rack
- Operating Instructions
HINWEIS
Please note
▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.
12.3 Unpacking
Remove the device out of the carton and remove the packaging material.
12.4 Disposal of the packaging
The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.
Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.
HINWEIS Please note
▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.
12.5 Setup
12.5.1 Setup location requirements:
In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity for the device.
- Choose the setup location in such a way that children cannot reach the device.
- The device is not intended to be installed in a wall or a built-in cupboard.
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
- Do not move the ultrasonic cleaner when it is in operation.
- The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
- The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
12.6 Assembling the accessories

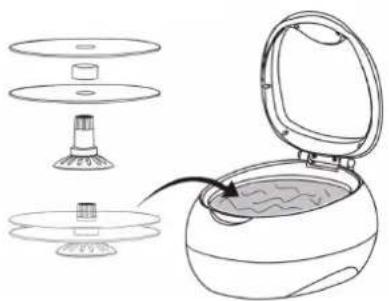

12.6.1 CD-rack


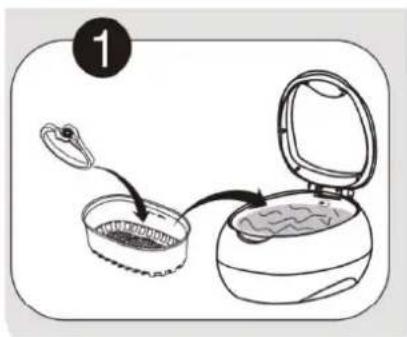

12.6.2 Plastic Basket
Please pay attention, the plastic basket is only for cleaning small items, because it absorbs about 30% of ultrasonic energy, and reduces the cleaning result. In this case, when using the plastic basket, please refer to the instruction of “Enhanced Cleaning” in this manual.

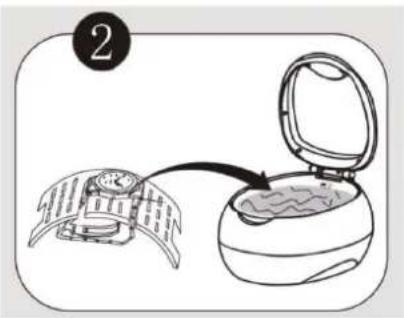

12.6.3 Watch Stand
Similar to plastic basket, the watch stand absorbs ultrasonic energy. When the watch stand is used, use “Enhanced Cleaning”.
12.7 Electrical connection
In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:
- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
- The electrical outlet must be protected by a 16A safety cut-out switch.
-
The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 ~mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
-
Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.
13 Design and Function
This chapter provides you with important safety notices on the design and function of the device.

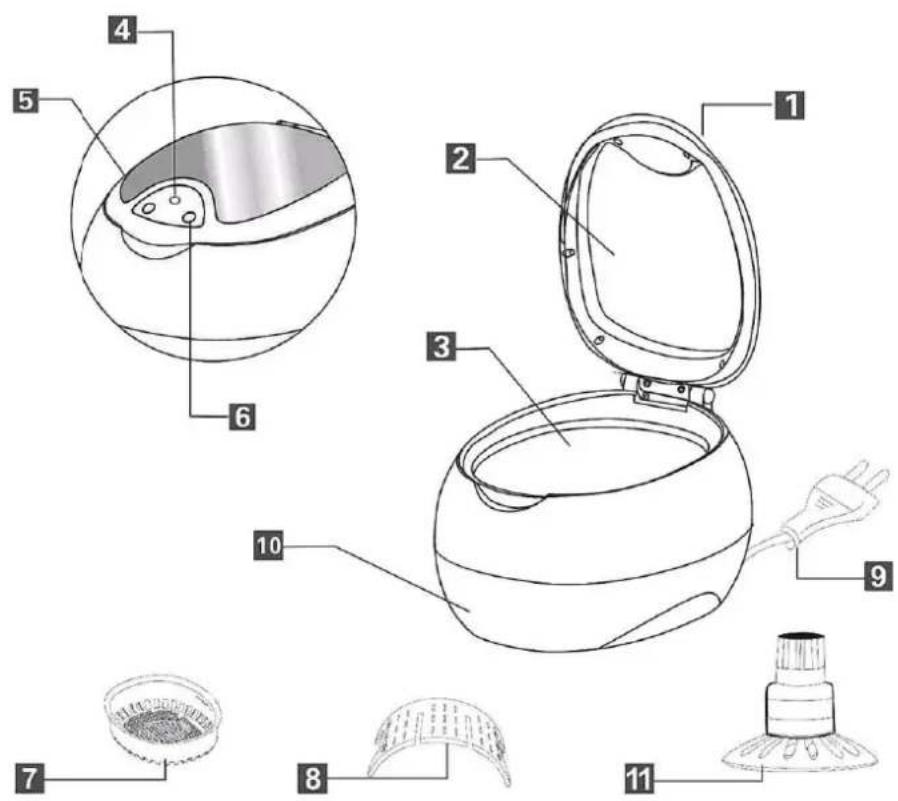

13.1 Complete overview
2 View Window 8 Plastic Watch Stand
3 Stainless Steel Tank 9 Plug and Cord
4 Indication Light 10 Housing
5 ON Button 11 CD Rack
6 OFF Button
13.2 Rating plate
The rating plate with the connection and performance data can be founded on the back of the device.
14 Operation and Handing
This chapter provides you with important notices with regard to operating the device.
Observe the following notices to avoid dangers and damages:
▲WARNUNG WARNING
▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.
14.1 How does the Ultrasonic Cleaner work?
Dirt elimination process through Ultrasonic technology:
Many tiny bubbles are generated by the effect of ultrasonic.
Bubbles are imploded constantly under the action of ultrasonic to impact the surface of the item.
The impact splits up the dirt into many granules and separates them from the surface of the item; that way the granules get into water.

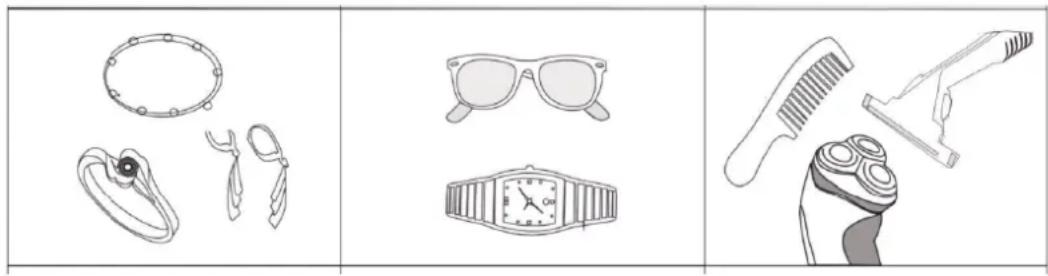

14.2 Applications
Jewellery
Glasses, sun glasses, watch chains, waterproof watches, etc.
Electric shaver heads, rasor blades, dentures, combs, toothbrushes, etc.

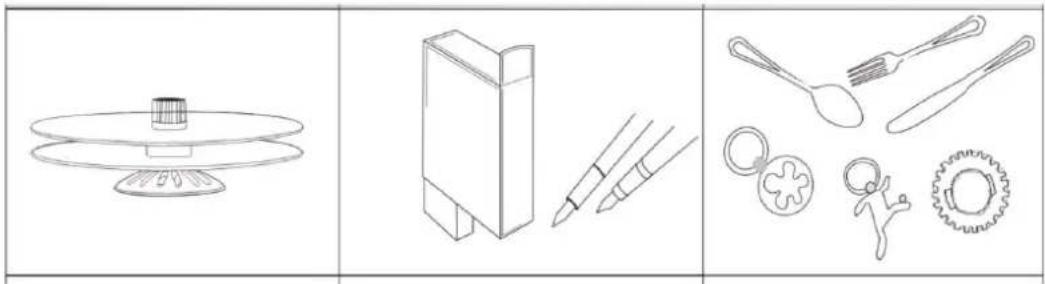

CD-Rom Metal Articles Metal dishware
⚠️WARNUNG Attention
▶ Not securely attached items may loosen.
▶ Items that are easy to be discoloured are not recommended for ultrasonic cleaning. For example: textiles, leather products, etc.
▶ Do not put mobile phones or watches which are not waterproof into the tank for cleaning.
▶ Do not put any spectacles frames or art goods which are made out of shell or hawksbill into the tank for cleaning.
For ultrasonic cleaning unsuitable items:
| Soft jewelry: pearls, emerald, ivory, coral, agate, sea turtle shells... | These items are not hard. Scratches can occur during cleaning. |
| Welded, metal plated or glued items. | Ultrasonic cleaning may enlarge gaps inside the welde joints, plated coating or glued surfaces oft he items, and may cause seperation. |
| Watches are not suitable: Exception divers watches suitable with depth rating over 50 m | Because of the strong penetration capability of the ultrasonic waves, water may get into the watches it they are not truly waterproof. Clean only not damaged watches that are waterproof for a depth over 50 m. |
| Others: wood, coated glass, ceramic, glasses, every item that is already damaged | Ultrasonic cleaning may enlarge pre-existed crack in the coating of glass, ceramic and glasses (for example spectacle glasses). |
14.3 Operating Instructions

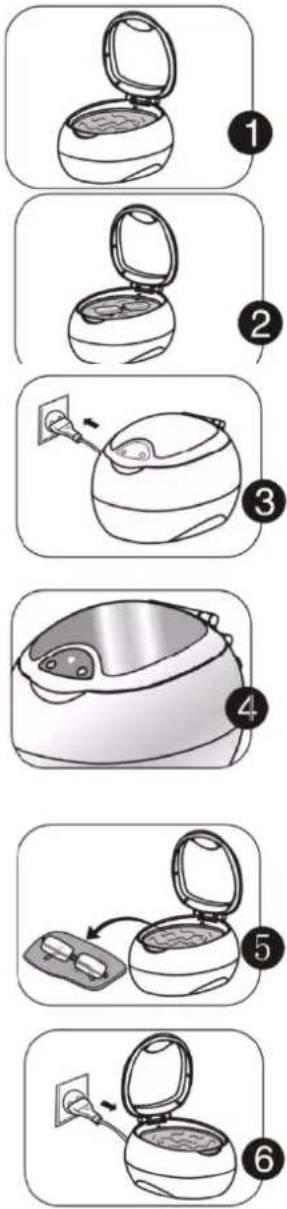

Open the lid, and fill the stainless steel tank with water.
⚠️WARNUNG Attention
Running without water may damage the unit!
Place the item into the water. The item should be immersed well into water.
However, do not exceed the "MAX" mark.
Close the lid and plug in the appliance.
Press the ON button to start the cleaning process – the red indication light turns on.
HINWEIS Note
During cleaning, you can hear the ZIZI sound; it means the unit is working
The unit will stop automatically after 3 minutes. If another cleaning is needed, press the ON button again.
You can press the OFF button during the cleaning if you want to stop it.
When the cleaning is finished, unplug the unit and open the lid. Take out the item. At last, pour the water from the stainless steel tank and wipe it out.

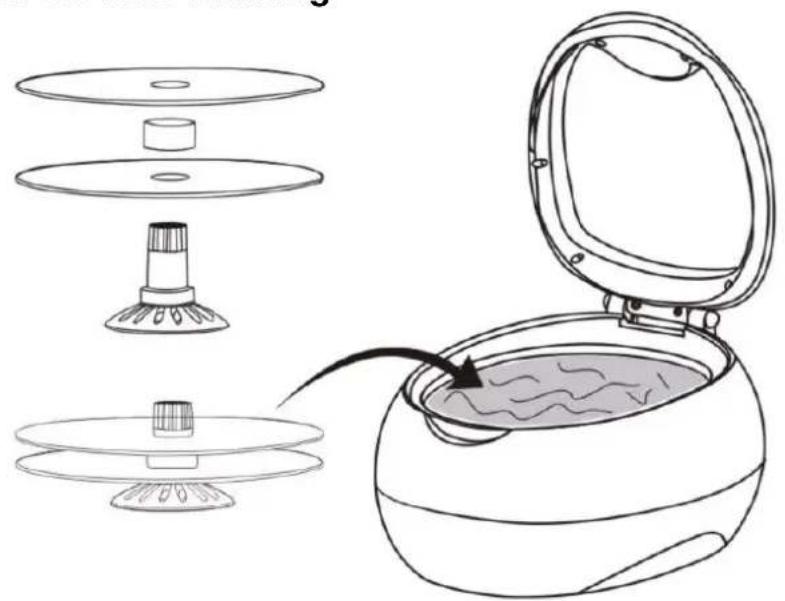

14.4 Operation guidance for disk cleaning
▶ Wiping disk directly may scratch and damage the disk. Using ultrasonic technology can efficiently avoid damaging the disk.
Put the disks (CD, VCD, DVD) into the disk holder as shown in the picture (two disks can be cleaned at one time). Then put the holder into the cleaning tank which is filled with normal water.
Push the ON button. After 2-3 minutes, the tiny dirt on the surface of the disk will be cleaned off.
HINWEIS Note
▶ Disk which is scratched cannot be renovated.
14.5 Four different ways of Cleaning
▲WARNUNG Attention
Do not fill the tank with abrasives or corrosive chemicals.
14.5.1 General Cleaning
When the item is smeary or extraordinary dirty, add about 5-10ml of detergent (offered in specialised stores) or some drops of washing-up liquid into the water to enhance the cleaning result.
For large items, place them as shown.
14.5.4 Extensive Cleaning
HINWEIS Note
▶ Repeating cleaning cycles can enhance the cleaning effect. 3-minute cleaning interval is recommended.
15 Cleaning and Maintenance
This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.
15.1 Safety information
▲VORSICHT Attention
Please observe the following safety notices, before you commence with cleaning the device:
The device must be cleaned at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device.
▶ Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.
15.2 Cleaning
Do not keep water in the tank for a long time.
To avoid electric shock do not wash the unit with water.
16 Disposal of the Old Device
Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.
If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.
HINWEIS Please note
- Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.
17 Guarantee
We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.
The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.
Any pending faults must be reported within 14 days of delivery.
All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
18 Technical Data

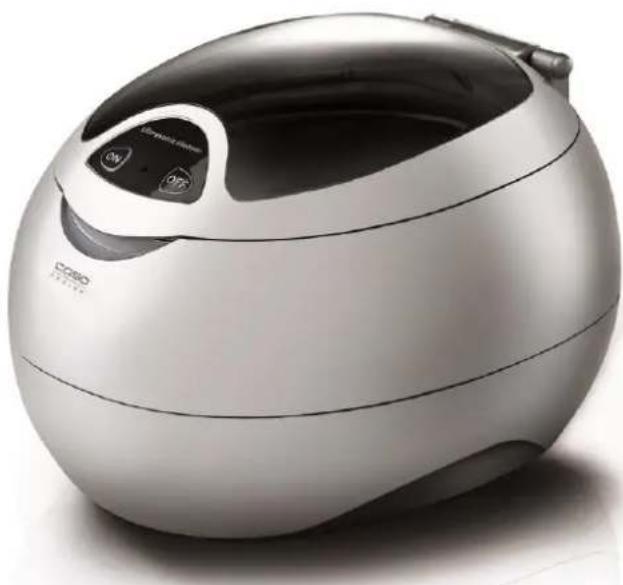

| Device | Ultraschall-Reinigungsgerät |
| Name | UltraSonicClean Disc |
| Item No.: | 1510 |
| Mains data | 220 ~ 240 V, 50 Hz |
| Power | 50 W |
| Cleaning interval | 3 Minuten |
| Dimensions (W/H/D) | 170 x 135 x 200 mm |
| Tank size | 570 ml |
| Ultrasonic wave | 42.000 Hz |
| Net weight | Ca. 900 g |
19.1 Généralités
Labeled diagram of a smart air fryer with numbered parts for identification and assembly reference.natural_image
Line drawing of a closed container with lid open, labeled with number 1 (no text or symbols on the object itself)natural_image
Simple line drawing of a closed container with an open lid, no text or symbols presentnatural_image
Simple line drawing of a device with an outlet and a label '3' (no text or symbols on the diagram itself)natural_image
Illustration of a stylized helmet or cap with a circular badge labeled '4' (no text or symbols on the helmet itself)HINWEIS
Line drawing of a food container with an open lid and outlet tube, no text or symbols presentnatural_image
Line drawing of a smart air conditioner with open lid and internal components, showing internal structure and mounting base (no text or symbols)HINWEIS
Remarque
Illustration of a hand pouring liquid into a container with an open lid (no text or symbols)natural_image
Simple line drawing of a closed container with lid open, containing food inside (no text or symbols)natural_image
Illustration of a hand pouring liquid from a bottle into a container with an open lid (no text or symbols)natural_image
Illustration of a hand holding a ring with a tape measure, no text or symbols presentnatural_image
Illustration of a cooking step showing a bowl being washed with a lid, with a side view of a bowl and a jar (no text or symbols)natural_image
Simple line drawing of a box with an open lid and a numbered label (3) on the right side.natural_image
Exterior view of a modern stainless steel electric food processor (no visible text or symbols)28 Istruzioni d'uso
28.1 In generale
Labeled diagram of a smart air conditioner with numbered parts for identification and assembly reference.natural_image
Three line drawings of accessories: a pair of ring, a pair of sunglasses, and a pair of eyeglasses (no text or symbols)natural_image
Line drawing of a closed container with open lid, labeled with number 1 (no text or symbols on the object itself)natural_image
Simple line drawing of a closed container with lid open, no text or symbols presentnatural_image
Simple line drawing of a bulb-like object with an arrow pointing to a wall, no text or symbols present.natural_image
Illustration of a kitchen appliance with a numbered label (4) on the side, no text or symbols present.text_image
Diagram showing a hand-drawn cooking step with an open lid and a bag of eyes, labeled with number 5.natural_image
Simple line drawing of a bowl with an open lid and a plug inserted into it, no text or symbols present.natural_image
Line drawing of a digital cleaning appliance with a lid, base plates, and a transparent chamber (no text or symbols)HINWEIS Indicazione
Illustration of a hand pouring liquid into a container with an open lid (no text or symbols)natural_image
Simple line drawing of a closed container with an open lid and a spoon inside, labeled with number 3 (no text or symbols on the diagram itself)natural_image
Illustration of a hand pouring liquid from a bottle into a container with an open lid (no text or symbols)natural_image
Illustration of a hand holding a magnifying glass over a curved object, with no visible text or symbolsnatural_image
Illustration of a kitchen cleaning procedure showing a pan, lid, and cloth (no text or symbols)natural_image
Simple line drawing of a box with an open lid and a small object inside (no text or symbols)natural_image
Exterior view of a modern stainless steel electric food processor (no visible text or symbols)CE
Ref. 1510
Labeled diagram of a smart air fryer with numbered parts for identification and assembly reference.natural_image
Illustration of a white electric cooker with a circular badge showing the number 4 (no text or symbols on the device itself)text_image
Diagram showing a device being placed on a container with an open lid, labeled with number 5natural_image
Simple line drawing of a bowl with an open lid and a power outlet, no text or symbols present.natural_image
Line drawing of a smart appliance with a lid, fan base, and open lid (no text or symbols)HINWEIS Nota
Illustration of a hand pouring liquid into a container with an open lid (no text or symbols)natural_image
Simple line drawing of a closed container with an open lid and a spoon inside, enclosed in a rounded square frame (no text or symbols)natural_image
Illustration of a hand pouring liquid into a container with an open lid, next to a smaller container (no text or symbols)natural_image
Illustration of a hand holding a ring with a bandage, no text or symbols presentnatural_image
Illustration of a hand cleaning a food item in a washing machine (no text or symbols)natural_image
Simple line drawing of a box with a lid and a numbered label (3) on the right side, no text or symbols present.natural_image
Exterior view of a modern stainless steel electric food processor (no visible text or symbols)
⚠️WARNUNG WAARSCHUWING
▲WARNUNG WAARSCHUWING
Labeled diagram of a smart air fryer with numbered parts for identification and assembly reference.3 RVS reservoir 8 Plastic boogelement
