USER MANUAL WIFICO50CWT NEDIS

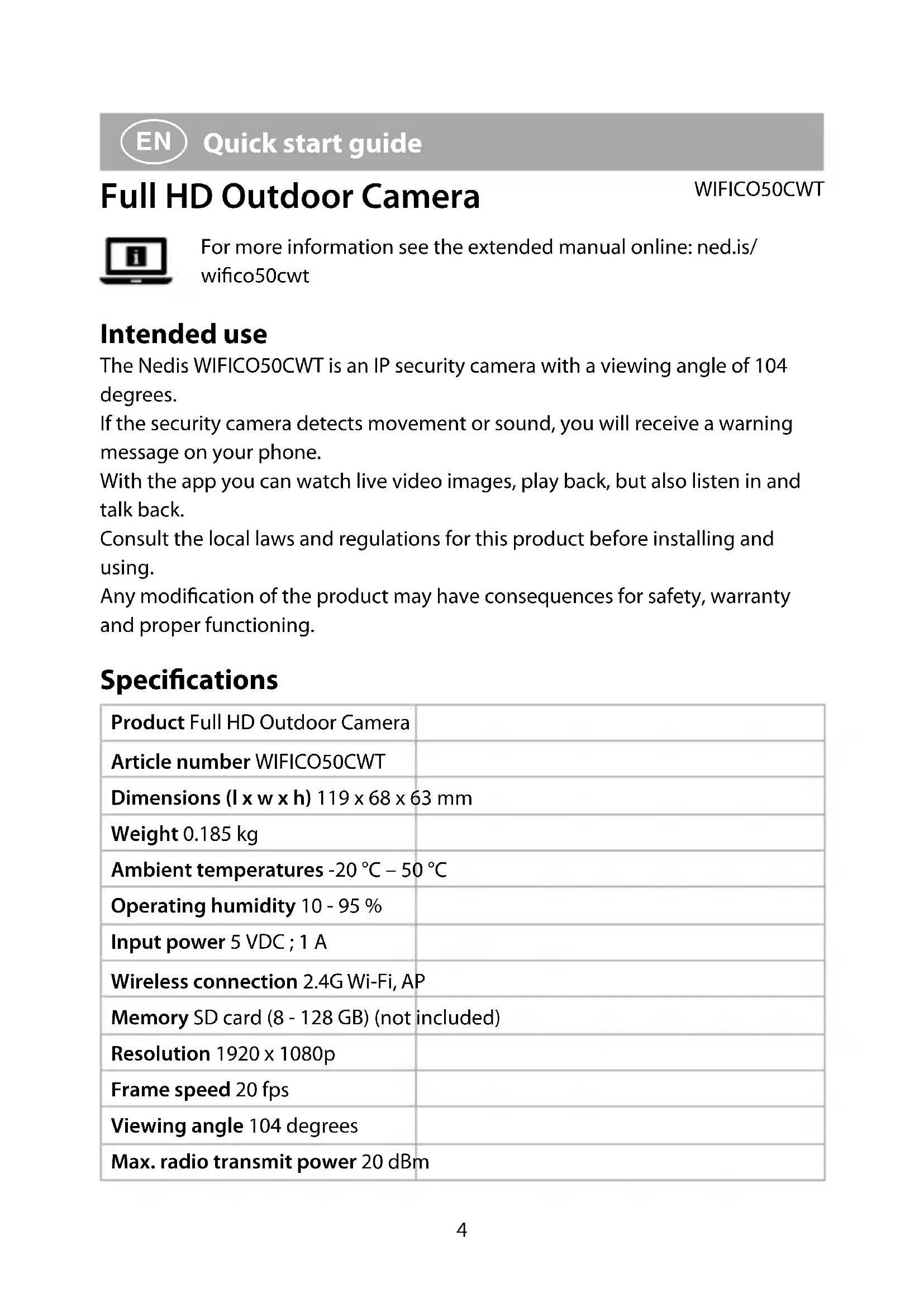

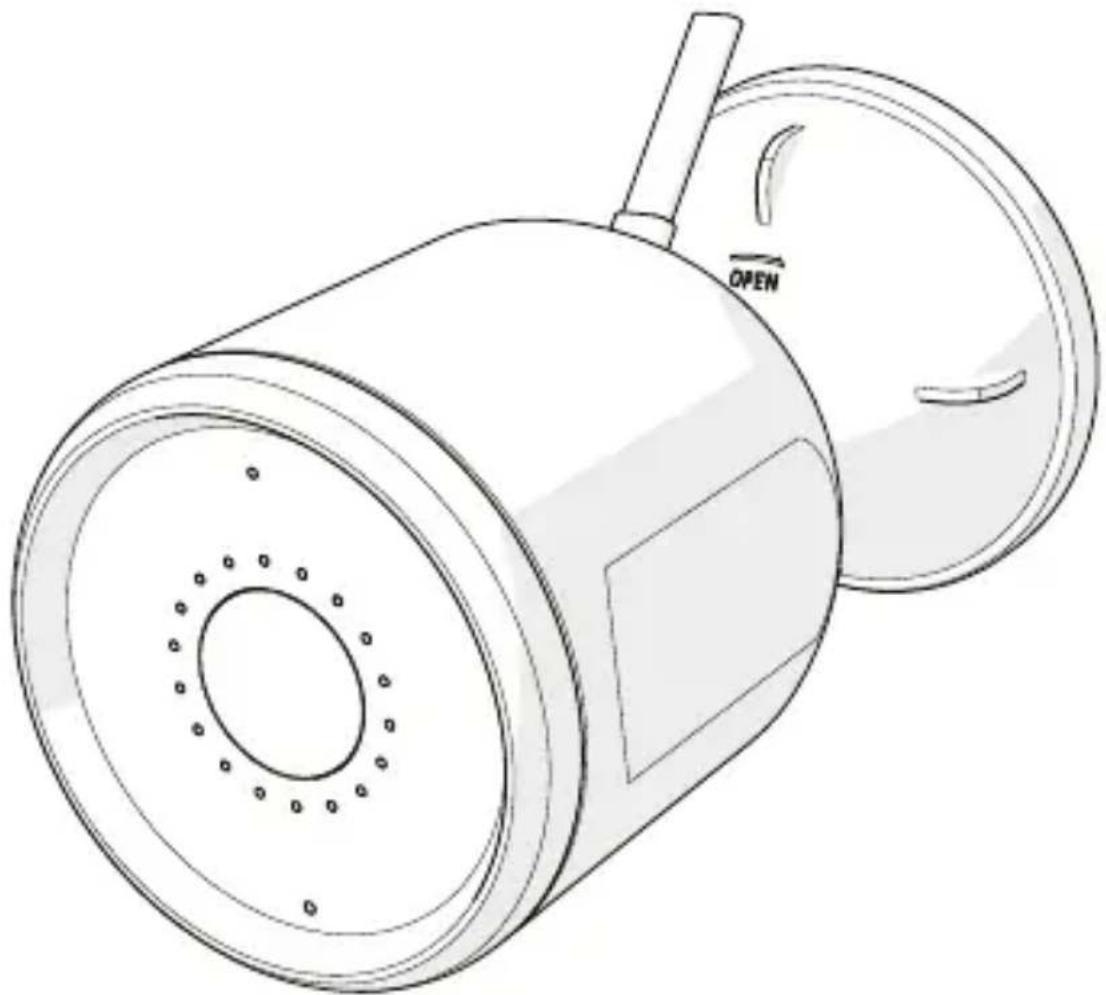

Quick start guide Full HD Outdoor Camera WIFICO50CWT For more information see the extended manual online: ned.is/ wico50cwt Intended use The Nedis WIFICO50CWT is an IP security camera with a viewing angle of 104 degrees. If the security camera detects movement or sound, you will receive a warning message on your phone. With the app you can watch live video images, play back, but also listen in and talk back. Consult the local laws and regulations for this product before installing and using. Any modication of the product may have consequences for safety, warranty and proper functioning. Specications Product Full HD Outdoor Camera Article number WIFICO50CWT Dimensions (l x w x h) 119 x 68 x 63 mm Weight 0.185 kg Ambient temperatures -20 °C – 50 °C Operating humidity 10 - 95 % Input power 5 VDC ; 1 A Wireless connection 2.4G Wi-Fi, AP Memory SD card (8 - 128 GB) (not included) Resolution 1920 x 1080p Frame speed 20 fps Viewing angle 104 degrees Max. radio transmit power 20 dBm5 Antenna gain 2 dBi Frequency range 2412 - 2472 MHz Waterproof IP65 Main parts (image A) 1 Microphone 2 Camera lens 3 Status indicator LED 4 Screws 5 MicroSD card cover 6 Speaker 7 Reset button 8 MicroSD card slot 9 Power input q Ethernet port w Power adapter Safety instructions

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.

• Only use the product as described in this document.

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

• Do not drop the product and avoid bumping.

• This product may only be serviced by a qualied technician for maintenance to reduce the risk of electric shock.

• Unplug the product from the power source and other equipment if problems occur.

• Do not expose the product to water or moisture.

• Do not unplug the product by pulling on the cable. Always grasp the plug and pull.

• Consult the local laws and regulations for this product before installing and using. Preparing the security camera

Use an SD card with a minimum of 8 GB and a maximum of 128 GB.

1. Insert the new microSD card into the microSD card slot A

2. Plug the power adapter A

into the power input A

into a power outlet. The product switches on automatically.6 Installing the Nedis SmartLife app

1. Download the Nedis Smartlife app for Android or iOS on your phone via

Google Play or the Apple App Store.

2. Open the Nedis Smartlife app on your phone.

3. Create an account with your e-mail address and tap Continue.

4. Enter the received verication code.

5. Create a password and tap Done.

6. Tap Add Home to create a SmartLife Home.

7. Set your location, choose the rooms you want to connect with and tap Done.

Connecting the product

1. Open the Nedis Smartlife app on your phone.

2. Tap + in the Nedis SmartLife app.

3. Select the device type you want to add from the list.

5. Enter the Wi-Fi network data and tap Conrm.

6. Tap Continue and a QR-code will appear.

7. Hold your phone with a 15 – 20 cm distance in front of the camera.

8. If the camera has detected the QR-code, you will hear a sound.

9. Tap to conrm you heard the sound.

10. Give the camera a name and tap Done. A

will turn blue. The product is now ready for use. If the camera failed to connect, the A

will be continuously red. To reset the camera, push the reset button A

for 5 seconds until you heard the sound. Then repeat step 1 to 10 closer to the router. Important instructions to reduce false alarms

• Do not place the camera facing the sun or any objects with bright lights.

• The ideal viewing distance is 2 - 10 meters.

• Do not place the camera close to frequently moving vehicles. The recommended distance between the camera and moving vehicles is 15 meters.

• Stay away from air outlets, including air conditioner and heat transfer vents, etc.

• Do not place the camera facing a mirror or highly reective object.

• Keep the camera at least 1 meter away from any wireless devices, including Wi-Fi routers and phones, in order to avoid wireless interference.7 Declaration of Conformity We, Nedis B.V. declare as manufacturer that the product WIFICO50CWT from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation. The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/WIFICO50CWT#support For additional information regarding the compliance, contact the customer service: Web: www.nedis.com E-mail: service@nedis.com Nedis B.V., de Tweeling 28 5215 MC ’s-Hertogenbosch, the Netherlands
