WIFIACMB1WT7 - Air conditioner NEDIS - Free user manual and instructions

Product type	Wi-Fi portable air conditioner
Brand	Nedis
Model	WIFIACMB1WT7
Dimensions (L x W x H)	377 x 678 x 347 mm
Weight	21 kg
Power supply	220 - 240 V ~ 50 Hz
Power consumption	792 W
Energy class	A
Cooling capacity	7000 BTU
Recommended room size	10 - 15 m²
Air flow rate	300 m³/h
Dehumidification	17 L/day
Refrigerant	R290 (130 g)
Noise level	< 65 dB
Main functions	Cooling, dehumidification, ventilation, timer, sleep mode, Wi-Fi, remote control
Maintenance and cleaning	Regular filter cleaning, manual or continuous drainage
Safety	Flammable refrigerant R290, do not use near ignition sources, room area > 7 m²
Spare parts and repairability	Exhaust hose, window kit, remote control; repair by qualified technician only
General information	Complete manual available online: ned.is/wifiacmb1wt7

Frequently Asked Questions - WIFIACMB1WT7 NEDIS

How to install the exhaust hose?

Assemble the exhaust hose (A⑤) with the nozzle (A④) and the connector (A⑮). Slide the connector onto the air outlet (A⑫). Extend the hose up to 1500 mm without twisting. Fix the window kit (A⑥) into the opening, then snap the nozzle and secure it with the screw (A⑰).

How to connect the air conditioner to the Nedis SmartLife app?

Download the Nedis SmartLife app. Create an account, add a home. Plug in the air conditioner, press '+' in the app, select the device type. Make sure the Wi-Fi indicator blinks quickly (otherwise hold the fan speed button for 5 seconds). Follow the instructions to connect to a 2.4 GHz Wi-Fi network.

What is the maximum recommended room size for this air conditioner?

The cooling capacity is 7000 BTU, suitable for a room of 10 to 15 m² under low thermal load conditions.

How to clean the filter of the appliance?

Remove the filter frame (A⑨) and the mesh (A⑩). Wash the filter with warm soapy water, rinse and dry completely before reinstalling. Do not use harsh chemicals.

Is the refrigerant R290 dangerous?

R290 is a flammable gas. Ensure the room has a floor area larger than 7 m², is well ventilated and free of ignition sources (open flames, electrical appliances). In case of a leak, ventilate immediately and do not touch the appliance.

Can I use the air conditioner without the remote control?

Yes, you can use the control panel (B) with buttons to turn on/off, adjust mode, temperature, fan speed and timer.

How to drain the condensation water?

Two options: manual drainage via the outlet (A⑬) or continuous drainage by connecting a hose to the continuous drain outlet (A⑪) to a reservoir or drainage system.

What to do if the air conditioner does not turn on?

Check that the plug is properly inserted into a grounded 220-240 V outlet. Ensure the water tank is not full (if manual drainage). If the problem persists, unplug and contact a qualified technician.

Can I use an extension cord?

Yes, if necessary, use a grounded extension cord of appropriate diameter, fully unrolled, as short as possible. Do not let it come into contact with the appliance.

What operating modes are available?

The modes are: Cooling, Dehumidification and Ventilation. A Sleep mode is also available in cooling mode, which gradually increases the temperature.

USER MANUAL WIFIACMB1WT7 NEDIS

Wi-Fi Smart Air Conditioner

with thermostat, app and voice control

WIFIACMB1WT7

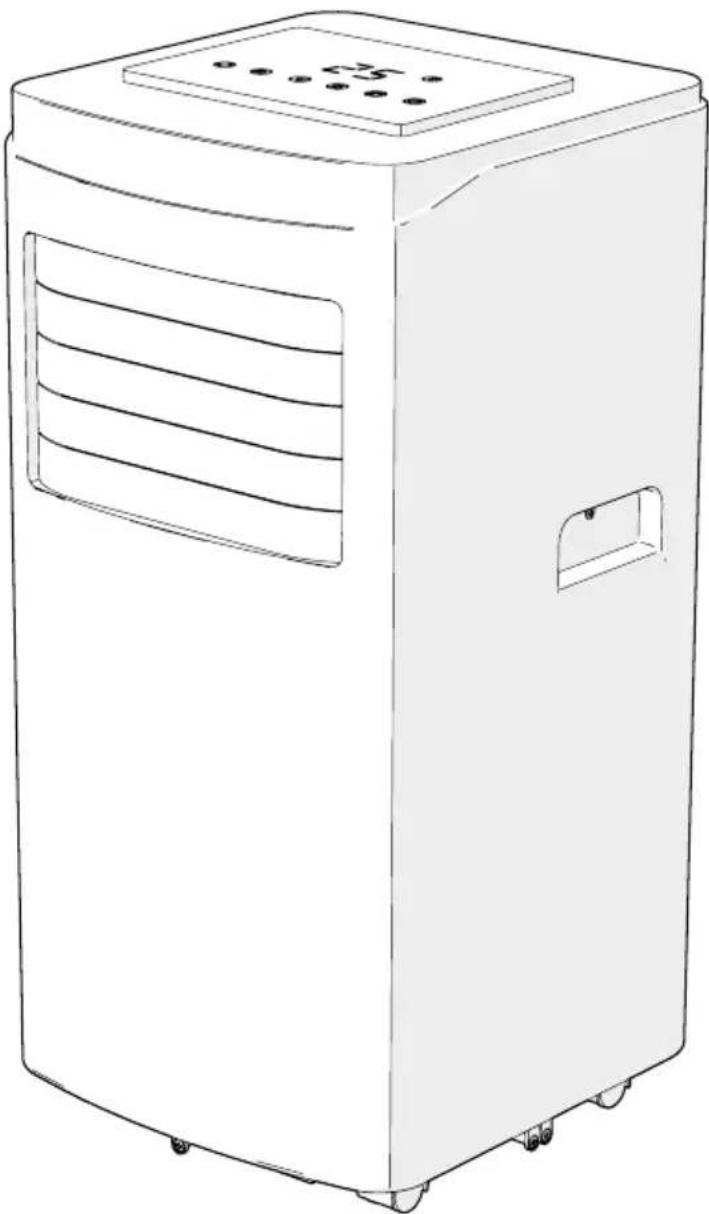

Line drawing of a portable air conditioner unit with ventilation slots and a top lid (no text or symbols)

Quick start guide 4

Kurzanleitung 6

B

C

D

Quick start guide

Wi-Fi Smart Air Conditioner

WIFIACMB1WT7

For more information see the extended manual online: ned.is/wifiacmb1wt7

Intended use

The Nedis WIFIACMB1WT7 is a local air conditioner used for cooling and dehumidifying rooms.

The product is exclusively intended as a local air conditioner for domestic, indoor use.

The product is not intended for professional use.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe

way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.

This product is intended for use in household environments for typical housekeeping functions that may also be used by non-expert users for typical housekeeping functions, such as: shops, offices other similar working environments, farm houses, by clients in hotels, motels and other residential type environments and/or in bed and breakfast type environments.

Any modification of the product may have consequences for safety, warranty and proper functioning.

* The performance of the air conditioner is subjected to many factors like floor space, ceiling height, level of isolation and number of windows. The data mentioned is based on a space with low heat loads.
Specifications

Product Wi-Fi Smart Air Conditioner
Article number WIFIACMB1WT7
Dimensions (l x w x h) 377 x 678 x 347 mm
Weight 21 kg
Input voltage 220 – 240 V ~ 50 Hz
Required power 792 W
Energy class A
Energy efficiency ratio (EER) 2.61
Noise level < 65 dB
Cooling capacity 7000 BTU
Room size capacity * 10 - 15 m^2
Air circulation 300 m	^3/h
Dehumidification 17 l/day
Refrigerant R290 / 130 g
Power plug Schuko CEE 7/7

Main parts (image A)

① Control panel
② Swing louvers
③ Handle
④ Exhaust nozzle
⑤ Exhaust hose
⑥ Window kit
⑦ Window kit fasteners
⑧ Screw
⑨ Filter frame
⑩ Filter screen
⑪ Continuous drainage outlet
⑫ Air outlet
⑬ Manual drainage outlet
⑭ Power cable
⑮ Exhaust hose connector
⑯ Remote control
⑰ Exhaust nozzle screw

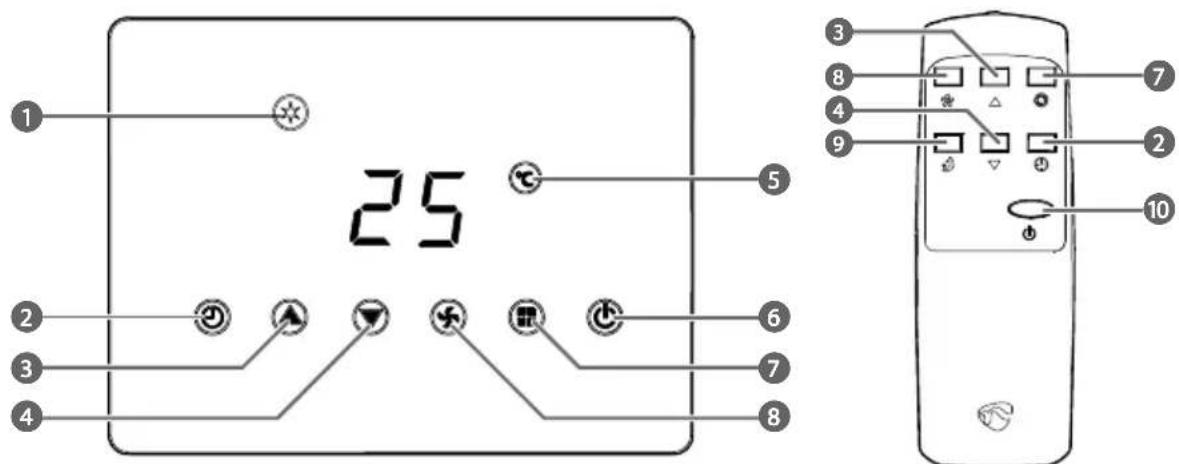

Control panel and remote control (Image B)

① Mode indicators

② Timer button

③ Up button

④ Down button

⑤ Temperature indicator

⑥ Power button / Wi-Fi indicator LED

⑦ Fan mode button

⑧ Fan speed button

⑨ Sleep mode button

⑩ Power button

Safety instructions

Contains one or more (extremely/highly) flammable components.

Contains one or more (extremely/highly) flammable components.

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this manual.
• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.

• Close supervision is necessary when the product is used by or near children, animals or infirm persons. Do not allow children to play with it or touch it.

• Keep the product out of reach from children.

• Do not use a damaged or defective product, but return it for repair or replacement.
• Do not expose the product to water, rain, moisture or high humidity.
• If the product is immersed in water, do not touch the product or the water.
• Shut off the main power grid and carefully remove the plug from the power outlet.
  • After the product has been immersed or covered in water or other liquids, do not use the product again.
• Keep the product away from heat sources. Do not place the product on hot surfaces or near open flames.
• Do not use the product near explosive or flammable materials.
• Do not insert any objects into the product.
• Do not obstruct or cover the product's air inlet or outlet grid.
• The appliance shall be installed in accordance with national wiring.
  • Always disconnect the product from the power outlet when cleaning or moving the product.
• Do not pull the power cable to move the product.
• Unplug the product from the power source and other equipment if problems occur.
• Do not unplug the product by pulling on the cable. Always grasp the plug and pull.
• Switch off the main power switch before unplugging the power cord.
• Do not use the product when the cord or plug is damaged.
• Make sure that the electrical supply in your area matches a voltage of 220 – 240 VAC and a frequency of 50 Hz.
• Connect to a grounded socket only.
• If necessary, use an earthed extension cable of a suitable diameter.
• Fully extend the power cord and make sure the power cord does not contact the product.
• When using an extension cord, use one which is as short as possible and fully extended.
• Do not use external timers or remote control systems to switch the product on or off.
• Ensure people do not trip over the cord.
• Make sure that the power cable cannot become entangled and does not hang over the edge of a worktop.
• Do not leave the product unattended when switched on.
• R290 is a refrigerant gas that complies with the European directives on the environment.
• Be aware that refrigerants can be odorless.
• Place the product in an area without any continuous sources of ignition (for example: open flames, gas or electrical appliances in operation).
• Only install, operate and store the product in a room with a floor area above 7m^2 .
• Only store the product in a well-ventilated area.
• Store the product in such a way as to prevent mechanical failure.
• When the product is installed, operated or stored in a non-ventilated area, make sure the room is designed to prevent the accumulation of refrigerant leaks resulting in a risk of fire or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.
• Only persons with a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification, can work on or break into a refrigerant circuit.
• Servicing can only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel can only be carried out under the supervision of the person competent in the use of flammable refrigerants.
• When defrosting and cleaning the product, do not use any means

other than those recommended by the manufacturing company.

• Do not puncture or heat any part of the refrigerant circuit.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.

Installing the product

Place the product on a stable and flat surface.
□ My move the product in an upright position.
Leave a minimum of 0.5 m space around the air inlet and outlet to allow a good circulation of airflow.
If the product has been tilted, allow it to stand upright for 2 hours before plugging it in.
Any install, operate and store the product in a room with a floor area above 7 m².
Keep the product at a distance from flammable objects such as furniture, curtains and similar.
Not block ventilation openings and make sure that there is enough space around the product.

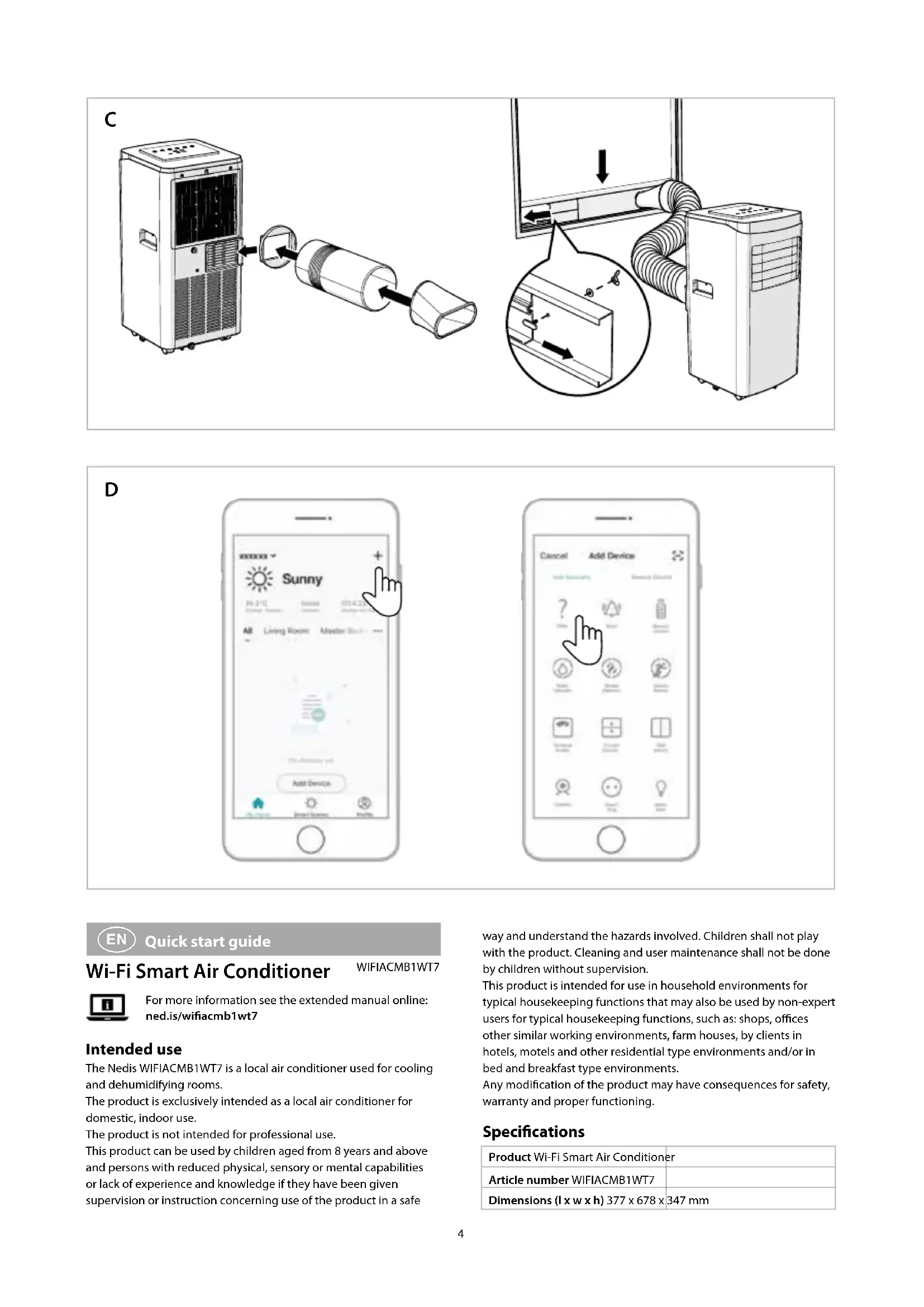

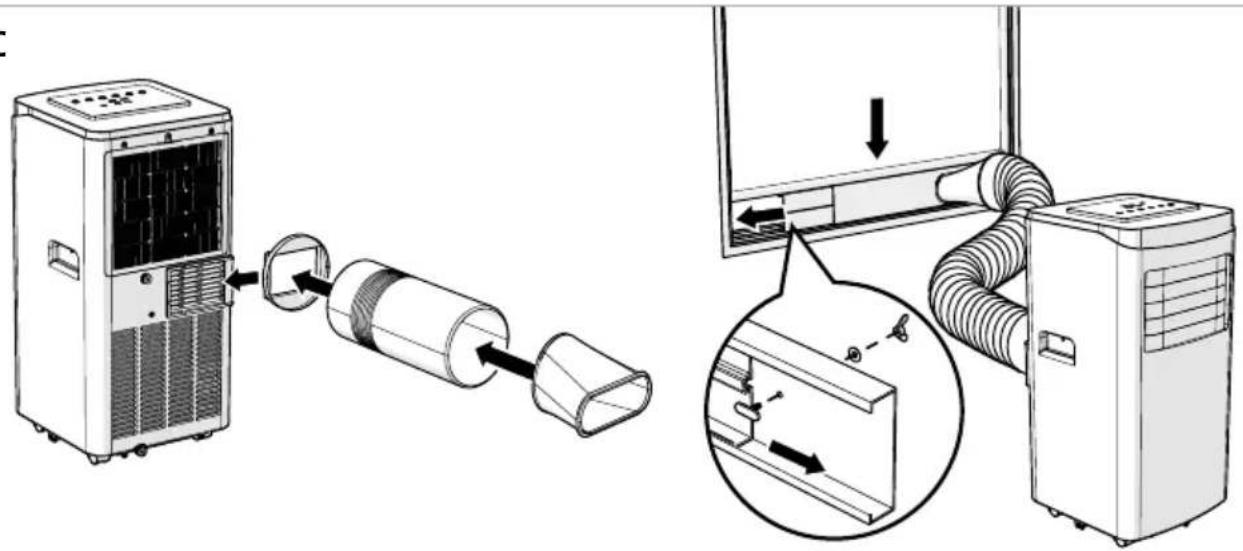

Assembling the exhaust (image C)

Only use the provided exhaust hose.
not block the exhaust hose, this may cause overheating.

1. Assemble the exhaust hose A⑤, the exhaust nozzle A④ and the exhaust hose connector A⑮.
2. Slide A ^15 over the air outlet A ^12 .
3. Extend A ^⑤ up to 1500 mm.

not twist the exhaust hose.

Ensure that the exhaust hose does not kink.

1. Assemble the window kit A⑥ with the fasteners A⑦.
2. Install A⑥ in the window opening.
3. Tighten A ^7 .
4. Snap A④ into A⑥ and fasten with the exhaust nozzle screw A⑰.

Place the product on a flat and dry surface.

Assembling the continuous drainage (optional)

1. Open the continuous drainage outlet A ^13 .
2. Connect A ^13 to a water container or drainage system (not included).

Installing the Nedis SmartLife app

1. Download the Nedis SmartLife app for Android or iOS on your phone via Google Play or the Apple App Store.
2. Open the Nedis SmartLife app on your phone.
3. Create an account with your mobile phone number or your e-mail address and tap Continue.
4. You will receive a verification code on your mobile phone or e-mail address.
5. Enter the received verification code.
6. Create a password and tap Done.
7. Tap Add Home to create a SmartLife Home.
8. Set your location, choose the rooms you want to connect with and tap Done.

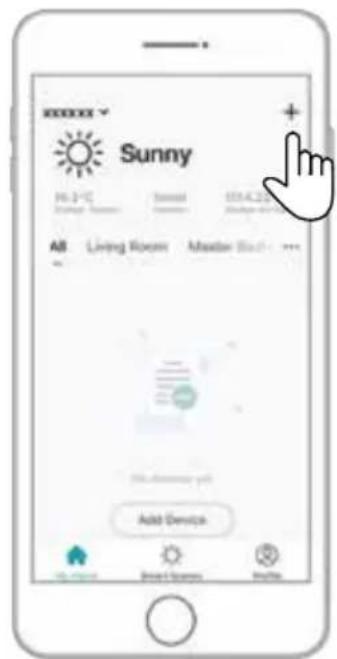

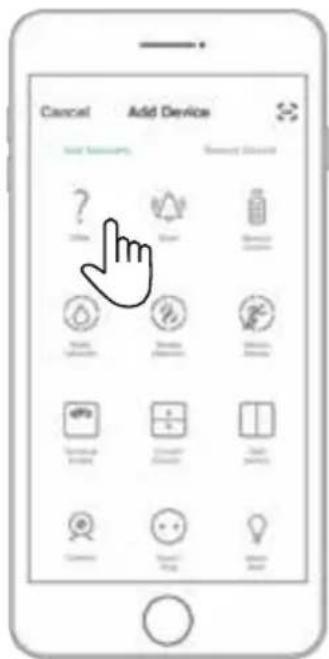

Adding the product to the SmartLife app (image D)

1. Switch on the product.
2. Tap + in the Nedis SmartLife app.
3. Select the device type you want to add from the list.
4. Confirm the Wi-Fi indicator LED B⑥ is blinking fast. Or reset the product during standby mode: Press and hold the fan speed button B⑧ for 5 seconds until the product emits a tone and B⑥ starts blinking.
5. Follow the instructions in the Nedis SmartLife app.

Make sure you connect the product to a 2.4 GHz Wi-Fi network.

1. Rename the product after it has been found and added.
2. After confirming you can control the product with your smartphone.

To connect your SmartLife account to Amazon Alexa and/or Google Home, set it up using the "Smart Life" action or skill. For more details check the instruction on either Amazon or Google.

Using the control panel and remote control (image B)

Button Function
Mode indicators B1	Indicates the current fan mode.
Timer button B2	Press to set the timer. Use B3 and B4 to set the duration of cooling.
Up button B3	Increase values.
Down button B4	Decrease values.
Temperature indicator B5	Indicates the current temperature.
Power button / Wi-Fi indicator LED B6	Switch the product on or off.
Fan mode button B7	Repeatedly press the button to select the mode: Cooling mode / Dehumidifying mode / Fan mode.
Fan speed button B8	Press repeatedly to select the fan speed.
Sleep mode button B9	Activate sleep mode. Only works in cooling mode. After one hour the set temperature increases 1 °C and again after 2 hours.
Power button B10	Switch the product on or off.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product WIFIACMB1WT7 from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/wifiacmb1wt7#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
