USER MANUAL WIFILR001BK NEDIS

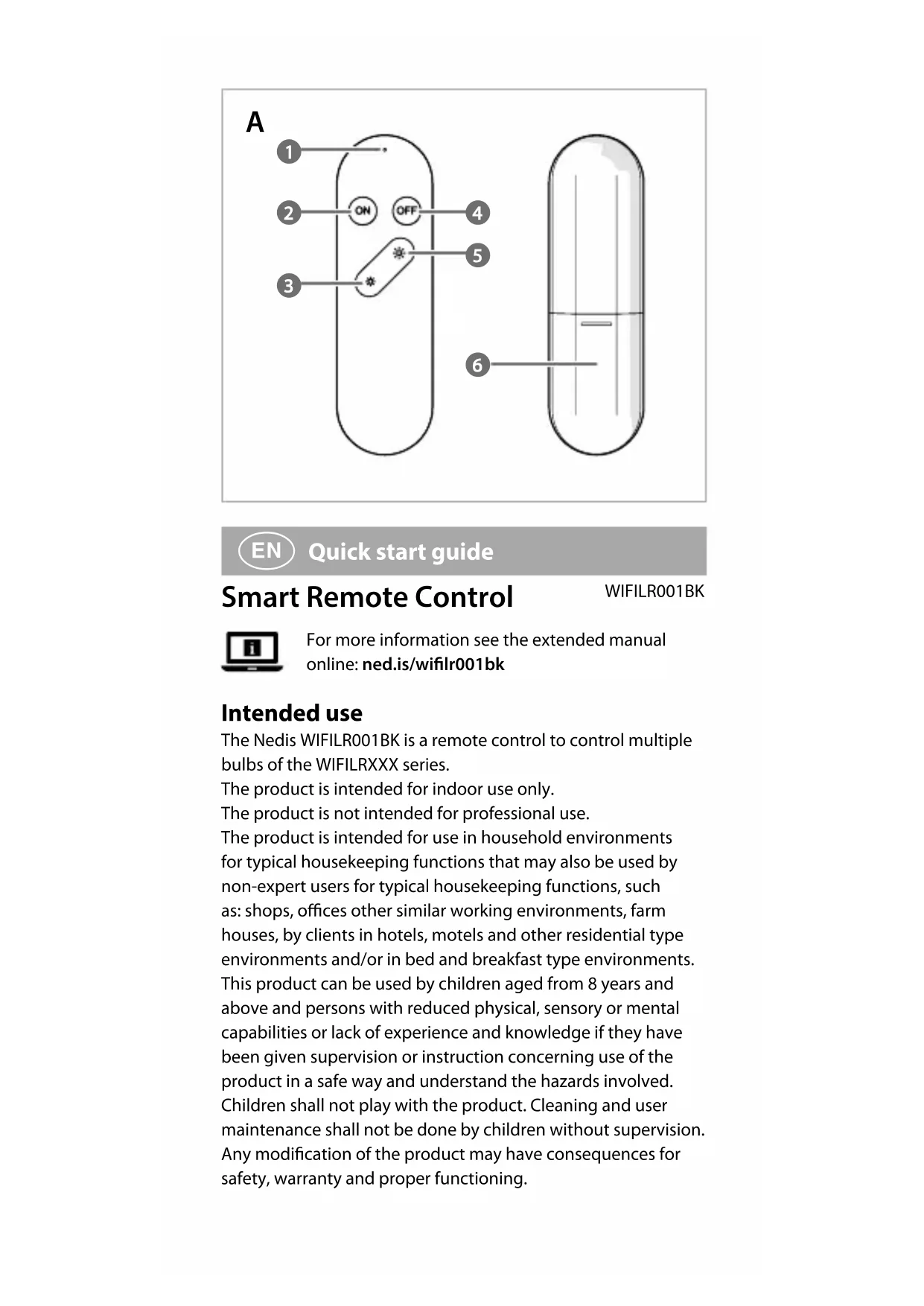

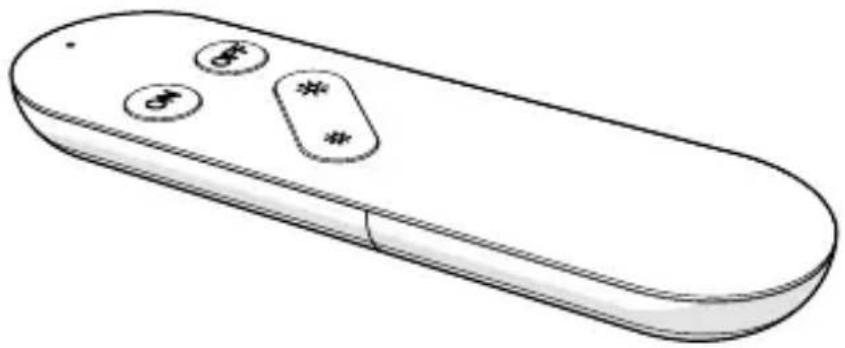

Quick start guide Smart Remote Control WIFILR001BK For more information see the extended manual online: ned.is/wilr001bk Intended use The Nedis WIFILR001BK is a remote control to control multiple bulbs of the WIFILRXXX series. The product is intended for indoor use only. The product is not intended for professional use. The product is intended for use in household environments for typical housekeeping functions that may also be used by non-expert users for typical housekeeping functions, such as: shops, oces other similar working environments, farm houses, by clients in hotels, motels and other residential type environments and/or in bed and breakfast type environments. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision. Any modication of the product may have consequences for safety, warranty and proper functioning.4 Specications Product Smart Remote Control Article number WIFILR001BK Dimensions (l x w x h) 130 x 28 x 14 mm Power input 3 VDC ; < 0.2 A Operating temperature -20 °C - 40 °C Operating humidity Up to 60% Frequency range 2412 - 2484 MHz Maximum transmit power 16 dBm Battery 2x AAA Main parts (image A) 1 Indicator LED 2 On button 3 Decrease brightness 4 O button 5 Increase brightness 6 Battery compartment Safety instructions

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.

• Only use the product as described in this document.

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

• Do not drop the product and avoid bumping.

• This product may only be serviced by a qualied technician for maintenance to reduce the risk of electric shock.

• Do not expose the product to water or moisture.

• Disconnect the product from the power source before service and when replacing parts.

• For battery safety, consult the manual of the batteries.

• Do not mix cells of dierent manufacture, capacity, size or type within a product.

• Only use the battery type(s) recommended in this document.

• Keep cells and batteries clean and dry.

• When possible, remove the battery from the product when not in use.

• Use only the cell or battery in the application for which it was intended.

• Wipe the cell or battery terminals with a clean dry cloth if they become dirty.

• Battery usage by children should be supervised.5

• Observe the plus (+) and minus (–) marks on the cell, battery and equipment and ensure correct use.

• Dispose of the cell or battery properly.

• Seek medical advice immediately if a cell or a battery has been swallowed. Placing the batteries

Use only size AAA batteries (not included) for this product.

Observe the plus (+) and minus (–) marks on the cell, battery and equipment and ensure correct use.

1. Open the battery compartment A

2. Place the batteries.

Connecting the product

1. Switch the lamp o and on once to activate pairing mode.

Perform the following step within 20 seconds.

2. Press and hold the on button A

for 10 seconds until the indicator LED A

The lamp blinks three times when the product has been connected successfully. Repeat the steps to connect the product to multiple lamps. Disconnecting the product

for 10 seconds to disconnect the lamps from the product. Declaration of Conformity We, Nedis B.V. declare as manufacturer that the product WIFILR001BK from our brand Nedis

, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation. The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/WIFILR001BK#support For additional information regarding the compliance, contact the customer service: Web: www.nedis.com E-mail: service@nedis.com Nedis B.V., de Tweeling 28 5215 MC ’s-Hertogenbosch, the Netherlands6
