WIFILRF10ST64 - Lighting NEDIS - Free user manual and instructions

Product Type	Smart Wi-Fi Bulb
Brand	Nedis
Model	WIFILRF10ST64
Base	E27
Material	Glass
Dimensions	∅ 64 x 142 mm
Weight	46 g
Power Supply	220-240 V ~ 50/60 Hz
Power	7 W
Current	43 mA
Luminous Flux	806 lm
Color Temperature	1800 - 3000 K (variable warm white)
Wireless Technology	Wi-Fi 2.4 GHz (2412-2472 MHz)
Max Radio Transmission Power	17 dBm
Main Features	Control via Nedis SmartLife app, compatible with Google Home, Amazon Alexa and IFTTT, dimming and color temperature adjustment
Safety	Do not expose to water or moisture, do not use if damaged, indoor/outdoor use
Care and Cleaning	Clean with a soft dry cloth, do not use liquid cleaners
Spare Parts	No detachable parts, the bulb is not repairable
Repairability	Not repairable, replace with a new bulb
General Information	Manual available in 15 languages, Nedis SmartLife app required

Frequently Asked Questions - WIFILRF10ST64 NEDIS

How to install the Nedis WIFILRF10ST64 bulb?

Screw the bulb into an E27 base, turn it on, then use the Nedis SmartLife app to connect it to your 2.4 GHz Wi-Fi network. Follow the instructions in the app.

Why is my bulb not connecting to Wi-Fi?

Make sure your network is 2.4 GHz and the password is correct. If the bulb does not flash, turn it off and on 3 times to enter pairing mode. You can also try the AP mode in the app.

Can I use the bulb without the app?

No, the bulb is designed to be controlled exclusively via the Nedis SmartLife app. Without the app, it works as a standard bulb turned on/off by the switch, but without smart features.

What color temperatures are available?

The bulb offers a variable color temperature from 1800 K (warm white) to 3000 K (neutral white), adjustable via the app.

Is the bulb compatible with Google Home or Alexa?

Yes, the bulb can be connected to Google Home or Amazon Alexa via the Nedis SmartLife app for voice control.

How to reset the bulb?

Turn the bulb off and on 3 times quickly. It will start flashing, indicating it is in pairing mode. You can then reconnect it via the app.

Can I use the bulb outdoors?

Yes, the bulb is suitable for outdoor use, but it should not be directly exposed to water or moisture. Use it in a suitable fixture.

What is the lifespan of the bulb?

The lifespan is not specified, but LED bulbs typically last between 15,000 and 25,000 hours.

Can I schedule timers with the app?

Yes, the Nedis SmartLife app allows you to create schedules, scenes, and routines to turn the bulb on/off or change its color at set times.

What to do if the bulb stops responding?

Cut power to the bulb for a few seconds, then turn it back on. If it still does not respond, reset it (3 on/off cycles) and reconnect it via the app.

USER MANUAL WIFILRF10ST64 NEDIS

with dimmable filament

WIFILRF10A60

WIFILRF10G125

WIFILRF10ST64

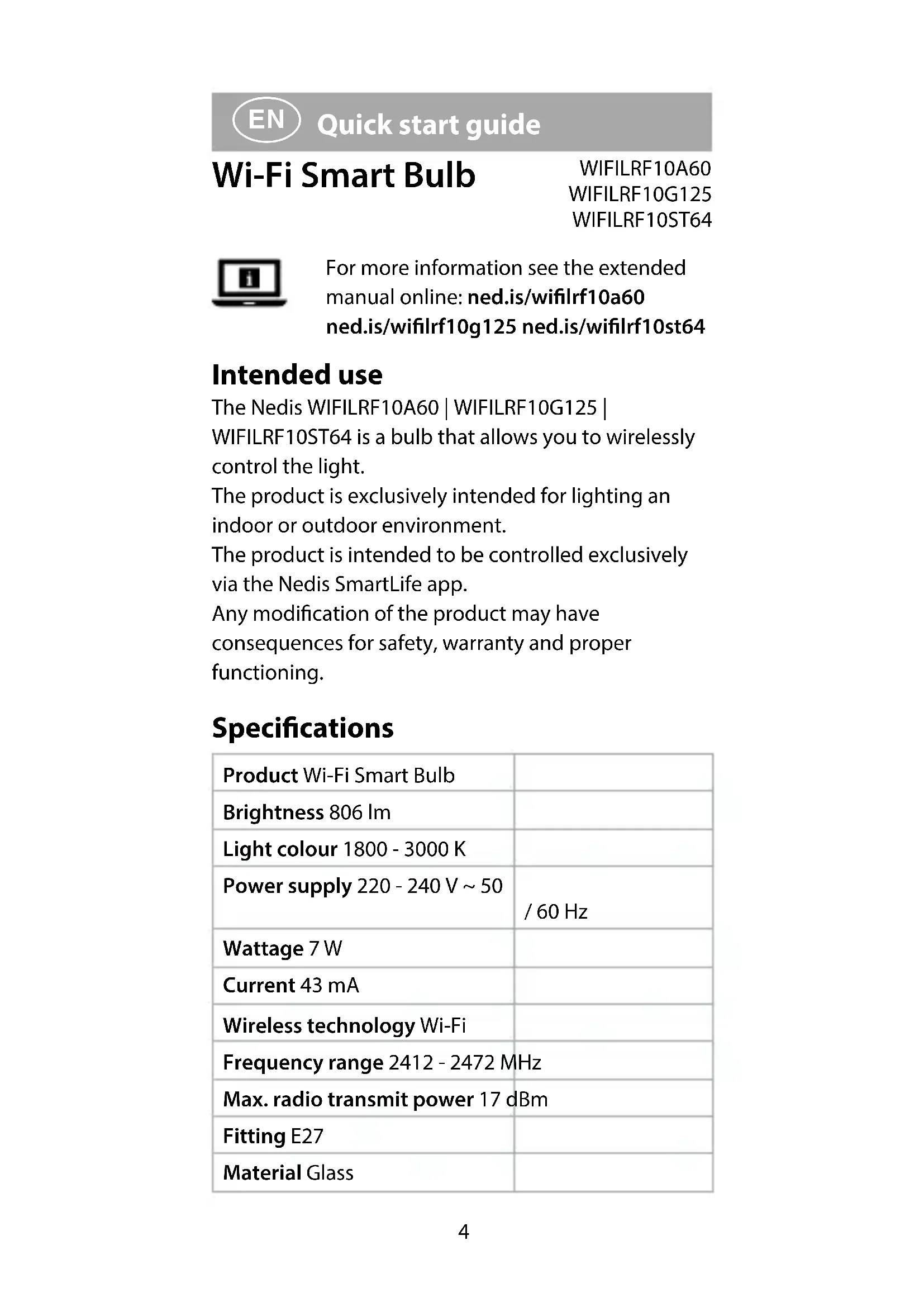

Quick start guide 4

Kurzanleitung 7

For more information see the extended

manual online: ned.is/wifilrf10a60

ned.is/wifilrf10g125 ned.is/wifilrf10st64

Intended use

The Nedis WIFILRF10A60 | WIFILRF10G125 |

WIFILRF10ST64 is a bulb that allows you to wirelessly control the light.

The product is exclusively intended for lighting an indoor or outdoor environment.

The product is intended to be controlled exclusively via the Nedis SmartLife app.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Wi-Fi Smart Bulb
Brightness 806 lm
Light colour 1800 - 3000 K
Power supply 220 - 240 V ~ 50	/ 60 Hz
Wattage 7 W
Current 43 mA
Wireless technology Wi-Fi
Frequency range 2412 - 2472 MHz
Max. radio transmit power 17 dBm
Fitting E27
Material Glass
Article number Dimensions Weight
WIFILRF10A60 ∅ 60 x 105 mm 30 g
WIFILRT10G125 ∅ 125 x 172 mm 100 g
WIFILRF10ST64 ∅ 64 x 142 mm 46 g

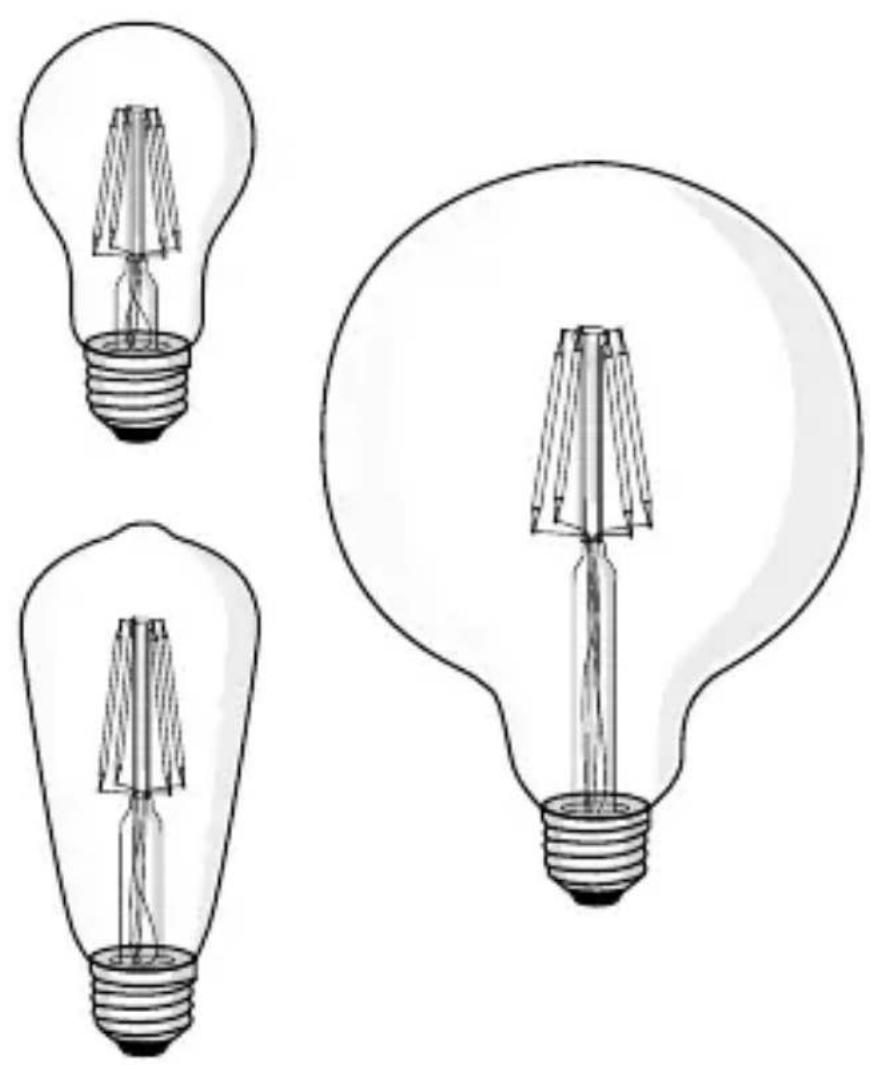

Main parts (image A)

1 Bulb

3 Electric contact

2 Filament

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not use a damaged product.
• Do not expose the product to water or moisture.
• Do not drop the product and avoid bumping.

Installation of the Nedis SmartLife app

1. Download the Nedis SmartLife app for Android or iOS on your phone via Google Play or the Apple App Store.
2. Open the Nedis SmartLife app on your phone.
3. Create an account with your mobile phone number or your e-mail address and tap Continue.
4. Enter the received verification code.
5. Create a password and tap Done.
6. Tap Add Home to create a SmartLife Home.
7. Set your location, choose the rooms you want to connect with and tap Done.

Installing the product (image B)

1 Control tile

3 Add product

2 Common functions

4 On / off button

1. Screw the lamp into an E27 fitting.
2. Turn on the lamp.
3. In the Nedis SmartLife app, tap + B3.

4. Under Search Device, select the lamp from the list of available devices.

5. Check if the lamp is blinking. If so, tap to confirm.

If the lamp does not blink, turn the lamp off and on 3 times and check again.

1. Enter the password of the 2,4 GHz Wi-Fi network to which your phone is connected and tap Confirm. The Nedis SmartLife app will now search for the lamp.

2. Rename the lamp after it has been found and added.

If the regular connection method fails, the lamp can be connected using AP mode:

a. Tap + B 3.
b. Select the lamp from the list of available devices.
c. Select AP Mode in the top right corner.
d. Turn the lamp off and on 3 times and check that the light starts blinking slowly.
e. Follow the steps in the application.

Using the product

The product can be controlled from any distance using the Nedis SmartLife app.

The home menu of the Nedis SmartLife app shows a control tile for each connected lamp and/or group.

The product can be connected to Google Home or Amazon Alexa to enable speech control.

The product can be connected to IFTTT to enable external conditions to trigger the lamp.

See our support webpage to discover all possibilities of this Nedis® product.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product WIFILRF10A60 | WIFILRF10G125 |

WIFILRF10ST64 from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/wifilrf10a60#support

nedis.com/wifilrf10g125#support

nedis.com/wifilrf10st64#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands

Kurzanleitung

WLAN-Smart- Glühbirne

WIFILRF10A60

WIFILRF10G125

WIFILRF10ST64

5215 MC 's-Hertogenbosch, the Netherlands

5215 MC 's-Hertogenbosch, the Netherlands

Rýchly návod

ned.is/wifilrf10a60

ned.is/wifilrf10g125

ned.is/wifilrf10st64
