WIFILRF10A60 - Lighting NEDIS - Free user manual and instructions

Product type	Smart Wi-Fi bulb
Brand	Nedis
Model	WIFILRF10A60
Dimensions	∅60 x 105 mm
Weight	30 g
Base	E27
Material	Glass
Power supply	220-240 V ~ 50/60 Hz
Power	7 W
Current	43 mA
Brightness	806 lm
Color temperature	1800 - 3000 K
Wireless technology	Wi-Fi (2.4 GHz)
Frequency range	2412 - 2472 MHz
Max. radio transmission power	17 dBm
Control app	Nedis SmartLife (iOS/Android)
Voice control	Compatible with Google Home and Amazon Alexa
Intended use	Indoor/outdoor lighting
Safety instructions	Do not expose to water or moisture; do not use if damaged
Maintenance and cleaning	Unplug before cleaning; use a dry cloth
Spare parts and repairability	Not applicable; contact Nedis customer service if issues

Frequently Asked Questions - WIFILRF10A60 NEDIS

How to install the Nedis WIFILRF10A60 bulb?

Screw the bulb into an E27 socket, turn it on, then open the Nedis SmartLife app. Press + and follow the instructions to connect the bulb to your 2.4 GHz Wi-Fi network.

Does the bulb work with a dimmer?

No, this Wi-Fi bulb is not designed to be used with a physical dimmer. Brightness and color temperature adjustment are done only via the app or voice control.

Can I control the bulb remotely?

Yes, thanks to the Nedis SmartLife app, you can control the bulb from anywhere via your smartphone, as long as the bulb is connected to the Internet.

How to reset the bulb?

Turn the bulb off and on 3 times (each cycle: off, wait 2 seconds, back on). It will start flashing, indicating it is in pairing mode.

Is the bulb compatible with Google Home or Alexa?

Yes, it is compatible with Google Home and Amazon Alexa. Add the bulb in the Nedis SmartLife app, then enable the Nedis SmartLife skill in the voice assistant.

What to do if the bulb does not connect to Wi-Fi?

Check that your network is 2.4 GHz (not 5 GHz). Reset the bulb and try again. If the problem persists, use AP mode: turn off/on 3 times, then select AP mode in the app.

Is the bulb waterproof?

No, it is not waterproof. Use it only indoors or in an outdoor luminaire protected from moisture.

What is the bulb's lifespan?

The typical lifespan of an LED bulb is about 15,000 hours, but it may vary depending on usage.

Can I schedule times for the bulb?

Yes, in the Nedis SmartLife app, you can create scenarios and schedules to turn on/off or change color at specific times.

Where to find the declaration of conformity?

Download it on the Nedis support website: nedis.com/wifilrf10a60#support or contact customer service at [e-mail].

USER MANUAL WIFILRF10A60 NEDIS

with dimmable filament

WIFILRF10A60

WIFILRF10G125

WIFILRF10ST64

Quick start guide 4

Kurzanleitung 7

For more information see the extended

manual online: ned.is/wifilrf10a60

ned.is/wifilrf10g125 ned.is/wifilrf10st64

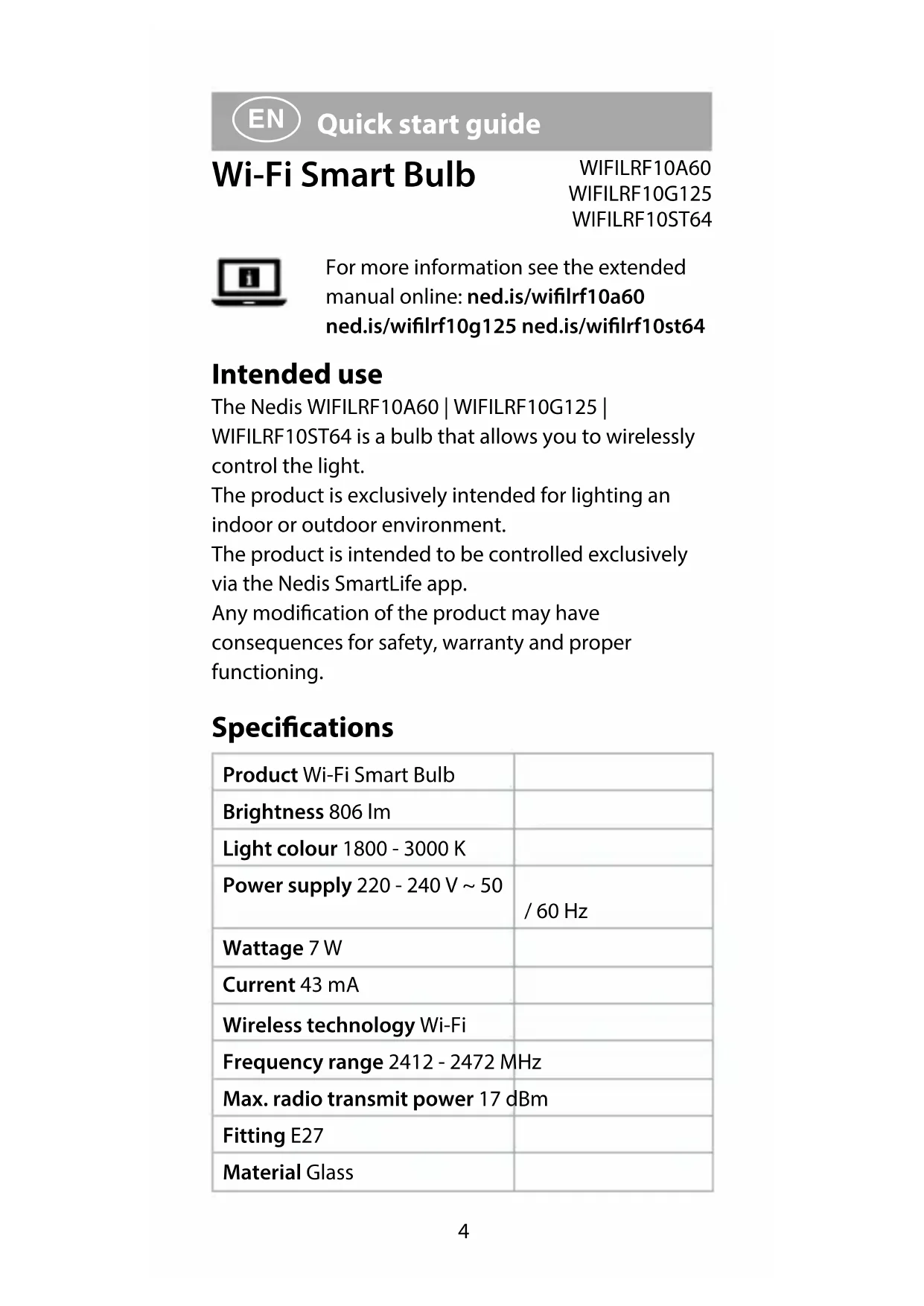

Intended use

The Nedis WIFILRF10A60 | WIFILRF10G125 |

WIFILRF10ST64 is a bulb that allows you to wirelessly control the light.

The product is exclusively intended for lighting an indoor or outdoor environment.

The product is intended to be controlled exclusively via the Nedis SmartLife app.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Wi-Fi Smart Bulb
Brightness 806 lm
Light colour 1800 - 3000 K
Power supply 220 - 240 V ~ 50	/ 60 Hz
Wattage 7 W
Current 43 mA
Wireless technology Wi-Fi
Frequency range 2412 - 2472 MHz
Max. radio transmit power 17 dBm
Fitting E27
Material Glass
Article number Dimensions Weight
WIFILRF10A60 ∅ 60 x 105 mm 30 g
WIFILRT10G125 ∅ 125 x 172 mm 100 g
WIFILRF10ST64 ∅ 64 x 142 mm 46 g

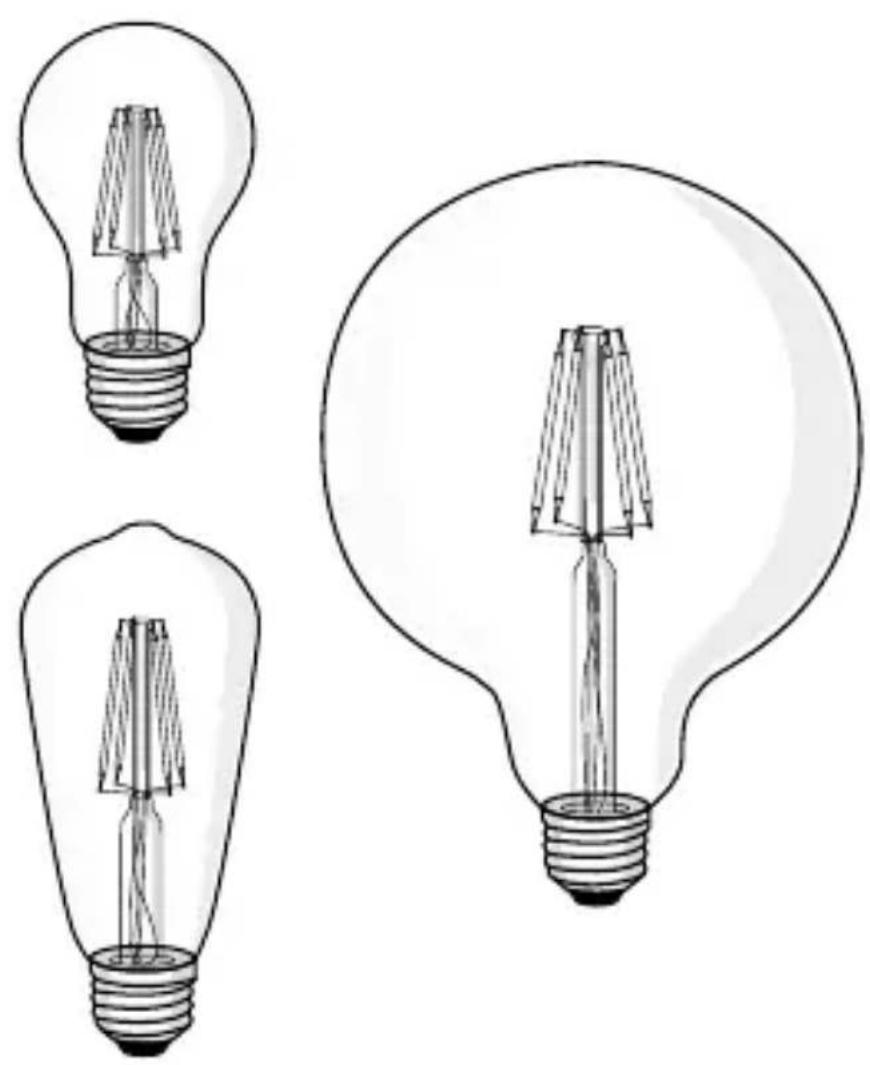

Main parts (image A)

1 Bulb

3 Electric contact

2 Filament

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not use a damaged product.
• Do not expose the product to water or moisture.
• Do not drop the product and avoid bumping.

Installation of the Nedis SmartLife app

1. Download the Nedis SmartLife app for Android or iOS on your phone via Google Play or the Apple App Store.
2. Open the Nedis SmartLife app on your phone.
3. Create an account with your mobile phone number or your e-mail address and tap Continue.
4. Enter the received verification code.
5. Create a password and tap Done.
6. Tap Add Home to create a SmartLife Home.
7. Set your location, choose the rooms you want to connect with and tap Done.

Installing the product (image B)

1 Control tile

3 Add product

2 Common functions

4 On / off button

1. Screw the lamp into an E27 fitting.
2. Turn on the lamp.
3. In the Nedis SmartLife app, tap + B3.

4. Under Search Device, select the lamp from the list of available devices.

5. Check if the lamp is blinking. If so, tap to confirm.

If the lamp does not blink, turn the lamp off and on 3 times and check again.

1. Enter the password of the 2,4 GHz Wi-Fi network to which your phone is connected and tap Confirm. The Nedis SmartLife app will now search for the lamp.

2. Rename the lamp after it has been found and added.

If the regular connection method fails, the lamp can be connected using AP mode:

a. Tap + B 3.
b. Select the lamp from the list of available devices.
c. Select AP Mode in the top right corner.
d. Turn the lamp off and on 3 times and check that the light starts blinking slowly.
e. Follow the steps in the application.

Using the product

The product can be controlled from any distance using the Nedis SmartLife app.

The home menu of the Nedis SmartLife app shows a control tile for each connected lamp and/or group.

The product can be connected to Google Home or Amazon Alexa to enable speech control.

The product can be connected to IFTTT to enable external conditions to trigger the lamp.

See our support webpage to discover all possibilities of this Nedis® product.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product WIFILRF10A60 | WIFILRF10G125 |

WIFILRF10ST64 from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/wifilrf10a60#support

nedis.com/wifilrf10g125#support

nedis.com/wifilrf10st64#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
