Soul - Speaker FRESH N REBEL - Free user manual and instructions

Product type	Portable Bluetooth speaker
Brand	FRESH N REBEL
Model	Soul
Connectivity	Bluetooth
Water protection	IPX5 (splashes and water jets)
Battery life	Up to 10 hours (estimated at 50% volume)
Charging time	2h30
Power supply	Rechargeable lithium-ion battery
Charging port	USB (type not specified)
Double mode	Yes, Double Fun function (pairing two speakers)
Controls	On/Off, Play/Pause, Volume +/-, Bluetooth (pairing)
LED indicator	Turns red when battery is below 20%
Charging temperature	10-45°C
Care and cleaning	Clean with a soft, dry cloth. Do not immerse.
Safety instructions	Risk of choking, hearing loss, explosion, radio interference. Use at moderate volumes.
Spare parts and repairability	Not user serviceable. Contact after-sales service.
General information	Bluetooth® registered trademark. Manual version: November 2021.

Frequently Asked Questions - Soul FRESH N REBEL

How do I pair the Soul speaker with my phone?

Open the Bluetooth menu on your phone, then turn on the speaker by pressing the button for 2 seconds. Select "FnR Soul" from the list of available devices.

What to do if the speaker does not turn on?

Make sure the battery is charged. Plug the speaker into the charger for at least 2h30. If it still does not turn on, contact after-sales service.

How to use the Double Fun mode?

Turn on the first speaker and put it in pairing mode. Turn on the second speaker, then press its Bluetooth button twice. A sound signal confirms pairing. Then connect your phone to one of the speakers via Bluetooth.

How long does the battery last?

Battery life can reach about 10 hours at 50% volume. Actual battery life varies depending on volume and usage.

How do I know when the battery is low?

The LED indicator turns red when the battery capacity is below 20%.

How long does it take to fully charge the speaker?

Full charging time is about 2h30. Use a suitable charger and an ambient temperature of 10-45°C.

Is the speaker waterproof?

It is rated IPX5, which means it resists splashes and low-pressure water jets, but should not be immersed.

Can I use the speaker in the rain?

Yes, thanks to the IPX5 certification, it withstands light rain. However, avoid prolonged exposure or immersion.

What to do if the sound is distorted?

Reduce the volume on the audio source and the speaker. Make sure the speaker is not in double mode with another poorly paired speaker. Restart both devices.

How to reset the speaker?

There is no reset procedure described. You can try turning the speaker off and on again, or removing the device from your phone's Bluetooth list and re-pairing it.

USER MANUAL Soul FRESH N REBEL

Abstract white symmetrical shape on black background (no text or symbols)

FRESH™ REBEL

SOUL

WIRELESS BLUETOOTH SPEAKER

FULL MANUAL

FIRST TIME PAIRING

1. Turn on the Soul.

12 → Press 2 sec.

1. Open Bluetooth menu on your phone and select "FnR Soul".

Bluetooth BUETROOTII Fruit Soul CONNECT

Pair to another device? Click on the Bluetooth button, and the speaker will go into pairing mode again.

BUTTON CONTROLS

Line drawing of a portable kitchen appliance with control buttons and a logo (no text or symbols)

POWER ON/OFF: PAIRING MODE: Press 2 sec. Press Bluetooth button

FEATURES

PREVIOUS SONG NEXT SONG VOLUME DOWN PLAY/PAUSE VOLUME UP

Wireless playtime:

Music = 15 HRS

At average use for music and phone calls at 50% volume.

Charging time:

2,5 HOURS

DOUBLE FUN MODE

Simple diagram showing two rounded shapes with a musical note and plus sign, likely representing a music or audio symbol.

1. Turn on the first speaker and set it into pairing mode.
2. Turn on the second speaker.
3. Press the Bluetooth button of the second speaker two times.

You will hear a short beep to confirm successful pairing.
4. Connect the Soul via Bluetooth to your device.

2x 2x Soul 1 Soul 2 Bluetooth BLUETOOTH FnR Soul CONNECT

LED BEHAVIOR

The LED indicator will turn red when battery capacity is below 20%

low 20%

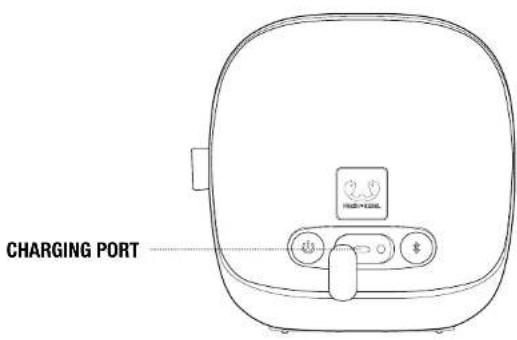

CHARGING PORT

Notice

The information in this document may change without prior notice and in no way constitutes any liability on the part of Sitecom Europe B.V..

No part of this user manual may be reproduced in any form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written permission of Sitecom Europe B.V.

© Sitecom Europe B.V. - Version 1.0, November 2021

Protecting the environment

Old devices must not be disposed of with household waste!

If the device is no longer operational, every consumer is required by law to dispose of used devices separately from household waste, e.g. at a collection point run by the communal authority/borough. This ensures that old devices are recycled in a professional manner and also rules out negative consequences for the environment.

For this reason, electrical equipment is labelled with the displayed symbol.

Batteries and rechargeable batteries do not belong in the household garbage!

Every consumer is required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances*) or not, to a collection point run by the communal authority or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner. Please only turn in batteries and rechargeable batteries which are empty!

*) labelled with: Cd = cadmium, Hg = mercury, Pb = lead

Trademark

® All trademarks and brand names are the property of their respective owners.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sitecom Europe B.V. is under license.

Safety notes

Danger of suffocation for children!

Make sure that children do not play with the packaging foil, and that they do not pull small parts off the speaker and put them in their mouth. There is a danger of suffocation.

Extended listening at high volumes may lead to hearing loss.

To avoid damage to health, avoid extended listening at high volumes.

Set the volume control of your audio source to a low level before you switch on the speaker.

Risk of injury!

Do not use your speaker in environments where there is a risk of explosion.

Risk of explosion/fire!

Lithium rechargeable batteries can explode if handled improperly. Do not heat or burn the rechargeable battery. Only charge the rechargeable battery at an ambient temperature of 10–45 °C. Do not use the speaker in environments where there is a risk of explosion. Do not expose batteries and rechargeable batteries to direct sunlight.

Interference caused by radio waves!

Radio waves could affect the function of other sensitive devices that are not protected.

Only use the speaker in environments where the use of Bluetooth is permitted.

Risk of damage!

This speaker is rated IPX5 meaning it is protected from splashing water and low-pressure water sprays (e.g. rain). Ensure that the speaker does not become fully submerged.

Protect it from heat (e.g. during the summer in cars) and mechanical influences

(e.g. severe shocks, pressure and falling).

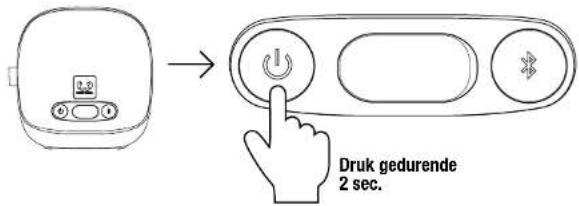

EERSTE KEER VERBINDEN

1. Zet de Soul aan.

Druk gedurende 2 sec.

Line drawing of a portable kitchen appliance with control buttons and a logo (no text or symbols)

INSCHAKELEN/

UITSCHAKELEN:

Druk gedurende

2 sec.

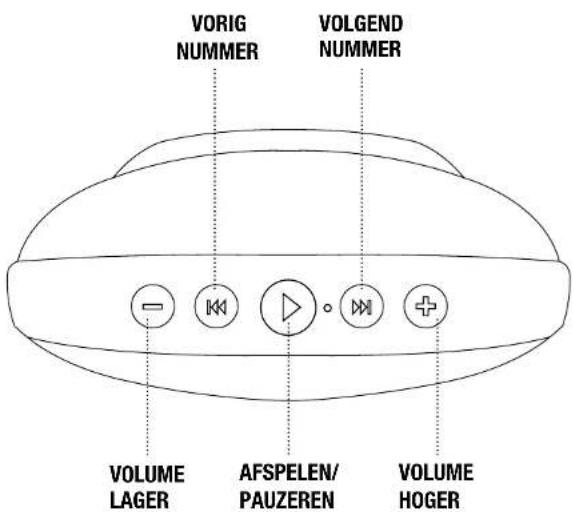

SPECIFICATIES

VORIG NUMMER VOLGEND NUMMER VOLUME LAGER AFSPELEN/ PAUZEREN VOLUME HÖGER

Music = 15 UUR

Simple line drawing showing two rounded shapes with a musical note and plus sign in the second shape

© Sitecom Europe B.V. - Versie 1.0, November 2021

Line drawing of a portable kitchen appliance with control buttons and a logo (no text or symbols)

EINSCHALTEN / PAIRING-MODUS

Mus = 15 STD

Simple diagram showing two rounded shapes with a musical note and plus sign, likely representing a music or audio symbol.

© Sitecom Europe B.V. - Version 1.0, November 2021

Die Umwelt schützen

Line drawing of a portable kitchen appliance with control buttons and a logo (no text or symbols)

ACCENSIONE/ MODALITÀ DI

Music = 15 ORE

Simple diagram showing two rounded shapes with a musical note and plus sign, likely representing a music or audio concept.

The information in this document may change without prior notice and in no way constitutes any liability on the part of Sitecom Europe B.V..

No part of this user manual may be reproduced in any form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written permission of Sitecom Europe B.V.

© Sitecom Europe B.V. - Version 1.0, November 2021

Protecting the environment

Old devices must not be disposed of with household waste!

If the device is no longer operational, every consumer is required by law to dispose of used devices separately from household waste, e.g. at a collection point run by the communal authority/borough. This ensures that old devices are recycled in a professional manner and also rules out negative consequences for the environment.

For this reason, electrical equipment is labelled with the displayed symbol.

Batteries and rechargeable batteries do not belong in the household garbage!

Every consumer is required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances*) or not, to a collection point run by the communal authority or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner. Please only turn in batteries and rechargeable batteries which are empty!

*) labelled with: Cd = cadmium, Hg = mercury, Pb = lead

Trademark

® All trademarks and brand names are the property of their respective owners.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sitecom Europe B.V. is under license.

Note di sicurezza

Line drawing of a portable kitchen appliance with control buttons and a logo (no text or symbols)

Mus = 15 HORAS

Simple line drawing showing two rounded shapes with a musical note and plus sign in the second shape

Simple diagram showing two rounded shapes with a musical note and plus sign, likely representing a music or audio concept.

ateria for - ×× ×× +

PORTA DE CARREGAMENTO

Aviso

Appuyez 2 sec.

Bluetooth BUETROOTII Fruit Soul CONNECTED

Line drawing of a portable kitchen appliance with control buttons and a logo (no text or symbols)

Mus = 15 HEURES

Simple line drawing showing two rounded shapes with a musical note and plus sign in the second shape

Line drawing of a portable electric heater with control buttons and indicator lights (no text or symbols)

Music = 15 GODZ.

Simple diagram showing two rounded shapes with a musical note and plus sign, likely representing music notes or a combination.

SYGNAŁY KONTROLKI LED

Line drawing of a portable kitchen appliance with control buttons and a logo (no text or symbols)

Mus = 15 ΩPEΣ

Simple line drawing showing two rounded shapes with a musical note and plus sign in the second shape

© Sitecom Europe B.V. - Version 1.0, November 2021
