Product type	Portable Bluetooth speaker
Brand	FRESH N REBEL
Model	Rockbox Bold M
Dimensions	182 × 80 × 80 mm
Weight	660 grams
Power	Rechargeable battery 7.4V / 2600mAh via Micro USB port (5V / 2A max)
Output power	2 x 12 W
Bluetooth	Version 4.2
Bluetooth range	10 meters (estimated)
Waterproof rating	IPX7 (immersion up to 1m for 30 minutes)
Main features	Bluetooth pairing, dual mode (TWS), Powerbank function (USB output 5V/1A), hands-free kit, LED battery indicators
Connectivity	Bluetooth, 3.5mm audio input, Micro USB port (charging), USB port (Powerbank)
Controls	Power, Bluetooth, volume, play/pause, track skip buttons
Operating temperature	5°C to 45°C
Frequency band	2400 – 2483.5 MHz
Maximum RF power	4 dBm
Warranty	2 years (store with proof of purchase)
Care	Rinse with fresh water after contact with salt water; do not open; no user-serviceable parts
Box contents (estimated)	Rockbox Bold M speaker, Micro USB cable, quick start guide

Frequently Asked Questions - Rockbox Bold M FRESH N REBEL

How to turn on the speaker?

The On/Off button is located on the side of the speaker. Press it to turn on the speaker.

How to connect the speaker via Bluetooth?

Turn on the speaker, then press the Bluetooth button once. Enable Bluetooth on your smartphone and select 'Rockbox Bold M' from the list of available devices. A beep confirms the connection.

How to use dual mode (TWS)?

Make sure both speakers are off. Turn on the first, then the second. Press the Bluetooth button on the first speaker once, then twice on the second. A beep confirms pairing. Then connect your phone to the first speaker.

How to charge the speaker?

Use the provided Micro USB cable. Plug it into the Micro USB port of the speaker and into a USB charger (5V/2A max). The battery LEDs indicate charge: they blink during charging and stay on when full.

What to do if the speaker does not connect?

Turn the speaker off and on again. It tries to connect to the last device for 30 seconds, then enters pairing mode for 3 minutes. Press the Bluetooth button for 3 seconds to manually restart pairing.

How to use the Powerbank function?

Connect your device via USB to the Powerbank port of the speaker. Note that this reduces the speaker's battery life.

Is the speaker waterproof?

Yes, it is IPX7 certified: it can be immersed up to 1 meter of water for up to 30 minutes. Make sure the rubber cover is securely closed before any contact with water.

What to do in case of low battery?

The speaker beeps when the battery reaches 20%, 15%, and 10%. If it turns off, the battery is below 5%. Charge it immediately.

How to reset the speaker?

Turn the speaker off and on again. This may resolve pairing issues.

How to clean the speaker?

After contact with salt water, rinse with fresh water to prevent salt crystallization. Do not use chemicals and do not open the speaker.

USER MANUAL Rockbox Bold M FRESH N REBEL

Close-up of a green mesh roller with a small handle (no text or symbols visible)

Product codes:

1RB6500CC v2 001 | 1RB6500IN v2 001 | 1RB6500PT v2 001 | 1RB6500CL v2 001

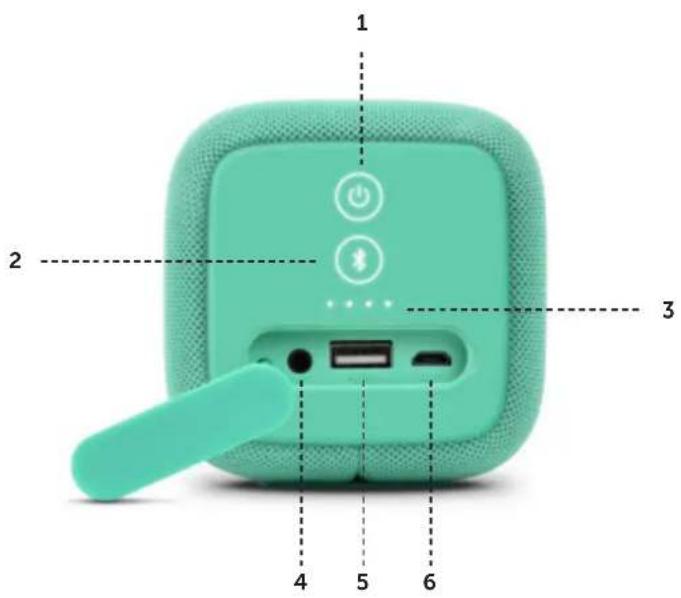

ROCKBOX BOLD M

1. On/Off
2. Bluetooth pairing button
3. Battery capacity LEDs: 1/4 = 25%, 2/4 = 50%, 3/4 = 75%, 4/4 = 100%
4. Audio in
5. Powerbank
6. Micro USB

1 2 3 4 5 6

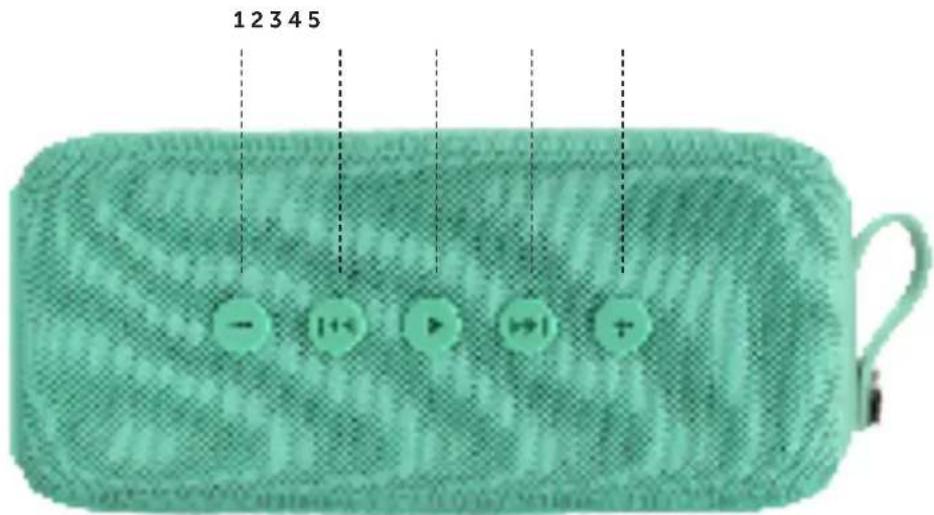

BUTTONS

1. Volume down
2. Previous song
3. Short press = play / pause Short press = take / end calls Long press = decline calls
4. Next song
5. Volume up

12345 - + + + + +

READY TO ROCK? HERE IS HOW!

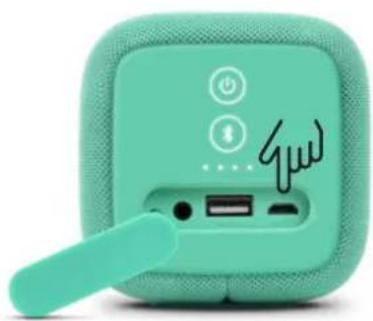

1. Charge the speaker with the Micro USB cable.

The battery capacity LEDs will light up when the speaker is charging. The LED's will light up and stay on when the speaker is fully charged.

Close-up of a teal-colored square electronic device with a button and speaker icon, no visible text or symbols.

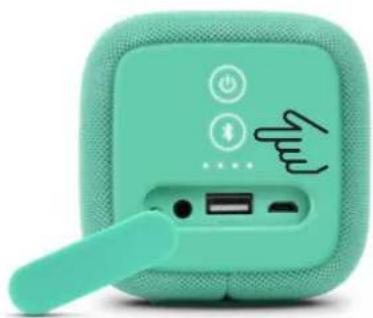

3. Press the Bluetooth button.

Press the Bluetooth button once to activate Bluetooth.

Close-up of a teal-colored smart speaker with buttons and a USB port, no visible text or symbols

2. Turn the speaker on.

At the side of the speaker, you will find the on/off button. Turn on the speaker.

Green square electronic device with buttons and speaker port, no visible text or symbols

4. Is the Bluetooth on your phone on?

Activate Bluetooth and select the speaker from the list of available devices. You'll hear a "bleep" when you're connected.

Diagram showing a smartphone with wireless signal icon and hand pointing to text lines, likely illustrating mobile app interface or messaging.

TURN ON THE DOUBLE FUN MODE

Before you start, deactivate Bluetooth on your phone/laptop/tablet. Make sure both speakers are turned off.

1. Turn on the first speaker

You will find the on/off button at the side. Turn on the first speaker.

2. Turn on the second speaker

You will find the on/off button at the side. Turn on the second speaker.

3. Prepare the first speaker for pairing

Now you'll need to setup the first speaker to pair with the second speaker. Press the Bluetooth button at the side once (short press).

4. Pairing the second speaker

Press the Bluetooth button on the second speaker twice (short presses), you will hear a "bleep" confirming that both speakers have been paired correctly.

5. Turn on the Bluetooth on your phone/laptop/tablet

Activate Bluetooth and select the speaker from the list of available devices. You'll hear a beep when you're connected.

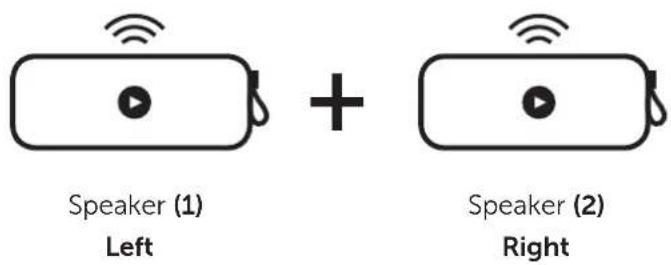

NOW LISTEN IN "DOUBLE FUN MODE"!

Speaker (1) Left + Speaker (2) Right

Trouble connecting?

When turning the speaker on, it will try to reconnect to the last device for 30 seconds. If it can't find it, it will go into pairing mode for 3 minutes and you can connect a new device. A soft reset can sometimes resolve your pairing issue, so please try to turn your speaker off and on again.

Too slow?

Your speaker will stay in pairing mode for 3 minutes only. Missed it? Press the Bluetooth button for 3 seconds.

Connect a different device?

Press the Bluetooth button to set the speaker back into pairing mode and connect a new device.

Hearing a beep?

The battery is getting low. We'll give you a warning when you have 20, 15 and 10 percent capacity left.

The speaker turned off?

The battery was below 5 percent. Charge the speaker to rock out again...

The speaker went to sleep?

You haven't played anything in the last 30 minutes or forgot to turn your speaker off? Turn your speaker off and on again to keep playing music.

Charging other devices?

The playtime of your speaker will be shorter when using the Powerbank port to charge other devices.

Need help with warranty?

The standard 2 years store warranty is valid only upon presentation of the proof of purchase or copy hereof consisting of original invoice with the date of purchase and product code. Please contact the shop where you bought your Fresh 'n Rebel product to claim warranty. See also Warranty & Limitations.

Is your question not included? We are here to help.

Drop us a line: [e-mail]

IMPORTANT SAFETY INSTRUCTIONS WARNING!

The safety guidelines are designed for you to get the maximum performance from your Fresh 'n Rebel product safely. To ensure reliable operation:

• Always follow all instructions and warnings closely.
- Read all instructions in the user manual carefully before operating the speaker.
• The Rockbox Bold speakers are all IPX7 certificated.

IMPORTANT: To make sure that the Rockbox Bold is waterproof, remove all cables from the speaker and close the rubber cover on the side; As soon as you expose the Rockbox Bold to liquids without doing this, this can cause permanent damage to the speaker. Do not expose the Rockbox Bold to water while charging. This can cause permanent damage to the speaker or battery.

• The speaker is defined as IPX7 because the speaker can be immersed to 1 meter deep in water up to 30 minutes.

- The Rockbox Bold does not like salt water. If the speaker still comes into contact with salt water, we advise you to rinse the speaker with tap water. To prevent salt from crystallizing on the drivers, controls or fabric casing.

- The system's water-resistant performance is based on measurements under the conditions described herein. Please note that malfunctions due to water immersion caused by misuse are not covered by warranty.

- Do not attempt to modify or open the speaker. There are no serviceable parts inside and this will void your warranty.

- Do not operate the speaker in or near a significant heat source, heat vent, or under direct sunlight for long durations.

- The speaker should be used in environment ranging from 5^ - 45^ (41°F - 113°F).

- Do not cover the speaker with paper or other materials. This may affect its cooling capacity.

- Do not place heavy objects on the speaker.

- Do not attempt to push objects into openings of the speaker

- Do not rely on your speaker for emergency communications.

- Keep your speaker away from medical devices, including pacemakers and hearing aids.

- Turn off your speaker in aircrafts. Using your speaker in an aircraft might affect aircraft operations and might be illegal.

- Keep a minimum distance of 5 mm around the speaker for sufficient ventilation.

- No naked flame sources, such as lighted candles, should be placed on the speaker.

- Attention should be drawn to the environmental aspects of battery disposal.

- The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

- CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Warranty & Limitations

We warranty the product against defects in material and workmanship under normal usage for a period of 2 year from the date of purchase. During that period, defective products may be offered for repair or replacement at the store where the product was bought. The warranty does not cover accidental damage, wear and tear, incidental loss, or use beyond the instructions in the user manual.

Products specifications

Output power: 2 x 12W

DC input: Max. 5V/2A (micro USB)

Battery capacity: 7.4V / 2600mAh

USB output: 5V/1A

Bluetooth: 4.2

Size: 182 x 80 x 80 mm

Product weight: 660 gram

Operating frequency band: 2400 to 2483.5 MHz

Maximum radio-frequency power transmitted: 4 dBm

ROCKBOX BOLD M
