USER MANUAL XHPC155YC MAYTAG

15.5" PEDESTAL INSTALLATION INSTRUCTIONS

For use only with front load washers and dryers

INSTRUCTIONS D'INSTALLATION DU PIÉDESTAL DE 15,5"

PEDESTAL SAFETY....1

INSTALLATION REQUIREMENTS....2

Location Requirements....2

Tools and Parts....2

UNPACKING THE PEDESTAL....4

BEFORE INSTALLING THE PEDESTAL....4

INSTALLING THE PEDESTAL....5

COMPLETE THE INSTALLATION....8

SÉCURITÉ DU PIÉDESTAL ....10

EXIGENCES D'INSTALLATION ....10

Date of purchase: ____

Date of installation: ____

Installer:

Model number: ____

Serial number: ____

NOTES CONCERNANT L'INSTALLATION

Date d'achat : ____

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

INSTALLATION REQUIREMENTS

LOCATION REQUIREMENTS

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Place dryer at least 18 inches (460 mm) above the floor for a garage installation.

Failure to do so can result in death, explosion, or fire.

NOTE: If the washer/dryer and pedestal assembly are located in a garage, 3" (76 mm) must be added under the pedestal so that the washer/dryer is 18" (457 mm) above the garage floor.

TOOLS AND PARTS

Gather the required tools and parts before starting installation.

Tools Needed:

Simple line drawing of a flat tool with a handle and central button (no text or symbols)

Utility knife 1/4" hex-head ratchet

Simple line drawing of a wrench (no text or symbols)

or open-end

Simple line drawing of a screwdriver with a handle and shaft (no text or symbols)

1/4" nut driver

Line drawing of a mechanical lever or rod with a flanged end (no text or symbols)

5/16" hex-head ratchet or nut driver

Additional Items Needed:

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Towel

Simple line drawing of a rectangular block with granular texture (no text or symbols)

Sponge

Parts Supplied:

Illustration of four hexagonal bolts arranged in a row (no text or symbols)

Four #12 x 5/8" hex-head sheet metal screws

Line drawing of a remote control device with buttons and a handle (no text or symbols)

Drawer divider

Simple line drawing of a rectangular object with three circular holes, no text or symbols present.

Level

Line drawing of a standard mechanical wrench (no text or symbols)

9/16"
open-end
wrench

Line drawing of a pair of pliers with a handle and angle θ labeled (no text or symbols beyond basic geometry)

Pliers or slip-joint pliers Bucket

Simple line drawing of a bucket with a handle (no text or symbols)

LOCATION REQUIREMENTS (Dryer)

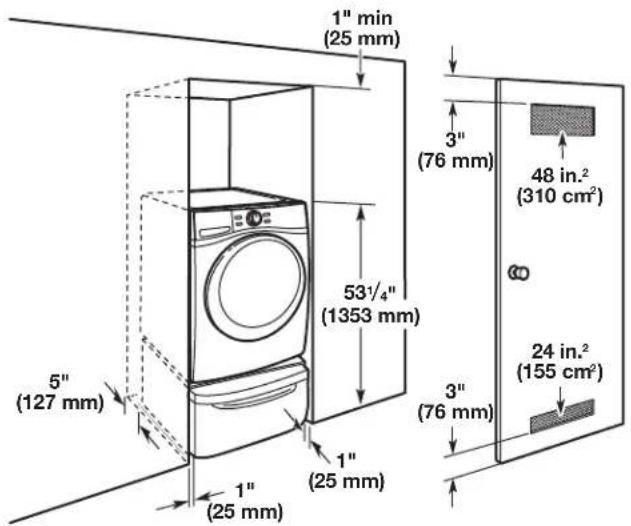

Recessed Area and Closet Installation Instructions

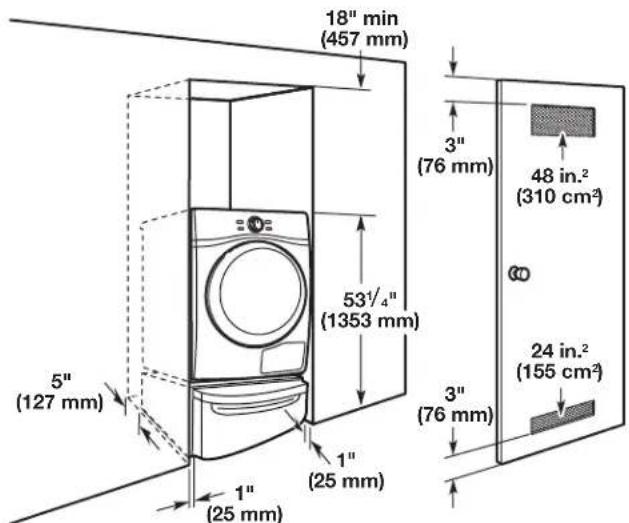

IMPORTANT: The dryer/pedestal can be installed in an enclosure. Check the locations of the water supply faucets, grounded electrical outlets, and gas supply line connection (gas dryer only). Depending on your application, fill hoses and electric power supply cord longer than those supplied with the dryer may be needed.

18" min (457 mm) 3" (76 mm) 48 in.² (310 cm²) 53½" (1353 mm) 5" (127 mm) 1" (25 mm) 3" (76 mm) 24 in.² (155 cm²) 1" (25 mm)

If the water supply faucets, electrical outlets, gas supply line, or power cord need modification, have a qualified plumber, electrician, or gas technician make the changes.

LOCATION REQUIREMENTS (Washer)

Recessed Area and Closet Installation Instructions

IMPORTANT: The washer/pedestal can be installed in an enclosure. Check the locations of the water supply faucets and grounded electrical outlets. Depending on your application, washer fill hoses and electric power supply cord longer than those supplied with the washer may be needed.

1" min (25 mm) 3" (76 mm) 48 in.² (310 cm²) 53½" (1353 mm) 5" (127 mm) 1" (25 mm) 3" (76 mm) 24 in.² (155 cm²) 1" (25 mm)

If the water supply faucets, electrical outlets or power cord need modification, have a qualified plumber, or electrician, or make the changes.

UNPACKING THE PEDESTAL

Preparing the pedestal for installation

WARNING

Excessive Weight Hazard

Use two or more people to move and install pedestal.

Failure to do so can result in back or other injury.

IMPORTANT: Set the pedestal box aside for use during installation.

1. Empty pedestal drawer

Diagram of a computer monitor internal structure showing drive, cable, and control panel (no text or labels)

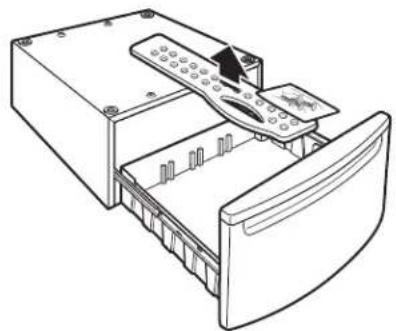

Open the pedestal drawer as far as possible and remove the contents. The package contains four #12 x 5/8" hex-head sheet metal screws and a drawer divider.

2. Locate spacer pads

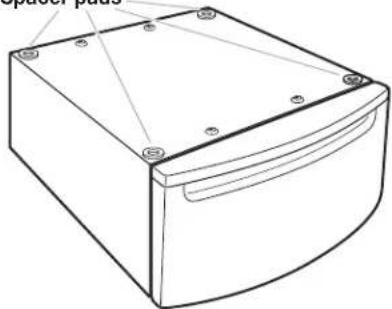

Spacer pads

Line drawing of a rectangular box with mounting holes and a curved lid (no text or symbols)

The four spacer pads are installed on the top of the pedestal. These pads reduce vibration between the pedestal and the washer/dryer.

NOTE: If your washer/dryer has feet installed, remove them.

3. Remove pedestal drawer

Drawer slide Hex-head screw

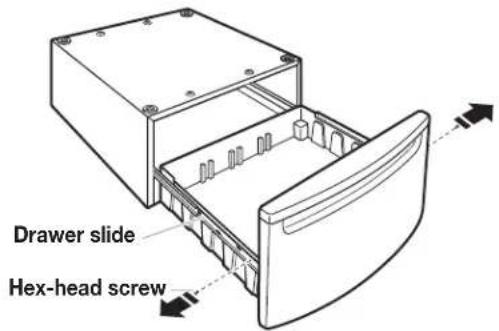

Using a 1/4" nut driver, remove the hex-head screws from both drawer slides and save screws. Remove the drawer from the slides and set aside. Push the slides back into the pedestal.

BEFORE INSTALLING PEDESTAL

IMPORTANT: If your washer and dryer are already installed, they must be uninstalled.

Uninstalling your washer

To avoid possible damage to the washer, the transport bolts on the back of the washer must be in place before installing the pedestal. For more information on transport bolts see, "Remove Transport System" in washer Use and Care Guide.

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall washer.

Failure to do so can result in back or other injury.

NOTE: If the washer is to be transported, call your local service center. To avoid suspension and structural damage, your washer must be properly set up for relocation by a certified technician.

1. Turn off the hot and cold water faucets.
2. Unplug the power supply cord.
3. Slowly loosen the fill hoses at the faucets to relieve the water pressure. Use a sponge or towel to absorb the released water.
4. Remove the "HOT" and "COLD" fill hoses from the back of the washer. Drain the water from the hoses into a bucket.
5. Remove the drain hose from the standpipe or laundry tub and drain any water remaining in the hose into a bucket.
6. Pull the washer away from the wall so that you will have enough space for the installation.

Uninstalling your electric dryer

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall dryer.

Failure to do so can result in back or other injury.

1. Unplug the power supply cord or disconnect wiring if dryer is direct wired.
2. Pull the dryer away from the wall enough to loosen the vent clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.
3. Pull the dryer away from the wall so that you will have enough space for the installation.

Uninstalling your gas dryer

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall dryer.

Failure to do so can result in back or other injury.

1. Unplug the power supply cord.
2. Turn off the gas supply.
3. Pull the dryer away from the wall enough to loosen the vent clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.
4. Disconnect the flexible gas supply line from the dryer. Put a piece of tape over the open ends of the gas line connection fittings.
5. Pull the dryer away from the wall so that you will have enough space for the installation.

Installation of new washer/dryer

WARNING

Excessive Weight Hazard

Use two or more people to move and install washer/dryer.

Failure to do so can result in back or other injury.

1. Unpack the washer/dryer and move close to the intended installation location.

INSTALLING THE PEDESTAL

Installing the pedestal on the washer

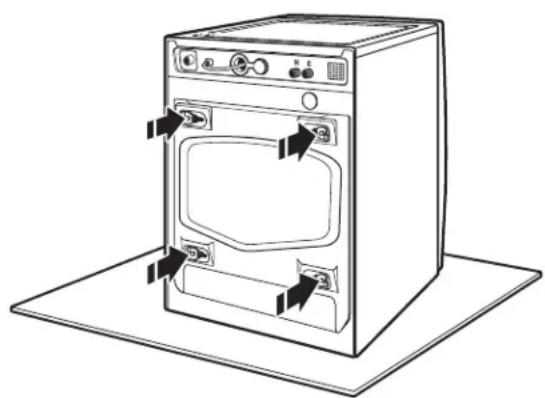

Confirm transport bolts are in place

Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Locate the transport bolts on rear of washer. Transport bolts must remain in washer before pedestal can be installed. For more information on transport bolts see, "Remove Transport System" in washer Use and Care Guide.

WARNING

Excessive Weight Hazard

Use two or more people to move and install washer/dryer.

Failure to do so can result in back or other injury.

1. Place washer on its side

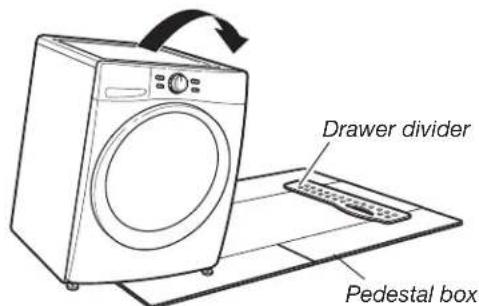

Drawer divider Pedestal box

To avoid floor damage and ease installation and handling, unfold the empty pedestal box flat and place it next to the washer. Position the drawer divider so that it will be near the top of the washer, as shown. Gently tip the washer on its side so the washer is resting on the drawer divider.

1. Prepare the washer


Washer bottom

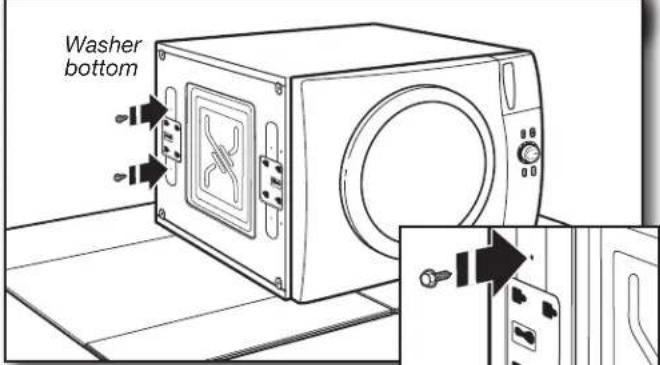

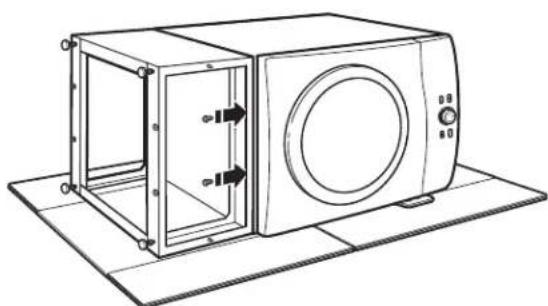

Partially install two of the #12 x 5/8" hex-head sheet metal screws in the indicated holes. Leave a space of about 3/8" (10 mm) between the screw head and the bottom of the washer.

Pure electrical circuit lines without any symbols

NOTE: If your washer has leveling feet installed, remove them.

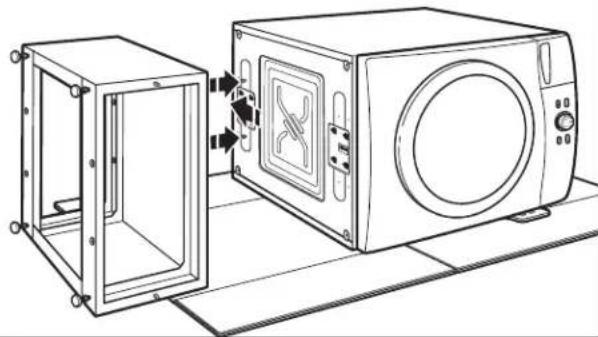

1. Attach pedestal to washer


Line drawing of a microwave oven with a side box and internal panel, showing no text or symbols

Move the pedestal against the washer bottom. The front of the pedestal cabinet should align with the washer cabinet as shown below.

Slide the pedestal's keyhole slots over the lower two partially installed screws.

Pedestal Washer Front

View from above

1. Secure pedestal to washer


Line drawing of a microwave oven with open lid and side-mounted unit (no text or symbols)

Position the pedestal toward the front of the washer and install the two remaining hex-head sheet metal screws. Do not tighten completely. Now proceed to "Complete the pedestal installation".

Installing the pedestal on the dryer
1. Place dryer on its side

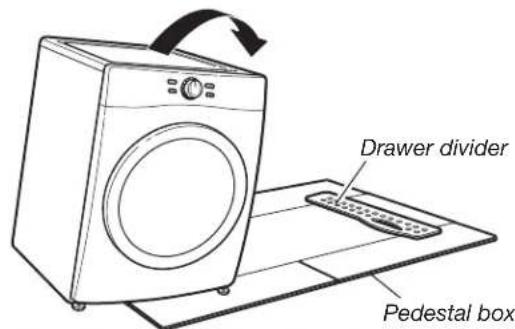

Drawer divider Pedestal box

To avoid floor damage and ease installation and handling, unfold the empty pedestal box flat and place it next to the dryer. Position the drawer divider so that it will be near the top of the dryer, as shown. Gently tip the dryer on its side so the dryer is resting on the drawer divider.

1. Prepare the dryer


Dryer bottom

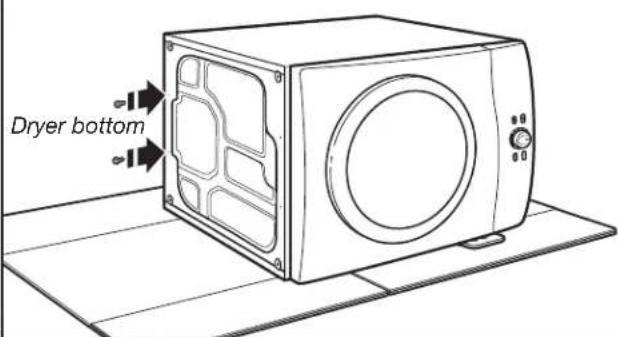

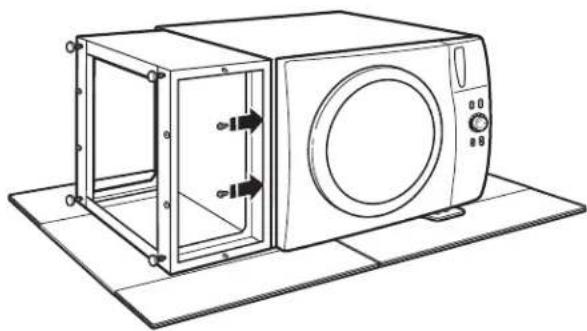

Partially install two of the #12 x 5/8" hex-head sheet metal screws in the indicated holes. Leave a space of about 3/8" (10 mm) between the screw head and the bottom of the dryer.

NOTE: If your dryer has leveling feet installed, remove them. Do not install the feet that came with the new dryer.

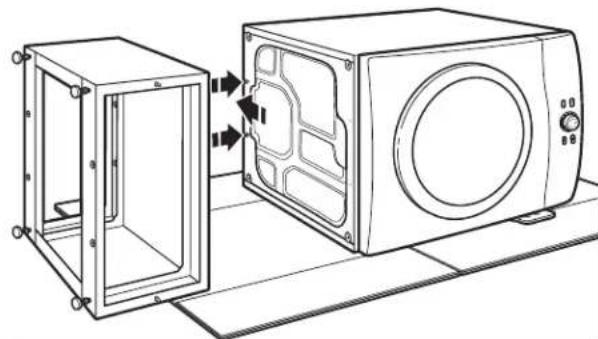

1. Attach pedestal to dryer


Technical line drawing of a microwave oven with a smaller housing, showing internal components and mounting points (no text or symbols)

Move the pedestal against the dryer bottom. The front of the pedestal cabinet should align with the dryer cabinet as shown below.

Slide the pedestal's keyhole slots over the lower two partially installed screws.

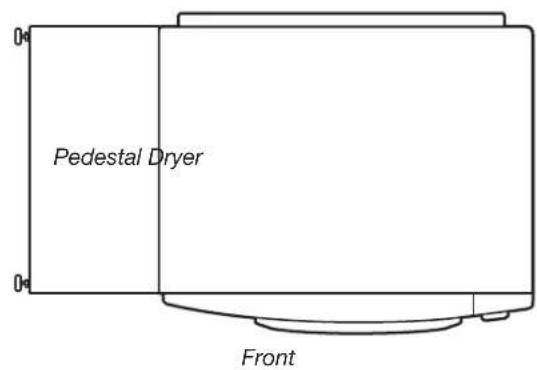

Pedestal Dryer Front

View from above

1. Secure pedestal to dryer


Line drawing of a microwave oven with control panel and vent, placed on a mat (no text or symbols)

Position the pedestal toward the front of the dryer and install the two remaining hex-head sheet metal screws. Do not tighten completely. Now proceed to "Complete the pedestal installation".

COMPLETE THE INSTALLATION

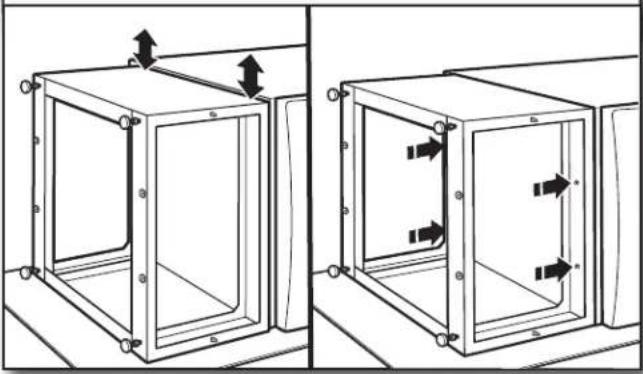

1. Align sides of pedestal

Diagram showing two views of a transparent cube with internal arrows indicating movement or force (no text or symbols present)

Align the sides of the pedestal so that they are even with the sides of the washer/dryer. Reach inside the pedestal opening and securely tighten all four pedestal screws.

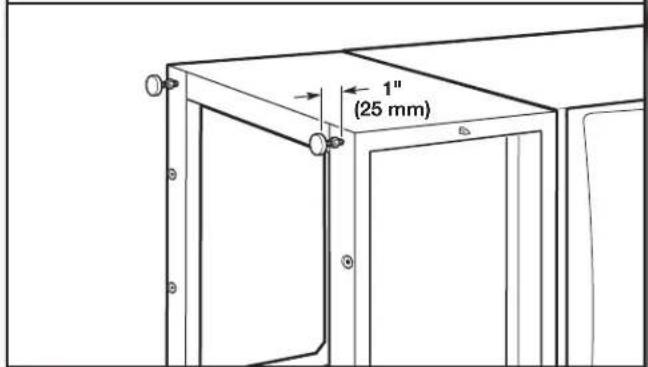

2. Prepare pedestal feet

1" (25 mm)

Using a 1/4" hex head ratchet or open-end wrench, lower the feet approximately 1" (25 mm) away from the bottom of the pedestal.

3. Stand the washer/dryer upright

Line drawing of a single front-loading washing machine (no text or symbols)

Tip the washer/dryer back to its upright position. Remove any remaining packaging material. Set the pedestal box aside for use if installing another pedestal. Once both the washer and dryer have been installed, dispose of/recycle all packaging material.

Level the washer/dryer

1. Move close to final location

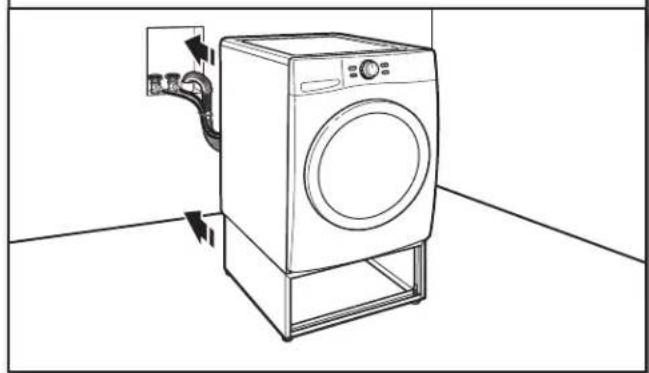

Line drawing of a front-loading washing machine with attached cable and outlet (no text or symbols)

Follow the installation instructions that came with your model to finish installing or reinstalling your washer/dryer (i.e. hoses, vents, etc.).
NOTE: Be sure to remove the transport bolts from the back of the washer.

2. Check levelness of washer/dryer

Place level here

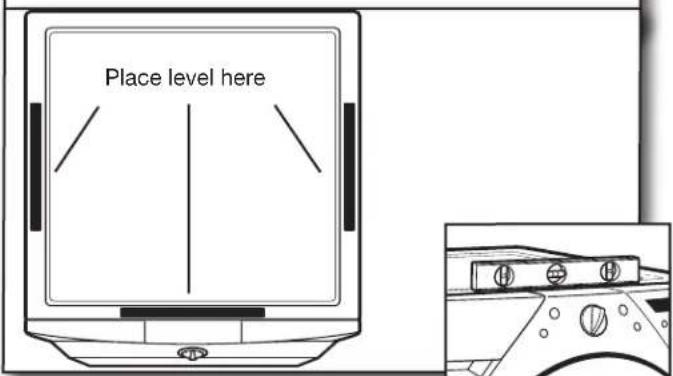

Place a level on top edges of washer/dryer, checking each side and front. Rock washer/dryer back and forth to make sure all four feet make solid contact with floor.

4. Securely tighten jam nuts

Line drawing of a hand using a wrench to adjust a circular component on a table (no text or symbols)

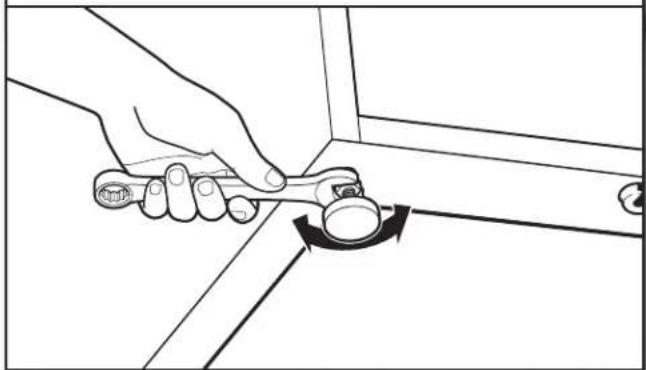

When the washer/dryer is level, use a 9/16" open-end wrench to securely tighten all four jam nuts against the pedestal. IMPORTANT: The jam nuts must be tightened to avoid vibration.

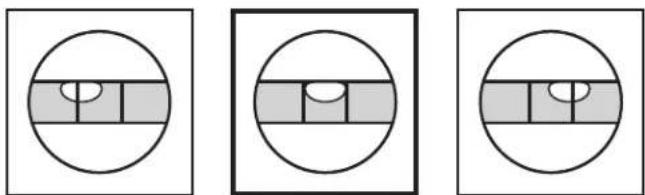

Three circular diagrams with shaded rectangular regions, no text or symbols present

Not Level LEVEL Not Level
If not level, adjust pedestal feet up or down, repeating as necessary.

Reinstall pedestal drawer

1. Reassemble pedestal drawer

Drawer slide Hex-head screw

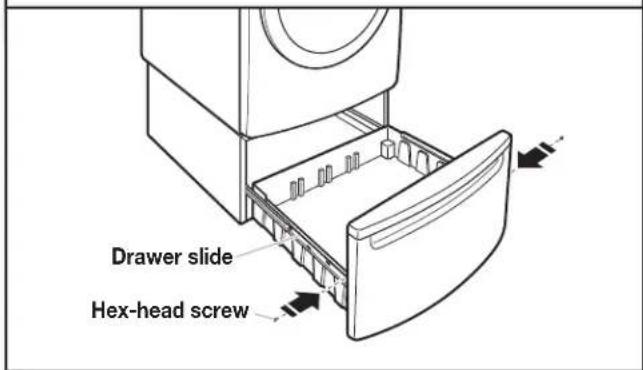

Pull both drawer slides out and reassemble the drawer to the drawer slides with the two hex-head screws.

3. Adjust pedestal feet

Line drawing of a hand using a wrench to adjust or install a mechanical component (no text or symbols present)

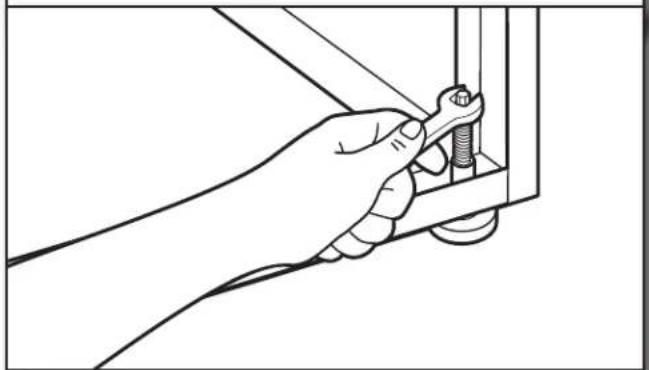

Locate the 1/4" hex-head screws on the top of each pedestal foot. Reach inside the pedestal and use a 1/4" hex-head ratchet or open-end wrench to adjust the feet up or down as needed, to level the washer/dryer.
NOTE: Make sure all four pedestal feet are in solid contact with the floor.

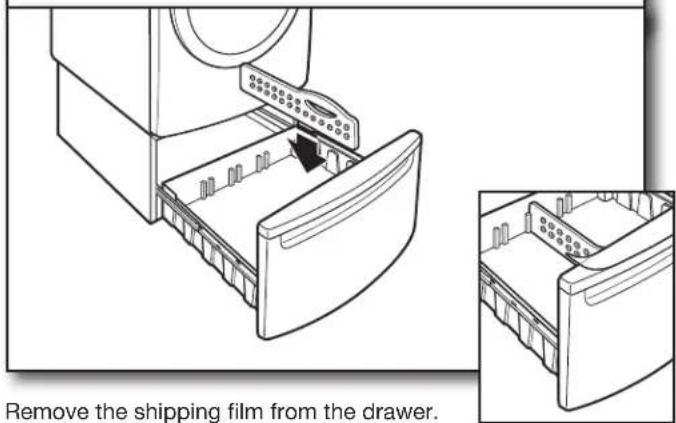

2. Place drawer divider in drawer

Remove the shipping film from the drawer.

Remove the shipping film from the drawer. Place the divider in the drawer at the desired location. Close the drawer.
NOTE: Use of the divider is optional.

SÉCURITÉ DU PIÉDESTAL

Simple line drawing of a flat tool with a handle and central slot (no text or symbols)

Couteau utilitaire

Simple line drawing of a wrench (no text or symbols)

Simple diagram of a rectangular object with three circular symbols inside, no text or labels present.

Niveau

Simple line drawing of a wrench (no text or symbols)

Clé
plate

Line drawing of a pair of pliers (no text or symbols)

Simple line drawing of a bucket with a handle (no text or symbols)

Seau

Simple line drawing of a screwdriver with a handle and end cap (no text or symbols)

Line drawing of a mechanical lever or rod with a flanged end (no text or symbols)

Simple line drawing of a folded paper or document (no text or symbols)

Serviette

3D illustration of a rectangular block with textured surface (no text or symbols)

Éponge
1/4"

Pièces fournies :

Illustration of four hexagonal bolts (no text or symbols)

Line drawing of a remote control device with buttons and a handle (no text or symbols)

Line drawing of a computer drawer with an open rear panel and a mouse pointer (no text or symbols)

Line drawing of a rectangular box with mounting holes and a curved lid (no text or symbols)

Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Line drawing of a microwave oven connected to a smaller cabinet (no text or symbols)

Line drawing of a microwave oven with two doors and control panel, mounted on a flat base (no text or symbols)

Line drawing of a microwave oven with a side panel and internal components, showing no text or symbols.

Line drawing of a microwave oven with mounting base and side panel (no text or symbols)

Diagram showing two views of a rectangular frame with arrows indicating direction, no text or symbols present

1" (25 mm)

Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Line drawing of a front-loading washing machine with attached piping and cooling system (no text or symbols)

Line drawing of a hand using a wrench to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a wrench to adjust a component, no text or symbols present
