USER MANUAL WFP2715HW WHIRLPOOL

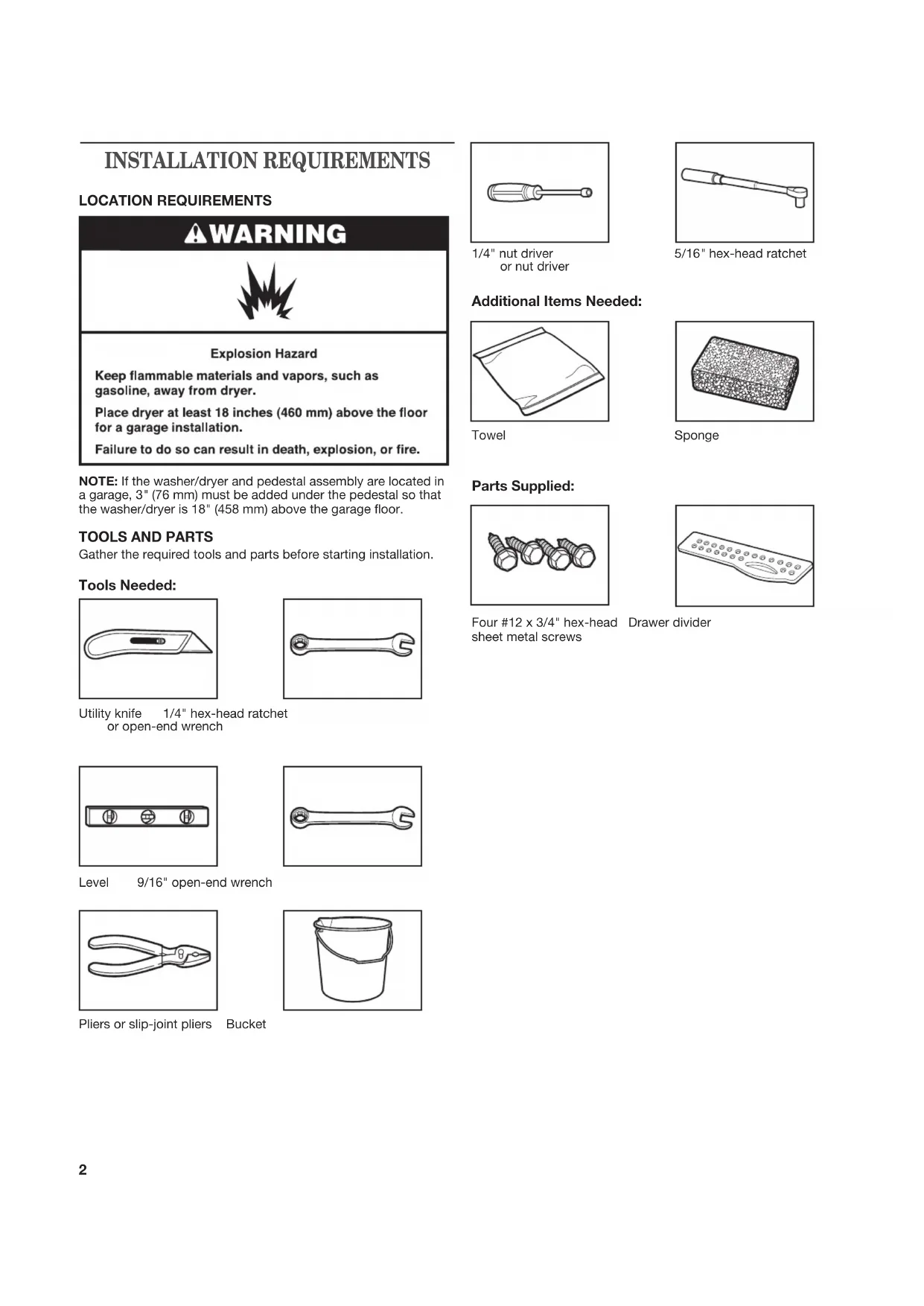

Gather the required tools and parts before starting installation. Tools Needed: Utility knife 1/4" hex-head ratchet or open-end wrench

Level 9/16" open-end wrench Pliers or slip-joint pliers Bucket INSTALLATION REQUIREMENTS LOCATION REQUIREMENTS NOTE: If the washer/dryer and pedestal assembly are located in a garage, 3" (76 mm) must be added under the pedestal so that the washer/dryer is 18" (458 mm) above the garage oor. Towel Sponge Parts Supplied: Four #12 x 3/4" hex-head Drawer divider sheet metal screws Additional Items Needed: 1/4" nut driver

5/16" hex-head ratchet or nut driver3 NOTE: If the washer is to be transported, call your local service center. To avoid suspension and structural damage, your washer must be properly set up for relocation by a certied technician.1. Turn off the hot and cold water faucets. 2. Unplug the power supply cord. 3. Slowly loosen the ll hoses at the faucets to relieve the water pressure. Use a sponge or towel to absorb the released water.4. Remove the “HOT” and “COLD” ll hoses from the back of the washer. Drain the water from the hoses into a bucket. 5. Remove the drain hose from the standpipe or laundry tub and drain any water remaining in the hose into a bucket.6. Pull the washer away from the wall so that you will have enough space for the installation.

1. Empty pedestal drawer

UNPACKING THE PEDESTAL

Preparing the pedestal for installation Open the pedestal drawer as far as possible and remove the contents. The package contains four #12 x 5/8" hex-head sheet metal screws and a drawer divider.IMPORTANT: Set the pedestal box aside for use during installation. Hex-head screwDrawer slide

3. Remove pedestal drawer

Using a 1/4" nut driver, remove the hex-head screws from both drawer slides and save screws. Remove the drawer from the slides and set aside. Push the slides back into the pedestal.

BEFORE INSTALLING PEDESTAL

IMPORTANT: If your washer and dryer are already installed, they must be uninstalled. Uninstalling your washer To avoid possible damage to the washer, the transport bolts on the back of the washer must be in place before installing the pedestal. For more information on transport bolts see, “Remove Transport System” in washer Use and Care Guide.The four spacer pads are installed on the top of the pedestal. These pads reduce vibration between the pedestal and the washer/dryer.NOTE: If your washer/dryer has feet installed, remove them. Spacer pads

2. Locate spacer pads4

Installation of new washer/dryer

1. Unpack the washer/dryer and move close to the intended

installation location.

1. Unplug the power supply cord or disconnect wiring if dryer is

2. Pull the dryer away from the wall enough to loosen the vent

clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.

3. Pull the dryer away from the wall so that you will have enough

space for the installation. Uninstalling your electric dryer Uninstalling your gas dryer

1. Unplug the power supply cord.

2. Turn off the gas supply.

3. Pull the dryer away from the wall enough to loosen the vent

clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.

Disconnect the exible gas supply line from the dryer. Put a piece of tape over the open ends of the gas line connection ttings.

5. Pull the dryer away from the wall so that you will have enough

space for the installation.

INSTALLING THE PEDESTAL

Installing the pedestal on the washer Conrm transport bolts are in place Locate the transport bolts on rear of washer. Transport bolts must remain in washer before pedestal can be installed. For more information on transport bolts see, “Remove Transport System” in washer Use and Care Guide.5

2. Prepare the washer

Washer bottom Partially install two of the #12 x 5/8" hex-head sheet metal screws in the indicated holes. Leave a space of about 3/8" (10 mm) between the screw head and the bottom of the washer. NOTE: If your washer has leveling feet installed, remove them.

1. Place washer on its side

Pedestal box Drawer divider To avoid oor damage and ease installation and handling, unfold the empty pedestal box at and place it next to the washer. Position the drawer divider so that it will be near the top of the washer, as shown. Gently tip the washer on its side so the washer is resting on the drawer divider.

3. Attach pedestal to washer

Move the pedestal against the washer bottom. The front of the pedestal cabinet should align with the washer cabinet as shown below. Slide the pedestal’s keyhole slots over the lower two partially installed screws. Pedestal Washer Front View from above6

4. Secure pedestal to dryer

Position the pedestal toward the front of the dryer and install the two remaining hex-head sheet metal screws. Do not tighten completely. Now proceed to “Complete the pedestal installation”.

4. Secure pedestal to washer

Position the pedestal toward the front of the washer and install the two remaining hex-head sheet metal screws. Do not tighten completely. Now proceed to “Complete the pedestal installation”.

2. Prepare the dryer

Dryer bottom Partially install two of the #12 x 5/8" hex-head sheet metal screws in the indicated holes. Leave a space of about 3/8" (10 mm) between the screw head and the bottom of the dryer. NOTE: If your dryer has leveling feet installed, remove them. Do not install the feet that came with the new dryer. Installing the pedestal on the dryer

3. Attach pedestal to dryer

Move the pedestal against the dryer bottom. The front of the pedestal cabinet should align with the dryer cabinet as shown below. Slide the pedestal’s keyhole slots over the lower two partially installed screws.

1. Place dryer on its side

Pedestal box Drawer divider To avoid oor damage and ease installation and handling, unfold the empty pedestal box at and place it next to the dryer. Position the drawer divider so that it will be near the top of the dryer, as shown. Gently tip the dryer on its side so the dryer is resting on the drawer divider. Pedestal Dryer Front View from above7 1"(25 mm)

2. Prepare pedestal feet

Using a 1/4" hex head ratchet or open-end wrench, lower the feet approximately 1" (25 mm) away from the bottom of the pedestal.

1. Align sides of pedestal

Align the sides of the pedestal so that they are even with the sides of the washer/dryer. Reach inside the pedestal opening and securely tighten all four pedestal screws.

3. Stand the washer/dryer upright

1. Move close to nal location

Tip the washer/dryer back to its upright position. Remove any remaining packaging material. Set the pedestal box aside for use if installing another pedestal. Once both the washer and dryer have been installed, dispose of/recycle all packaging material. Level the washer/dryer Follow the installation instructions that came with your model to nish installing or reinstalling your washer/dryer (i.e., hoses, vents, etc.). NOTE: Be sure to remove the transport bolts from the back of the washer.

COMPLETE THE INSTALLATION8

3. Adjust pedestal feet

4. Securely tighten jam nuts

2. Place drawer divider in drawer

Hex-head screwDrawer slide

Place level here Place a level on top edges of washer/dryer, checking each side and front. Rock washer/dryer back and forth to make sure all four feet make solid contact with oor. If not level, adjust pedestal feet up or down, repeating as necessary. Locate the 1/4" hex-head screws on the top of each pedestal foot. Reach inside the pedestal and use a 1/4" hex-head ratchet or open-end wrench to adjust the feet up or down as needed, to level the washer/dryer. NOTE: Make sure all four pedestal feet are in solid contact with the oor. When the washer/dryer is level, use a 9/16" open-end wrench to securely tighten all four jam nuts against the pedestal. IMPORTANT: The jam nuts must be tightened to avoid vibration. Reinstall pedestal drawer Pull both drawer slides out and reassemble the drawer to the drawer slides with the two hex-head screws. Remove the shipping lm from the drawer. Place the divider in the drawer at the desired location. Close the drawer. NOTE: Use of the divider is optional. Not Level LEVEL Not Level9
