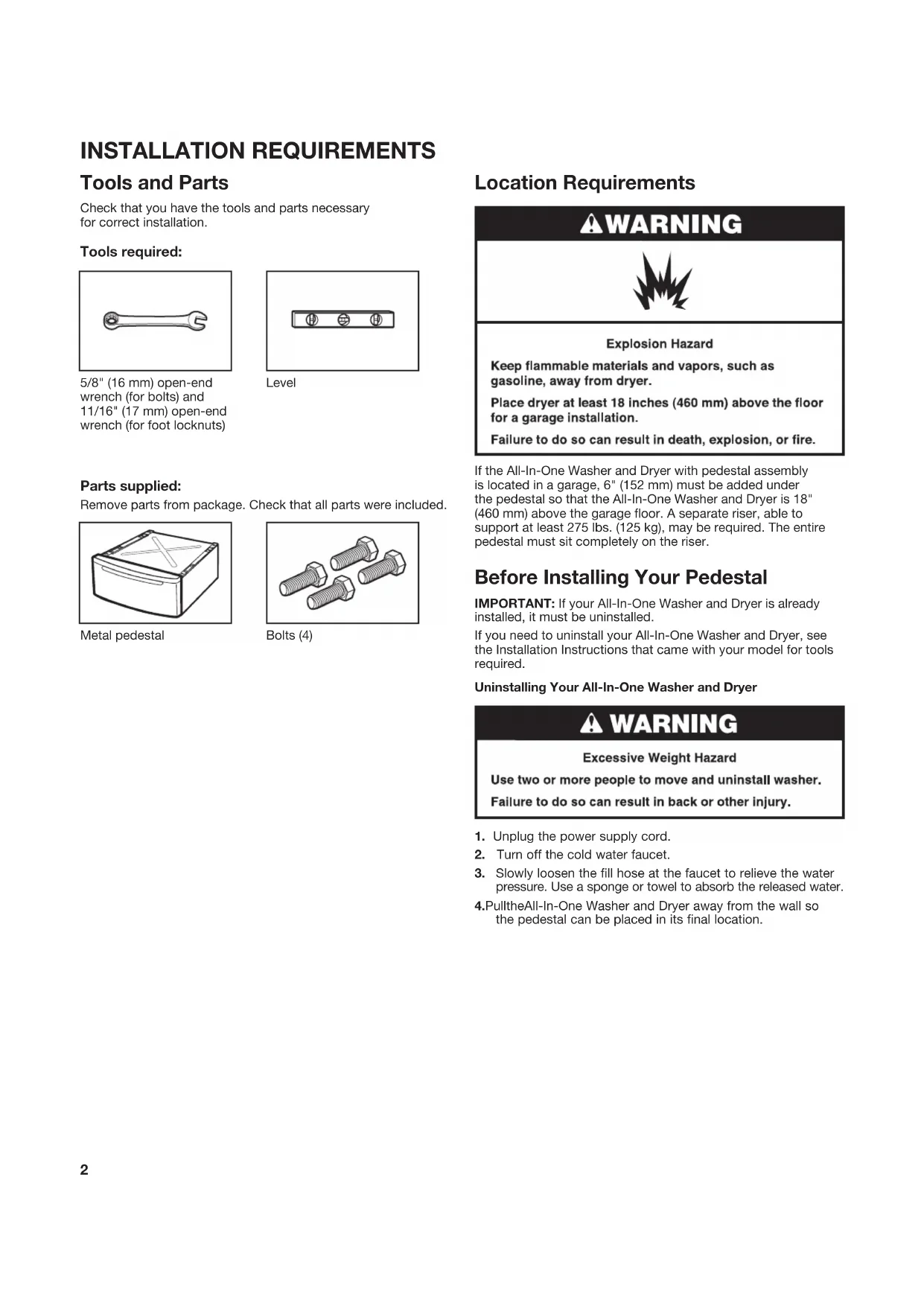

/16" (287 mm)2 Location Requirements Parts supplied: Remove parts from package. Check that all parts were included. Metal pedestal Tools required: 5/8" (16 mm) open-end wrench (for bolts) and 11/16" (17 mm) open-end wrench (for foot locknuts) Level Tools and Parts Check that you have the tools and parts necessary for correct installation. INSTALLATION REQUIREMENTS Bolts (4) If the All-In-One Washer and Dryer with pedestal assembly is located in a garage, 6" (152 mm) must be added under the pedestal so that the All-In-One Washer and Dryer is 18" (460 mm) above the garage oor. A separate riser, able to support at least 275 lbs. (125 kg), may be required. The entire pedestal must sit completely on the riser. Before Installing Your Pedestal IMPORTANT: If your All-In-One Washer and Dryer is already installed, it must be uninstalled. If you need to uninstall your All-In-One Washer and Dryer, see the Installation Instructions that came with your model for tools required. Uninstalling Your All-In-One Washer and Dryer

1. Unplug the power supply cord.

2. Turn off the cold water faucet.

3. Slowly loosen the ll hose at the faucet to relieve the water

pressure. Use a sponge or towel to absorb the released water.

4. Pull the All-In-One Washer and Dryer away from the wall so

the pedestal can be placed in its nal location.3 INSTALLATION INSTRUCTIONS Install Pedestal Follow these instructions to install the pedestal on the All-In-One Washer and Dryer.

1. Lay the All-In-One Washer and Dryer on its side.

2. Remove the feet from the bottom of the All-In-One Washer

3. Screw the feet into the bottom of the pedestal.

4. Screw the bolts into the bottom of the All-In-One Washer

5. Slide the pedestal onto the All-In-One Washer and Dryer

by engaging the bolts in the slots located on the top of the pedestal.

6. Stand the All-In-One Washer and Dryer up.

7. Use a 5/8" (16 mm) open-end wrench to completely

8. With the All-In-One Washer and Dryer locked securely into

place on the pedestal, slide the All-In-One Washer and Dryer with pedestal to its nal location.4

9. Place a level on top of the All-In-One Washer and Dryer and

ensure that it is level from front to back and side to side.

10. Adjust the feet so that the rubber pads extend just below

the bottom of the pedestal and keep the pedestal at least 1/8" (3.175 mm) off the oor. NOTE: For more stability, do not raise the bottom of the pedestal any higher than necessary to clear the oor on all four sides. To adjust the All-In-One Washer and Dryer feet: n Use a 11/16" (17 mm) open-end wrench to loosen the locknut. n Adjust the All-In-One Washer and Dryer feet up or down. Be sure to completely tighten the locknuts again after the All-In-One Washer and Dryer is level.

11. Follow the Installation Instructions that came with your

model to nish installing or reinstalling your All-In-One Washer and Dryer.5
