RC 104 - Grill plate STEBA - Free user manual and instructions

Product type	Reversible grill plate with raclette function
Brand	Steba
Model	RC 104
Dimensions (approx.)	50 × 30 × 15 cm
Weight (approx.)	4 kg
Power	1200 W
Voltage	220-240 V ~ 50/60 Hz
Material	Stainless steel, plastic, non-stick coating
Cooking surface	Reversible plate: grooved side for grilling, smooth side for pancakes
Included mini pans	8 non-stick mini pans
Temperature adjustment	Variable thermostat with control light
Main functions	Grilling, raclette, gratin, flat cooking
Safety	Hot surface (risk of burns), automatic shut-off not mentioned, unplug after use
Cleaning	Clean with a damp cloth, do not immerse, do not use abrasives or metal sponges
Maintenance	Descale if needed, use only oils resistant to high temperatures
Spare parts	Grill plate, mini pans, mini pan tray
Repairability	Repairs exclusively by an authorized after-sales service
Intended use	Domestic use, for cooking and reheating food

Frequently Asked Questions - RC 104 STEBA

How to use the Steba RC 104 grill plate for the first time?

Before first use, clean all parts (except the heating elements) with soapy water, rinse and dry. Heat the appliance empty for about 15 minutes to eliminate the new smell. Allow to cool, then clean again.

Can metal utensils be used on the non-stick plate?

No, do not use sharp metal objects like forks or knives to turn food, as this could damage the non-stick coating. Use wooden or plastic spatulas.

What temperature to choose for grilling meat?

Set the thermostat to the high position (max) to preheat for about 10 minutes. Then adjust according to your desired doneness: high temperature for rare meat, medium for medium-rare, and lower for well-done.

How to clean the grill plate after use?

Unplug the appliance and let it cool completely. Clean with a damp cloth and a little dish soap. Never immerse the appliance in water and do not use abrasive cleaners or metal sponges. For stubborn residues, soak the plate in hot soapy water.

Can cold-pressed olive oil be used for cooking?

No, cold-pressed oils like olive oil have low heat resistance and can burn at high temperatures. Use high-heat cooking oils such as sunflower, canola, or peanut oil.

Can the mini pans be left empty on the hot plate?

No, never place empty mini pans on the hot grill plate or on the mini pan rack, as this could damage the non-stick coating. Fill them with food before heating.

How to avoid burns when using?

The appliance becomes very hot during operation. Do not touch hot surfaces. Use oven mitts or heat-resistant gloves. Place the appliance out of reach of children and on a stable surface, at least 70 cm away from flammable materials.

What to do if the appliance no longer heats?

First check that the plug is properly connected and the thermostat is set to a heating position. If the indicator light does not come on, the household fuse may have blown. If the problem persists, contact an authorized after-sales service.

Can an extension cord be used?

Yes, but it must have a cross-section of at least 1.5 mm². If using a power strip, ensure it is GS certified and does not exceed 3680 watts total load to avoid fire hazards.

How to dispose of the appliance at the end of its life?

Do not dispose of the appliance with household waste. Take it to an appropriate collection point (recycling center) or return it to the store where you purchased it. The packaging (paper, cardboard, plastic) should be sorted for recycling.

USER MANUAL RC 104 STEBA

220-240 V~; 50/60 Hz; 900 W

Guss-Raclette

RC 104

Instructions for use 10

Mode d'emploi 18

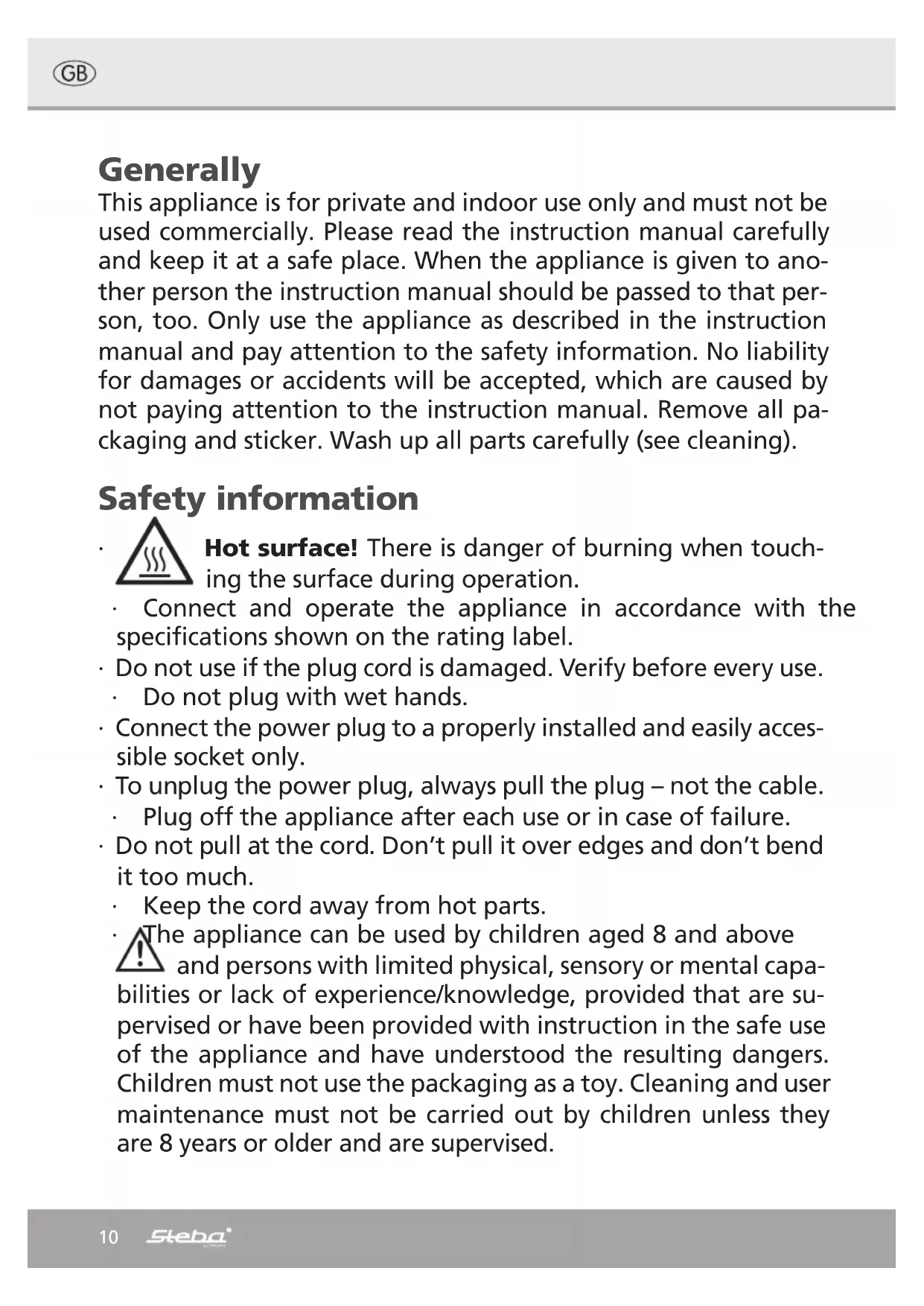

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

Hot surface! There is danger of burning when touching the surface during operation.
- Connect and operate the appliance in accordance with the specifications shown on the rating label.
- Do not use if the plug cord is damaged. Verify before every use.
- Do not plug with wet hands.
- Connect the power plug to a properly installed and easily accessible socket only.
- To unplug the power plug, always pull the plug – not the cable.
Plug off the appliance after each use or in case of failure.
- Do not pull at the cord. Don't pull it over edges and don't bend it too much.
- Keep the cord away from hot parts.
The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

Children under the age of 8 must be kept away from the appliance and the connecting cable.

• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.

- Never immerse the unit in water.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

The device gets hot, only transport after it cooled down.

• Only use the device as described in this manual.
• You must not put any materials such as paper, cardboard, plastic etc. into the appliance.
• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: clean all parts - except the heating elements - carefully and leave to dry. Heat up the device for about 15 min. to eliminate the smell of newness.

- Attention! Housing and glass get hot. Danger of

burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at

least 70cm to burnable materials.

• If an extension cable is used, it has to have a cross-section of 1.5mm^2 . A cable drum must always be unwound.
• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Hygiene: Please always clean the device to avoid bacteria and mold formation. Excessive dirt can damage the device and impair its function.

After use, switch off the device and pull out the mains plug.

Cleaning

- Attention! Pull the plug before cleaning and allow the device to cool down.

• Never immerse the unit into water.

• Clean the appliance as soon as possible alter use, but allow the grill surface to cool down sufficiently first. Cleaning is easiest while the appliance is still fairly warm.

• Do not use aggressive or abrasive cleaning agents.

Basic appliance:

• Use a damp cloth for cleaning. Make sure that no water finds its way inside the appliance. Observe the safety instructions as well.

Gourmet pans:

• Soak the gourmet pans in water with a little washing-up liquid for a while to soften if necessary.

Non-stick grill plate:

• The non-stick grill plate can likewise be washed up in water and washing-up liquid.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a

even, stable and a heat resisting surface. It is important that no inflammable items are

near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

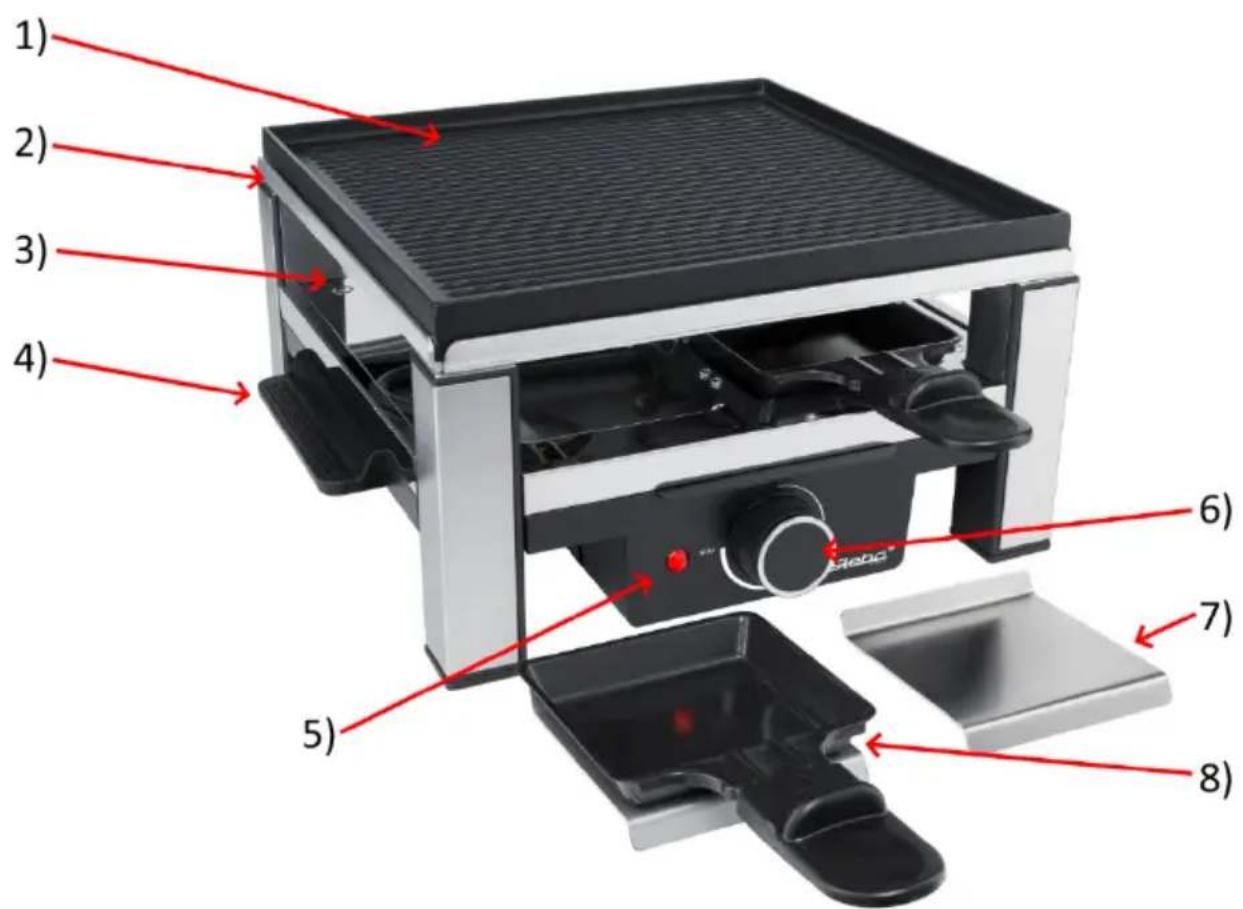

1. Non-stick coated grill plate, turnable
2. Heating element (below the grill plates)
3. Place for the pan
4. Handle
5. Temperature control light
6. Temperature selector
7. Tray for unneeded pans
8. Non-stick coated pans

Getting started

• Place the turnable grill plat onto the device.
  Plug in the device.
• Turn the temperature selector to "max". The grilling surface has to be preheated before placing any food on top of it. The preheating time is approx. 10 minutes. The thermostat clocks.
• Turn the temperature selector to the desired heating power:

o A high setting for medium / medium-raw meat
o A lower setting if the meat should be well-done
To A medium setting is perfect for cook au-gratin.

• Do not place empty pans on the hot grill plate or the raclette level so that the coating does not get damaged.

Tray for pans

Used hot pans can be put into the tray for pans. This helps to prevent them from scorch and facilitates the cleaning.

Purpose / Practical Tips

With this raclette device you have an ideal combination: you can prepare raclette in the pans and grill on the grill plates. With this manual, we would like to give you some general tips for a cosy raclette grill evening. You will find many more recipes in modern cookbooks and magazines. While using the pans, make sure that you do not overload them, otherwise they will not fit properly into the device. Do not cut on the grill plates.

The following food can be put on the plates:

Ribbed plate: meat, fish, vegetables, crustacea
- Flat plate: crêpes, fried egg, etc.

Important note

Cold-pressed oils, such as olive oil should not be used as dripping as these oils have a poor quality at high temperatures.

Due to the high grill temperatures (up to 250^ ), residues of oil, juices, herbs, etc. build up on the hot grill surface and the non-stick effect decreases. It is hard or impossible to remove these residues from the grilling plate.

Therefore, only use heat-resistant oils!

1. Grilling on the grilling plate

When planning the evening, reckon on about 200 to 250g of material per person. On the grill plate you can prepare meat (e.g. rump steak or mince), fish, and a wide variety of tasty dishes. A large number of side-dishes, sauces, and dips are suitable to accompany them.

• How well-done the dishes have to be, depends on the type of meat or fish, the length of time it takes, its initial temperature, and its thickness. If you prefer your

steaks not too rare, do not cut them too thick.

• The time you give meat or fish is a matter of your personal taste. Turn the meat or fish over from time to time.
• Finally, you can salt the meat or fish, or add a sauce to it. Do not salt before grilling as this draws the juice out.

Non-stick grilling plate:

• This grill surface is coated for easy cleaning. On this area you can barbecue meat and vegetables. Do not use sharp metallic objects such as forks or knives to turn food over, as the coating may be damaged.

2. Raclette dishes with the gourmet pans

You can fill the pans with all kinds of ingredients cut up small, whatever takes your fancy, cover it with cheese, and heat it under the grill until the cheese melts. Anything is suitable that you can think of for overbaking with cheese, e.g. meat cut into tiny pieces, poultry, fish, fruits de mar, sausage, fruit, and vegetables. There are specially selected raclette cheeses on the market, but you can try other kinds provided their tat content is over 45% .

Place the pans only into the corresponding recess! Never push the pans further, otherwise the handles may melt.

3. Overbaking „au gratin“ with cheese

You can use this raclette grill to cover the dishes you have made on the grill with a delicious gratin cheese crust. Simply scatter grated cheese, possibly mixed with caraway seeds, over the dish, or lay it on top in slices, and place the gourmet pan under the grill. The gourmet pan will be heated from on top by radiant heat, just like under a grill. First the cheese will melt, then it goes dark in colour. Take the pan out as soon as the cheese is a crisp golden brown.

4. Old-original raclette cheese method

In this instance, the cheese is at the focal point of the raclette party. Plan about 200 to 250g of cheese and potatoes per person, and side-dishes as well. Place a slice of cheese about 5mm (3/8th of an inch) thick in the pan, cut to fit, and push it in under the grill. Once the cheese has melted into a creamy mass, take the pan out and extract the cheese with the aid of a small wooden spatula and pour it onto boiled or foil potatoes, French bread, or toast.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
