USER MANUAL KB 19 STEBA

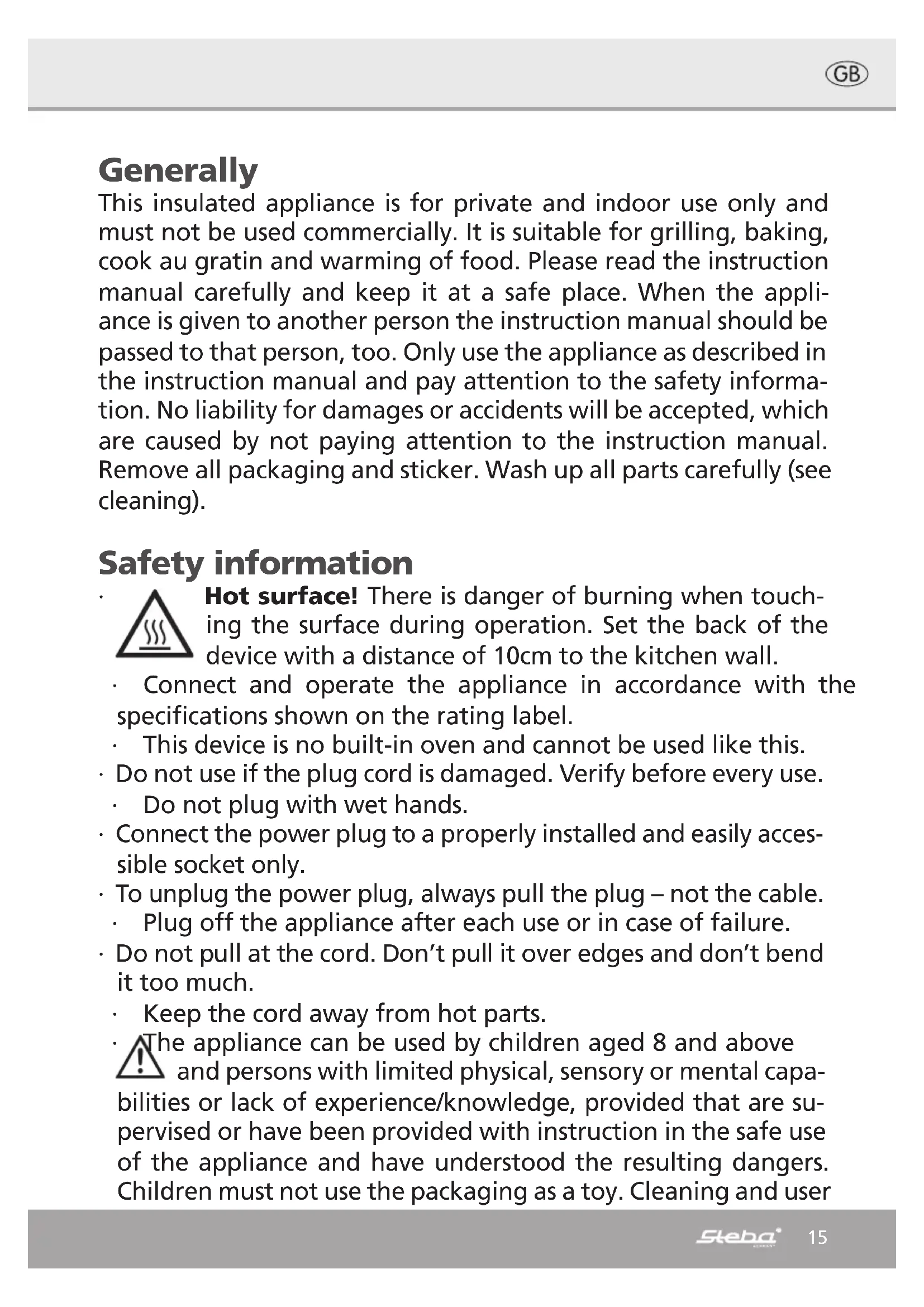

Attention! Device gets hot. Danger of burns! Touchable surfaces will be hot during operation! Place the device on a flat and insensitive surface with and keep a distance of at least 70cm to burnable materials. ∙ During operation steam emerge. Keep hands and face away. ∙ If an extension cable is used, it has to have a cross-section of 1,5mm² ∙ If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard. ∙ Make sure that children do not tease the cable or that a trip hazard occurs. ∙ The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning. ∙ Attention: as dripping fats can easily ignite the radiator, never grill without a pan! When removing the full pan, do not tip any grease on the radiator. ∙ Please use the enclosed handle to remove the wire grill and baking tray. ∙ Clean after every use. ∙ Always push the crumb tray under the lower radiator. ∙ Hygiene: Please always clean the device to avoid bacteria and mold formation. Cleaning ∙ Attention! Pull the plug before cleaning and allow the device to cool down. ∙ Never immerse the unit into water. ∙ Fat residues must be removed for reasons of hygiene and fire hazard. ∙ Do not use abrasives, oven spray or solvents.18 ∙ Clean the housing and the interior with a damp cloth with de- tergent, clean the glass with glass cleaner and dry. ∙ The crumb tray and accessories can be cleaned in hot water and then dried. Insert the crumb tray again. Workplace Important: Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched. Put into operation Important: Heat the appliance up for at least 10min for the first time to eliminate any production oil. The appliance can smoke slightly when used the first time. Never put oversized food inside the oven and prevent any contact to the heating elements. Food which contains much fat should be grilled on the wire grill in position 2; the bake pan should be put at position 1. If necessary turn the thermostat a little lower. Settings Upper + lower heat + convection Upper heat + convection Upper + lower heat Upper heat Lower heat

Turn the Prog. Switch to or and adjust the wished temperature. Turn the Timer to the wished time. Because it is a mechanical timer it is necessary to turn the timer first to 90min and then turn back to the needed time. Please always add 10min prewarming time. The Power light is on. When the time runs out, a bell sounds and the power light gets off. During baking the heating elements can glow in different colours, this is not a malfunction. If the lower side of the food should get more crun- chy, then turn the Prog. switch at the end to

Put the Prog. switch to or and the thermostat to 230°C and adjust the Timer. The lower heating elements are getting not hot. Put the food on the wire grill and the baking pan at the lowest position in the grill. The food should be turned after half of the grilling time.19 To grill inside the pan, put the baking pan on the wire grill and insert it at the wished position. Please use for removing the pan or the wire grill the delivered handle. Caution! Liquid in the pan get very got, Danger of burns!

3. Warming - Keeping warm

Turn on the Timer. Turn the Prog. switch to and the thermostat to 100°C. Put the food in the baking pan or on the wire grill and insert it into the oven.
