RDFM1400GY - Radio NEDIS - Free user manual and instructions

USER MANUAL RDFM1400GY NEDIS

with large tuning knob

to tune into any station

RDFM1400GY

EN Quick start guide 4
DE Kurzanleitung 7
FR Guide de démarrage rapide 11
(NL) Snelstartgids 15
IT Guida rapida all'avvio 19
ES Guia de inicio=rápido 22
PT Guia de iniciação<rapida 26
(SV) Snabbstartsguide 30
（FI） Pika-aloitusopas 34
NO Hurtiguide 38
DA Vejledning til hurtig start 41
HU Gyors beüzemelési utmutató 45
（PL）Przewodnik Szybki start 49
(EL) Oδηγός γρήγορης εκκίνησης 52
SK Rychly námod 57
(CS) Rychly námod 60
RO Ghid rapid de initiere

A

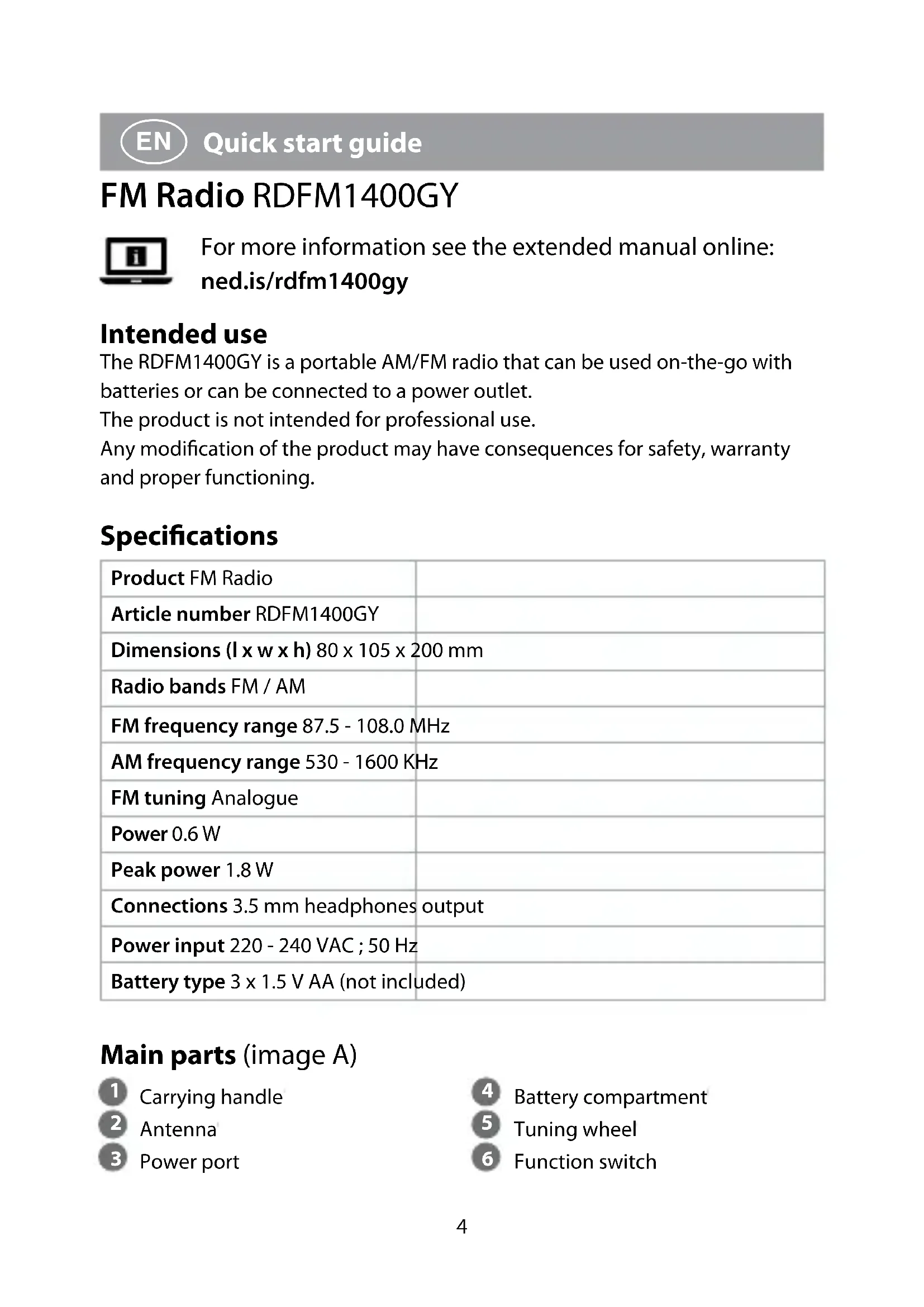

FM Radio RDFM1400GY

For more information see the extended manual online:ned.is/rdfm1400gy

Intended use

The RDFM1400GY is a portable AM/FM radio that can be used on-the-go with batteries or can be connected to a power outlet.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product FM Radio
Article number RDFM1400GY
Dimensions (I x w x h) 80 x 105 x 200 mm
Radio bands FM / AM
FM frequency range 87.5 - 108.0 MHz
AM frequency range 530 - 1600 KHz
FM tuning Analogue
Power 0.6 W
Peak power 1.8 W
Connections 3.5 mm headphones	output
Power input 220 - 240 VAC; 50 Hz
Battery type 3 x 1.5 V AA (not included)

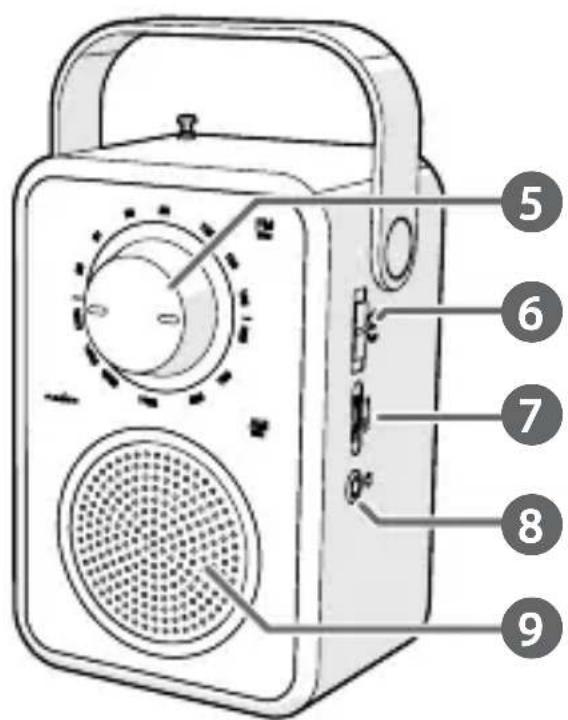

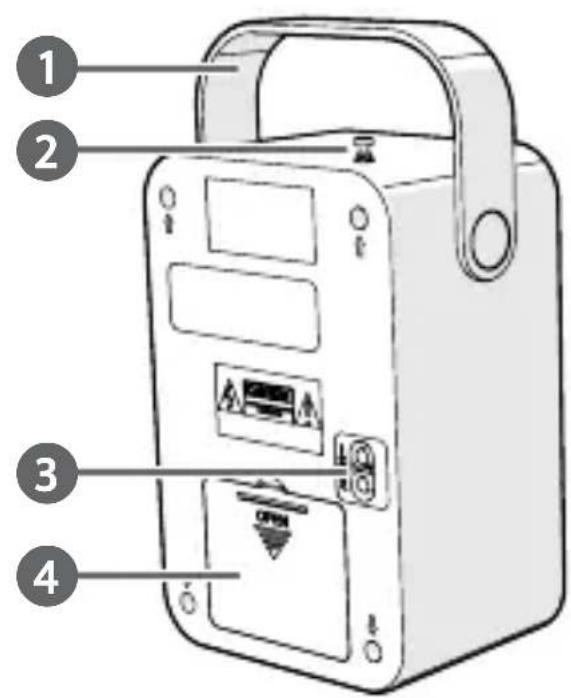

Main parts (image A)

1 Carrying handle
Antenna
3 Power port

4 Battery compartment
5 Tuning wheel
6 Function switch

Volume wheel
8 3.5 mm headphones output

9 Speaker

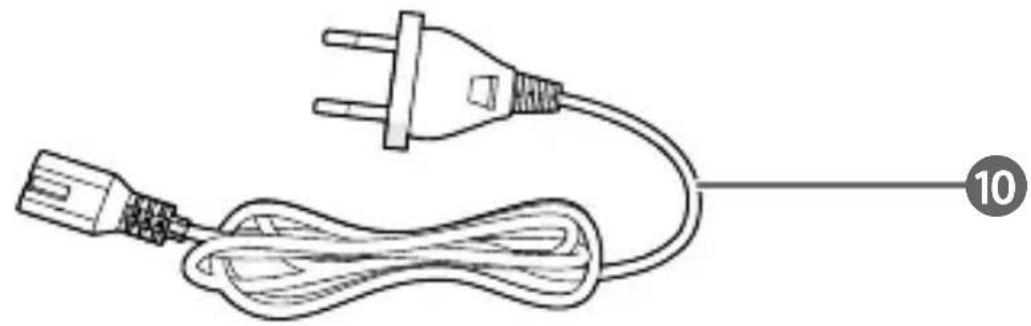

10 Power cable

Safety instructions

WARNING

To prevent possible hearing damage, do not listen at high volume levels for long periods.

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this manual.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Unplug the product from the power source and other equipment if problems occur.
• Do not expose the product to water or moisture.
• Do not recharge non-rechargeable batteries.
• Do not dismantle, open or shred secondary cells or batteries.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit a cell or a battery.
• Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
• Do not remove a cell or battery from its original packaging until required for use.
• Do not subject cells or batteries to mechanical shock.

• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

• Observe the plus (+) and minus (-) marks on the cell, battery and equipment and ensure correct use.

• Do not use any cell or battery that is not designed for use with the product.
• Seek medical advice immediately if a cell or a battery has been swallowed.
• Keep cells and batteries clean and dry.
• Wipe the cell or battery terminals with a clean dry cloth if they become dirty.
• Use only the cell or battery in the application for which it was intended.
• Battery usage by children should be supervised.
• Do not mix cells of different manufacture, capacity, size or type within a product.
• Properly dispose of the empty battery.
• When possible, remove the battery from the product when not in use.
• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.

Inserting the batteries

1. Open the battery compartment A 4
2. Insert 3 type AA batteries.

Make sure to match the (+) and (-) polarity markings.

1. Close A (4).

Connecting the product to a power outlet

1. Plug the power cable A (10) into the power port A (3).
2. Plug the other end of A into a power outlet.

Switching on the product

1. Set the function switch A 6 to AM or FM.

Controlling the volume

1. Rotate the volume wheel A ⑦ to adjust the volume to the desired sound level.

Tuning in to a radio station

1. Rotate the tuning wheel A 5 to select an available radio station. Pull out the antenna A 2 to improve reception in FM mode.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product RDFM1400GY from our brand Nedis*, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:
nedis.com/rdfm1400gy#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC's-Hertogenbosch, the Netherlands
