ACAM04BK - Sports camera NEDIS - Free user manual and instructions

Product type	Action camera
Brand	Nedis
Model	ACAM04BK
Dimensions (L x W x H)	60 x 31 x 41 mm
Battery capacity	400 mAh
Battery life	≥ 1.5 hours
Charging time	3 hours
Power supply	Built-in rechargeable battery, charges via micro USB
Maximum video resolution	1280 x 720 pixels (720p)
Maximum photo resolution	5 MP
Viewing angle	100°
Video format	AVI
Image format	JPEG
Frame rate	30 fps
Screen	2.0 inch LTPS
Memory	microSD card (not included) up to 32 GB
Waterproof housing	Yes, included
Included accessories	Micro USB cable, mounting bracket, straps, 3M pad
Safety	Use by children 8 years and older under supervision
Maintenance	Wipe the battery terminals with a dry cloth
Repairability	Repairs only by qualified technician
Spare parts	Battery, micro USB cable, waterproof case
Country of manufacture	China
Compliance	CE

Frequently Asked Questions - ACAM04BK NEDIS

How to format the memory card before use?

Insert the microSD card into the slot, then go to the camera settings to format the card. The manual recommends formatting before first use.

How to charge the battery for the first time?

Use the provided micro USB cable and plug it into a USB port. Full charging takes about 3 hours. It is recommended to fully charge the battery before first use for optimal lifespan.

What is the maximum supported memory card capacity?

The camera supports microSD cards up to 32 GB. Do not use cards with higher capacity, as they may not be recognized.

What to do if the battery is not charging?

Check that the micro USB cable is properly connected and that the power outlet works. If the problem persists, try another USB cable. If the battery is completely drained, the screen may take a few minutes to turn on.

How to switch between video and photo mode?

Press the power button (A3) to switch between modes. In video mode, the video camera icon displays; in photo mode, the camera icon appears.

Is the product waterproof without the housing?

No, the camera itself is not waterproof. The included waterproof housing allows use underwater or in humid environments. Always use the housing when exposing the camera to water.

How to insert the memory card correctly?

Open the battery cover (A11), insert the microSD card into the slot (A14) with the gold contacts facing up, until it clicks into place. To remove, gently press the card to unlock it.

How long does recording last on a full charge?

With a fully charged battery, you can continuously record for at least 1.5 hours, depending on resolution settings and usage conditions.

Can I use any USB charger?

It is recommended to use only the provided charger or a standard 5V USB charger. Using an unsuitable charger may damage the battery or camera.

What to do in case of low battery message?

A low battery message appears and the camera turns off automatically. Connect the camera to a power source to recharge. You can also record while charging if needed.

USER MANUAL ACAM04BK NEDIS

capture your action moments in HD

ACAM04BK

EN Quick start guide 5
DE Kurzanleitung 9
FR Guide de démarrage rapide 14
(NL) Snelstartgids 19
IT Guida rapida all'avvio 23
ES Guia de inicio=rápido 28
(PT) Guia de iniciação<rapida 33
(SV) Snabbstartsguide 37
（FI）Pika-aloitusopas 42
NO Hurtigguide 46
DA Vejledning til hurtig start 50
HU Gyors beüzemelési utmutató 55
（PL）Przewodnik Szybki start 59
(EL) Oδnyóç yρήyopçnç éKKívnôç 64
SK Rychly námod 69
CS Rychly námod 73
RO Ghid rapid de initiere

A

B

C

Action camera ACAM04BK

For more information see the extended manual online:ned.is/acam04bk

Intended use

This product is intended as a recording device.

The Nedis ACAM04BK is a small and lightweight action camera that enables you to make HD images and video.

The product is not fireproof or waterproof.

The camera has a waterproof housing for indoor and outdoor use.

The product is not intended for professional use.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Action camera
Article number ACAM04BK
Dimensions (I x w x h) 60 x 31 x 41 mm
Battery capacity 400 mAh
Memory MicroSD card (2 - 32 GB)	(not included)
Camera lens Viewing angle = 100 degrees
Image format .jpg
Image resolution 0.3 MP - 5 MP
Video format .avi
Video resolution 640 x 480 px - 1280 x	720 px
Frame speed 30 fps
Recording time ≥ 1.5 hours
Display 2.0 LTPS
Current Standby: 170 mAh	Working: 190 mAh
Charging time 3 hours

Main parts (image A)

OK button
2 Power indicator LED
3 Power button
4 Camera lens
UP button

6 DOWN button
7 Speaker
8 Display
9 Charging indicator

LED

10 Status indicator LED
11 Battery cover
12 Microphone
Micro USB port
14 MicroSD card slot

Additional parts (not shown in illustration)

15 Battery
16 Waterproof housing

17 Mounting accessories

18 Bandages
19 Micro USB cable
20 3M mats

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.

• Unplug the product from the power source and other equipment if problems occur.

• Do not unplug the product by pulling on the cable. Always grasp the plug and pull.

• Do not dismantle, open or shred secondary cells or batteries.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit a cell or a battery.
• Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
• Do not subject cells or batteries to mechanical shock.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Do not use any charger other than that specifically provided for use with the equipment.
• Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
• Do not leave a battery on prolonged charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.
• Disconnect the power supply before making or breaking the connections to the battery.
• The charger must only be plugged into an earthed socket-outlet.
• During charging, the battery must be placed in a well-ventilated area.
• Always purchase the battery recommended by the product manufacturer for the product.
• Do not remove a cell or battery from its original packaging until required for use.
• Do not use any cell or battery which is not designed for use with the equipment.
• Use only the cell or battery in the application for which it was intended.
• Do not mix cells of different manufacture, capacity, size or type within a product.
• Wipe the cell or battery terminals with a clean dry cloth if they become dirty.
• Battery usage by children should be supervised.

• Observe the plus (+) and minus (-) marks on the cell, battery and equipment and ensure correct use.

• When possible, remove the battery from the product when not in use.

• Properly dispose of the empty battery.
• Seek medical advice immediately if a cell or a battery has been swallowed.

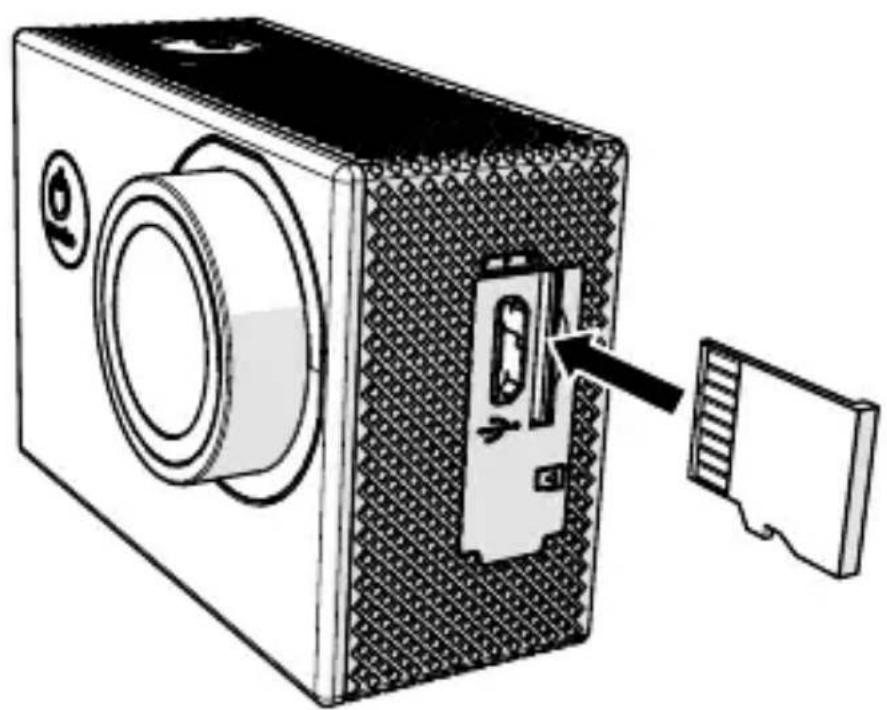

Insert or change memory card (image B)

A microSD card (not included) is required to take pictures or videos. Insert the microSD card into the microSD card slot A14.

Use a microSD card with a maximum of 32 GB storage capacity.

Format the microSD card before use.

Charging the product (image C)

The product is delivered with a partially charged battery. For optimal battery life, fully charge the battery before first use.

Charge the camera from any USB outlet with the supplied micro USB cable. The camera can be charged while recording video. Fully charging the battery takes about 3 hours.

When battery level is low, a low battery notification is shown on the screen and the camera turns off.

Switching on the product

Hold the power button A3 for about 3 seconds until the status indicator LED A10 lights up blue. A welcome screen appears, and the camera enters video mode.

Switching between modes

Switch between modes by pressing the power button A3.

Record pictures and video images

In video mode, press OK to start or stop recording video.

In picture mode, press OK to take a picture.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product ACAM04BK from our brand Nedis*, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:
nedis.com/acam04bk#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC's-Hertogenbosch, the Netherlands
