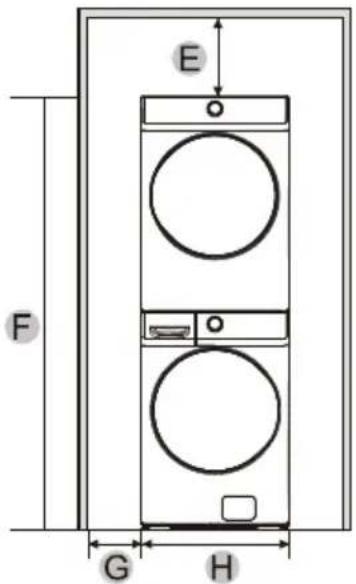

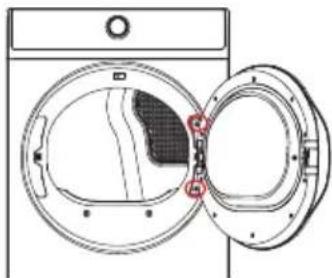

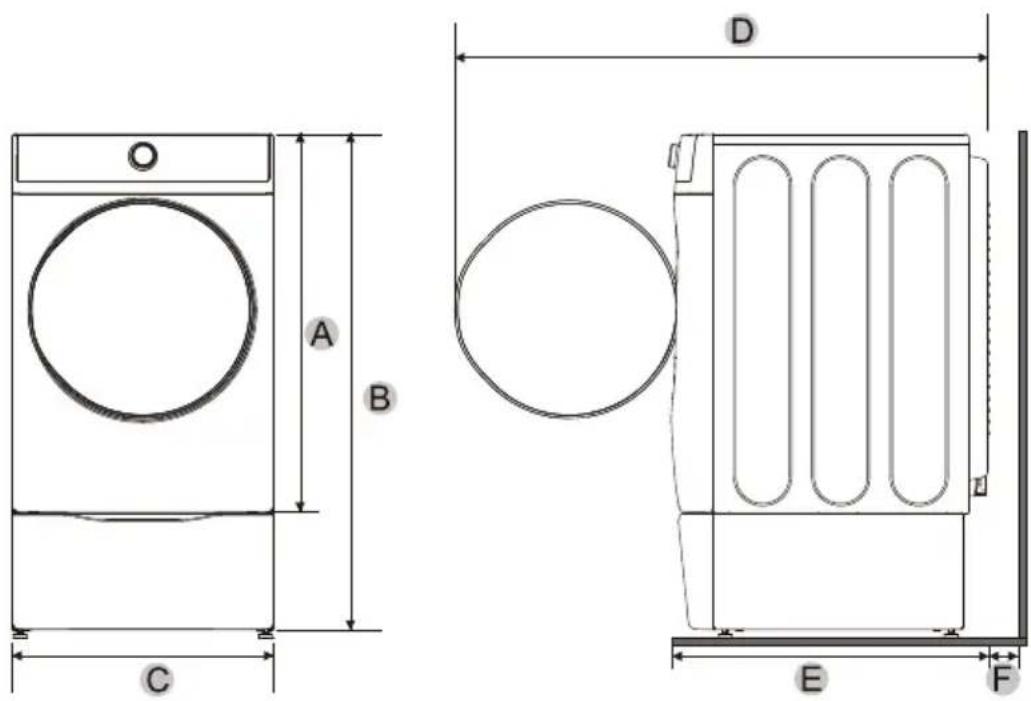

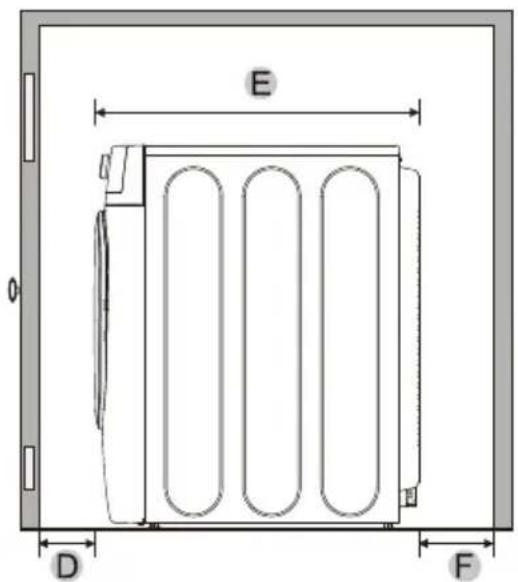

USER MANUAL MLE52N4AWW MIDEA

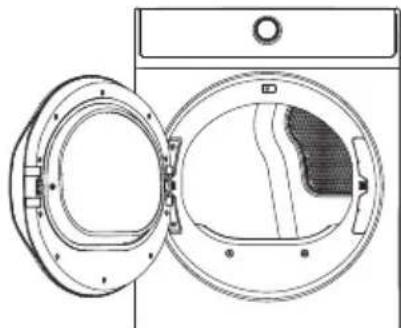

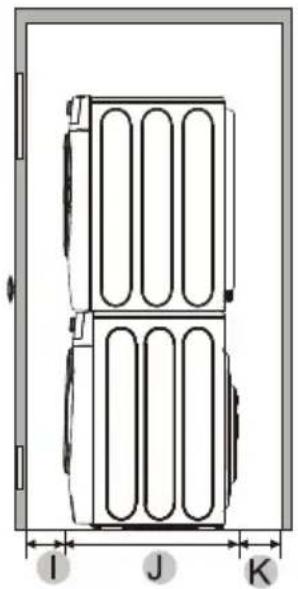

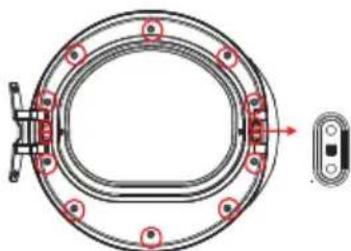

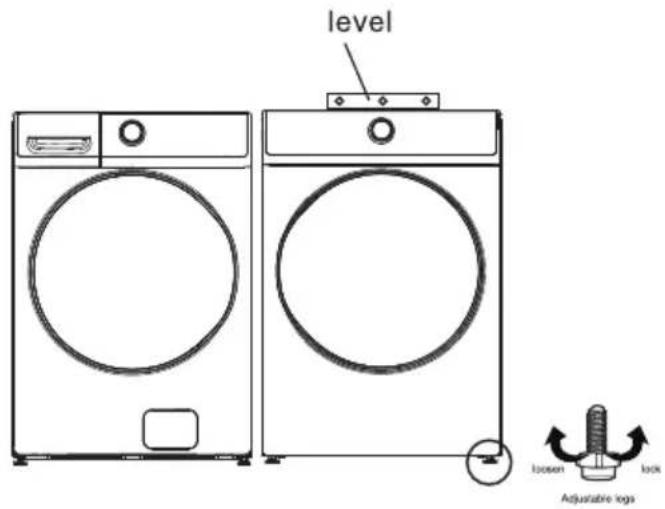

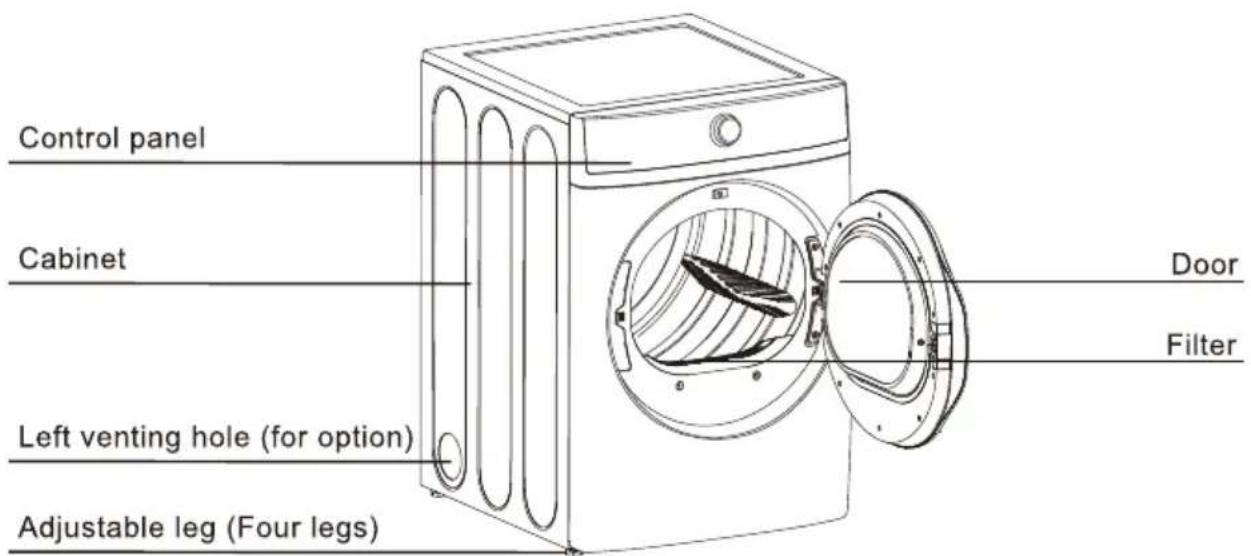

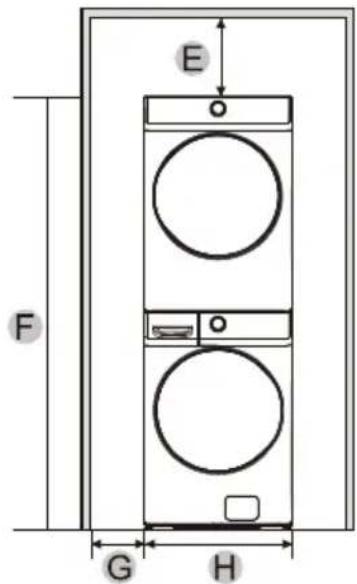

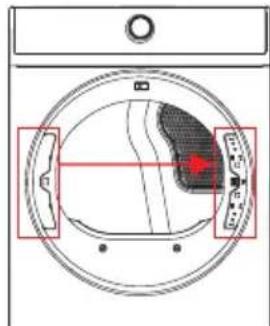

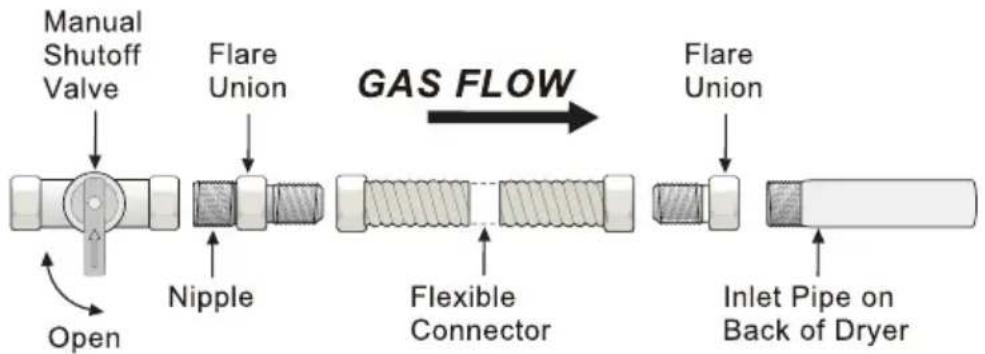

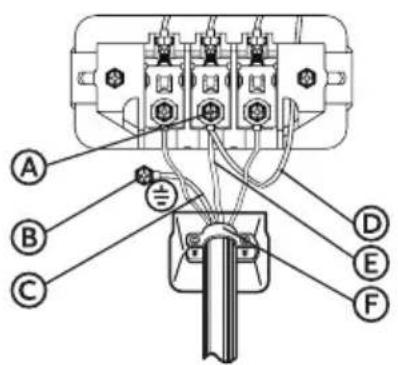

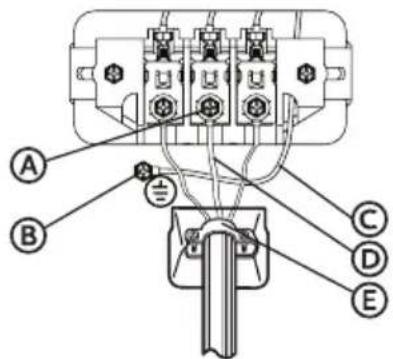

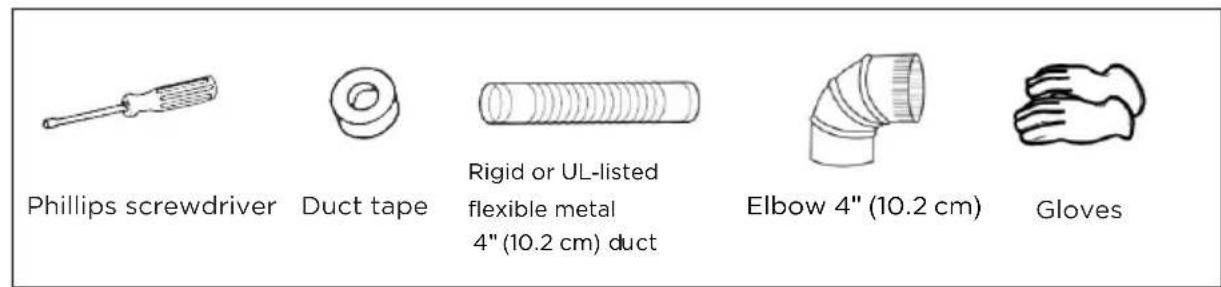

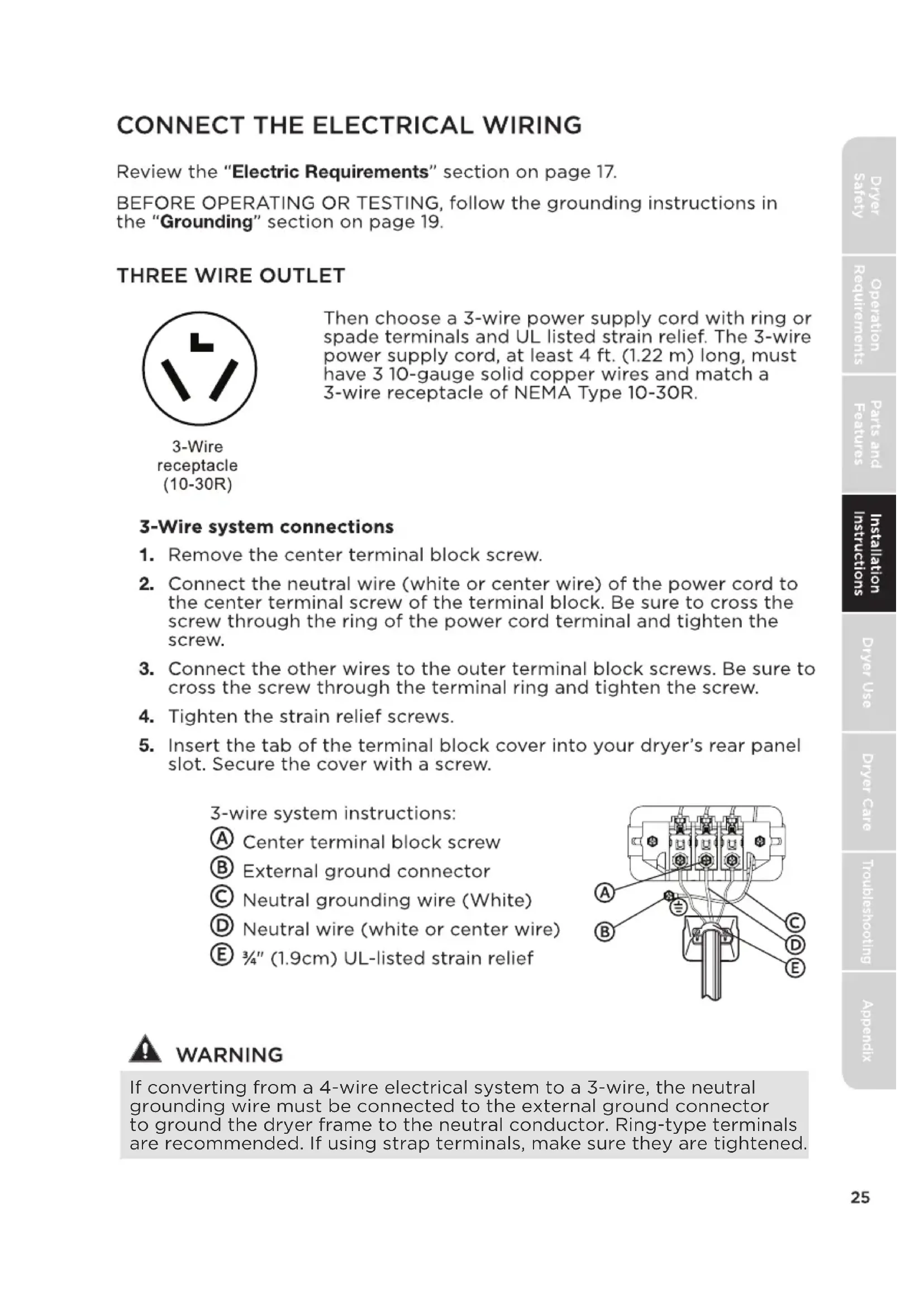

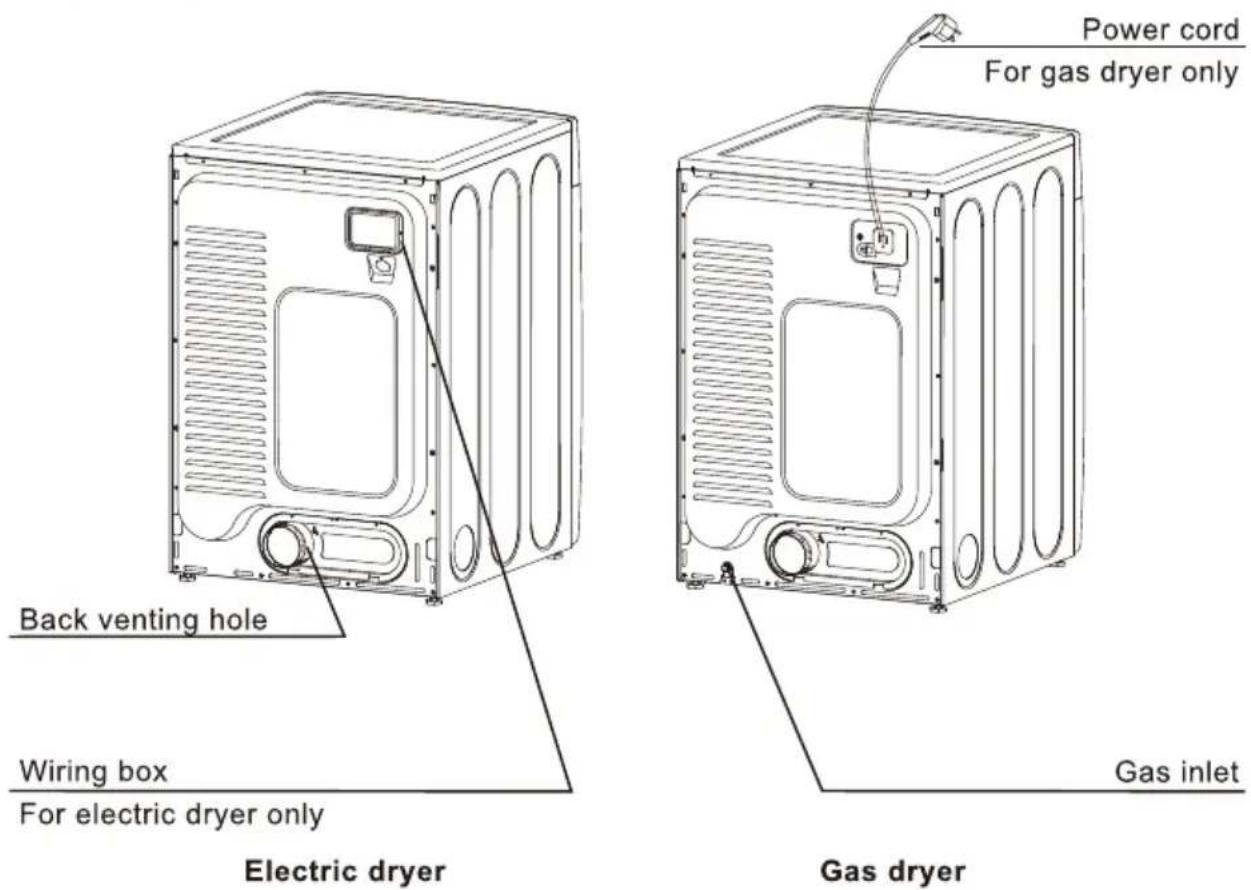

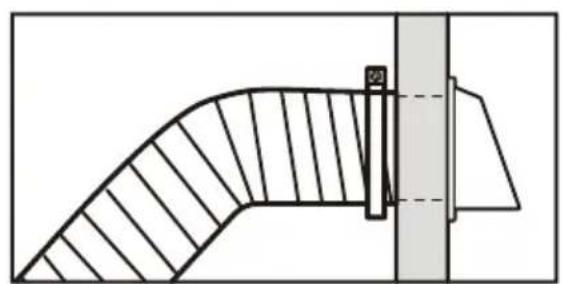

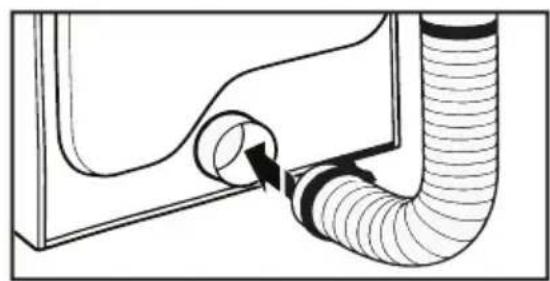

ite)the provided in the cabinet near the terminal block.hole Be sure they are tight. Use a /"(1 cm) deep-well socket.A plastic flexible duct is NOT used.CHANGE THE DRYER VENT LOCATION Your new dryer is shipped to vent to the rear. It can also be configured to vent to he bottom or left side (see from the front). An Adapter kit is standard component which you can purchase from local market. Tools and materials you will need Duct tape Phillips screwdriver Rigid or UL-listed flexible metal 4'' (10.2 cm) duct Elbow 4'' (10.2 cm) Gloves

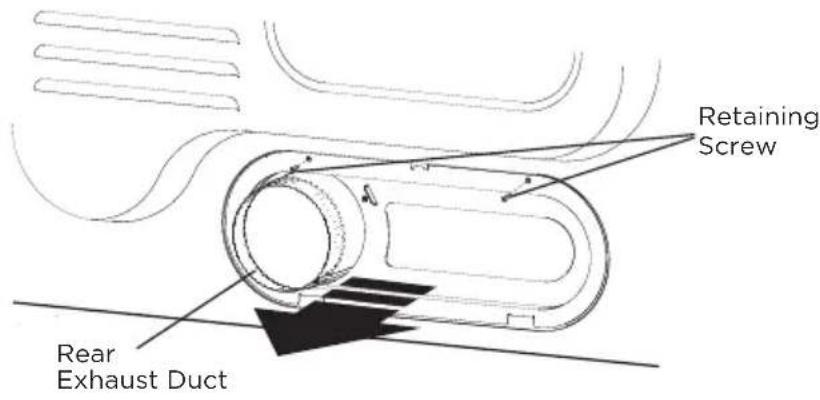

1. Remove the rear exhaust retaining screws. Pull out the exhaust duct.

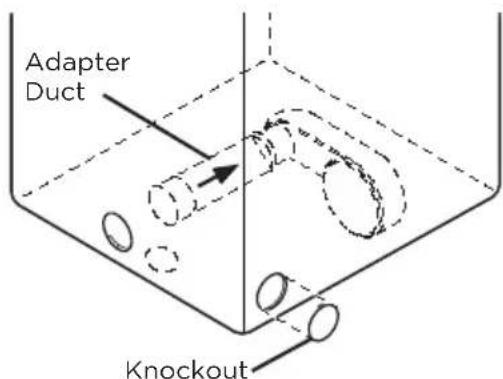

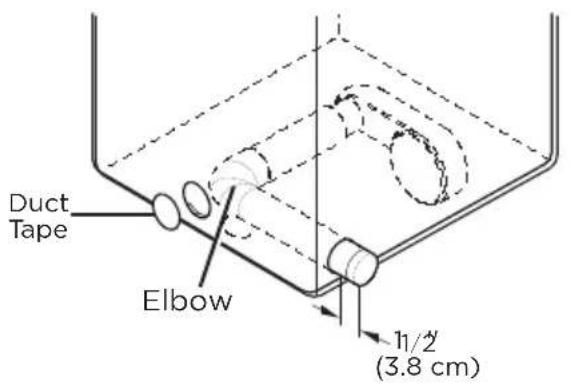

Rear Exhaust Duct Retaining Screw Option 1: Side venting

2. ress P the tabs on the knockout and carefully remove the knockout for

t he desired vent opening. Press the adapter duct onto the blower housing of the dryer as shown. Knockout Adapter Duct3. Preassemble a 4 inches (10.2cm) elbow to the next 4 inches (10.2cm) duct section, and secure all joints with duct tape. Be sure that the male end of the elbow faces AWAY from the dryer. Insert the elbow/duct assembly through the side opening and press it onto the adapter duct. Secure in place with duct tape. Be sure that the male end of the duct protrudes 1.5 inches (3.8cm) to connect the remaining ductwork. Duct tape the knockout removed to the opening in the back of the dryer.

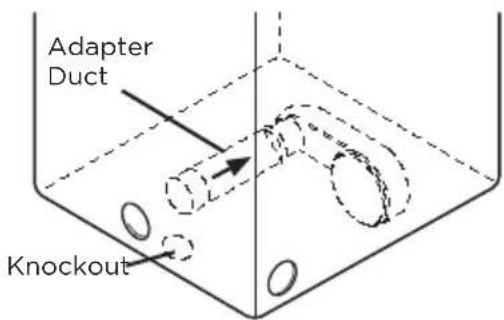

2. Press the tabs on the knockout and carefully remove the knockout for

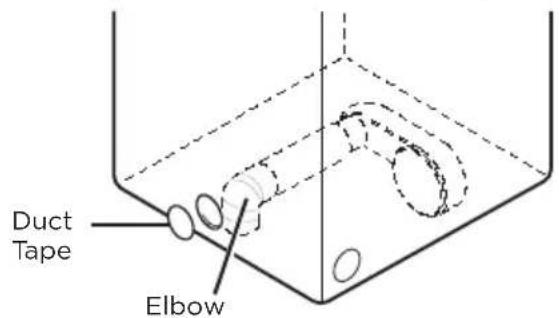

the desired vent opening. Press the adapter duct onto the blower housing of the dryer as shown. Option 2: Bottom venting 1 '' (3.8 cm) Elbow Duct Tape KnockoutAdapter Duct

3. Insert the 4 inches (10.2cm) elbow through the rear opening and press

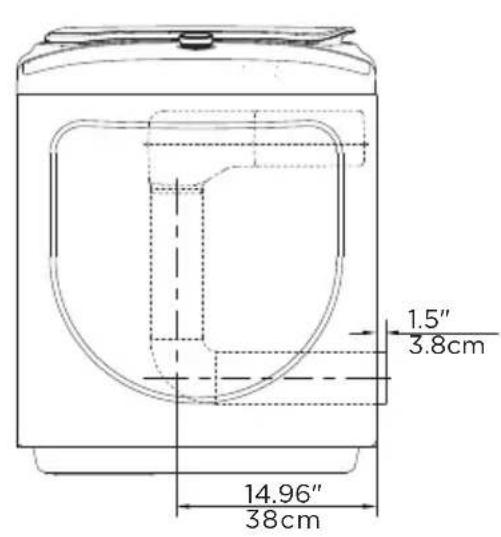

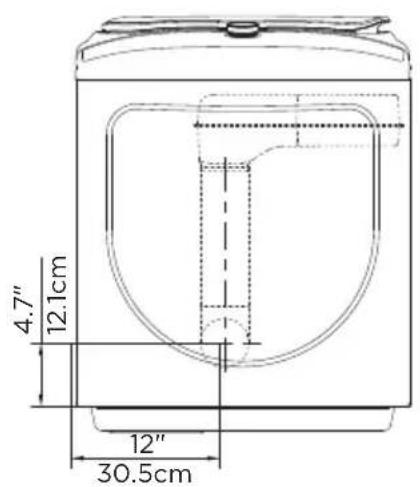

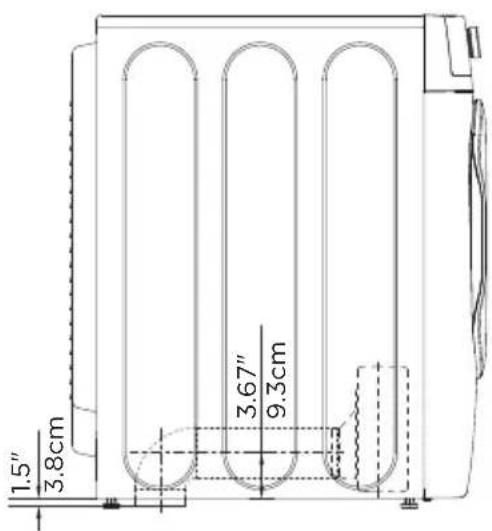

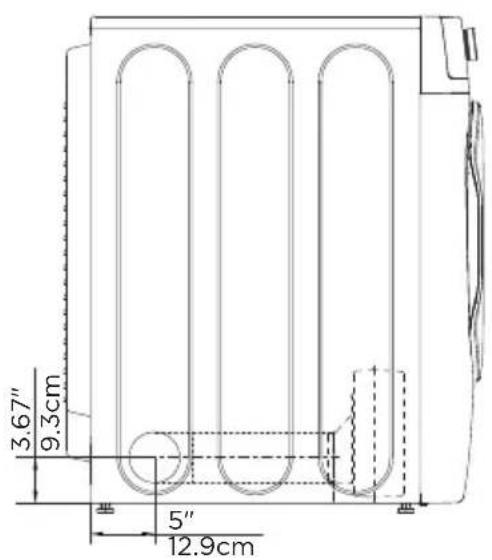

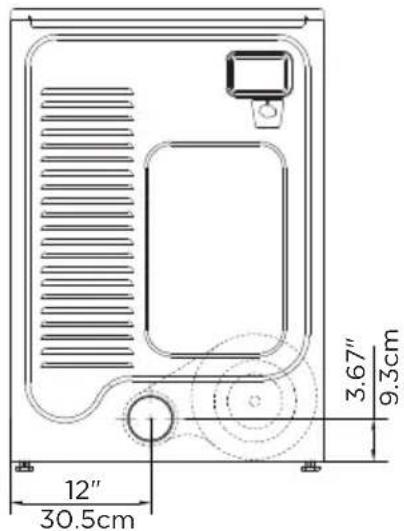

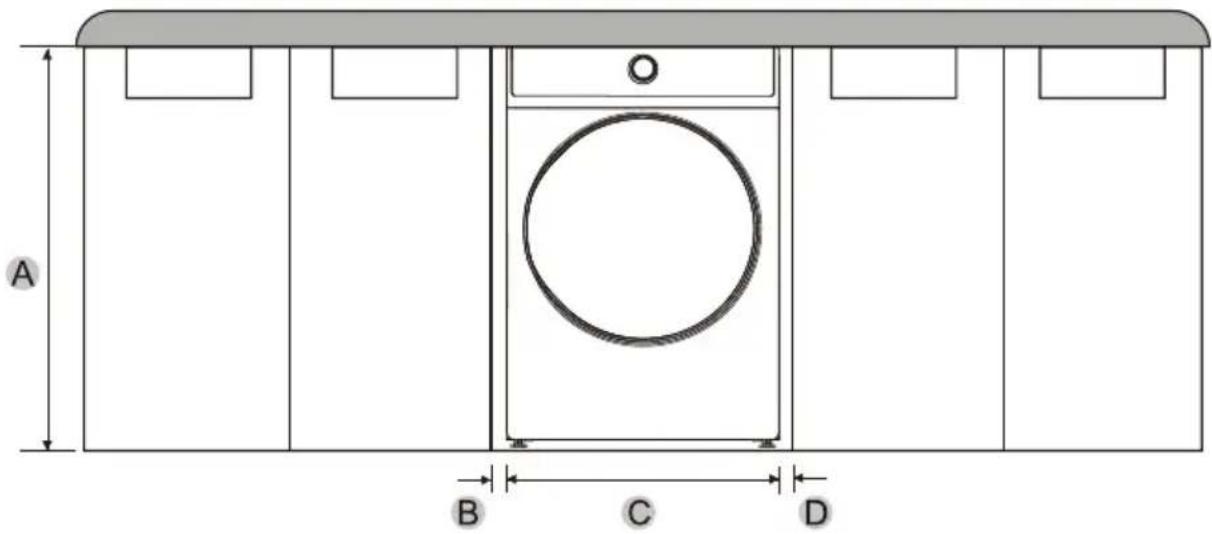

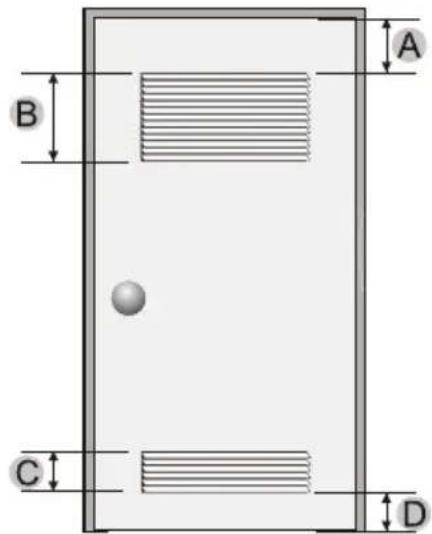

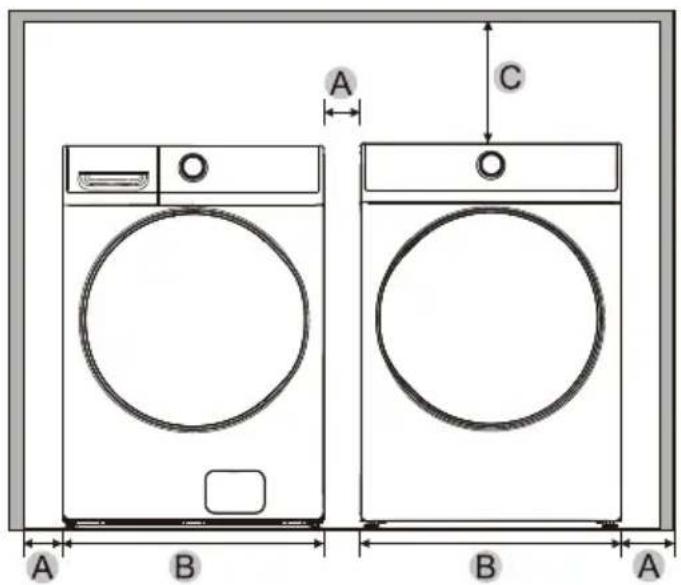

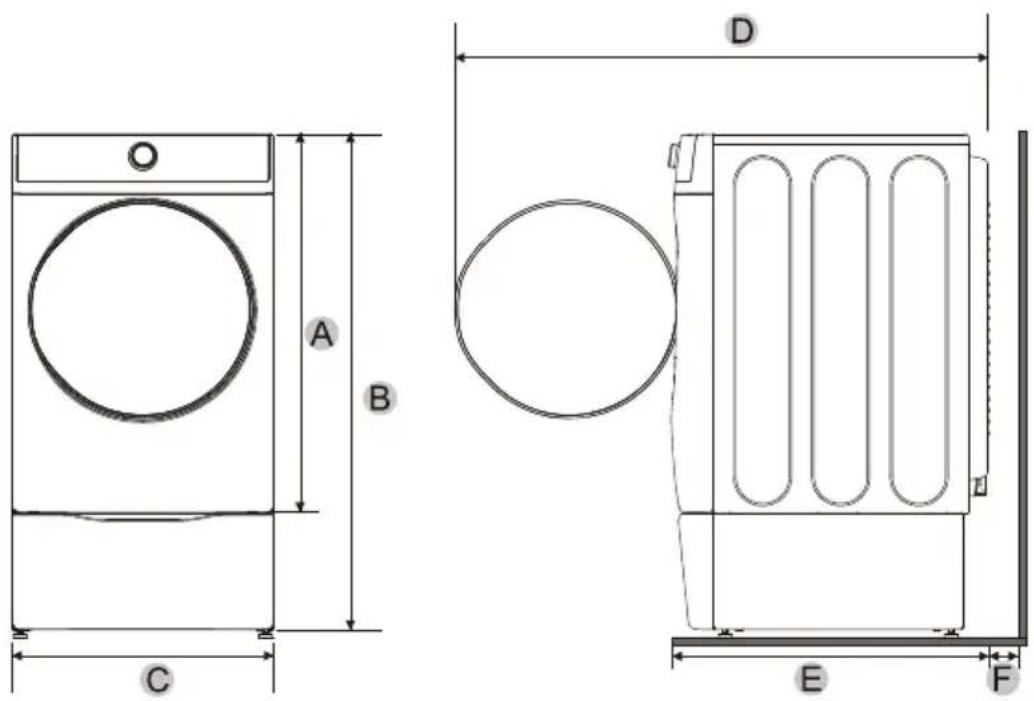

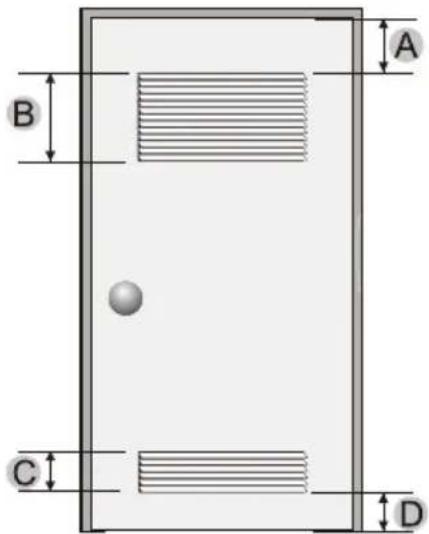

it onto the adapter duct. Be sure that the male end of the elbow faces down through hole in the bottom of the dryer. Secure in place with duct tape. Duct tape the knockout removed to the opening in the back of the dryer. Duct Tape 1/2 Elbow Dryer SafetyOperation RequirementsParts and FeaturesInstallation InstructionsDryer UseAppendixDryer CareTroubleshootingRear Venting (Default) Dimensions for installation Side Venting Bottom Venting 12" 30.5cm 3.67" 9.3cm 1.5" 3.8cm 14.96" 38cm 3.67" 9.3cm

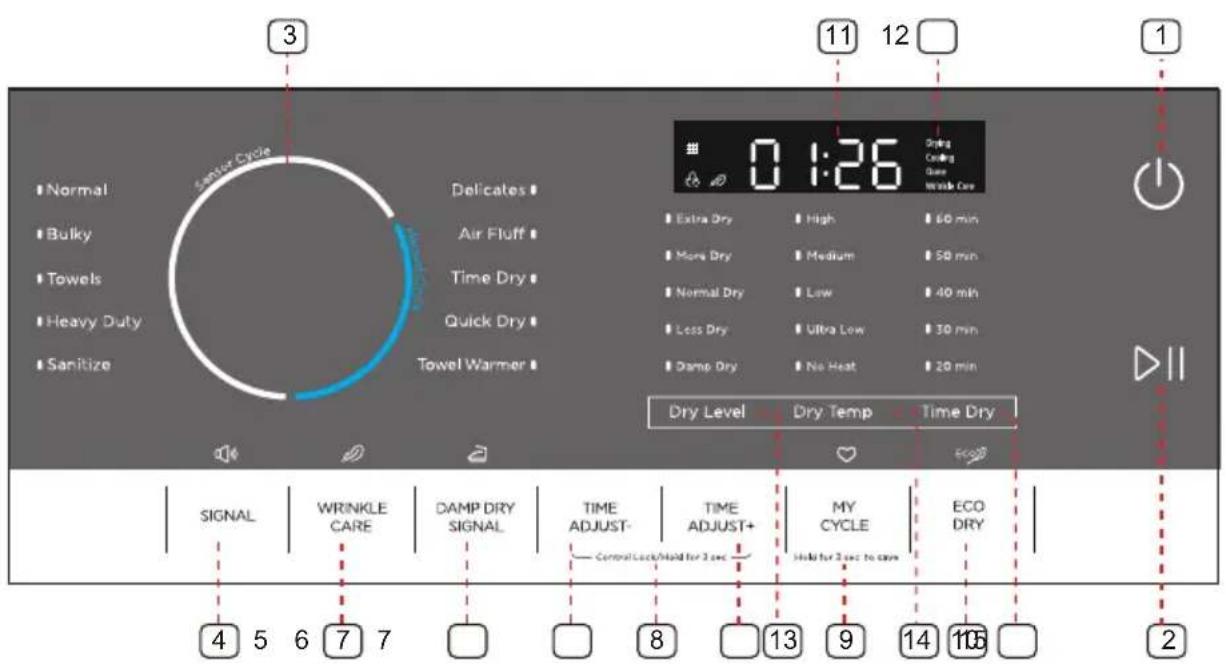

Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Appendix Dryer Care TroubleshootingDRYER USE CONTROL PANEL WARNING To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating the appliance.

Power button Press to turn your dryer on or off. If your dryer is on for more than 10 minutes without any buttons being pressed, it automatically turns off.

Cycle selector Select your desired cycle for the type of load. The cycle you select determines the heat control for the cycle. The Normal, Delicates, Bulky, Towels, Heavy Duty and Sanitize cycles are Sensor Dry cycles. The Air Fluff, Time Dry, Quick Dry andTowel Warmer cycles are Manual Dry cycles. Dryer SafetyOperation RequirementsParts and FeaturesInstallation InstructionsDryer UseAppendixDryer CareTroubleshooting

Signal Press once to stop the sound.beeping Press again to activate the sound. Your selection will be kept until next pressing.

Wrinkle Care Press once to add the Wrinkle Care step into the operating program. Press again to cancel selection. Wrinkle Care provides approximately 90 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling. The load is already dry, and can be removed at any time during the Wrinkle Care cycle.

Damp Dry Signal This function is useful when you want to take some garments out for ironing. The unit will beep 6 times when the moisture in the clothes is good for ironing. At this time, you can take those garments out and continue drying the other by pressing the “START/PAUSE” button once. NOTE: The unit will not stop operating if you don’t take those garments out for ironing.

Time adjust These buttons are effective only for Manual cycles. Push these buttons to change the drying time you prefer. Push repeatedly to get your desired drying time.

Control lock Press the “Time Adjust-” and “Time Adjust+” together to activate the Control lock function. Press again for another 3 seconds to deactivate the function. All buttons except the “Power” will be out of function when Control lock is activated.

My cycle Press and hold for 3 seconds to remember your favorite drying cycle. Press once to load your favorite cycle setting.

Eco Dry Press to select the Eco Dry cycle. This function will reduce the energy consumption by reducing drying temp but increasing operation time. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Appendix Dryer Care Troubleshooting

A double beep means selection not available.11 Digital display This digital will display the time of cycle you are setting or remaining time of cycle operating.

Cycle status display The relative indicator graphic or text will be lit when the dryer is in its drying program, When the whole program is finished, the “Done” indicator graphic will flash to remind you to unload your laundry.

Dry Level Press the button to select the dryness level. Different dryness level will result in different drying time. For clothes to be ironed manually, a lower dryness level should be selected.

Dry Temp Press the button to select the drying temperature. High - For sturdy cottons or those labeled Tumble Dry. Medium - For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry Medium. Low - For lower heat than Medium to dry synthetic or washable knit fabrics. Ultra Low - For heat sensitive items labeled Tumble Dry Low or Tumble Dry Warm. No Heat - Provides just the air cycle without any heat.

Time Dry This button is a quick selection for Time Dry setting. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Appendix Dryer Care Troubleshooting

35DRYING A LOAD OF LAUNDRY

1. Power on your dryer.

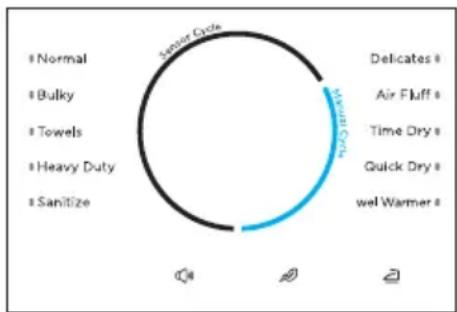

3. Select the appropriate cycle and options for the load.

4. Start your dryer.

Pressing Start/Pause button will start the selected cycle. To PAUSE cycle press Start/Pause button then open the door. To resume operation after closing the door always press Start/Pause. Opening the door during the operation will instantly stop operation and will require to press Start/ Pause button to resume operation.

• Press this Power button to power your dryer on.

• Place only one wash load in your dryer at a time.

• Mixed loads of heavy and light weight fabrics will dry differently, which may result in lightweight fabrics being dry while heavy fabrics remain damp at the end of a drying cycle.

• Add one or more similar items to your dryer when only one or two articles of clothing need drying. This improves the tumbling action and drying efficiency.

• Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some fabrics.

• Select the appropriate cycle by using the Cycle Selector according to the cycle chart on page 37.

• Select the appropriate optional function by buttons according to the using the chart on page 37.

• Your favorite drying Cycle

• You can finish this Step by just pushing the “My Cycle” button once to use your favorite cycle or make some additional change. Once you have set the cycle selector and option function, you can push and hold the “My Cycle” button for 3 seconds to this setting as your favoritesave cycle before the unit. The light beside the knobstarting will flash to confirm setting was saved to memory with beeps. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Appendix Dryer Care Troubleshooting

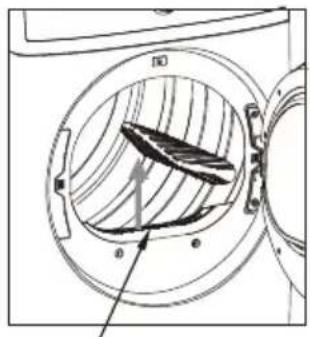

• The “ ” (Clean Filter) indicator graphic in the display will flash 10 times when your dryer is powered on.

• You should clean the filter before the dryer is loaded. Note: A double beep means selection not available.5. Unloading your laundry. CONTROL LOCK ECO DRY

• This function will reduce the energy consumption by reducing drying temp but increasing operation time. Dryer Safety Operation Requirements Parts and Features Installation Instructions Dryer Use Appendix Dryer Care Troubleshooting

• After the cycle is done, the “Done” indicator graphic will flash, and the dryer will beep 6 times.

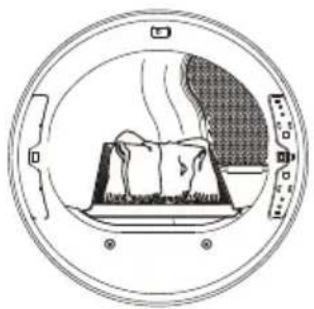

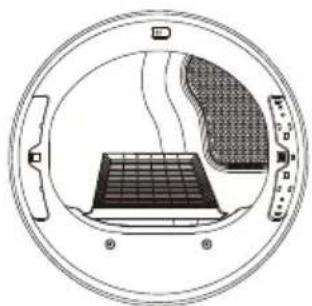

• You can turn on your dryer, set this function, then turn it off. When you do so, even if the unit is powered on, • you still cannot start it before the Control Lock function is deactivated. This function will not be cancelled if your unit • loses power, such as when you unplug it or the power turns off. Your dryer has a control lock feature to prevent children from playing with your dryer. When you turn on the control lock, the only button that works is Power. Press and hold both the “TIME ADJUST +” and “TIME ADJUST -” buttons for three seconds. The control lock ico turns on. To turn control lock, press and hold both the off the “TIME ADJUST +” and “TIME ADJUST -” buttons for three seconds.39 The rack is designed for use with manual cycles only, not sensor cycles.40 Select Time Dry. Select the No Heat, Low or Ultra Low Temp setting. or by using the setting.No Heat temp41424344 example, a pair of linen parts).black When these odours linger in the air, ventilate the room Household odours from paiting, varnishing, strong Odours remain Fabrics containing strong odours should be washed454647 MIDEA LAUNDRY DRYER LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE. Please have the following information available when you call the Customer Service Centre: IF YOU NEED SERVICE:

Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the User Manual, or email customerserviceusa@midea.com.

2. All warranty service is provided exclusively by our authorized Midea Service Providers, in the

U.S. and Canada. Midea Customer Service In the U.S.A. or Canada, call 1-866-646-4332 or email customerserviceusa@midea.com. If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to determine whether another warranty applies. LIMITED WARRANTY

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOUR) For one year from the date of purchase, if this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Midea America (Canada) Corp. (hereafter “Midea”) will pay for factory specified replacement parts and repair labour to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea designated service company. This limited warranty is valid only in the 50 States of the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty. ■ Name, address and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase including dealer or retailer name and address, and date of purchase4849 REGISTRATION INFORMATION PROTECT YOUR PRODUCT: We will keep the model number and date of purchase of your new Midea product on file to help you refer to this information in the event of an insurance claim such as fire or theft. Register online at www.midea.com/ca/support/Product-registration
