USER MANUAL MRW14S1ABB MIDEA

Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. Power supply: 115 V Frequency: 60Hz Capacity: 1.5 cu. ft. Free 3 months extension of the original limited warranty period!* Simply text a picture of your proof of purchase to:1-844-224- 1614*The warranty extension is for the three months immediately following the completion of the product’s original warranty period. USER MANUALDear user THANK YOU and CONGRATULATIONS on your purchase of this high-quality Midea product. Your Midea cooler is designed for reliable, trouble-free performance. Please take a moment to register your new cooler. Register your new cooler at www.midea.com under the Support tab. For future reference, record your product model and serial numbers located on right-hand side of the cooler above the compressor compartment. Model Number________________________________________ Serial Number_________________________________________

Names of components Temperature Control Placement Start to use Energy saving tips The arrangement of bottle Practical skills for grape wine’s storage Serving temperature

Disconnect the cooler Stop using the cooler Clean the cooler

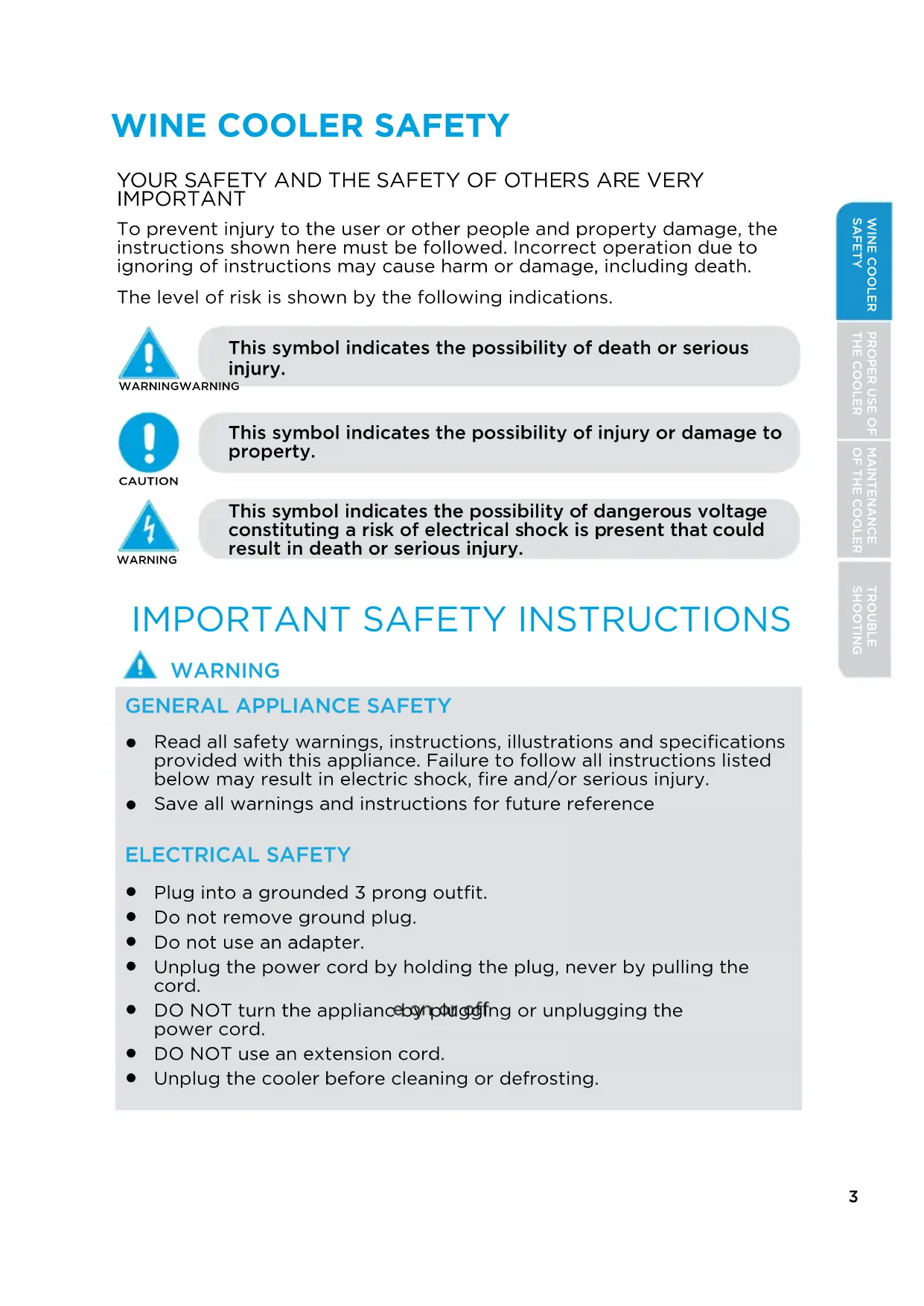

TROUBLE SHOOTING3 YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death. The level of risk is shown by the following indications. CAUTIONWARNINGWARNING WARNING This symbol indicates the possibility of dangerous voltage constituting a risk of electrical shock is present that could result in death or serious injury. This symbol indicates the possibility of injury or damage to property. This symbol indicates the possibility of death or serious injury.

GENERAL APPLIANCE SAFETY

Read all safety warnings, instructions, illustrations and specifications provided with this appliance. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference ELECTRICAL SAFETY

Plug into a grounded 3 prong outfit.

Do not remove ground plug.

Do not use an adapter.

Unplug the power cord by holding the plug, never by pulling the cord.

DO NOT turn the applianc by plugging or unplugging the power cord.

Unplug the cooler before cleaning or defrosting.

This cooler must be grounded. This cooler is equipped with a

ounding plug. The plug must be inserted into an outlet that is properly installed and grounded.

Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood or if doubt exists as to whether the cooler is properly grounded. LOCATION SAFETY

This cooler is intended to be used in household and similar environments.

Install in accordance with the manufacturer’s instructions.

This cooler should not be recessed or built-in an enclosed cabinet. It is designed for freestanding installation only. WARNING - Keep ventilation openings, in the cooler, clear of obstruction.

DO NOT install near any heat sources, such as radiators, heat registers, stoves, other cooking appliances or in direct sunlight.

DO NOT store or use gasoline or any flammable liquids inside or in the vicinity of this cooler.

Flammable refrigerant used. Follow handling instructions carefully. Risk of fire or explosion due to puncture of refrigerant tubing.

Flammable refrigerant used. Do not use mechanical devices to defrost cooler. Do not puncture refrigerant tubing.

Do not place heavy objects or other appliances such as microwave ovens, toasters etc. on the lid of the cooler.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they DO NOT play with the appliance.

DO NOT touch the interior of the cooler with wet hands. This could result in frostbite.

Clean only with a damp cloth. Use nonflammable cleaner. SERVICE SAFETY

Disconnect power before servicing.

Flammable refrigerant used. To be repaired only by trained service personnel. Do NOT puncture refrigerant tubing.

Refer all servicing to qualified service personnel. Do not repair or replace any part of this appliance unless specifically recommended in this manual. Servicing is required when the appliance has been damaged in any way, such as the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the appliance, the appliance has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person, in order to avoid a hazard.

If component part is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Replace all parts and panels before operating.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY State of California Proposition 65 Warnings:

WARNING: Cancer and Reproductive Harm

-www.P65Warnings.ca.gov. PROPER DISPOSAL WARNING Su ocation Hazard Before you throw away your old cooler

Remove the door or lid so that children cannot hide or get trapped inside your old appliance.

Leave any shelves in place so that children may not easily climb inside.

Failure to follow these instructions can result in death or brain damage. IMPORTANT: Flammable gas and refrigerant used. It is the consumer’s responsibility to comply with Federal and Local regulations when disposing of this product. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.

TROUBLE SHOOTINGDoor HandleSteel wire shelfThermostat knob （The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor） The temperature in the cooler is 5-18℃ , only used to store unopened bottled wine (red wine, white wine, rose wine). Do not place food in the cooler to prevent bacterial contamination. Please keep the interior of the wine cabinet dry, please drink Bottled wine during the validity period.7 Temperature Control normal OFF

WINE COOLER SAFETYPROPER USE OF THE COOLERMAINTENANCEOF THE COOLERTROUBLE SHOOTING ( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor ) After power on the cooler,it can turn the thermostat knob to set the inside temperature level, "Cold" is the warmest setting. "Colder" is the coldest setting. "OFF" means stop cooling. The setting range of centigrade temperature is 5℃-18℃ andthe setting range of Fahrenheit temperature is 41 - 64colder8 Placement Start to use Energysavingtips

Before using the cooler,remove all packaging materials including bottom cushions and foam pads and tapesinside the cooler, tear off the protective film on the door and the cooler body.The cooler is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the feet for levelling if unstable).Avoid direct sunlight and heat sources suchas stove, heating radi-ator, etc. The top space of the coolershall be greater than 30cm,andthe distances from bothsidesand backside shall be more than 10cm to facilitate heat dissipation. The cooler shall stay for half an hour before connecting power when it is firstly started. Clean up the inner chamber before put into use for first time . Do not connect cooler to electronic energy saving plug and converter that can convert DC into AC (E.g.: solar energy system, ship grid). Water drop or frost will be generated on when compressorbacksideofcooler is running, which is decided by function of cooler. wiping outfrostor waterdropis notneeded as the back will wipe them out automatically. The defrosted water will be collected into drain tank, then inflow into water disposal pan above the compresso- rand vaporized. SAFETY WINE COOLER THE COOLER

TROUBLE SHOOTING9 The arrangement of bottle 30m m 75mm 215m m300m m Practical skills for grape wine’s storage Serving temperature

WINE COOLER SAFETYPROPER USE OF THE COOLERMAINTENANCEOF THE COOLERTROUBLE SHOOTING Do not let bottle touch the backside of cooler in order to maintain good air circulation in the cooler. The bottle number here may be different from bottles in different shape and size. The capacity for bottle storage in the wine cabinet is based on the following marked bottle size. Oversized bottle may have impact on the number of bottle storage in the wine cabinet. ( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor ) The corkoftheoldbottleshallalwaysbesoaked in the winewhenputtingintocooler. Airspaceis not allowed between wine and cork.10

Disconnect the cooler Stop using the cooler Clean the cooler

TROUBLE SHOOTINGUnplug power plug to disconnect the cooler.If the cooler left unused for a long time, please:1 Unplug the cooler;2 Clean the cooler;3 Keep the cooler door open. Notice: Do not use detergent and solvent with sand or acid. Dusts behind the cooler and on the ground shall be timely eaned to improve the cooling effect and energy saving. Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. The interior of the cooler should be cleaned regularly to avoiddor odor. Please turn off the power before cleaning, remove drinks ,shelves, etc. Use a soft cloth or sponge to clean the inside of the cooler, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and dry with a soft cloth. After cleaning, open the door and let it dry naturally before turning on the power. For areas that are difficult to clean in the cooler (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterials accumulation in these areas. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the cooler or contaminate food. Clean the shelves with a soft cloth dampened with soapy water or diluted detergent. Then rinse with water and dry with a soft cloth or dry naturally. The wooden wine rack should not be directly immersed in liquid to prevent cracking or mold after moisture. The wooden wine rack is cleaned with a dry soft cloth. The heavily contaminated wooden wine rack should be cleaned with a soft cloth that has been wrung out, and dry naturally. Wipe the outer surface of the cooler with a soft cloth dampened with soap water, detergent, etc., and then wipe dry. Do not rub or scratch the surface of the glass door to prevent the door from being broken or scratched. Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the cooler surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts. Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect ele- ctrical insulation after immersion.Water should not soak the operating control elements and lighting system on the glass door.11 TROUBLE SHOOTING

TROUBLE SHOOTING Whether the cooler is plugged and connected to power; Low voltage;Whether temperature control knob is in the work area; Failure power or tripping circuit. It is normal that cooler operates for longer time in summer when the ambient temperature is higher; Do not put too much beverage s in the cooler at one time; Frequent opening of cooler door. Whether the cooler is connected to power, whether the indicator light is damaged. Whether the floor is flat, whether the placement of cooler is stable; Whether the cooler accessories are properly placed. The cooler enclosure may emit heat during running specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon. Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the cooler when the ambient humidity is high, this is a normal phenomenon, and after wiping with towel, turns up the set temperature of the appliance properly. Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect.Buzz will be generated by running compre- ssor specially when starting up or shutting down. The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation. Inoperation Long-term operation of compressor Illuminating light does not shine Loud noises Cooler enclosure heat Condensation Airflow sound Buzz Clatter12

MIDEA Cooler LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE. Please have the following information available when you call the Customer Service Centr

■ Name, address and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase including dealer or retailer name and address IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair.

Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the User Manual, or visit http://us.Midea.com/support

2. All warranty service is provided exclusively by our authorized Midea Service Providers, in the

U.S. and Canada. Midea Customer Service In the U.S.A. or Canada, call 1-866-646-4332. If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to determine whether another warranty applies.

1 YEAR PARTS AND LABOUR

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOUR) Midea will repair or replace, without charge, any defects due to faulty materials or workmanship for one full year from the date of purchase. For further detail of warranty coverage and warranty repair information, visit www.midea.com or call 1-866-646-4332. TEN YEAR WARRANTY COMPRESSOR ONLY - LABOUR NOT INCLUDED In the second through tenth years from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Midea will pay for factory parts to replace the compressor if it fails and prevents an essential function of this major appliance that existed when this major appliance was purchased. This is a 10-year warranty on the parts only and does not include repair labour. Consumer will be responsible for: ■ Diagnostics, removal, transportation and reinstallation cost required because of service. ■ Costs of service calls that are a result of items listed under NORMAL RESPONSIBILITIES

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:

1. Proper use of the appliance in accordance with the instructions provided with the product.

2. Routine maintenance and cleaning necessary to keep the good working condition.

3. Proper installation by an authorized service professional in accordance with instructions provided

with the appliance and in accordance with all local plumbing, electrical and / or gas codes.

on to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loosened connections or defects in house wiring.

5. Expenses for making the appliance accessible for servicing.

6. Damages to finish after installation.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea designated service company. This limited warranty is valid only in the 50 States of the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is e ective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.13

1. Failure caused by damage to the unit while in your possession (other than damage caused

by defect or malfunction), by its improper installation, or by unreasonable use of the product, including without limitation, failure to provide reasonable and necessary maintenance or to follow the written Installation and Instruction Manual.

2. Products purchased “as-is” or refurbished are not covered by this warranty.

Food loss caused by refrigerator or cooler failure.

4. Service calls to repair or replace consumables such as water filters, light bulbs airfilters etc., or

handles, knobs and other cosmetic parts.

5. Product that has been transferred from its original owner.

5. Interior or exterior rust on the unit.

7. Damages caused by services performed by persons other than authorized Midea servicers; use

of parts other than Midea replacement parts; obtained from persons other than such Midea customer service; or external causes such as abuse, misuse, inadequate power supply or acts of God.

8. Service calls resulting from improper installation of your product.

9. Service calls to instruct you on the use of your product.

10. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls,

ferry trip charges, or mileage expense for service calls to remote areas.

11. If the unit is put to commercial, business, rental, or other use or application other than for

consumer use, we make no warranties, express or implied, including but not limited to, any implied warranty of merchantablility or fitness for particular use or purpose.

12. Product that has been removed outside the USA or Canada.

13. Products without original serial numbers or products that have serial numbers which have been

altered or cannot be readily determined. NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages. So this limitation or exclusion may not apply to you. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
