CU 3800 - Knife Orbegozo - Free user manual and instructions

Product type	Electric knife
Brand	Orbegozo
Model	CU 3800
Power supply	230 V, 50 Hz
Maximum power	150 W
Number of blades	2 (normal blade and frozen food blade)
Main functions	Cut fresh bread, meat, sausages, frozen foods (without bones)
Usage	Household use only, do not use outdoors
Maximum usage time	5 minutes without interruption
Starting	Press both safety buttons simultaneously
Cleaning	Blades and accessories washable in soapy water; motor unit wiped with a damp cloth
Maintenance	Do not immerse the motor unit in water
Safety	Very sharp blades, unplug before handling; do not leave unattended
Accessories	Use only original accessories
Repairability	If the cord is damaged, contact an authorized technical service
Warranty	Keep the receipt and warranty card
Environmental protection	Do not dispose of with household waste; recycle according to the WEEE directive

Frequently Asked Questions - CU 3800 Orbegozo

How to assemble the blades of the Orbegozo CU 3800 knife?

Place the ends of the blades into the slot on the motor unit and push them in until they are firmly fixed. Check that they do not move before use. Be careful as the blades are very sharp.

Can I cut frozen foods with this knife?

Yes, use the special blade for frozen foods (5). Never cut bones with this blade. The normal blade (4) is reserved for fresh foods like bread, meat or sausages.

What is the electrical power of the CU 3800 model?

The Orbegozo CU 3800 knife has a maximum power of 150 W and operates on a 230 V / 50 Hz power supply.

How to clean the knife after use?

Unplug the appliance. Wash the blades and accessories in soapy water. Wipe the motor unit with a slightly damp cloth. Never immerse the motor unit in water or other liquid.

What are the important safety precautions?

The blades are very sharp: handle them by the tip or handle. Always unplug the appliance before changing or cleaning the blades. Do not leave the appliance unattended while operating. Do not cut for more than 5 minutes without interruption.

What to do if the power cord is damaged?

If the cord is damaged, contact an authorized technical service to have it replaced to avoid any danger. Do not use the appliance with a damaged cord.

How long can I use the knife without interruption?

The manual recommends not using the appliance for more than 5 minutes consecutively. After this time, let it cool down before using again.

Can I use this knife to cut bones?

No, the normal blade is not designed to cut bones. Use it only for bone-free foods (bread, boneless meat, etc.). The frozen food blade only cuts frozen products without bones.

How to start the Orbegozo CU 3800 knife?

For safety reasons, you must press both push buttons on the top of the appliance simultaneously. Do not release the buttons until after stopping the appliance.

Where can I find the complete user manual?

The user manual is available for free download in PDF format on sites like notice-facile.com. You can also contact the manufacturer by email at [e-mail] to obtain a copy.

USER MANUAL CU 3800 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

GENERAL SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

General safety instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid a hazard.

6.Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8.Do not handle the appliance with wet hands.
9.Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]
14. WARNING: In case of misuse, there is a risk of possible injury.

Important safety instructions

• The appliance is designed exclusively for private use and for the envisaged purpose.

• This appliance is intended for household use only.
  This appliance is not for commercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands.

• Do not touch water while it is working.
• Disconnect the appliance and unplug from power supply if machine is left unattended, of before changing the accessories or nearest parts that move when machine is used, assembled, disassembled or during cleaning.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Use only original spare parts.

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

• Do not immerse the motor unit in water nor rinse it under the tap.

• Always place the appliance on a flat, stable surface.

Special Safety Instructions

• Attention, the cutting blades are extremely sharp! Handle with extreme care when using the appliance and when cleaning the blades!
• Warning! The blades are very sharp. Before inserting or removing the blades, always remove the mains plug.
• Do not leave the knife unattended when it is ready to operate.
• Do not cut any deep frozen food or bones with the normal knife.
• Do not operate the knife for more than 5 minutes without a break.

• Remove the motor device and the accessories from the box. Also remove any packaging materials that may be present.
• Wipe all the parts with a moist cloth to remove all the dust that may have deposited on and in the device during transport. Then mount the device again by proceeding in the opposite order.

WARNING: Please be particularly careful when handling the blades. There is a danger of injury. Only hold the blades as near to the ends as possible or by the plastic handling surfaces.

• Assemble the blades as shown in illustration 1.

• Insert the ends of the knives into the retainer on the motor device.

• With the frozen food knife (5) you can only cut frozen foods without bones. With the normal knife (4) you can cut: fresh bread, meat, roasts etc.
• Press the blades in the direction of the motor device until the ends are felt to lock in place. Check that they are firmly attached.
• Insert the plug in a duly installed 230 V 50 Hz socket.

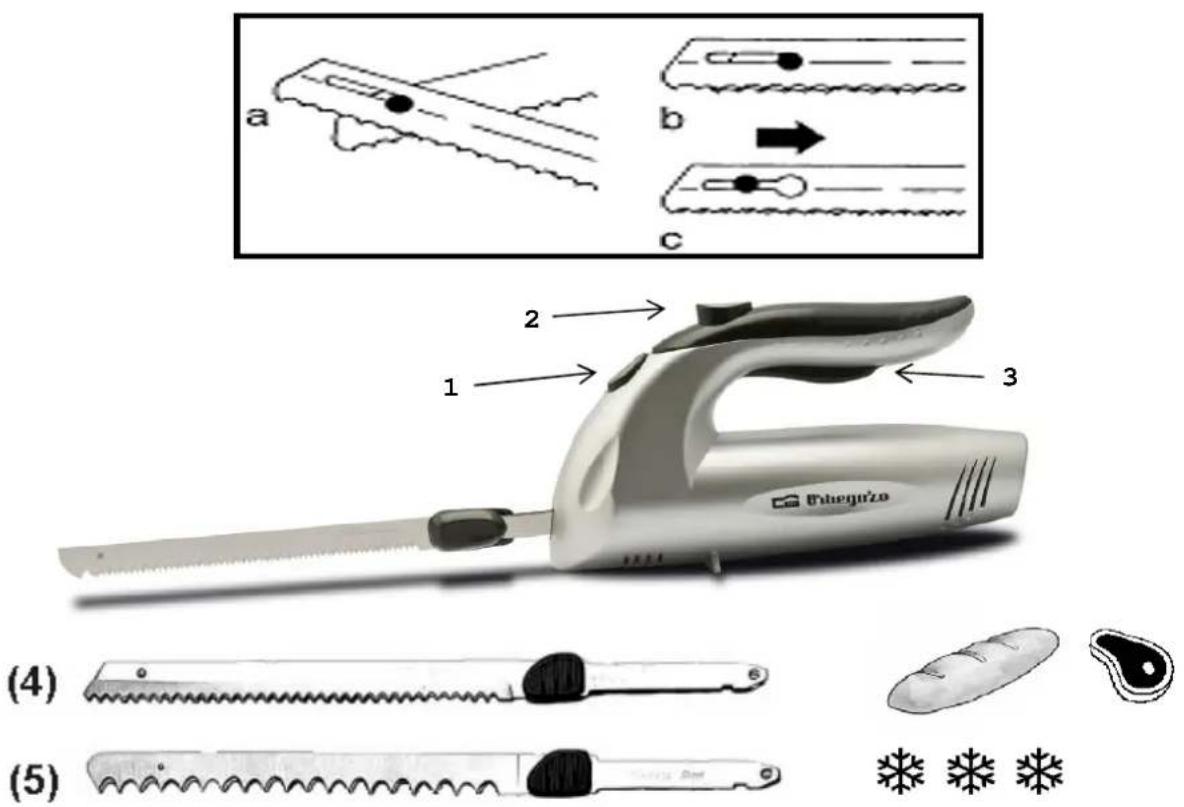

Illustration 1

SWITCHING ON

• Please note that for safety reasons the knife can only be switched on if switches 2 and 3 pressed.
• Do not exert too much pressure when cutting; allow the knife to do the cutting.
  After use, please remove the plug from the socket and take out the blades by pressing button 1

CLEANING

• Remove the mains plug from the socket.
  Please take care with the sharp knives!
  Clean the individual parts in the usual way in soapy water.
• The housing of the motor device can be wiped off with a slightly moistened cloth. Do not immerse the motor device in water!

TECHNICAL DATA

Model: CU 3800

Power supply: 230 V~50 Hz

Power consumption: Pmax: 150 W

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
