USER MANUAL PHE 85 Orbegozo

Black outdoor portable heater with a metal grille and red vent, no visible text or symbols

PHE 85

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Igniter OFF HIGH PILOT LOW

LIM PIEZA Y MANTENIMIENTO

Exploded view diagram of a portable air conditioner unit with labeled components A through E

PIEZAS ENSAM BLAJE

Bolt M8 X 15 Qty. 2

Flange nut Qty. 2

Screw M5 X 8 Qty. 8

M6 Dome Nut Qty. 1

Philips screwdriver Qty. 1

Wrench Qty. 1

AA Battery (1.5 V) Qty.1

PROCESO DE MONTAJE

Technical line drawing of a cylindrical device with internal components and mounting holes (no text or symbols)

D AA E BB

CC Screw M5 X 8 x 4 EE Philips screwdriver x 1

3 B CC

4 A DD

DD M6 Dome Nut x 1

Technical line drawing of a cylindrical industrial device with internal components and no visible text or symbols

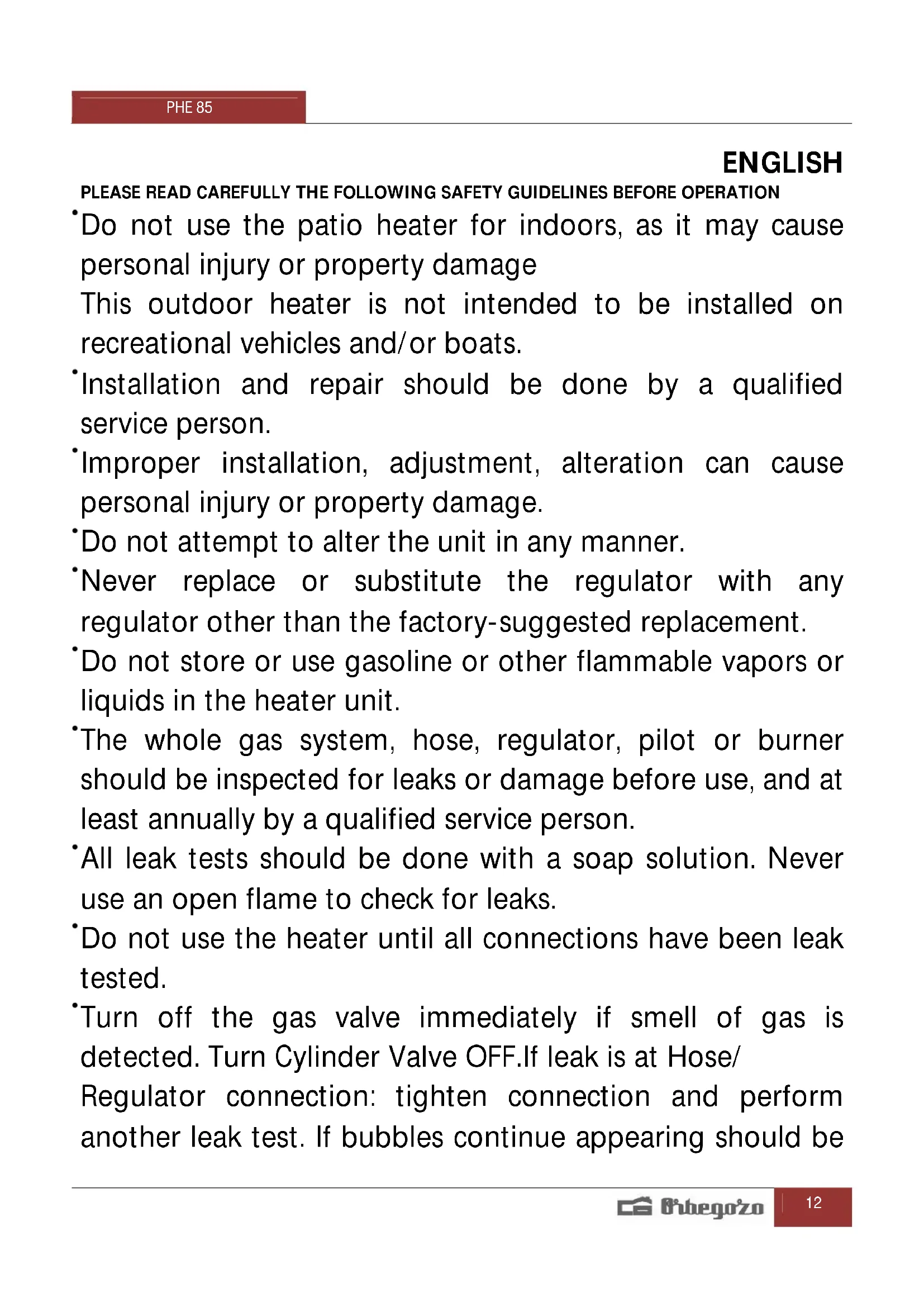

• Do not use the patio heater for indoors, as it may cause personal injury or property damage

This outdoor heater is not intended to be installed on recreational vehicles and/or boats.

• Installation and repair should be done by a qualified service person.

*Improper installation, adjustment, alteration can cause personal injury or property damage.

• Do not attempt to alter the unit in any manner.

• Never replace or substitute the regulator with any regulator other than the factory-suggested replacement.

• Do not store or use gasoline or other flammable vapors or liquids in the heater unit.

•The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or damage before use, and at least annually by a qualified service person.

• All leak tests should be done with a soap solution. Never use an open flame to check for leaks.

• Do not use the heater until all connections have been leak tested.

•Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF.If leak is at Hose/

Regulator connection: tighten connection and perform another leak test. If bubbles continue appearing should be

returned to hose's place of purchase. If leak is at Regulator/Cylinder Valve connection: disconnect, reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be returned to cylinder's place of purchase.

*Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF.If leak is at Hose/Do not transport heater while it's operating.

• Do not move the heater after it has been turned off until the temperature has cooled down.

- Keep the ventilation opening of the cylinder enclosure free and clear of debris.

• Do not paint the radiant screen, control panel or top canopy reflector.

• Control compartment, burner and circulation air passageways of the heater must be kept clean. Frequent cleaning may be required as necessary.

•The LP tank should be turned off when the heater is not in use.

•Check the heater immediately if any of the following occurs:

- The heater does not reach temperature.

- The burner makes popping noise during use (a slight noise is normal when the burner is extinguished).

- Smell of gas in conjunction with extreme yellow tipping of the burner flames.

•The LP regulator/hose assembly must be located out of pathways where people may trip over it or in area where the hose will not be subject to accidental damage.

• Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.

• Adults and children should stay away from high temperature surface to avoid burns or clothing ignition.

•Children should be carefully supervised when they are in the area of the heater.

• Clothing or other flammable materials should not be hung on the heater or placed on or near the heater.

• To change the gas cylinder in a amply ventilated area, away from any ignition source (candle, cigarettes, other flame producing appliances, ...).

• To check that the regulator seal is correctly fitted and able to fulfill its function showed as photo right;

• To not obstruct the ventilation holes of the cylinder housing;

• To close the gas supply at the valve of the gas cylinder or the regulator after use;

• In the event of gas leakage, the appliance shall not be used or if alight, the gas supply

shall be shut off and the appliance shall be investigated and rectified before it is used again;

• To check the hose at least once per month, each time the cylinder is changed, or each time before long time no use. If it shows signs of cracking, splitting or other deterioration it shall be exchanged for new hose of the same length and of the equivalent quality.

•The use of this appliance in enclosed areas can be dangerous and is PROHIBITED;

•Read the instructions before using this appliance. The appliance must be installed in accordance with the instructions and

local regulations.

HEATER STAND AND LOCATION

The heater is primarily for outdoor use only. Always ensure that adequate fresh air ventilation is provided.

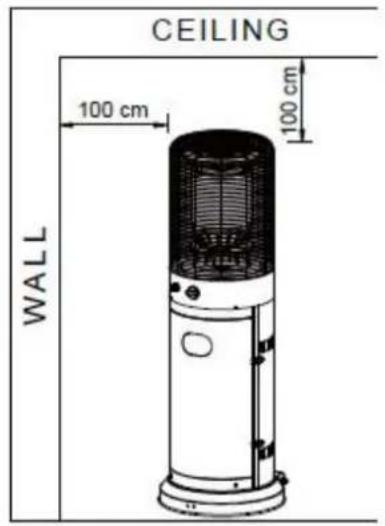

Always maintain proper clearance to non protected combustible materials i.e. top 100 cm and sides 100 cm minimum.

Heater must be placed on level firm ground.

Never operate heater in an explosive atmosphere like in areas where gasoline or other flammable liquids or vapors are stored.

To protect heater from strong wind, anchor the base securely to the ground with screws.

CEILING 100 cm 100 cm WALL

GAS REQUIREMENTS

Use propane, butane or their mixtures gas only. We strongly recommend to use propane, because it has a lower freezing point, suitable to be outdoor. The pressure regulator and hose assembly to be used must conform to local standard codes. The installation must conform to local codes, or in the absence of local codes, with the standard for the storage and handling of liquid petroleum gases. A dented, rusted or damaged tank may be hazardous and should be checked by your tank supplier. Never use a tank with a damaged valve connection.

LEAKAGE TEST

Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness check must be performed at the installation site due to possible mishandling in shipment or excessive pressure being applied to the heater. Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied with a spray bottle, brush or rag. Soap bubbles will appear in case of a

leak. The heater must be checked with a full cylinder. Make sure the safety control valve is in the OFF position. Turn the gas supply ON. In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and recheck. Never leak test while smoking.

1. Turn on the valve on the gas supply cylinder completely.
2. Press and turn the variable control knob to PILOT position (counter-clockwise 90°).
3. Press down the variable control knob and hold for 60 seconds. While holding down the variable control knob, press the igniter button several times until pilot flame lights. Release the variable control knob after the pilot flame lights. Note: If a new tank has just been connected, please allow at least one minute for the air in the gas pipeline to purge out through the pilot hole. Variable control knob can be released after the pilot flame lights. If the pilot flame does not light or it goes out, repeat step 3.
4. After the pilot flame lights, turn the variable control knob to maximum position and leave it there for 5 minutes or more before turning the knob to desired temperature position.

Warning: check that no broken on the glass is found before operation

TO TURN OFF THE HEATER

1. Turn the variable control knob to PILOT position.

2. Press and turn the variable control knob to OFF position
   Off: Turn off.
   Max: Maximum temperature
   Min: Minimum temperature

3. TURN OFF THE VALVE ON THE GAS SUPPLY CYLINDER COMPLETELY.

Igniter OFF LOW HIgH PILOT

CLEANING AND CARE

Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that are combustible or corrosive.

Remove debris from the burner to keep it clean and safe for use.

Cover the burner unit with the optional protective cover when the heater is not in use.

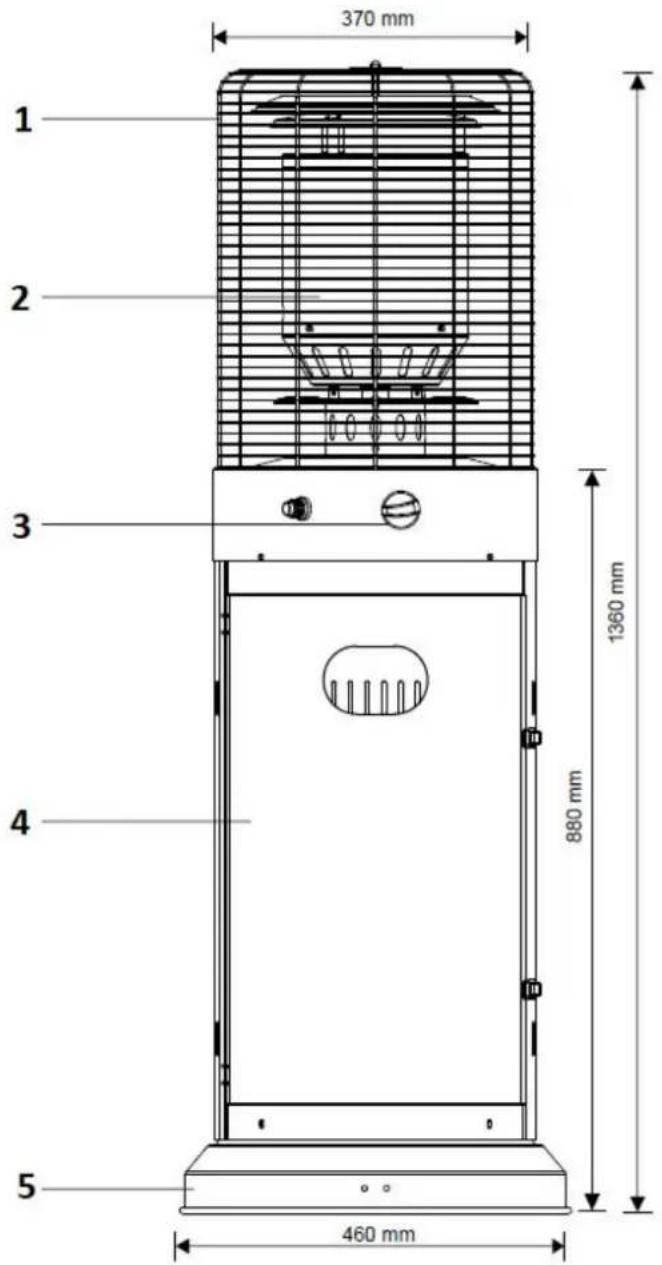

1. Protective guard of flame
2. Assembly burner
3. Control knob
4. Gas bottle housing
5. Base

370 mm 1 2 3 1360 mm 880 mm 4 5 460 mm

PARTS AND SPECIFICATIONS

Specifications

• Use propane or butane.
  • Max. wattage: 11000 watts
  • Min. wattage: 5000 watts
  • Consumption: 800gr/h

Using the proper regulator according to outlet pressure of regulator as showed in the table above.

APPLIANCE CATERGORY:	I_3+ (28-30/37)
TYPE OF GAS:	Butane	Propane
GAS PRESSURE:	28-30mbar	37 mbar
OUTLER PRESSURE OF REGULATOR:	30mbar	37 mbar

Table of injector

APPLIANCE CATEGORY:	I_3+ (28-30/37)
TYPES OF GAS:	Butane	Propane
GAS PRESSURE:	28-30mbar	37 mbar
TOTAL HEAT INPUT (Hs): (Qn)	11 Kw (800g/h)
INJECTOR SIZE:	1.75 mm for main burner0.22 mm for pilot burner

• The hose and regulator assembly must conform to local standard codes
- Regulator outlet pressure should meet the corresponding appliance category showed in the specifications
• The appliance requires approved hose in 0.5 m

ASSEMBLY PARTS

Tools needed:

Philips screwdriver w/ medium blade Spray bottle of soap solution for leakage test

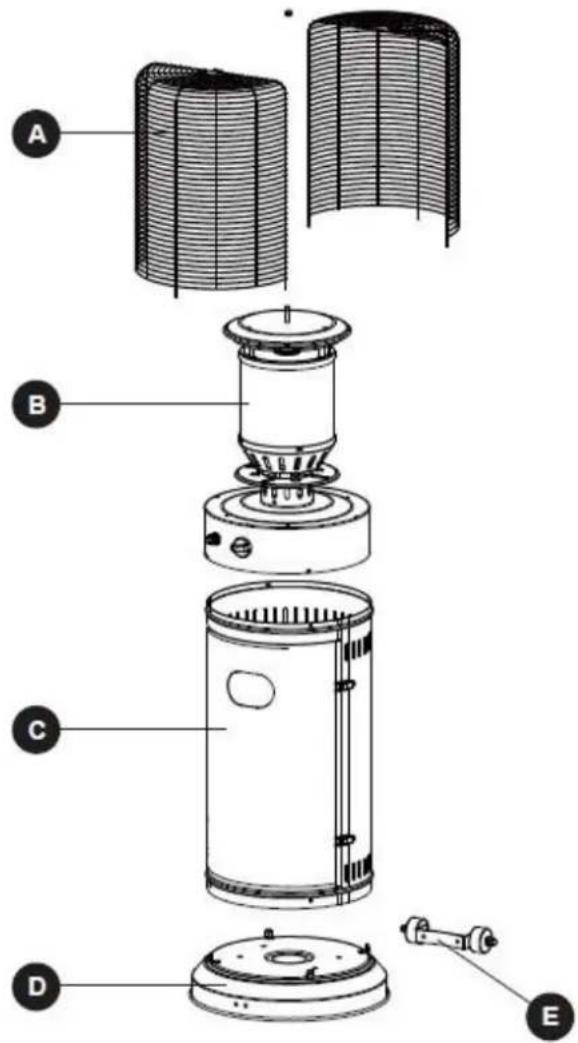

A. Protective guard of flame.
B. Burner
C. Cylindric housing
D. Base
E. Wheels

Exploded view diagram of a portable air conditioner unit with labeled components A through E

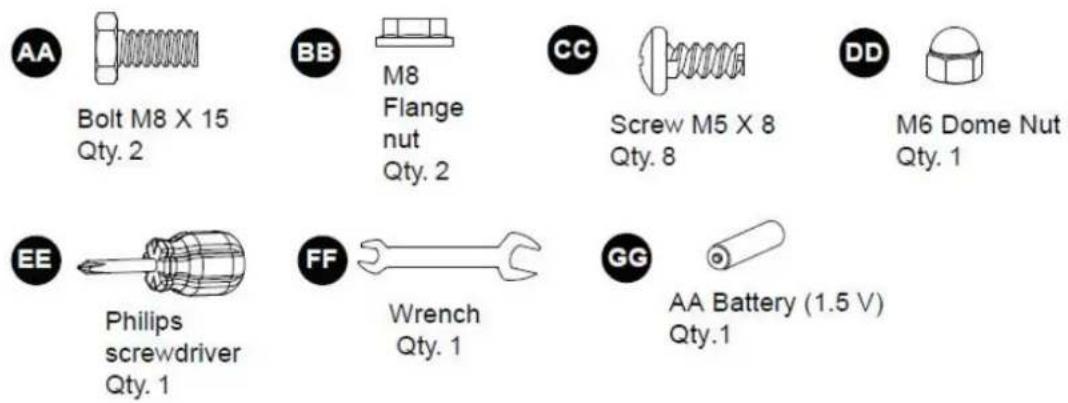

ASSEMBLAGE PIECES

Bolt M8 X 15 Qty. 2

Flange nut Qty. 2

Screw M5 X 8 Qty. 8

M6 Dome Nut Qty. 1

Philips screwdriver Qty. 1

Wrench Qty. 1

AA Battery (1.5 V) Qty.1

ASSEMBLY PROCEDURES

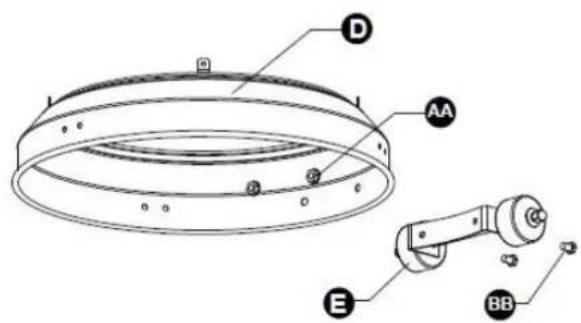

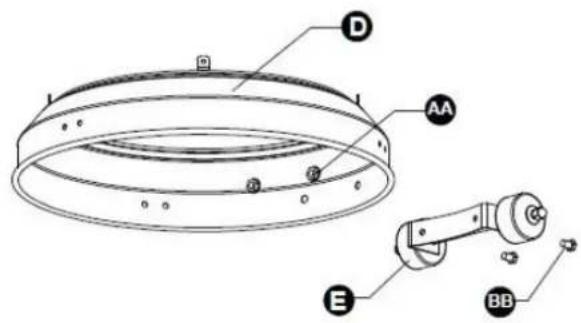

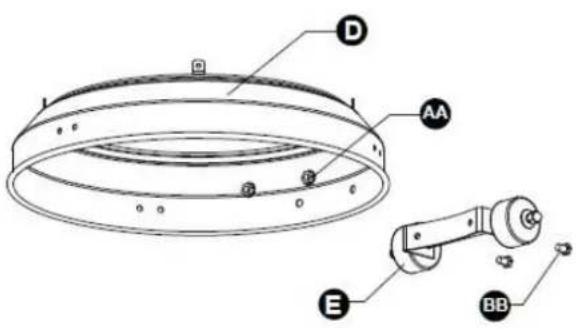

1. Use 2 screws M8X15mm and nuts M8 to screw wheels to the base.

M8 Flange Nut

× 2

M8 x 15 mm Bolts

×2

Wrench

x 1

2

Technical diagram of a cylindrical device with labeled components, including a base plate and internal structure.

1

D AA E BB

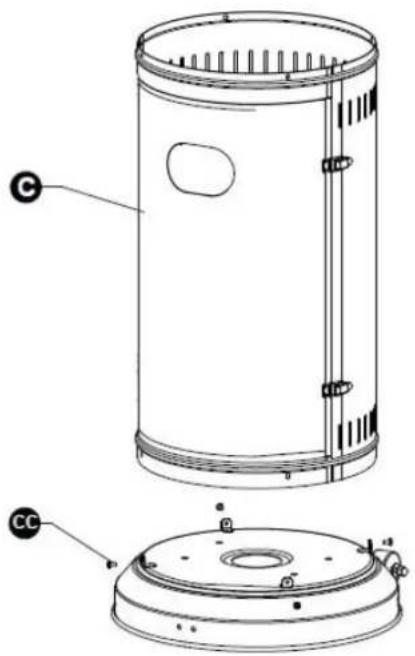

1. Use 4 screws M5X8 to screw cylindric housing to base.

Screw M5 X 8

× 4

Philips screwdriver

× 1

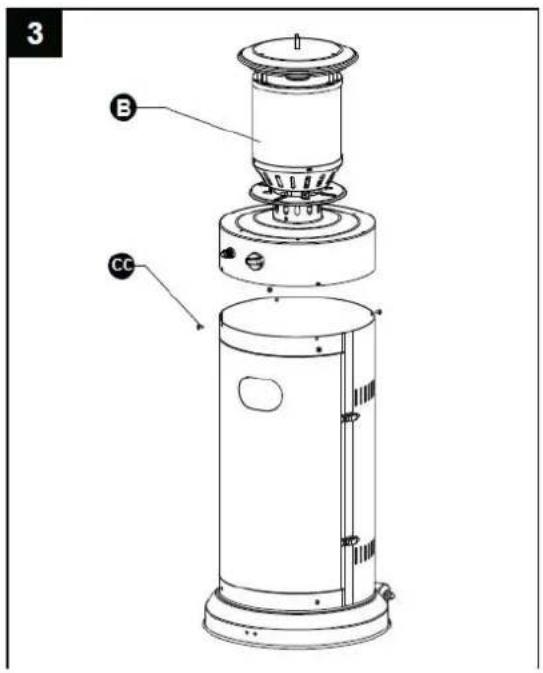

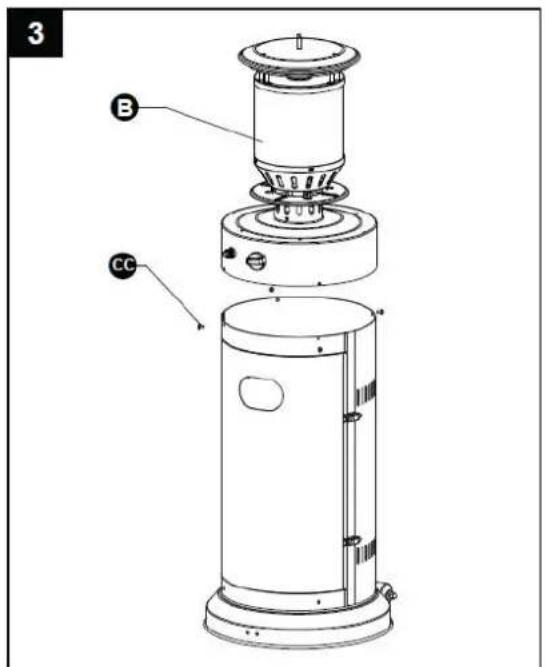

1. Use 4 screws M5X8 to assemble burner on cylindrical housing.

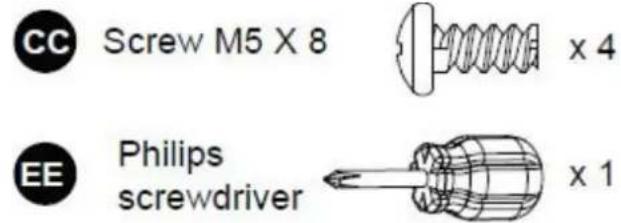

CC Screw M5 X 8 x 4 EE Philips screwdriver x 1

3 B CC

4 A DD Φ

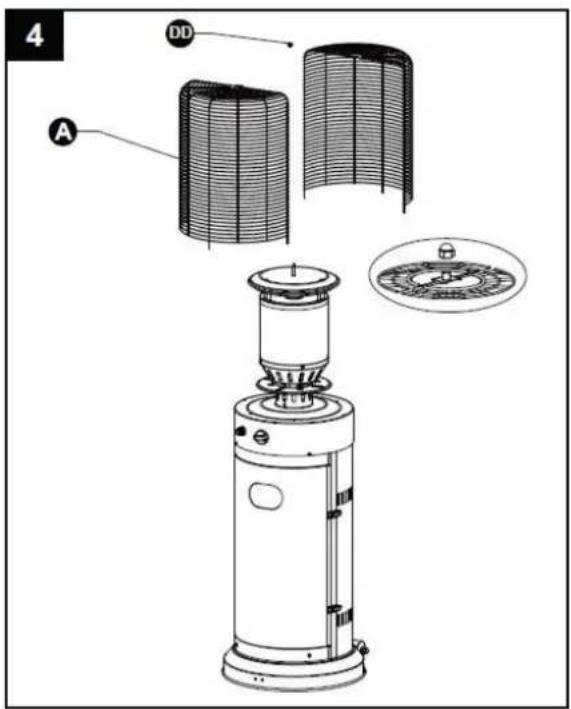

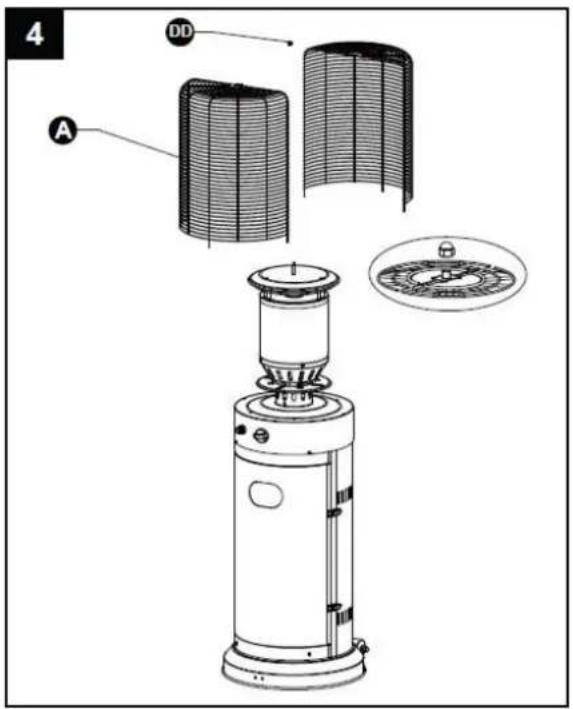

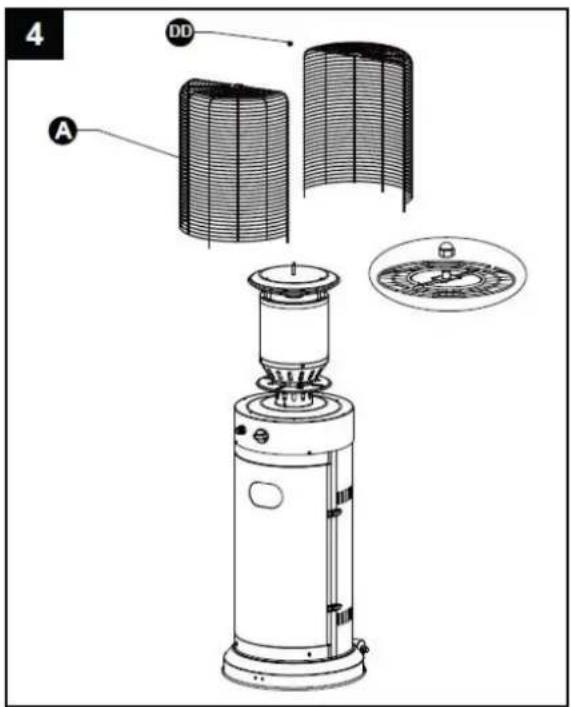

1. Place protective guards on burner. Use dome nut M6 to fit the guards on their position.

DD M6 Dome Nut x 1

Technical line drawing of a cylindrical industrial device with internal components and no visible text or symbols

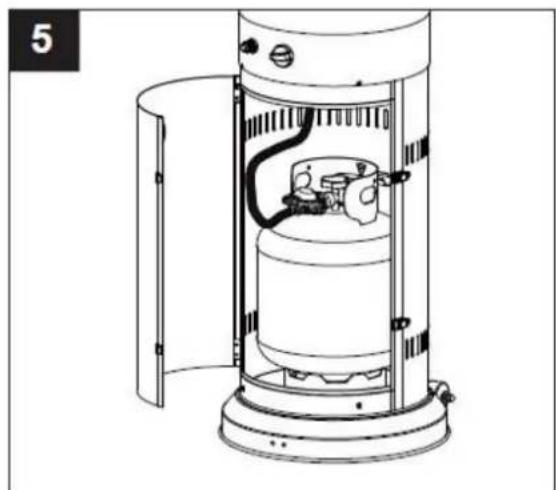

1. Put bottle inside cylindric housing and connect the gas regulator to it. Assure the bottle with the belt inside the housing to avoid tipping over.

2. Leak check. You must check it before first use, each year and when you replace any gas component as hose or regulator. Don't smoke while you are checking gas leak and remove all ignition fonts nearby. Put knob in OFF position. Open the gas valve of regulator. With a solution half-by-half of

water and soap, brush every joins, regulator connections, hose, knobs and valves. If bubbles appear it will mean there is a gas leak. Tighten well every connection o change the part in the case it is damaged. In the case that you cannot stop gas leak, close gas valve immediately and advice technical service. Do not use the heater until you don't solve gas leak.

PROBLEMS CHECK LIST

PROBLEM	PROBABLE CAUSE	SOLUTION
Pilot will not light	Gas valve may be OFFTank fuel emptyOpening blockedAir in supply systemLoose connections	Turn the gas valve ONRefill LPG tankClean or replace openingPurge air from linesCheck all fittings
Pilot will not stay on	Debris around pilotLoose connectionsThermocouple badGas leak in lineLack of fuel pressure	Clean dirty areaTighten connectionsReplace thermocoupleCheck connectionsTank near empty. Refill LPG tank
Burner will not light	Pressure is lowOpening blockedControl not ONThermoscouple badPilot light assembly bentNot in correct location	Tank near empty. Refill LPG tankRemove and cleanTurn valve to ONReplace thermocouplePlace pilot properlyPosition properly and retry

FRANÇAIS

LIRE LES INSTRUCTIONS AVANT LA MISE EN FONCTIONNEMENT

Igniter OFF HIGH PILOT LOW

NETTOYAGE ET ENTRETI EN

Exploded view diagram of a portable air conditioner unit with labeled components A through E

PIECES D'ASSEMBLAGE

Bolt M8 X 15 Qty. 2

M8 Flange nut Qty. 2

Screw M5 X 8 Qty. 8

M6 Dome Nut Qty. 1

Philips screwdriver Qty. 1

Wrench Qty. 1

AA Battery (1.5 V) Qty.1

PROCÉDURES D'ASSEMBLAGE

Technical diagram of a cylindrical device with labeled components, showing internal structure and mounting points.

1

D AA E BB

CC Screw M5 X 8 x 4 EE Philips screwdriver x 1

3 B CC

4 A DD

DD M6 Dome Nut x 1

Technical line drawing of a cylindrical industrial device with internal components and no visible text or symbols

Igniter OFF LOW PILOT HIGH

3. DESLIGUE A VÁLVULA DO CILINDRO DE SUPRIMENTO DE GÁS COMPLETAMENTE.

Exploded view diagram of a portable air conditioner unit with labeled components A through E

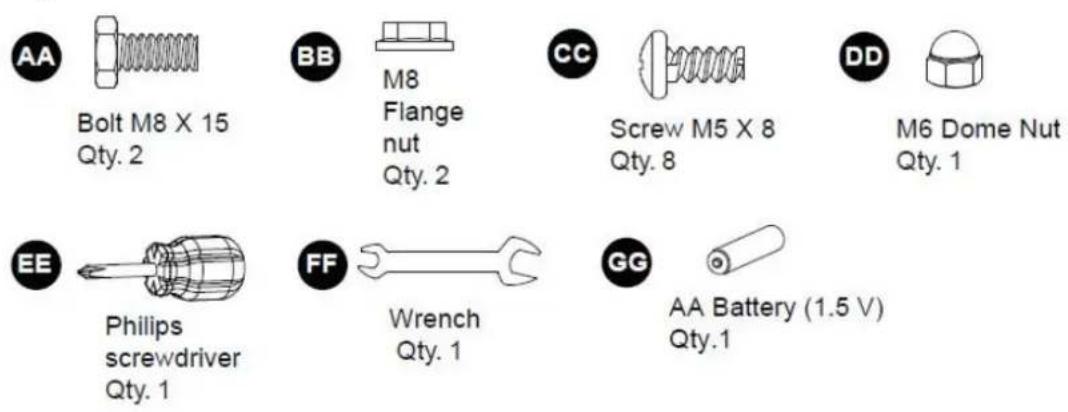

PEÇAS DE MONTAGEM

Bolt M8 X 15

Qty. 2

M8

Flange

nut

Qty. 2

Screw M5 X 8

Qty. 8

M6 Dome Nut

Qty. 1

Philips

screwdriver

Qty. 1

Wrench

Qty. 1

AA Battery (1.5 V)

Qty.1

Technical diagram of a cylindrical device with labeled components, showing internal structure and mounting points.

1

D AA E BB

1. Use 4 parafusos M5X8 para parafusar o alojamento cilíndrico na base..

Screw M5 X 8

× 4

Philips

screwdriver

x 1

CC Screw M5 X 8 x 4 EE Philips screwdriver x 1

3 B CC

4 A DD

DD M6 Dome Nut x 1

1. Coloq ue o

Technical line drawing of a cylindrical industrial device with internal components and no visible text or symbols
