USER MANUAL REW 1000 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

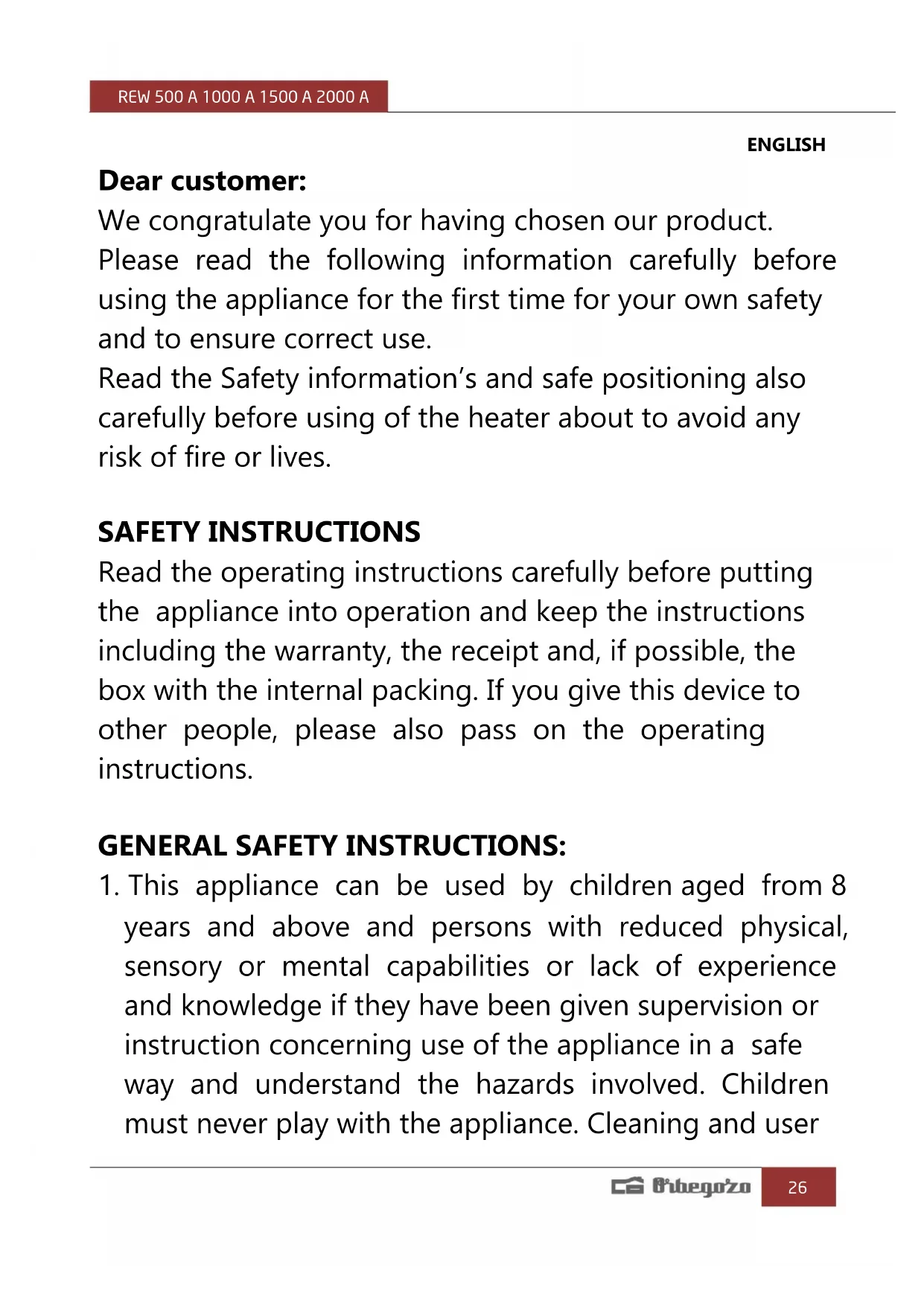

We congratulate you for having chosen our product.

Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use.

Read the Safety information's and safe positioning also carefully before using of the heater about to avoid any risk of fire or lives.

SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user

maintenance must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
3. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
4. Never pull on the cord when unplugging.
5. Do not use the unit with a damaged cord or plug, or if it is not working properly.
6. Do not handle the appliance with wet hands.
7. Never immerse the appliance in water or any other liquid.
8. Make sure the appliance has been unplugged before cleaning.
9. This appliance must be installed following the national regulations for electrical installations.
10. This appliance is for household use only.
11. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
12. WARNING: In case of misuse, there is a risk of possible injury.

IMPORTANT SAFETY INSTRUCTIONS:

• The meaning of figure in marking is "DO NOT COVER". WARNING: In order to avoid overheating, do not cover the heater.
  Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• The device should not be placed immediately below a socket base.

• Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.

• Do not use this heater in the immediate vicinity of a bath, shower or pool.

• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!
• Do not use the heater in rooms with explosive gas (e. g. petrol) or while using inflammable glue or solvent (e. g. when gluing or varnishing parquet floors, PVC etc.) Do not allow aerosols, inflammable substances or materials sensitive to heat to be in the flow of hot air.
• Do not use the heater in areas or rooms which are a risk of fire, such as garages, stables, wooden shed etc.
• The unit must be mounted such that the control elements cannot be touched by persons who are in bath, shower, or any other water-filled receptacle.
• Always unplugged the heater after use.
• Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!
• Keep the mains cord at a safe distance from the air inlet and outlet grilles.

• Do not use this heater if it has been dropped.

• Do not use if there are visible signs of damage to the heater.

• Use this heating appliance on a horizontal and stable surface, or if possible fix it to a wall.
• WARNING: Do not use this heater in rooms that are occupied by persons who cannot leave the room by themselves, unless permanent surveillance is provided.
• WARNING: To reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1m away from the air outlet.

WIFI CONTROL:

The REW series of Orbegozo can be controlled via Wi-Fi through our ORBEGOZO APP, available for download on Google Play and the App Store. You can control your device remotely very easily and intuitively. For more information, refer to the application manual, also included with the device.

DISPONIBLE EN Google Play

To review all the features of this and any other Orbegozo device, as well as to access an explanatory video about the configuration of the radiator with our APP, go to www.orbegozo.com and search for your model or scan the following QR code:

TECHNICAL DATA AND DIMENSIONS:

Model	REW 500 A	REW 1000 A	REW 1500 A	REW 2000
Voltage	230V~	230V~	230V~	230V~
Frequency	50Hz	50Hz	50Hz	50Hz
Power	400W	1000W	1500W	2000W
L (mm)	540	790	915	1040
H (mm)	386	386	386	386
D (mm)	58	58	58	58

INSTALLING INSTRUCTION

This heater can be used freestanding or wall-mounted.

Free-standing:

1. When used in free-standing position, it must be standing in a horizontal position, Do not place the heater on instable surfaces, such as bed, carpets etc. and do not use the heater on uneven position, where the heater can tip-over-otherwise there is a risk of fire.
2. A safe area to be left free is 500mm at the top and 150mm at the sides, and at the front, and at the back

How to install the feet:

Screw the 2pcs feet to the bottom of heater. (Fig.1)

Fig.1

ATTENTION:

When installing the heater on its support feet, place it on a surface that supports high temperatures.

Wall mounting:

1. Always try to install the heater onto an external wall (cold) under a window, but Never in a ventilated area.Follow the minimum safety distances for installation.

2. The heater should be placed with a minimum distance 150mm from all objects, walls (Fig 2). The distance from the floor must be 200mm , from the top must be 500m .

How to mount the heater:

Always respect the minimum dimensions shown in Fig 2.

1. Screws 4pcs brackets into back body of heater. See Fig.3

Fig.3

1. Mark 4 holes on the wall depends on its model.Take as a reference Fig.4 and table 4.1

MODEL	D1 (mm)	D2 (mm)	H2 (mm)	H1 (mm)
REW 500	272	120	300	235
REW 1000 A	520	368	300	235
REW 1500 A	647	495	300	235
REW 2000 A	772	620	300	235

Fig.4
Table 4.1

1. Drill four holes (Diameter 8mm) on the wall according to the holes previously marked. Insert 4pcs wall plugs into the wall, then Screw 4pcs wall support into wall plugs.(Fig.5)

Fig 5

1. Hang the heater to the wall, making sure that the wall support will fit well on the heater's brackets. (Fig 6.1 and Fig 6.2)

1. Drill two screws into the upper wall support. (Fig. 7)

Fig 7.1
Wall

Fig 7.2
Wall

PARTS DESCRIPTION

A: The comfort square(sun)
B: The economy square(moon)
C:Comfort Mode symbol
D: OFF symbol
E: Economy Mode Mode symbol
F: Open Window Detection function working indication

G: Anti-frost Mode symbol
H: The clock indication in one day.
I: The day of week
J: Indication of the day of week
K: Setting temperature
L: indication of Wifi connection
M: indication of heat on
N: The clock indication in one day.

OPERATE INSTRUCTIONS

This radiator is not only App controlled, but also manual controlled and remote controlled. Remote control operates similar to Manual control operate, except that "Child lock" and "Open Window detection" function.

Comfort temperature and Economy temperature :

The Comfort temperature is the one most frequently used. The Comfort temperature in winter is usually between 20 and 23^ .

The Economy temperature is the temperature at which the appliance makes a moderate consumption, saving energy, since it maintains the room at a constant temperature, bearing in mind the previous values and a series of others (geography, altitude, orientation, etc.).

Recommendations for saving and optimising consumption:

It is highly recommendable to use programmers to adjust the radiator to our lifestyle and thus optimise consumption.

It is important each room is heated at the right temperature at all times. A perfect balance between comfort and savings should be achieved.

	Room	Comfort Temperature	Economy Temperature
Day-time	Living room, office	21-22°C	18°-19C
Night-time	Bedroom	20°C (When we get up and go to bed)	17°C (While we are sleeping)
	Common areas	18-19°C	15-16°C

Switch on the radiator:

Notice : When you switch on the Radiator, the microprocessor reads the internal memory of the appliance and remembers the last mode set by the user.

In the first power on, the memory is empty, reason why the screen will blink constantly until any key is pressed.

Once the heater has been correctly placed and plugged into the socket, please press "Main Power switch" to "I" position to have voltage in it. (Fig 7)

when connected to the power supply success,OFF symbol will appear on the display.(Fig.8)

Fig.7

Fig.8

HOW TO CHOOSE WORKING MODE:

Press (Fig 9), the appliance will go on and one of the following modes will be displayed (Fig 10, Fig.11, Fig 12, Fig 12, Fig 13):

Fig.9

Comfort Mode. (Fig.10)

We set the Comfort temperature according to our requirements by pressing button ^+ or.

Fig.10

Economy Mode (Fig.11)

We set the Economy temperature according to our requirements by pressing button ^+ or -.

Fig.11

Important: The temperature in Economy mode is always 3^ lower than Confort mode. Hence, if you change the temperature in any of these two modes, the other one will change automatically too in order to maintain the 3^ difference.

For example: if we set a Comfort temperature of 24^ , the Economy temperature automatically falls to 21^ . In the same way, if we set the temperature of Economy mode to 20^ , Confort one will change automatically to 23^ .

Programming Mode: (Fig.12)

Fig.12

Anti-frost Mode: (Fig.13)

This mode is equivalent to turning Off the device and its function is to avoid the temperature to go below 7^ . The radiator will turn on only if the temperature falls below 7^ . This mode cannot be adjusted.

Fig.13

To change mode: Press button M briefly to change mode: : (Fig.14)

Fig.14

The symbol is displayed in every mode when the resistance is working.(Fig.15)

Fig.15

HOW TO PROGRAMME YOUR RADIATOR:

Go to OFF mode as in the picture

Press and hold the button for 5 seconds

Here is the programming display

Fig.16

The next display will appear immediately, showing Monday at 00:00 as default (Fig.17). From now on, you have to program the unit in sections of one hour choosing what mode you need in each section: Comfort, Economy or Anti frost (off). Once you have finished the program of 24 hours of Monday, you'll move on automatically to the next day at 00:00 (Monday 1, Tuesday 2. Wednesday 3, Thursday 4, Friday 5, Saturday 6, Sunday 7).

Top square: COMFORT

Bottom spare : ECONOMY

Nothing: ANTI-FROST

Fig.17

The programming of each hour is carried out as follows:

• Button M is for changing the mode (Comfort, Economy, Anti-frost).
• Button + is for moving to the next hour.
• Button - is for get back to the previous hour.

Let's see a step-by-step example.

After pressing and holding button for 5 seconds (Fig.18)

Fig.18

We can see that the display appears (Fig.19). First we must know that programming is to be done hour by hour passing through all the days of the week.

Let's say, for example, we want to program the Comfort mode between 00:00 and 1:00 on Monday. Press button M until the comfort symbol A appears (Fig.19), then press button+. By doing this, we have set the Comfort mode between 0:00 and 1:00 and we will move to the next hour section, from 01:00 to 02:00 (Fig.20).

Comfort Mode symbol displays or flashes
Fig.19

Now we're going to set the Economy mode between 1:00 and 2:00, by simply pressing button M until the economy mode symbol C appears (Fig.21), press button +, by doing this, we have set the Economy mode between 1:00 and 2:00 and the hour will be moving forward to 2:0, to select the next section from 02:00 to 03:00 (Fig.22).

Fig.21

Fig.22

Now we're going to set the Anti-frost mode between 2:00 and 3:00, by simply pressing M until the anti-frost symbol * appears (Fig.23), then press button +. By doing this, we have set the anti-frost mode between 2:00 and 3:00, and we will move to the next section from 02:00 to 03:00. Remember that Anti-Frost mode is equivalent to OFF mode.

Fig.23

Summary of what we have done. We have programmed the following: the Comfort mode between 0:00 and 1:00; the Economy mode between 1:00 and 2:00, and the Anti-frost mode between 2:00 and 3:00. (Fig.24)

Anti-frost mode 2:00 and 3:00. No square

Comfort mode 0:00 and 1:00. Top square

Economy mode 1:00 and 2:00.Middle square

Fig.24

We repeat to do the above procedure, we can successively programme from 0:00 to 23:00 (24 hours) with different modes., and then we continue with the other days of the week (Monday - Sunday).

How to programme the current day of the week and time:

When we finish 7*24 hours programme, press next display appears (Fig.25), this display which is for setting the current day and time

Fig.25

With the button + or - we pass through the days until we find the current day, e.g. Monday, we go to 1, or Wednesday, we using button + or - to 3. (Fig.26)

Fig.26

Now we press button M and the hour display starts to flash. With button + or - we adjust the display to the correct hour, then press button M.

Now the minutes display starts to flash. With button + or - we adjust the display to the correct minute, then press M. The appliance returns to the OFF position.(Fig.27)

Fig.27

Important:

1. If you want to change the mode at any time, use the - button to go back hour by hour and press M to change the mode to the desired one.
2. You must schedule 24/7. You can't skip days and leave them unscheduled. If you want to program a day in which the transmitter is switched off at all times, you must select the Antifreeze mode at all hours of that day.
3. If you want to exit at any time to set the current day of the week and time, press . Keep in mind that the transmitter will work with the last programming carried out on each day. That is, if you exit the schedule after ending Wednesday (3), the device will work with the schedule you just did between Monday (1) and Wednesday (3) but from Thursday (4) to Sunday (7) it will work with the last programming that has been done in those days.

Now we are ready to use the programming mode. To activate it, all we have to do is switch on the appliance by pressing the button and search for the programming mode with the button M until the next display appears fluctuating between these two. (Fig.28) This means that the programming mode has been activated and is now working. (This is the only way to set the programming mode).

Fig.28

When the programming mode is working,

• On this display, We can see the day, the temperature according to the set mode (Comfort, Economy, Anti-frost) and the squares flash showing the current time if the set mode is the Comfort or Economy Mode.
• This display shows Day 1, Comfort mode temperature 24^ and the square is flashing at the sun symbol between 0:00 and 1:00, which means it runs on Comfort mode between 0:00 and 1:00 on Monday.
• On this mode, we can set Comfort or Economy temperature according to our requirements by pressing button + or -.

Fig.29

Temperature Compensation:

Due to the characteristics of the appliance, the temperature is measured on the lower part of the radiator, being perfectly adjusted in relation to the Comfort temperature selected by the user. However, it is also possible to set the "Temperature Compensation" manually. Room temperature recorded - Comfort temperature indicated = Value...

For example:

22^ in a room temperature measured with the thermometer when the Comfort temperature required on the thermostat (indicated) is 20^ .

The temperature compensation value is 22 - 20 = +2^

The user must enter +2^ on the temperature compensation menu.

Step 1: Turn the thermostat to the Off position by pressing the button

Step 2: By pressing button M and holding for for 5 seconds, we will enter this menu where the display shows 0.0

Step 3: Press buttons + or - to adjust fractions of 1^

Step 4: Press button M to confirm and return to the OFF position.

Step 5: Switch on the heater by pressing the button

Child lock :

The user can make sure that nobody changes the set programming, by locking the control panel. This function is very useful for public buildings or for preventing children from tampering with the controls.

It is done by pressing the button + and the button - simultaneously for 5 seconds. Unlocking is done in the same way.

Open Window Detection:

This function makes it possible to detect an open window and automatically activate the anti-freeze operating mode.

It is done by pressing the button and M simultaneously for few seconds, till the symbol appears. If a temperature drop is observed in the room during the normal function, the anti-frost mode is automatically activated to save energy consumption, and the symbol starts to flash continuously. If you press M, the heater will go back to normal function, the symbol will be stop flashing. Cancelling this function is done by the same way.

Possible thermostat problems:

If the thermostat is below -15^ , the screen will display OC.
If the thermostat is above 50^ , the screen will display SC.

CLEANING

We recommend keeping electric radiators clean. Dust may appear, which can burn and settle on the wall and on the emitter in the form of streaks or dark areas. These stains are exclusively due to the lack of cleanliness of the electric radiator and the surrounding area.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed

out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/assistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbego is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

INFORMATION REQUIREMENTS FOR LOCAL SPACE HEATERS (EU)2015/1188
Item	Model identifier	Symbol	Value	Unit	Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	REW 500 A	Pnom	0.5	kW	manual heat charge control, with integrated thermostat	N/A
	REW 1000 A	Pnom	1.0	kW	manual heat charge control with room and/or outdoor temperature feedback	N/A
	REW 1500 A	Pnom	1.5	kW	electronic heat charge control with room and/or outdoor temperature feedback	N/A
	REW 2000 A	Pnom	2.0	kW	fan assisted heat output	N/A
					Type of heat output/room temperature control (select one)
					single stage heat output and no room temperature control	No
Minimum heat output (indicative)	REW 500 A	Pnom	0.5	kW	Two or more manual stages, no room temperature control	No
	REW 1000 A	Pnom	1.0	kW	with mechanic thermostat room temperature control	No
	REW 1500 A	Pnom	1.5	kW	with electronic room temperature control	No
	REW 2000 A	Pnom	2.0	kW	electronic room temperature control plus day timer	No
					electronic room temperature control plus week timer	Yes
					Other control options (multiple selections possible)
Maximum continuous heat output	REW 500 A	Pnom	0.5	kW	room temperature control, with presence detection	No
	REW 1000 A	Pnom	1.0	kW	room temperature control, with open window detection	Yes
	REW 1500 A	Pnom	1.5	kW	with distance control option	Yes
	REW 2000 A	Pnom	2.0	kW	with adaptive start control	No
					with working time limitation	No
					with black bulb sensor	No
Auxiliary electricity consumption
At nominal heat output	All models	eImax	0,000	kW
At minimum heat output	All models	eImin	0,000	kW
In standby mode	All models	eIsB	0,001	kW
Contact details info	SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.

FRANÇAIS

Cher client :

[ceiling = plafond; floor = sol; wall = mur]

MONTAGE DU CHAUFFAGE:

[screw = vis; Wall = Mur]

[screw = vis; Wall = Mur]

DESCRIPTION DES PIECES:

A:Carre de comfort (soleil)

DECLARATION DE CONFORMITE:

[screw = parafuso; Wall = Parede]

DIMENSIONS I DADES TÉCNIQUES:

Model	REW 500 A	REW 1000 A	REW 1500 A	REW 2000 A
Voltatge	230V~	230V~	230V~	230V~
Frequência	50Hz	50Hz	50Hz	50Hz
Potência	500W	1000W	1500W	2000W
L (mm)	540	790	915	1040
A (mm)	386	386	386	386
A (mm)	58	58	58	58

INSTRUCCIONS D'INSTALLACION:

Aquest calefactor es pot utiliser independen o muntat en la paret.

Independent:
