USER MANUAL EPX3050 WESTINGHOUSE

Blue circular icon with a white crown symbol (no text or numbers)

User Manual

ePX3050

Electric Pressure Washer

2100 PSI / 1.76 GPM

Technical line drawing of a portable water heater with wheels and control panel (no text or symbols)

Introduction....2-3
Safety 4-7
Electrical 8
Components 9
Assembly....10-11
Operation....12-14
Maintenance....15
Troubleshooting....16
Warranty 17
Service Hotline/Company Address....Back Page

INTRODUCTION

WARNING

This product and other substances that may become airborne from its use contain chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling. For more information go to www.P65warnings.ca.gov.

DISCLAIMERS

All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice.

ALL RIGHTS RESERVED

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment.

DANGER

Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death.

UPDATES

The latest user manual for Westinghouse products can be found under our support tab. wpowereq.com/pages/manuals

Or scan the following QR code with a smartphone camera to be directed to the link.

PRODUCT REGISTRATION

For trouble-free warranty coverage, it is important to register this Westinghouse product.

Register by:

• Completing and mailing the product registration card included in the carton.
• Online at: wpowereq.com/pages/warranty-registration.
• Scanning the above QR code with a smartphone camera to be directed to the mobile registration link.

For Your Records

Date of Purchase: ____

Model Number: ____

Serial Number: ____

Place of Purchase: ____

- Sending the following product information to:

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

IMPORTANT: Keep the purchase receipt for trouble-free warranty coverage.

QR code image containing encoded data, no visible human-readable text

SPECIFICATIONS

Water Temperature....Cold Water Only

Peak Pressure....2100 PSI

Rated Max Pressure....1800 PSI

Maximum Water Flow Rate ..... 1.76 US GPM (6.7 LPM)

Rated Water Flow Rate ....1.2 US GPM (4.54 LPM)

Phase .... Single

Input.....120 V, AC only, 60 Hz, 13 Amps

WARNING

NEVER spray directly at a person, animal, electrical device, or the unit itself. Failure to ting could result in serious injury, electric shock, or death.

NOTICE

NEVER allow the pressure washer pump to run for more than one minute after the water turned off. This can cause the motor and pump to overheat and fail. Always unwind the etely and remove any objects that may restrict or prevent the flow of water to the machine.

NOTICE

Thank you for choosing Westinghouse! PLEASE READ BEFORE RETURNING THIS NY REASON.

If you have a question or experience a problem with your Westinghouse purchase, call us at 1-855-944-3571 to speak with an agent.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

HAVE QUESTIONS?

Email us at [e-mail] or call 1-855-944-3571

SAFETY DEFINITIONS

The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Be sure that the meanings of this safety information is known to all who operate, perform maintenance on, or are near the pressure washer.

This safety alert symbol appears with most safety

statements. It means attention, become alert, your safety is involved! Please read and abide by the message that follows the safety alerts symbol.

⚠️DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE Indicates a situation which can cause damage to the pressure washer, personal property, and/or the environment, or cause the equipment to operate improperly.

NOTE: Indicates a procedure, practice or condition that should be followed for the pressure washer to function in the manner intended.

SAFETY SYMBOLS

Follow all safety information contained in this user manual as well as the information on the product labeling.

Symbol	Description
	Safety Alert Symbol
	Risk of Injection.
	Electric Shock
	Risk of Explosion. Never spray flammable liquids. Flammable liquids and their vapors can be explosive.
	Do Not Operate in Wet Conditions
	Read Manufacturer's Instructions
	Kickback.
	Double-insulated construction
	Wear eye and ear protection

WARNING

To reduce the risk of injury, read and understand the instructions before using this product.

WARNING

Risk of liquid injection. Never spray humans or animals, as injury could result. Engage the pressure washer is not in use.

● Always read all the instructions before using the product.
- Understand all operating aspects of the pressure washer outlined in this manual to avoid personal injury and/or damage to property.
● Understand and know how to safely stop the product and bleed pressures quickly. Be familiar with all controls.
- Follow the maintenance instructions as specified in the manual.
- Do not use the pressure washer under the influence of alcohol or drugs.
- Keep the operating area clear of all people, animals and hazardous objects.
- Do not overreach or stand on unstable support. Keep good footing and balance at all times.
- The pressure washer is equipped with a Class A Ground Fault Circuit Interrupter (GFCI) which greatly reduces the chance of electric shock while the unit is in use. If replacement of the plug or cord is needed, use only identical replacement parts.
- Failure to read and follow the instructions in the user manual could result in death, bodily injury, and/or property damage.
- When using the pressure washer near children, be sure they are supervised by an adult to avoid injury. Never let a child use the pressure washer.
- This pressure washer conforms to CSA and other safety and consumer standards. Do not modify or rebuild any part of the pressure washer.
- Maintain stable balance and footing while using the pressure washer. Surfaces become slippery when wet and are more slippery when using a detergent or cleaner.
● Never operate the pressure washer in bare feet, sandals, or open-toed shoes.
- Do not touch the high pressure spray with fingers, hands, or feet, and be careful to avoid any contact with eyes as the powerful spray can cause blindness or blast holes in the skin.
● Always wear eye protection to prevent injury to eyes when operating the pressure washer.

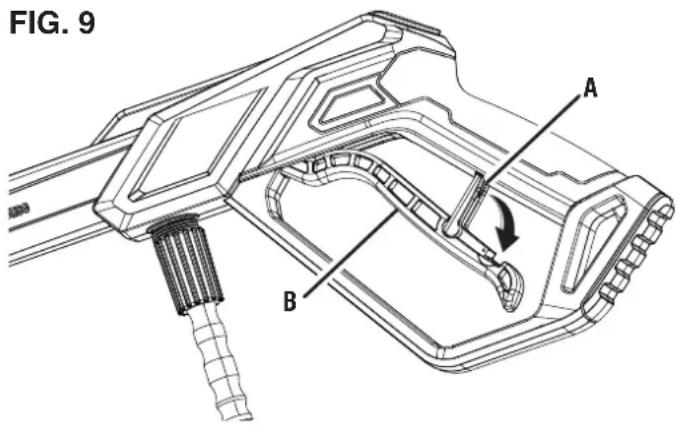

- To avoid accidents causing injury, Always use the trigger safety lock when the pressure washer is not in use even if the spraying stops for a moment.
- Point the spray gun in a safe direction when beginning to use the pressure washer.
- Never spray directly at a person, animal, electrical device, or the unit. The pressure washer can break glass if hit with direct contact.

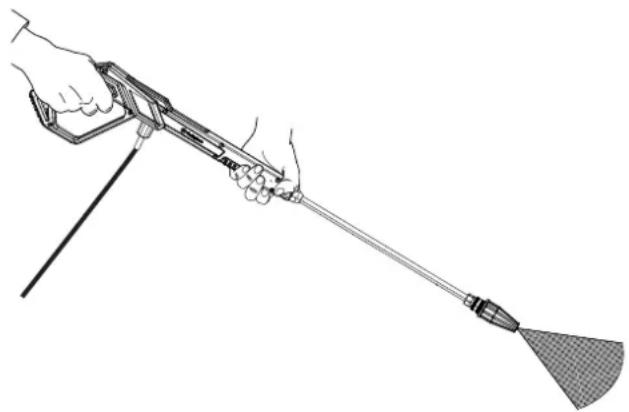

- Hold the spray gun and lance with two hands (one hand to pull the trigger and the other to stabilize the gun).
- After operating the pressure washer, water pressure may remain in the system. To release the pressure, point the spray gun in a safe direction and pull the trigger.
● Never spray flammable liquids.
● Never use the pressure washer in areas that contain combustible dust, liquids or vapors.
- Examine the hose regularly. Replace if damaged. Due to the high pressure involved, the hose cannot be repaired if cut or damaged.
- Only use detergent specifically formulated for pressure washers and follow the instructions on the detergent's label.
- Detergent can be harmful to skin, eyes and lungs. Be cautious when handling any chemicals. Dish and laundry soap is too thick and will clog the nozzle of the detergent bottle.

NOTICE

Store the pressure washer indoors in a heated environment to prevent the water in the unit from freezing and expanding. When the water freezes and expands, the high-pressure pump will crack and render the pressure washer inoperable. It is recommended to use a pump saver (not included) to protect pumps from freezing and cracking.

• Never use hot water with the pressure washer. It will overheat and damage the seals and components in the high-pressure pump that cannot be repaired.
  ● Never leave the pressure washer on while it is unattended.
• Always turn on the water supply before turning on the pressure washer power. Operating the pump dry of water will cause damage to the internal components and render the pressure washer inoperable.
  ● Never use a water supply to the pressure washer that exceeds 150 PSI maximum.
• Never disconnect the high pressure hose from the pressure washer while the system is pressurized.
  ● Never permanently engage the trigger mechanisms on the spray gun.
  ● Never operate the pressure washer unless all components are connected.
• Never allow the pressure washer pump to operate more than one minute after the water supply has been turned off. This can cause the motor and pump to overheat and fail.
• Never use an extension power cord.
• Never use an extension power cord because it can cause a voltage drop and burn the motor. Using an extension cord increases risk of electric shock to the operator.
  ● Never use lances or other parts that are not compatible for this specific Westinghouse unit.
  ● Never spray any electrical outlet with the pressure washer.
• Inspect the power cord before using. Do not use it if it is damaged.
• Keep all connections dry and off the ground. Do not touch the plug with wet hands.
• Retain these instructions. Refer to them frequently and use them to instruct anyone who may use this product.

SAFETY LABELS AND DECALS

See Figure 1.

The following information is on your pressure washer's labels and decals.

Specifications (1)

(See page 3)

EZ Start Instructions (2)

See the "EZ Start Instructions" label and the instructions in the Operations section when starting and stopping the pressure washer.

California Proposition 65 (3)

Cancer and reproductive harm - www.P65Warnings.ca.gov/product

Safety Symbols (4)

(See page 4)

WARNING (5)

- Failure to read and follow the instructions in user manual(s) could result in death, bodily injury, and/or property damage.

• ALWAYS point gun in safe direction and squeeze spray gun trigger to release pressure and avoid kickback each time.
  ● The spray gun kicks back- Hold firmly with two hands.
• Risk of liquid injection. Never spray humans or animals, as injury could result. Engage trigger lock when the pressure washer is not in use.
• Risk of eye injury. Always use caution. Wear safety googles with side shields.
• Risk of electrocution. Never spray water on any electric power sources.
• Do not store the machine or accessories in a place where the temperature could drop below 40°F (4.5°C).

Caution Statement (6)

Before servicing, cleaning or removing parts, shut off the power and relieve the pressure.

FIG. 1

Double insulation eliminates the need for a three-wire grounded power cord. Double insulated products do not need to be grounded because exposed metal parts are covered in protective insulation that isolates them from internal metal motor components.

WARNING

A double insulated system is designed to protect against shock caused by a break in the product's internal insulation. To avoid electric shock, follow all ordinary safety procedures.

NOTE: Double insulated products should only be serviced by qualified service technicians. For more information, contact Westinghouse customer service at 1 [phone].

SERVICING OF A DOUBLE-INSULATED APPLIANCE

In a double-insulated product, two systems of insulation are provided instead of grounding. Grounding means are not provided for a double insulated product, nor should grounding means be added to the product.

A double-insulated product is marked with the words "DOUBLE INSULATION" or "DOUBLE INSULATED". This symbol may also be marked on the product.

AC MOTOR

The electric motor in this product was designed to work with a nominal 120V/60Hz AC power supply (average U.S. household circuit). It is not intended to operate on direct current (DC). A significant voltage drop will result in a loss of power and could damage the motor.

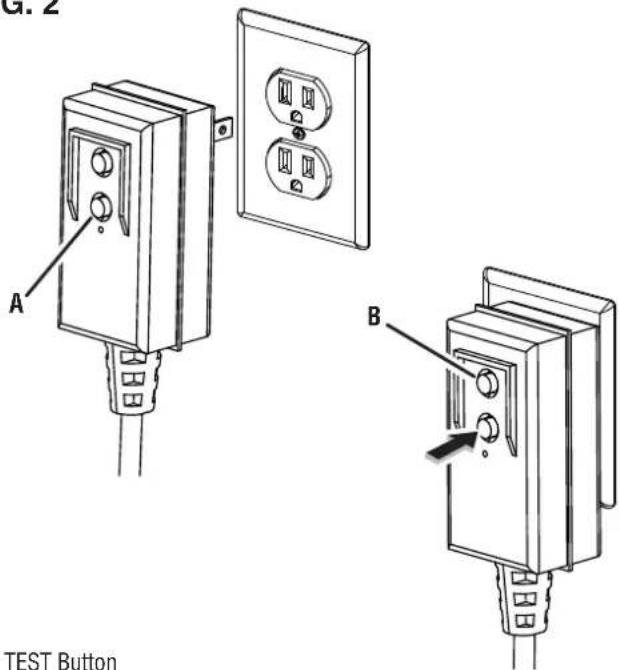

GROUND FAULT CIRCUIT INTERRUPTER PROTECTION

See Figure 2.

This pressure washer is provided with a Class A ground-fault circuit-interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electrical shock. A GFCI protects against ground fault currents such as a current that would flow through a person standing on a wet surface while holding a product with faulty insulation. GFCI plugs do not protect against shocks, short circuits, and overloads. If replacement of the plug or cord is necessary, only use identical replacement parts that include Class A GFCI protection.

To test the GFCI:

● Plug the power supply cord into a receptacle.
- Press the TEST button and listen for a sound to indicate that the connection to the power supply was broken.
- Press the RESET button to restore power to the device. The LED light will turn on when power is restored.

Test the GFCI monthly to ensure proper operation.

FIG. 2

G. 2 A B TEST Button

A - TEST Button B - RESET Button

FIG. 3

Technical diagram of a water heater system with numbered components for identification

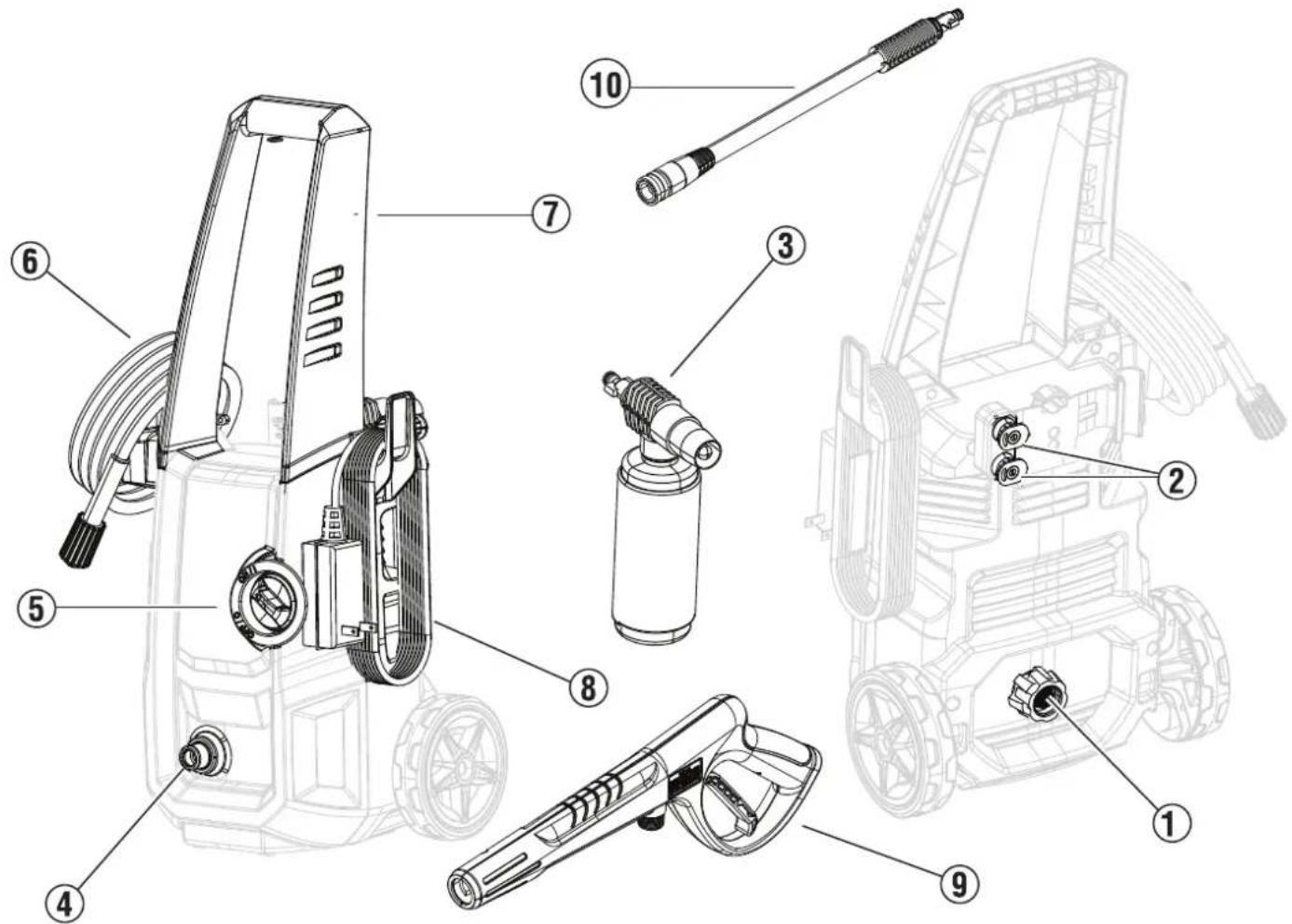

UNDERSTANDING YOUR PRESSURE WASHER

See Figure 3.

To reduce the risk of injury and product failure, read and understand the information in this user manual as well as the information on the product labeling.

WATER INLET (1)

Use the water inlet to connect the high pressure hose to the pressure washer.

NOZZLES (2)

Nozzles of varying sizes are included with this unit and can be used for different cleaning applications.

LOW-PRESSURE SOAP APPLICATOR (3)

Use the low-pressure soap applicator to generate thick clinging foam to break up grease, grime, and stains.

THREADED OUTLET (4)

Use the threaded outlet to connect water supply to the pressure washer.

ON/OFF BUTTON (5)

Push once to start the pressure washer. Push again to stop the pressure washer.

HIGH PRESSURE HOSE (6)

The high pressure hose included with this unit is light weight, flexible, and durable. When not in use, the hose can be stored on the hose retainer.

HANDLE (7)

Use the handle when transporting the unit.

POWER CORD (8)

Use the power cord to connect the pressure washer to a power supply.

SPRAY GUN (9)

Use the spray gun and lance to control and direct the stream of water.

LANCE (10)

Attach the lance to the high pressure hose.

WARNING Do not connect the pressure washer to a power supply until it is fully assembled. To avoid accidental starting and possible serious injury, only connect a power supply when the pressure washer is ready for use.

REMOVING CARTON CONTENTS

WARNING This product requires assembly. Do not attempt to operate this product if any items in the INCLUDED LIST are already assembled when you remove the carton contents. These items are not assembled by the manufacturer and should require customer assembly. Using an improperly assembled product can be hazardous and could result in serious personal injury.

• Carefully remove the carton contents.
• Inspect the carton contents. Confirm that all the items in the INCLUDED LIST are present and undamaged.
  ● Recycle or dispose of the packaging materials properly.

INCLUDED LIST

- Pressure Washer, spray gun, lance, nozzles (15° and 25°), high pressure hose, low-pressure soap applicator, user manual, handle, mounts (3), screws (4), and wheels (2)

If any parts are missing, contact customer service at [e-mail] or call 1-855-944-3571.

INSTALLING THE HANDLE AND MOUNTS

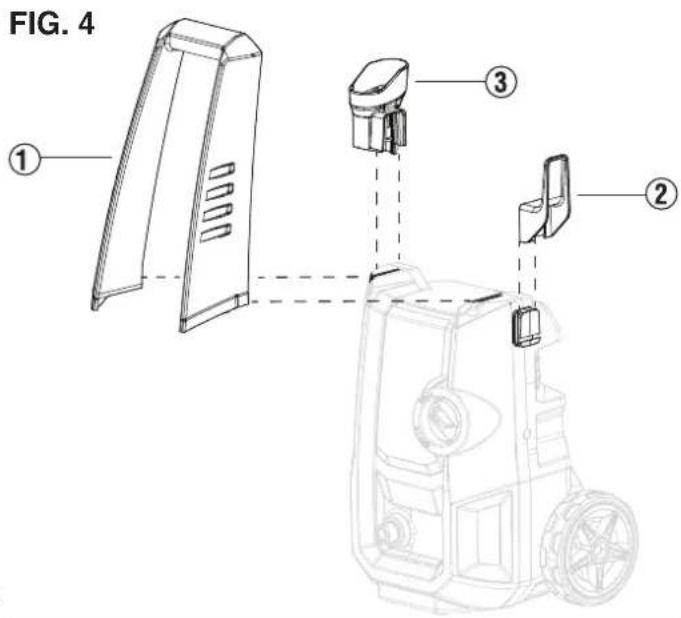

See Figure 4.

• Slide the latch on the mount (2) to the frame of the pressure washer.
• Repeat for the other mount (3).
• Slide the handle (1) to the frame of the pressure washer.

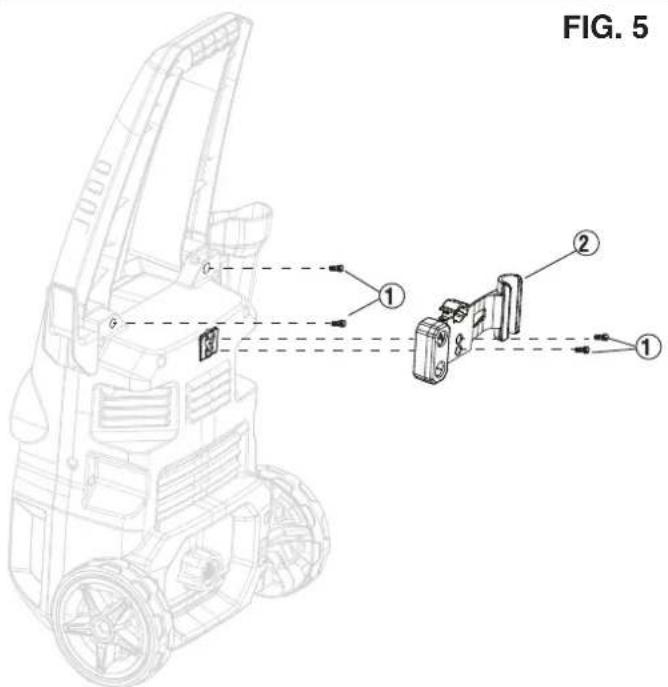

See Figure 5.

• Attach the mount (2) to the frame of the pressure washer and secure with screws (1).
• Secure the handle to the frame with the screws (1).

INSTALLING THE WHEELS

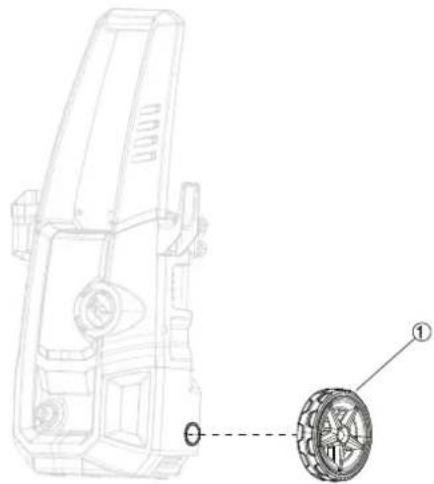

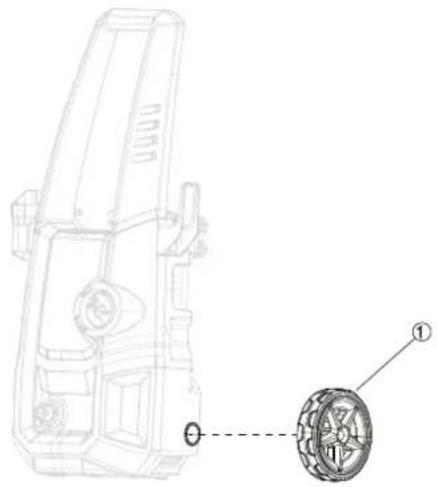

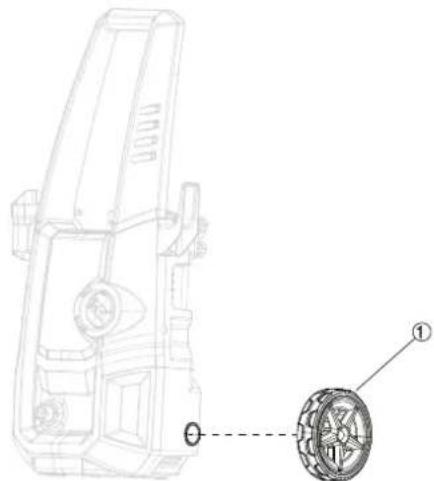

See Figure 6.

- Attach the wheel (1) to the frame of the pressure washer.

NOTE: Be sure that the wheel is secure. The wheel will click into place when secured to the frame.

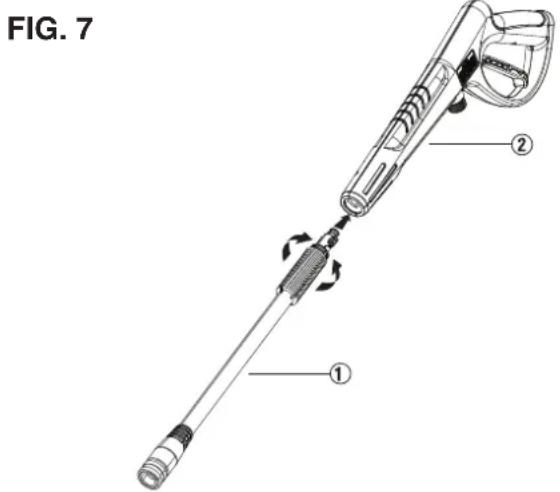

CONNECTING THE LANCE TO THE SPRAY GUN

See Figure 7.

• Push the lance (1) into the spray gun (2) and turn clockwise to tighten. Do not overtighten.
  ● Gently pull on the lance to be sure it is secured.

CONNECTING THE HIGH PRESSURE HOSE TO THE SPRAY GUN

FIG. 4 ① ③ ②

FIG. 5 ① ② ①

FIG. 6

Technical line drawing of a vehicle chassis with a close-up view of the wheel (no text or symbols)

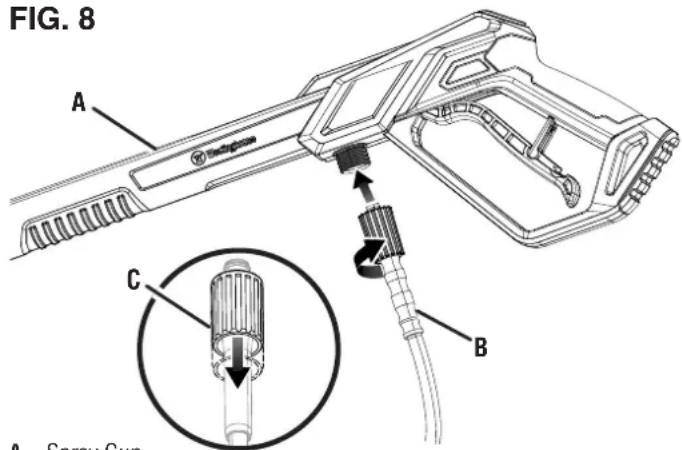

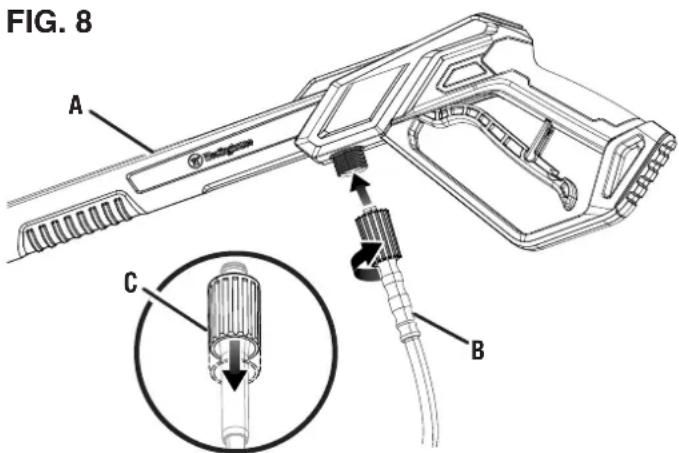

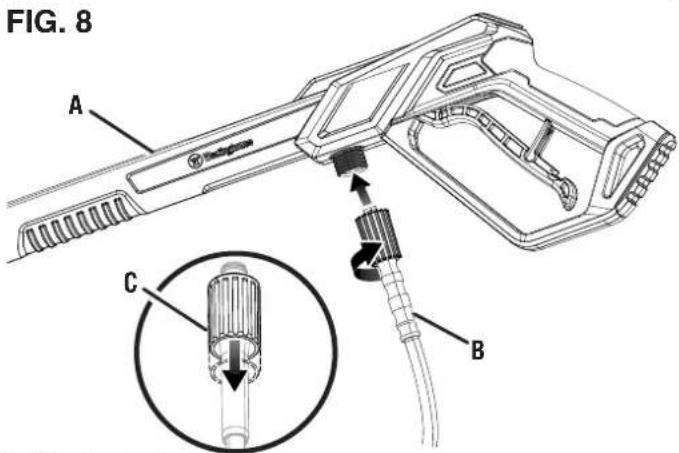

See Figure 8.

• Pull the collar on the high pressure hose back and push the hose fitting firmly into the spray gun.
• Screw the collar onto the spray gun and tighten securely.
  NOTE: Be careful not to damage the threads on the spray gun doing so could cause the gun to leak during use.
  ● Gently pull on the hose to be certain it is secured.

CONNECTING THE HIGH PRESSURE HOSE TO THE PRESSURE WASHER

• Uncoil and straighten the high pressure hose to remove any bends or kinks.
• Pull the collar on the high pressure hose back and push the hose fitting firmly into the threaded outlet on the pressure washer.
• Screw the collar onto the outlet and tighten securely.
  NOTE: Be careful not to damage the threads on the outlet doing so could cause the unit to leak during use.
  ● Gently pull on the hose to be certain it is secured.

CONNECTING A GARDEN HOSE TO THE PRESSURE WASHER

NOTICE

Follow local regulations and ordinances when connecting the pressure washer to a water supply. Some jurisdictions may prohibit connecting directly to public drinking water in order to prevent the possibility of chemicals feeding back into the system. Connections made through a backflow preventer or receiver tank are generally permitted.

NOTICE

The water used in this device must come from a water main. Do not use this device with water from a lake, pool, or pond. Never use hot water with this product.

• Turn off the water faucet completely.
• Uncoil and straighten the garden hose to remove any bends or kinks.
• Flush water through the hose for several seconds to remove debris and turn off the faucet again.
• Inspect the screen inside the water inlet for damage or clogs. Clean or replace as needed. Never connect a garden hose without the screen in place.
• Insert the garden hose into the water inlet.
• Thread the collar on the inlet onto the garden hose. Tighten securely.

NOTICE

ALWAYS turn on the water supply before turning on the pressure washer power. Running the pump dry of water will cause damage to the internal components and render the pressure washer inoperable.

FIG. 7 ① ②

FIG. 8 A B C A - Spray Gun

A - Spray Gun
B - High Pressure Hose
C - Collar

OVERVIEW

This pressure washer can produce very high levels of water pressure and can be used for a variety cleaning applications.

WARNING Do not alter or modify this product unless instructed to so in this manual or by the manufacturer. Do not use attachments or accessories that are not recommended for use with this product. Making unauthorized modifications and using incompatible accessories can damage the unit and may void your warranty.

WARNING ALWAYS wear eye protection to prevent injury to eyes when operating the pressure washer.

WARNING NEVER spray directly at a person, animal, electrical device, or the unit. Failure to comply with this warning could result in serious injury, electric shock, or death.

STARTING AND STOPPING THE PRESSURE WASHER

- Connect a garden hose and turn on the water.

NOTICE

ALWAYS turn on the water

supply before turning on the pressure washer power. Running the pump dry of water will cause damage to the internal components and render the pressure washer inoperable.

• Connect a garden hose and turn the water on.
• Put the on/off switch in the OFF position (O).
• Completely unwind the power cord and connect it to a grounded 120 volt outlet.

WARNING

Keep all connections dry and

off the ground. Do not touch the plug with wet hands.

• Hold the spray gun with both hands and point the lance in a safe direction.
• Release the safety lock and squeeze the trigger to release water and air out of the hose. Continue squeezing the trigger until there is a steady stream of water, then release and lock the trigger.
• Put the on/off switch in the ON position (I) to start the pressure washer. The unit will run for several seconds and shut off. This is a normal function of the auto-start feature.

NOTE: The unit could be pressurized even if the motor and pump cannot be heard. Always be cautious around a pressure washer.

- Put the on/off switch in the OFF position (O) to stop the

pressure washer.

- After operating the pressure washer, water pressure may remain in the system. Point the spray gun in a safe direction and pull the trigger to release the water pressure.

USING THE SPRAY GUN

See Figure 9.

WARNING

Hold the spray gun and lance

with two hands (one hand to pull the trigger and the other to stabilize the gun). Do not lose control of the spray gun. This could result in personal injury and endanger others.

• Start the pressure washer.
• Release the safety lock by pushing it down into the slot in the trigger.
• Squeeze and hold the trigger to start the flow of water.
  ● Release the trigger to stop the flow of water.
• Lock the trigger by pushing it up to its original position.

NOTE: Squeeze the trigger to be sure it is locked and will not move. Always keep the spray gun locked when not in use.

INSTALLING NOZZLES

See Figure 10.

FIG. 9 A B

A - Trigger
B - Safety Lock

WARNING ALWAYS turn off the pressure washer, release the pressure in the spray gun, and lock the trigger before removing or installing a nozzle. NEVER point the lance at your face. Failure to comply with this warning could result in serious injury.

• Stop the pressure washer and turn off the water faucet.
• Point the spray gun in a safe direction and pull the trigger to release the water pressure.
• Lock the trigger.
• Push the nozzle into the lance until it clicks into place and is secure.
• To remove the nozzle, pull the collar back and move the nozzle away from the lance.

NOZZLE GENERAL USE
	Moderate pressure. Safe to use on brick and paved patios.
LOW-PRESSURE SOAP APPLICATOR	GENERAL USE
	Low Pressure. Safe for cars, windows and decks.

CLEANING WITH THE PRESSURE WASHER

See Figure 11.

To clean with detergent:

• Stop the pressure washer and turn off the water faucet.
• Point the spray gun in a safe direction and pull the trigger to release the water pressure.
• Separate the soap bottle (1) from the low-pressure soap applicator by twisting it counterclockwise.
• Fill the soap bottle with a properly formulated detergent-to-water ratio, following the detergent manufacturer's instructions.

NOTE: Use detergents designed for pressure washers. The detergent should be the consistency of water. Do not use thick, gel-like detergents.

• To reinstall the soap bottle, place it on the low-pressure soap applicator and turn it clockwise.
• Install the low-pressure soap applicator onto the spray gun.

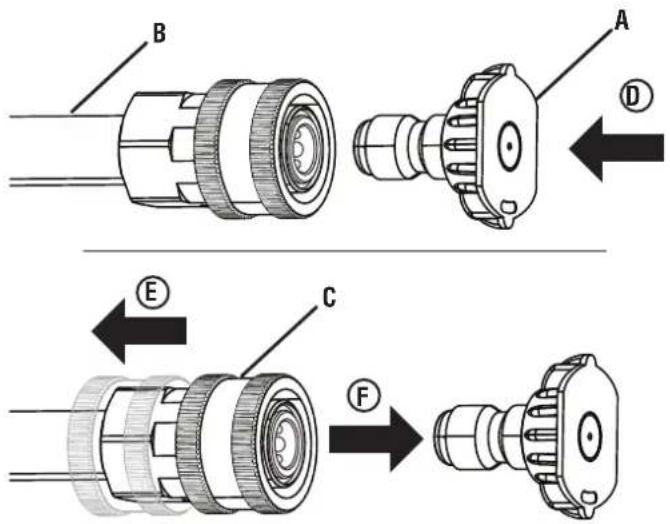

FIG. 10

B A D E C F

A - Nozzle

B - Lance

C - Collar

D - Push Nozzle In

E - Pull Collar Back

F - Remove Nozzle

FIG. 11

Technical diagram of a hairdryer with labeled parts and motion arrows indicating tool path

● Turn the water on and start the pressure washer.
- Squeeze the trigger and wait several seconds for detergent to appear in the water stream.
- Start cleaning at the bottom of the surface and work your way up in a side-to-side motion. Do not allow soap to dry on the surface being cleaned.
● Release the trigger to stop the pressure washer.
- Allow the motor to come to a complete stop before squeezing the trigger again.

NOTE: Squeezing the trigger rapidly will cause the auto-start feature to miss an on/off cycle and may prevent the washer from turning on. Use slow, deliberate trigger pulls to avoid this.

- When you are finished, remove excess detergent from the soap bottle and fill it with clean water. Spray the water through the low-pressure soap applicator to flush the system.

To clean without detergent:

See Figure 12.

• Stop the pressure washer and turn off the water faucet.
• Point the spray gun in a safe direction and pull the trigger to release the water pressure.
• If installed, remove the low-pressure soap applicator.
• Install an appropriate nozzle for the task being performed.
  ● Turn on the water and start the pressure washer.
• Release the safety lock and begin pressure washing by squeezing the trigger all the way into the handle.

NOTE: Always test in a small inconspicuous area to avoid or reduce damage.

- Start cleaning at the bottom of the surface and work in a side-to-side motion.

OPERATING TIPS

- It is normal to hear the motor run intermittently when the trigger is not being squeezed. The pump is priming itself to operate when the trigger is squeezed again.

● To avoid damaging surfaces:

• Always use an appropriate nozzle
- Reduce water pressure by adjusting the angle of the stream or by increasing the distance from the nozzle to the surface.

• Always spray detergent on a dry surface. Do not pre-soak surface. Wetting the surface first dilutes the detergent and reduces the cleaning ability.
• For tough stains, it may be necessary to reapply the detergent and use a bristled brush to scrub the stain.
• Keep a nozzle cleaning tool nearby for unclogging the nozzles.
• The o-rings in the high pressure hose should be cleaned regularly and lubricated with non-water soluble grease such as petroleum jelly.
• Turn off the pressure washer after five minutes of inactivity.

FIG. 12

Line drawing of a hand holding a tool with a mesh tip, no text or symbols present

WARNING ALWAYS turn off the pressure washer, release the pressure in the spray gun, and unplug the pressure washer before performing maintenance.

WARNING Replace damaged or worn items with recommended or equivalent replacement parts. Using an incorrect or incompatible part might create a hazard that could result in serious personal injury.

NOTICE Inspect the physical condition of the product prior to each use. Look for loose bolts, fluid leaks, and other signs of wear. Replace all damaged items. For replacement parts or assistance, contact our customer service.

To prolong the life of this product, follow the care and maintenance instructions in this section. Contact customer service before servicing any recall or warranty parts.

CLEANING THE PRESSURE WASHER

Do not store or operate the pressure washer in dirty, dusty, or corrosive environments. Do not allow foreign materials and debris to clog the vents on the unit.

Never clean the pressure washer with a garden hose. Water can damage electrical components. If the unit needs to be cleaned, use a soft brush and damp cloth to clean the exterior and use low pressure air (no greater than 25 psi) to clean the vents.

Never use gasoline as a cleaning agent.

CLEANING THE NOZZLES

See Figure 13.

• Stop the pressure washer and turn off the water faucet.
• Release the pressure in the spray gun and unplug the pressure washer.
• Remove the nozzle from the spray gun.
• Use a nozzle cleaning tool or fine needle to clean debris from the inside of the nozzle.
• Using a garden hose, back flush water through the nozzle.
• When the nozzle is clean, place it back on the lance or in the nozzle storage area.

CLEANING THE WATER INLET SCREENS

The screens inside the water inlet should be cleaned periodically. Remove the screens, rinse them with clean water, and place them back in the inlet.

STORAGE

NOTE: Use commercially available pump protectors to extend the life of the pump. Follow the manufacturer's instructions for use.

- Release the pressure in the spray gun and unplug the pressure washer. Wrap the cord around the cord

retainer.

• Disconnect the garden hose and the high pressure hose.
• Tilt the pressure washer to allow excess water to drain from the threaded outlet.
• Remove all nozzles and place them in the nozzle storage area.
  ● Disassemble the spray gun and lance.
• Store the pressure washer and accessories in a dry, covered location away from extreme heat which could dry out the pump seals and extreme cold which could cause freeze damage.

WARNING

Do not use attachments or not recommended for use with unauthorized modifications, able accessories can damage your warranty.

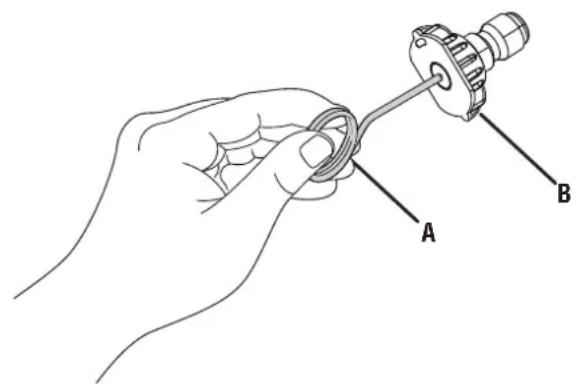

FIG. 13

Line drawing of a hand holding a small mechanical component with labeled parts A and B (no text or symbols beyond labels)

A - Nozzle Cleaning Tool

B - Nozzle

PROBLEM POSSIBLE	CAUSE CORRECTION
Unit will not turn on.	Pressure washer is not connected to a power source or the power source isn't grounded	Connect the power cord to a grounded 120 V outlet.
	Water pressure is in the hose Pull the trigger to release the water pressure.
	GFCI is tripped Press the RESET button on the power cord
	Defective motor or power cord. Contact customer service at 1 [phone].
The unit is running but there is no water flow.	Improper water source Connect the pressure washer to a water main. Do not use this device with water from a lake, pool, or pond.
	Clogged nozzle Clean the nozzle
	Defective spray lance Replace the lance
Water is leaking where the hose connects to the spray gun.	Defective or missing O-ring between the high pressure hose and the spray gun.	Replace the o-ring.
The pressure washer turns on for 2 seconds, shuts off, and will not turn back on.	The auto-start feature is turning the unit off. When the pressure washer is turned on, the motor may run for 1 - 2 seconds to prime the pump. Then it will automatically shut off until the spray gun trigger is squeezed. This is normal and does not indicate a problem.

WESTINGHOUSE OUTDOOR POWER EQUIPMENT THREE YEAR LIMITED WARRANTY

WESTINGHOUSE OUTDOOR POWER EQUIPMENT'S RESPONSIBILITY

Westinghouse Outdoor Power Equipment LLC (“Westinghouse”) warrants to the original purchaser that its Westinghouse line of electric pressure washers will be free from defects in material and workmanship. Under normal use and maintenance from the date of purchase, Westinghouse agrees to repair or replace at Westinghouse’s sole discretion, any defective product free of charge at any authorized Westinghouse Authorized Service Dealer within the below listed applications, time periods, limitations, and exclusions. THIS LIMITED WARRANTY IS EXTENDED TO THE ORIGINAL PURCHASER ONLY AND IS NOT TRANSFERABLE TO SUBSEQUENT OWNERS EXCEPT FOR EMISSION RELATED PARTS. For a list of Westinghouse Authorized Service Dealers refer to www.wpowereq.com or call 1-855-944-3571.

OWNER'S RESPONSIBILITY

To ensure hassle-free warranty coverage, it is important that you register your Westinghouse electric pressure washer online at www.wpowereq.com, by automated phone at 1-855-944-3571, or by filling out and returning to Westinghouse the warranty registration card supplied with your pressure washer. Registering your product confirms your warranty coverage and provides a direct link between you and Westinghouse should it become necessary to contact you.

Your receipt for purchase including date, model and serial number must be maintained and presented to Westinghouse customer service in order to obtain warranty service. Proof of purchase rests solely with you, the original purchaser. You must demonstrate reasonable care and use and follow preventive maintenance and storage guidelines as prescribed in the operator's manual for your Westinghouse unit. Should a product difficulty occur, you must, at your expense, deliver or ship your Westinghouse unit to an Authorized Service Dealer for warranty repairs (which must occur within the applicable warranty period), and arrange for pick-up or return of your unit after the repairs have been made. If proof of purchase is not available to establish purchase date nor is the product registered as described herein, the date of manufacturing as recorded

To find the Westinghouse Authorized Service Dealer nearest to you, call Westinghouse customer service and support at 1-855-944-3571 or visit the "Locate a Service Dealer" page at www.wpowereq.com Should you require assistance or have questions concerning Westinghouse's Warranty Statement, you can contact us through online at www.wpowereq.com or call 1-855-944-3571.

PRODUCT WARRANTY APPLICATIONS AND PRODUCT WARRANTY PERIODS

For the purposes of this limited warranty, “Consumer Application” means usage by the original purchaser for the purpose of personal residential household or recreational use. For those using this product for a consumer application, the following warranty terms apply:

Parts and labor will be fully covered for a period of one year from the date of purchase.

Parts only will be fully covered for a period of two years from the date of purchase.

At Westinghouse's sole discretion, certain replacements be fully covered for a period of three years from the date of purchase.

COMMERCIAL APPLICATION

For the purposes of this limited warranty, “Commercial Application” means usage by the original purchaser for the purpose of income producing, business relation use. Once a Westinghouse electric pressure washer has been used for income producing and business related purposes, it shall thereafter be considered a product used for a “Commercial Application” and the following warranty terms apply:

Parts and labor will be fully covered for a period of ninety days from the date of purchase.

EXCLUSIONS

The following items are excluded from warranty coverage:

• Utilization of non-Westinghouse replacement parts except where authorized by Westinghouse in writing
• Costs of routine/normal maintenance
• Repairs or diagnostics performed by a non-authorized service dealer except where authorized by Westinghouse in writing
- Product failures due to normal wear and tear, accident, misuse, abuse, negligence, or improper use
- Product failures due to any external cause, including but not limited to: collision, theft, vandalism, riot, war, fire, freezing, lightning, earthquake, windstorm, hail, water damage, flood damage, tornado damage, rodent/pest related damage, or hurricane damage
- Products that are modified or altered in a manner not authorized in writing by Westinghouse
- Any incidental, consequential, or indirect damages caused by defects in materials or workmanship
- Any incidental, consequential, or indirect damages caused by delay in repair or replacement of defective part(s)
• Product failure due to misapplication
- Telephone, cellular phone, fax, internet, or any other communication-related expenses \
- Expenses related to "customer instruction" or troubleshooting where no manufacturing defect is found
• Overnight freight or special shipping costs for replacement parts
• Overtime, holiday, or emergency labor costs

DISCLAIMER OF IMPLIED WARRANTIES

This limited warranty is in lieu of all other expressed or implied warranties, including any warranty of FITNESS FOR A PARTICULAR PURPOSE OR USE and any IMPLIED WARRANTY OF MERCHANTABILITY otherwise applicable to Westinghouse's line of electric pressure washers and its affiliated companies shall not be liable for any special, incidental or consequential damage, including lost profits. There are no warranties extended other than as provided herein. This limited warranty may be modified only by Westinghouse Outdoor Power Equipment LLC. Any implied warranties allowed by law shall be limited in duration to the terms of the express warranty provided herein. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights. You also have other rights from state to state. WESTINGHOUSE OUTDOOR POWER EQUIPMENT LLC'S ONLY LIABILITY SHALL BE THE REPAIR OR REPLACEMENT AS STATED ABOVE. IN NO EVENT SHALL WESTINGHOUSE BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF MWE INVESTMENTS, LLC'S NEGLIGENCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This limited warranty is given by Westinghouse Outdoor Power Equipment LLC (777 Manor Park Drive, Columbus, OH 43228).

ePX3050

Date of Purchase: ____

Model Number: ____

Serial Number:

Place of Purchase: ____

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

QR code image containing encoded data, no visible human-readable text

Technical diagram of a water heater system with numbered components for identification

FIG. 4 ① ③ ②

FIG. 5 ① ② ①

FIG. 6

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

FIG. 7 ① ②

FIG. 8 A B C

A - Pistola pulverizadora

Technical diagram of a mechanical component with labeled parts E, F, and C, showing assembly or assembly process.

Technical diagram of a spray gun with labeled parts and directional arrows indicating motion or assembly.

Line drawing of a hand holding a firearm with a long rod extending into a pointed tip (no text or symbols)

PELIGRO

SIEMPRE apague la

Diagram showing a hand holding a mechanical component with labeled parts A and B

This limited warranty is given by Westinghouse Outdoor Power Equipment LLC (777 Manor Park Drive, Columbus, OH 43228).

ePX3050

NETTOYEUR HAUTE PRESSION ÉLECTRIQUE 2100 PSI / 1,76 GPM

MANUEL D'UTILISATION

NE RETOURNEZ PAS CE PRODUIT AU MAGASIN

Date of Purchase: ____

Model Number: ____

Serial Number: ____

Place of Purchase: ____

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

QR code image containing encoded data, no visible human-readable text

Technical diagram of a water heater system with numbered components for identification

COMPRENDRE VOTRE NETTOYEUR À PRESSION

Voir la figure 3.

FIG. 4 ① ③ ②

FIG. 5 ① ② ①

FIG. 6

Technical line drawing of a mechanical component with a close-up view of a circular component labeled (①), no text or symbols present.

RACCORDEMENT DU TUYAU HAUTE PRESSION AU PISTOLET PULVÉRISATION

Voir la figure 8.

FIG. 7 ① ②

FIG. 8 A C B

INSTALLATION DE BUSES

Voir la figure 10.

FIG. 9 A B

Technical diagram showing mechanical assembly with labeled parts E, F, and C, likely illustrating a gear or component assembly.

A - Buse

B - Lance

C-Collier

D - Enfoncez la buse

Technical diagram of a spray gun with labeled parts and directional arrows indicating motion or assembly.

Line drawing of a hand holding a firearm with a long rod extending into a pointed tip (no text or symbols)

DANGER

Diagram showing a hand holding a mechanical component with labeled parts A and B

A - Outil de nettoyage des buses
B - Buse

This limited warranty is given by Westinghouse Outdoor Power Equipment LLC (777 Manor Park Drive, Columbus, OH 43228).

Blue circular icon with a white crown symbol (no text or numbers)

www.WestinghouseOutdoorPower.com

Service Hotline [phone]

777 Manor Park Drive, Columbus, OH 43228

and Westinghouse are trademarks of Westinghouse Electric Corporation.

Used under license by Westinghouse Outdoor Power Equipment.

© 2024 MWE Investments, LLC All Rights Reserved.
