162456 - Loudspeaker MANHATTAN - Free user manual and instructions

Product Type	Bluetooth Portable Speaker with MP3 Player
Brand	Manhattan
Model	Sound Science Orbite (162456)
Wireless Technology	Bluetooth
Supported Audio Formats	MP3, WAV
Audio Sources	Bluetooth, USB drive, micro SD card (up to 32GB), 3.5mm line input
Hands-free Function	Yes (answer/end calls)
Power	5 W (estimated)
Battery	Rechargeable lithium-ion, battery life not specified
Charging Time	Less than 2 hours
Power Supply	Micro USB port (charger or computer)
Connectors	Micro USB, 3.5mm line input, USB port, micro SD port
Dimensions (approx.)	10 x 20 x 10 cm
Weight (approx.)	0.5 kg
Material	Durable plastic
Usage	Indoor and outdoor (avoid water and shocks)
Care and Cleaning	Wipe with a dry, soft cloth
Safety	Do not expose to water, shocks, excessive dust, extreme temperatures
Repairability	No spare parts provided, contact customer service in case of malfunction

Frequently Asked Questions - 162456 MANHATTAN

How to connect the speaker via Bluetooth?

Set the power switch to ON. Turn on Bluetooth on your device and select 'Sound Science Orbite'. An audio signal sounds once the connection is established.

How to play music from a micro SD card?

Insert a micro SD card (up to 32 GB) into the designated port. The speaker automatically switches to card mode. Press the play/pause button to play music. Use the -/+ buttons to change tracks (short press) or adjust volume (long press). Only MP3 and WAV files are played.

Can I use the speaker while it is charging?

Yes, you can use the speaker while charging it via the micro USB port.

How to answer a call with this speaker?

In Bluetooth mode, press the play/pause button (②) to answer a call or to hang up.

What audio formats are supported via USB or SD card?

The speaker only reads files in MP3 and WAV formats.

How to adjust the volume?

Long press the -/+ buttons (③ to increase, ① to decrease) to adjust the volume. A short press changes tracks.

What to do if the speaker does not turn on?

Check that the power switch (④) is ON. If the battery is drained, charge it via the micro USB port for at least 2 hours. If the problem persists, contact customer service.

Is the speaker water-resistant?

No, it is not designed to be immersed in water. Avoid exposure to water, excessive dust, and shocks.

Can I connect a wired audio source?

Yes, insert a 3.5mm audio cable into the line input port (⑥) and plug the other end into your device. Press play/pause to start playback, and use -/+ for volume.

How to clean the speaker?

Wipe it with a dry, soft cloth. Do not use chemical or abrasive products.

USER MANUAL 162456 MANHATTAN

Durable Wireless Speaker

Sound Science Orbit is a durable speaker system with wireless Bluetooth technology and MP3 player.

Features


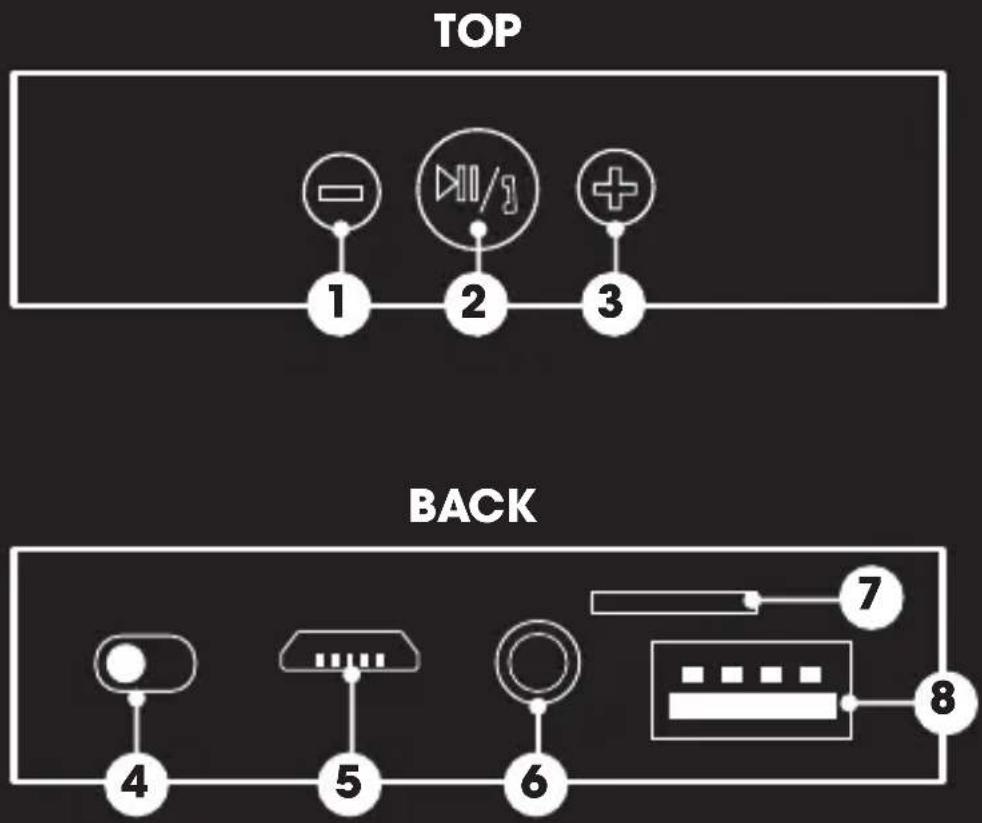

TOP

1 Short press: Last Track Long press: Decrease Volume
2 Pause/Play/Answer Call
3 Short press: Next Track Long press: Increase Volume

BACK

4 Power Switch
5 Micro-USB Charging Port
6 3.5mm Audio Line-In
7 Micro-SD Card Port
8 USB Reader Port

Bluetooth mode

Set power switch to ON

Activate Bluetooth on your device and select "Sound Science Orbit" (you will hear audio cue when connected)

Press ▶II to play music and accept/end phone calls Short press -/+ to change tracks Long press -/+ to adjust volume

Insert USB or Micro-SD card (up to 32G) and Orbit will automatically switch to USB or CARD mode (note: Orbit will only read files in MP3 or WAV format)

Press ▶II to play music Short press -/+ to change tracks Long press -/+ to adjust volume

line-in mode

Insert 3.5mm audio cable to the line-in port and connect the other end to your device

Press ▶ to play music Long Press -/+ to adjust volume

charging

Insert charging cable into Micro-USB port

Connect the other end of charging cable to a computer or charger (red LED on back will light while charging)

Battery charges in less than 2 hours

warnings

Do not submerge in water or subject unit to excessive force, shock, dust or extreme temperature.
