162326 - Loudspeaker MANHATTAN - Free user manual and instructions

Product type	Mini Bluetooth speaker
Brand	Manhattan
Model	162326 (Sound Science Atom)
Connectivity technology	Bluetooth
Lighting	Rhythmic LED (light effects)
Battery life	About 1h30 of full charge
Charging time	Less than 1h30
Power supply	Micro USB port (5V)
Battery	Built-in rechargeable lithium-ion
Dimensions (estimated)	7 cm (diameter) x 5 cm (height)
Weight (estimated)	200 g
Included accessories	Micro USB cable, wrist strap
Controls	Power button (on/off and pairing)
Main functions	Wireless audio playback, LED light effects, hands-free calling (not specified)
Care and cleaning	Wipe with a soft, dry cloth
Safety	Do not immerse in water, avoid shocks, dust, and extreme temperatures
Spare parts and repairability	Not specified; built-in battery not user-replaceable
General information	Portable speaker with wrist strap, compatible with any Bluetooth device

Frequently Asked Questions - 162326 MANHATTAN

How to turn on and pair the Manhattan 162326 speaker?

Press and hold the power button to turn on the device. Enable Bluetooth on your phone or tablet and select "Sound Science Atom" from the device list. An audio signal confirms the connection.

How to charge the speaker?

Insert the provided micro USB cable into the charging port of the speaker, then plug the other end into a computer or USB charger. The red indicator lights up during charging, which takes less than an hour and a half.

How long does the battery last?

The lithium-ion battery provides about 1h30 of playback time after a full charge. Actual duration may vary depending on volume and LED usage.

Is the speaker waterproof?

No, the Manhattan 162326 is not waterproof. It must not be immersed in water or exposed to excessive humidity. Also avoid shocks, dust, and extreme temperatures.

How to control volume and change tracks?

The speaker does not have volume or track buttons. Use the controls on your source device (phone, computer) to adjust volume, skip to the next or previous track, and control playback.

Can I use the speaker in hands-free mode?

The manual does not mention a hands-free function. It is likely that the speaker does not have a built-in microphone. Use it only for audio playback.

What to do if the speaker does not turn on?

Make sure the battery is charged by plugging in the micro USB cable. If the red light does not turn on, the cable or charger may be faulty. Try a different cable or USB port. If the problem persists, contact customer service.

How to clean the speaker?

Use a soft, dry cloth to wipe the surface. Do not use chemical or abrasive products. Avoid letting moisture enter the openings.

Can I replace the battery myself?

The battery is built-in and not designed for user replacement. Any attempt to open the device may damage it and void the warranty. Contact a professional if necessary.

How to use the included wrist strap?

The wrist strap allows easy carrying of the speaker. Attach it to the intended loop (not visible in images) or use it to hang the speaker on a bag or carabiner.

USER MANUAL 162326 MANHATTAN

Glowing Wireless Speaker

Sound Science Atom is a mini-speaker with wireless Bluetooth technology and rhythmic LED lighting effects.

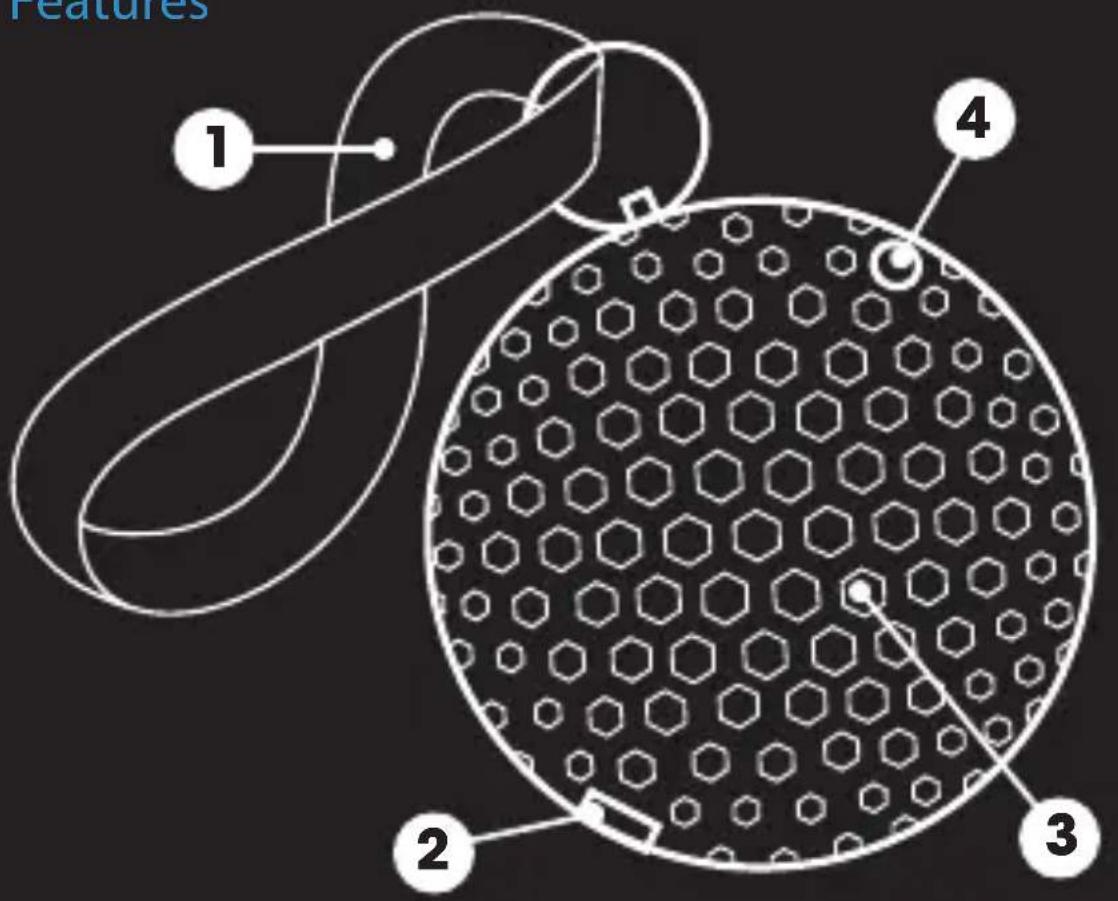

Features

1 Wrist Strap
2 Micro-USB Charging Port
3 LEDField
4 Power Button

Bluetooth mode

Press and hold power button

Activate Bluetooth on your device and select "Sound Science Atom" (you will hear audio cue when connected)

Control volume, tracks and playback on your device

charging

Insert charging cable into Micro-USB port

Connect the other end of charging cable to a computer or charger (red LED on back will light while charging)

Battery charges in less than 1.5 hours

\section*{ warnings}

Do not submerge in water or subject unit to excessive force, shock, dust or extreme temperature.

Deutsch

sound science by Manhattan
