GFWN1100DWW - Washing machine GE - Free user manual and instructions

Product Type	Front Load Washing Machine
Brand	GE
Model	GFWN1100DWW
Dimensions (H x W x D)	96.5 cm x 68.6 cm x 76.2 cm (approx)
Weight	Approximately 82 kg
Power Supply	120 V, 60 Hz, 15 A
Wash Capacity	Up to 16 lb (7.3 kg) of dry laundry
Water Consumption	Variable by cycle, approximately 45-70 L per cycle
Energy Consumption	Energy Star, efficient
Maximum Spin Speed	1200 rpm (depending on model)
Noise Level	Wash: approximately 55 dB, Spin: approximately 70 dB
Main Cycles	Whites, Colors/Normal, Heavy Duty, Sanitary, Bulky Bedding, Delicates, Quick Wash, Drain + Spin, Basket Clean
Additional Options	Pre-Wash, Extra Rinse, Delay Wash, Control Lock, Favorite Cycle, eWash, Steam (on select models)
Dispenser	Dispenser drawer with compartments for detergent, bleach, and fabric softener
Required Detergent Type	High Efficiency (HE)
Maintenance and Cleaning	Monthly Basket Clean with bleach, clean pump filter every 2-3 months, clean door gasket, clean dispenser drawer
Safety	Grounding required, child lock, fire safety (no storage of flammable liquids)
Spare Parts	Water hoses (PM14X10002 or PM14X10005), floor tray (WX7X1), washer cleaner (WX10X10011)
Repairability	1 year parts and labor warranty, repairs by authorized centers (800.561.3344)
General Information	Manual available in French, English, Spanish; serial number on side label

Frequently Asked Questions - GFWN1100DWW GE

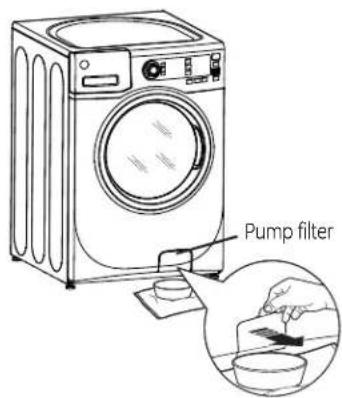

How to clean the pump filter?

The pump filter is located behind an access door at the bottom left of the washer. Open the door using a coin or flat-head screwdriver. Place a shallow container under the spout to collect water (about 250 ml). Pull the spout down, then turn the filter counterclockwise and remove it. Clean debris, replace the filter by turning it clockwise, and tighten. Raise the spout and close the access door.

What is the maximum washing capacity?

The maximum capacity is approximately 16 pounds (7.3 kg) of dry laundry. Do not exceed this load to avoid imbalance and reduced washing performance.

How to use the Basket Clean cycle?

Make sure the drum is empty. Pour 250 ml (1 cup) of liquid bleach directly into the drum. Close the door, select the Basket Clean cycle, and press Start. The cycle lasts about 90 minutes. After it finishes, leave the door ajar to air out. Perform this cycle once a month.

How to reset the washer in case of lockup?

Unplug the washer from the electrical outlet for about 1 minute, then plug it back in. Open and close the door, then press Power to restart. If the problem persists, consult the troubleshooting guide or call customer service.

What to do if the washer does not drain?

Check that the drain hose is not kinked or blocked. Clean the pump filter (see question 1). Make sure the drain pipe is not clogged. If the problem persists, check the error codes on the display.

What detergent to use?

Use only high efficiency (HE) detergent to avoid excessive suds. Follow the detergent manufacturer's recommendations for dosage, based on load size and soil level.

The door does not open after the cycle, what to do?

The door remains locked for a short time after the cycle ends for safety reasons. Wait 1 to 2 minutes. If it still doesn't open, turn off the washer and unplug it for a few minutes. Plug back in and try again. If the problem persists, contact after-sales service.

How to prevent odors in the machine?

Leave the washer door ajar after each cycle to allow moisture to evaporate. Run a Basket Clean cycle once a month with bleach. Do not use too much detergent and remove laundry promptly after the cycle ends.

What to do in case of water leak?

Check that the water inlet hoses are tightly connected and in good condition. Check the door gasket: clean it and make sure it is not damaged. Clean the dispenser drawer if it is clogged. If the leak comes from underneath, check the pump filter and drain connections.

How to properly install the washer?

Remove the shipping bolts at the back (4 bolts, 4 spacers). Place the washer on a hard, level floor. Connect the water hoses (marked H for hot, C for cold) to the corresponding faucets. Connect the drain hose to a drain pipe between 61 and 244 cm high. Plug the power cord into a grounded outlet. Open the faucets and check for leaks.

USER MANUAL GFWN1100DWW GE

Operating Instructions

Control Panels 4-7

Features 8-9

Loading and Using the Washer .... 10, 11

Cleaning the Washer 12-14

Installation Instructions.....15-20

Preparing to Install Your Washer .....15

Rough-In Dimensions 16

Location of Your Washer 16

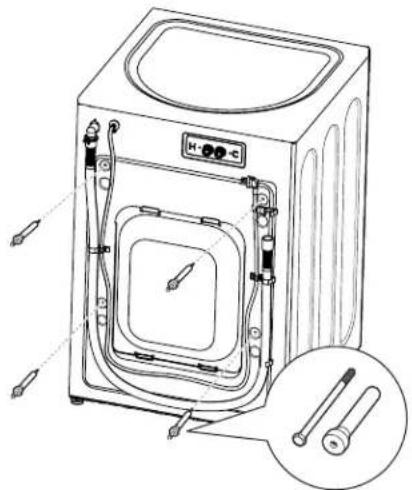

Unpacking Your Washer 17

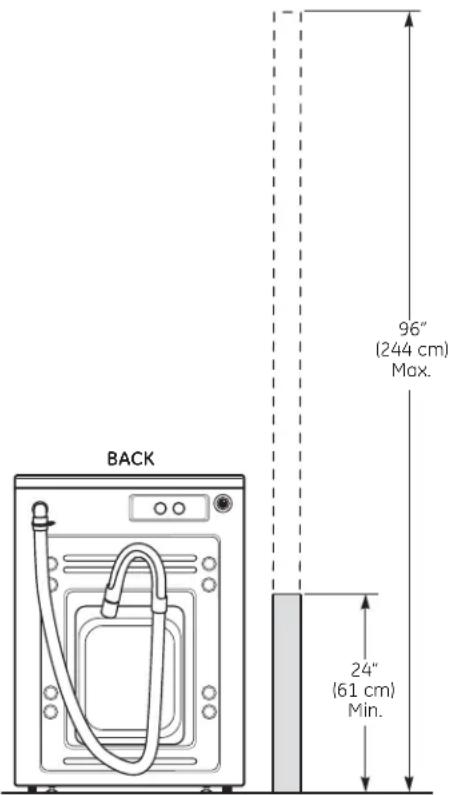

Drain Requirements 18

Electrical Requirements .....18

Water Supply Requirements ..... 1 8

Installing the Washer .....19, 20English/Français/Espanol

Replacement Parts 20

Troubleshooting Tips ..... 21-24

Consumer Support

Warranty 25

Service Telephone Numbers 26

energy

ENERGY STAR

As an ENERGY STAR ^® partner,

GE has determined that this

product meets the ENERGY STAR®

guidelines for energy efficiency.

Write the model and serial numbers here:

Model # ____

Serial # ____

You can find them on a label on the side of the washer.

Owner's Manual & Installation Instructions

GFWN1100

GFWN1200

GFWH1200

GMAN1200

GFWH1300

GFWN1300

GFWH1400

GFWH1405

GFWS1500

GFWS1505

oEnglish/Français/Espanol

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION". These words are defined as:

DANGER

WARNING

CAUTION

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of death, fire, explosion, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
  ■ DO NOT wash or dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
  ■ DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.
  ■ Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, DO NOT smoke or use an open flame during this time.
  ■ DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this appliance is used near children. Before the washer is removed from service or discarded, remove the door or lid. Failure to follow these instructions may result in death or injury to persons.
  ■ DO NOT reach into the appliance if the tub or agitator is moving to prevent accidental entanglement.
  ■ DO NOT install or store this appliance where it will be exposed to the weather.
  ■ DO NOT tamper with controls, repair or replace any part of this appliance or attempt any servicing unless specifically recommended in the user maintenance instructions or in published user repair instructions that you understand and have the skills to carry out.
• Keep the area around your appliance clean and dry to reduce the possibility of slipping.
  ■ DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts including a damaged cord or plug.
  ■ Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power button DOES NOT disconnect power.
  ■ See "Electrical Requirements" located in the Installation Instructions for grounding instructions.

SAVE THESE INSTRUCTIONS

PROPER INSTALLATION

This washer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions, you can receive one by visiting GEAppliances.com or by calling 800.GE.CARES (800.432.2737).

■ Ensure that the hot water hose is connected to the "H" (internal red screened) valve and the cold water hose is connected to the "C" (internal blue screened) valve.
■ Install or store where it will not be exposed to temperatures below freezing or exposed to the weather, which could cause permanent damage and invalidate the warranty.
■ Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.

WARNING

- Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

DO NOT remove ground prong.

DO NOT use an adapter.

DO NOT use an extension cord.

Failure to do so can result in death, fire or electrical shock.

■ This washer does not include water supply hoses.

GE strongly recommends the use of factory specified parts. A list of factory hoses available for purchase are listed below. These hoses are manufactured and tested to meet GE specifications.

GE strongly recommends the use of new water supply hoses. Hoses degrade over time and need to be replaced every 5 years to reduce the risk of hose failures and water damage.

Parts and Accessories

Order on-line at GEApplianceparts.com today, 24 hours a day or by phone at 800.626.2002 during normal business hours.

Part Number Accessory

PM14X10002 4 ft Rubber Water Supply Hoses Or

PM14X10005 4 ft Braided Metal Water Supply Hoses

WX10X10011 Tide® Washing Machine Cleaner*

WX7X1 Washer Floor Tray

WHEN NOT IN USE

■ Turn off water faucets to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; GE recommends changing the hoses every 5 years.

SAVE THESE INSTRUCTIONS

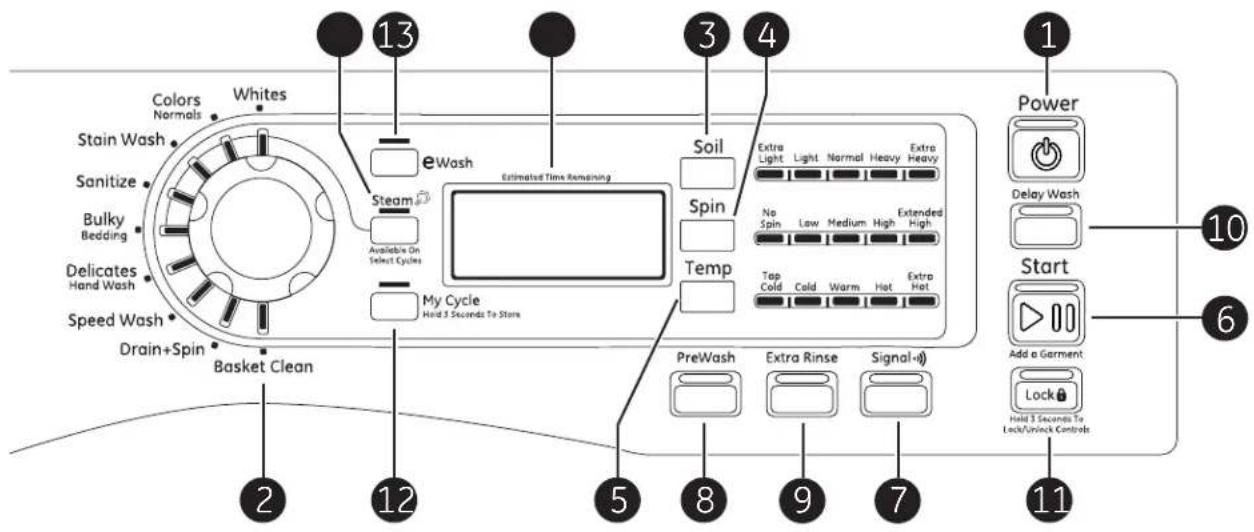

About the washer control panel.

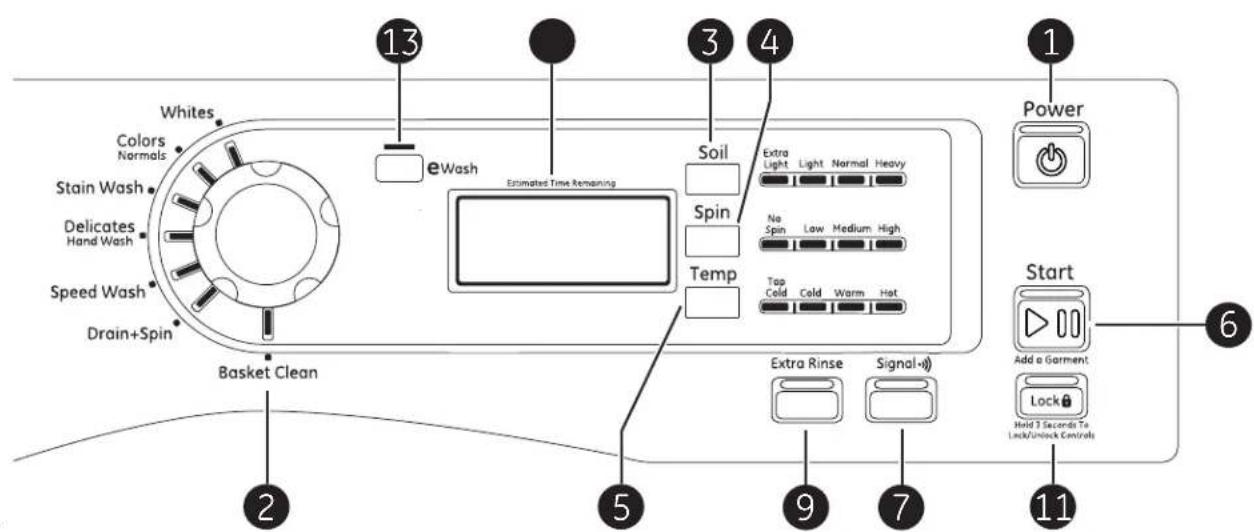

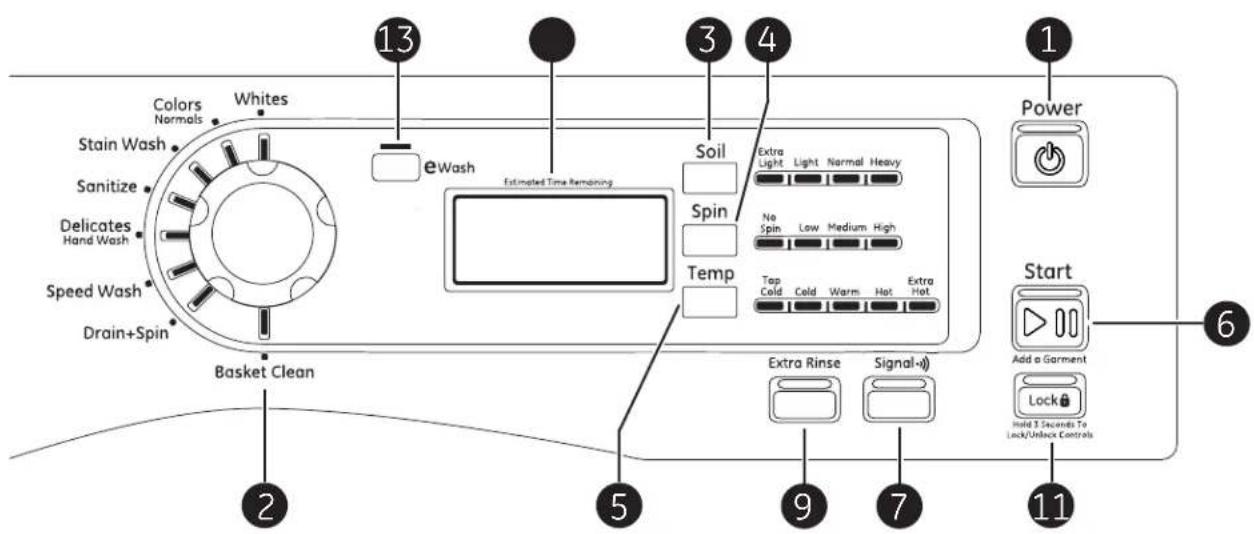

Find the illustration that closely matches your model and see the descriptions for details.

Colors Normals Whites Stain Wash Sanitize Bulky Bedding Delicates Hand Wash Speed Wash Drain+Spin Basket Clean 2 12 eWash Steam Available On Select Cycles My Cycle Held 3 Seconds To Store Estimated Time Remaining Soil Spin Temp PreWash Extra Rinse Signal-0 Extra Light Light Normal Heavy Extra Heavy No Spin Low Medium High Extended High Top Cold Cold Warm Hot Extra Hot Power Delay Wash Start Add a Garment Lock Hold 3 Seconds To Lock/Unlock Controls

Colors Normals Whites Stain Wash Sanitize Delicates Hand Wash Speed Wash Drain+Spin Basket Clean 13 eWash Estimated Time Remaining Soil Spin Temp Extra Light Light Normal Heavy No Spin Low Medium High Top Cold Cold Warm Hot Extra Hot Extra Rinse Signal-∞ Start Add a Garment Lock Hold 3 Seconds To Lock/Unlock Controls Power 6

Whites Colors Normals Stain Wash Delicates Hand Wash Speed Wash Drain+Spin Basket Clean 13 eWash Estimated Time Remaining Soil Extra Light Light Normal Heavy Spin No Spin Low Medium High Temp Top Cold Cold Warm Hot Power Start Add a Garment Lock Hold 3 Seconds To Lock/Unlock Controls 2 5 9 7 11

1 Power

Press to "wake up" the display. If the display is active, press to put the washer into standby mode.

NOTE: Pressing Power does not disconnect the appliance from the power supply.

Wash Cycles

2 The wash cycles are optimized for specific types of wash loads. The chart below will help you match the wash setting with the loads. The GentleClean™ lifters lightly tumble the clothes into the water and detergent solution to clean the load.

Whites For heavily to lightly soiled white laundry.

Colors/Normals	For heavily to lightly soiled colorfast cottons, household linens, work and play clothes.
Stain Wash For heavily soiled colorfast laundry.
Sanitize (on some models)	When selecting sanitize, the washer increases the water temperature to sanitize and remove 99.9% of bacteria found in home laundry. For best results, select the heavy soil setting when using the sanitize cycle.

NSF Protocol P172 Sanitization Performance of Residential and Commercial, Family-Sized Clothes Washers

Bulky Bedding For large coats, bed spreads, mattress covers, sleeping bags and similar large and (on some models) bulky items. Large items such as blankets, comforters, jackets and small rugs.

Delicates Hand Wash	For lingerie and special-care fabrics with light to normal soil. Provides gentle tumbling and soak during wash and rinse.
Speed Wash	For lightly soiled items that are needed in a hurry. Cycle time is approximately 30 minutes, depending on selected options.
Drain & Spin	Drain and spin at any time.
Basket Clean	Use for cleaning the basket of residue and odor. Recommended use of once per month.NOTE: Never load laundry while using Basket Clean. The laundry may become damaged or contaminated. See the Care and Cleaning section.

3 Soil Level

Changing the Soil level increases or decreases the wash time to remove different amounts of soil. To change the Soil level, press the Soil level pad until you have reached the desired setting.

4 Spin Speed

Changing the Spin speed changes the final spin speed of the cycles. Always follow the fabric manufacturer's care label when changing the spin speed.

To change the spin speed, press the Spin speed pad until you have reached the desired setting. Higher spin speeds are not available on certain cycles, such as Delicates.

Higher spin speeds remove more water from the clothes and will help reduce dry time, but may also increase the possibility of setting wrinkles on some fabrics.

5 Wash Temp

Adjust to select the proper water temperature for the wash cycle. The prewash and rinse water is always cold to help reduce energy usage and reduce setting of stains and wrinkles.

Follow the fabric manufacturer's care label when selecting the wash temperature.

To change the wash temperature, press the Wash Temp pad until you have reached the desired setting.

NOTE: The first 10 seconds of the wash fill is always cold. This feature assists in conditioning the fabric and preventing stains from setting on garments.

6 Start/Add a Garment

Press to start a wash cycle. If the washer is running, pressing it once will pause the washer and unlock the door. Press again to restart the wash cycle.

NOTE: If the washer is paused and the cycle is not restarted within 2 hours, the current wash cycle will be cancelled.

NOTE: The washer performs automatic system checks after pressing the Start pad. Water will flow in 45 seconds or less. You may hear the door lock and unlock before water flows; this is normal.

About the washer control panel.

7	Signal•»)	Cycle SignalUse theSignal pad to change the volume of the end of cycle signal.	Press the pad until you reach the desired volume.
8	PreWash	Prewash (on some models)Prewash is an extra wash before the main wash. Use it for heavily soiled clothes or for clothes with a care label that recommends prewashing before washing. Be sure to add high-efficiency	detergent, or the proper wash additive to the prewash dispenser.NOTE:When selecting prewash, it is recommended to use powder detergent in the main wash (detergent) compartment.
9	Extra Rinse	Extra RinseUse an extra rinse when additional rinsing is desired to remove excess dirt and detergent from soiled loads.
10	Delay Wash	Delay Wash (on some models)You can delay the start of a wash cycle for 10-18 hours, depending on the model. Press theDelay Wash pad to choose the number of hours you want to delay the start of the cycle, then press theStart pad. The machine will count down and start automatically at the correct time.	NOTE:If you forget to fully close the door, a reminder signal will beep reminding you to do so.NOTE:If you open the door when the delay is counting down, the machine will enter the pause state. You must close the door and pressStart again in order to restart the countdown.
11	Hold 3 Seconds To Lock/Unlock Controls	LockYou can lock the controls to prevent any selections from being made. Or you can lock the controls after you have started a cycle.Children cannot accidentally start the washer by touching pads with this option selected.	To lock the washer controls, press and hold theLock pad for 3 seconds.To unlock the washer controls, press and hold theLock pad for 3 seconds.The control lock icon on the display will light up when it is on.NOTE:The Power pad can still be used when the machine is locked.
12		My Cycle (on some models)To save a favorite cycle, set the desired settings for wash cycle, soil level, spin speed and wash temp settings and hold down the My Cycle pad for 3 seconds. A beep will sound to indicate the cycle has been saved.To use your custom cycle, press the My Cycle pad before washing a load.To change the saved cycle, set the desired settings and hold down the My Cycle pad for 3 seconds.	NOTE:When using My Cycle, wash options cannot be modified after the cycle has been started.NOTE:If you change wash options with My Cycle before starting the cycle, the My Cylelight will turn off and you will be returned to the base cycle.

eWash

eWash (Energy Saving Wash)

Use eWASH to save energy on specified wash cycles. eWASH cannot be used with Steam Refresh, Stain Wash or Basket Clean.

Available On Select Cycles

Steam (on some models)

Steam adds steam into the washer during Whites, Colors/Normals, Stain Wash, Sanitize or Bulky Bedding cycles.

To use:

1. Turn Power on and select a wash cycle.

The Steam option is only available on Whites, Colors/Normals, Stain Wash, Sanitize or Bulky Bedding cycles.

1. Press Steam pad to activate.

2. Press the Start pad.

Display

The display shows the approximate time remaining until the end of the cycle.

NOTE: The cycle time is affected by how long it takes the washer to fill. This depends on the water pressure in your home.

About the washer features.

NOTE: Features may not be available on all washer models.

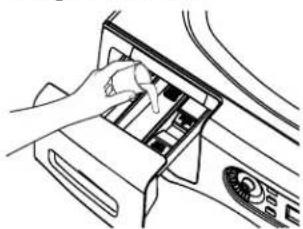

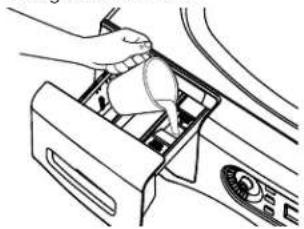

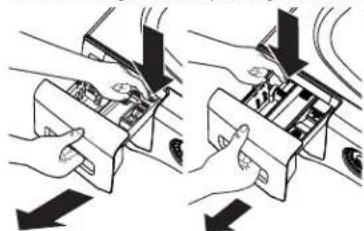

	The Dispenser DrawerSlowly open the dispenser drawer by pulling it out until it stops.After adding laundry products, slowly close the dispenser drawer. Closing the drawer too quickly could result in early dispensing of the bleach, fabric softener or detergent.	You may see water in the bleach and fabric softener compartments at the end of the cycle.This is a result of the flushing/siphoning action and is part of the normal operation of the washer.
	The Prewash Compartment (on some models)Only use the Prewash Compartment if you are selecting the Prewash cycle for heavily soiled clothes. Add measured detergent or prewash additive to the back left prewash compartment of the dispenser drawer.Detergent or prewash additive is flushed from the dispenser in the prewash cycle (if selected).	NOTE:Liquid detergent will drain into the washer drum as it is added.Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer as it can lead to over sudsing and detergent residue being left on the clothes.

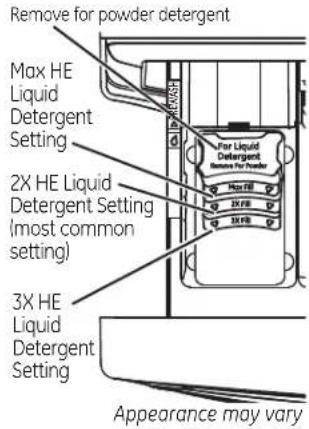

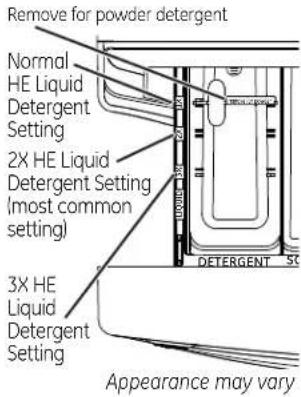

	The Detergent CompartmentHigh-efficiency detergent is required for this washer. Use the detergent manufacturer's recommended amount.Add measured detergent to the front left detergent compartment of the dispenser drawer.Detergent is flushed from the dispenser at the beginning of the wash cycle. Either powdered or liquid detergent can be used.	Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer as it can lead to oversuding and detergent residue being left on the clothes.Using more detergent than the recommended quantity can cause residue buildup on your washer.

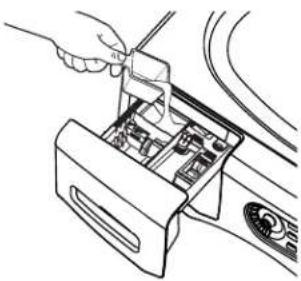

	On models with a removable detergent cupPowder Detergent- Remove the liquid detergent cup and place it in a safe location outside of the washer.Follow the detergent manufacturer's instructions when measuring the amount of powder to use.	Liquid Detergent- Locate the concentration of your detergent on the bottle. Do not fill above the Max Fill line in the detergent cup for your detergent concentration type.
	On models with a selection insertThe detergent selection insert must be placed in the detergent compartment in a specific position according to what type of detergent you are using.Powder Detergent- Remove the detergent selection insert and place it in a safe location outside of the washer.Liquid Detergent- You will need to adjust the insert according to the type of Liquid Detergent you are using. The Icons on the side of the detergent compartment must line up on the center when the insert is in position.	NOTE:Not all models have the 2x and 3x detergent settings. Some have only regular HE detergent settings. You must reduce the amount of detergent for 2x or 3x detergent per bottle instructions.Move the insert by pulling it up and replace it by sliding it down between either the rear or front detergent compartment molded rails, as desired, for liquid detergent.Remove for powder detergent.

On some models:

Line drawing of a hand inserting a component into a car intake bin (no text or symbols)

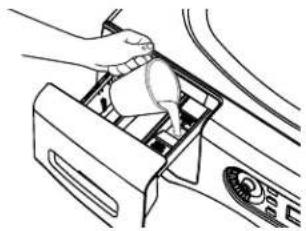

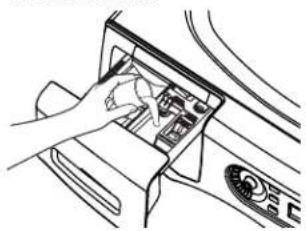

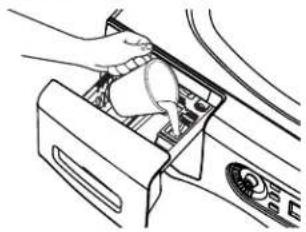

The Liquid Bleach Compartment

IMPORTANT: The bleach compartment position varies by model. Be sure to identify the correct compartment for bleach before using.

If desired, measure out the recommended amount of liquid bleach, not to exceed 1/3 cup (80 ml), and pour into the right compartment labeled "LIQUID BLEACH".

Do not exceed the maximum fill line. Overfilling can cause early dispensing of the bleach which could result in damaged clothes.

NOTE: Do not use powdered bleach in the dispenser.

On some models:

Line drawing of a hand placing a component into a car intake bin (no text or symbols)

On some models:

Line drawing of a hand inserting a component into a car air vent (no text or symbols)

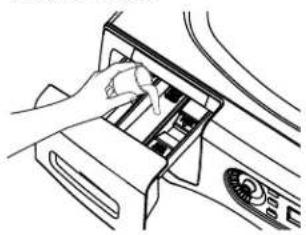

The Fabric Softener Compartment

IMPORTANT: The fabric softener compartment position varies by model. Be sure to identify the correct compartment for fabric softener before using.

If desired, pour the recommended amount of liquid fabric softener into the compartment labeled "FABRIC SOFTENER."

Use only liquid fabric softener in the dispenser.

Dilute with water to the maximum fill line.

Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener which could stain clothes.

NOTE: Do not pour fabric softener directly on the wash load.

On some models:

Line drawing of a hand inserting a component into a car air vent (no text or symbols)

Loading and using the washer.

Always follow fabric manufacturer's care label when laundering.

Sorting Wash Loads

Sort laundry into loads that can be washed together.

Colors	Soil	Fabric	Lint
Whites	Heavy	Delicates	Lint Producers
Lights	Normal	Easy Care	Lint Collectors
Darks	Light	Sturdy Cottons

■ Combine large and small items in a load. Load large items first. Large items should not be more than half the total wash load.
■ Washing single items is not recommended. This may cause an out-of-balance load. Add one or two similar items.
■ Pillows and comforters should not be mixed with other items. This may cause an out-of-balance load.

WARNING

- Fire Hazard

Never place items in the washer that are dampened with gasoline or other flammable liquids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including cooking oils).

Doing so so can result in death, explosion, or fire.

Preparing Clothes

■ To avoid snags during washing:
Follow these steps to maximize garment care.
- Close garment zippers, snaps, buttons and hooks.
- Mend seams, hems, tears.
• Empty all items from pockets.
- Remove nonwashable garment accessories such as ornaments and nonwashable trim materials.
■ To avoid tangling, tie strings, draw ties and belt-like materials.
■ Brush away surface dirt and lint; treat spots and stains.
■ Promptly wash wet or stained garments to maximize results.
■ Mix garments using recommended maximum load sizes on page 11.
■ Use nylon mesh garment bags to wash small items.
■ Wash multiple garments at one time for best results.

Loading the Washer

Wash drum may be fully loaded with loosely added items. Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).

To add items after washer has started, press Start and wait until the door is unlatched. The washer may take up to 30 seconds to unlock the door after pressing Start depending on the machine conditions. Do not try to force open the door when it is locked. After the door unlocks, open gently. Add items, close the door and press Start to restart.

Maximum Loading Sizes*

WORKWEAR	LINENS	MIXED LOAD	DELICATES**	SPEED WASH(2-4 GARMENTS)
4 Jeans5 Workwear Shirts5 Workwear Pants	2 Bath Sheets10 Bath Towels/12 Washcloths7 Hand Towels/2 TerryclothBath MatsOR2 Flat Queen-Sized Sheets2 Fitted Queen-Sized Sheets4 Pillowcases	4 Pillowcases2 Hand Towels2 Flat Sheets/2 Fitted Sheets2 Bath Towels/4 WashclothsOR6 Shirts (Men's or Women's)4 Pair Pants (Khakis or Twills)5 T-Shirts7 Pairs of Boxers4 Pairs of ShortsOR6 T-Shirts4 Pairs of Sweatpants4 Sweatshirts2 Hoodies7 Pairs of Socks	7 Bras7 Panties3 Slips2 Camisoles4 Nightgowns	2 Casual WearWork Shirts1 Pair Casual WearWork PantsOR3 Soccer Uniforms

*Exceeding maximum recommended load sizes may affect cleaning performance and garment care.

**Using a nylon mesh bag for small items is recommended.

Cleaning the washer.

Care and Cleaning

Exterior: Immediately wipe off any spills. Wipe with damp cloth. Do not hit surface with sharp objects.

Moving and Storage: Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. When moving the washer, the tub should be kept stationary by using the shipping bolts removed during installation. See Installation Instructions in this book. If these parts are not available, they can be ordered by visiting our Website at GEAppliances.com or by calling 800.GE.CARES. In Canada, call 800.561.3344.

Long Vacations: Be sure the water supply is shut off at the faucets. Drain all water from the hoses if the weather will be below freezing.

Cleaning the Interior of the Washer

To clean the interior of the washer, select the Basket Clean feature on the control panel. The cycle will use more water, in addition to bleach, to refresh your washer.

NOTE: Read the instructions below completely before starting the Basket Clean cycle.

1. Remove any garments or objects from the washer and ensure the washer basket is empty.
2. Open the washer door and pour one cup or 250 ml of liquid bleach or other washing machine cleaner into the basket.
3. Close the door and select the Basket Clean cycle. Push the Start pad.
4. When the Basket Clean cycle is working, you will see CLn on the display. The cycle will complete in about 90 minutes. Do not interrupt the cycle.
5. After the cycle is complete, leave the door open slightly for better ventilation.

If for any reason the cycle needs to be interrupted, the door will not open immediately. Forcing open the door at this stage may cause water to flood. The door will open after the water is drained to a level where it would not flood the floor.

Basket Clean may be interrupted by pressing the Start pad in between cycles. A power outage in the house might also interrupt the cycle. When the power supply is back, the Basket Clean cycle resumes where it had stopped. When interrupted, be sure to run a complete Basket Clean cycle before using the washer. If the Power pad is pressed during BasketClean, the cycle will be lost.

IMPORTANT:

■ Run Basket Clean with 1 Cup (250 ml) of bleach once a month.
■ After the completion of a Basket Clean cycle, the interior of your washer may have a bleach smell.
■ It is recommended to run a light color load after the Basket Clean cycle.

Line drawing of a hand using a tool to clean or inspect the interior of a vehicle wheel (no text or symbols)

Cleaning the Pump Filter

Due to the nature of the front-load washer, it is sometimes possible for small articles to pass to the pump. The washer has a filter to capture lost items so they are not dumped to the drain. To retrieve lost items, clean out the pump filter.

Illustration of a hand using a tool to apply liquid into a bowl (no text or symbols visible)

1. Using a coin or flat screwdriver in the notch on the door, open the access door.

2. Place a shallow pan or dish under the pump access door and towels on the floor in front of the washer to protect the floor. It is normal to catch about a cup of water when the filter is removed.

3. Pull down the pour spout.

Pour spout

1. Turn the pump filter counterclockwise and remove the filter. Open slowly to allow the water to drain.

2. Clean the debris from the filter.

3. Replace the filter and turn clockwise. Tighten securely.

Pour spout

Simple line drawing of a bowl placed on a cloth with an arrow indicating direction (no text or symbols)

1. Flip up the pour spout.

2. Close the access door.

Pump filter

Line drawing of two hands performing a gentle massage or massage technique on a curved surface (no text or symbols)

Cleaning the Door Gasket

Open the washer door. Using both hands, press down the door gasket. Remove any foreign objects if found trapped inside the gasket. Make sure there is nothing blocking the holes behind the gasket.

While holding down the door gasket, inspect the interior gasket by pulling it down with your fingers. Remove any foreign objects if found trapped inside this gasket. Make sure there is nothing blocking the holes behind the gasket.

When you are finished cleaning the door gasket, remove your hands and the gasket will return to the operating position.

Line drawing of hands holding a medical device on a patient's abdomen (no text or symbols)

Cleaning the washer.

Tab on back right or left depending on model

Illustration of two hands operating a device with arrows indicating motion (no text or symbols)

Lock tab is visible only after drawer has been pulled open

Dispenser Drawer Area: Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month.

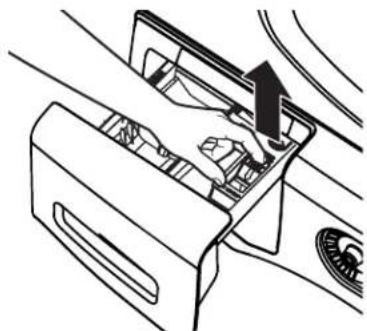

■ Remove the drawer by first pulling it out until it stops. Then reach back into the left or right rear corner (depending on model) of the drawer cavity and press down firmly on the lock tab, pulling out the drawer.

Line drawing of a car interior showing airflow direction and component placement (no text or symbols)

■ Remove the inserts from the bleach and fabric softener compartments and the detergent insert. Rinse the inserts and the drawer with hot water to remove traces of accumulated laundry products.

Line drawing of a hand holding a tablet device, no text or symbols present

■ To clean the drawer opening, use a small brush to clean the recess. Remove all residue from the upper and lower parts of the recess.
■ Return inserts to the proper compartments. Replace the dispenser drawer.

Installation Instructions

Washer

If you have any questions, call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com In Canada, call 800.561.3344 or visit GEAppliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical and electrical skills.
  • Completion time - 1-3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

FOR YOUR SAFETY: ⚠ WARNING

• This appliance must be properly grounded and installed as described in these Installation Instructions.
• Do not install or store the appliance in an area where it will be exposed to water/weather. See the Location of Your Washer section.
• NOTE: This appliance must be properly grounded, and electrical service to the washer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70.

TOOLS REQUIRED

☐ Adjustable wrench or 1/2" socket with ratchet
☐ Adjustable wrench or 9/16" open-end wrench
□ Channel-lock adjustable pliers
□ Carpenter's level

PARTS REQUIRED (Obtain locally)

□ Water Hoses (2)

PARTS SUPPLIED

□ Hose Guide

STACK BRACKET KIT

A stack bracket kit is available at additional cost. It can be ordered in the United States by visiting our Web site at GEAppliances.com or calling 800. GE.CARES. In Canada, call 800.661.1616 or visit your local GE Appliances dealer. Order kit # WE25X10018 or GEFLSTACK.

OPTIONAL PEDESTAL ACCESSORY

A pedestal is available at additional cost. It can be ordered in the United States by visiting our Web site at GEAppliances.com or calling 800.GE.CARES. In Canada, visit your local GE Appliances dealer. This product should be used with the pedestal # SBSD137HXX and SBSD227FXX. Follow the pedestal Installation Instructions.

Do Not Install the Washer:

1. In an area exposed to dripping water or outside weather conditions. The ambient temperature should never be below 60°F (15.6°C) for proper washer operation.
2. In an area where it will come in contact with curtains or drapes.
3. On carpet. The floor MUST be a hard surface with a maximum slope of 1/2" per foot (1.27 cm per 30 cm). To make sure the washer does not vibrate or move, you may have to reinforce the floor.

NOTE: If floor is in poor condition, use 3/4" impregnated plywood sheet solidly attached to the existing floor covering.

IMPORTANT:

Minimum Installation Clearances

• When installed in alcove: Sides, Rear, Top = 0" (0 cm)
• When installed in closet: Sides, Rear, Top = 0" (0 cm), Front = 1" (2.54 cm)
• Closet door ventilation openings required: 2 louvers each 60 square in. (387 cm), located 3" (7.6 cm) from top and bottom of door

ROUGH-IN DIMENSIONS

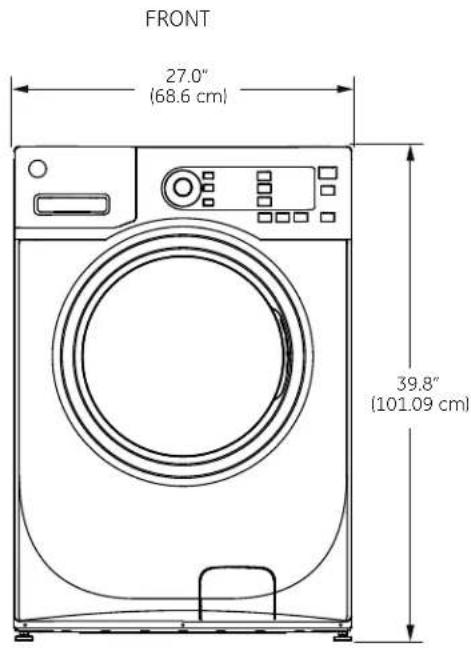

FRONT 27.0" (68.6 cm) 39.8" (101.09 cm)

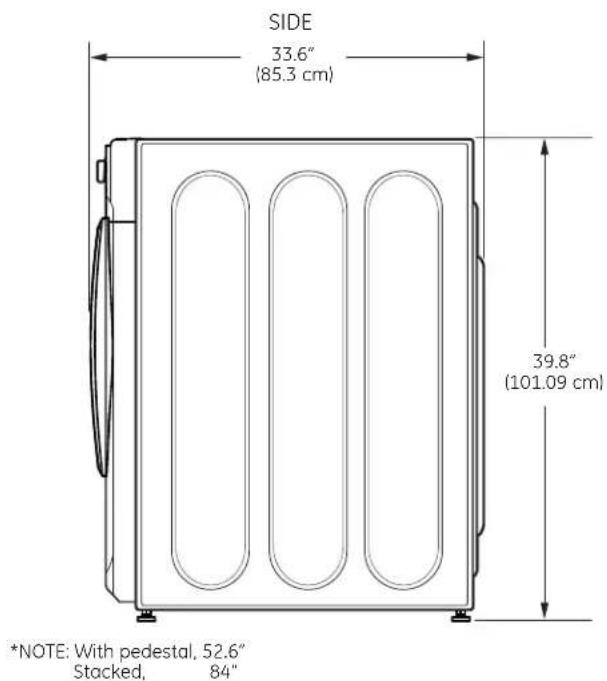

SIDE 33.6" (85.3 cm) 39.8" (101.09 cm) *NOTE: With pedestal, 52.6" Stacked, 84"

UNPACKING THE WASHER

WARNING: Recycle or destroy the carton and plastic bags after the washer is unpacked. Make materials inaccessible to children. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers causing suffocation.

1. Cut and remove the top and bottom packaging straps.
2. While it is in the carton, carefully lay the washer on its side. DO NOT lay the washer on its front or back.
3. Turn down the bottom flaps—remove all base packaging including the cardboard, styrofoam base and styrofoam tub support (inserted in center of base).

NOTE: If you are installing a pedestal, proceed to the installation instructions that come with the pedestal.

1. Carefully return the washer to an upright position and remove the carton.
2. Carefully move the washer to within 4 feet (122 cm) of the final location.
3. Remove the following from the back side of the washer: 4 bolts 4 plastic spacers (including rubber grommets) 4 power cord retainers

Line drawing of a washing machine with internal components and a close-up inset showing two washers (no text or symbols)

NOTE: Failure to remove the shipping braces can cause the washer to become severely unbalanced.

Save all bolts for future use.

NOTE: If you must transport the washer at a later date, you must reinstall the shipping support hardware to prevent shipping damage. Keep the hardware in the plastic bag provided.

In case you misplace your shipping bolts, replacements are available at additional cost. They can be ordered in the United States by visiting our website at GEAppliances.com or calling 800.GE.CARES. In Canada, call 800.661.1616. Order kit #WH49X10039.

ELECTRICAL REQUIREMENTS

Read these instructions completely and carefully.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK AND PERSONAL INJURY:

- DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Washer must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, in accordance with the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70.

CIRCUIT – Individual, properly polarized and grounded 15-amp branch circuit fused with 15-amp time-delay fuse or circuit breaker.

POWER SUPPLY – 2-wire, with ground, 120-volt, single-phase, 60-Hz, alternating current.

OUTLET RECEPTACLE – Properly grounded 3-prong receptacle to be located so the power supply cord is accessible when the washer is in an installed position.

Illustration of a plug and two electrical outlets (no text or symbols)

GROUNDING REQUIREMENTS

WARNING:

Improper connection of the equipment grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

1. The washer MUST be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electrical current.
2. Since your washer is equipped with a power supply cord having an equipment-grounding conductor and a grounding plug, the plug MUST be plugged into an appropriate, copper-wired receptacle that is properly installed and grounded in accordance with all local codes and ordinances or in the absence of local codes, with the National Electrical Codes, ANSI/NFPA 70 (latest edition). If in doubt, call a licensed electrician. DO NOT cut off or alter the grounding prong on the power supply cord. In situations where a two-slot receptacle is present, it is the owner's responsibility to have a licensed electrician replace it with a properly grounded three-prong grounding-type receptacle.

WATER SUPPLY REQUIREMENTS

Hot and cold water faucets MUST be installed within 42 inches (107 cm) of your washer's water inlet. The faucets MUST be 3/4" (1.9 cm) garden hose-type so inlet hoses can be connected. Water pressure MUST be between 10 and 120 pounds per square inch. Your water department can advise you of your water pressure. The hot water temperature should be set to deliver water at 120° to 140°F (48°–60°C).

DRAIN REQUIREMENTS

1. Drain capable of eliminating 17 gals (64.3 L) per minute.
2. A standpipe diameter of 1-1/4" (3.18 cm) minimum.
3. The standpipe height above the floor should be:
   Minimum height: 24" (61 cm) Maximum height: 96" (244 cm)

BACK 96" (244 cm) Max. 24" (61 cm) Min.

NOTE: The drain hose attached to the washer can reach a 58" (147 cm) high standpipe. For a higher standpipe, contact an authorized parts distributor.

INSTALLING THE WASHER

1. Run some water from the hot and cold faucets to flush the water lines and remove particles that might clog up the inlet hoses and water valve screens.

2. Obtain inlet hoses locally.

3. Ensure there is a rubber washer in the hoses. Reinstall the rubber washer into the hose fitting if it has fallen out during shipment. Carefully connect an inlet hose to the outside "H" outlet of the water valve. Tighten by hand, then tighten another 2/3 turn with pliers. Carefully connect

Line drawing of a computer monitor with ports and cables (no text or symbols)

the other inlet hose to the inside "C" outlet of the water valve. Tighten by hand; then tighten another 2/3 turn with pliers. Do not crossthread or over-tighten these connections.

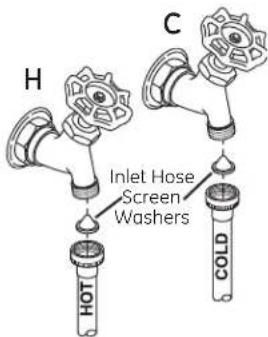

1. Install the screen washers by inserting them into the free ends of the inlet hoses with protruded side facing the faucet.

H C Inlet Hose Screen Washers HOT COLD

1. Connect the inlet hose ends to the HOT and COLD water faucets tightly by hand, then tighten another 2/3 turn with pliers. Turn the water on and check for leaks.

Illustration of a pipe fitting with a flanged handle and bulb (no text or symbols)

1. Carefully move the washer to its final location. Gently rock the washer into position ensuring inlet hoses do not become kinked. It is important not to damage the rubber leveling legs when moving your washer to its final location. Damaged legs can increase washer vibration. It may be helpful to spray window cleaner on the floor to help move your washer into its final position. NOTE: To reduce vibration, ensure that all four rubber leveling legs are firmly touching the floor. Push and pull on the back right and then back left of your washer.

NOTE: Do not use the dispenser drawer or door to lift the washer.

NOTE: If you are installing into a drain pan, you can use a 24-inch long 2x4 to lever the washer into place.

1. With the washer in its final position, place a level on top of the washer (if the washer is installed under a counter, the washer should not be able to rock). Adjust the front leveling legs up or dow

Technical line drawing of a mechanical component with a handle and mounting holes (no text or symbols)

to ensure the washer is resting solid. Turn the lock nuts on each leg up towards the base of the washer and snug with a wrench.

NOTE: Keep the leg extension at a minimum to prevent excessive vibration. The farther out the legs are extended, the more the washer will vibrate.

If the floor is not level or is damaged, you may have to extend the rear leveling legs.

INSTALLING THE WASHER (cont.)

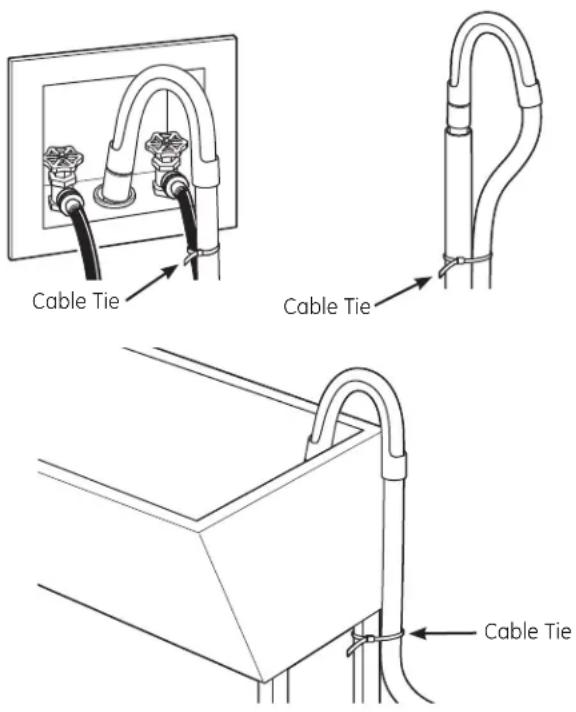

1. Attach the U-shaped hose guide to the end of the drain hose. Place the hose in a laundry tub or standpipe and secure it with the cable tie provided in the enclosure package.

NOTE: Placing the drain hose too far down the drain pipe can cause a siphoning action. No more than 7 inches of hose should be in the drain pipe. There must be an air gap around the drain hose. A snug fit can also cause a siphoning action.

1. Plug the power cord into a grounded outlet.

NOTE: Check to be sure the power is off at the circuit breaker/fuse box before plugging the power cord into an outlet.

1. Turn on the power at the circuit breaker/fuse box.
2. Read the rest of this Owner's Manual. It contains valuable and helpful information that will save you time and money.
3. Before starting the washer, check to make sure:

□ Main power is turned on.
☐ The washer is plugged in.
☐ The water faucets are turned on.
☐ The unit is level and all four leveling legs are firmly on the floor.
☐ The shipping support hardware is removed and saved.
☐ The drain hose is properly tied up.
☐ There are no leaks at the faucet, drain line or washer.

1. Run the washer through a complete cycle. Check for water leaks and proper operation.

2. If your washer does not operate, please review the Before You Call For Service section before calling for service.

3. Place these instructions in a location near the washer for future reference.

REPLACEMENT PARTS

If replacement parts are needed for your washer, they can be ordered in the United States by visiting our Web site at GEAppliances.com or by calling 800.GE.CARES. In Canada, call 800.661.1616.

Troubleshooting Tips

Save time and money! Review the charts on the

following pages first and you may not need to call for

service.

Problem Possible Cause What To Do
Not drainingNot spinningNot agitating and light items.	Load is out of balanceIncrease load size if washing small load containing heavyPump cloggedDrain hose is kinked or improperly connectedHousehold drain may be cloggedDrain hose siphoning; drain hose pushed too far down the drain	· Redistribute clothes and run drain & spin or rinse & spin.Straighten drain hose and make sure washer is not sitting on it.Check household plumbing. You may need to call a plumber.Ensure there is an air gap between hose and drain.
Leaking water	Door gasket is damagedleft in pockets may cause damage to the washer (nails, screws, pens, pencils).	· Check to see if gasket is seated and not torn. Objects
	Door gasket not damagedThis is a normal operation.Carefully wipe off rubber door seal. Sometimes dirt or clothing is left in this seal and can cause a small leak.	· Water may drip from the door when the door is opened.
	Check back left of washer for waterFill hoses or drain hose is improperly connected inserted in and secured to drain facility.	· If this area is wet, you have oversuding condition. Use less detergent.
	Household drain may be cloggedDispenser cloggedPlease refer to Cleaning the Washer section.	· Make sure hose connections are tight at washer and faucets and make sure end of drain hose is correctly
	Incorrect use of detergentDispenser box crack	· Check household plumbing. You may need to call a plumber.
Clothes too wet	Load is out of balanceand light items.The machine will slow the spin speed down to 410 rpm if it has a hard time balancing the load. This speed is normal.	· Reduce soap may cause clogs inside the dispenser and cause water to leak out the front of the dispenser. Remove drawer and clean both drawer and inside of dispenser box.
	Pump cloggedOverloadingDrain hose is kinked or improperly connectedHousehold drain may be cloggedDrain hose siphoning; drain hose pushed too far down the drain	· Use HE and correct amount of detergent.· If new installation, check for crack on inside of dispenser box.· Redistribute clothes and run drain & spin or rinse & spin.Increase load size if washing small load containing heavy

Before you call for service...

Problem Possible Cause	What To Do
Incomplete cycle or timer not advancing 11 or 15	Automatic load redistribution rebalances may be done. This is normal operation. Do nothing; the machine will finish the wash cycle.
	Pump clogged	See page 13 on how to clean the Pump Filter.
	Drain hose is kinked or improperly connected	Straighten drain hose and make sure washer is not sitting on it.
	Household drain may be clogged	Check household plumbing. You may need to call a plumber.
	Drain hose siphoning; drain hose pushed too far down the drain	Ensure there is an air gap between hose and drain.
Loud or unusual noise; vibration or shaking	Cabinet moving	Washer is designed to move 1/4" to reduce forces transmitted to the floor. This movement is normal.
	All rubber leveling legs are not firmly touching the floor problem.	Push and pull on the back right and then back left of your washer to check if it is level. If the washer is uneven, adjust the rubber leveling legs so they are all firmly touching the floor and locked in place. Your installer should correct this
	Unbalanced load machine, run rinse and spin with no load. If normal, unbalance was caused by load.	Open door and manually redistribute load. To check
	Pump clogged	See page 13 on how to clean the Pump Filter.
No power/washer not working or dead	Washer is unplugged	Make sure cord is plugged securely into a working outlet.
	Water supply is turned off	Turn both hot and cold faucets fully on.
	Circuit breaker/fuse is tripped/blown	Check house circuit breakers/fuses. Replace fuses or reset breaker. Washer should have separate outlet.
	Automatic self system checks occur. It may take up to 20 seconds before you can use your washer. This is normal operation.	First time the washer is plugged in, automatic checks
Snags, holes, tears, rips or excessive wear	Overloaded	Do not exceed maximum recommended load sizes. See recommended maximum load sizes on page 11.
	Pens, pencils, nails, screws or other objects left in pockets	Remove loose items from pockets.
	Pins, snaps, hooks, sharp buttons, belt buckles, zippers and sharp objects left in pockets	Fasten snaps, hooks, buttons and zippers.
Control time wrong or changes	This is normal the estimated time is increased causing time left to increase or jump.	During spin the washer may need to rebalance the load sometimes to reduce vibrations. When this happens,
Not enough water	This is normal like top-load washers.	Horizontal washers do not require the tub to fill with water
Washer pauses or has to be restarted, or washer door is locked and will not open	Pump clogged	See page 13 on how to clean the Pump Filter.
Door unlocks or press Start and machine doesn't operate	This is normal The door will lock and unlock.	Front-load washers start up differently than top-load washers, and it takes 30 seconds to check the system.
	Incorrect operation	Simply open and close the door firmly; then press Start.
Water does not enter washer or enters slowly	Automatic self system checks	After Start is pressed, the washer does several system checks. Water will flow 60 seconds after Start is pressed.
	Water supply is turned off	Turn on both hot and cold faucets fully.
Water valve screens are stopped up		Turn off the water source and remove the water connection hoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on.
Inlet hose screen washers are stopped up		Turn off the water source and remove the inlet hoses from the wall faucets. Use a brush or toothpick to clean the screen washers in the end of the hoses. Reconnect the hoses and turn the water back on.
Wrinkling	Improper sorting	Avoid mixing heavy items (like work clothes) with light items (like blouses).
	Overloading	Load your washer so clothes have enough room to move freely.
	Incorrect wash cycle	Match cycle selection to the type of fabric you are washing (especially for easy care loads).
	Repeated washing in water that is too hot	Wash in warm or cold water.
Grayed or yellowed clothes	Not enough detergent	Use correct amount of detergent.
	Not using HE (high-efficiency) detergent	Use HE detergent.
	Hard water	Use hottest water safe for fabric.Use a water conditioner like Calgon brand or install a water softener.
	Water is not hot enough	Make sure water heater is delivering water at 120^ - 140^ ( 48^ - 60^ ).
	Detergent is not dissolving	Try a liquid detergent.
	Dye transfer	Sort clothes by color. If fabric label states wash separately, unstable dyes may be indicated.
Colored spots	Incorrect use of fabric softener	Check fabric softener package for instructions and follow directions for using dispenser.
	Dye transfer	Sort whites or lightly colored items from dark colors.Promptly remove wash load from washer.
Water temperature is incorrect	Water supply is improperly connected	Make sure hoses are connected to correct faucets.
	House water heater is not set properly	Make sure house water heater is delivering water at 120^ - 140^ ( 48^ - 60^ ).
Slight variation in metallic color	This is normal	Due to the metallic properties of paint used for this unique product, slight variations of color may occur due to viewing angles and lighting conditions.
Bad odor inside your washer	Washer unused for a long time, not using recommended quality of HE detergent or used too much detergent detergent container.	Run a Basket Clean cycle.In the case of strong odor, you may need to run the Basket Clean cycle more than once.Use only the amount of detergent recommended on theUse only HE (high-efficiency) detergent.Always remove wet items from the washer promptly after machine stops running.Leave the door slightly open for the water to air dry. Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with or inside this or any other appliance.

Before you call for service...

Problem Possible Cause	What To Do
Detergent leak	Incorrect placement of detergent insert	Make sure detergent insert is properly located and fully seated. Never put detergent above max line.
Improper dispensing of softener or bleach the max line	Dispenser clogged	Monthly clean the dispenser drawer to remove buildup of chemicals.
	Softener or bleach is filled above	Make sure to have the correct amount of softener or bleach.
	Softener or bleach cap issue	Make sure softener and bleach cap for dispenser are seated or they will not work.

GE Washer Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, in the United States, visit us on-line at GEAppliances.com, or call 800.GE.CARES (800.432.2737). In Canada, call 800.561.3344. Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: We Will Replace:

One YearFrom the date of the original purchase costs to replace the defective part.

Any part of the washer which fails due to a defect in materials or workmanship. During this limited one-year warranty, we will also provide, free of charge, all labor and related service

What Is Not Covered

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Damage after delivery.

■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

In the United States:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

In Canada:

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location.

Some provinces do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are, consult your local or provincial consumer affairs office.

Warrantor: MC Commercial, Burlington, ON, L7R 5B6

Consumer Support.

GE Appliances Website

In the US: GEAppliances.com

In Canada: GEAppliances.ca

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.

Schedule Service

In the US: GEAppliances.com

In Canada: GEAppliances.ca

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

In Canada, call 800.561.3344

Real Life Design Studio

In the US: GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, please write to: Director, Consumer Relations, MC Commercial

1 Factory Lane, Suite 310

Moncton, N.B. E1C 9M3

Extended Warranties

In the US: GEAppliances.com

In Canada: GEAppliances.ca

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, please consult your local listings for your extended warranty provider.

Parts and Accessories

In the US: GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

In Canada, call 800.661.1616

Contact Us

In the US: GEAppliances.com

In Canada: GEAppliances.ca

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada, please write to: Director, Consumer Relations, MC Commercial

1 Factory Lane, Suite 310

Moncton, N.B. E1C 9M3

Register Your Appliance

In the US: GEAppliances.com

In Canada: GEAppliances.ca

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Laveuses

INSTALLATION APPROPRIÉE

Colors Normals Whites Stain Wash Sanitize Bulky Bedding Delicates Hand Wash Speed Wash Drain+Spin Basket Clean 2 12 eWash Steam Available On Select Cycles My Cycle Held 3 Seconds To Store Estimated Time Remaining Soil Spin Temp PreWash Extra Rinse Signal-θ 3 4 Extra Light Light Normal Heavy Extra Heavy No Spin Low Medium High Extended High Top Cold Cold Warm Hot Extra Hot Power Delay Wash Start Add a Garment Lock Hold 3 Seconds To Lock/Unlock Controls

Colors Normals Whites Stain Wash Sanitize Delicates Hand Wash Speed Wash Drain+Spin Basket Clean 13 eWash Estimated Time Remaining Soil Spin Temp Extra Light Light Normal Heavy No Spin Low Medium High Top Cold Cold Warm Hot Extra Hot Extra Rinse Signal-∞ Start Add a Garment Lock Hold 3 Seconds To Lock/Unlock Controls Power 6

Whites Colors Normals Stain Wash Delicates Hand Wash Speed Wash Drain+Spin Basket Clean 13 eWash Estimated Time Remaining Soil Extra Light Light Normal Heavy Spin No Spin Low Medium High Temp Top Cold Cold Warm Hot Power Start Add a Garment Lock Hold 3 Seconds To Lock/Unlock Controls 2 5 9 7 11

1 Power (Alimentation)

2 Wash Cycles (Cycles de Lavage)

Line drawing of a hand inserting a component into a car intake bin (no text or symbols)

Line drawing of a hand placing a component into a car intake bin (no text or symbols)

Line drawing of a hand inserting a component into a car air vent (no text or symbols)

Line drawing of a hand inserting a component into a car air vent (no text or symbols)

Line drawing of a hand using a tool to clean or inspect the interior of a vehicle wheel (no text or symbols)

Illustration of a hand using a tool to apply liquid into a bowl (no text or symbols visible)

Simple line drawing of a bowl on a napkin with an arrow indicating direction (no text or symbols)

Line drawing of two hands performing a gentle massage or massage technique on a curved surface (no text or symbols)

Illustration of two hands operating a mechanical device with arrows indicating motion (no text or symbols)

Line drawing of a car interior showing a door, vent, and fan (no text or symbols)

Line drawing of a hand holding a tablet device, no text or symbols present

AVANT 27.0" (68.6 cm) 39.8" (101.09 cm)

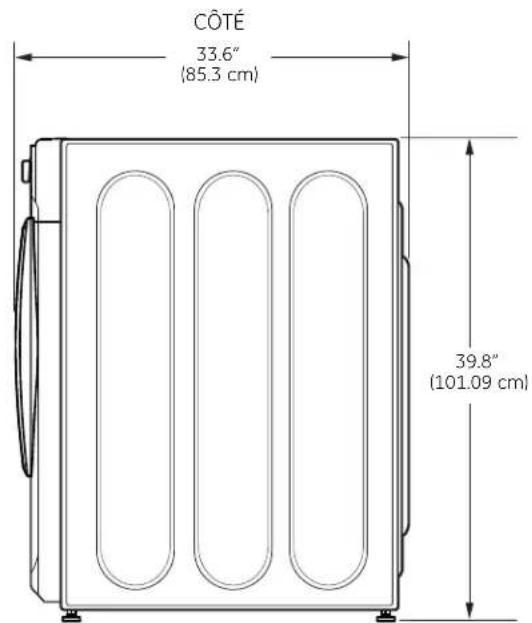

CÔTÉ 33.6" (85.3 cm) 39.8" (101.09 cm)

Technical line drawing of a washing machine with internal components and a close-up inset showing two screws (no text or symbols present)

Simple line drawing of a plug and two electrical outlets (no text or symbols)

EXIGENCES QUANT À LA MISE À LA TERRE

AVERTISSEMENT:

Line drawing of a device rear panel with three connectors and a cable inserted (no text or symbols)

Illustration of a pipe fitting with a decorative flange and coiled tubing (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Garant : MC Commercial, Burlington, ON, L7R 5B6

Hold 3 Seconds To Lock/Unlock Controls

Lock (Bloquear)

Available On Select Cycles

Illustration of a hand inserting a device into a folder with arrows indicating direction (no text or symbols)

Line drawing of a hand inserting a component into an electronic device (no text or symbols)

Line drawing of a car interior showing hand placement and control panel (no text or symbols)

En algunos modelos:

Line drawing of a hand inserting a component into a car intake bin (no text or symbols)

Line drawing of a hand inserting a component into a car air vent (no text or symbols visible)

En algunos modelos:

Line drawing of a hand inserting a component into a car air vent (no text or symbols)

Compartimento para el suavizante

Line drawing of a hand using a tool to clean or inspect the interior of a vehicle wheel (no text or symbols)

Illustration of a hand using a tool to apply liquid into a bowl (no text or symbols visible)

Simple line drawing of a toilet with a directional arrow indicating flow (no text or symbols)

Line drawing of two hands performing a gentle massage or massage technique on a curved surface (no text or symbols)

Line drawing of hands adjusting a garment with a zipper (no text or symbols)

Illustration of two hands operating a device with arrows indicating motion (no text or symbols)

Line drawing of a car interior showing a car intake manifold and cable cord (no text or symbols)

Line drawing of a hand holding a small object inside a vehicle's door frame (no text or symbols)

Line drawing of a washing machine with internal components and a close-up inset showing two screws (no text or symbols)

Illustration of a hand holding a socket connected to a dual electrical outlet (no text or symbols)

Line drawing of a computer monitor with two ports and a cable inserted (no text or symbols)

Illustration of a pipe fitting with a flanged valve and coiled tubing (no text or symbols)

Technical line drawing of a mechanical component with a handle and grid base (no text or symbols)

Garante: General Electric Company. Louisville, KY 40225

General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com
