Product type	Food waste disposer
Brand	GE
Model	GFC535V
Loading mode	Batch feed (plug-in activation)
Power supply	120 V, 60 Hz, dedicated grounded circuit
Dimensions (under-sink height)	228 to 304 mm (9 to 12 in) depending on configuration
Estimated weight	5 kg (11 lb)
Materials	Stainless steel and plastic components
Motor	Permanently lubricated motor, overload protection
Anti-jam system	Swivel impellers anti-jam
Dishwasher compatibility	Yes, with possible connection
Safety	Automatic overload shutdown, red reset button, mandatory grounding
Maintenance	Self-cleaning; do not lubricate; use ice cubes and citrus peels for deodorizing
Replacement parts available	Sink flange, mounting ring, discharge elbow, gasket, dishwasher cap, power cord (ref. PM3X215)
Warranty	1 year full (parts and labor) + 2 additional years on functional parts
Recommended use	Soft food waste and small bones; do not grind metal, glass, plastic, shells, whole corn cobs

Frequently Asked Questions - GFC535V GE

How to install the GFC535V disposer?

Installation requires basic mechanical skills. Start by disconnecting power. Remove the old disposer, clean the sink, then install the sink flange following the part order (gasket, support ring). Attach the discharge elbow and connect the disposer to the flange by aligning the tabs. Ensure a height of 228 to 304 mm under the sink to avoid standing water. Refer to the full manual for details.

What to do if the disposer does not start?

First check the red reset button located near the base of the disposer. If tripped, press until you hear a click. If the button is not tripped, check the power supply (fuse, breaker). Remove the splash guard (if present) and ensure the turntable rotates freely using a broom handle. If nothing works, there may be an internal issue requiring a technician.

How to clean the disposer?

The disposer is self-cleaning. To eliminate odors, drop ice cubes sprinkled with scouring powder or citrus peels. Never pour bleach or harsh chemicals. Continuous feed models have a removable splash guard that you can remove for cleaning. For batch feed models, there is no splash guard.

Can I grind bones in the disposer?

Yes, but only small bones. Large whole bones should be thrown in the trash. To speed up grinding, cut bones into pieces. The disposer may temporarily slow down, which is normal. Avoid grinding large bones that could overload the motor.

Why is the disposer making a loud noise?

A loud noise (other than grinding bones or pits) often indicates a foreign object (utensils, cap, etc.) has fallen into the disposer. Remove the splash guard and extract the object using long pliers. If the noise persists, check that the turntable is not jammed.

How to reset the disposer after an overload?

First disconnect the power from the disposer. Remove the splash guard and check that the turntable rotates freely. If so, reconnect and press the red reset button located opposite the discharge elbow until you hear a click. Hold it down. Do not force if the turntable does not turn.

Can the disposer be connected to a dishwasher?

Yes, the GFC535V disposer is compatible with a dishwasher. Use the provided connection: remove the dishwasher cap using a non-sharp tool, then connect the dishwasher hose with a hose clamp. If necessary, use a rubber bayonet adapter.

What should never be put in the disposer?

Never introduce the following waste: oyster or clam shells, caustic products, glass, porcelain, plastic, large whole bones, metal (cans, cans, utensils, aluminum foil), hot oil or other hot liquids, and whole corn cobs. These items can damage the disposer or cause injury.

How to eliminate bad odors from the disposer?

To neutralize odors, drop lemon or orange peels into the disposer. Another method: run a dozen ice cubes sprinkled with household scouring powder. The disposer is self-cleaning, so regular use with cold water limits odors.

What is the warranty of the GFC535V disposer?

The warranty includes 1 full year from purchase date (parts and labor), then 2 additional years on functional parts only (labor not included). The warranty does not cover damage due to incorrect installation, misuse, or travel for training. Keep your receipt as proof of purchase.

USER MANUAL GFC535V GE

Disposal Food Waste Disposer

Safety Information

Connecting Electricity. 2, 3

Safety Precautions 2

Installation Instructions

Attaching the Discharge

Elbow .6

Components and Installation

of Sink Flange. 5

Connecting Disposer to

Sink Flange 7

Dimensions/Typical

Installations 8

Dishwasher Connection. 6

Operating Instructions

Batch Feed Models. 9

Care and Maintenance .10

Continuous Feed Models. .9

Troubleshooting Tips

Before You Call for

Service 11

Customer Service

Warranty. 12

Write the model and serial numbers for your Disposall here:

Model#

Serial#

You can find them on a label on the bottom of the dispenser.

Owner's Manual & Installation Instructions

Model Line Series

GFC320V

GFC325V

GFC520V

GFC525V

GFC530V

GFC535V

GFC720V

GFB760V

GFC1020V

Pub. No. 49-5903-2

01/13

PC71868

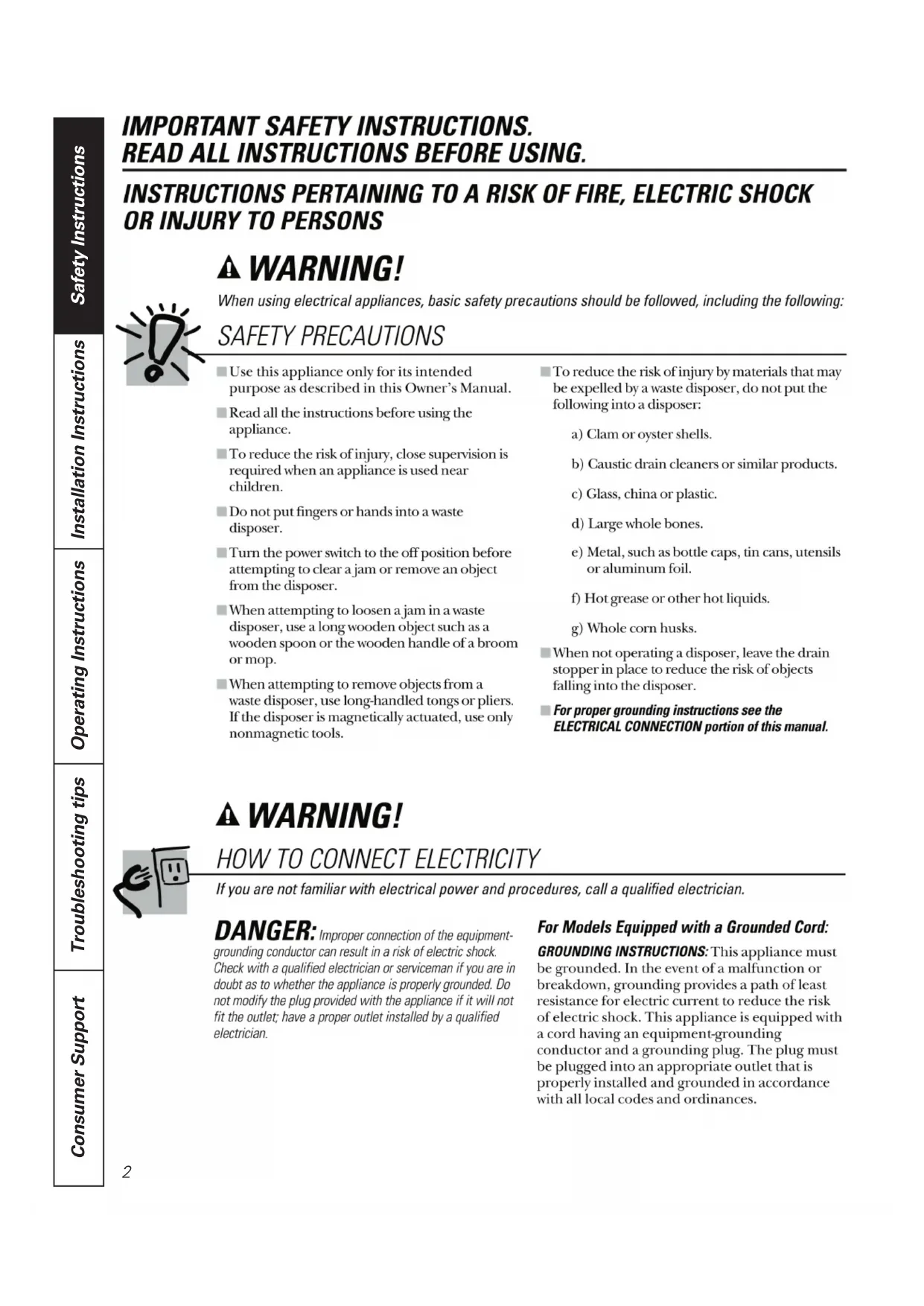

IMPORTANT SAFETY INSTRUCTIONS. READ ALL INSTRUCTIONS BEFORE USING.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS

WARNING!

When using electrical appliances, basic safety precautions should be followed, including the following: SAFETY PRECAUTIONS

Use this appliance only for its intended purpose as described in this Owner's Manual.
Read all the instructions before using the appliance.
To reduce the risk of injury, close supervision is required when an appliance is used near children.
Do not put fingers or hands into a waste disposer.
Turn the power switch to the off position before attempting to clear a jam or remove an object from the dispenser.
When attempting to loosen a jam in a waste disposer, use a long wooden object such as a wooden spoon or the wooden handle of a broom or mop.
When attempting to remove objects from a waste dispenser, use long-handled tongs or pliers. If the dispenser is magnetically actuated, use only nonmagnetic tools.

To reduce the risk of injury by materials that may be expelled by a waste disposer, do not put the following into a dispenser:

a) Clam or oyster shells.
b) Caustic drain cleaners or similar products.
c) Glass, china or plastic.
d) Large whole bones.
e) Metal, such as bottle caps, tin cans, utensils or aluminum foil.
f) Hot grease or other hot liquids.
g) Whole corn husks.

• When not operating a dispenser, leave the drain stopper in place to reduce the risk of objects falling into the dispenser.
  For proper grounding instructions see the ELECTRICAL CONNECTION portion of this manual.

WARNING!

HOW TO CONNECT ELECTRICITY

If you are not familiar with electrical power and procedures, call a qualified electrician.

DANGER: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance if it will not fit the outlet; have a proper outlet installed by a qualified electrician.

For Models Equipped with a Grounded Cord:

GROUNDING INSTRUCTIONS: This appliance must be grounded. In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING!

HOW TO CONNECT ELECTRICITY (cont.)

If you are not familiar with electrical power and procedures, call a qualifi ed electrician.

The power cord and/or connections must comply with the National Electrical Code, Section 422 and/or local codes and ordinances.

For Models Not Equipped with a Cord:

If your dispenser does not come equipped with a cord, you can connect it in two ways:

1. Attach a power cord, minimum 18" in length and not to exceed 36" in length. Use GE Part Number PM3X215.

or

1. Wire the dispenser directly into the house current.

To Attach a Power Cord:

GROUNDING INSTRUCTIONS: This appliance must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The power cord (to be installed) must have an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

NOTE:

Disconnect electric power to dispenser circuit before installation. Turn the circuit breaker to the OFF position or remove the fuse.

A. Connect the dispenser to 110-120 Volt, 60Hz AC current only.

B. If a plug-in cord is used, use a three-prong plug. Ground wire should be attached to the ground screw in the bottom of the dispenser (end bell).

Trace lead connected to this blade and attach that lead to white wire on dispenser. Ribbed Side

NOTE: When viewing face of electrical plug with grounding pin at top, the larger left blade is connected to the identified wire.

C. Use a cable clamp strain relief connector where power cord enters the dispenser. Heyco Box Connectors Part No. 30403

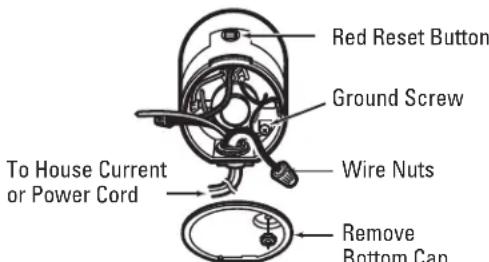

To Wire Your

Disposer Directly into the House Current:

GROUNDING INSTRUCTIONS: This appliance must be connected to a grounded, metal, permanent wiring system; or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

A. If you use BX cable:

1. These products are designed for household
2. Connect white wire to white lead of dispenser with a wire nut. Connect black wire to black lead of dispenser with a wire nut. Connect bare ground wire to the ground screw. The ground wire should be clamped and held by a strain relief.
3. Do not use a rigid conduit for the wiring connection.
4. A dedicated acceptable motor switch, with the off position marked, shall be provided for this dispenser at the time of installation. The switch shall be mounted in sight of the dispenser or the sink opening for the dispenser.

If BX cable is not used, provide a separate ground wire to nearest reliable ground, using the screw in the end bell for the ground wire.

Bottom of the Disposer (end bell)

B. If your power supply does not include a ground wire, you must provide one unless metal cable is used. Attach a copper wire securely to disposer ground screw and attach other end of wire to a reliable ground. Use only UL approved ground clamp. If plastic pipe is used in your home, a qualified electrician should install a proper ground.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY

SAVE THESE INSTRUCTIONS

Installation Instructions

Disposer

If you have questions, call 1-800-GECARES or visit our Website at: www.GEApliances.com

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT - Save these instructions for local inspector's use.
• IMPORTANT - Observe all governing codes and ordinances.
  Note to Installer - Be sure to leave these instructions with the Consumer.
• Note to Consumer - Keep these instructions for future reference.
• Skill level - Installation of this appliance required basic mechanical skills.
  Completion time - 1 hour
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

PREPARATION

1. Disconnect electrical power supply to dispenser.
2. Remove old dispenser or sink flange assembly.
3. Inspect drain line. If it is heavily coated with hardened grease and accumulations, rout out with a plumber's snake.
4. Remove old sealing materials and gasketing from sink opening, both top and bottom.

NOTE: Top and bottom of sink surfaces must be free of any materials to prevent leaks.

WHAT YOU WILL NEED

• Phillips and fl at blade screwdriver

• Channel lock pliers, slip joint

- Nut driver

- Hammer

ADDITIONAL MATERIALS YOU MAY NEED

• Steel punch or wooden dowel
• Petroleum jelly or liquid soap
• Hose clamp
• Dishwasher drain connector
• Adjustable pipe wrench
• Plumber's putty (for cast sinks)
• Stepped rubber drain adapter
  Wire nuts
• Cable connector
• Flexible drain pipe
  Power cord kit (Part Number PM3X215)

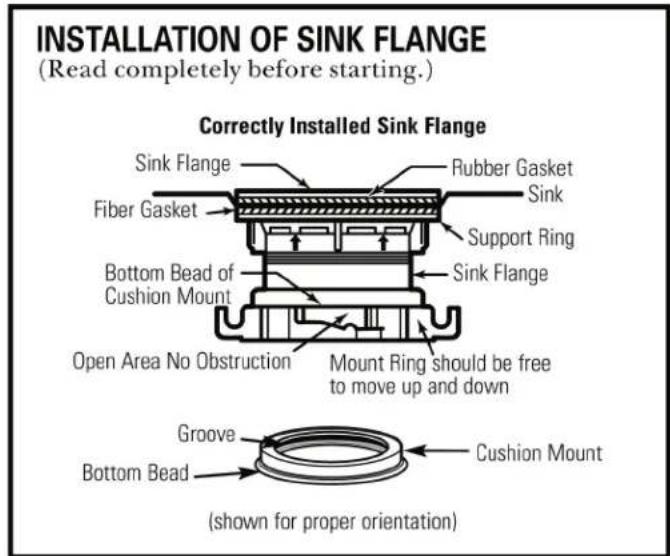

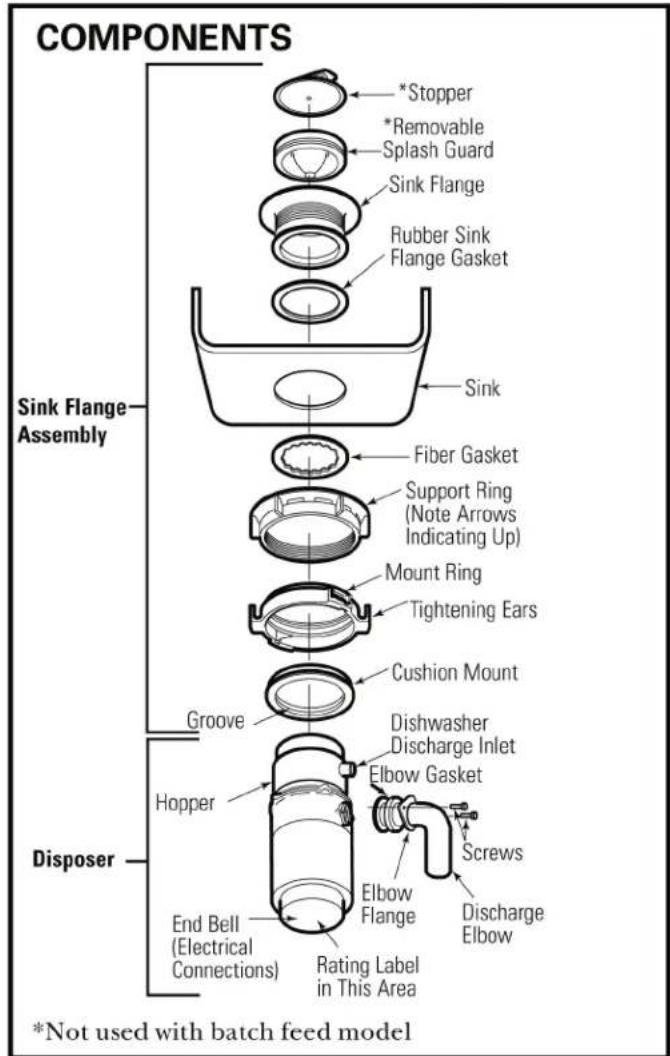

1 COMPONENTS AND INSTALLATION

NOTE: Pay close attention to the order of the sink flange parts, as they have been correctly assembled by the factory.

A. Disassemble the sink flange assembly from the dispenser by turning the mount ring to the left (clockwise) and removing it.

B. Raise the mount ring toward the top of the sink flange. Remove the cushion mount and the mount ring. You may want to practice installing the cushion mount at this point before you are under the sink.

C. Unscrew the support ring from the sink flange and remove the fiber gasket. You are now left with the sink flange and the rubber gasket.

D. The rubber gasket is used instead of plumbers putty with stainless steel sinks. Some cast sinks will require putty.

E. If no putty is used, insert the sink flange through the rubber gasket into the sink opening. Do not turn the flange once it is seated.

F. If you use putty instead of the gasket, form a ring around the underside of the sink flange. Insert the flange into the sink opening, press down hard to squeeze out excess putty. From under the sink, trim off excess putty flush with the bottom edge of the sink opening.

G.From underneath the sink, slip the fiber gasket onto the exposed sink flange.With arrows pointing up,screw the support ring onto the sink flange and hand tighten until

Hand-tighten sink flange

the sink flange will not move. At this point you may want to insert the stopper in the sink and fill with water to check the sink flange scale and insure there are no leaks.

H. Place the mount ring over the sink flange and hold in place while installing the cushion mount (large side down). Make sure the groove on the inside of the cushion mount fits over the

lip on the sink flange, similar to putting the lid on a plastic container.

Run your fingers around the entire cushion mount with

Cushion Mount Detail

slight pressure. Do not press too hard. When the cushion mount is properly seated, the mount ring can be pulled downward over the cushion mount and will be free to turn.

2 DISHWASHER CONNECTION (IF REQUIRED)

If you are connecting to a dishwasher, complete the following step. If a dishwasher is not to be connected, go on to "Attaching the Discharge Elbow" section.

1 KNOCK OUT PLUG

Using a blunt instrument (steel punch or wooden dowel), knock out entire plug. Do not use a screwdriver or sharp instrument. When knockout plug falls into dispenser, you may remove it or simply grind it up when the dispenser is used. This will not damage the dispenser in any way, but may take some time to grind, over the course of several uses.

2 CONNECT HOSE

Connect the dishwasher hose using a hose clamp. If the hose size is different, you will need a stepped rubber adapter.

Hose Clamp

Stepped Rubber Adapter

3 ATTACHING THE DISCHARGE ELBOW

Slide rubber gasket over elbow drain pipe.

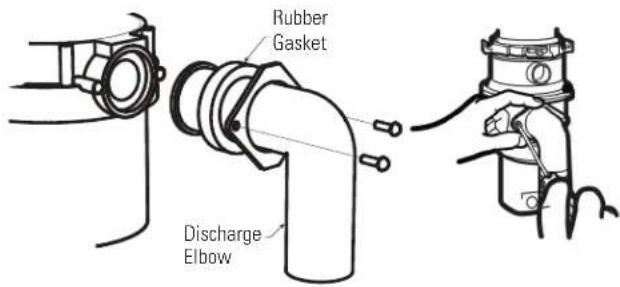

2 CONNECT DISCHARGE ELBOW\*

Slide bracket over discharge elbow and connect to the disposer.** Make sure all plumbing connections are tight.

*Discharge elbow must be installed by a professional.

** Some installations (see page 8 for examples) may require the use of a fl exible drain pipe.

4 CONNECTING DISPOSER TO SINK FLANGE

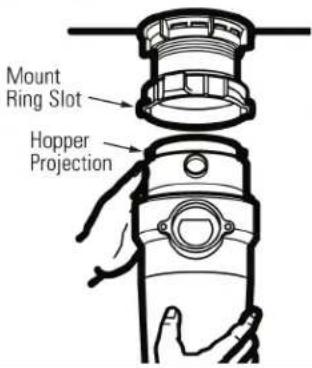

1 ATTACH TO SINK FLANGE

Line up the dispenser under the sink flange. Guide the hopper projections into the mount ring slots. Turn the mount ring about 1/4'' to the right so that the dispenser is temporarily supported.

2 LINE UP WITH OUTLET PIPE

Turn the mount ring and the dispenser until the dispenser discharge elbow lines up with the outlet pipe (see page 8).

3 LOCK MOUNT RING

Turn the mount ring to the right until it locks up tight. Hopper projections must be to the extreme left of the mounting slots. If the mount ring is hard to turn, you may add a small amount of petroleum jelly or liquid soap to the hopper projection. Run water and check for leaks.

Locking Detail

Hopper Projection in "Supported" Position

4 CHECK FOR LEAKS

Check the unit for leaks 24 hours after installation and first operation.

DIMENSIONS

GFC320V
GFC325V

GFC520V
GFC525V

GFC530V
GFC535V

GFC720V GFC1020VGBF760V

Batch Feed Operation

SOME TYPICAL INSTALLATIONS

NOTE: It is essential for the proper operation of the dispenser that this dimension bc 9^ - 12^ depending upon the models listed above, to avoid standing in water in dispenser motor housing.

**Flexible drain pipe may be necessary for this application.

This dispenser uses anti-jam swivel impellers that make a clicking sound as they swing into place. This indicates normal operation.

Continuous Feed Models

A. Remove the sink stopper and turn on a medium flow of cold water.
B. Turn the switch to ON.
C. Scrape in food waste. To speed up food waste disposal, cut or break up large bones, rinds and cobs. Large bones and fibrous husks require considerable grinding time and are more easily thrown away with other trash. Do not be alarmed that the dispenser slows down while grinding. The dispenser is actually increasing torque (grinding power) and is operating under normal conditions.

D. Before turning the dispenser off, let the water and the dispenser run for approximately 25 seconds after shredding stops. This assures that all waste is thoroughly flushed through the trap and drain.
E. Do not use hot water while running the disposer. Cold water will keep food waste and fats solid so they can be flushed down the drain.

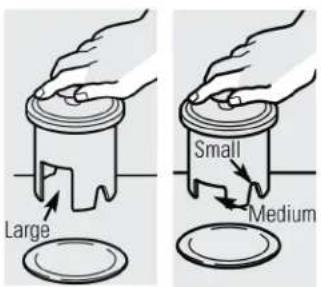

Batch Feed Models

A. Remove the sink stopper and turn on a medium flow of cold water.
B. Scrape in food waste.
C. Insert the stopper to start the dispenser. One of the two small slots in the stopper base must line up with the switch plunger inside the neck of the dispenser.

NOTE: The oval shaped handle aligns with the 2 small slots in the stopper.

Push down firmly to start.

D. Run the dispenser for 25 seconds after shredding stops. This assures that all waste is thoroughly flushed through the trap and drain.

Lift the stopper to shut the dispenser off.

E. To fill the sink, insert the stopper so that the largest slot lines up with the switch plunger. The stopper can now be pushed down to seal the sink without starting the dispenser. When the medium-sized slot in the stopper base is lined up with the switch plunger, water can drain, but tableware, etc., cannot be accidentally dropped into the dispenser.

Operating instructions.

Helpful Hints

A. Be sure the dispenser is empty before using the dishwasher so it can drain properly.
B. You may want to leave the stopper in the drain when not in use to prevent utensils and foreign objects from falling into the dispenser.
C. The dispenser is ruggedly built to give you years and years of trouble-free service. It will handle all normal food wastes-BUT it will not grind and dispose such items as tin cans, bottles and bottle caps, glass, china, leather, cloth, crockery, rubber, string, feathers, or clam or oyster shells. These are waste materials and belong in the trash can or trash compactor.

D. TO SPEED UP FOOD WASTE DISPOSAL... Cut or break up large bones, melon rinds, grapefruit skins and corn cobs. Items such as large bones, fibrous husks like lima bean pods and corn husks require considerable cutting time. For this reason, you may prefer to place them in the trash can or trash compactor.

Care and maintenance.

THE MOTOR IS PERMANENTLY LUBRICATED FOR LIFE. DO NOT ATTEMPT TO LUBRicate YOUR DISPOSER. The dispenser is self cleaning and scours itself with each use.

NEVER put lye or chemical cleaners into the dispenser, as they cause serious corrosion of metal parts.
- Your dispenser, except for the Batch Feed model, is equipped with a removable splash guard for ease of cleaning or replacement. Remove the splash guard by pulling it out from the top. To replace, insert into the sink flange and push down until it is properly seated.
If an odor develops, run orange or lemon rinds through the dispenser. A dozen ice cubes sprinkled with a little household scouring powder will also work.

Troubleshooting Tips

Save time and money! Review the chart on this page first

and you may not need to call for service.

SAFETY NOTE: Before investigating, you must disconnect the power supply.

WARNING!

Before resetting, disconnect the power supply—please see SAFETY NOTE above. The overload control prevents the motor from operating should overloading occur. This feature protects your house wiring and your dispenser. When overloaded, the motor will stop automatically.

Problem	Possible Causes	What To Do
Loud noises (other than those during grinding of bones and fruit pits)	Silverware, bottle cap or other foreign object has fallen into the dispenser.	Remove the splash guard* and remove the object with long-handled tongs. Replace the splash guard*.
Disposer does not start	Reset button has been tripped. Reset Button Serial No.	With the splash guard* removed, check to see if the turntable will move freely using a broom handle. If the turntable moves freely, replace the splash guard* and check the reset button to see if it has been tripped. The reset button is red and located opposite the discharge elbow, near the bottom of the dispenser. Push the button in until it clicks and remains depressed. If the reset button has not been tripped, check for a shorted or broken wire connecting to the dispenser. Check the electrical power switch, fuse box or circuit breaker. If wiring and electrical components are intact, the unit may have internal problems that require service or replacement.
	Turntable cannot rotate. Remove Splash Guard Turntable	If the turntable does not turn freely, check for an object lodged between the turntable and the grind ring. Dislodge the object by moving the turntable with a broom handle. Then remove the object. If no foreign object is present, there may be internal problems.
Disposer leaks	If the leak is at the top, it may be caused by:1. Improper seating of sink flange (gasket choice, putty or tightening).2. Support ring not tightened properly.3. Defective cushion mount.If the leak is at the discharge elbow, leak may be caused by improper tightening of elbow flange screws.

*Batch Feed does not include splash guard.

Disposer Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service online, 24 hours a day, contact us at www.GEApliances.com, or call 800-GE-CARES (800-432-2737). Please have serial number and model number available when call for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period of: GE Will Replace:

One Year From the date of the original purchase	The entire dispenser if there is a defect in materials or workmanship relating to functional parts only (appearance parts are excluded). During this limited one-year warranty, GE will also provide, free of charge, all labor charges related to replacing the original dispenser along with the replacement dispenser within the first year.
Additional One Year From the date of the original purchase	Models GFC520V, GFC525V: If there is a defect in materials or workmanship relating to functional parts only (appearance parts are excluded). During the one-year extended limited warranty period, you will be responsible for all installation charges relating to the replacement dispenser.
Additional Two Years From the date of the original purchase	Models GFC530V, GFC535V: If there is a defect in materials or workmanship relating to functional parts only (appearance parts are excluded). During this two-year extended limited warranty period, you will be responsible for all installation charges relating to the replacement dispenser.
Additional Four Years from the date of the original purchase	Models GFC720V, GFB760V: If there is a defect in materials or workmanship relating to functional parts only (appearance parts are excluded). During this four-year extended limited warranty period, you will be responsible for all installation charges relating to the replacement dispenser.
Additional Six Years From the date of the original purchase	Model GFC1020V: If there is a defect in materials or workmanship relating to functional parts only (appearance parts are excluded). During this six-year extended limited warranty period, you will be responsible for all installation charges relating to the replacement dispenser.

What GE Will Not Cover"

Service trips to your home to teach you how to use the product.
Improper installation or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
Replacement of house fuses or resetting of circuit breakers.

Damage to the product caused by accident, fire, floods or acts of God.
- Incidental or consequential damage caused by possible defects with this appliance.
Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTYES - Your sole and exclusive remedy is product repair as provided in the Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Composants ct installation

INSTRUCTIONS RELATIVES AU RISQUE D'INCENDIE, D'ÉLECTROCUTION OU DE BLESSURE.

AVERAGEMENT!

DOUBLE CUVETTE, ÉCOULEMENT AU CENTRE**

DOUBLE CUVETTE, ÉCOULEMENT EN EXTREMITE**
