USER MANUAL 5RG74350 BLAUPUNKT

[en] Instructions for installation and use

Diagram showing two hand positions with checkmark and cross symbols, likely indicating correct and incorrect states.

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Two identical line drawings of a cooking pot with crossed arrows indicating pressure or movement (no text or symbols)

Two gray oval shapes labeled A and B, no text or symbols present

Zone 1

Two gray circles labeled A and B, no additional text or symbols present

Zone 2

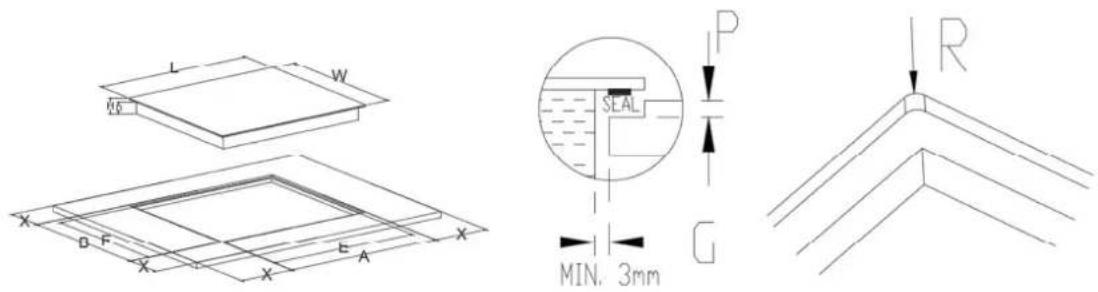

L W H0 X D F X E A X P SEAL G MIN. 3mm R

L W E	F H D A	B X	P	R
770mm	520mm	750mm	495mm	Mind. 55mm	Mind. 51mm	774 (+1/0)mm	524 (+1-0)mm	Mind. 50mm	5,5mm	7mm

Technical diagram showing three mechanical assembly states with checkmark and cross symbols indicating selection or modification points.

wall Min.30mm

Pure technical line drawing of a rectangular frame with four labeled corner points (A, B, C, D) and no text or symbols beyond labels.

Simple line drawing of a mechanical clamp or bracket inside a circle (no text or symbols)

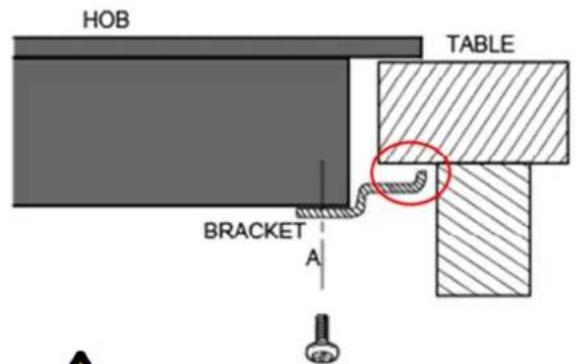

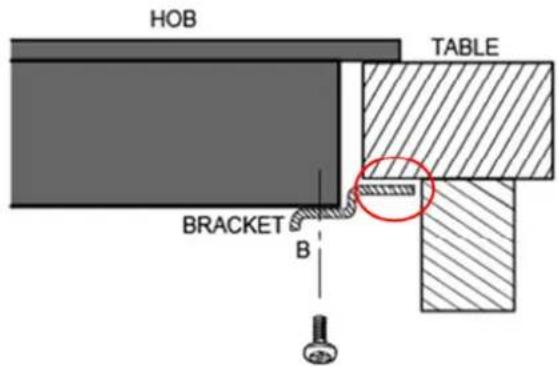

HOB TABLE BRACKET A

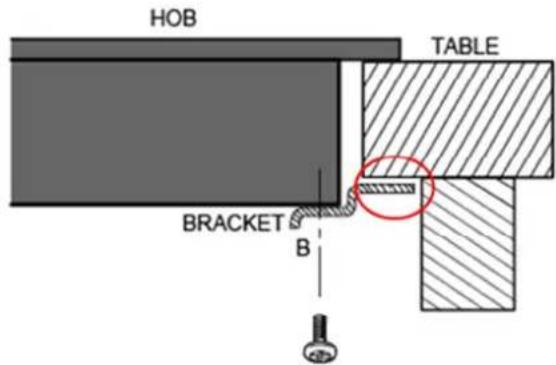

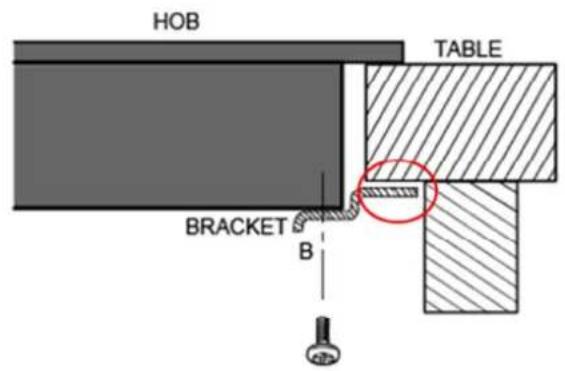

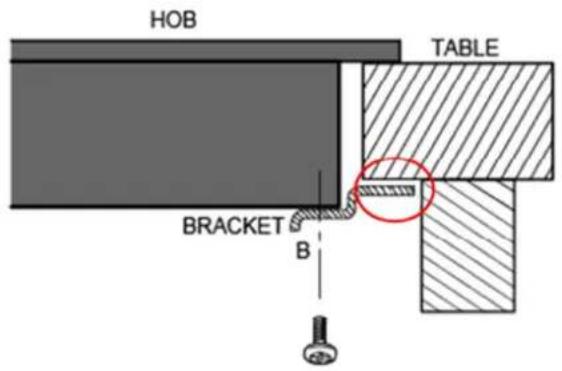

HOB TABLE BRACKET B

1.1 Safety Warnings .... 1
1.2 Installation 1

1.2.1 Electrical Shock Hazard 1
1.2.2 Cut Hazard 1
1.2.3 Important safety instructions .... 1

1.3 Operation and maintenance 2

1.3.1 Electrical Shock Hazard 2
1.3.2 Health Hazard 2
1.3.3 Hot Surface Hazard 2
1.3.4 Cut Hazard 2
1.3.5 Important safety instructions .... 3

2. Product Introduction......5

2.1 Top View 5
2.2 Control Panel 5
2.3 Product Information 5
2.4 Working Principle 6
2.5 Before using your New Ceramic Hob 6
2.6 Technical Specification 6

3. Operation of Product 6

3.1 Touch Controls 6
3.2 Choosing the right Cookware 7
3.3 How to use 7

3.3.1 Start cooking 7
3.3.2 Finish cooking....8
3.3.3 Using the Dual zone function 8
3.3.4 Locking the Controls 9
3.3.5 Timer control 9
3.3.6 Over-Temperature Protection 11
3.3.7 Residual Heat Warning 11
3.3.8 Default working times 11

4. Cooking Guidelines.... 11

4.1 Cooking Tips 11

4.1.1 Simmering, cooking rice 11
4.1.2 Searing steak 11
4.1.3 For stir-frying 12

1. Heat Settings 12
2. Care and Cleaning 12
3. Hints and Tips.... 13
4. Installation 14

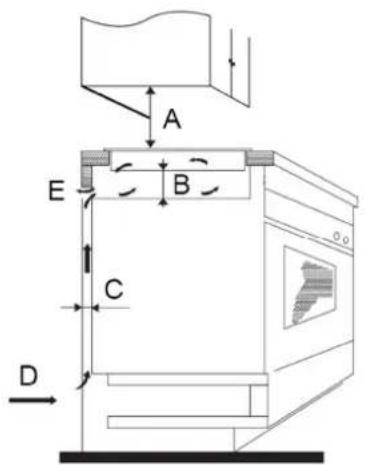

8.1 Selection of installation equipment 14
8.2 Before locating the fixing brackets 16
8.3 Cautions 16

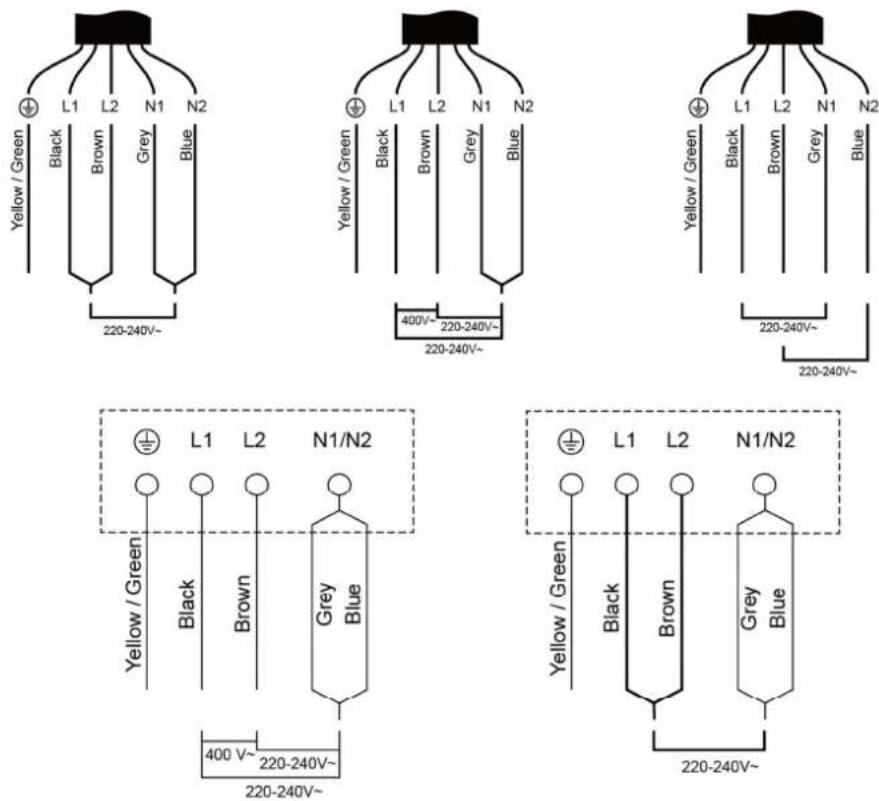

8.4 Connecting the hob to the mains power supply 17

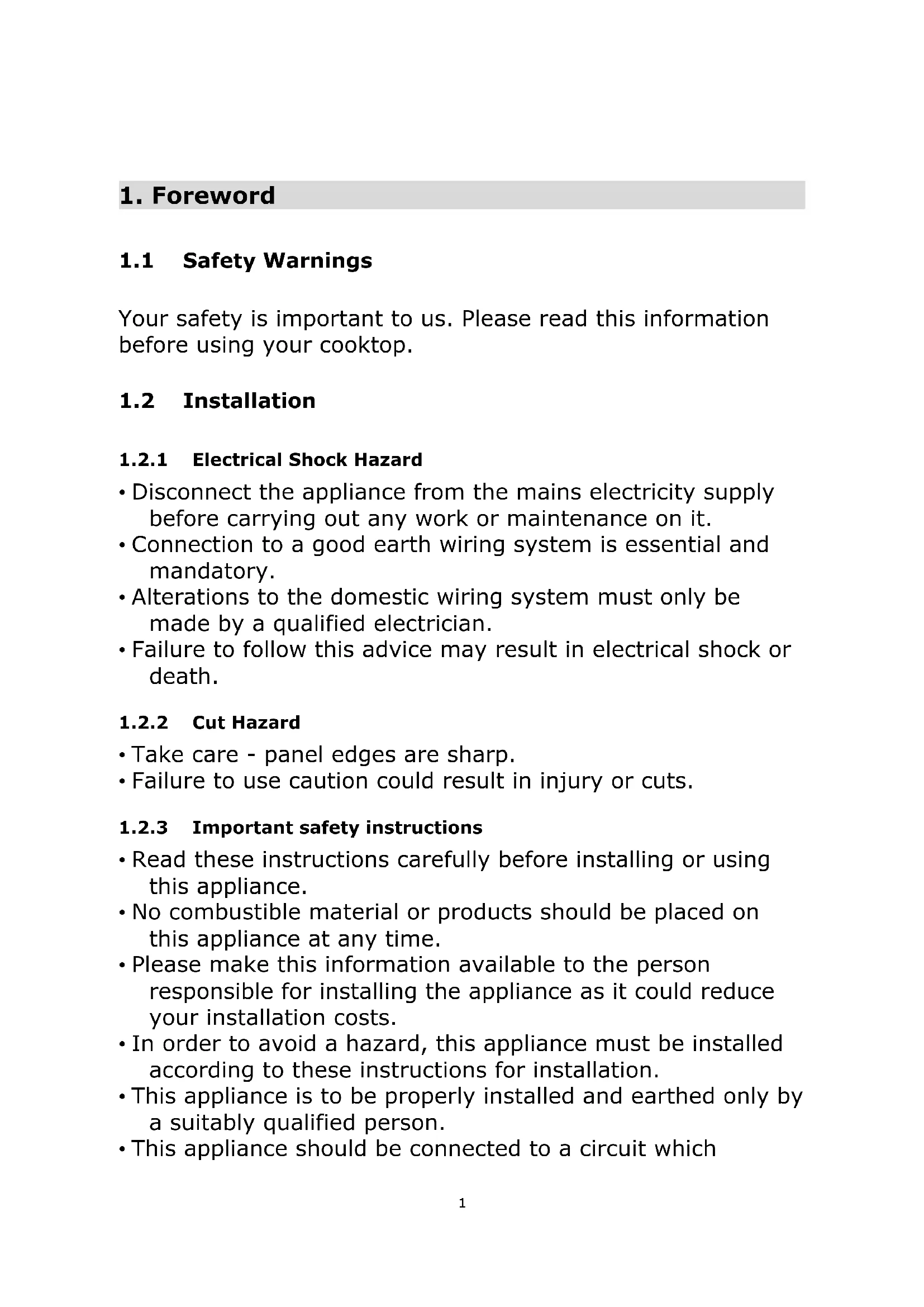

1. Foreword

1.1 Safety Warnings

Your safety is important to us. Please read this information before using your cooktop.

1.2 Installation

1.2.1 Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

1.2.2 Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in injury or cuts.

1.2.3 Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.

- In order to avoid a hazard, this appliance must be installed according to these instructions for installation.

- This appliance is to be properly installed and earthed only by a suitably qualified person.

- This appliance should be connected to a circuit which

incorporates an isolating switch providing full disconnection from the power supply.

- Failure to install the appliance correctly could invalidate any warranty or liability claims.

1.3 Operation and maintenance

1.3.1 Electrical Shock Hazard

- Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply and contact a qualified technician.

- Failure to follow this advice may result in electrical shock or death.

1.3.2 Health Hazard

- This appliance complies with electromagnetic safety standards.

- However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.

- Failure to follow this advice may result in death.

1.3.3 Hot Surface Hazard

- During use, accessible parts of this appliance will become hot enough to cause burns.

- Do not let your body, clothing or any item other than suitable cookware contact the Ceramic glass until the surface is cool.

- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot

- Keep children away.

- Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.

- Failure to follow this advice could result in burns and scalds.

1.3.4 Cut Hazard

- The razor-sharp blade of a cooktop scraper is exposed when

the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.

- Failure to use caution could result in injury or cuts.

1.3.5 Important safety instructions

• Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
  • After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Ceramic glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning

agents to clean your cooktop, as these can scratch the Ceramic glass.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

- WARNING: The appliance and its accessible parts become hot during use.

- Care should be taken to avoid touching heating elements.

- Children less than 8 years of age shall be kept away unless continuously supervised.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts

- A steam cleaner is not to be used.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Congratulations on the purchase of your new Ceramic Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

2. Product Introduction

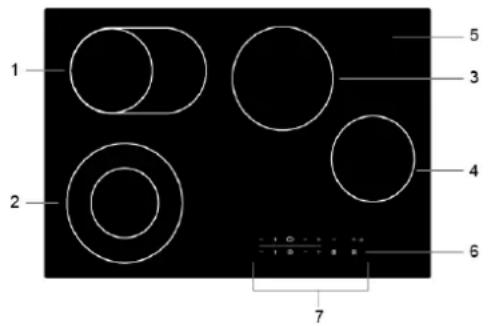

2.1 Top View

1 2 3 4 5 6 7

1. Max. 1100 /2000W zone
2. Max. 1000 / 2200W zone
3. Max. 1800 W zone
4. Max. 1200 W zone
5. Glass plate
6. ON / OFF
7. Control panel

2.2 Control Panel

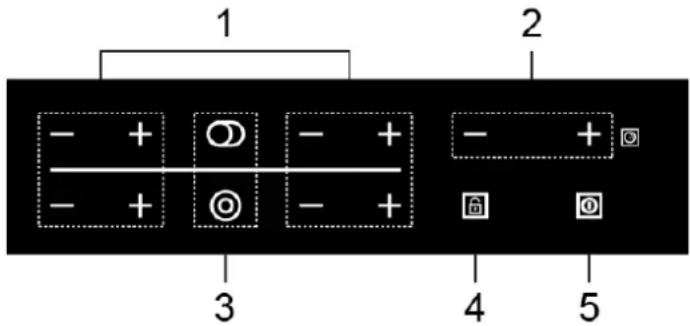

1 2 - + ○ - + - + ○ - + 3 4 5

1. Power regulating controls
2. Timer regulating controls
3. Dual zone controls
4. Keylock control
5. ON/OFF control

2.3 Product Information

The microcomputer ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families.

The ceramic cooker hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.

2.4 Working Principle

This ceramic cooker hob directly employs resistance wire heating, and adjust the output power by the power regulation with the touch controls.

2.5 Before using your New Ceramic Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your ceramic hob.

2.6 Technical Specification

Cooking Hob	5RG74350
Cooking Zones	4 Zones
Voltage & Power 1	220-240V~ 50/60Hz 6500-7800W
Voltage & Power 2	400V 3N~ 50/60Hz 7200W
Product Size L×W×H(mm)	770X520X55
Building-in Dimensions A×B (mm)	750X495

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

3. Operation of Product

3.1 Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
  • Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand positioning.

3.2 Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Four identical cooking pots with crossed-out kitchen pan symbols, no text or labels present

Always lift pans off the ceramic hob - do not slide, or they may scratch the glass.

Diagram showing two cooking pots with crossed arrows indicating heating or cooling process, likely illustrating a cooking or cooking setup.

3.3 How to use

3.3.1 Start cooking

After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the stat of standby mode.

Touch the ON/OFF control. all the indicators show “-”
Place a suitable pan on the cooking zone that you wish to use.• Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
Select a heat setting by touching the “+” or “-” control.• If you don’t choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1.• You can modify the heat setting at any time during cooking.• By holding down either of these buttons, the value will adjust up or down.

3.3.2 Finish cooking

Turn the cooking zone off by scrolling down to “-” or touching “-” and “+” control together.
Turn the whole cooktop off by touching the ON/OFF control.

Beware of hot surfaces

"H" will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

$$ - H + $$

3.3.3 Using the Dual zone function

• The function only work in 1# and 2# cooking zones
• The dual cooking zone has two cooking areas that you can use a central section and an outer section. You can use the central section (A) independently or both sections (B) at once.

Two gray oval shapes labeled A and B, no text or symbols present

Zone 1# Zone 2#

Two gray circles labeled A and B, no additional text or symbols present

Note:
1、The double loop is available only in the 1# and 3# cooking zone.
2、You can select the function from level 1 to level 9.

Activate the Dual zone
Adjust the heating setting between power levels 1 and 9 (e.g. 6, Zone 2#)
Central section of the dual cooking zone will switch on.
Touching the dual zone control “◎”.
The cooking zone indicator show “=” and “ 6 ” alternately.
Deactivate the Dual zone
Touching dual zone control “◎” again, the dual zone function is deactivated. The cooking zone indicator show “6”.

3.3.4 Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls
Touch the lock control	The timer indicator will show " Lo "
To unlock the controls
Make sure the ceramic hob is turned onTouch and hold the lock control for a while.

When the hob is in the lock mode, all the controls are disable except the ON/OFF ① , you can always turn the ceramic hob off with the ON/OFF ① control in an emergency, but you shall unlock the hob first in the next operation.

3.3.5 Timer control

You can use the timer in two different ways:

a) You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
b) You can set it to turn one or more cooking zones off after the set time is up.

- The timer of maximum is 99 minutes

Timer overview

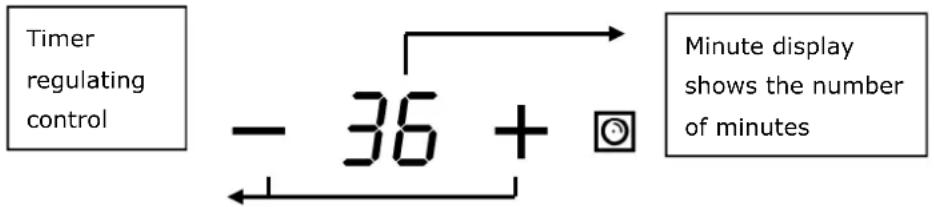

Timer regulating control - 36 + Minute display shows the number of minutes

a) Using the Timer as a Minute Minder

If you are not selecting any cooking zone

Make sure the cooktop is turned on.Note: you can use the minute minder even if you’re not selecting any cooking zone.
Touch the “-” or “+” controls of the timer the minute minder indicator will flash.
Set the time by touching the “-” or “+” control of the time
Touching the "-" and "+" together, the timer is cancelled, and the "--" will show in the minute display.
When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds
Buzzer will beep for 30 seconds and the timer indicator shows "-" when the setting time finished.

Hint:

a) Touch the "-" or "+" control of the timer once to decrease or increase by 1 minute.
b) Touch and hold the "-" or "+" control of the timer to decrease or increase by 10 minutes.
c) If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

b) Setting the timer to turn one cooking zone off

Set one zone
Touch the "-" or "+" of the corresponding cooking zone you want to set the timer for.
Set the time by touching the or control of the timer
Touching the "-" and "+" together, the timer is cancelled, and the "--" will show in the minute display.
When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds
When cooking timer expires, the corresponding cooking zone will be switched off automatically.

Note:

a) The red dot next to power level indicator will illuminate indicating that zone is selected.

b) If you want to change the time after the timer is set, you have to start from step 1.

3.3.6 Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operation automatically.

3.3.7 Residual Heat Warning

When the hob has been operating for some time, there will be some residual heat. The letter "H" appears to warn you to keep away from it.

3.3.8 Default working times

Another safety feature of the hob is automatic shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power level 1 2 3 4 5 6 7 8 9
Default working timer (hour) 8 8 8 4	4 4	2 2 2

4. Cooking Guidelines

Take care when frying as the oil and fat heat up very quickly, particularly if you're using PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

4.1 Cooking Tips

• When food comes to the boil, reduce the temperature setting.
  • Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

4.1.1 Simmering, cooking rice

- Simmering occurs below boiling point, at around 85^ , when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour thickened sauces below boiling point.

• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

4.1.2 Searing steak

To cook juicy flavorsome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more 'well done' it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

4.1.3 For stir-frying

1. Choose an ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

5. Heat Settings

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the Ceramic hob to find the settings that best suit you.

Heat setting	Suitability
1 - 2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickly·gentle simmering·slow warming
3 - 4	·reheating·rapid simmering·cooking rice
5 - 6	·pancakes
7 - 8	·sautéing·cooking pasta
9	·stir-frying·searing·bringing soup to the boil·boiling water

6. Care and Cleaning

What?	How?	Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for Ceramic glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	· Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.· Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	· The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

7. Hints and Tips

Problem Possible causes What to do
The cooktop cannot Be turned on.	No power. Make sure the ceramic h	ob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked. Unlock the	controls. See section 'Using your ceramic cooktop' for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See 'Choosing the right cookware'.See 'Care and cleaning'.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.

8. Installation

8.1 Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate. As shown below:

Note: The safety distance between the sides of the hob and the inner surfaces of the worktop should be at least 3mm.

For worktop and flush installation:

L W X D F X A X P SEAL G MIN. 3mm R

L W E	F H D A	B X P R
770mm	520mm	750mm	495mm	55mm min.	51mm min.	774 (+1/0)mm	524 (+1-0)mm	50mm min.	5,5mm	7mm

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below

Note: Between the unit and an extractor hood, safety distance specified by the hood manufacturer must be complied. Please regard to the instruction of the hood manufacturer.

A E B C D

Diagram showing three steps of a mechanical or electrical component with checkmark indicators and directional arrows

wall Min.30mm

A(mm) B(mm) C(mm) D E
Check with hood manufacturer 50 min. 20 min. Air intake 550 x 30 mm

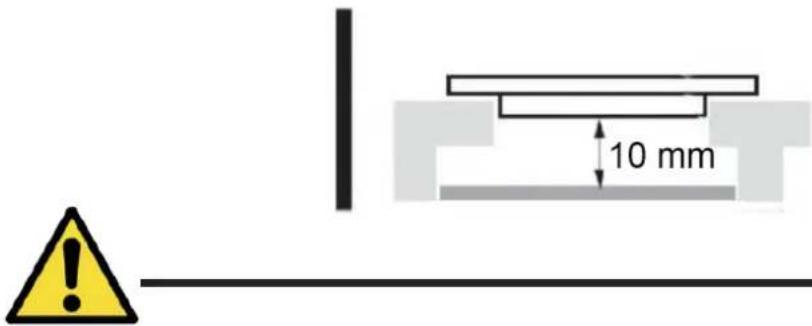

WARNING: Ensuring Adequate Ventilation

Make sure the ceramic hob is well ventilated and that air inlet and outlet are noblocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpected electric shock during working, it is necessary to put an insert, fixed by screws, at a minimum distance of 10mm from the bottom of the hob. Follow the requirements below.

10 mm

There are ventilation holes around outside of the hob. YOU MUST ensure these holes are not blocked by the worktop when you put the hob into position.

• Be aware that the glue that join the plastic or wooden material to the furniture, has to resist to temperature not below 150, to avoid the unstuck of the paneling.
• The rear wall, adjacent and surrounding surfaces must therefore be able to withstand an temperature of 90^ C.

8.2 Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.

Pure technical line drawing of a rectangular frame with four labeled corner points (A, B, C, D) and no text or symbols beyond labels.

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

A B C D
screw	bracket Screw hole base

Adjust the bracket position to suit for different work surface's thickness.

HOB TABLE BRACKET A

HOB TABLE BRACKET B

Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture).

8.3 Cautions

1. The ceramic cooker hob must be installed by qualified personnel or technicians. Please never conduct the operation by yourself.
2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
3. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the work surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.

8.4 Connecting the hob to the mains power supply

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below.

1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
3. The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by a properly qualified person.

The bottom surface and the power cord of the hob are not accessible after installation.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Contenu

1. Avant-propos .... 1

Diagram showing two hand positions with checkmark and cross symbols, likely indicating correct and incorrect states.

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Four identical cooking pots with crossed X marks, no text or symbols present

Two identical line drawings of a cooking pot with crossed arrows indicating pressure or movement (no text or symbols)

Two gray oval shapes labeled A and B, with no text or symbols on the shapes themselves.

Zone n° 1 Zone n° 2

Two gray circles labeled A and B, with no additional text or symbols present.

L W M X O F X E A X SEAL P G MIN. 3mm R

L W E	F H D A	B X P	R
770mm	520mm	750mm	495mm	55mm minimum	51mm minimum	774 (+1/0)mm	524 (+1-0)mm	50mm minimum	5,5mm	7mm

Diagram showing three hand-drawn electrical circuit symbols with checkmarks and X marks indicating failure or failure states.

wall Min.30mm

Simple line drawing of a rectangular frame with four corner markers labeled A, B, C, D (no text or symbols on the frame itself)

Simple line drawing of a mechanical clamp or bracket inside a circle (no text or symbols)

A B C D
Vis	Support Trou de vis Base

HOB TABLE BRACKET A

HOB TABLE BRACKET B

Diagram showing two hand positions on a line with checkmark and cross symbols indicating correct and incorrect states.

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, no text or symbols present

Two identical diagrams showing a cooking pot with arrows indicating direction, no text or symbols present.

3.3 Het gebruik

Two gray oval shapes labeled A and B, no text or symbols present

Zone 1 Zone 2

A B

L W W X D F X A X SEAL P T G MIN. 3mm R

L W E F H D A B X P R
770mm	520mm	750mm	495mm	55mmmin.	51mmmin.	774(+1/0)mm	524(+1-0)mm	50mmmin.	5,5mm	7mm

A E B C D wall Min.30mm

Simple line drawing of a rectangular frame with four labeled corner points (A, B, C, D) and no text or symbols on the structure itself.

Simple line drawing of a mechanical clamp or bracket inside a circle (no text or symbols)

HOB TABLE BRACKET A

HOB TABLE BRACKET B

Diagram showing two hand positions on a line with checkmark and cross symbols, likely indicating correct or incorrect positioning.

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Four identical cooking pots with crossed handles, shown in sequence on a flat surface (no text or symbols)

Two identical cooking pots with directional arrows indicating heating or cooling (no text or symbols)

Two gray oval shapes labeled A and B, with no text or symbols on the shapes themselves.

Zona n. 1 Zona n. 2

A B

L W R0 X D F X E A X SEAL P G MIN. 3mm R

L W E F H D A B X P R
770mm	520mm	750mm	495mm	55mmmin.	51mmmin.	774(+1/0)mm	524(+1-0)mm	50mmmin.	5,5mm	7mm

A E B C D wall Min.30mm

Pure technical diagram of a rectangular frame with labeled corner points (A, B, C, D) and no text or symbols beyond labels.

Simple line drawing of a mechanical clamp or bracket with a bolt, enclosed in a circle (no text or symbols)

Diagram showing two hand positions with check and cross symbols, likely illustrating correct and incorrect hand positioning.

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating heating or cooling process, likely illustrating a cooking or cooking setup.

3.3 Användning

Two gray circles labeled A and B, no additional text or symbols present

Diagram showing three hand-drawn electrical circuit symbols with check and cross annotations

wall Min.30mm

A (mm) B (mm) C (mm) D	E
kontrollera med huva tillverkaren	minst 50	minst 20 L	Luftintag 550	x 30mm

Simple line drawing of a mechanical clamp or bracket inside a circle (no text or symbols)

HOB TABLE BRACKET A

HOB TABLE BRACKET B

Diagram showing two hand positions with checkmark and cross symbols, likely indicating correct and incorrect states.

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Four identical cooking pots with crossed handles, shown in a row (no text or symbols)

Two identical line drawings of a cooking pot with directional arrows indicating pressure or movement (no text or symbols)

3.3 Modo de uso

Two gray oval shapes labeled A and B, with no text or symbols on the shapes themselves.

Zona 1 Zona 2

Two gray circles labeled A and B, with no additional text or symbols present.

L W φ X B F X E A X SEAL P G MIN. 3mm R

L W E F H D A B X P R
770mm	520mm	750mm	495mm	55mm mín.	51mm mín.	774 (+1/0)mm	524 (+1-0)mm	50mm mín.	5,5mm	7mm

A E B C D wall Min.30mm

Technical line drawing of a rectangular frame with four labeled corner points (A, B, C, D) and no visible text or symbols.

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

Three identical cooking pots with crossed X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Two identical line drawings of a cooking pot with crossed arrows indicating pressure or movement (no text or symbols)

3.3 Kako koristiti

3.3.1 Započnite s kuhanjem

Two gray circles labeled A and B, no additional text or symbols present

Zona br. 2

Aktivirajte dvostruku zonu
Namjestite postavke zagrijavanja između razina snage 1 i 9 (npr. 6, zona br. 2)
Uključit će se središnji dio površine dvostruke zone za kuhanje.
Dodir senzorske tipke za dvostruku zonu za kuhanje „©”.
Indikator zone za kuhanje naizmjenično pokazuje „=” i brojku „6”.
Deaktivacija dvostruke zone
Ponovnim dodirom senzorske tipke za dvostruku zonu za kuhanje „◎” deaktivira se funkcija dvostruke zone. Indikator zone za kuhanje pokazuje brojku „6”.

Napomena:

1、Funkcija dvostruke zone dostupna je samo u zonama za kuhanje br. 1 i br. 3.
2、Možete odabrati funkcije od razine 1 do 9.

L W W X D F X A X SEAL P T G MIN. 3mm R

L W E	F H D A	B X P R
770mm	520mm	750mm	495mm	najmanje 55mm	najmanje 51mm	774 (+1/0)mm	524 (+1-0)mm	najmanje 50mm	5,5mm	7mm

A B C D E 0.0 wall Min.30mm

A (mm) B (mm) C (mm) D E
provjerite kod proizvođača kapuljača	najmanje 50	najmanje 20	U	laz zraka 550 x 30mm

UPOZORENJE: osiguranje prikladne ventilacije

Provjerite je li keramička ploča za kuhanje dobro prozračena te da ulaz i izlaz zraka nisu blokirani. Kako biste izbjegli slučajan dodir s pregrijanim podnožjem ploče za kuhanje ili neočekivani električni šok tijekom rada, nužno je umetak, učvršćen vijkom, postaviti na minimalnoj udaljenosti od 10 mm

Simple line drawing of a rectangular frame with four labeled corner points (A, B, C, D) and no text or symbols on the structure itself.

Simple line drawing of a mechanical clamp or bracket inside a circle (no text or symbols)

A B	C D
vijak	nosač	vijčana rupa	postolje

HOB TABLE BRACKET A

HOB TABLE BRACKET B

Diagram showing two hand positions with checkmark and cross symbols, likely indicating correct and incorrect states.

3.2 Izbor ustrezne posode

Ne uporabljajte posode s hrapavimi robovi ali ukrivljenim dnom.

Three identical cooking pots with crossed X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating heating or cooling process, likely illustrating a cooking or cooking setup.

3.3 Uporaba

L W M X D F X E A X SEAL P T G MIN. 3mm R

L W E F H D A B X P R
770mm	520mm	750mm	495mm	najm. 55mm	najm. 51mm	774 (+1/0)mm	524 (+1-0)mm	najm. 50mm	5,5mm	7mm

Pure technical diagram of a rectangular frame with four labeled corner points (A, B, C, D) and no text or symbols beyond labels.

Simple line drawing of a mechanical clamp or bracket inside a circle (no text or symbols)

A B	C D
vijak	nosilec iz	vrtina	podstavek

HOB TABLE BRACKET A

HOB TABLE BRACKET B

Close-up of medical or dental tools on a blue fabric background, no visible text or symbols
