USER MANUAL Series 5 5197cc BRAUN

5160s 5160s 5147s 5140s

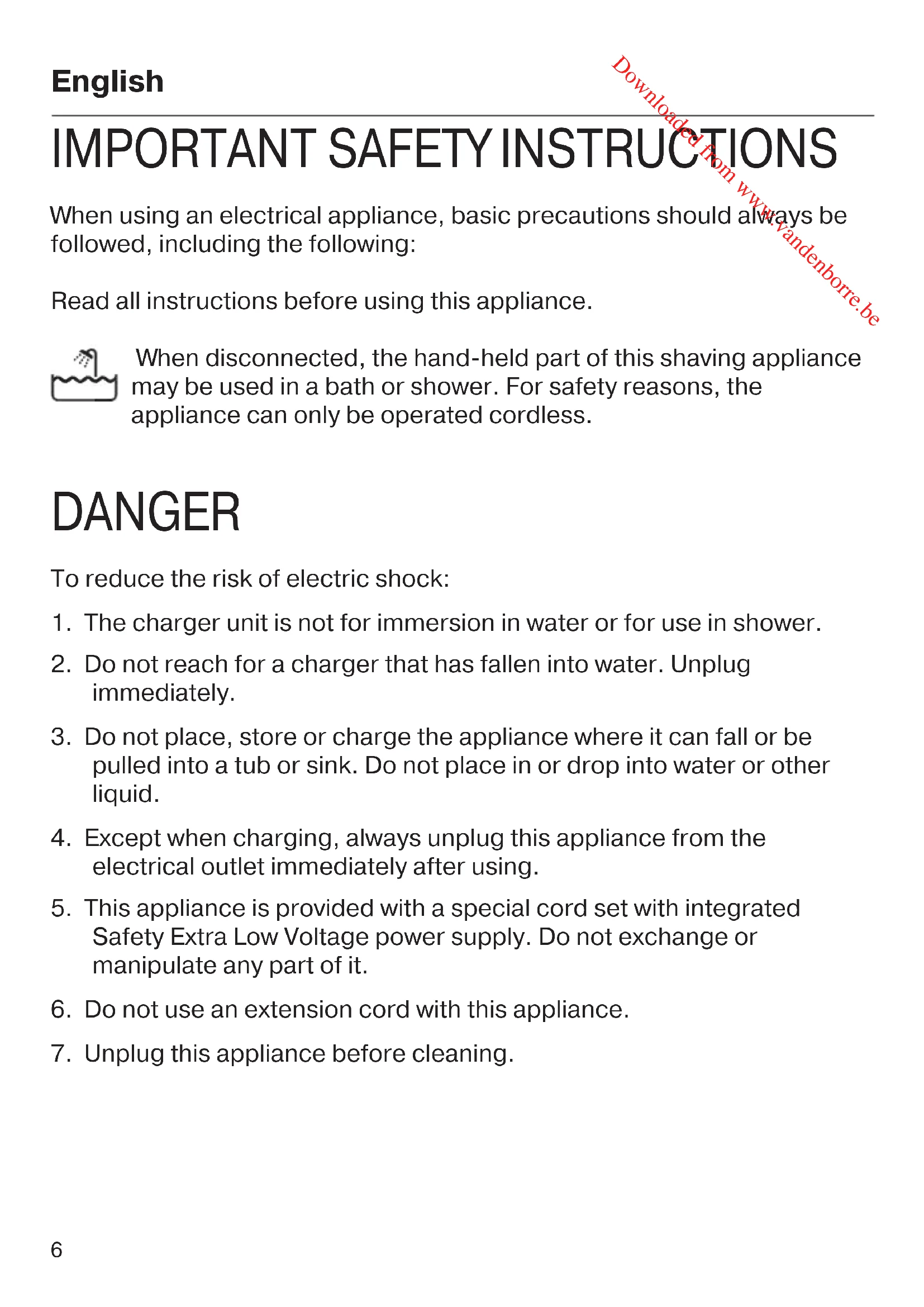

When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. When disconnected, the hand-held part of this shaving appliance may be used in a bath or shower. For safety reasons, the appliance can only be operated cordless. DANGER To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in shower.

2. Do not reach for a charger that has fallen into water. Unplug

3. Do not place, store or charge the appliance where it can fall or be

pulled into a tub or sink. Do not place in or drop into water or other liquid.

4. Except when charging, always unplug this appliance from the

electrical outlet immediately after using.

5. This appliance is provided with a special cord set with integrated

Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.

6. Do not use an extension cord with this appliance.

7. Unplug this appliance before cleaning.

91113594_Series 5-2_NA_S6-48.indd 691113594_Series 5-2_NA_S6-48.indd 6 07.10.16 08:5307.10.16 08:53 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 6 of 48 Downloaded from www.vandenborre.be7 WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or

near children or persons with disabilities.

2. Use this appliance only for its intended use as described in this

manual. Do not use attachments not recommended by the manufacturer.

3. Never operate this appliance if it has a damaged cord or plug, if it is

not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces.

5. Never drop or insert any object into any opening of the appliance.

6. Do not use outdoors or operate where aerosol (spray) products are

being used or where oxygen is being administered.

7. Do not use this appliance with a damaged or broken foil, as serious

skin injuries may occur.

8. Always attach plug to appliance first, then to outlet. To disconnect,

turn all controls off, then remove plug from outlet.

9. When plugging to an electrical outlet outside North America, use a

plug adapter to match the outlet’s pin configuration.

10. Caution: The battery used in this device may present a fire or

chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C (212 °F), or incinerate.

11. Only use the special electric cord set provided with the appliance.

If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

SAVE THESE INSTRUCTIONS

91113594_Series 5-2_NA_S6-48.indd 791113594_Series 5-2_NA_S6-48.indd 7 07.10.16 08:5307.10.16 08:53 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 7 of 48 Downloaded from www.vandenborre.be8 Our products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun’s quality, and we hope you enjoy your new Braun shaver. This product is for household use only. Shaver 1 Foil & Cutter cassette 2 Cassette release button 3 MultiHeadLock switch 4 On/off switch 5 Shaver display 5a Lock symbol (travel lock) 5b Charging segments 5c Cleaning indicator 5d Battery symbol 6 Long hair trimmer 7 Shaver-to-station contacts 8 Release button for long hair trimmer 9 Shaver power socket 10a Special cord set (design can differ) 10b Charging stand* 11 Protection cap* 12 Travel case*

• not with all models First use and Charging Connect the shaver to an electrical outlet by snapping the special cord set (10a) into the shaver power socket (9) / the charging stand (10b) or for cc models via the Clean&Charge Station (see Chapter «Clean&Charge Station»). Basic operating information

• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth and environmental temperature.

• Recommended ambient temperature for charging is 41 °F to 95 °F / 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures.

• Recommended ambient temperature for shaving is 60 °F to 95 °F / 15 °C to 35 °C.

• Do not expose the shaver to temperatures higher than 122 °F / 50 °C for extended periods of time.

• When the shaver is connected to an electrical outlet, it may take some minutes until the display illuminates. Charging / low charge The charge status is shown in the shaver display (5).

• During charging the respective charging segment (5b) will blink. 91113594_Series 5-2_NA_S6-48.indd 891113594_Series 5-2_NA_S6-48.indd 8 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 8 of 48 Downloaded from www.vandenborre.be9

• When the shaver is fully charged and connected to an electrical outlet, all 3 charging segments will light up for a few seconds. Then the display turns off.

• The battery symbol (5d) will flash red, when the battery is running low. You should be able to finish your shave. With switching off the shaver a beep sound reminds of the low charge status. Using the shaver Press the on/off switch (4) to operate the shaver. Tips for a perfect dry shave For best results, Braun recommends you to follow 3 simple steps:

1. Always shave before washing your face.

2. At all times, hold the shaver at the right angle (90°) to your skin.

3. Stretch your skin and shave against the direction of your beard growth.

MultiHeadLock switch (head lock)

• To shave hard-to-reach areas (e.g. under the nose) slide the MultiHeadLock switch (3) down to lock the shaver head. The shaver head can be locked in five positions.

• To change position, move the shaver head with your thumb and forefinger back or forth. It will automatically click into the next position.

• For automatic cleaning in the Clean&Charge Station the head lock should be released. Long hair trimmer To trim sideburns, moustache or beard press the release button (8) and slide the long hair trimmer (6) upwards. Travel lock The lock symbol (5a) lights up in the display when the shaver has been locked to avoid unintended starting of the motor (e.g. for storing it in a suitcase).

• Activation: By pressing the on/off switch (4) for 3 seconds the shaver is locked. This is confirmed by a beep sound and the lock symbol in the display. Afterwards the display turns off.

• Deactivation: By pressing the on/off switch for 3 seconds again the shaver is unlocked. Manual cleaning of the shaver Cleaning under running water

• Switch on the shaver (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.

• Next, switch off the shaver, press the release button (2) to remove the Foil & Cutter cassette (1) and let it dry.

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the Foil & Cutter cassette. The shaver should be cleaned after each foam usage. 91113594_Series 5-2_NA_S6-48.indd 991113594_Series 5-2_NA_S6-48.indd 9 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 9 of 48 Downloaded from www.vandenborre.be10 Cleaning with a brush

• Switch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it! Battery removal This appliance contains a rechargeable battery. Before disposing of the appliance, disassemble the housing as shown, remove the rechargeable battery and recycle or dispose of properly, according to local guidelines. Caution: Disassembling the appliance will destroy it and invalidate the warranty. Series 5 Series 5

eries 5Li-Ion Clean&Charge Station (C&C) (not with all models) The Clean&Charge Station has been developed for cleaning, charging, lubricating, disinfecting, drying and storing your Braun shaver. Important Only use the special electric cord set supplied with the shaver as power supply. To prevent the cleaning fluid from leaking, ensure that the Clean&Charge Station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor place it on a polished or lacquered surface. The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not expose to direct sunlight and cigarette smoking nor store it over a radiator. Do not refill the cartridge and use only original Braun refill cartridges. 91113594_Series 5-2_NA_S6-48.indd 1091113594_Series 5-2_NA_S6-48.indd 10 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 10 of 48 Downloaded from www.vandenborre.be11

DANGER: FLAMMABLE. CONTENTS MAY CATCH FIRE. Do not smoke. Use only in

well-ventilated areas. Keep away from flames such as pilot light, and any object that sparks such as electric motor. Keep locked up. KEEP OUT OF REACH OF CHILDREN. CAUTION: MAY IRRITATE EYES. Do not get in eyes. FIRST AID TREATMENT: Contains ethanol. If swallowed, call a Poison Control Centre or doctor immediately. Do not induce vomiting. If in eyes, rinse with water for 15 minutes. 13 Station power socket 14 Lift button for cartridge exchange 15 Station-to-shaver contacts 16 Clean&Charge Station display 16a Level indicator 16b Status light 16c Cleaning program indicators 17 Start button 18 Cleaning cartridge (not with all models) Installing the C&C

• Remove the protection foil from the C&C display.

• Press the lift button (14) at the rear side of the C&C to lift up the housing.

• Hold the cleaning cartridge (18) down on a flat, stable surface (e.g. table).

• Carefully remove the lid from the cartridge.

• Slide the cartridge from the rear side into the base of the station until it snaps into place.

• Slowly close the housing by pushing it down until it locks.

• Using the special cord set (10a), connect the station power socket (13) to an electrical outlet. Using the C&C Important: The shaver needs to be dry and free from any foam or soap residue! Insert the shaver in the C&C upside down, with the front showing and released head lock (3). The contacts (7) on the back of the shaver need to align with the contacts (15) in the C&C. Push the shaver in the correct position. A beep sound confirms that the shaver sits properly in the C&C. The C&C analyzes the hygiene status. The status is shown by the cleaning program indicators (16c) in the C&C display (16). Charging the shaver in the C&C Charging will start automatically when the shaver has been placed in properly. 91113594_Series 5-2_NA_S6-48.indd 1191113594_Series 5-2_NA_S6-48.indd 11 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 11 of 48 Downloaded from www.vandenborre.be12 Cleaning the shaver in the C&C When the cleaning indicator (5c) lights up in the shaver display, insert the shaver into the C&C, as described above. Cleaning programs short economical cleaning normal level of cleaning high intensive cleaning Start automatic cleaning Start the cleaning process by pressing the start button (17). If status light (16b) does not shine (C&C switches to stand-by after ca. 10 minutes), press start button twice. Otherwise cleaning will not start. For best shaving results, we recommend cleaning after each shave. Each cleaning program consists of several cycles, where cleaning fluid is flushed through the shaver head. Depending on your Clean&Charge Station model and/or program selected, the cleaning time takes up to 3 minutes. During this time the status light blinks. Leave the shaver in the station for drying. It takes several hours until remaining moisture evaporates depending on the climatic conditions. After completing the cleaning and charging procedure, all indicators turn off. Removing the shaver from the C&C Hold the C&C with one hand and tilt the shaver slightly to the front to release it. Cleaning cartridge / Replacement When the level indicator (16a) lights up permanently red, the remaining fluid in the cartridge is sufficient for about 3 more cycles. When the level indicator blinks red, the cartridge needs to be replaced - about every 4 weeks when used daily. After having pressed the lift button (14) to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution. The cleaning cartridge can be disposed of with regular household waste. The hygienic cleaning cartridge contains ethanol or isopropanol (specification see cartridge), which once opened will naturally evaporate slowly. Each cartridge, if not used daily, should be replaced after approximately 8 weeks to ensure optimal disinfection. The cleaning cartridge also contains lubricants for the shaving system, which may leave residual marks on the outer foil frame and the cleaning chamber of the C&C. These marks can be removed easily by wiping gently with a damp cloth. 91113594_Series 5-2_NA_S6-48.indd 1291113594_Series 5-2_NA_S6-48.indd 12 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 12 of 48 Downloaded from www.vandenborre.be13 Accessories Braun recommends changing your shaver’s Foil & Cutter cassette every 18 months to maintain your shaver’s maximum performance. Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette: 52S/52B

• Cleaning Cartridge: CCR

• Braun Shaver cleaner spray Subject to change without notice. For electric specifications, see printing on the special cord set. Trouble-Shooting Problem Possible reason Remedy SHAVER Shaver does not charge completely and keeps blinking. Ambient temperature is out of valid range. Recommended ambient temperature for charging is 5 °C to 35 °C (41 °F to 95 °F). Charging does not start when connected to power socket.

1. Sometimes charging

could start delayed (e.g. after long storage).

2. Ambient temperature

is out of valid range.

3. Special cord set is not

plugged in properly.

1. Wait a few minutes, if charging will

start automatically.

2. Recommended ambient temperature

for charging is 5 °C to 35 °C (41 °F to 95 °F).

3. Special cord set needs to snap into

place. Unpleasant smell from the shaver head.

1. Shaver head is cleaned

2. Cleaning cartridge is

in use for more than 8 weeks.

1. When cleaning the shaver head with

water only use hot water and from time to time some liquid soap (without abrasive substances). Remove Foil & Cutter cassette to let it dry.

2. Change cleaning cartridge at least

every 8 weeks. Battery performance dropped significantly.

1. Foil and cutter are

worn which requires more power for each shave.

regularly cleaned with water but not lubricated.

1. Renew Foil & Cutter cassette.

2. If the shaver is regularly cleaned with

water, apply a drop of light machine oil on top of the foil once a week for lubrication. 91113594_Series 5-2_NA_S6-48.indd 1391113594_Series 5-2_NA_S6-48.indd 13 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 13 of 48 Downloaded from www.vandenborre.be14 Shaving performance dropped significantly.

1. Foil and cutter are

2. Shaving system is

1. Renew Foil & Cutter cassette.

2. Soak the Foil & Cutter cassette into hot

water with a drop of dish liquid. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil. Shaver head is damp.

1. Drying time after

automatic cleaning was too short.

Clean&Charge Station is clogged.

1. Clean directly after shaving to allow

enough time for drying.

2. Clean the drain with a wooden

Cleaning does not start when pressing the start button.

1. Shaver is not placed

properly in the Clean&Charge Station.

2. Cleaning cartridge

contains not enough cleaning fluid (display blinks red).

1. Insert shaver into the Clean&Charge

Station and push it to the rear side of the station (contacts of the shaver need to align with contacts in the station).

2. Insert new cleaning cartridge.

Press start button again. Increased consumption of cleaning fluid. Drain of the Clean&Charge Station is clogged. – Clean the drain with a wooden toothpick. – Regularly wipe the tub clean. 91113594_Series 5-2_NA_S6-48.indd 1491113594_Series 5-2_NA_S6-48.indd 14 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 14 of 48 Downloaded from www.vandenborre.be15 How to obtain service in the USA Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts and accessories: Contact a Braun Authorized Service Center. Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you. To speak to a Braun Consumer Service Representative: Please call 1-800-BRAUN 11 (272-8611). 91113594_Series 5-2_NA_S6-48.indd 1591113594_Series 5-2_NA_S6-48.indd 15 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 15 of 48 Downloaded from www.vandenborre.be16 How to obtain service in Canada Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts & accessories: Contact a Braun Authorized Service Center. Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you. To speak to a Braun Service Representative: Please call 1-800-387-6657. 91113594_Series 5-2_NA_S6-48.indd 1691113594_Series 5-2_NA_S6-48.indd 16 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 16 of 48 Downloaded from www.vandenborre.be17 60 day money back satisfaction guarantee for men’s grooming products Braun Shavers Braun Beard Trimmers Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment. Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use. Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase. Please include the following information when you return your product: Name Street City State / Zip code Telephone number Please allow 6-8 weeks for handling. 91113594_Series 5-2_NA_S6-48.indd 1791113594_Series 5-2_NA_S6-48.indd 17 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 17 of 48 Downloaded from www.vandenborre.be18

2 year limited warranty (foil and cutter block excluded) Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase. If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge. Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you. This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state. 91113594_Series 5-2_NA_S6-48.indd 1891113594_Series 5-2_NA_S6-48.indd 18 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 18 of 48 Downloaded from www.vandenborre.be19

2 year limited warranty (foil and cutter block excluded) In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer. This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts. Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product. 91113594_Series 5-2_NA_S6-48.indd 1991113594_Series 5-2_NA_S6-48.indd 19 07.10.16 08:5407.10.16 08:54 CSS APPROVED Effective Date 14Oct2016 GMT - Printed 05Apr2017 Page 19 of 48 Downloaded from www.vandenborre.be20 Français
