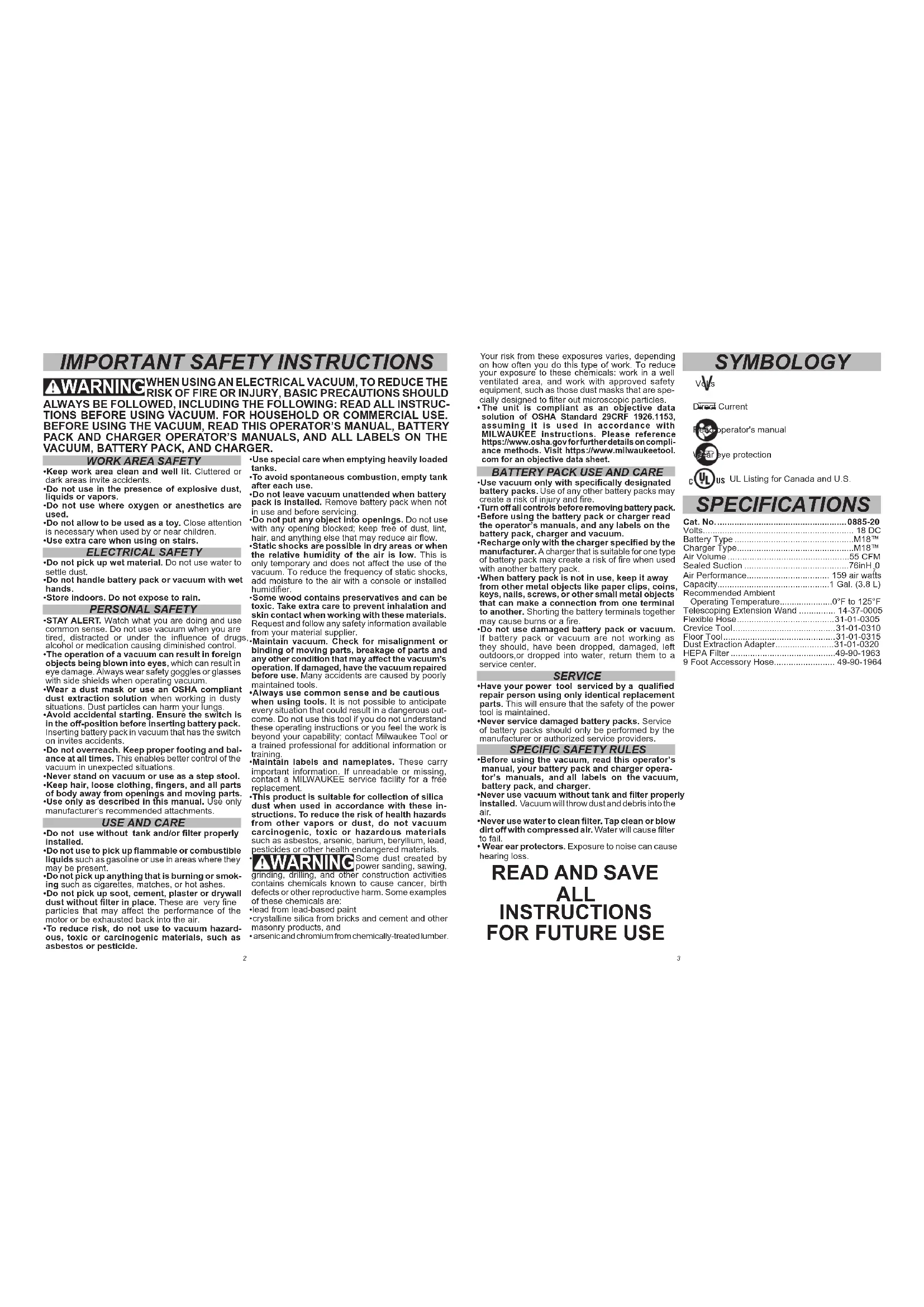

SYMBOLOGY Volts Direct Current Read operator's manual Wear eye protection

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not use in the presence of explosive dust, liquids or vapors.

• Do not use where oxygen or anesthetics are used.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use extra care when using on stairs. ELECTRICAL SAFETY

• Do not pick up wet material. Do not use water to settle dust.

• Do not handle battery pack or vacuum with wet hands.

• Store indoors. Do not expose to rain. PERSONAL SAFETY

• STAY ALERT. Watch what you are doing and use common sense. Do not use vacuum when you are tired, distracted or under the inuence of drugs, alcohol or medication causing diminished control.

• The operation of a vacuum can result in foreign objects being blown into eyes, which can result in eye damage. Always wear safety goggles or glasses with side shields when operating vacuum.

• Wear a dust mask or use an OSHA compliant dust extraction solution when working in dusty situations. Dust particles can harm your lungs.

• Avoid accidental starting. Ensure the switch is in the off-position before inserting battery pack. Inserting battery pack in vacuum that has the switch on invites accidents.

• Do not overreach. Keep proper footing and bal- ance at all times. This enables better control of the vacuum in unexpected situations.

• Never stand on vacuum or use as a step stool.

• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• Do not use without tank and/or lter properly installed.

• Do not use to pick up ammable or combustible liquids such as gasoline or use in areas where they may be present.

• Do not pick up anything that is burning or smok- ing such as cigarettes, matches, or hot ashes.

• Do not pick up soot, cement, plaster or drywall dust without lter in place. These are very ne particles that may affect the performance of the motor or be exhausted back into the air.

• To reduce risk, do not use to vacuum hazard- ous, toxic or carcinogenic materials, such as asbestos or pesticide.

• Use special care when emptying heavily loaded tanks.

• To avoid spontaneous combustion, empty tank after each use.

• Do not leave vacuum unattended when battery pack is installed. Remove battery pack when not in use and before servicing.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything else that may reduce air ow.

• Static shocks are possible in dry areas or when the relative humidity of the air is low. This is only temporary and does not affect the use of the vacuum. To reduce the frequency of static shocks, add moisture to the air with a console or installed humidier.

• Some wood contains preservatives and can be toxic. Take extra care to prevent inhalation and skin contact when working with these materials. Request and follow any safety information available from your material supplier.

• Maintain vacuum. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the vacuum's operation. If damaged, have the vacuum repaired before use. Many accidents are caused by poorly maintained tools.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous out- come. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

• Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

• This product is suitable for collection of silica dust when used in accordance with these in- structions. To reduce the risk of health hazards from other vapors or dust, do not vacuum carcinogenic, toxic or hazardous materials such as asbestos, arsenic, barium, beryllium, lead, pesticides or other health endangered materials.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are spe- cially designed to lter out microscopic particles.

• The unit is compliant as an objective data solution of OSHA Standard 29CRF 1926.1153, assuming it is used in accordance with MILWAUKEE instructions. Please reference https://www.osha.gov for further details on compli- ance methods. Visit https://www.milwaukeetool. com for an objective data sheet.

BATTERY PACK USE AND CARE

• Use vacuum only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.

• Turn off all controls before removing battery pack.

• Before using the battery pack or charger read the operator’s manuals, and any labels on the battery pack, charger and vacuum.

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Do not use damaged battery pack or vacuum. If battery pack or vacuum are not working as they should, have been dropped, damaged, left outdoors,or dropped into water, return them to a service center. SERVICE

• Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY RULES

• Before using the vacuum, read this operator’s manual, your battery pack and charger opera- tor’s manuals, and all labels on the vacuum, battery pack, and charger.

• Never use vacuum without tank and lter properly installed. Vacuum will throw dust and debris into the air.

• Never use water to clean lter. Tap clean or blow dirt off with compressed air. Water will cause lter to fail.

• Wear ear protectors. Exposure to noise can cause hearing loss.

ASSEMBLY WARNING To reduce the risk of injury, always remove the battery pack before removing the tank. CAUTION Keep lter clean. Efciency of the vacuum is largely dependent on the lter. A dirty lter will reduce the air ow and overall efciency of the system. Do not clean with water. Remove from tank and tap clean or blow off with compressed air. Removing/Inserting the Battery To remove the battery, push in the release buttons and pull the battery pack away from the tool. WARNING Always remove battery pack before changing or removing accessories. To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place. Removing/Installing the Filter To remove the lter: Tank release button Tank Filter Tank cap

1. Remove the battery pack.

2. Press the tank handle button

and remove the tank from the vacuum.

3. Pull out tank cap to expose the

lter. Pull the lter out of the tank.

4. Lift the tank release button and

empty all the dust and debris from the tank.

5. To clean the lter, tap clean or

blow dirt off with compressed air. Replace the lter if dam- aged or suction decreases (single pack, Cat. No. 49-90- 1963). NOTE: Never use water to clean lter. To install the lter:

1. Place the lter into the top of the tank.

2. Line up the tank cap guides and secure it to the

tank. Place the tank back into the vacuum. WARNING Only use accessories specifically recom- mended for this tool. Others may be hazardous. Removing/Installing the Accessories To install the hose, push the accessory onto the vacuum inlet. To install the nozzles and extensions, push the accessory onto the hose end. To remove, press the accessory clip and pull out. Storing the Accessories Each of the accessories can be stored on the vacuum. Floor tool Telescoping extension wand

• Telescoping extension wand:Clip the accessory onto the extension wand holder.

• Floor tool: Insert the accessory onto the top of the telescoping extension wand.

accessory onto the vacuum inlet. Clip onto the hose clip to secure.

• Crevice tool: Hook the accessory onto the crevice tool rungs located on the lower backpack strap. Push the nose of the accessory through the lower rung and strap the top to the upper rung.

• Dust extraction adapter: Hook the accessory onto the dust extraction adapter rung located on the lower backpack strap. Crevice tool Dust extraction adapter Removing/Installing the Backpack Plate The backpack plate can be removed when mount- ing the vacuum on a surface or carrying by hand. To remove the plate, hold down the backpack plate release button. Pull the bottom end of the plate away from the vacuum to remove the lower tabs. Pull down on the plate and away from the vacuum to remove the upper tabs. Backpack plate release button To install the plate, line up and insert the upper plate tabs into the vacuum. Lift the plate up to align and insert the lower plate tabs into the vacuum. Push the tabs in to lock. FUNCTIONAL DESCRIPTION

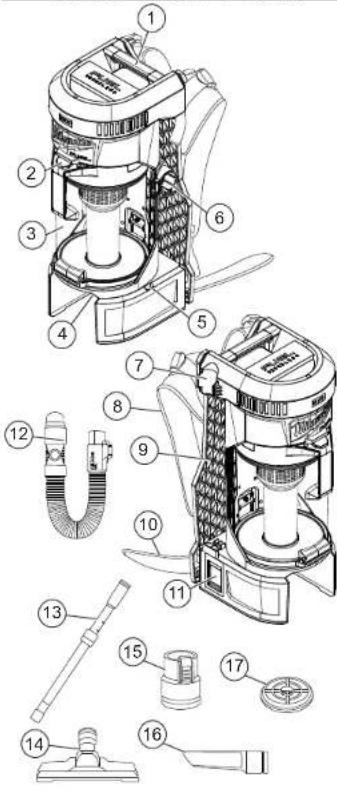

10. Lower backpack strap

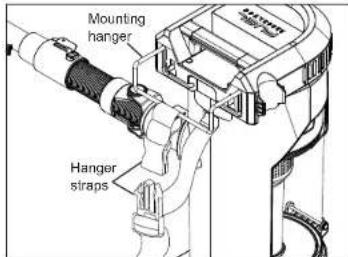

Mounting the Vacuum The vacuum can be hung and mounted to a surface for ease of use. To mount the vacuum, remove the backpack plate according to the "Removing/Installing the Backpack Plate" instructions. This will expose the mounting hanger. Pull hanger away from the vacuum, unclip the hanger straps and hook vacuum onto surface. Secure by clipping the hanger straps and tightening to the surface. Mounting hanger Hanger straps To unmount the vacuum, unhook the hanger straps. Pull hanger from the surface and push hanger back into the vacuum. Reinstall the backpack plate ac- cording to the "Removing/Installing the Backpack Plate" instructions. OPERATION WARNING To reduce the risk of re and injury, do not use to pick up ammable or combustible materials. To reduce the risk of injury, wear safety goggles or glasses with side shields. Empty tank before use. Before use, ensure the lter is installed. CAUTION Do not carry vacuum by the tank handle. Starting, Stopping, and Controlling Speed Press the Power switch up to 2 to run the vacuum on High power. Press the Power switch down to 1 to run the vacuum on Low power. To turn the vacuum Off, return the Power switch to its home position. Using the Vacuum There are multiple ways to use the vacuum to best suit your job.

• Wearing the vacuum as a backpack. Place vacuum on body. Secure the tool by strapping in the top and bottom backpack straps.

• Mounting the vacuum on a surface. Remove the backpack plate according to the "Removing/ Installing the Backpack Plate" instructions. Then mount the vacuum to the surface according to the "Mounting the Vacuum" instructions.

• Carrying the vacuum in hand. If desired, remove the backpack plate according to the "Removing/ Installing the Backpack Plate" instructions.

Operation1. Remove ALL dirt and debris found in the tank. 2. Insert battery pack and attach accessories. 3. Press the Power switch to the desired speed. Begin pick-up.4. Turn off the vacuum immediately upon completing a job or when tank is full and ready to be emptied. NOTE: If suction shuts off, turn off the vacuum immediately and empty the tank.5. Remove battery pack.6. Clean the interior of the tank and accessories periodically.StorageBefore storing your vacuum, empty and clean the tank, lter, and accessories. Remove the battery pack. MAINTENANCE WARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before performing any main-tenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs.Maintaining Tool Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection.If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work prop-erly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs. WARNING To reduce the risk of personal injury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to ow inside them.CleaningClean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain clean-ing agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household deter-gents containing ammonia. Never use ammable or combustible solvents around tools.RepairsFor repairs, return the tool, battery pack and charger to the nearest service center. ACCESSORIES WARNING Use only recommended accessories. Others may be hazardous.For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.
