BQ2817 - Barbecue Brixton - Free user manual and instructions

Product type	Electric barbecue
Brand	Brixton
Model	BQ2817
Power supply	220-240 V ~ 50 Hz, 2000 W
Dimensions (approx.)	80 x 50 x 90 cm (assembled)
Weight (approx.)	12 kg
Cooking surface	Removable non-stick grill plate
Thermostat	Adjustable, with removable cord
Grease tray capacity	0.3 L
Number of temperature levels	5 positions (1 to 5)
Material	Steel with non-stick coating
Folding trolley	Yes, with wheels and safety lock
Lid	Removable with handle
Side tables	2, removable
Cleaning	Grill plate and grease tray dishwasher safe; base cleaned with a damp cloth
Safety	Safety thermostat, automatic shut-off not mentioned, caution hot surfaces
Warranty	24 months
Included accessories	Thermostat with cord, grease tray, lid, trolley

Frequently Asked Questions - BQ2817 Brixton

How to clean the grill plate after use?

Let the appliance cool down completely, then remove the grill plate and grease tray. Wash them with hot water using a damp cloth or in the dishwasher. Do not use metal pads or abrasives to avoid damaging the non-stick coating.

Can I use charcoal or wood in this barbecue?

No, this barbecue is exclusively electric. Never use charcoal, wood, or any other solid or liquid fuel, as it could damage the appliance and be dangerous.

How to adjust the cooking temperature?

The adjustable thermostat is on the removable cord. Turn it to the desired position (1 to 5). The indicator light goes off when the temperature is reached. Allow about 10 minutes for preheating.

What to do if the grill plate sticks?

If food sticks, rub the plate with a piece of paper towel soaked in oil. This restores the non-stick coating. Avoid using metal utensils.

Can I immerse the appliance in water to clean it?

No, never immerse the thermostat, cord, plug, or base of the appliance in water or any other liquid. Only the grill plate and grease tray can be washed with water or in the dishwasher.

How to fold the trolley for storage?

Press the middle of the support tube with your foot, hold the side table with one hand and gently lower the wheel tube with the other hand. To lock the folded trolley, use the lid loop and the hook strap.

What is the capacity of the grease tray?

The grease tray has a capacity of 0.3 liters. It is advisable to empty it regularly and not let it overflow. For easier cleaning, you can put a little water in it before cooking.

Why is there smoke and smell during first use?

This is normal. Heat the appliance at maximum power for 10 minutes with the lid closed, without food. This burns off manufacturing residues. Air the room.

Can I use an extension cord?

No, use of an extension cord or timer device is prohibited to avoid any risk of overheating or accidental reset of thermal protection.

What to do if the appliance does not heat up?

Check that the thermostat is properly plugged into the appliance's socket and that the wall outlet is working. If the problem persists, contact a qualified approved electrician or after-sales service.

USER MANUAL BQ2817 Brixton

Black portable grill with skewers, shrimp, and meat on a grating tray (no text or symbols visible)

eN Instruction manual
NI Gebruiksaanwijzing
FR Mode d'emploi
De Bedienungsanleitung
eS Manual de usuario
PT Manual de utilizador
PI Instrukcja obsługi
IT Manuale utente
sv Användare

BQ-2817

*** TRISTAR

Dear customer,

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

SaFeTy INSTRucTloNS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• To protect children against the dangers of an electrical appliance, please make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.
• This appliance is only to be used for household purposes and only for the purpose it is made for.

• The appliance must be placed on a stable, level surface.

• Do not use when the appliance is fallen, if there are any signs of damage or when it leaks.

• Do not touch hot surfaces. Use handles or knobs.
• Never use the device unsupervised.
• All repairs should be made by a competent qualified electrician(*).
• Make sure that the appliance is stored in a dry environment.
  • Only cook consumable food.
• It is absolutely necessary to keep this appliance clean at all times, because it comes into direct contact with food.
• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz. The socket must be at least 16 A or 10 A slow-protected.
• This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• The use of accessory that are not recommended by the manufacturer can cause injuries and will invalidate any warranty that you may have.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• Do not wind the cord around the appliance and do not bend it.
• Allow the appliance to cool down before you clean or store it.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Unplug the appliance from the socket when changing the spare parts or for maintenance.
• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an authorized technician(*). Do not repair this appliance yourself.

TRISTAR Instruction manual

• Do not use this appliance near direct heat sources.
• Unplug the appliance from the socket when you are not using it.
• Note: To avoid danger by accidental resetting the thermal protection, this appliance may not be powered through an external switching device, such as a timer, or connected to a circuit that regularly will be switched on or off.
  • Using an extension cord or something similar is not allowed.
• Allow the device to cool down before you are going to remove or replace spare parts.
• Make sure that the cord is not hanging over the edge of the table or counter, does not touch any hot surfaces or is coming directly into contact with the hot parts of the appliance. Do not place the appliance underneath or close to curtains, window coverings etc.
• Make sure the cord does not touch the hot parts of the appliance.
• We advise to place a heat resistant coating between your table and the appliance (this way you don't get burns on your table or table cloth).
• Be careful with oil and fat preparations, because they might catch fire by overheating. Provide proper ventilation when using the appliance.
• Caution: do not, under any circumstances, cover the grill rack with aluminum foil, barbecue dishes or other items, as the resulting build-up of heat could destroy the grill.
• Do not, under any circumstances, use charcoal or any other solid or liquid fuel to operate the grill.

(*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

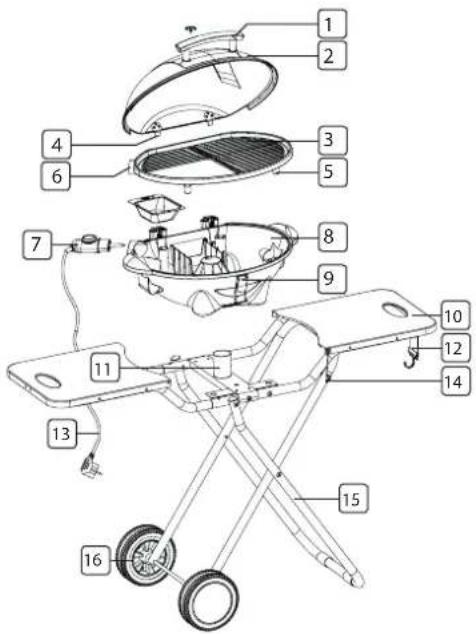

PARTS LIST

1. Handle of hood
2. Hood
3. Grill plate
4. Hood clips
5. Feet
6. Appliance socket
7. Adjustable thermostat on detachable cord
8. Base of appliance
9. Buckle of the hood
10. Side table
11. Stand tube
12. Belt hook
13. Power cord
14. Safety locking unit
15. Supporting tubes
16. Wheel

Exploded view diagram of a folding table with numbered parts for identification

BEFORE USE

Please read these instructions carefully. They provide you important advice on the use, the security and maintenance of the appliance. Keep the instructions carefully and, should the situation arise, pass them on to further users.

• The appliance should only be used for the intended purpose according to these instructions.
• Observe the notes on safety regulations.
• Keep the packaging properly

Technical line drawing of a mechanical component with labeled parts (a and 1), no readable text or symbols present.

Take the trolley frame and accessoires out of the box. Please make sure that the trolley frame is placed on a dry, flat and stable surface. Let the wheel axle (a) pass through two holes which are at the end side of the tube.

Diagram of a vehicle chassis with two wheels and structural components (no text or symbols)

Attach the wheels (b) at the two sides of the axle (a) respectively.

3 C a c

There are two mounting holes on each end side of the axis (a), insert the "R" pin(c) through the hole. This will lock the wheels.

4 b d

Press the wheel covers (d) to the wheels (b) according to the three location tips.

5 I II III I y

Put the trolley in the upward position: First, step on the middle of the supporting tube (I) with your right foot, lift up the side table (II) with your right hand while lifting the tube for the wheel (III) upward with your left hand. Then connect the tube (III) with the tube which is located under the side table. The trolley frame is standing up now.

6 e f e

After standing up the trolley frame, you MUST set the safety locking unit (f) immediately. This safety locking unit is with self locking feature. Press the spring (e) and hook the bent hook(f) on the extension part (e). Then stop pressing the spring and it will retract to lock the safety hook unit automatically. Attention: Make sure the safety hook unit is LOCKED during cooking or moving. DO NOT try to turn or pull the safety hook while using this appliance.

7 G1 G2 IV

Firstly, remove the screw from the trolley tube. Then install the stand tube (G1) onto the trolley tube, and install the stand tube (G2) onto the trolley tube. There is a positioning hole (IV) on the stand tube (G2), it will attach G1 and G2 to each other by screws. Tight the stand tube (G1 and G2) and trolley with screws and nuts.

8 h g IV

Place the bowl-shaped base of the appliance (h) into the stand tube (g). Fix the bottom of the base into the positioning hole (IV). When removing the base from the stand tube (g), please step slightly on the supporting tube, hold the handles of the base and take it off.

9 p Q O

Install the hood. Hold the hood handle (p) and insert the clips(O) into the installation holes (Q) of the base. When removing the hood, please open the hood and tilt to 45° between hood and grill plate, and detach the clips(o) from installation holes (Q).
Fold up the trolley: First, step on the middle of supporting tube (I) with your right foot, hold up the side table (II) with your right hand whilst your left hand holds the short edge of support tube (III) and place it down slowly.
Attention: when folding up the trolley, Do not hold the two sides of tube (III) to avoid that your hand got pinched.

TRISTAR Instruction manual

10 n

Insert the adjustable thermostat on detachable cord (n) into the appliance socket. When removing the adjustable thermostat, please hold the handle of the base to avoid pushing over the appliance.

Attention: Please take care. Do not trip over the power cord when the appliance is operating. Always remove the plug from the socket after use.

Line drawing of a mechanical device with an open lid and internal components (no text or symbols)

As this hood is detachable, it is more convenient for using and cleaning.

Attention: If you want to close or open the hood, please hold the cover handle. Note that the hood is HOT during cooking.

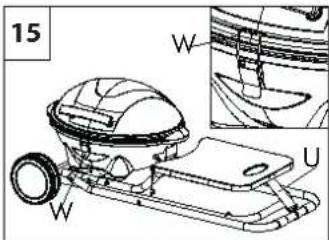

15 W W U

When moving the folded trolley or when the appliance is not in use, please lock the Hood with the buckle (W) and make sure the belt hook (U) will lock the tube.

12 L M K

Place the grill plate (K) on the base of the appliance. Firstly, insert the socket (L) of the grill plate into the hole (M) in the base. Secondly, place the grill plate horizontally on the appliance base. To take the grill plate off, please hold up the right side of the plate and take the socket (L) out of the hole (M). Before taking the grill plate out, make sure it is cooled down completely and is not in use.

Attention: The grill plate should always be used together with the bowl shaped base!

13 i h

Insert the grease tray (i) into the slot of the bowl-shaped base (h). In order to fix it well, make sure the hole on grease tray matches the bobble which is in the middle of the bowl-shaped base.

(Tips: This grease tray can be filled with some water to make it easier to clean). To get the grease tray out, please give it a slight press at the bottom.

Attention: The capacity of the grease tray is 0.3L, please pour out the grease once it is full. The surface of the grease tray is Hot. Do not touch the grease tray during cooking.

14 R S T

Hold the side table (R) and press the two pins(S) with your thumbs. Then insert the sidetable into tube (T). When folding up the trolley, please remove the side table (R) first. Press the pins (S), then pull it out from tube (T) smoothly.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

- Remove all the packaging materials and wash the grill plate, grease tray and hood thoroughly. The grill plate and the grease tray are both dishwasher safe.

Important: Dry all the different parts thoroughly, especially the appliance socket. Never immerse the adjustable thermostat on detachable cord in water or any other liquid.

- Heat the grill to its maximum setting for about 10 minutes, with the hood closed and without putting any food on it. Residues left from the manufacturing process may cause some smell and smoke when the appliance is used for the first time. This is normal and will disappear after a short time.

OPERATING THE APPLIANCE

• Connect the appliance to the mains electricity supply.
• Set the thermostat to the required temperature level (it usually takes about 3 minutes to heat up).
• The power indicator light will go out as soon as the required temperature has been reached.
• Place the food to be grilled on the grill plate.

COOKING TIMES

The following cooking times are indicative. Different times will be required for different weights and sizes of foods to be grilled, and depend on whether you are grilling with or without the hood.

Food to be grilled Temperature grade setting Cooking time

Steak/beef 5 15-20 mins
Lamb 5 12-18 mins
Chicken drumsticks 5 25-30 mins
Chops 5 20-25 mins
Chicken wings 5 15-20 mins
Fillet of pork 4-5 9-10 mins
Whole fish 5 12-15 mins
Kebabs 3-4 10-12 mins
Various sausages 3-4 12-15 mins

TIPS FOR GRILLING

• Your meat will be tendered if you marinade it overnight before cooking (the marinade is always made of oil (to add moistness), vinegar (to tenderize) and a mixture of seasonings).
  • Always use tongs or some form of scoop to turn the grilled food (using a fork to turn the food will dry it out and damage the non-stick coating).
• Turn meat and fish only once during grilling. Turning the food too often will lead to dehydration.
• Never cook meat too long.
• In case the cooked food sticks to the grill plate, rub the plate with a piece of kitchen paper soaked in oil.

CLEANING AND LOOKING AFTER THE APPLIANCE

• Disconnect the appliance from the mains electricity supply.
• Allow the grill to cool down.
  • Take the detachable thermostat out of the appliance socket.
• Clean the grill plate and grease tray with warm washing-up water and a damp cloth. Do not use steel wool pads, brush or abrasives to avoid any damages to the non-stick coating.
• Wipe the base of the appliance with a damp cloth. Fat splashes can be removed with a mild cleaning agent.
• The grill plate has a non-stick coating. Do not scratch this coating during either the grilling or the cleaning stages.

Protect the appliance from dust and dirt when not using it for a prolonged length of time (wrap it in a plastic bag). Store it in a dry place.

Note:

- The grill plate has a non-stick coating. Do not scratch this coating during either the grilling or the cleaning stages.

Tip: Use a washing-up brush with plastic bristles to clean the grill plate.

- Protect the appliance from dust and dirt when not using it for a prolonged length of time (wrap it in a plastic bag). Store it in a dry place.

GUARANTEE

• Tristar is not liable for damages occurred through:
  o In case the appliance has fallen.
  o In case the appliance has been technically changed by the owner or another third party.
  o In case of improper use of the appliance.
  o In case of normal wear of the appliance.

• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE.

• Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.
• Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.
• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.
• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.
• When the appliance should be repaired, make sure that this will be performed by an authorized company.
  • This appliance may not be amended or changed.
• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
• For questions or compliances please contact your retailer "point of purchase."
• This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).
• Only material or manufacturing defects are included in this warranty.
• If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!

• The guarantee lapses in case of unauthorized tampering.

• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

[Non-Text]

symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central

point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This appliance is designed to come into contact with food and is designed in accordance with EC Directive89/109/EEC. This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

Geachte klant,

VellIgHeIDSVooRScHRIFTeN

Technical line drawing of a mechanical component with labeled parts (a and 1), no readable text or symbols present.

Technical line drawing of a vehicle chassis frame with two wheels, labeled 'b' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (a and 1), no readable text or symbols present.

Diagram of a vehicle chassis with two wheels and structural components (no text or labels)

7 G1 G2 I V

Line drawing of a mechanical device with an open lid and internal components (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (a and 1), no readable text or symbols present.

Line drawing of a vehicle chassis frame with two wheels, labeled 'b' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (a and 1), no readable text or symbols present.

Diagram of a vehicle chassis with two wheels and structural components (no text or symbols)

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (a and 1), no readable text or symbols present.

Diagram of a vehicle chassis with two wheels and structural components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

Exploded diagram of a folding table with numbered parts for identification

PRZED ROZPOCZĘCIEM UŻYTKOWANIA

Technical line drawing of a mechanical component with labeled parts (a and 1), no readable text or symbols present.

Diagram of a vehicle chassis with two wheels and structural components (no text or labels)

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (a and 1), no readable text or symbols present.

Technical line drawing of a vehicle chassis with two wheels, labeled 'b' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (a and 1), no readable text or symbols present.

Diagram of a vehicle chassis with two wheels and structural components (no text or labels)

Line drawing of a mechanical device with an open lid and internal components (no text or symbols)

5015 BH Tilburg, The Netherlands

www.tristar.eu

BQ-2817
