USER MANUAL Pureline Pro Compact 6922 NOVY

Italian Tel.: [phone]

1 INSTRUCTIONS FOR SAFETY AND USE 33

2 CONTROLS AND FUNCTIONS 35

2.1 Operating the device 35
2.2 Auto mode (Novy Sense sensor) 35
2.3 Turning extraction on and off in auto mode 36
2.4 Turning extraction on and off in manual mode 36
2.5 Lighting 37
2.6 Programming recirculation (optional) 37
2.7 Remote control 37
2.8InTouch 38
2.9 Operation via mobile application 38

3 CLEANING AND MAINTENANCE 38

3.1 General maintenance 39

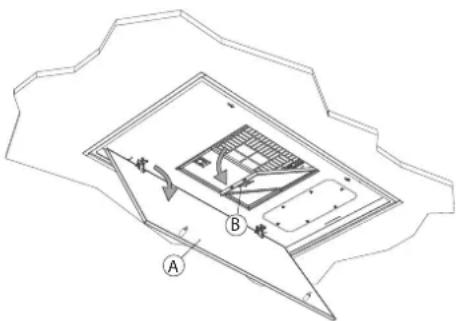

3.2 Removing the bottom panel 39
3.3Grease filter 39
3.4 Monoblock recirculation filter (optional) 40
3.5 Change the batteries 40
3.6 Faults 40

4 Quickguide 41

4.1 Settings 41
4.2 Indications 41

1 INSTRUCTIONS FOR SAFETY AND USE

Further information on Novy products, accessories and services may be found on the internet:

www.novy.co.uk

These are the directions for use for the appliance as shown on the front. The installation instructions are in a separate booklet supplied with the appliance.

These directions for use make use of a number of symbols. The meanings of the symbols are shown below.

SymbolMeaningAction
	Indication	Explanation of an indication on the device.
	Warning This symbol indicates an important tip or a dangerous situation.

Observe this instruction in order to prevent injury and damage to property.

Technical safety instructions

• This appliance complies with the applicable safety instructions. However, improper use may cause personal injury or damage to the appliance.
• Read the directions for use and the installation instructions before installing and using this appliance. You will find important information here for the assembly and use of the appliance.
• Safety is guaranteed only with expert installation in accordance with the installation manual. The installing technician is responsible for proper operation at the installation location.
• The appliance is intended exclusively for household use (preparation of food) and excludes all other domestic, commercial or industrial use. Do not use the appliance outside.
• Check the condition of the appliance and the installation fittings as soon as you remove them from the packaging. Remove the appliance from the packaging with care. Do not use sharp knives to open the packaging.
• Do not install the appliance if it is damaged, and in that case inform Novy.
• Keep good care of this manual and pass it on to any person who may use the appliance after you.
• Novy is not liable for damage resulting from incorrect assembly, incorrect connection, incorrect use or incorrect operation.
• Do not touch live components.
• Do not convert or alter the appliance.
• Remove labels and stickers on the appliance with tips for use or installation. The type sticker is to be found behind the grease filter in the appliance. Do not remove it.

Safety instructions with children in the house

• The appliance's packaging forms a hazard for children. Do not let children play with the packaging materials. Keep packaging materials away from children.

• Children from the age of 8 years and older may use this appliance only under the supervision of a person who is responsible for their safety, or if they have been taught how to use this piece of equipment under safe circumstances.

• Keep an eye on children in order to ensure that they do not play with the appliance.
• Children younger than 8 years should be kept away from the appliance and the connection cable.
• Cleaning and maintenance of the appliance may not be carried out by children.
• The appliance's lighting is extremely bright and may damage the eyes. In particular, ensure that babies do not look directly into the lights.
• Ensure that batteries are stored out of children's reach. Do not allow children to replace batteries without supervision.

Safety instructions when using the appliance

• People with restricted physical, sensory or intellectual capacities, or people lacking in knowledge or experience, may use this appliance only under the supervision of a person who is responsible for their safety, or if they have been taught how to use this piece of equipment under safe circumstances.
• Flambeing under the appliance is not allowed under any circumstances.
• Whenever you are frying, roasting, grilling or deep-frying, always stay close. Overheated oil and fat can rapidly catch alight and as a result damage the extractor hood.
• Clean the grease filter regularly in accordance with the instructions in these directions for use. Failure to follow the cleaning instructions will lead to grease deposits in the filter with a resultant fire hazard.
• Never use the appliance without the grease filters in order to prevent dirt and grease penetrating the appliance, which may impact the operation and functioning over time.
• In the event of f_B , always switch the appliance off.
• Never douse burning fats with water, but cover the pan with a suitable lid or fire blanket.
  Note that certain parts of the appliance within each of the hands may become hot while cooking.
• Gas burners can build up a lot of heat while operating.
  Make sure that this heat cannot increase too much in the cooker hood. The cooker hood installed above the gas burners may become damaged or catch fire.
• Only operate the gas burners with cookware on them.
• Turn off the gas burner when you remove the cookware from the gas.
• When using several gas burners at the same time, set the cooker hood to position 2 or higher.
• Never operate large burners of more than 5kW with the highest flame for longer than 15 minutes, e.g. a wok.
• Switch on the appliance a few minutes before starting to cook for effective extraction of the cooking vapours.

Make use of the delay position if the appliance has one. The instructions for the delay position are set out in these directions for use.
- Avoid all draughts above the cooking surface.

• Position your cooking utensils in such a way that rising vapour is directed under the extraction surface of the hood.

• Cooking with induction: set the intensity of the ap pliance and hob as low as possible in order to limit excess vapour.
  If the appliance has a bottom panel, ensure that it is always properly closed. Take care that it is properly inserted into the clamps and cannot come free. When opening the bottom panel, do not put your hands on the side of the hinges in order to prevent being crushed.

• Do not place objects on top of the appliance, as these may fall and cause a dangerous situation.

However large the kitchen or the room with open kitchen is, only so much air can be extracted from the room as is supplied. Too little air supply could result in a yield loss of 50% and more.

[!] If the extraction is used at the same time as a combustion system (for example heaters fired by gas, oil, wood or coal, hot water boilers using gas, gas hobs and gas ovens), combustion gases may be sucked back in and lead to poisoning.

A combustion system uses air from the room as combustion air. Combustion gases arise as a result, which are removed to the outside by an extraction system.

The appliance sucks in air from the kitchen and adjacent rooms. Negative pressure occurs if the air supply is inadequate. The toxic gases are then sucked back from the chimney or extraction duct into the room.

With simultaneous use of the appliance and combustion appliances in the same room, the negative pressure may not exceed 4Pa (= 0.04mBar) .Negative pressure can be prevented by allowing sufficient air into the room through openings that cannot be closed (for example through windows or doors, in combination with a ventilation cabinet in the wall).

Have an expert assess the overall ventilation system in your home for a proposal on suitable measures in the area of air supply.

When using the appliance with an internal or external motor (unit) with air extraction to the outside, there must be adequate air supply in the room where the appliance has been installed / is positioned, so that fresh air can flow in. Fresh air can be provided by tilting a window, opening a door or installing an inlet grille.

With an appliance with recirculation, there must be a minimum of ventilation in the room where the appliance has been installed / is positioned. Ventilation can be provided by the overall ventilation in the home or by tilting a window or opening a door.

Certain appliances are fitted with a connection for a window contact switch (see the technical specifications for your appliance). If the appliance is to operate at the same time as a heating appliance that needs air from the room, and if the required supply can only take place through a single open window, there is the option of connecting the appliance to a window contact switch (not included). This ensures that the appliance operates only when the window is open. If the window is closed, the fan cannot be switched on.

Contact your technician for the correct accessories for your appliance.

Stationary measures against damage

• The correct installation method is described in the installation instructions. Read these instructions through carefully.
• The installation and electrical connection of the appliance should be left to a recognised expert.
• NOVY cannot accept liability for any damage arising from incorrect installation or connection.
• Check the distance between the hob and the appliance. The minimum and maximum heights are shown in the installation instructions.

tionary measures in the event of a fault

• If a fault occurs, switch off the appliance and disconnect the power supply.
• Repairs should be carried out only by specialised personnel. Do not under any circumstances open the equipment yourself. Contact the Novy service department.

ENVIRONMENTAL PROTECTION

Tips for saving energy

The new appliance is exceptionally efficient and economical with energy. Some tips follow below for making your appliance even more energy-efficient.

• Switch the appliance on at the lowest speed when you start cooking to adjust the relative humidity and eliminate cooking odours.

• Only use the highest speed when absolutely necessary.
  Only increase the speed of the appliance when the quantity of vapour so requires.

• Keep the appliance filter/filters clean to optimise grease and odour filtering efficiency.

• Switch to higher power in good time if much vapour is released. This is more efficient than using the appliance for a long time, and catching vapour already spread in the kitchen.

• Do not allow the appliance to unnecessarily ventilate after cooking.

• Switch the lighting off when leaving the kitchen or if the kitchen is already light enough.
• Ensure adequate air supply in the room, so that the appliance can operate efficiently and economically.
  Put lids on the pots to reduce cooking vapours and condensation.

Recycling the transport packaging and the old appliance

This appliance is protected against damage during transport by packaging. The materials used are not harmful to the environment and are suitable for recycling. Ensure environmentally-friendly disposal of the packaging. Your appliance also contains many materials that can be recycled.

For this reason, used appliances should be separated from other waste. Recycling of old appliances arranged by your manufacturer will in this way be carried out under the best circumstances. For recycling your appliance, we refer you to the recent European guidelines in force concerning electrical and electronic waste. Ask your municipality or your salesperson about the closest collection point for your old appliance.

Keep old appliances out of the reach of children.

Recycling batteries

Do not put batteries into the standard household refuse. Ask your municipality or your salesperson about the closest battery collection point. Keep batteries out of the reach of children.

2 CONTROLS AND FUNCTIONS

2.1 Operating the device

You can operate the cooker hood with the supplied remote control or via the Novy mobile application (Novy connect application). Read more about the Novy mobile application in paragraph 2.9.

If the remote control does not work anymore, the cooker hood can be switched off with this push button. This push button is located behind the grease filters.

Operation via remote control:

The remote control for hood is preinstalled and ready for use.

Lighting cooking mode on/off
Increase speed levels / activate manual mode
Decrease speed levels / activate manual mode
Switch on/off / activate auto mode Mood mode lighting on/off

Information on the display:

A White indicator leads speed level 1, 2, 3
B White indicator leads Power position
Green indicator led cleaning grease filter
Orange indicator led replacement recirculation filter

2.2 Auto mode (Novy Sense sensor)

This cooker hood is equipped with an automatic speed control (Novy Sense sensor). In auto mode, a sensor in the cooker hood recognises the intensity of cooking fumes and odours. The optimal speed level is set automatically with the help of this sensor.

Depending on the sensor sensitivity, the optimum motor speed is set automatically. If the sensor response is too weak or too strong, you can change the sensor sensitivity setting.

• Low
  Medium (default setting)
  High

The sensor sensitivity can only be changed in the Novy Connect application via a mobile device.

2.3 Turning extraction on and off in auto mode

Switching on the extraction in auto mode

To switch on the motor, press the on the remote control.

The cooker hood will switch on in auto mode.

The optimum speed level is set automatically using the Novy Sense sensor.

• The white indicator leads A indicate speed level position one to three.
• The fourth white indication led B indicates the Power position. Power position is only used in case of strong development of odour, smoke or vapour.
• Power mode automatically everts to speed three after 6 minutes.

• The illuminated indication led shows the current motor speed.

• The white indicator leads flash alternately to show that the auto mode is active.

The auto mode only works optimally if the cooker hood is switched on in auto mode before the cooking process begins. If the cooker hood is only switched on during the cooking process, this has a negative effect on the automatic speed control. Because the cooking process is already in progress (and therefore there are already vapours and odours), it is possible that the cooker hood switches too slowly to a higher or lower speed.

Switching extraction off with delay mode

To set delay mode press button once. The lighting switches to mood mode and the first white LED for the speed level flashes.

The engine continues to run for 10 minutes in delay mode. After this time, the motor

will switch off. The lighting will remain on in the mood mode.

Switching extraction off without delay mode

Press button twice.

If during the cooking process, the cooker hood is switched off in auto mode by pressing the button twice and then restarted in auto mode, then the sensor value is determined again. Because the cooking process is already in progress (and therefore there are already vapours and odours), it is possible that the cooker hood switches too slowly to a higher or lower speed level.

Switching from auto mode to manual mode

If the cooker hood is in auto mode, auto mode can be switched off by pressing the or button. The cooker hood then operates in manual mode.

If you want to return to auto mode while cooking, we recommend doing this via the Novy Connect application. This prevents the sensor value from being determined again.

Auto-Stop

As soon as the sensor detects no more change in the air quality in the room, the auto mode automatically changes to manual mode and Auto-Stop is activated at the same time. Auto-Stop ensures that the motor of the cooker hood switches off automatically after 3 hours, thereby contributing to energy savings. Only the motor will turn off automatically. The lighting will remain on in the mood mode.

2.4 Turning extraction on and off in manual mode

Switching on the extraction in manual mode

To switch on the motor, press the button on the remote control. The cooker hood will switch on in manual mode.

Three white indicator led indicate speed level position one to three.
- The fourth white indication led B indicates the Power position. Power position is only used in case of strong development of odour, smoke or vapour. Taking into account the large air volume in this position, usage should be kept to a minimum.
- Power mode automatically everts to speed three after 6 minutes.
- The illuminated indication led shows the current motor speed.

Motor speed

In order to increase the speed of the motor, press the button. In order to decrease the speed, press the button.

The motor speed can be set to 4 speeds. You can select the required position depending on the vapour production while cooking.

Switching extraction off with delay mode

To set delay mode press button once.

The lighting switches to mood mode and the first white LED for the speed level flashes.

The engine continues to run for 10 minutes in post-ventilation mode. After this time, the motor

will switch off. The lighting will remain on in the mood mode.

Switching extraction off without delay mode

Press button twice.

Auto-Stop

To prevent the cooker hood from being left on, the motor is automatically switched off after 3 hours (only if the control has not been changed during the 3 hours).

The lighting will remain on in mood mode.

The motor has a thermal switch that switches the motor off with overheating. After cooling the motor will switch on again. Determining the cause of overheating is required. This can be caused for example by a pan fire, the impeller motor being blocked or an object getting in the exhaust opening and causing it to be partly or fully blocked.

2.5 Lighting

With respect to the lighting you can choose between the cooking mode and the mood mode. The light workt independent of the motor.

Cooking mode

The cooking mode provides optimum lighting for cooking. Press key or key to switch the cooking mode on or off.

Cooking mode light intensity

When the cooking mode is active, you can dim or intensify the light by pressing. Release key when the required light intensity has been reached.

You cannot fully dim the light of the cooking mode, because then there will not be sufficient light to cook.

Change the colour temperature in the cooking mode

You can change the colour temperature into cold light by simultaneously pressing keys and for 4 seconds. Release both keys when the required colour temperature has been reached.

You can change the colour temperature into warm light by simultaneously pressing keys and for 4 seconds. Release both keys when the required colour temperature has been reached.

After having switched off the cooking mode, the last set value will always be remembered. In this way your preference will be used every time when switching on the hood.

Mood mode

The mood mode provides optimum lighting for creating a nice atmosphere. Press key 5 to switch the mood mode on or off.

Mood mode light intensity

When the mood mode is active, you can dim or intensify the light by pressing and holding key 5. Release key 5 when the required light intensity has been reached.

Change the colour temperature in the mood mode

You can change the colour temperature into cold light by simultaneously pressing keys 5 and for 4 seconds. Release both keys when the required colour temperature has been reached.

You can change the colour temperature into warm light by simultaneously pressing keys 5 and and holding them for 4 seconds. Release both keys when the required colour temperature has been reached.

After having switched off the mood mode, the last set value will always be remembered. In this way your preference will be used every time when switching on the hood.

2.6 Programming recirculation (optional)

This unit can be used in duct out mode (factory setting) or recirculation mode. If recirculation is selected, a onetime programming in the Novy Connect application via a mobile device is needed to make the appliance suitable for recirculation. The motor must be switched off.

With this programming, the following functions are activated:

• The replacement indicator of the monoblock filter is activated. After a fixed time, an orange indicator LED on the cooker hood shows that the monoblock filter needs to be replaced.

• The time in delay mode is set to 30 minutes (instead of the standard 10 minutes).

Mae use of the delay time of 30 minutes so that the cooking odours can be absorbed well in the monoblock filter.

Read section 3.4 for more information on replacing the monoblock recirculation filter.

This programming can also be deactivated with the Novy Connect application.

The motor must be switched off. After deactivation, the delay time is set to 10 minutes (instead of 30 minutes) and the replacement indication for recirculation is switched off.

2.7 Remote control

The remote control for hood is preinstalled and ready for use.

If the power is disconnected from the unit and switched on again, wait 3 minutes before using the remote control. This prevents the code from being changed so that the unit does not respond to the remote control or so that another unit is not connected to the remote control.

Change the code on the remote control

If the set code disrupts other transmitters, another code can be selected using the remote control. There are 10 different codes.

Determine the code used

Simultaneously press and The lamp on the remote control flashes as many times as the selected code (there are 10 code options in total).

Change the code

• First switch off the power supply of the hood. Do this by deactivating and reactivating the on/off switch. The set-up mode will now be active for 3 minutes. The new code must be set up within these 3 minutes.
• Simultaneously pass and
• The green light on the remote control flashes as many times as the selected code. If another code is required repeat this step again (1x flashing is code 1, 2x flashing is code 2 etc. There are total of 10 codes).
• Press the key on the remote control within 10 seconds to confirm the settings. The cooker hood and the remote control are now in line with each other.

2.8 InTouch

The extraction hood has the InTouch function. If you have an induction hob from Novy with InTouch, you can operate the extraction hood from the hob. There is also the option that the extraction hood can be operated with a remote control.

Programming InTouch on the induction plate

The remote control must first work with the hood. If necessary, the remote control code can be changed, as described in Section 2.5

• Connect the plate to the mains supply

• Touch simultaneously the keys and on the induction plate until you hear a beep signal (prox. 7 sec.).

• The cooker plate now searches automatically for the hood code.
• Wait until the cooker hood illumination begins to flashing OR you hear a "click" sound when you have an extractor hood without lighting (Be patient, this can betake a while).
• Does the light blink or you hear the "click" sound; press immediately on any InTouch key or or on the induction hob.
• You will hear a "beep" signal to indicate the link between the two devices.

Now you can operate the hood with the keys on the induction plate.

You can find more information about using the InTouch functions in the InTouch manual for the hob.

2.9 Operation via mobile application

This cooker hood can also be remotely controlled via a mobile device. Is the Novy application on your mobile device installed, then you can connect it to the cooker hood. When the cooker hood is not connected to the mobile device then the cooker hood can be operated in a normal way via the remote control of the cooker hood itself.

Setup

To use the Novy application for your cooker hood and appliance installation you will need the following:

• The cooker hood must be connected to the mains power supply and to be turned on.
• Smartphone or tablet with a current version of iOS or Android operating system.
• Downloadthe Novy application through your favourite app store. Your cooker hood and mobile device should be within range of each other

The application will guide you through the entire procedure. Follow the clues in the application.

Some of the functions can only be activated, changed or consulted via this mobile application.

3 CLEANING AND MAINTENANCE

F10 by all instructions as described in the Conditions for Safety and Use section.
Fby the cleaning instructions below for a longer working life and optimal operation of the appliance.
The bottom panel, grease filter and recirculation filter can fall out when you are handling them. This can result in damage. Make sure you hold the bottom panel and the filter(s) securely at all times when handling them.
WARNING! Risk of injury! Open and close the bottom panel slowly. Use a stable stepladder and pay attention to stability. Do not step on the hob or the worktop surface.

3.1 General maintenance

Allow the lighting to cool down sufficiently before you start cleaning the extractor hood.

Never use aggressive, abrasive or chlorinated products.

Do not use a high pressure or steam cleaner.

Stainless steel

Clean with a cleansing tissue with mild cleaning agent then dry with a soft cloth. Maintenance of the stainless steel can be performed with the Novy cleaner (906060).

Coated parts of the extractor hood

The extractor hood can be cleaned with a damp cleansing tissue and a mild cleaning agent.

Glass

Glass parts of the extractor hood can be cleaned with a soft cloth and a glass cleaner.

3.2 Removing the bottom panel

If the bottom panel is to be removed from the cooker hood for cleaning, proceed as follows:

• Grasp the bottom panel at the left and right ends.

• Slowly tilt the bottom panel downwards and continue to hold it in place.

• As soon as the bottom panel is at a 90^ angle downwards, the bottom panel can be slid to the right to remove it from the hinges. Here you will feel some resistance. Do this with caution to prevent damage to the cooker hood. Make sure you hold the bottom panel securely at all times.

• The bottom panel can then be cleaned by hand. The bottom panel is not suitable for cleaning in the dishwasher.

• Before reinstalling the bottom panel, immediately clean the accessible parts on the inside of the cooker hood.

• To replace the bottom panel, grasp the bottom panel at the left and right ends and hold it in place. Make sure you hold the bottom panel securely at all times.
• Hold the bottom panel in a 90^ angle downwards and slide the bottom panel to the left over the hinges until you notice a click.
• The bottom panel cannot be closed if the bottom panel is not fully positioned over the hinges.
• The bottom panel can then be

3.3 Grease filter

If the following instructions are not followed, there is a risk of fire due to excessive contamination. It is also possible that the sensor does not properly detect cooking vapours and odours, resulting in the automatic speed control not functioning optimally.
Do not operate the unit without the grease filters.

Grease filter indication

Indication: green indicator lamp starts burning.

After 20 cooking hours, a green lamp on the hood indicates that the grease filter needs cleaning

Accessing the grease filter

Take hold of the right and left side of the bottom panel (A) and pull down simultaneously. Remove the filter (B) by taking hold of its hook and pulling down.

Cleaning the grease filter

The metal grease filter can be cleaned by hand or in a dishwasher. We recommend cleaning the grease filter by hand.

Cleaning the filter by hand:

• Immerse the filter in a solution of boiling water to which a degreasing detergent has been added.
• Use a brush for cleaning
• Then rinse the filters with warm water under a tap and allow them to dry.

Cleaning the filter in a dishwasher:

• Use a customary dishwasher detergent

• Do not put the saturated grease filters together with crockery in the dishwasher

• Select a programme with a low temperature
• After cleaning allow the filter to drain.

When cleaning in a dishwasher the filter may discolour as a result of the salt content. This does not affect its operation.

Replacing the grease filters

Before replacing the grease filter, clean the edges of the part in the extractor hood in which the filter is placed.
- Grasp the filter with 2 hands.
- Make sure that the lock or the lip on the filter is on the bottom side.
- Insert the back of the filter in the opening, press the filter upwards at the front and make sure it clicks tight.

You can obtain a new grease filter from a dealer or the Novy website. Article number grease filter: 6830.020(2x).

Resetting the cleaning indicator

When you replace the grease filter after cleaning, all you have to do is press the [ ] and [ ] keys simultaneously for 5 seconds to reset the replacement indicator.

If you do not do this, the orange indicator lights up when the camera is turned on.

3.4 Monoblock recirculation filter (optional)

When selecting recirculation, always set the recirculation programme on the extractor hood (see paragraph 2.4) If recirculation is chosen the appliance is connected to an outlet box with a monobloc recirculation filter.

Replacement indicator monoblock filter

Indication: orange indicator lamp starts burning

After a fixed period of time, an orange light on the unit indicates that the monoblock recirculation filter needs to be changed.

Reset the replacement indicator

When you replace the new monoblock filters, all you have to do is press the [+ and [- keys simultaneously for 5 seconds to reset the replacement indicator.

If you do not do this, the orange indicator lights up when the camera is turned on.

Installing the monoblock filter

Refer to your recirculation kit manual for removal and installation of the monoblock filter.

Yes can obtain a new monobloc filter from a dealer or the Novy website.

3.5 Change the batteries

• For changing the batteries unscrew the plastic cover, remove the old batteries and insert the new ones. Pay attention to the polarity marking given in the battery compartment.
  Empty batteries are not to be disposed of in the household refuse, but they are to be handed in as chemical waste.

Technical information

• Power supply: 2xAAA batteries
  -Fequence:433.92Mhz

• Number of codes: 10

• Worktemperature: 0 - 50^

• Dimensions: 110 × 50 × 19 mm

3.6 Faults

If there is a fault you can contact your (kitchen) supplier and/or Novy Customer Service.

Belgium Tel.: [phone]

France Tel.: [phone]

Germany Tel.: [phone]

The Netherlands Tel.: [phone]

Unite Kingdom Tel.: [phone]

Italy Tel.: [phone]

For all other countries: your local installer or

Novy in Belgium: [phone]

To be able to deal with the fault promptly and efficiently it is necessary that the Repaired Service knows which type of appliance you have.

Y can find the type number on a sticker in the inside of the extractor hood. This becomes visible as soon as you take the filter out of the extractor hood.

You can note the type number here:

4 QUICKGUIDE

4.1 Settings

EXPOSED ACTION INDICATION NOTE PAG.
Switching on the engine in auto mode	4			p 36
Switching on the engine in manual mode	2			p 36
Switching from auto mode to manual mod	2 or 3			p 36
Switching off the motor with delay mode in auto mode or manual mode	4	Lighting switches to mood mode and fi rst white motor speed LED in display fl ashes	Engine stays on for 10 minutes	p 36
Switching off the motor without delay mode in auto mode or manual mode	2 x 4		Engine goes off immediately	p 36
Increase engine speed in manual mode	2			p 36
Decrease engine speed in manual mode	3			p 36
Lighting on cooking mode	1			p 37
Dimming the lighting in cooking mode	1 continue to press			p 37
Colour temperature warmer in cooking mode	1 + 2 for 4 sec.			p 37
Colour temperature colder in cooking mode	1 + 3 for 4 sec.			p 37
Lighting in mood mode	5			p 37
Dimming the lighting in mood mode	5 continue to press			p 37
Colour temperature warmer in mood mode	5 + 2 for 4 sec.			p 37
Colour temperature colder in mood mode	5 + 3 for 4 sec.			p 37
Recirculation on By mobile application (Novy Connect) p 37
Recirculation off By mobile application (Novy Connect) p 37
Reset cleaning indicator grease fi lters	2 + 3 for 5 seconds	Green indicator lamp disappears		p 40
Reset replacement indicator monoblock	2 + 3 for 5 seconds	Orange indicator lamp disappears		p 40

4.2 Indications

INDICATION EXPOSED NOTE PAGE
Green indicator lamp starts burning	Grease fl ter must be cleaned If the cleaning instructions are not followed, excessive contamination, risk of fire and loss of effi ciency will result.		p 39
Orange indicator lamp starts burning	Time to replace the monobloc recirculation fi lter used		p 40

BELGI

France: Tel: [phone]
