WSB54009 - Coffee machine WestBend - Free user manual and instructions

Product Type	Electric Percolator
Brand	WestBend
Model	WSB54009
Capacity	9 cups (approx. 1.35 L)
Power Input	120 V AC, 60 Hz
Color	Silver (Stainless Steel)
Body Material	Stainless Steel
Main Function	Coffee percolation with automatic keep-warm
Keep-Warm Cycle	Until unplugged
Auto Shut-off	Yes, at the end of percolation
Stem and Basket	Removable, dishwasher safe (top rack)
Lid	With safety lock
Safety	Polarized plug, short cord, do not immerse
Routine Cleaning	Wash with soapy water after use, wipe exterior
Descaling	Recommended based on water hardness (soft water: once/year, hard water: once/month)
Warranty	1 year limited (parts and labor)
Customer Service	Focus Electronics: [phone] or [e-mail]
Spare Parts	Available at www.focuselectrics.com or by phone
Usage	Household use only, indoors
Warranty Validity Countries	United States and Canada

Frequently Asked Questions - WSB54009 WestBend

What to do if the percolator does not work?

Check that the stem is correctly centered on the heating plate. If the stem is not in place, the appliance will not work. Also ensure the cord is plugged into a 120 V outlet.

How much ground coffee should I use?

For 9 cups, use 8 to 12 tablespoons of regular ground coffee. Adjust to taste. Avoid very fine coffee that might cause the basket to overflow.

Coffee is too weak or too strong, what to do?

Adjust the amount of ground coffee: for stronger coffee, increase the number of scoops; for weaker coffee, decrease it. Refer to the dosage chart in the manual.

How to clean the percolator?

Unplug and let cool. Wash the basket, stem and lid with hot soapy water. These parts are dishwasher safe (top rack). Wipe the exterior with a damp cloth. Never immerse the base in water.

How often should I descale the appliance?

It depends on water hardness: soft water: once a year; medium water: every 3 months; hard water: once a month. Use a mixture of half water, half white vinegar.

How to descale the percolator?

Fill with 20 ounces of cold water and 20 ounces of white vinegar. Assemble the stem, basket, and lid. Plug in and run a full cycle. Let sit for 15 minutes, unplug, empty, then clean as usual.

What to do if coffee overflows from the basket?

Use regular ground coffee, not too fine. Do not exceed recommended amounts. Make sure the basket is properly in place and the lid is locked.

The appliance emits smoke or odor on first use, is this normal?

Yes, it is normal during first uses due to manufacturing oils. This will disappear after a few cycles.

Can I use an extension cord?

It is best to avoid. If necessary, use a power cord of at least equal rating (120 V, 10 A) and do not let it hang to avoid tripping hazards.

How to get spare parts?

Order at www.focuselectrics.com or call customer service at [phone]. Have the model number WSB54009. Payment by credit card or check.

USER MANUAL WSB54009 WestBend

Register this and other Focus Electronics products through our website: www.registerfocus.com

Important Safeguards 2

Before Using for the First Time 3

Using your 9 Cup Electric Percolator. 3

Cleaning your 9 Cup Electric Percolator 4

Warranty. 5

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons do not immerse cord, plugs, or other electric parts in water or other liquids.
• Close supervision is necessary when this appliance is used by or near children.
• Always unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. For service information see warranty page.
• The use of accessory attachments not recommended by Focus Electronics may cause fire, electric shock, or injury.
• Do not use this appliance outdoors.
• Do not let cord hang over the edge of the table or counter, or touch hot surfaces.
  Do not place on or near a hot gas or electric burner, or in a heated oven.
  Always plug cord into wall outlet. To disconnect, remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Scalding may occur if the cover is removed during the brewing cycle.
• The cover of the percolator must be in place and properly positioned on the percolator before brew cycle is started. Always remove cover with extreme caution after brew cycle is completed because of escaping steam.
• Do not attempt to repair this appliance yourself.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer extension cords are available, but care must be exercised in their use. While use of an extension cord is not recommended, if you must use one, ensure that the marked electrical rating of the extension cord is equal to or greater than that of the appliance. If the plug is of the grounded type, the extension cord must be a grounding-type 3-wire cord. To avoid pulling, tripping or entanglement, position the extension cord so that it does not hang over the edge of the counter, table or other area where it can be pulled on by children or tripped over.

• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.

• For household use only.

SAVE THESE INSTRUCTIONS

BEFORE USING FOR THE FIRST TIME

Please check all packaging material carefully before discarding. Many accessory parts are contained within the packaging material.

Wash the percolator thoroughly before using. Refer to the "Cleaning your 9 Cup Electric Percolator" section in this manual.

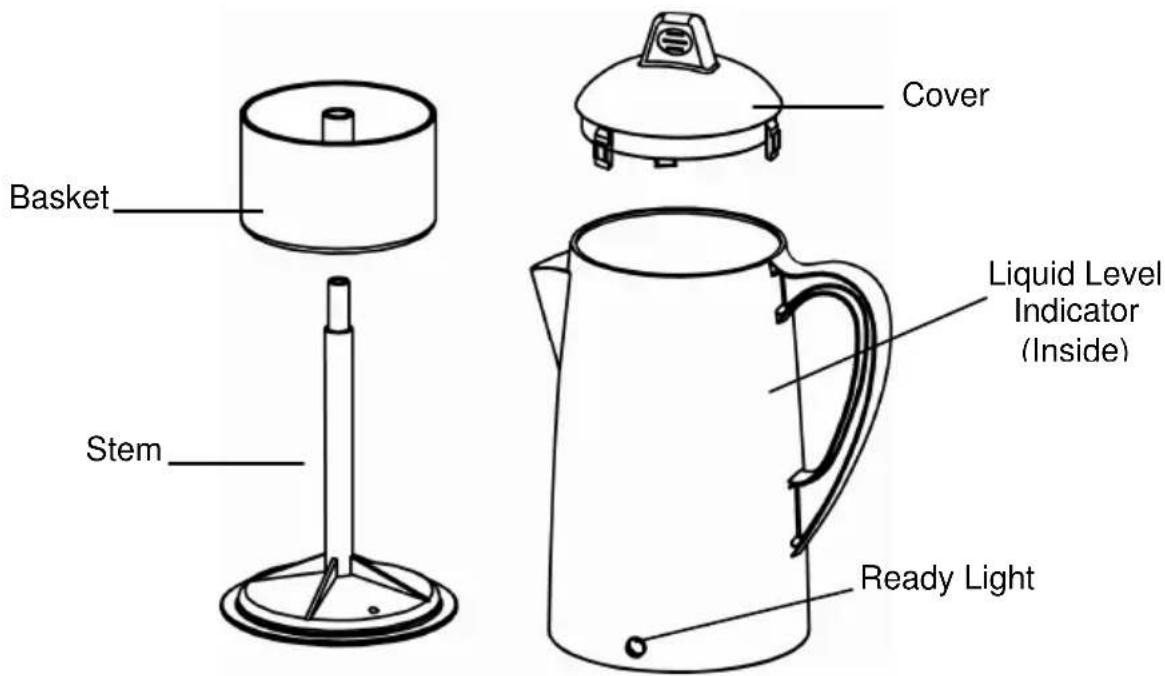

USING YOUR 9 CUP ELECTRIC PERCOLATOR

1. To make coffee, remove cover, basket, and stem. Fill percolator to desired cup level with cold, fresh water.
2. Place the stem into heating plate and make sure it is centered flat on the plate. Wet the basket to keep coffee grounds from sifting through. Place the basket on stem. IF THE STEM IS NOT SEATED PROPERLY ON THE HEATING PLATE, THE PERCOLATOR WILL NOT PERK.
3. Add desired amount of regular grind coffee to basket (refer to chart), spreading evenly. No paper filter is required. Note: Finely ground coffee may cause the coffee basket to overflow.
4. Place cover on the percolator and press down until it locks in place. Caution: Scalding may occur if the cover is removed during the brewing cycle.
5. Plug the cord into a 120 volt, AC electric outlet only. The appliance will automatically turn on.
6. The percolator will stop when the coffee has finished brewing, ready light will turn on. The percolator will then go into a keep warm cycle that will last until the percolator has been unplugged.
7. When approximately 1 cup remains, unplug cord from outlet. Allow percolator to cool completely before cleaning.

WATER LEVEL	AMOUNT OF	GROUND COFFEE
9 Cups (maximum level)	8 to 12 tablespoons
8 cups	7 to 11 tablespoons
7 cups	6 to 10 tablespoons
6 cups	5 to 9 tablespoons
5 cups (minimum level)	4 to 8 tablespoons

Note: Finely ground coffee may cause the coffee basket to overflow.

• A small amount of smoke and/or odor may occur upon heating due to the release of manufacturing oils – this is normal.
• Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.

CLEANING YOUR 9 CUP ELECTRIC PERCOLATOR

1. Unplug percolator from electrical outlet. Allow the percolator to cool completely before cleaning.
2. Wash and rinse inside of percolator, cover, stem and basket with hot soapy water after each use and dry thoroughly. Removable parts are dishwasher-safe, top-rack only. The heating plate must be cleaned after each use to maintain proper operation. DO NOT IMMERSE THE PERCOLATOR IN WATER OR OTHER LIQUIDS AS DAMAGE WILL OCCUR.
3. Wipe outside surface with damp cloth and dry thoroughly. Do not use abrasive scouring pads or cleansers as scratching and/or discoloration will occur.
4. When the percolator is used, a build-up of mineral deposits may occur. Over time, mineral deposits can build up on internal parts and effect the operation of the appliance. The frequency of decalcification depends on the hardness of your water and how often you use the percolator. Indications that decalcifying is necessary are:

o Increased noise during brew cycle
Excessive steaming
Longer brewing times

• If usage is regular, decalcifying should be carried out as follows:

O With soft water, decalcify once per year
With medium water, decalcify every 3 months
With hard water, decalcify monthly

• To decalcify, fill percolator with 20 ounces of cold water and 20 ounces of white vinegar. Assemble with stem, basket, and cover. Plug in and let the percolator run through an entire brew cycle. When perking has stopped, let the percolator sit for 15 minutes. Unplug and drain liquid. Allow to cool and follow regular cleaning instructions to remove all vinegar traces from percolator.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electronics, LLC ("Focus Electronics") warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electronics' discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electronics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCUSED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electronics Customer Service Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. Focus Electronics is not responsible for returns lost in transit.

Valid only in USA and Canada

REplacement Parts

Replacement parts, if available, may be ordered directly from Focus Electronics, LLC several ways. Order online at www.Focuselectrics.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Electronics, LLC

Attn: Customer Service

P.O.Box 2780

West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the appliance, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electronics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electronics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product):

WestBend®

Focus Electronics, LLC

Attn: Service clientèle

P.O.Box 2780

West Bend, WI 53095

Focus Electronics, LLC

Attn: Customer Service

P.O.Box 2780

West Bend, WI 53095
