USER MANUAL Cocoa Latte 65032 WestBend

BACK TO BASICS

COCOA\~LATTE ^TM HOT DRINK MAKER

Instruction Manual

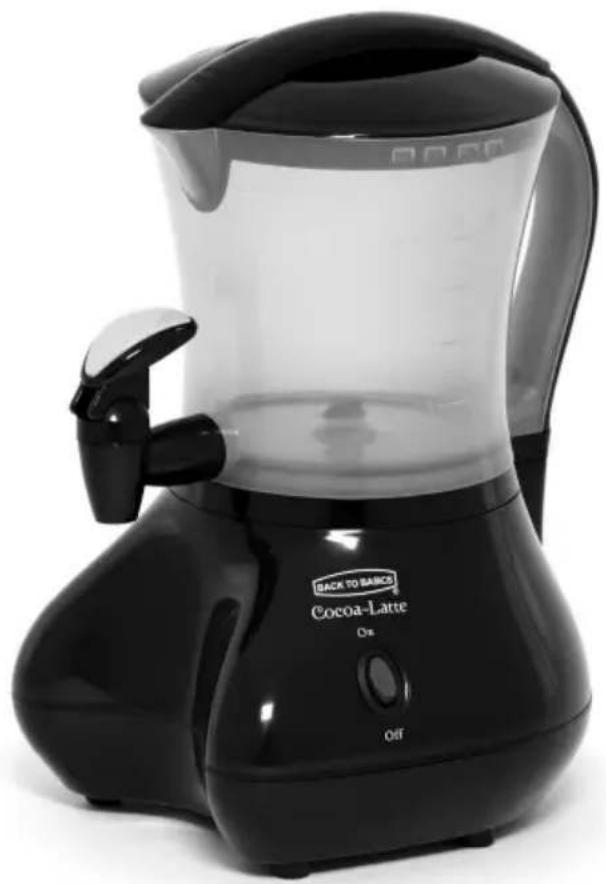

Black and white photo of a cocoa-latte coffee maker with clear lid and control buttons (no visible text or symbols on device body)

Register this and other Focus Electrics products through our website:

www.registerfocus.com

Important Safeguards 2

Assembling Your Cocoa\~Latte™ 3

Using Your Cocoa\~Latte™ 4

Cleaning Your Cocoa\~Latte™ 5

Recipes 6

Warranty....11

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

- Read all instructions, including these important safeguards and the care and use instructions in this manual.

- To protect against fire, electric shock and injury to persons, do not immerse cord, plugs, or other electric parts in water or other liquids.

- Close supervision is necessary when this appliance is used by or near children.

- Scalding may occur if the lid is removed during the brewing cycle.

- Do not touch hot surfaces. Use handles and knobs.

- Always unplug the appliance from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.

- Avoid contacting moving parts.

- Do not operate this appliance with a damaged cord or plug, after the appliance malfunctions or if the appliance is dropped or damaged in any manner. If you experience any problems with your machine, unplug it immediately from the electrical outlet. For service information see warranty page.

- The use of accessory attachments not recommended by Focus Electrics may result in fire, electric shock, or injury to persons.

- Do not use this appliance outdoors.

- Do not let cord hang over the edge of a table or counter, or touch hot surfaces.

- Do not let the cord come into contact with hot surfaces, including a stove.

- Keep hands and utensils out of container to reduce the risk of injury to persons or damage to the appliance.

- Never add to container while the appliance is operating.

- The container must be properly in place before operating the appliance.

- Do not use appliance for other than intended use.

- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

- A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

- Longer, detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not hang over the counter top or tabletop where it can be pulled by children or tripped over.

• To disconnect, turn any control to "OFF," then remove plug from wall outlet.
• Do not move an appliance containing hot water, tea or other hot liquids.
• Do not place the mixing container on the motor base while the motor is running.
• Do not remove the mixing container from the motor base while the motor is running.
• Do not run the motor while the mixing container is empty.
• After running the motor continuously for one cycle, wait at least five minutes before running another cycle.
  • Always operate this appliance with the lid in place.
• Do not attempt to repair this appliance yourself.
• For household use only.

SAVE THESE INSTRUCTIONS

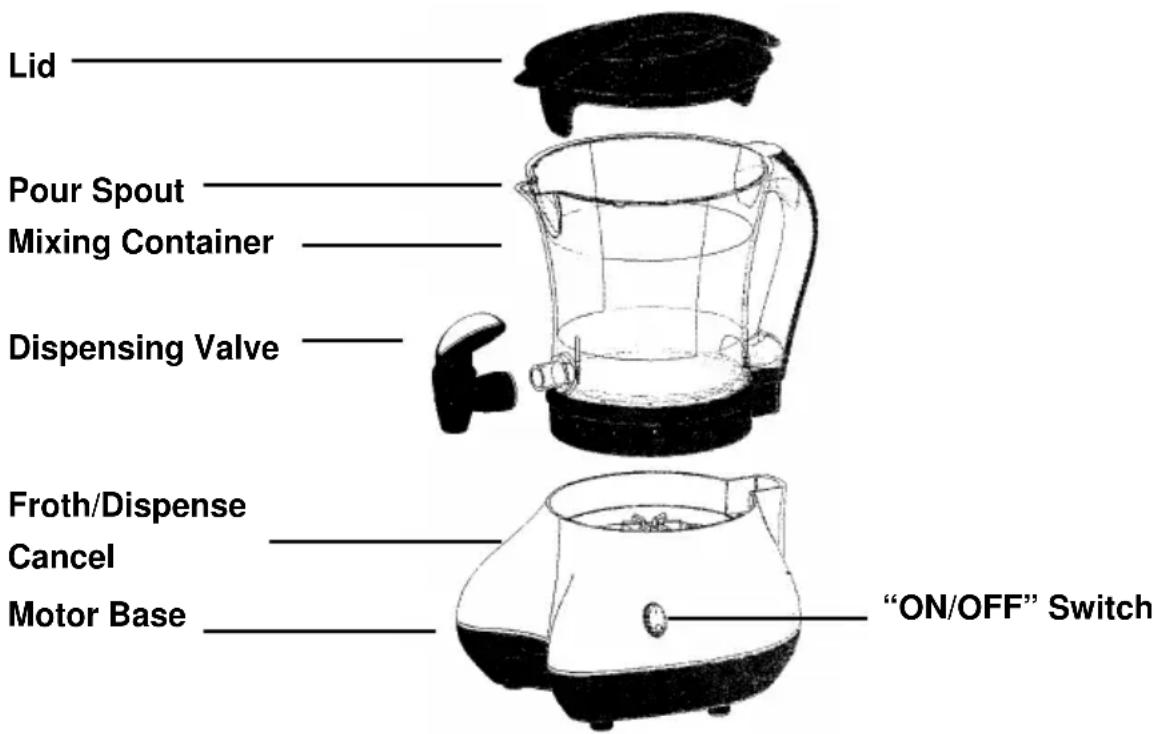

ASSEMBLING YOUR COCOA\~LATTE™

Lid Pour Spout Mixing Container Dispensing Valve Froth/Dispense Cancel Motor Base "ON/OFF" Switch

Before using for the first time: Wash the mixing container, dispensing valve, and lid with warm, soapy water. Rinse thoroughly and dry. Note: Do not wash any parts in the dishwasher and do not immerse the motor base or the mixing container in water. This may permanently damage the product and void the warranty. Your new Cocoa\~Latte ^™ is designed for years of service and is equipped with a long-life, low-speed motor. This motor requires several uses for initial break-in. You will notice that the motor speed and vortex action increase after the first several uses.

USING YOUR COCOA\~LATTE™

The measurements used below produce four 8-ounce servings (32 ounces). Refer to the Ingredients Chart to determine usage for alternate serving sizes.

1. Remove the lid from the mixing container.
2. Pour 32 ounces of water or milk into the mixing container. Note: Do not fill the mixing container past the 32 ounce "Maximum Fill" line.
3. Add 8 tablespoons of your favorite instant mix.
4. Replace the lid on to the mixing container, making sure that the lid covers the pour spout.

5. Plug the Hot Drink Maker into a 120 volt, AC outlet only.

6. Press the "ON" switch. Your Hot Drink Maker will begin to mix and heat. When the mixture reaches the "Perfect Temperature" the appliance will automatically go idle. At anytime during the mixing and heating process, you may press the "OFF" switch to turn the appliance off. Note: A full 32 ounces takes approximately 6-8 minutes.

7. Once the appliance automatically goes idle, place a cup underneath the dispensing valve and press the "FROTH/DISPENSE" switch. This switch will mix the beverage while you dispense so that a rich layer of froth is dispensed into your cup along with the hot drink.

8. Press down on the dispensing valve lever to dispense the hot drink into your cup while the motor is mixing the beverage. After dispensing the beverage, press the "CANCEL" switch.

9. When the container has less than 1 cup of liquid remaining or is empty, press the "OFF" switch. Note: The appliance will remain on until you switch it off.

INGREDIENTS CHART
CUPS	1 2 3	4
LIQUID Milk/Water	8 oz. 16	oz. 24 oz.	32 oz.
POWDER MIX with Milk	2 tbsp. 4	tbsp. 6 tbsp.	8 tbsp.
POWDER MIX with Water	4 tbsp. 7	tbsp. 11 tbsp.	14 tbsp.

Note: Different instant cocoa, coffee, and tea mixes may vary from the quantities shown in this chart. Use the quantities specified on the packaging of the specific instant hot drink mix for exact measurements.

• A small amount of smoke and/or odor may occur upon heating due to the release of manufacturing oils – this is normal.
• Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.

"PERFECT TEMPERATURE" FEATURE

The Cocoa\~Latte ^™ Hot Drink Maker is designed to maintain the “perfect temperature.” Once the hot beverage reaches the “perfect temperature,” you will hear the motor stop running and the mixing paddle stop mixing. The appliance is now idle but still “ON.” Once the hot beverage cools down, the unit will automatically reheat and remix back to the “perfect temperature.” You may at any time press the “OFF” switch to turn the unit off. THE APPLIANCE WILL CONTINUE TO CYCLE ON AND OFF UNTIL THE “ON/OFF” SWITCH IS TURNED TO THE “OFF” POSITION.

CLEANING YOUR COCOA\~LATTE™

The Back To Basics® Cocoa\~Latte™ Hot Drink Maker should be cleaned after every use. Note: Do not wash any parts in the dishwasher and do not immerse the motor base or the mixing container in water or other liquid.

1. Unplug the appliance from the electrical outlet. Allow the entire appliance to cool before cleaning.
2. Remove the mixing container from the motor base.
3. Pour out any unused portion of the hot drink mixture.
4. Without submerging the mixing container, wash the interior by pouring a combination of mild detergent and water into the mixing container. Rinse and dry thoroughly.
5. Open the dispensing valve and allow clean water to flush through and clean the valve. After each use, unscrew and disassemble the valve for cleaning. See "Cleaning the Dispensing Valve" instructions below.
6. Wash the lid with mild detergent and water.
7. Wipe the exterior of the motor base and mixing container with a soft, damp cloth.

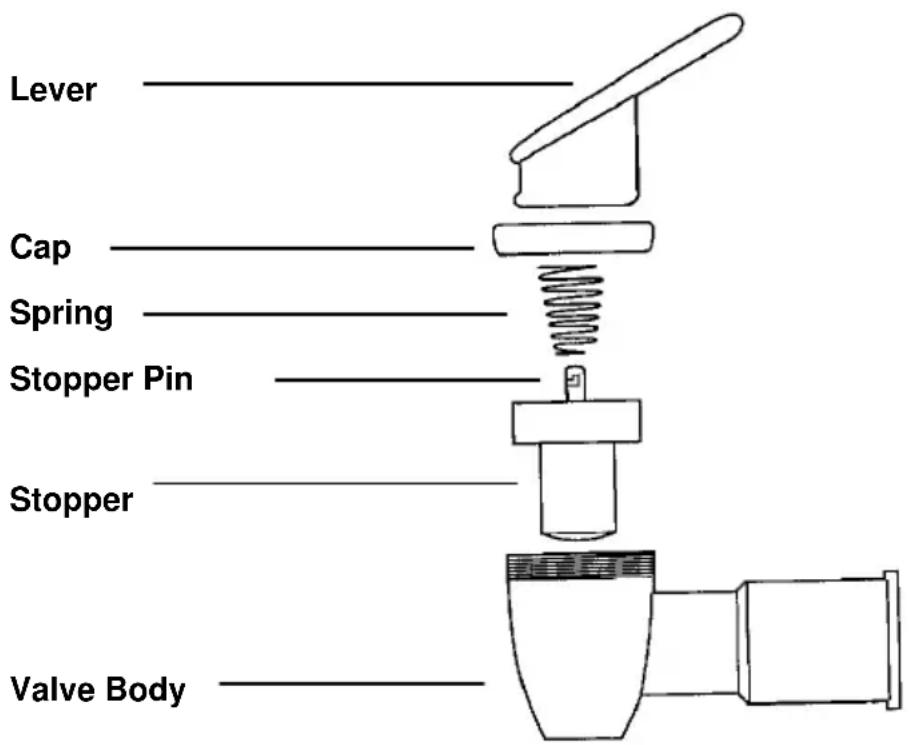

Cleaning the Dispensing Valve

Lever Cap Spring Stopper Pin Stopper Valve Body

To disassemble the valve for cleaning:

1. Remove the valve from the container by unscrewing the entire valve body counter-clockwise.

2. Remove the cap by unscrewing it counter-clockwise.

3. Remove the stopper/stopper pin, spring, cap, and lever from the valve body.
   Note: The stopper and stopper pin are tightly fit and need not be separated.

4. Compress the cap and stopper together to remove the lever and cap.
5. Clean all parts and reassemble in the order shown.

RECIPES

All drink recipes in this booklet use whole milk, which will provide the greatest amount of froth. You may also substitute an equal amount of 2%, 1%, or skim milk for any recipe.

Follow these basic instructions for all recipes listed below, special instructions may apply.

Add ingredients to the Cocoa Latte and press the "ON" switch. Wait for the Cocoa Latte to automatically shut off. Dispense the drink into a mug.

BREWED COFFEE-STYLE DRINKS

CAFÉ AU LAIT

1 cup Water
1 heaping tsp. Instant coffee
1 cup Milk
2 tsp. Sugar (optional)
Ground cinnamon or nutmeg (optional)
Sprinkle nutmeg or ground cinnamon on top.

CAFÉ MOCHA

1 cup Water
1 heaping tsp. Instant coffee
1 cup Milk
3 tbsp. Chocolate syrup (or 1 tbsp.
unsweetened cocoa powder and 2 tbsp. sugar)
Chocolate shavings (optional)
Sprinkle chocolate shavings on top.

CAFÉ DE BELGIQUE

2½ cups Water
2½ heaping tsp. Instant coffee
1 / 2 cup Heavy cream
1 / 2 cup Milk
1 Egg white
1 tsp. Vanilla
1 tbsp. Sugar
Sprinkle chocolate shavings on top.

CHOCOLATE & CREAM COFFEE

2 cups Water
2 heaping tsp. Instant coffee
12 cup Heavy cream
4 tbsp. Chocolate syrup (or 4 tsp.
Unsweetened cocoa powder mix, and 3 tbsp. sugar)
Cinnamon
Whipping cream
Top with a dollop of whipping cream and chocolate powder or cinnamon.

SPICED CREAM COFFEE

1½ cups Water
1½ heaping tsp. Instant coffee
12 cup Heavy cream
1 tbsp. White or brown sugar
^3/_4 tsp. Ground cinnamon
1 / 4 tsp. Ground nutmeg
Whipping cream
Top with a dollop of whipping cream.

1 cup Water
1 heaping tsp. Instant coffee
1 cup Milk
2 Orange slices
3 tbsp. Chocolate syrup (or 1 tbsp.
cocoa powder and 2 tbsp. sugar)
Whipping cream
Cinnamon (optional)
Place 1 orange slice at the bottom of each mug. Dispense the drink into the mug over the orange slice. Top with whipping cream and garnish with cinnamon.

MEXICAN COFFEE

1 cup Water
1 heaping tsp. Instant coffee
1 cup Milk
12 tsp. Ground cinnamon
1/4 tsp. Ground nutmeg
2 tbsp. Chocolate syrup (or 2 tsp.
Cocoa powder and 2 tbsp. sugar)
1 tbsp. Vanilla
Whipping cream
Nutmeg or cinnamon (optional)
Top with a dollop of whipping cream and sprinkle on nutmeg and cinnamon.

COFFEE FLOAT

1 cup Water
1¼ heaping tsp. Instant coffee
1 / 3 cup Cream
1 tsp. Sugar
Vanilla or coffee flavored ice cream Add one scoop of ice cream to each mug. Dispense the drink into the mug over the ice cream.

COFFEE GROG

1½ cups Water
1½ heaping tsp. Instant coffee
14 cup Heavy cream
2 tbsp. Brown sugar
1 tsp. Softened butter
1 / 8 tsp. Ground cloves
1 / 8 tsp. Ground nutmeg
1 / 8 tsp. Ground cinnamon
Orange peel
Lemon peel
Place one large piece of lemon and orange peel into a mug. Dispense the drink into the mug over the peels.

ESPRESSO-STYLE DRINKS

CAPPUCCINO

1½ cups Milk
1 / 3 cup Water
1 heaping tsp. Instant coffee
1 / 2 tsp. Sugar
Sprinkle ground nutmeg, cinnamon, or sweetened chocolate powder on top.
You may also add vanilla, mint, hazelnut, caramel, Irish cream, butterscotch, or almond syrup to taste.

MOCHACCINO

1½ cups Milk
2½ tbsp. Chocolate syrup (or 1 tbsp. unsweetened cocoa powder and 2 tbsp. sugar)
1 / 3 cup Water
1 heaping tsp. Instant coffee
Whipping cream
Top with whipped cream and sweetened chocolate powder or chocolate shavings, if desired.

CAPPUCCINO ROYALE

1½ cups Milk
1 / 3 cup Water
1 heaping tsp. Instant coffee
1 / 2 tsp. Sugar
2 Thin wafers
Whipping cream

Nutmeg or cinnamon

Top with whipped cream and sprinkle ground nutmeg or cinnamon on top. Add almond, rum, brandy, mint, or vanilla extract, if desired. Garnish with a thin wafer.

CAFFÈ LATTE

2 cups Milk

13 cup Water

1 heaping tsp. Instant coffee

12 tsp. Sugar

Ground cinnamon, nutmeg, or chocolate powder (optional)

Sprinkle ground nutmeg, cinnamon, or sweetened chocolate powder on top. You may also add 1 to 1 12 tbsp. of vanilla, mint, hazelnut, caramel, Irish cream butterscotch, or almond syrup to taste.

MOCHA LATTE

2 cups Milk

3 tbsp. Chocolate syrup (or 1 tbsp. cocoa powder and 2 tbsp. sugar)

1 / 3 cup Water

Whipping cream

Grated chocolate shavings or chocolate powder (optional)

Top with whipping cream and sweetened chocolate powder or chocolate shavings, if desired.

Hot Chocolate

BASIC COCOA

2 cups Milk

5 tsp. Unsweetened cocoa powder**

1 / 4 cup Sugar

1 tsp. Vanilla

For flavored hot cocoa try adding 1 to 1 12 tbsp vanilla, mint, caramel, butterscotch, almond, raspberry, strawberry, or orange syrup to taste.

**You may substitute sugar and cocoa powder with 4 tbsp. of chocolate syrup.

CREAMY COCOA

2 heaping tbsp. Unsweetened cocoa powder**

2 tsp. Sugar**

14 cup Half-and-half

2 cups Milk

Whipping cream

Chocolate powder or chocolate shavings (optional)

Top with whipping cream and sweetened chocolate powder or chocolate shavings, if desired. **You may substitute sugar and cocoa powder with 5 tbsp. of chocolate syrup.

CHOCOLATE MINT

2 heaping tbsp. Unsweetened cocoa powder**

4 tsp. Sugar**

2 cups Milk

3 tbsp. Mint syrup or crème de menthe Whipping cream

Top with whipping cream. **You may substitute sugar and cocoa powder with 4 tbsp. of chocolate syrup.

HONEY COCOA

2 heaping tbsp. Unsweetened cocoa powder

2 cups Milk

2 tbsp. Honey

14 tsp. Ground cinnamon

IRISH CHOCOLATE

14 cup Unsweetened cocoa powder

1 / 4 cup Sugar**

1 ^3 / _4 cup Milk

14 cup Heavy cream

14 cup Alcoholic Irish Cream of choice

GOURMET COCOA DELUXE

3 oz. Grated or finely chopped bittersweet chocolate

1½ cups Milk

12 cup Half-and-half

1 tsp. Vanilla

MEXICAN HOT COCOA

2 tbsp. Hot cocoa mix**

2 tbsp. Sugar**

2 cups Milk

1 tsp. Ground cinnamon

1 tsp. Vanilla

**You may substitute sugar and cocoa powder with 4 tbsp. of chocolate syrup.

HOT SPICED COCOA

2 heaping tbsp. Unsweetened cocoa
2 tbsp. Brown sugar
1½ cups Milk
1 / 2 cup Half-and-half
1 / 2 tsp. Ground cinnamon
14 tsp. Ground nutmeg
1 / 4 tsp. Ground cloves

WHITE CHOCOLATE COCOA

3 oz. Grated or finely chopped white chocolate
2 cups Milk
12 cup Half-and-half
12 tsp. Vanilla

STEAMED AND FLAVORED MILK

ALMOND MILK STEAMER

2 cups Milk

1 tsp. Ground cinnamon
2 tbsp. Amaretto or almond flavored
syrup

VERMONT STEAMER

2 cups Milk

1 / 4 cup Maple syrup

1 / 4 tsp. Butter

Ground cinnamon

Sprinkle with ground cinnamon.

SPICY MILK STEAMER

2 cups Milk
2 tbsp. Brown sugar
14 tsp. Ground cinnamon
14 tsp. Ground nutmeg
^1/_4 tsp. Ground cloves
Top with whipped cream, if desired.

BUTTERSCOTCH CREAMER STEAMER

2 cups Milk
1 tbsp. Butter
2½ tbsp. Brown sugar
Top with whipped cream, if desired.

VANILLA MILK STEAMER

2 cups Milk

1¼ tbsp. Vanilla

2 tbsp. Sugar

Nutmeg

Sprinkle with ground nutmeg.

DREAMER STEAMER

2 cups Milk
2 tbsp. Flavored syrup
Top with whipped cream, if desired.

Hot Wassails, Punches, and Ciders

HOT WASSAIL

2 cups Apple juice
1 cup Orange juice
1 cup Cranberry juice cocktail
3 tbsp. Lemon juice
14 tsp. Ground cinnamon
^1/_4 tsp. Ground ginger
18 tsp. Ground nutmeg
1 / 8 tsp. Ground cloves

SPICED FRUIT PUNCH

12 cup Water
2 cups Cranberry juice
12 cup Pineapple juice
1 cup Grapefruit juice
^1/_4 tsp. Ground cloves
14 tsp. Ground coriander seed
12 tsp. Ground cinnamon

APPLE-LEMON PUNCH

1½ cups Water
2 cups Apple juice
12 cup Lemon juice
2 tbsp. Brown sugar
4 Whole cloves
4 Lemon slices
Stud each lemon section with a clove and place one in the bottom of each mug. Dispense the drink into the mug over the lemon slice.

CREAMY C ARAMEL APPLE C IDER

2 cups Apple cider or apple juice
1 / 4 tsp. Cinnamon
4 tbsp. Caramel syrup
Whipping cream
Top with whipping cream and drizzle 2 tbsp. of caramel syrup over the top of each mug.

HOT TODDIES AND GROGS

HOT TODDY

2 tsp. Sugar

2 cups Water

14 tsp. Lemon juice

2 oz. (1/4 cup) Brandy, scotch, bourbon, or whiskey

2 Lemon slices

Place one lemon slice and one ounce of liquor in each mug.

Dispense the drink into the mug over the lemon slice and liquor.

Add 14 cup of cranberry juice to the Hot Drink Maker for a Cranberry Toddy.

CLASSIC GROG

3 cups Water

2 tsp. Lime or lemon juice

2 oz. Rum

1 tsp. Honey

Pour 1 ounce of rum into the bottom of each mug.

HOT BUTTERED RUM

2 cups Water

2 tbsp. Butter

3 oz. Rum

2 tsp. Brown sugar

Dash of nutmeg

Dash of cardamom

14 tsp. Vanilla

2 Cinnamon sticks

2 Lemon slices

Vanilla ice cream (optional)

Place 1 lemon slice, 1 12 ounces of rum and one scoop of vanilla ice cream (optional) in each mug.

Dispense the drink into the mug over the lemon slice, liquor, and ice cream. Garnish with one cinnamon stick.

CHAI LATTES & HOT TEAS

SPICED CHAI LATTE

2 cups Milk

14 cup Water

1 heaping tsp. Instant tea

2 tbsp. Honey

1 / 8 tsp. Ground cinnamon

18 tsp. Ground ginger

1 / 8 tsp. Ground cloves

VANILLA CHAI LATTE

2 cups Milk

^1/_4 cup Water

1 heaping tsp. Instant tea

2 tbsp. Brown sugar

1 / 8 tsp. Ground cinnamon

1 / 8 tsp. Ground ginger

1 tsp. Vanilla

SPICED INSTANT TEA

2 heaping tsp. Instant tea

2 tbsp. Tang

2 tbsp. Sugar

1 tsp. Lemonade powder

18 tsp. Ground cinnamon

MOCHA CHAI LATTE

2 cups Milk

14 cup Water

1 heaping tsp. Instant tea

3 tbsp. Chocolate syrup (or 1 tbsp. cocoa powder and 2 tbsp. sugar)

1 / 8 tsp. Ground cinnamon

18 tsp. Ground ginger

Top with whipped cream and sweetened chocolate powder or chocolate shavings, if desired.

APPLE-SPICE TEA

2 heaping tsp. Instant tea

1½ cups Water

12 cup Apple cider

2 tsp. Brown sugar

1 / 8 tsp. Ground cinnamon

18 tsp. Ground cloves

2 Lemon slices

Garnish each cup with a lemon slice.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electrics, LLC (“Focus Electrics”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics' discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at [phone] or e-mail us at [e-mail]. Return shipping fees are non-refundable. A receipt proving original purchase date will be required for all warranty claims. Hand-written receipts are not accepted. Focus Electrics is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics online at www.focuselectrics.com, or you may call or e-mail the service department at the number/e-mail address listed above, or by writing to us at:

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

Be sure to include the catalog/model number of your appliance (located on the bottom/back of the unit) and a description and quantity of the part you wish to order. Along with this include your name, mailing address, Visa/MasterCard number, expiration date and the name as it appears on the card. Checks can be made payable to Focus Electrics, LLC. Call Customer Service to obtain purchase amount. Your state's sales tax and a shipping/processing fee will be added to your total charge. Please allow two (2) weeks for delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product):

NOTES

BACK TO BASICS

PRÉPARATEUR DE BOISSONS CHAUDES COCOA\~LATTE™

Black and white photo of a cocoa-latte coffee maker with clear lid and side arm (no visible text or symbols on device body)

35 cl (1½ tasses) Eau

35 cl (1½ tasses) Eau

CAFÉ LATTE OU CAFÉ AU LAIT

47 cl (2 tasses) Lait

35 cl (1½ tasses) Eau

47 cl (2 tasses) Jus de pomme

47 cl (2 tasses) Eau

70 cl (3 tasses) Eau

47 cl (2 tasses) Eau

2 c. soupe Beurre

9 cl (3 oz) Rhum

THÉ CHAI ÉPICÉ AU LAIT

47 cl (2 tasses) Lait

35 cl (1½ tasses) Eau

12 cl ( 12 tasse) Cidre

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

Black and white photo of a back-to-banCO2-late coffee maker with clear lid and side arm (no visible text or symbols on device body)

Line drawing of a kitchen blender with lid and handle (no text or symbols)

Line drawing of a kitchen appliance with a lid and side legs (no text or symbols)

Interruptor de "Encendido/Apagado"

CÓMO USAR SU COCOA\~LATTE™

CAFÉ CON L ECHE MOCA

2 tazas Leche

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095
