USER MANUAL KHBBV83 KITCHENAID

1 Battery status indicator 2 Palm switch 3 Motor body 4 Edge: Helps to avoid roll over of the Cordless Hand Blender. 5 Blending arm 8"(20.3 cm) 6 Pan guard: Use the pan guard to avoid damage to cookware while using Cordless Hand Blender. 7 Mounting clips 8 Whisk 9 Whisk adapter 10 Charging port 11 Variable speed controller 12 Charger adapter 13 Charger adapter pin 14 Chopper attachment 15 Pour spout 16 4 Cup (1 Liter) BPA-free Blender pitcher with lid 17 3 Cup (700 ml) BPA-free Blender jar with lid 18 Storage case Parts Included with model Pan guard (6) KHBBV53 KHBBV83 Whisk attachment (8 & 9) KHBBV83 Chopper attachment (14) KHBBV83 4 Cup (1 Liter) BPA-free Blender pitcher with lid (16) KHBBV83 3 Cup (700 ml) BPA-free Blender jar with Lid (17) KHBBV53 ACCESSORY GUIDE

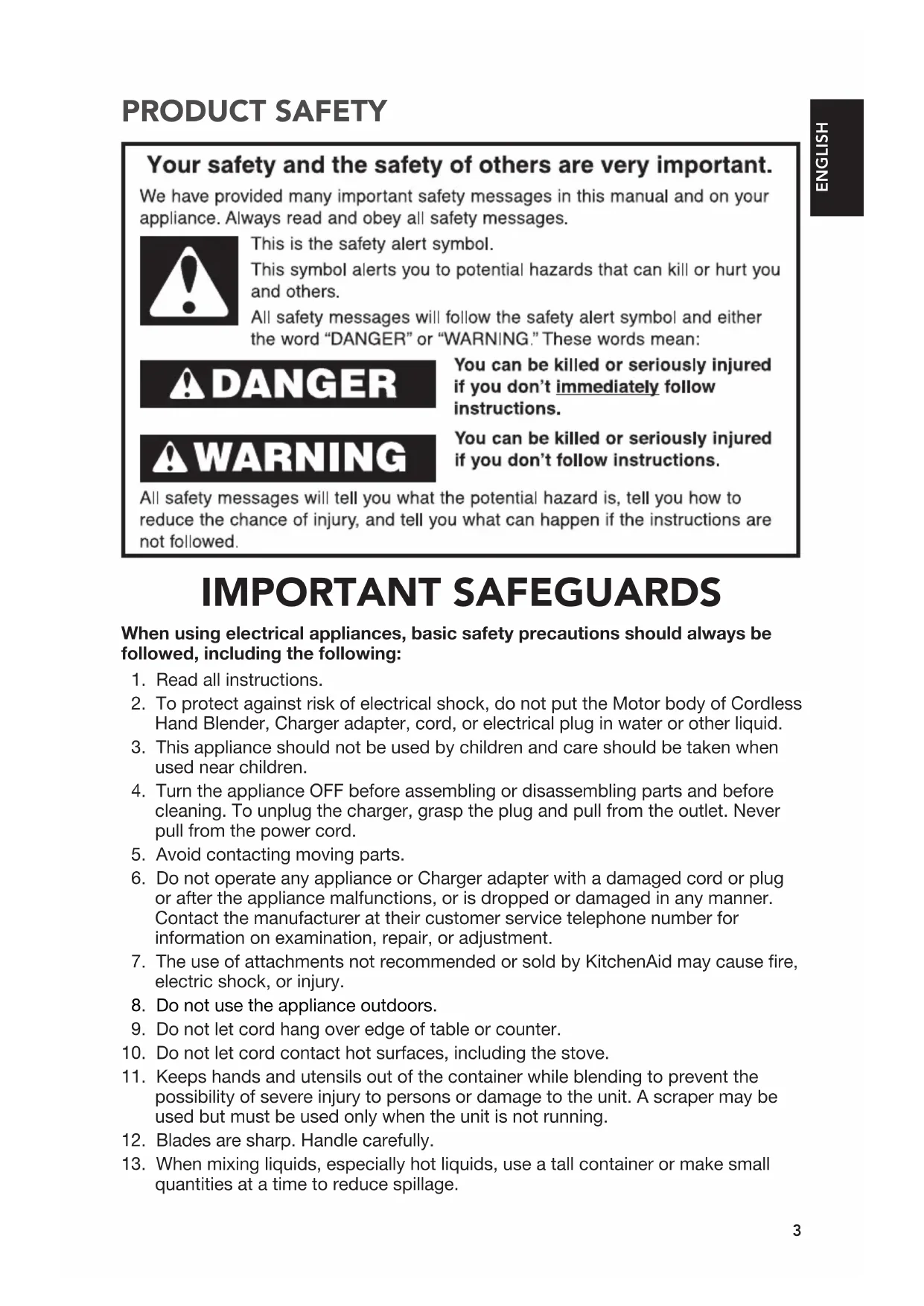

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.

2. To protect against risk of electrical shock, do not put the Motor body of Cordless

Hand Blender, Charger adapter, cord, or electrical plug in water or other liquid.

3. This appliance should not be used by children and care should be taken when

4. Turn the appliance OFF before assembling or disassembling parts and before

cleaning. To unplug the charger, grasp the plug and pull from the outlet. Never pull from the power cord.

5. Avoid contacting moving parts.

6. Do not operate any appliance or Charger adapter with a damaged cord or plug

or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.

7. The use of attachments not recommended or sold by KitchenAid may cause fire,

electric shock, or injury.

8. Do not use the appliance outdoors.

9. Do not let cord hang over edge of table or counter.

10. Do not let cord contact hot surfaces, including the stove.

11. Keeps hands and utensils out of the container while blending to prevent the

possibility of severe injury to persons or damage to the unit. A scraper may be used but must be used only when the unit is not running.

12. Blades are sharp. Handle carefully.

13. When mixing liquids, especially hot liquids, use a tall container or make small

quantities at a time to reduce spillage. PRODUCT SAFETY4

14. To reduce the risk of injury, never place cutting blade on base without first

putting bowl properly in place.

15. Be certain cover is securely locked in place before operating appliance.

16. Do not use an extension cord. Plug charger directly into an electric outlet.

17. Use only with the charger provided with the appliance. Do not attempt to use

this charger with any other product. Likewise, do not attempt to charge this appliance with any other charger.

18. Do not incinerate this appliance even if it is severely damaged. The batteries can

19. Keep hands and utensils away from the cutting blade while chopping food to

reduce the risk of severe injury to persons or damage to the food chopper. A scraper may be used but only when the food chopper is not running.

20. Refer to the “Care and Cleaning” section for instructions on cleaning the surfaces

in contact with food.

SAVE THESE INSTRUCTIONS

This product is designed for household use only. PRODUCT SAFETY ELECTRICAL REQUIREMENTS Charger adapter: Input: 120 Volts 60 Hz Cordless Hand Blender: Voltage: 8 Volts NOTE: If the plug does not fit fully in the outlet, contact a qualified electrician. Do not modify the plug in any way.

LITHIUM-ION BATTERY OPERATED PRODUCT DISPOSAL

Always dispose the battery operated products according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations.ENGLISH

1. Charge the battery until the Battery status indicator turns solid green.

2. Clean all the parts and accessories (see "Care and Cleaning" section).

3. Remove all packaging materials, if present.

*Full Charge: The Cordless Hand Blender will be fully charged in 2 hours. The Battery status indicator pulses when it charges and turns to solid green with a full charge. The Cordless Hand Blender will make 25 bowls of soup (354 ml), 7 batches on a full charge based on 12 ounces of tomato basil soup when following the recommended battery maintenance. **Quick Charge: In 20 minutes, the Cordless Hand Blender will quick charge. The Cordless Hand Blender will run for approximately one smoothie or one soup preparation with one quick charge when following the recommended battery maintenance. Battery status % Battery status Full charge* Quick charge** Green 30 % to 100 % 25 bowls soups, 7 batches 1 Smoothie

1 Soup Yellow 15 % to 30 % (Consider charging) Red Lower than 15 % (Need to charge soon) NOTE: Make sure to charge the battery, when the Battery status indicator is yellow. NOTE: It is best to store your Cordless Hand Blender at room temperature. BATTERY STATUS Food Quantity Preparation Speed Pulse Almonds/ Nuts 7 oz (200 gm) Place in whole nuts High Quick pulse 15 to 25 times Beef Cut into 3/4" (2 cm) cubes High Quick pulse 10 to 15 times Carrots Cut average carrot into quarters High Quick pulse 15 to 20 times Garlic 10 to 12 cloves Place in whole cloves High Quick pulse 10 to 15 times Onion

Cut into quarters High Quick pulse 6 to 10 times Parmesan cheese Cut into 3/8" (1 cm) cubes High Quick pulse 20 to 30 times

SUGGESTED FOOD ITEMS

*Processing settings are approximate. Actual settings may vary depending on quality of food and desired blending results. TIP: A Quick Pulse is one second On and one second Off operation.6 BATTERY CHARGING

In order to charge the battery, twist to unlock and remove the Blending arm. Plug the Charger adapter into a grounded electrical outlet.

Plug in the Charger adapter pin into the Charging port.

The battery status indicator pulses when it charges. It will be fully charged in 2 hours and the Battery status indicator turns solid green. Pulsing Solid Green IMPORTANT: Make sure that the Variable speed controller is not pressed before attaching or removing parts or accessories. PRODUCT USAGE

If using a Pan guard, place it on a flat surface. To insert the Pan guard, angle the blending arm to one side of the mounting clip. Then, gently pull the other mounting clip outward and push down the blending arm. Ensure the mounting clips are secured into place.ENGLISH

Insert the Cordless Hand Blender into the mixture. Press the Variable speed controller and Palm switch at the same time to start. Use your free hand to cover the top of the Blender jar for better stability and to avoid splashing. NOTE: Do not immerse Motor body into liquids or other mixtures.

Blending Use the draw up motion with the Cordless Hand Blender to move the ingredients within the jar. Slowly draw it upwards against the side of the jar. Repeat the process until the ingredients are at the desired consistency.

Drawing up PRODUCT USAGE Insert the Chopper blade into Chopper bowl. Add ingredients into the Bowl. For best results, cut the food items into 3/4" (2 cm) pieces.

USING THE CHOPPER ATTACHMENT (INCLUDED WITH KHBBV83) Align the Chopper attachment with the Motor body and press together. Do not twist the Motor body into place.

Use to cut and chop beef, onion, garlic, cheese, carrots, nuts, etc.8 PRODUCT USAGE Press the Variable speed controller and Palm switch at the same time to start. For best results, “pulse” the power by pressing and releasing the Variable speed controller until ingredients reach the desired consistency.

When chopping is complete, release the Variable speed controller.

USING THE WHISK ATTACHMENT (INCLUDED WITH KHBBV83) Use the whisk to whip cream, beat egg whites, mix instant puddings, vinaigrettes, mousse, or for making mayonnaise. Insert the Whisk into the Whisk adapter until it locks in place. Insert the Whisk accessory into the Motor body and twist to lock until it clicks.

Insert the Cordless Hand Blender into the mixture. Press the Variable speed controller and Palm switch at the same time to start. NOTE: Do not immerse Motor body into liquids or other mixtures.

TIP: The stainless steel whisk may scratch or mark non-stick coatings; avoid using the whisk with non-stick cookware. NOTE: After whisking is complete, release the Variable speed controller; then remove Cordless Hand Blender from mixture.ENGLISH

Remove the Blending arm, Pan guard, or Whisk accessory before cleaning.

Wipe the Motor body with a damp cloth. Mild dish soap may be used, but do not use abrasive cleansers.

1 Cup1/2 Cup1 1/2 Cup2 Cup2 1/2 Cup3 Cup4 Cup3 1/2 Cup Dishwasher safe parts - top rack only: Whisk, Pan guard, Chopper bowl, Chopper Blade, Blender pitcher, Blender jar, and Lid. Wash Blender arm, Chopper attachment and Whisk adapter in hot, soapy water.

IMPORTANT: Make sure that the Variable speed controller is not pressed before attaching or removing parts or accessories. For detailed information on the Cordless Hand Blender: Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes, and tips on how to use and clean your Cordless Hand Blender. TIP: You can use the Storage case of the Cordless Hand Blender to store your product. TROUBLESHOOTING GUIDE Problem Solution If the Cordless Hand Blender fails to start: Check if the Cordless Hand Blender is charged. Charge the battery when the Battery status indicator is red or when the Battery is completed drained. If the Cordless Hand Blender is not getting charged: If you have a circuit breaker box, check to make sure that the circuit is closed. If the Cordless Hand Blender stops while blending: When overloaded or jammed, it will automatically shut off to prevent motor damage. Divide contents into smaller batches. For certain recipes, adding liquid in the Jar may also reduce the load. If the problem cannot be corrected: See the “Warranty and Service” sections. Do not return the Cordless Hand Blender to the retailer – retailers do not provide service.10

UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA This warranty extends to the purchaser and any succeeding owner for Cordless Hand Blenders operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada. Length of Warranty: One Year Full Warranty from date of purchase. KitchenAid Will Pay for Your Choice of: Hassle-Free Replacement of your Cordless Hand Blender. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1.800.541.6390.

The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. KitchenAid Will Not Pay for: A. Repairs when your Cordless Hand Blender is used in other than normal single family home use. B. Damage resulting from accident, alteration, misuse or abuse. C. Any shipping or handling costs to deliver your Cordless Hand Blender to an Authorized Service Center. D. Replacement parts or repair labor costs for Cordless Hand Blenders operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specic legal rights and you may also have other rights which vary from state to state or province to province.ENGLISH

®/™ ©2019 KitchenAid. All rights reserved. Used under license in Canada. In the United States and Puerto Rico: For service information, or to order accessories or replacement parts, call tollfree at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218 Outside the United States and Puerto Rico: Consult your local KitchenAid dealer or the store where you purchased the Cordless Hand Blender for information on how to obtain service. For service information in Canada: Call toll-free 1-800-807-6777. Or write to: Customer eXperience Center KitchenAid Canada

200 - 6750 Century Ave.

Mississauga, ON L5N 0B7 We’re so condent the quality of our products meets the exacting standards of KitchenAid that, if your Cordless Hand Blender should fail within the rst year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Cordless Hand Blender returned to us. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service. If your Cordless Hand Blender should fail within the rst year of ownership, simply call our toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Cordless Hand Blender, use the carton and packing materials to pack up your original Cordless Hand Blender. We’re so condent the quality of our products meets the exacting standards of the KitchenAid brand that, if your Cordless Hand Blender should fail within the rst year of ownership, KitchenAid Canada will replace your Cordless Hand Blender with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service. If your Cordless Hand Blender should fail within the rst year of ownership, take the Cordless Hand Blender or ship collect to an Authorized KitchenAid Service Center. In the carton include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement Cordless Hand Blender will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner call our toll-free Customer eXperience Center at 1-800-807-6777. Or write to us at: Customer eXperience Center KitchenAid Canada

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR

ORDERING ACCESSORIES AND REPLACEMENT PARTS12

1 Cup 1/2 Cup 1 1/2 Cup 2 Cup 2 1/2 Cup 3 Cup 4 Cup 3 1/2 Cup

PRODUCT QUESTIONS OR RETURNS
