USER MANUAL WK1543 White Knight

WHITE KNIGHT	W K1543

Read and retain these instructions for future reference

Operating Instructions

Dear customer,

To enable you to use your new freezer effectively and safely, please read this instruction book carefully before you start the appliance, which contains important information for installation, safe use and maintenance of this appliance. Please keep the book for future reference and remember to pass it on to the new owner. The following symbol will be found in the book to guide you through the instruction:

Guide to use the instruction book
	Warnings Operating instruetions
i	Tips and notes

Warnings are stressed with a warning triangle or with signal words (Warning!, Important!), which are provided in the interest of your safety. Ensure that you understand them all before installing and using this appliance.

Tips and notes will inform you with necessary knowledge of how to use the appliance economically and environmentally.

Operating instructions presented in the section of "Trouble shooting" contain instructions for correction of possible malfunctions by users. If these instructions are not sufficient, contact your supplier.

INDEX

Page

Important Safety Instructions 3

Installation Instruction 5

Description of the Appliance 9

Using Your Appliance 10

Thermostat Control 11

Hints and Tips. 12

Trouble Shooting 13

Service/Repair 13

Important Safety Instructions

These warnings are provided in the interest of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are still unsure about the meaning of these warnings, contact the supplier for assistance.

Intended use

The refrigerator is designed for domestic use only, in detail for storage of edible foods at low temperature. If the refrigerator is used for other purposes such as commercial applications or used incorrectly, the manufacturer accepts no liability for any damage that may occur.

Alterations or changes to the refrigerator are not permitted for reasons of safety.

Prior to initial start-up

Check the appliance for transport damage. Under no circumstances should a damaged appliance be plugged in. In the event of serious damage, don't hesitate to contact with your supplier.

Refrigerant

The refrigerant (R600a), a natural gas with high level of environmental compatibility and non-flammable, is contained within the refrigerant circuit of the appliance. Ensure that none component of the refrigerant circuit becomes damaged during transportation and installation. If the refrigerant circuit should be damaged: The refrigerant (R600a) is flammable.

Caution: risk of fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.

The instructions shall include the warnings:

• WARNING—Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING—Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  WARNING-Do not damage the refrigerant circuit.
• WARNING—Do not use electrical appliances inside the food storage compartments of the recommended by the manufacturer.

• WARNING—The appliance is not intended for use by young children or infirm persons without supervision.

• WARNING—This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  WARNING-Young children should be supervised to ensure that they do not play with the appliance.
  WARNING-If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• WARNING—When disposing of the appliance do so only at an authorized waste disposal centre. Do not expose to flame.

Safety of children

Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of suffocation! Keep packaging materials away from children!

Remember to dispose the old appliance that is unusable. Pull out the mains plug, cut off the mains cable, break or remove spring or bolt catches if fixed. And ensure that children cannot lock themselves in the appliance when playing (there is risk of suffocation) or involve themselves in other dangers, for children cannot recognize the hazard present in household appliances themselves. Therefore, it is very important for parents to make adequate supervision in case children play with the appliance!

Daily operation

Containers with flammable gases or liquids can leak at low temperature. There is a risk of explosion! Do not store any container with flammable materials such as spray cans in the refrigerator.

Do not operate any electrical appliance in the refrigerator (e.g. electric ice cream makers, mixers etc.).

Before cleaning the appliance, always switch off the appliance and unplug it, or pull the house fuse or switch off the circuit breaker.

In case of malfunction

If a malfunction occurs, please look first in the "Trouble Shooting" section for help. If the information given there does not help, just leave it alone and ask your supplier for help. Under no circumstances should you attempt to repair the appliance yourself. For repairs carried out by inexperienced persons may cause injuries or serious malfunctions.

Installation Instruction

Installation Requirements

The appliance should be placed in a dry and well-ventilated room. Since the performance and energy consumption of the refrigerator can be affected by the ambient temperature, the following instructions should be ensured:

• Don't expose the appliance to direct sunlight,
• Don't install the appliance close to radiators, cookers or other sources of heat,
• Place the appliance at a location where the ambient temperature corresponds to the climate classification for which it is designed. You can find the climate classification on the circuit-diagram-serial-plate located at the left-upper side of the appliance. The following table shows this climate classification and its matching ambient temperature:

Climate classification Ambient temperature
SN 10~32°C
N 16~32°C
ST 16~38°C
T 16~43°C

Your appliance will be heavy when loaded with foods and must therefore be placed on a strong firm floor and ensure the power socket is accessible.

Ventilation Requirements

Ensure that the air could circulate freely around the cabinet. There should be 100mm between the top of the appliance and any overhanging furniture, and a gap of 25mm on either side of the appliance.

Ensure that the appliance does not stand on the electrical supply cable. Parts that heat up should not be exposed. Whenever possible the back of the appliance should be close to a wall but remember to leave the suitable distance required for ventilation.

Leveling

The appliance should be level in order to eliminate rocking. To make the appliance level, it should be upright and both adjusters should be firmly contacted with the floor. You can also adjust the level by screwing out the appropriate level adjuster at the front (use your fingers or a suitable spanner), but much care should be taken when moving this appliance since it should be heavy.

The supply cord

Care must be taken to ensure that the appliance does not stand on the electrical supply cable. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

Reversing the door

The side at which the door opens can be changed from the right side (as supplied) to the left side, if the installation site requires.

Before you start lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the cooling pipes at the rear of the refrigerator.

1. Stand the refrigerator, use a flat bladed screw driver to remove the 4 screw covers at the rear of the refrigerator lid.

1. Unscrew and lift the lid from the rear and remove it, then lift the upper door and place it on a padded surface to prevent it scratched.

1. use a flat bladed screw driver to remove the front ornament of top cover plate.

1. Replace the front ornament of top cover plate in the other side.

1. Remove the upper hinge core, transfer it to left side and tighten securely, then put it in a safe place

6.

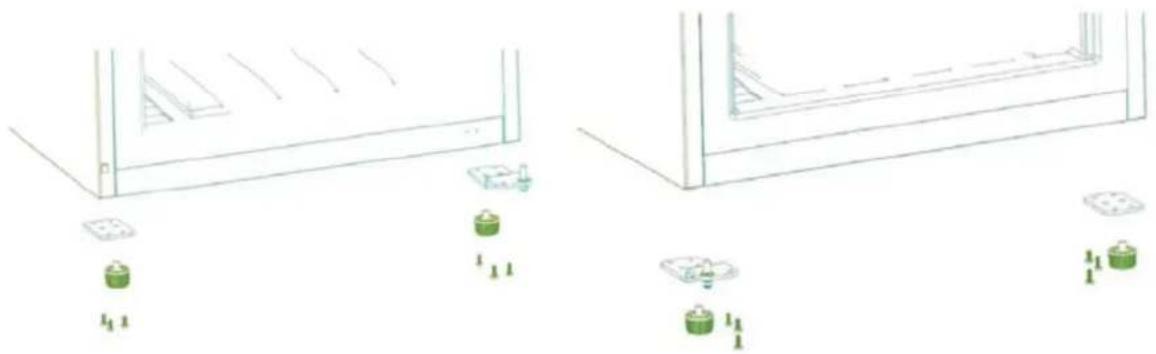

1. Remove both adjustable feet and remove the bottom hinge bracket by unscrewing the bolts.

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position. Secure the door's level, make the bottom hinge pin into the lower hole of the door, then tight the bolts.

1. Replace the lid by fitting the upper hinge core into the upper door's hole, securing it with the 4 screws. Replace the screw covers.

When you reverse the door, please do this first:

Move the accessory B from the upper cover of upper door and fit the accessory A that is a small detachable part from a small bag.

After you reverse the door, please do this:

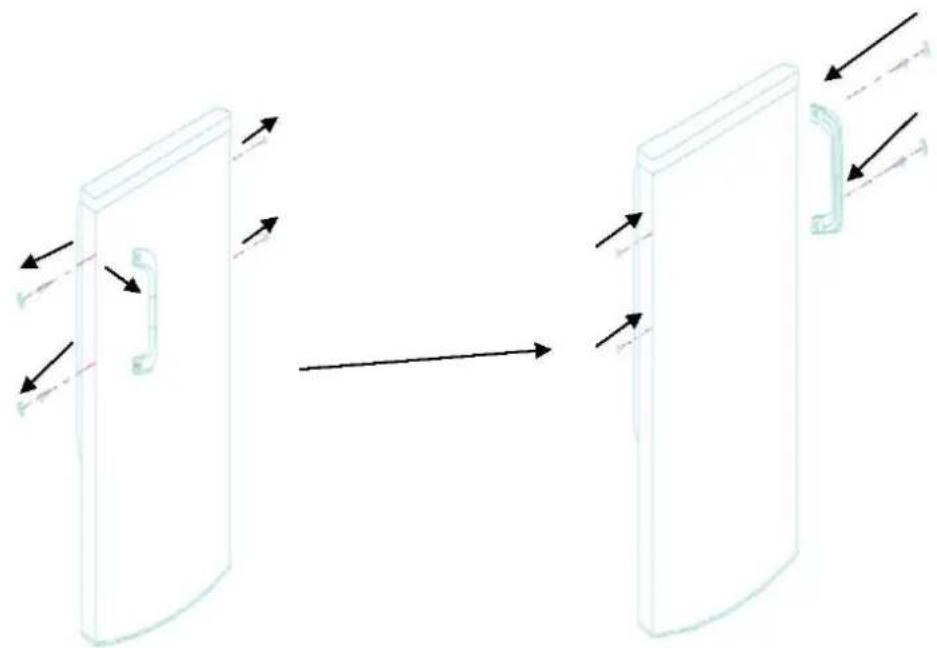

Move the handle from the left side of upper door to the right side.

Description of the Appliance

View of the appliance

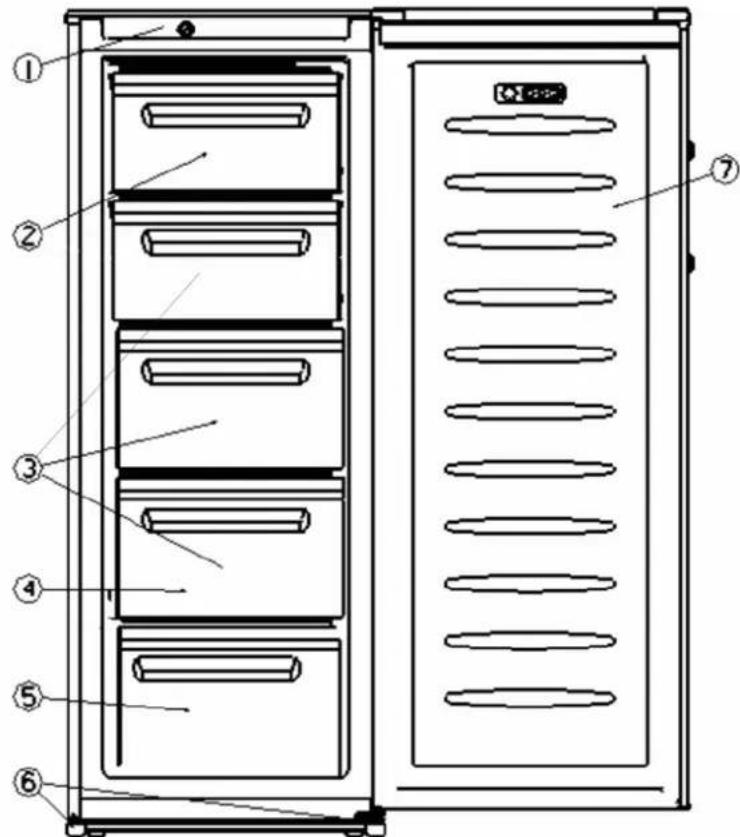

1. Control panel 2. Upper drawers 3. Drawers 4. Ice tray (inside) 5. Lower drawer 6. Caster 7. Door

Note:

Due to unceasing modification of our products your refrigerator may be slightly different from this Instruction Manual, but its functions and using methods remain the same.

Freezer chamber

It is for freezing and storing frozen foods and making ice cream, etc.

Ice tray

It is for making ice, pour cool boiled water into ice tray up to 4/5 of its volume, place it in freezer room for 2 hours and the ice can be made automatically When you want to take ice tubes, please twist the ice tray slightly, and the ice tubes are separated form the ice tray. But do not bend it, otherwise it will crack.

Notes: Technical information

Because it takes a long time to make ice tubes, you can not hold the ice tray directly when take out the ice cubes to avoid the ice tray sticking and hurting your hands.

Drawers in freezer

It is for freezing or storing foods. You must cut the big meat into small pieces to avoid hard cutting when cook. The quick-freeze foods must be evenly placed in drawer, and put them together to store after freezing.

Using Your Appliance

This appliance is designed for domestic use only, specifically for the storage of edible foods. And it is designed to operate in ambient temperatures (surrounding air temperature) between 16^ and 38^ . If the temperature exceeds that designed, either colder or warmer, the appliance will not work effectively and correctly. Should the ambient temperature be exceeded for long period, the temperature in the freezer will rise above -18^ and food spoilage may occur.

Before use

Remove all securing tapes. Wash the inside of the appliance with lukewarm water added with a little bicarbonate of soda (5ml to 0.5 liter of water). Do not use soap or detergent since the smell may linger. After cleaning, dry the appliance thoroughly.

To start the appliance

Operating instructions

1. Allow the appliance to stand for 2 hours after installation.
2. Plug in the appliance and turn on the power.
3. Turn the thermostat control to the required setting. A midway setting is usually suitable for normal operation.
4. Leave the appliance for approximately 4 hours to reach the correct temperature before placing food inside.

Thermostat Control

The thermostat control situated in the control panel regulates the temperature of the freezer compartment.

• Position“MIN”-Cold.
• Position“NORMAL”-Colder normally, setting at this position.
• Position“MAX”-Coldest.

The temperature will be affected by:

• Room temperature
• How often the door is opened
• How much food is stored
• Position of the appliance

In determining the correct temperature control setting, all these factors have to be considered and some experimentation may be necessary. Do not allow children to tamper with the controls or play with the product.

The freezer compartment

The symbol means that your freezer will store frozen food at -18 °C (-0.4F) or colder allowing for long term frozen-food storage and freezing of fresh food. The freezer temperature is controlled automatically by the thermostat situated in the control panel. Due to the different installations, methods of usage and weather conditions, adjustments to the temperature settings may be required.

These are best assessed against a temperature reading on a thermometer buried in the frozen food. The reading must be taken quickly as the thermometer temperature will rise rapidly after removal.

Freezing fresh food

Place the fresh food in the top freezer drawer. Food may need rearranging to achieve this. During the freezing process the temperature of fresh food should be reduced quickly so that ice crystals are kept as small as possible to avoid damaging the structure of food. If freezing takes place slowly large ice crystals form and these will affect the quality of food once it has defrosted.

Turn the switch to "SUPER"24 hours before loading the food. Existing frozen food should be rearranged to leave space in the top two drawers for freezing. The packets to be frozen should be placed in the drawer in contact with the drawer surface as far as possible and spaced apart to allow cold air to circulate between them. They should not touch existing packets.

If there is enough room, transfer the food you have frozen to the baskets or drawers to allow you to freeze a further load in the top drawer. No harm will result if you forget to turn off the fast freeze switch after 24 hours, but by reason of economy, try to remember to turn it off when freezing is complete. Exceptionally large items can be stored by removing the upper basket. Frozen food should not be refrozen once it has thawed out. Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or "frost/freezer burns".

For safety reasons, the freezer baskets are fitted with stops but are readily removed by

pulling them forward to the stop, then lifting the front and pulling all the way out. Refit by reversing this procedure.

Frozen food storage

Pre-packed commercially frozen food should be stored in accordance with the manufacturer's instructions for a 4 star frozen food compartment and should be put in the freezer as soon as possible after purchase. Your freezer provides for long term storage which generally means up to 3 months but the length of the time can vary and it is important to follow the recommended times shown on packets of commercially frozen food. Do not place sealed containers or carbonated liquids such as fizzy drinks into the freezer as it creates pressure on the container which may cause it to explode leading to damage to the freezer. Ice cubes and ice lollies should not be consumed immediately after removal from the freezer as it may result in low temperature skin abrasions.

Hints and Tips

Food storage

To use your appliance more effectively, evaporator should be placed in the larder compartment. Avoid buying frozen food if you cannot store it. Store in original container is advisable. Please place the frozen foods you bought into the freezer as soon as you arrive home, and make sure:

• Do not push food together too much.
• Try to allow air to circulate around each item.
• Do not store food uncovered.

Ensure the foods placed in the freezer are dated and labeled, and used them in date order, so you can consume them at its best. Remember to remove suspect food from your freezer and keep it cleaning inside.

Energy saving advice

Do not locate the appliance close to heat sources such as cookers, dishwashers or radiators. Make sure the appliance is placed in a cool well-ventilated room so that the air can circulate very well.

Avoid unnecessary frosting in the cabinet by packing all foodstuffs into sealed packages. Avoid keeping the door open for a long time, for the warm air outside will enter the cabinet as well as the cold air inside will leak out of the cabinet, which will cause energy wasting. Ensure there exists no obstruction preventing the door from closing properly.

In the event of a power failure

If there is a power failure when the appliance works, don't open the door. If the temperature inside your freezer should rise, do not refreeze the food without checking its state.

The following guidelines will assist you:

• Ice cream once thawed should be discarded.
• Bread and cakes: Can be refrozen without danger.
• Shellfish: Should be refrigerated and used up quickly.
  Cooked dishes: i.e. casserole should be refrigerated and used up.
  Large pieces of meat: Can be refrozen if there are ice crystals remaining within them.
• Small joints: Should be cooked and then refrozen as cooked dishes.
• Chicken: Should be cooked and refrozen as a fresh dish.

Trouble Shooting

Noises during Operation

The following noises are normal characteristics of the appliance when it works:

• Whenever the compressor switches on or off, a click can be heard.
• As soon as the compressor is in operation, you can hear it humming.
• When refrigerant flows into thin tubes, you can hear bubbling or splashing noises.
• Even after the compressor has been switched off, the noise of splashing can be heard for a short time.

Repairs to the freezer may only be conducted by competent service engineers. Improper repairs can lead to significant hazards for users. If your appliance needs repairing, please contact your specialist dealer or your local Service Force Center.

PROBLEM SOLUTION
The freezer does not operate	Check that it is properly plugged in, that the fuse has not blown or that the circuit-breaker has not tripped.
The freezer is too warm Check the thermostat and make sure that the door stays open as little as possible. Also check that the door closes properly.
The motor runs continuously	Make sure that the freezer is well ventilated, leaving gaps as mentioned in the "Installation" chapter. Also check that your appliance is not exposed to a direct source of heat. You may also have placed too much food inside or the door may not close properly.

Service/Repair

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

• This product should be serviced by an authorized Service Centre, and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunctioning. Refer to your local Service Centre, and always insist on genuine spare parts.
• This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARRANTY

You have 2 years warranty on technical defects after purchase

Not included in warranty:

• Other than normal domestic use (this appliance is for normal domestic use only).

• Causes not being related directly to the appliance such as;

Damage occurring during transport or because of wrong usage such as dents, scratches, broken parts.

Installation errors (such as wrong voltage).

• Malfunctioning because of improper usage, dust/fluff in and on the appliance, amongst others blocking of air circulation, as well as breaking of plastics, rubber, glass which other than by normal use has gone defect, such to be judged by the service man and or importer.

You have 2 year warranty on technical defects on the appliance after date of purchase, warranty is only valid if a valid notice of purchase/invoice can be shown.

Warranty rights are not transferable.

If appliance is offered for servicing it needs to be clean, otherwise service can be refused.
