Brand	Zanussi
Model	ZFU 20201 WA
Product type	Freezer
Dimensions (H x W x D)	1544 x 595 x 658 mm
Supply voltage	230-240 V
Frequency	50 Hz
Climate class	SN, N, ST, T
Operating autonomy	30 h
Refrigerant	R600a (isobutane)
Fast Freeze function	Yes (Fast Freeze)
Automatic defrost	Yes (No Frost)
Temperature alarm	Yes
Indicator lights	Alarm, Fast Freeze, Operation
Number of freezer baskets	Not specified
Maxibox drawers	Yes
Door reversibility	Yes (user reversible)
Maintenance	Cleaning with warm soapy water
After-sales service	Use original spare parts
Warranty	2 years

Frequently Asked Questions - ZFU 20201 WA ZANUSSI

How to adjust the temperature of my Zanussi ZFU 20201 WA freezer?

Turn the thermostat to an intermediate position for automatic setting. For colder, turn towards maximum; for less cold, towards minimum.

What to do if the alarm light turns on?

The alarm light turns on in case of abnormal temperature rise (e.g., power cut). Once normal conditions are restored, it turns off automatically.

How to use the Fast Freeze function?

Press the Fast Freeze switch at least 24 hours before freezing fresh food. The light turns on. The function deactivates automatically after 24 hours.

What is the maximum quantity of food to freeze in 24 hours?

It is indicated on the rating plate located inside the appliance. Do not exceed this value.

How to clean my freezer?

Unplug the appliance. Clean the interior and accessories with warm soapy water. Do not use abrasive products. Dry thoroughly.

What to do if the door does not close properly?

Clean the door seals. If necessary, adjust the door following the instructions in the Installation chapter or contact after-sales service.

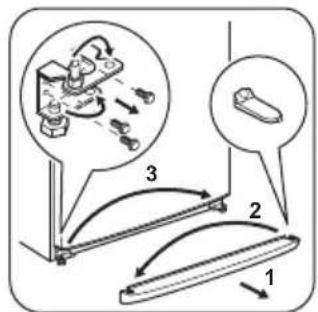

How to change the door opening direction?

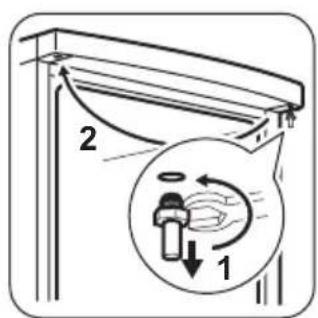

Unplug the appliance. Follow the steps in the manual: remove the base, disassemble the hinges, reverse the top pin and reassemble the door. Have someone help you.

My freezer makes noise, is this normal?

Yes. Gurgling, humming or cracking sounds are normal, due to the refrigeration circuit, compressor or thermal expansion.

What to do in case of accidental defrosting?

If the power cut exceeds the operating autonomy (30 h), quickly consume the defrosted food or cook it before refreezing.

Where to find the technical specifications of the appliance?

They are on the rating plate located inside the freezer (left side) and on the energy label.

USER MANUAL ZFU 20201 WA ZANUSSI

Diagram of a refrigerator drawer with an open drawer and two arrows indicating movement (no text or symbols)

Ausrichten

Technical diagram of a bolt and nut assembly with directional arrows indicating movement (no text or labels)

Line drawing of a door drawer with an open lid and two directional arrows indicating movement (no text or symbols)

Mise à niveau

Technical diagram of a bolt and nut assembly with directional arrows indicating movement (no text or labels)

Line drawing of a refrigerator drawer with an open drawer and two arrows indicating direction (no text or symbols)

Primo utilizzo

Technical diagram of a vertical structure with directional arrows and labeled section B (no text or symbols beyond label)

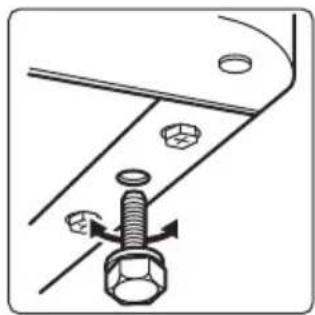

Livellamento

Technical diagram of a bolt and nut assembly with directional arrows indicating movement (no text or labels)

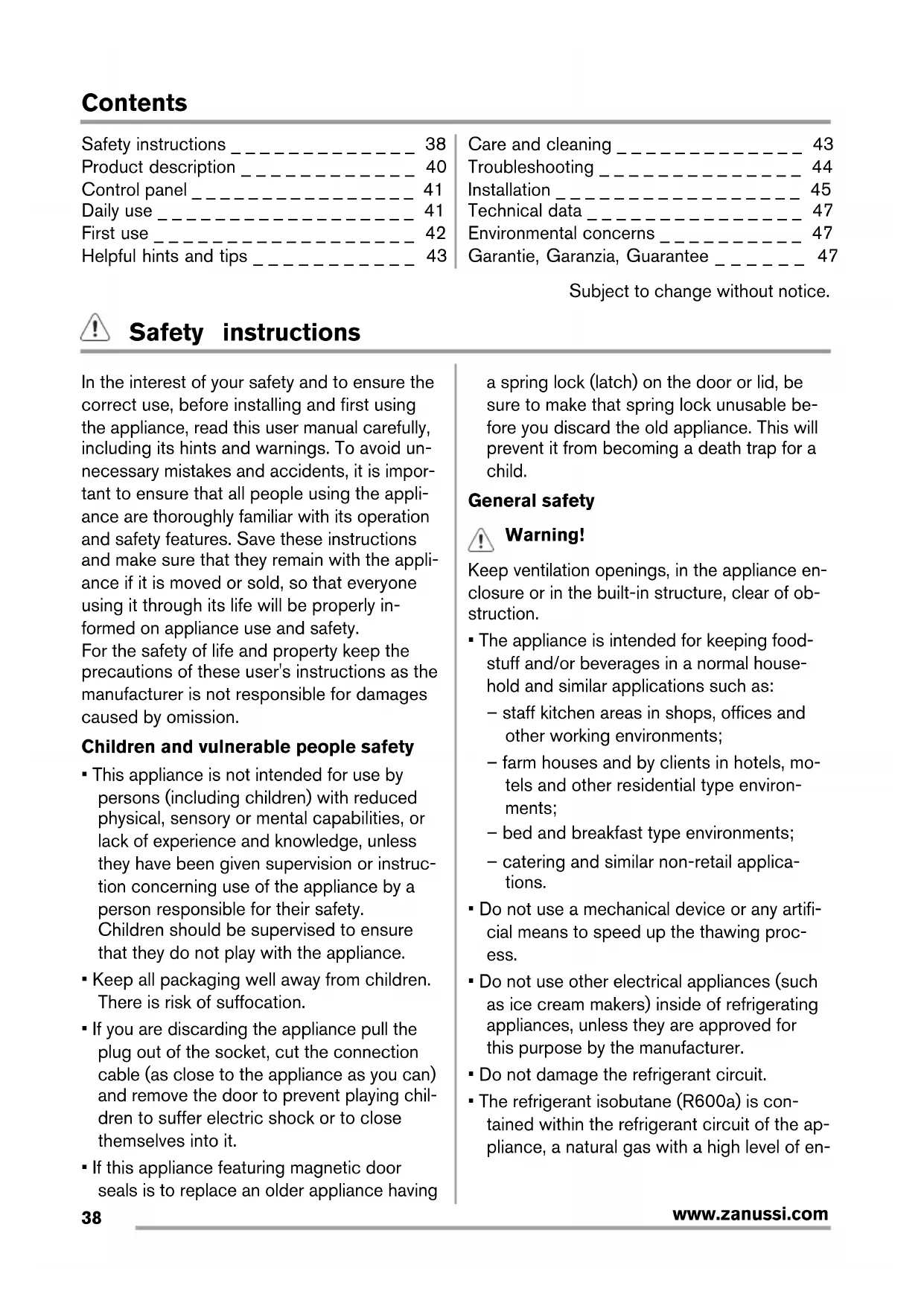

Safety instructions ____ 38
Product description 40
Control panel 41
Daily use 41
First use 42
Helpful hints and tips ____ 43

Care and cleaning 43
Troubleshooting ____ 44
Installation 45
Technical data 47
Environmental concerns 47
Garantie, Garanzia, Guarantee ____ 47

Subject to change without notice.

Safety instructions

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having

a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

Warning!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
  – farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
  – catering and similar non-retail applications.

- Do not use a mechanical device or any artificial means to speed up the thawing process.

- Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

- Do not damage the refrigerant circuit.

- The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of en-

vironmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

- avoid open flames and sources of ignition

– thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

Warning! Any electrical component

(power cord, plug, compressor) must be

replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

- This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

- Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for

household appliances use only. They are not suitable for household room illumination.

Daily Use

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Never use a hair drier or other heating appliances to speed up defrosting. Excessive heat may damage the plastic interior, and humidity could enter the electric system making it live.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appli-

ance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

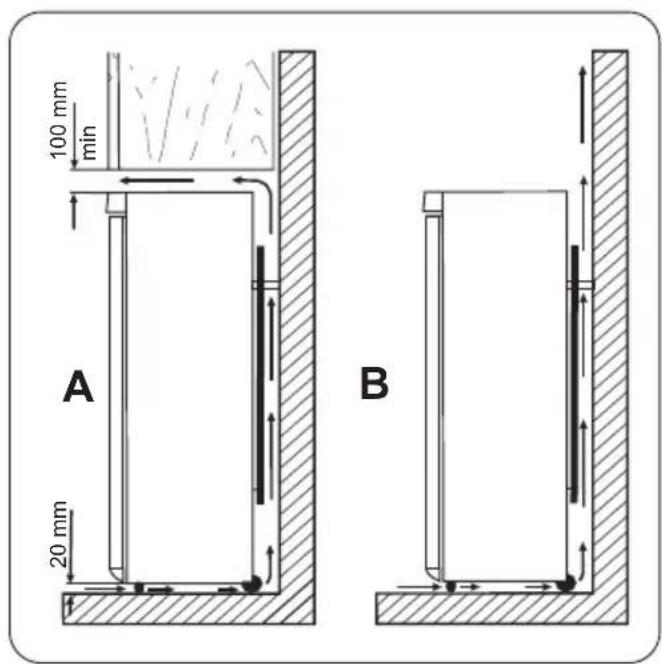

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If a water connection is foreseen).

Service

- Any electrical work required to do the servicing of the appliance should be carried out

by a qualified electrician or competent person.

- This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

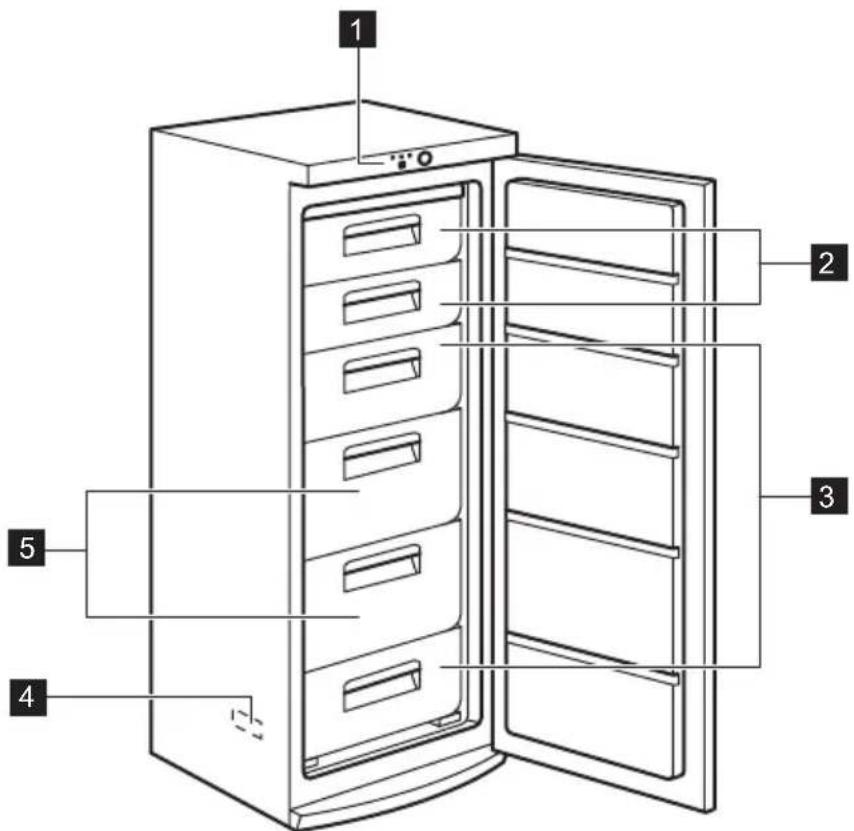

Product description

1 Control panel
2 Flaps
3 Freezer baskets

4 Rating plate
5 Maxibox baskets

Control panel

1 Alarm Light
2 Fast Freeze Indicator
3 Fast Freeze Switch
4 Pilot Light
5 Temperature Regulator

Switching on

Insert the plug into the wall socket.

Turn the Temperature regulator clockwise to a medium setting.

The Pilot light and the Alarm light will light up.

Switching off

To turn off the appliance, turn the Temperature regulator to the "0" position.

Fast Freeze function

To activate the Fast Freeze function, press the Fast Freeze switch.

The Fast Freeze light will light up.

Temperature regulation

The temperature is automatically regulated.

Daily use

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours. The freezer drawers ensure that it is quick and easy to find the food package you want. If large quantities of food are to be stored, remove all drawers except for the bottom drawer which needs to be in place to provide good air circulation. On all shelves it is possible to

To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to obtain the minimum coldness.
• turn the Temperature regulator toward higher settings to obtain the maximum coldness.
  The intermediate position is usually the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature
• how often the door is opened
  ■ the quantity of food stored
• the location of the appliance.

Excessive Temperature Alarm

In the event of an abnormal temperature rise inside the freezer (e.g. power cut) alarm light comes on.

When normal conditions are restored the alarm light will switch off automatically.

place food that protrude until 15 mm from the door.

Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh food activate the Fast Freezing function at least 24 hours before placing the food to be frozen in the freezer compartment. Place the fresh food to be frozen in the top compartment.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the fridge.

The freezing process lasts 24 hours: during this period do not add other food to be frozen. After 24 hours, when the freezing process is completed, deactivate the Fast Freezing function (see "Fast Freezing function").

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

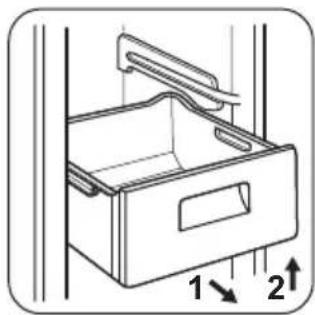

Removal of freezing baskets and glass shelves from the freezer

Some of the freezing baskets have a limit stop to prevent their accidental removal or falling out. At the time of its removal from the freezer, pull the basket towards yourself and, upon reaching the end point, remove the basket by tilting its front upwards

At the time of putting it back, slightly lift the front of the basket to insert it into the freezer. Once you are over the end points, push the basket back in their position.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap The appliance is equipped with shelf stops to secure the shelves.

Line drawing of a refrigerator drawer with two directional arrows indicating movement (no text or symbols)

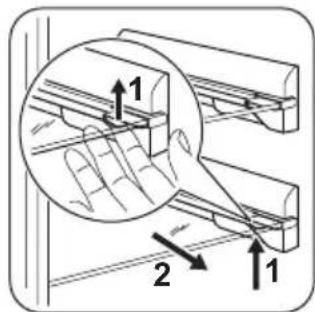

The shelves must be lifted up (1) on each side and than pulled outwards (2).

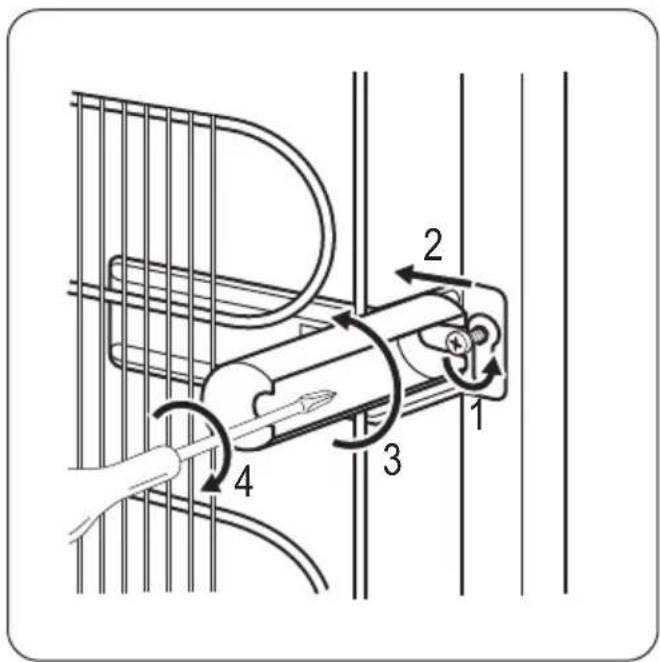

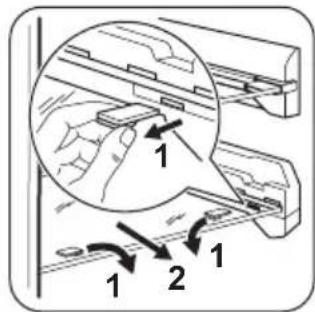

The glass shelves equipped with expander rollers are secured with locking pins.

To remove them proceed as follow:

1. Use a screwdriver to loosen the locking pin on each side on the expander roller.

2. Then pull out both locking pin (1).

3. Then pull the glass shelf outwards (2).

so as to remove the typical smell of a brand-new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Normal Operating Sounds

• You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped through the coils or tubing. This is correct.
• When the compressor is on, the refrigerant is being pumped around and you will hear a whirring sound and a pulsating noise from the compressor. This is correct.
• The thermic dilatation might cause a sudden cracking noise. It is natural, not dangerous physical phenomenon. This is correct.
• When the compressor switches on or switches off, you will hear a faint "click" of the temperature regulator. This is correct.

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;

Care and cleaning

Caution! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and re-

• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.

charging must therefore only be carried out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

Troubleshooting

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

Defrosting

Your appliance is frost free. This means that there is no buildup of frost when it is in operation, neither on the internal walls nor on the foods.

The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan.

Warning! Before troubleshooting, disconnect the mains plug from the mains ket.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Problem Possible cause Solution
The appliance does not operate. The Pilot light does not flash.	The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
The appliance has no power.	There is no voltage in the mains socket.	Connect a different electrical appli-ance to the mains socket.Contact a qualified electrician.
The Pilot light flashes. The appliance is not working pro-erly.		Contact a qualified electrician.
The Alarm light flashes. The temperature in the freezer is too high.		Refer to "Excessive Temperature Alarm"
The compressor operates continually.	The temperature is not set correct-ly.	Set a higher temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The door has been opened too frequently.		Do not keep the door open longer than necessary.
Problem Possible cause Solution
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
The room temperature is too high. Decrease the room temperature.
The temperature in the freezer is too low.	The temperature regulator is not set correctly.	Set a higher temperature.
The Fast Freeze function is switched on.		Refer to" Fast Freeze function".
The temperature in the freezer is too high.	The temperature regulator is not set correctly.	Set a lower temperature.
Many products are stored at the same time.		Store less products at the same time.
Products are too near to each other.		Store products so that there is cold air circulation.
There is too much frost.	Food is not wrapped correctly.	Wrap the food correctly.
The temperature regulator is not set correctly.		Set a higher temperature.

Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".

Installation

1. If necessary, replace the defective door gaskets. Contact the Service Center.

Caution! Read the "Safety Information" carefully for your safety and correct

operation of the appliance before installing the appliance.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to

disconnect the appliance from the mains

power supply; the plug must therefore be easily accessible after installation.

Rear spacers

You can find the two spacers in the bag with documentation.

Do these steps to install the spacers:

1. Release the screw.
2. Engage the spacer below the screw.
3. Turn the spacer to the right position.
4. Tighten again the screws.

Levelling

When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front.

Technical diagram of a bolt and nut assembly with directional arrows indicating movement (no text or labels)

Door reversibility

Important! To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations.

To change the opening direction of the door, do these steps:

• Remove the plug from the power socket.
• Tilt back the appliance carefully so that the compressor cannot touch the floor.
• Remove the plinth (1).
• Remove the cap (2) and position it on the opposite side.
• Unscrew and remove the lower hinges. (3)
  ■. Remove the door.

• Unscrew the upper pin (1) and place it on the opposite side. (2)
• Refit the door.

- Stand the appliance upright.

• Unscrew the handle (1) and fix it on the opposite side (2).
• Re-insert the cover pins (3) on the opposite side.

Do a final check to make sure that:

• All screws are tightened.

• The edges of the doors run parallel to the side edge of the appliance.

• The magnetic seal adheres to the cabinet.

• The door opens and closes correctly. It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket.

In case you do not want to carry out the above mentioned operations, contact the nearest After Sales Service Force. The After Sales Service specialist will carry out the reversibility of the doors at your cost.

Technical data

Dimension
Height 1544 mm
Width 595 mm
Depth 658 mm
Rising Time 30 h
Voltage 230 - 240 V
Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

Environmental concerns

Recycle the materials with the symbol ⚙ Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and

electronic appliances. Do not dispose appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

CH Garantie, Garanzia, Guarantee

Kundendienst, service-clientèle, Servizio clienti, Customer Service Centres

Servicestellen Points de Service Servizio dopo vendita			Point of Service
5506 Mägenwil/Zürich Industriesstrasse 10	3018 Bern Morgenstrasse 131	1028 Préverenges Le Trési 6	6928 Manno Via Violino 11
9000 St. Gallen Zürcherstrasse 204e
4052 Basel St. Jakob-Turm Birsstrasse 320B
6020 Emmenbrücke Seetalstrasse 11
7000 Chur Comercialstrasse 19

Ersatzteilverkauf/Points de vente de rechange/Vendita pezzi di ricambio/spare parts service:

5506 Mägenwil, Industriestrasse 10, Tel. [phone]

Fachberatung/Verkauf/Demonstration/Vente/Consulente (cucina)/Vendita

8048 Zürich, Badenerstrasse 587, Tel. [phone]

Warranty For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof). The guarantee covers the costs of materials, labour and travel. The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

www.zanussi.com/shop
